DOOSAN DAEWOO PUMA 2000SY CNC Turning Center | |
---|---|
Make | Doosan Daewoo |
Model No. | Puma 2000SY |
Year Of Manufacture: | 2005.08 |
Serial # | P200SY0504 |
Condition | Very Good. |
Country of Origin: | Korea |
Comes with LNS Quick Load Servo S3 Bar Feeder.
All Available Books, Tool Holders and Tooling.
All specifications are approximations and are subject to verification.
- DOOSAN DAEWOO PUMA 2000SY Equipped With:
- 12-Station Turret – Live / Rotary Tools ( 3 Live Tools)
- Full C-Axis on Both Spindles
- Fanuc 18i-tb CNC Control
- Big Bore Collet Chuck on both Spindles
- Y-Axis Traverse
- Automatic Tool Presetter
- Rigid Tapping on Both Spindles
- Pcmcia Card Port
- Tool Monitoring System
- Foot Operated Control for Chuck
- Turbo Systems Coolant Tank
- Comes with LNS Quick Load Servo S3 Bar Feeder.
- Comes with 3 Live Tools & Static Tool Holders.
- All Available Books, Tool Holders and Tooling.
- DOOSAN DAEWOO PUMA 2000SY Specifications:
- Max. Turning Diameter: 13″
- Max. Swing over Bed: 23.6″
- Distance between Spindles: 33.8″
- Max. Turning Length: 20.10″
- Max. Bar Capacity: 2.625″
- X-Axis Travel: 33.8″
- Y-Axis Travel: 9.84″
- Z-Axis Travel: 22.8″
- X Rapid Traverse Rate: 740 Inch Per Minute
- Z Rapid Traverse Rate: 945 Inch Per Minute
- Spindle Bore: 3.0″
- Main Spindle Nose: A2-6
- Sub Spindle Nose: A2-5
- Main Spindle Speed: 45-5,000 RPM
- Sub Spindle Speed: 60-6,000 RPM
- Main Spindle Power: 20 HP
- Both Spindle Indexing: 0.001 Degree
- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Weight : 11000 lbs Approx.
- Overall Dimensions: 120″ x 67″ x 88″ High

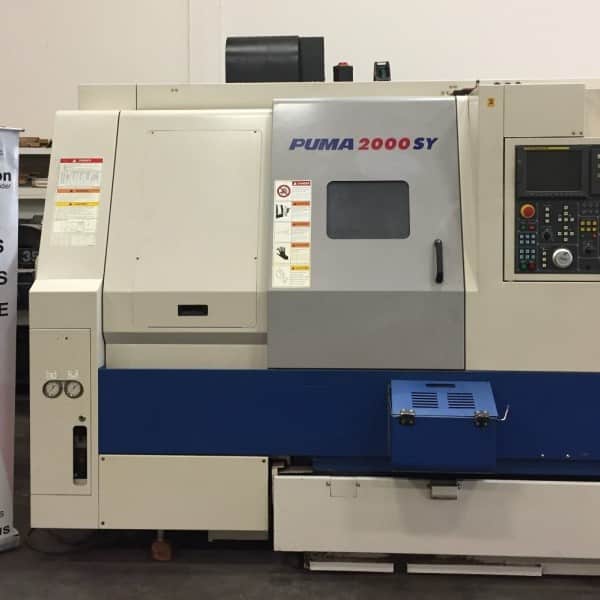

DOOSAN DAEWOO PUMA 2000SY Comes as shown in pictures.
