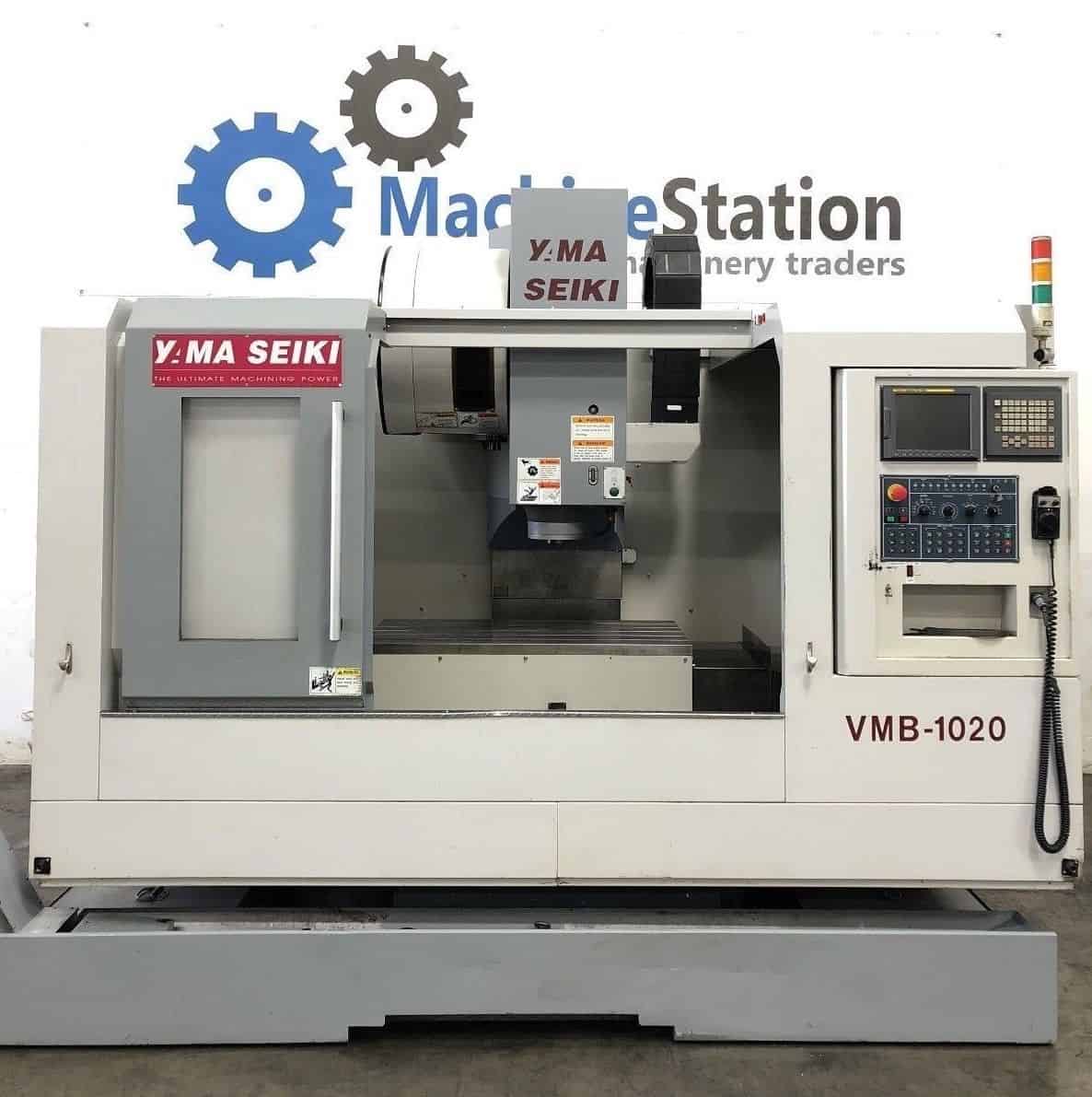

| YAMA SEIKI VMB-1020 VERTICAL MACHINING CENTER | |
|---|---|
| Make | Yama Seiki |
| Model No. | VMB-1020 |
| Year of Manufacture: | 2007, Installed 2009 |
| Serial # | 7009 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has very low Cutting Hours, 4th Axis Ready, 40 Taper, 24 Station Side Mount Tool changer, 4 Boxway Machine and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- Yama Seiki VMB-1020 Features:
- Fanuc 18i-MB CNC Control
- 40 Taper Geared Head Spindle
- 4th Axis Ready ( Drive and Wiring Installed )
- 20 Tools Side Mount Bidirectional Tool Changer
- PCMCIA Card Slot
- Box Way Construction All Axis
- Powerful 25 hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Electrical Panel AC
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Conveyor
- Work light
- Books and Manuals
- Yama Seiki VMB-1020 Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 23.6″
- Z-Axis: 23.6″
- Spindle Nose to Table (Min.- Max.): 4.92″ – 28.5″
- Spindle Nose to Column: 26.8″
- Table:
- Length: 44.1″
- Width: 23.6″
- Max Weight on Table: 2200 lbs
- T-Slot no. & Width: 5 X 0.7″
- Gear Head Spindle:
- Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Power: 25 HP
- Feed rates:
- Rapid X,Y & Z: 945 inch/P.M
- Cutting Feedrate: 788 inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 18 lbs
- Max Tool Length: 9.84″
- Max Tool Dia.: 3.5″
- General:
- Air Required: 85 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 185″ x 128″ x 122″ High
- Weight: 15000 lbs
Yama Seiki VMB-1020 Comes as shown in pictures.
