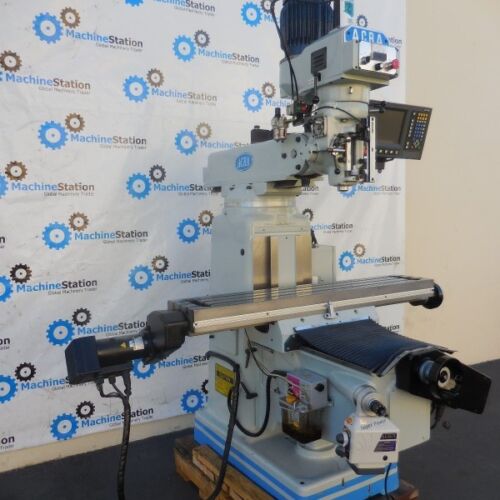

ACRA CNC VERTICAL MILLING Model AM3 CNC 2 Aixs | |
---|---|
Make | Acra |
Model No. | AM3VVACNC |
Year of Mfg: | 2007 |

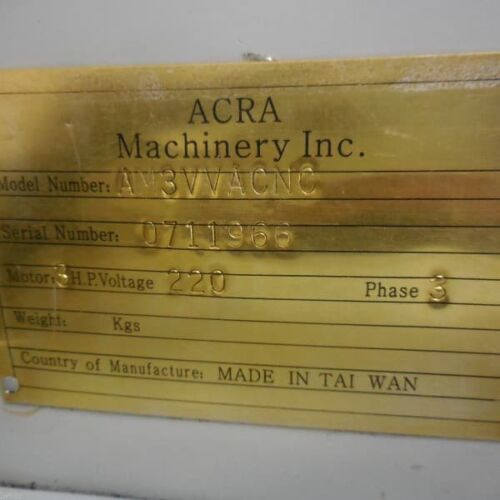

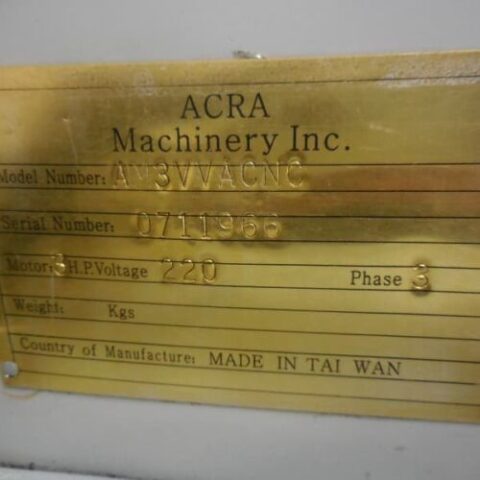

Serial # | 0711966 |
Condition | Very Good |
Country of Origin: | Taiwan |
- ACRA CNC Vertical Milling Features:

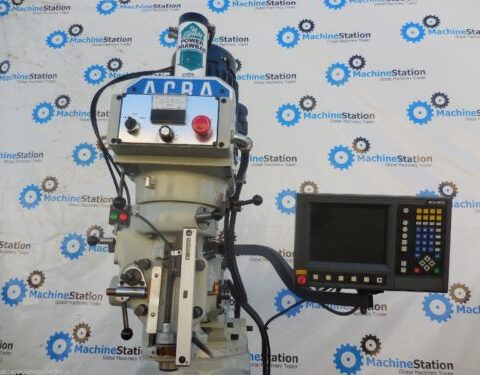

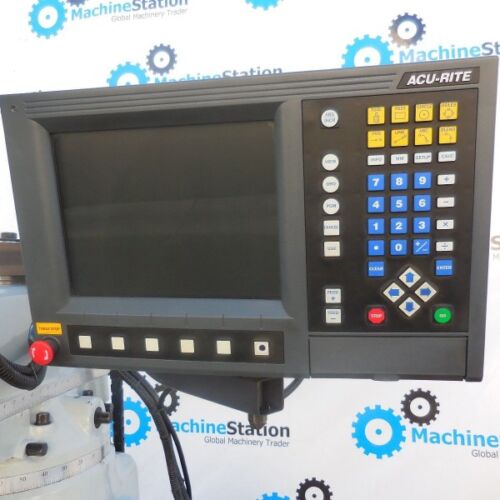

- Accurite Millpwr CNC Control.
- 2-Axis CNC Operation.
- 3-Axis Digital Readout.
- Digital Variable Speed Head.
- Power Draw Bar.
- Auto Lube System
- Power feed on Z Axis
- ACRA CNC Vertical Milling Specifications:

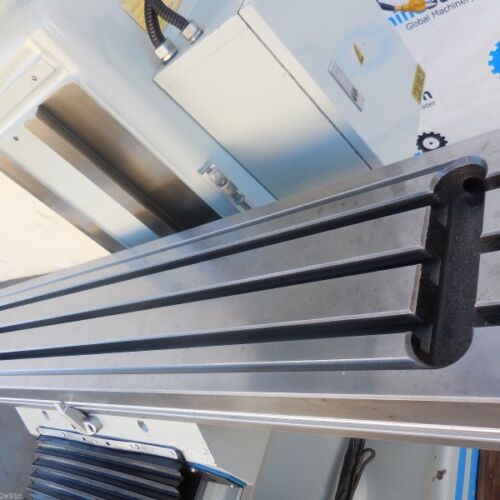

- Work Table:
- Surface Area: 54″ x 10″
- T-Slot Center Distance: 3 @ 2.5″ centers
- T-Slot Sizes: 5/8″
- Maximum Weight of Workpiece: 750 lbs.
- Travels:
- X-Axis Table Travel: 39.5″
- Y-Axis Table Travel: 16.5″
- Z-Axis Table Travel (knee): 16″
- Quill Travel: 5″
- Spindle:
- Spindle Taper: R8
- Spindle Diameter: 1.875″
- Quill Diameter: 3 3/8″
- Distance Spindle to Table (maximum): 18″
- Distance Spindle to Column (minimum / maximum): 5″ to 27″
- Speeds: 65 to 4,200 RPM
- Power Quill Feed: 0.0015″/rev, 0.003″/rev & 0.006″/rev
- Motor: 3 Horsepower, 220 / 440 Volt
- Head Adjustments:
- Head Swivel: 90 degrees
- Head Tilt: 90 degrees
- Head Cant: 45 degrees
- General:
- Electrical: 220 / 380 / 440 Volt, Three Phase
- Overall Dimensions: 72″ x 60″ x 88″ tall
- Weight: 3500Lbs Approx.

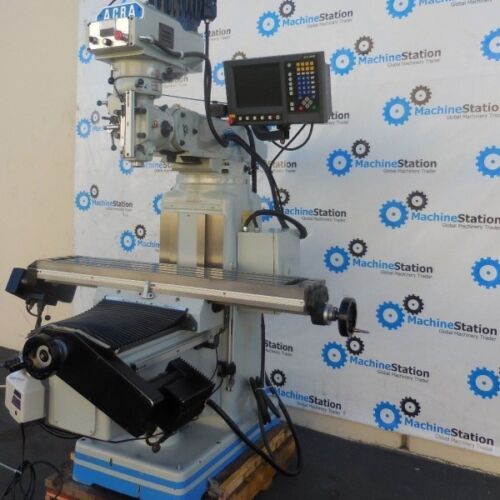

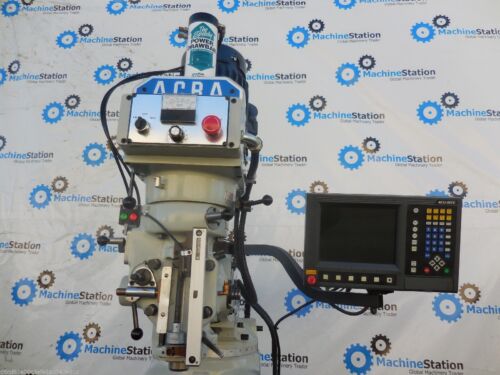

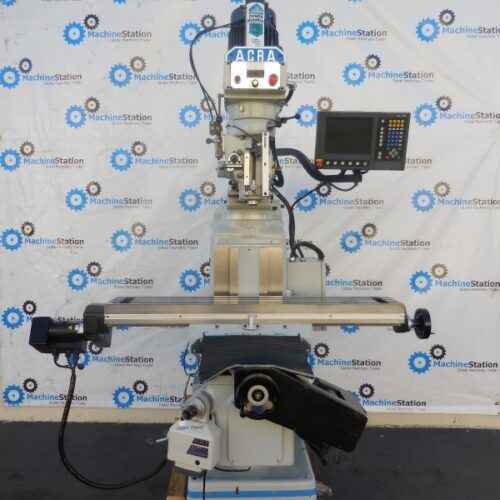

ACRA CNC Vertical Milling Comes as shown in pictures.
