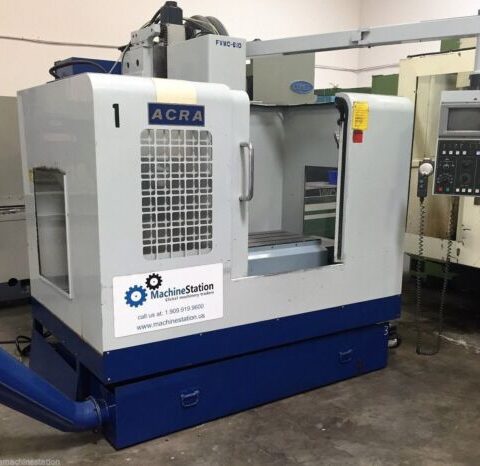

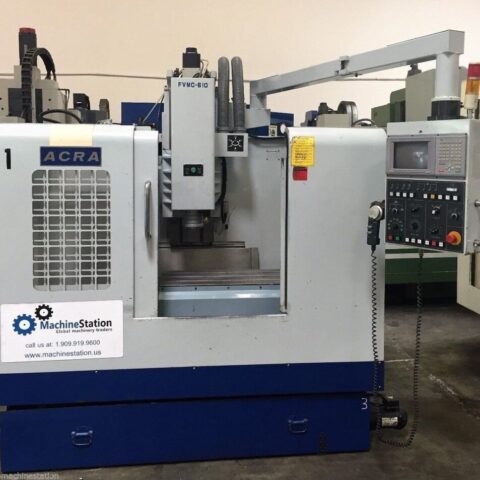

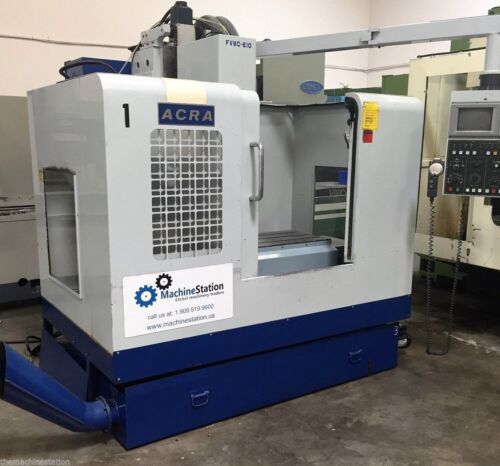

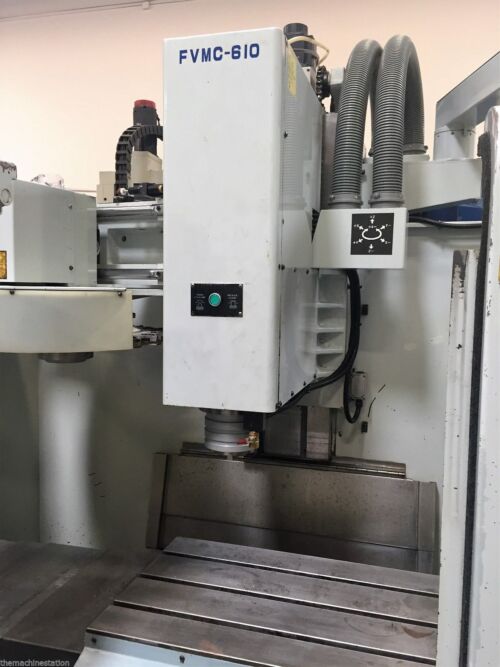

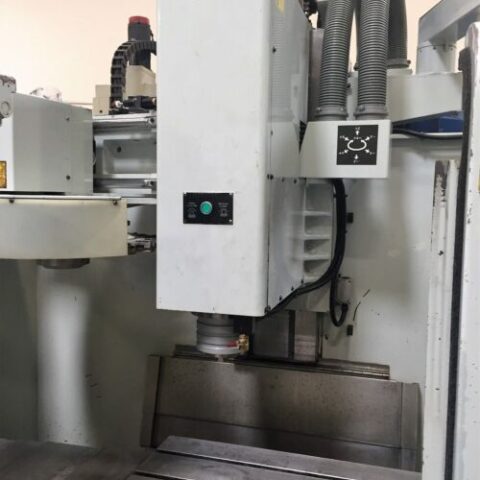

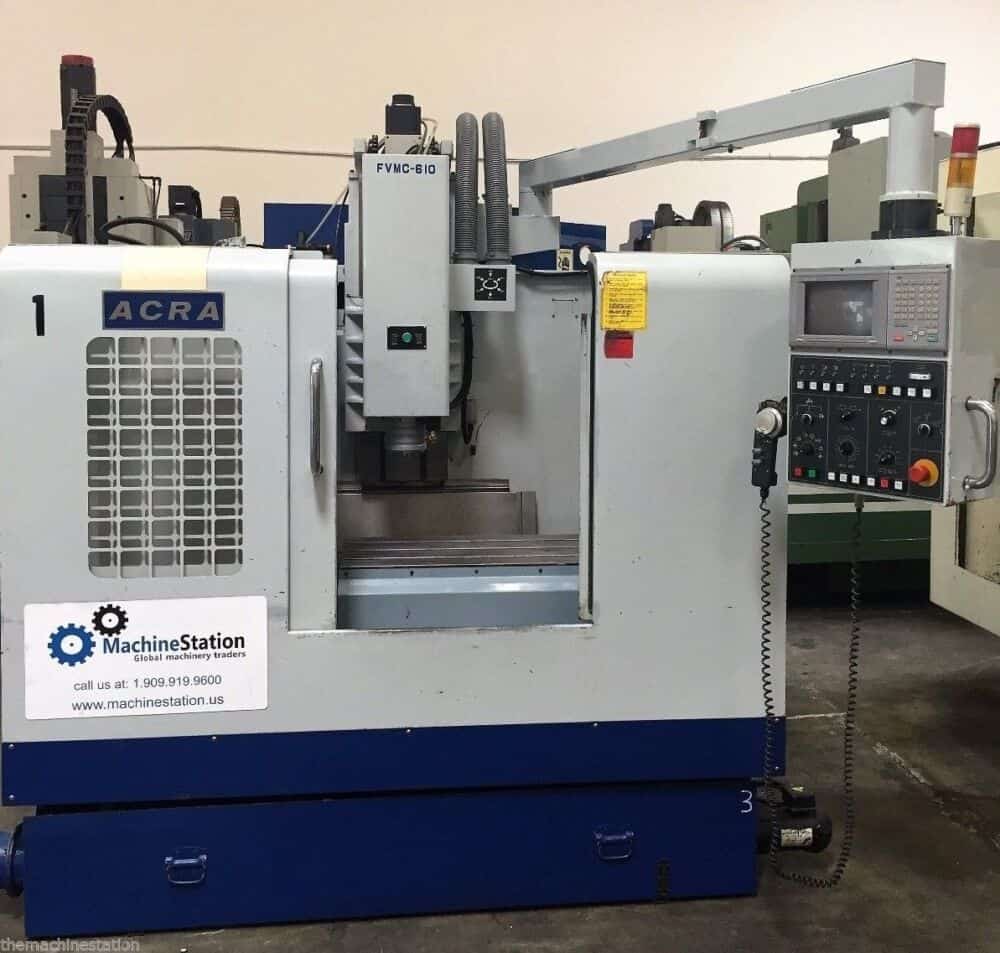

Acra FVMC 610 Vertical Machining Center | |
---|---|

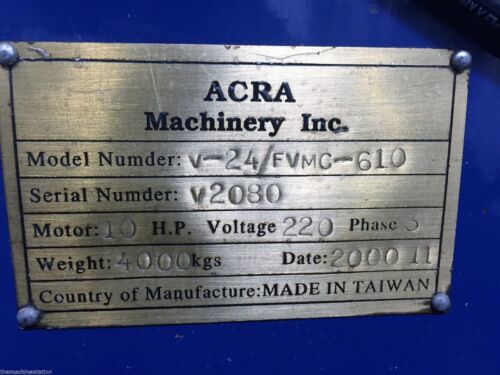

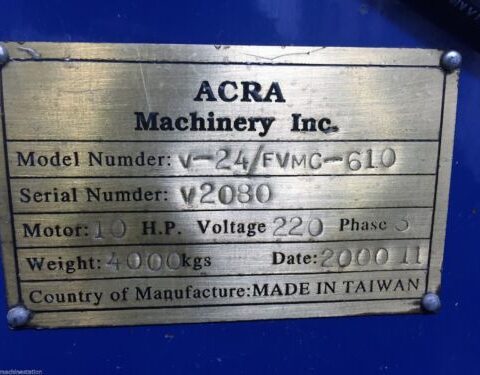

Make | ACRA |
Model No. | FVMC-610 / V-24 |
Country of Origin: | Taiwan |
Serial # | V2080 |
Condition | Very Good |
- Acra FVMC 610 Features:
- 10,000 RPM Spindle

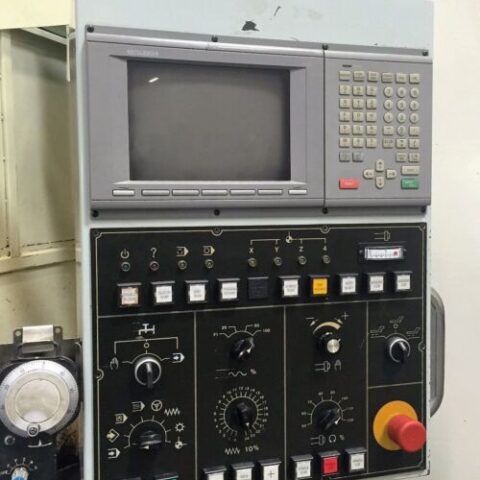

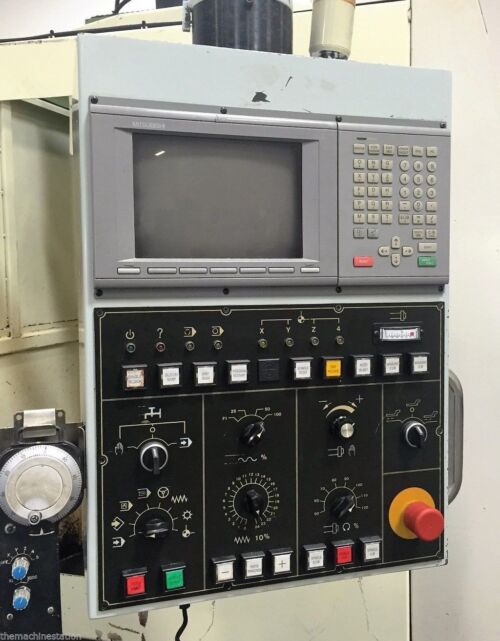

- Mitsubishi CNC Control.

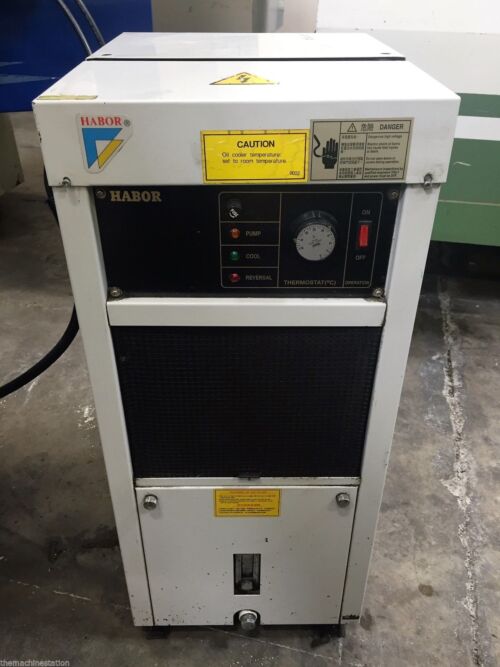

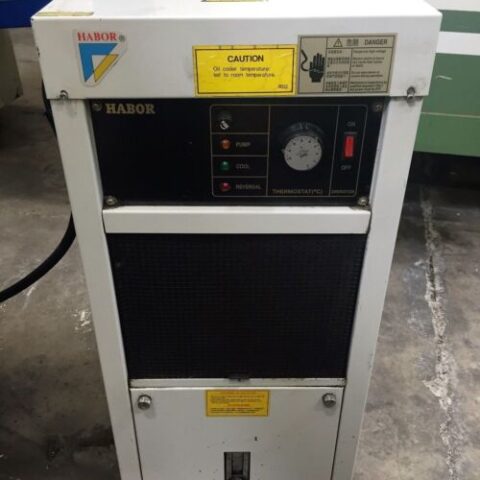

- Spindle Chiller
- Rigid Box Ways All Axis
- Manual Pulse Generator/ Jog Handle
- RS-232 Port.
- CAT 40 Spindle Taper.

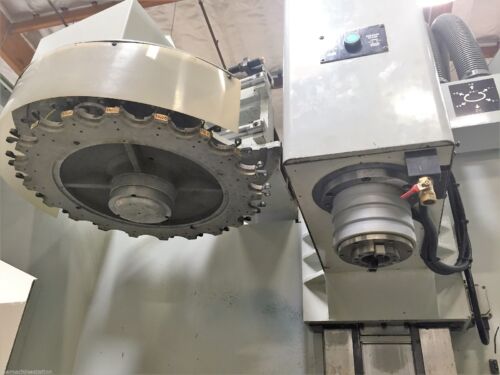

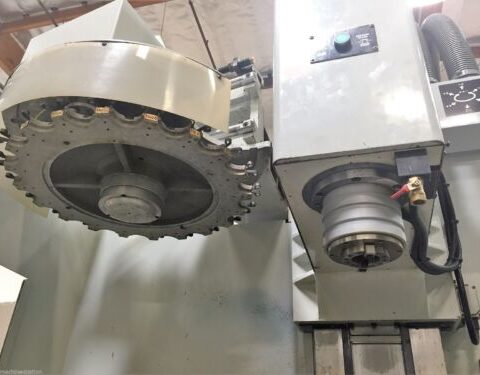

- 20-Station Automatic Tool Changer.
- Coolant System.
- Chip Auger
- Work Light & Alarm Light
- Levelling Pads
- Acra FVMC 610 Specifications:
- Travel:
- X-Axis: 23.6″
- Y-Axis: 19.0″
- Z-Axis: 20.0″

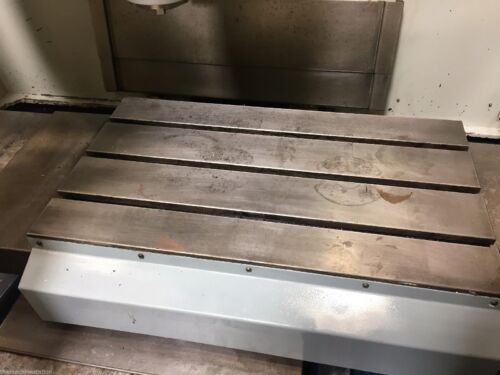

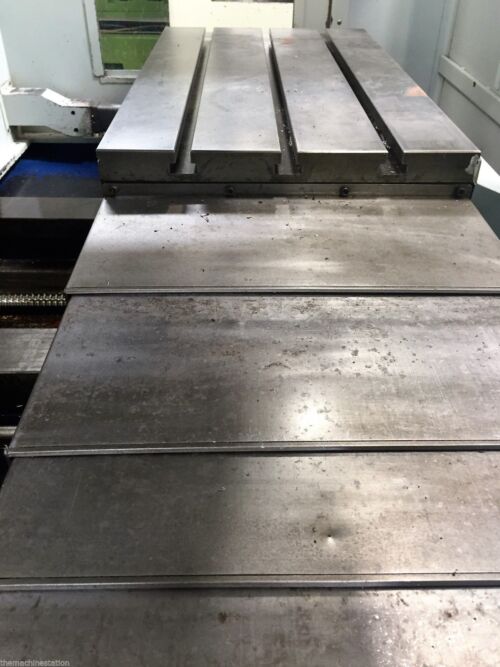

- Table:
- Table Dimensions: 31.5″ x 18″
- T-Slots (number x width x distance between centers): 3 x 0.7″ x 4.9″
- Maximum Weight on Table: 660 lbs.
- Spindle:
- Taper: CAT40
- Speed: 10,000 Maximum RPM
- Spindle Center to Column: 15″
- Motor (continuous / 30 min.): 10 Horsepower
- Feed Rates:
- Cutting Feed Rate (X, Y, Z,): 0.04 to 196 in/min
- Rapid Traverse Rate (X, Y, Z,): 472 in/min
- Automatic Tool Changer:
- Tool Capacity:20
- MaximumTool Diameter: 3.1″
- Maximum Tool Weight: 15.4 lbs.
- Maximum Tool Length: 9.8″
- General:
- Machine Weight: 8,500 lbs.
- Electrial: 220 Volt, Three Phase
- Power Requirement: 15 KVA
- Overall Dimensions: 98″ x 87″ x 98″ tall

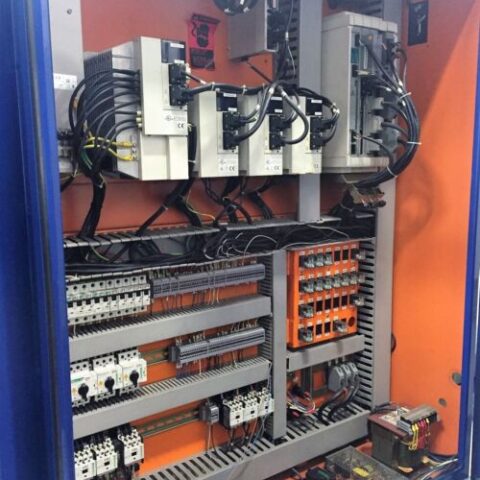

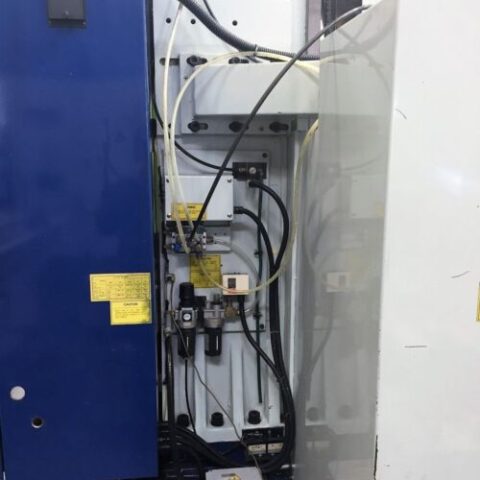

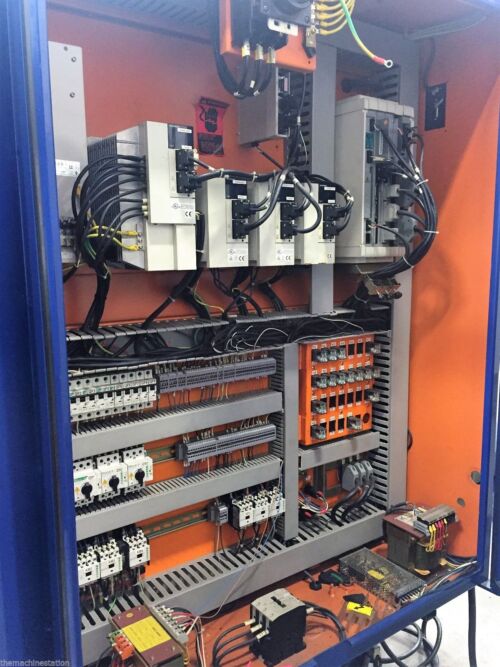

Acra FVMC 610 Comes as shown in pictures.
