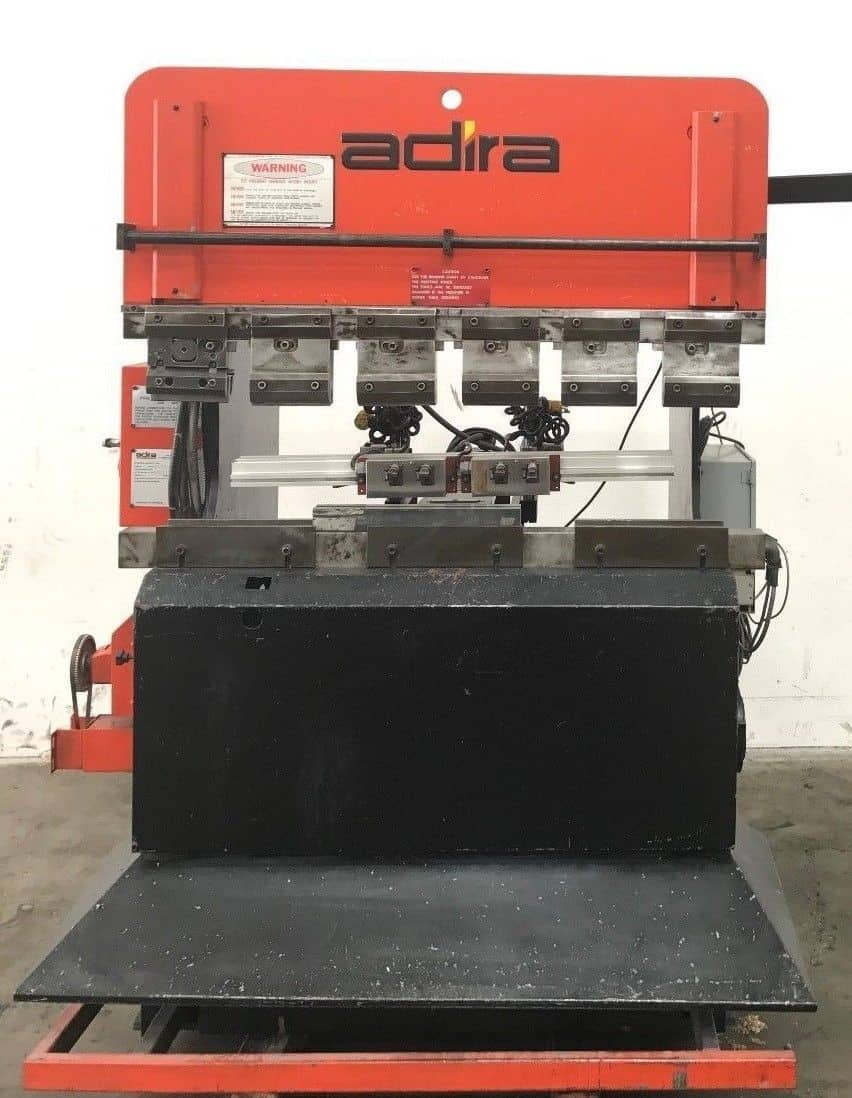

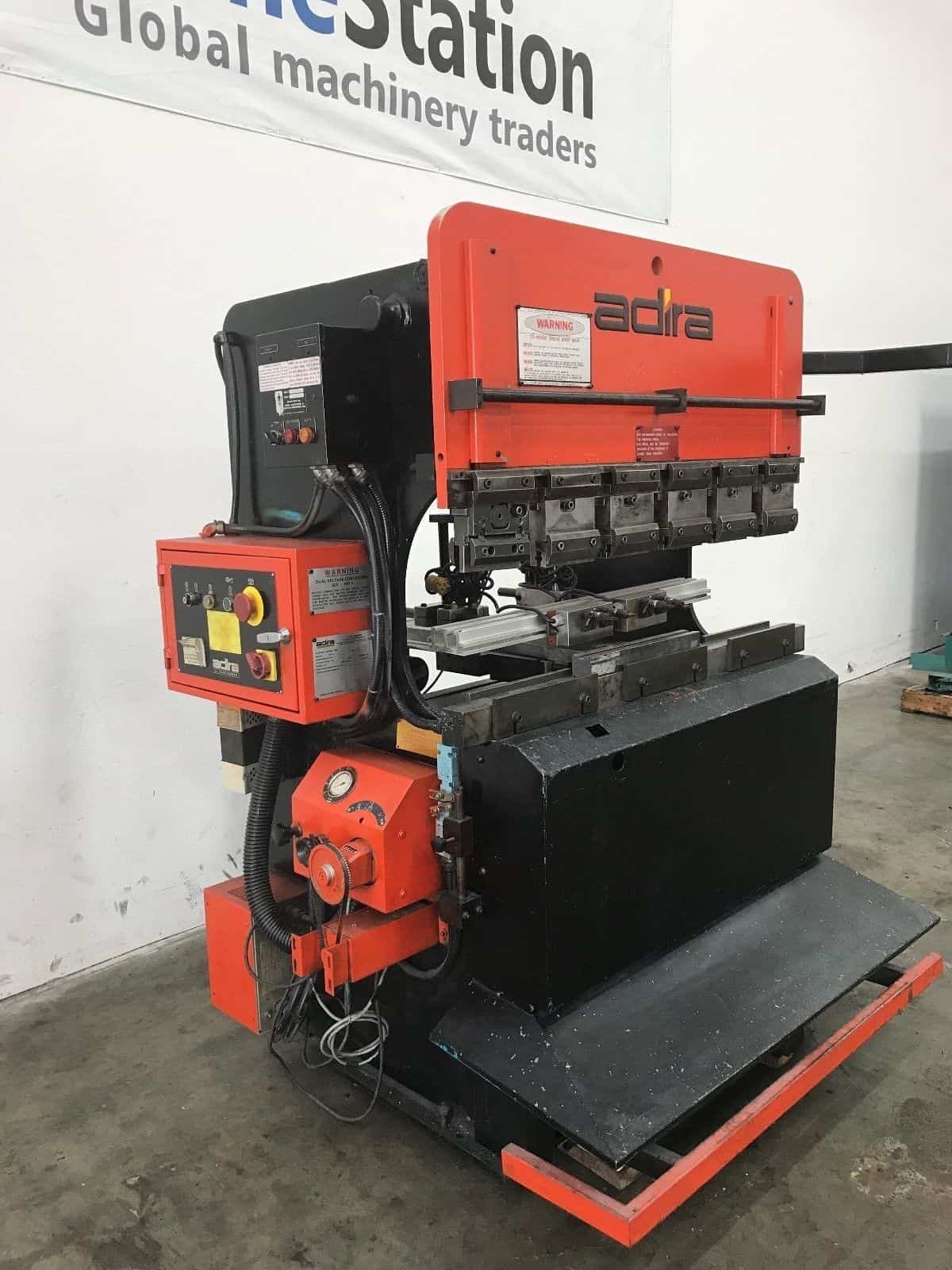

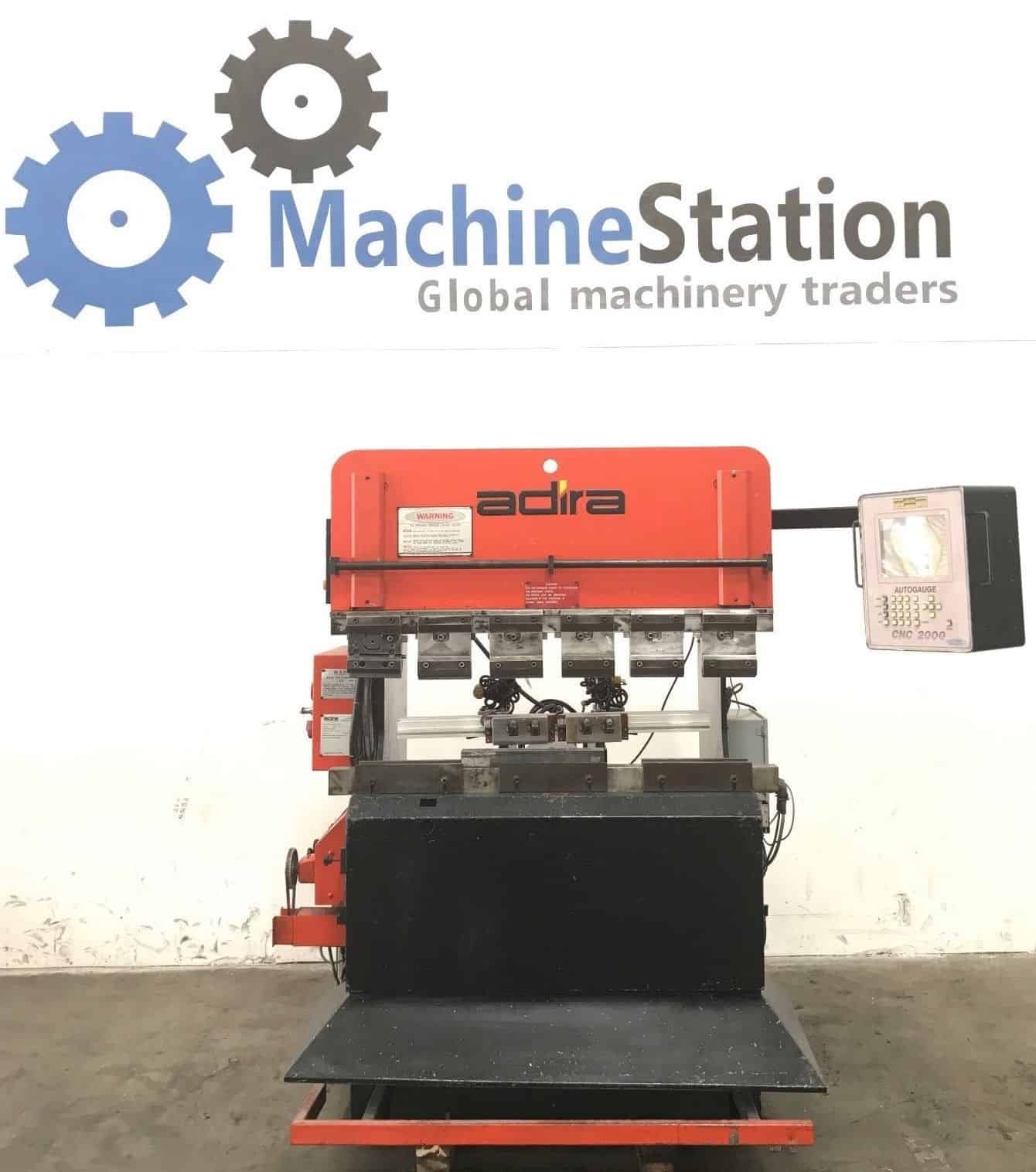

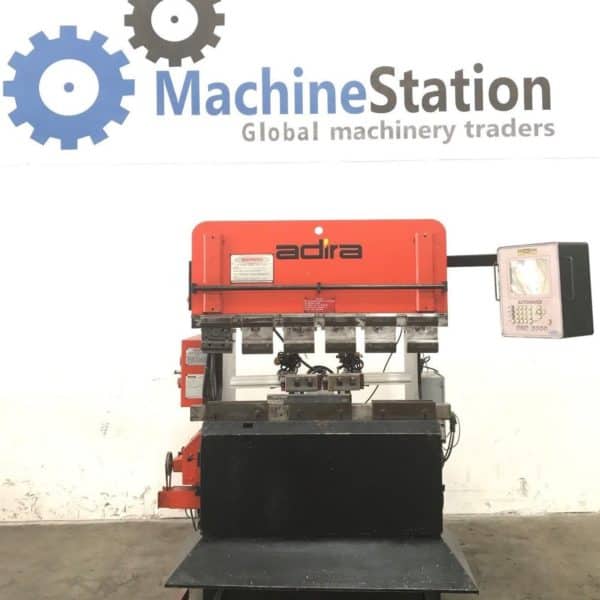

ADIRA QHA-2012 Equipped With:
- Autogauge 2000 CNC Control
- Adjustable Punch Holders
- Full length Treadle
- Finger Assemblies
- Auto Lube System
- Comes with All Available Manuals, Tool Holders & Foot Pedal.
Specifications:
- Capacity: 22 Ton
- Overall Bending Length: 48″
- Distance Between Housings: 40.2″
- Stroke: 0″ – 4.0″
- Open Height: 14.57″
- Shut Height: 10.67″
- Throat Depth: 9.85″
- Ram Speeds:
- Approach: 3.62 IPS
- Forming: 0.33 IPS
- Return: 3.58 IPS
- Main Motor: 3.6 HP
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 62″ x 60″ x 72″ High
- Weight: 3000 lbs
