Adira QHA-2012 CNC Press Brake 22 Ton

Adira QHA-2012 CNC Press Brake 22 Ton

Out of stock

This Machine is in Great condition. On our Floor fully powered / tested and ready for inspection.

SKU: 1370 Category:

Description

ADIRA QHA-2012 HYDRAULIC UPACTING CNC PRESS BRAKE 22 TON

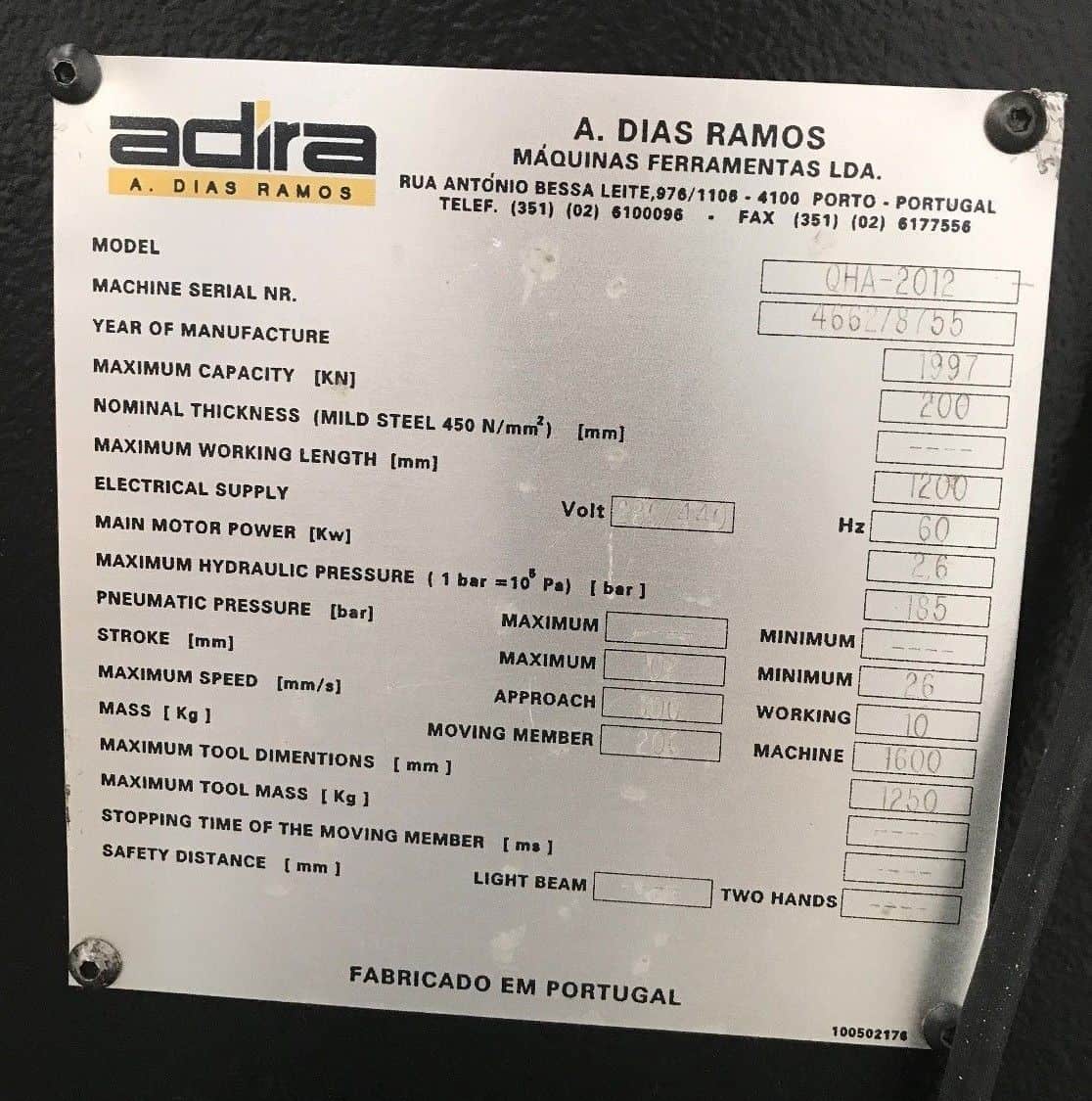

MakeAdira
Model No.QHA-2012
Year of Manufacture:1997
Serial466278755
ConditionVery Good
  • ADIRA QHA-2012 Equipped With:
  • Autogauge 2000 CNC Control
  • Adjustable Punch Holders
  • Full length Treadle
  • Finger Assemblies
  • Auto Lube System
  • Comes with All Available Manuals, Tool Holders & Foot Pedal.
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 62″ x 60″ x 72″ High
  • Weight: 3000 lbs
  • Specifications:
  • Capacity: 22 Ton
  • Overall Bending Length:  48″
  • Distance Between Housings:  40.2″
  • Stroke:  0″ – 4.0″
  • Open Height:  14.57″
  • Shut Height:  10.67″
  • Throat Depth:  9.85″
  • Ram Speeds:
  • Approach: 3.62 IPS
  • Forming: 0.33 IPS
  • Return: 3.58 IPS
  • Main Motor: 3.6 HP

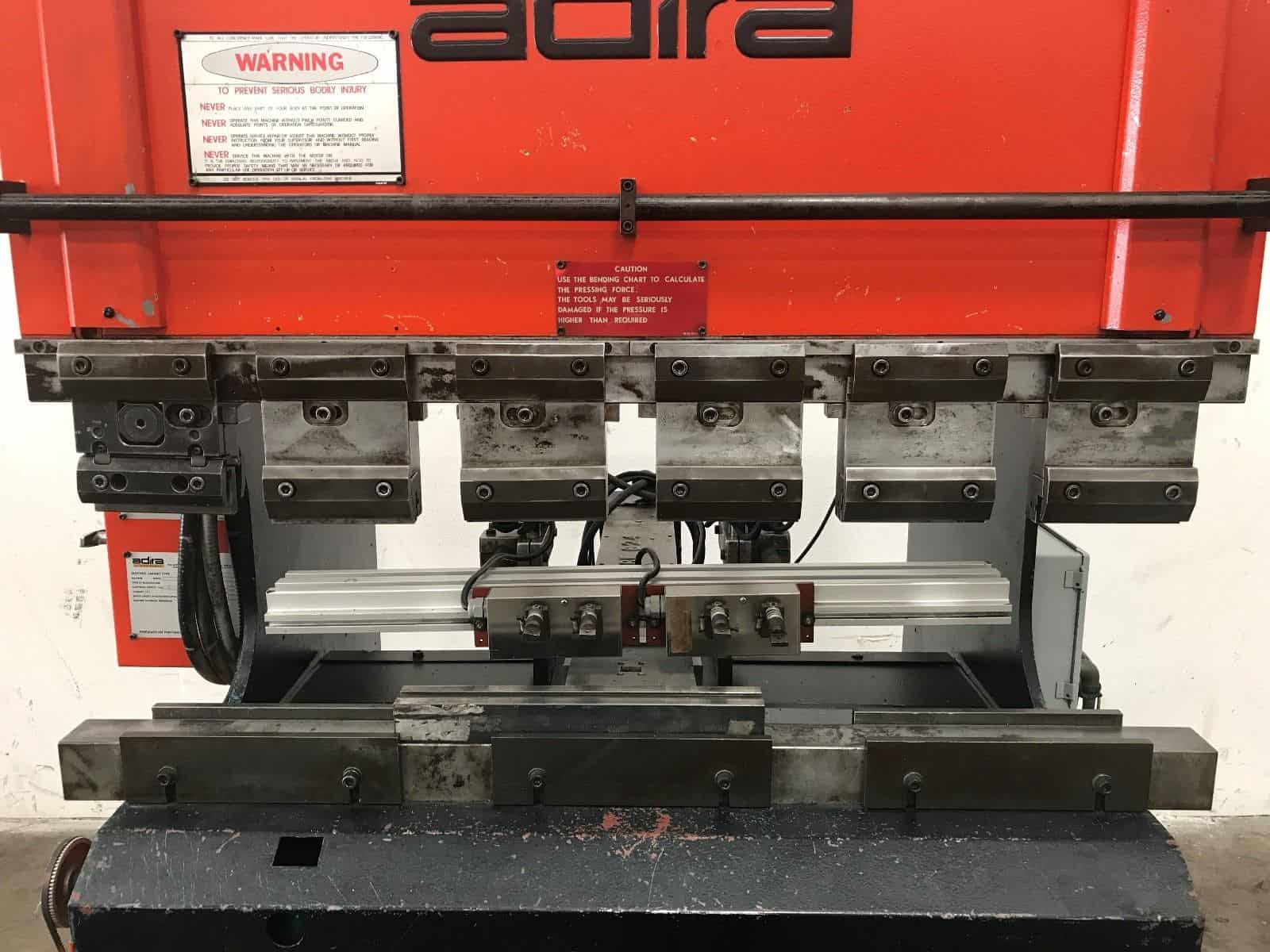

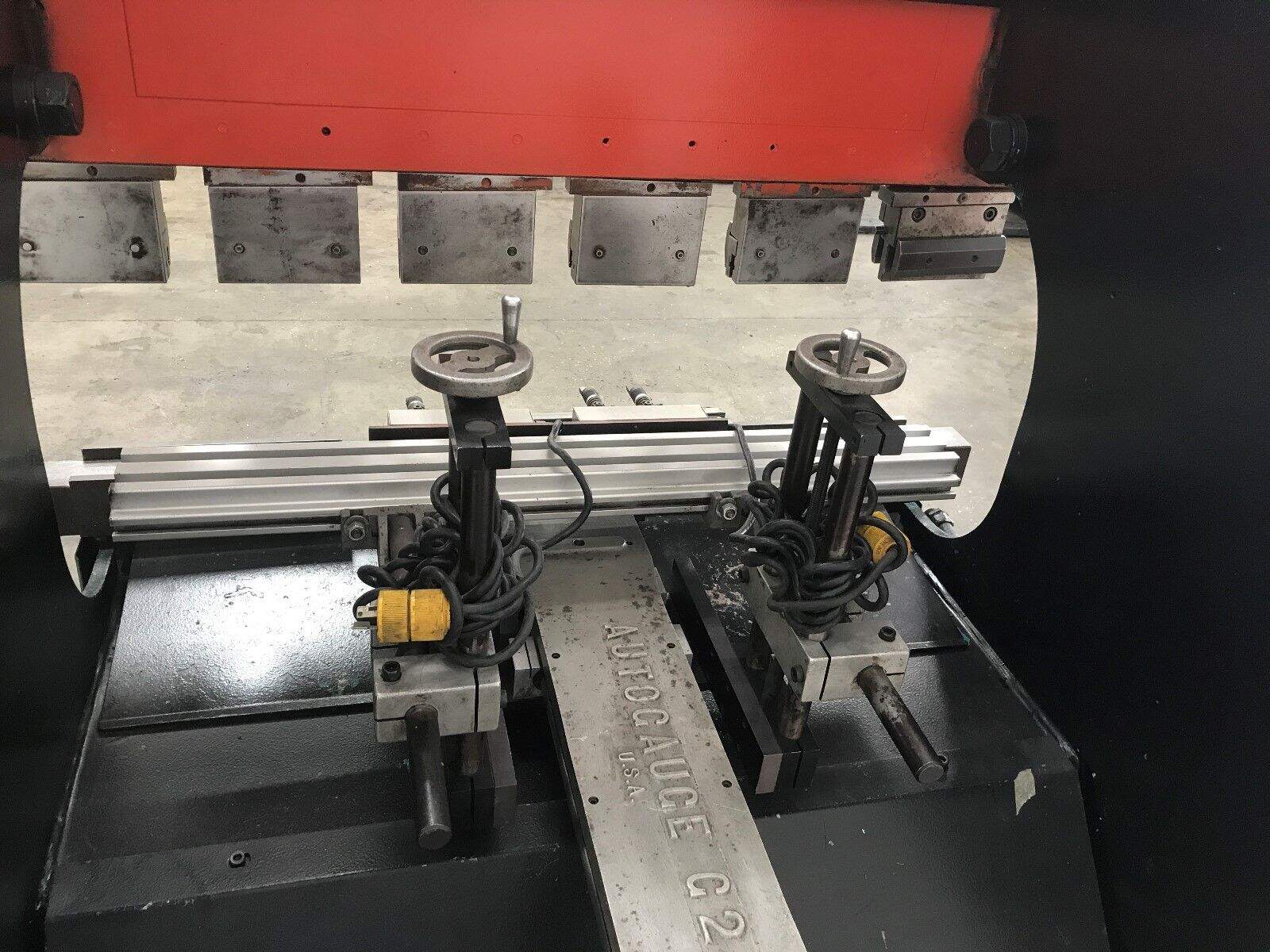

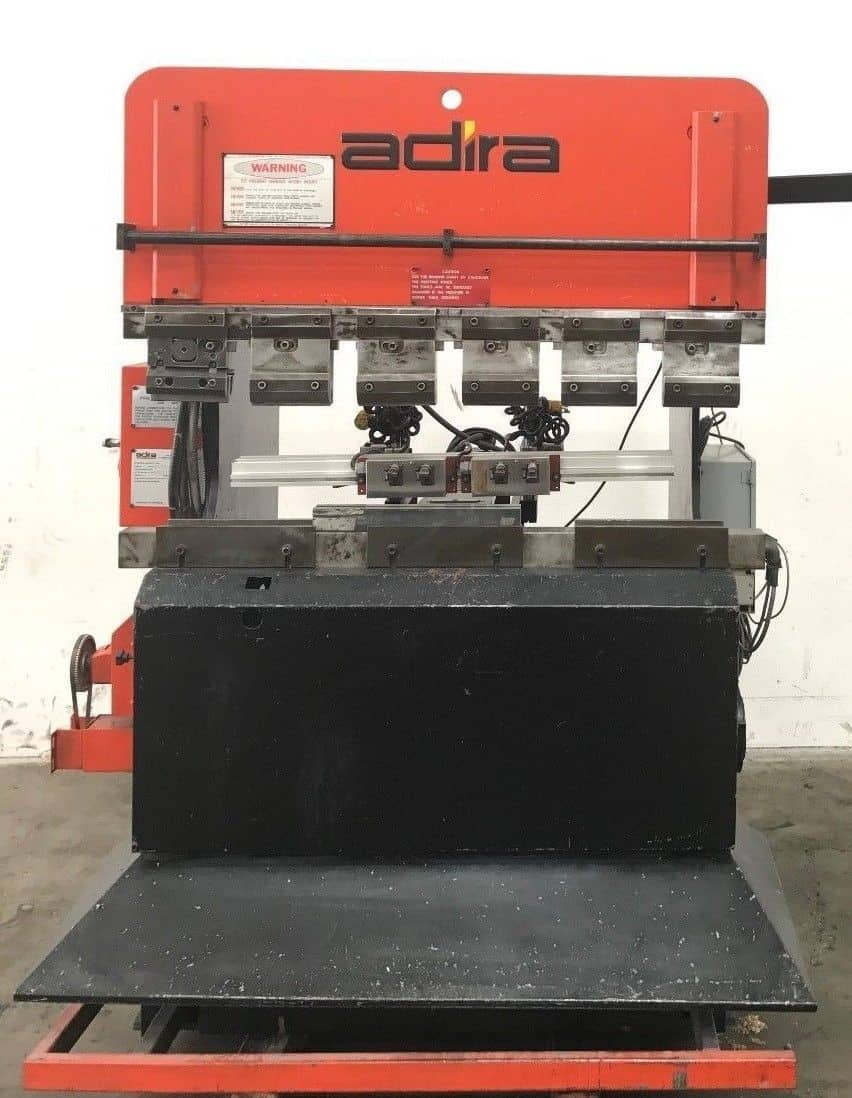

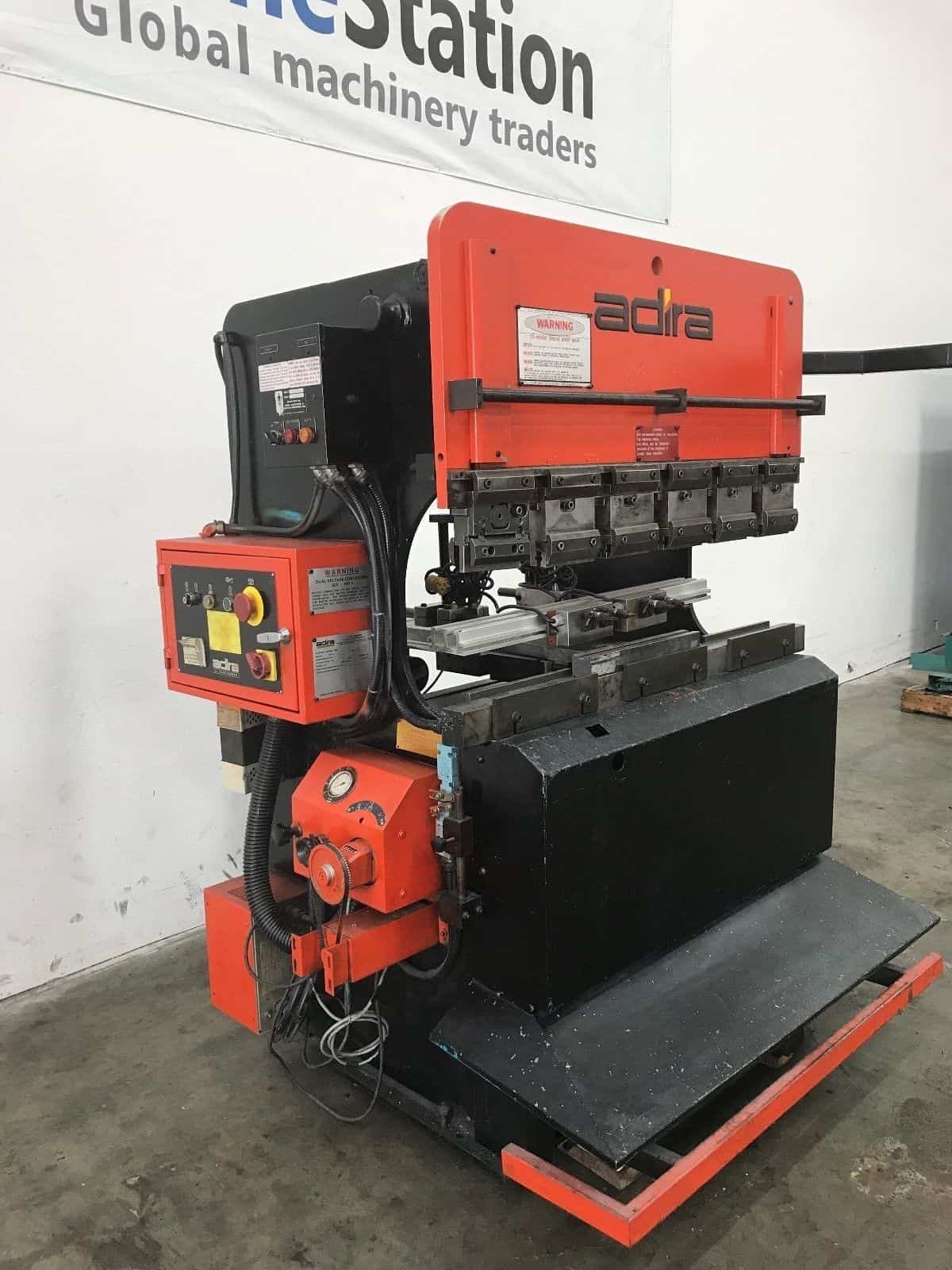

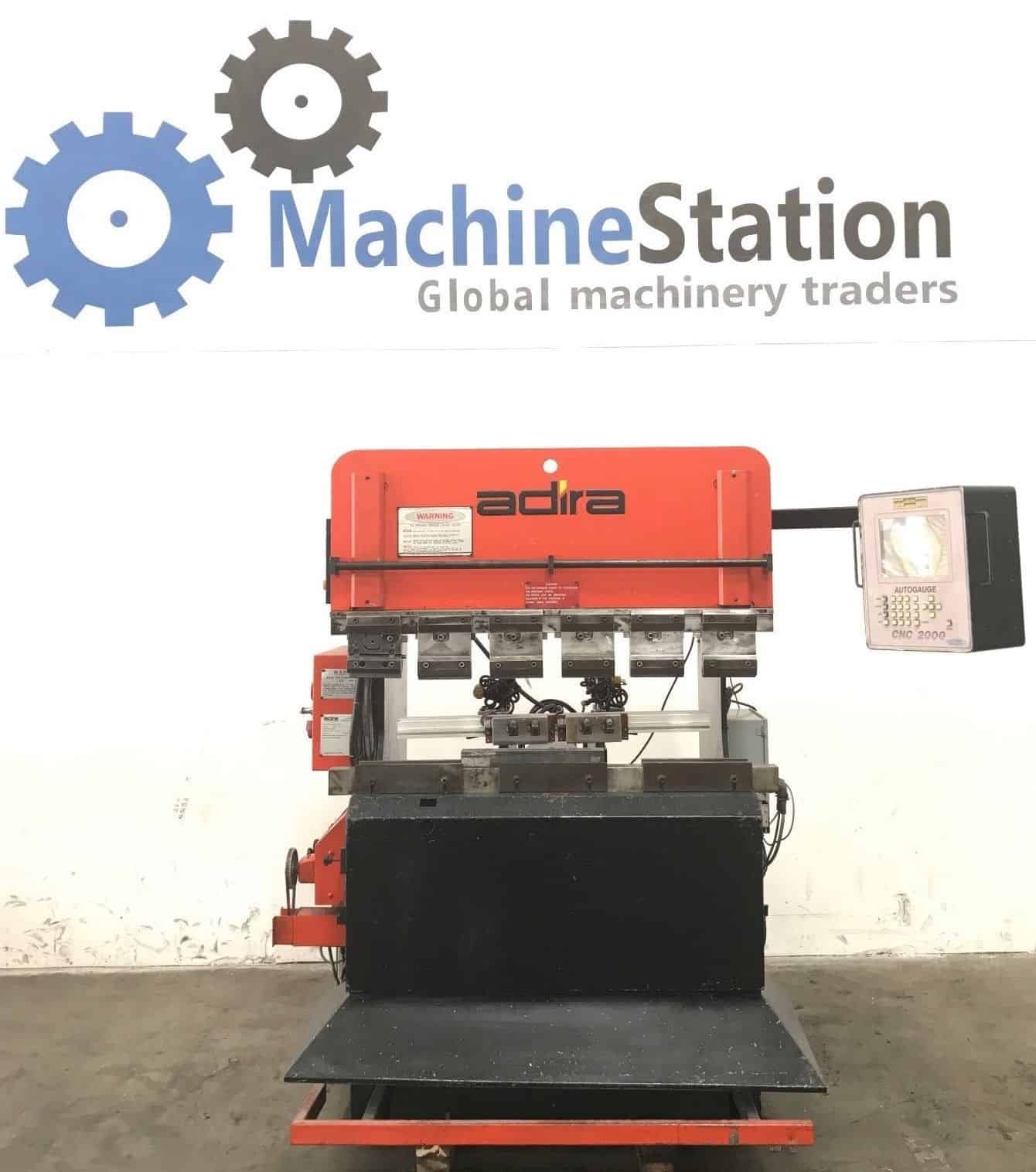

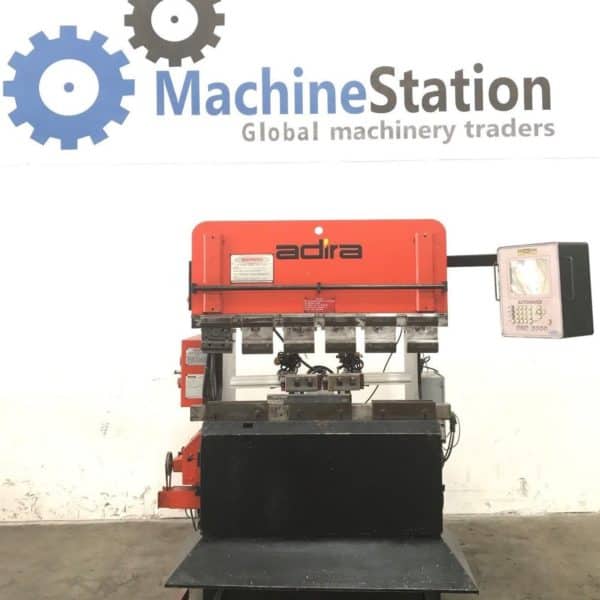

ADIRA QHA-2012 Comes as shown in pictures.
