*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2322 |

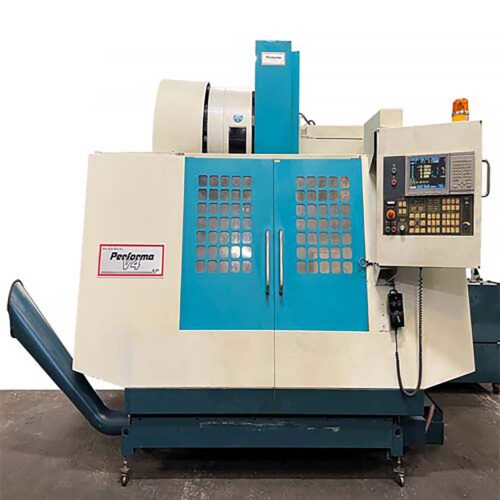

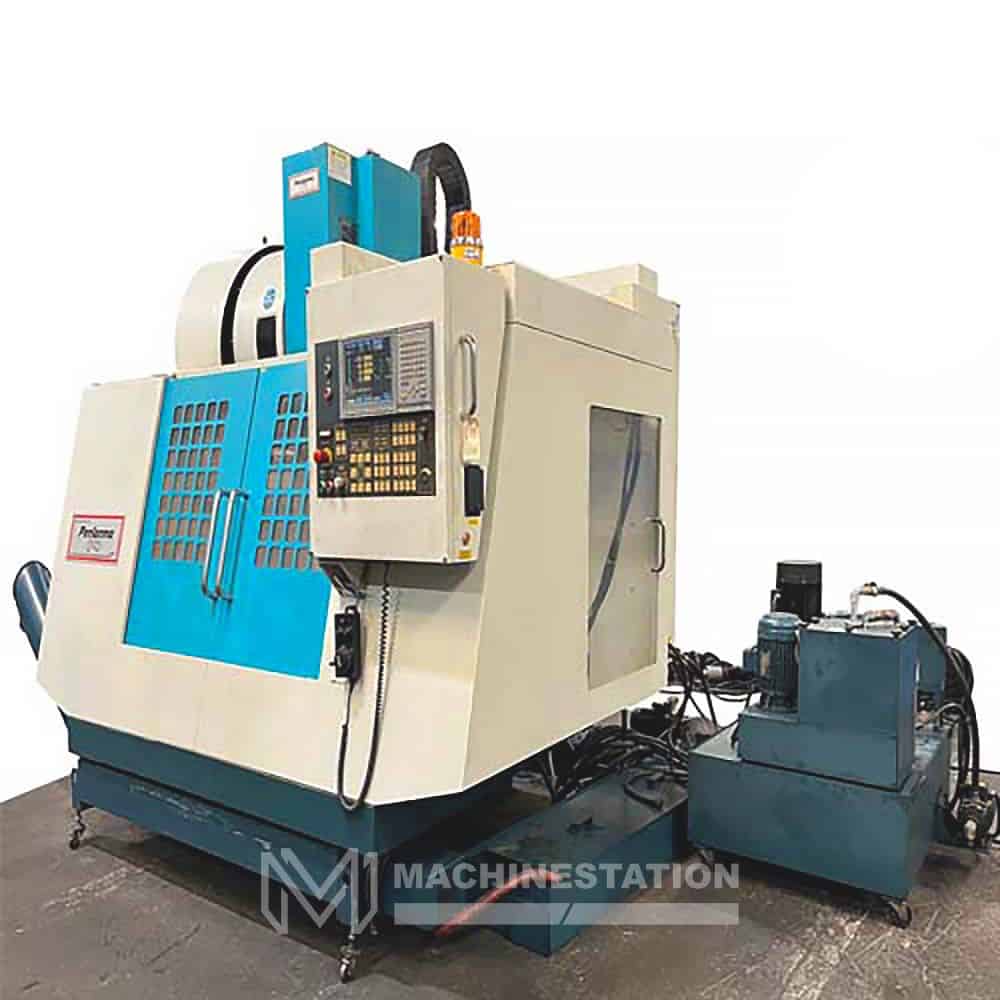

| Make: | Akira Seiki |
| Model: | Performa V4A-XP |
| Serial: | EVGX366-751 |
| Year: | 2006 |
| Condition: | Very Good |
| Features: |
|---|

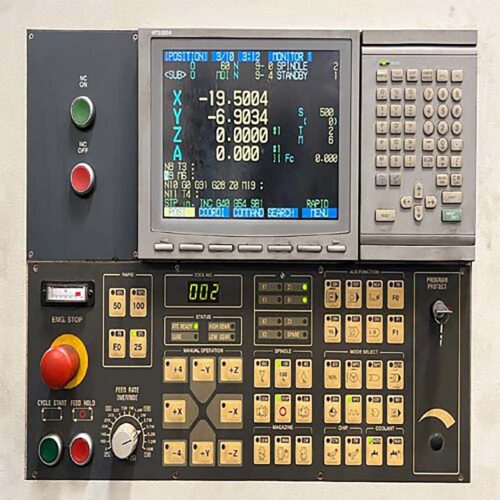

| Mitsubishi M64S Series CNC Control |
| 9″ LCD Color Screen Display |

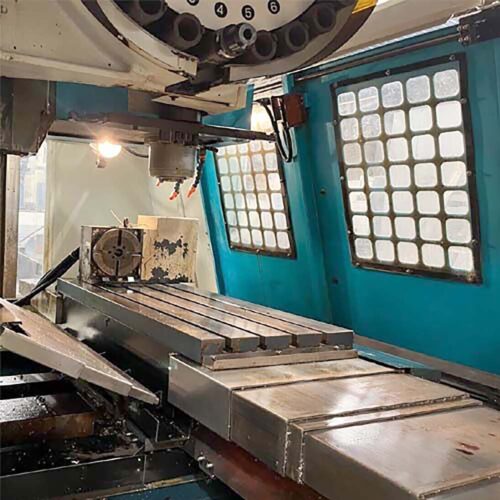

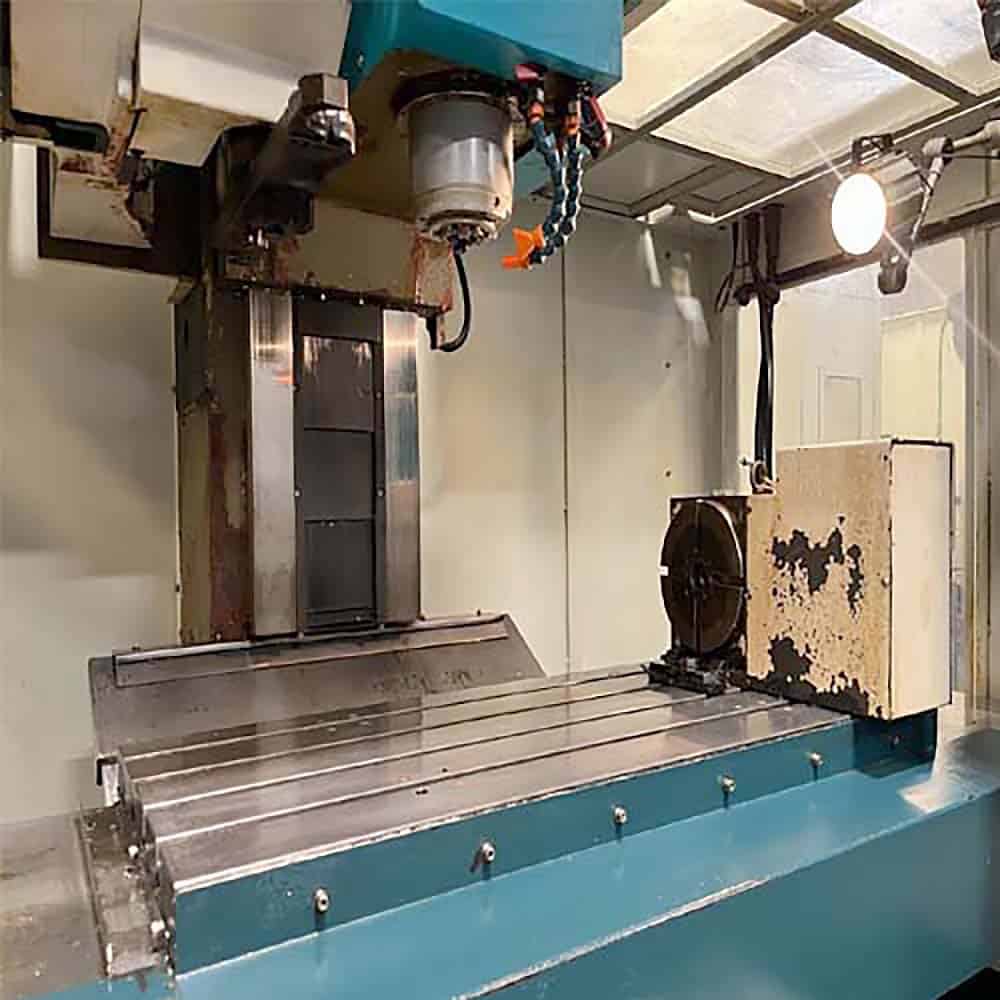

| Comes with 8″ 4th Axis Rotary Table |
| X,Y Linear Guide Ways & Z Box Way Construction |
| 10000 RPM High Precision Spindle |
| PCMCIA Card Slot |
| RS-232 Port |
| Hand Wheel MPG Control |
| Rigid Tapping |
| 24 Automatic High Speed Tool Changer |
| Telescopic Way Covers |

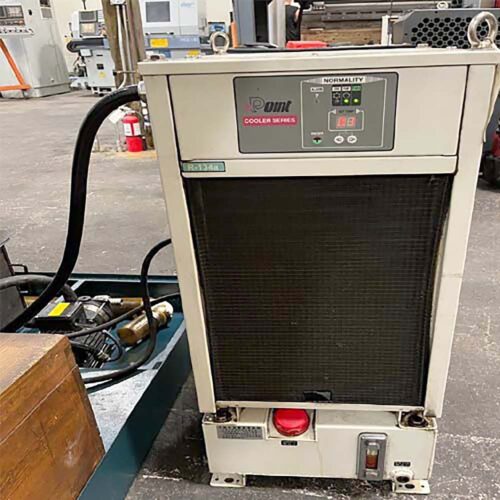

| Coolant Filtration System |

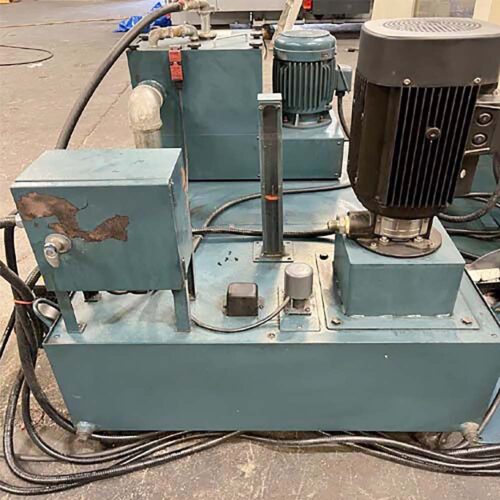

| Coolant Tank |
| Chip Screw Conveyor |
| Books & Manuals |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 20″ |
| Z-Axis: 22″ |
| X & Y Axis Rapid Traverse Rates: 984 Inch Per Minute |
| Z Axis Rapid Traverse Rates: 700 IPM |
| Cutting Feed Rates: 394 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 3″ – 25″ |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |

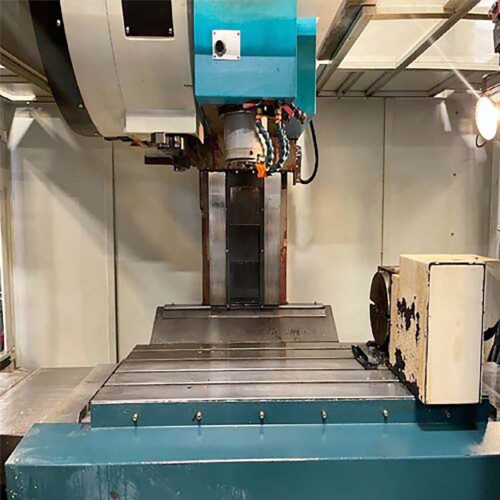

| Table : |
|---|
| Length: 47.2″ |
| Width: 19″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.7″ X 3.15″ |
| Max Weight on Table: 2592 lbs |

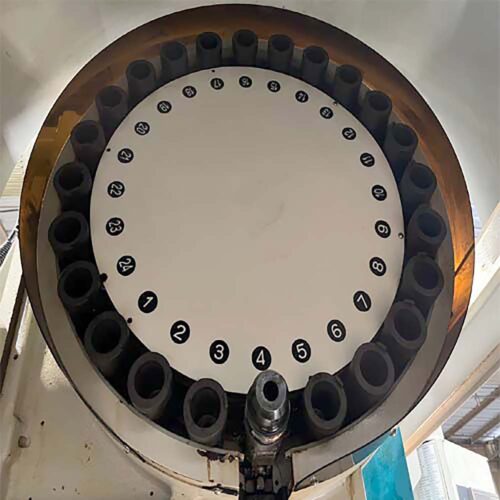

| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Tool Weight: 15 lbs |
| Max Tool Dia: 2.6″ – 5.1″ |
| Max Tool Length: 9.8″ |
| Tool Changing Time: 2.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 20 kva / 3-Phase |
| Overall Dimensions: 133″ x 88″ x ?” High |
| Weight: 15211 lbs |
