AKIRA SEIKI SL-35 CNC TURNING CENTER | |
---|---|
Make | Akira Seiki |
Model No. | SL-35 |
Year | 2008 |
Serial # | 471-238 |
Condition | Very Good |
Comes with 10″ 3 Jaw Chuck, Tailstock , Tooling, Books & Chip Conveyor.
All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with 10″ Chuck, Tailstock ,Chip Conveyor and Manuals. Cutting hours around 4304 hours only. On Our Floor fully powered / tested & is in Great working condition.”
- Akira Seiki SL-35 Equipped With:
- Fanuc Oi-TC series CNC Control
- Box way construction
- Rigid Tapping
- 10″ 3 Jaw Chuck ( 12″ Capable )
- A2-8 Spindle
- Hydraulic Tailstock and Quill
- PCMCIA Card Slot
- Barfeed Interface
- 12 Station Automatic Turret
- Foot Switch
- Chip Tank and Conveyor
- Original Manuals
- General:
- Power: 35kw, 220v / 3-Phase
- Overall Dimensions: 130 x 70″ x 70″ High with Chip Conveyor
- Weight: 12800 lbs
- Akira Seiki SL-35 Specifications:
- Capacity:
- Max Turning Diameter: 17.7″
- Max Turning Length: 23.65″
- Max Bar Capacity: 2.55″
- Swing Over Bed: 25.6″
- Distance Between Centers: 28.0″
- X Axis Travel: 9.66″
- Z Axis Travel: 24.83″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-8
- Spindle Bore: 2.6″
- Spindle Speed: 45 – 3500 RPM
- Spindle Motor: 15kw
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.97″
- Tailstock Quill Travel: 3.55″

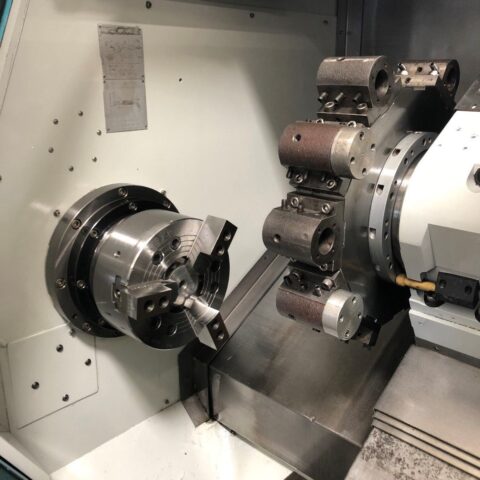

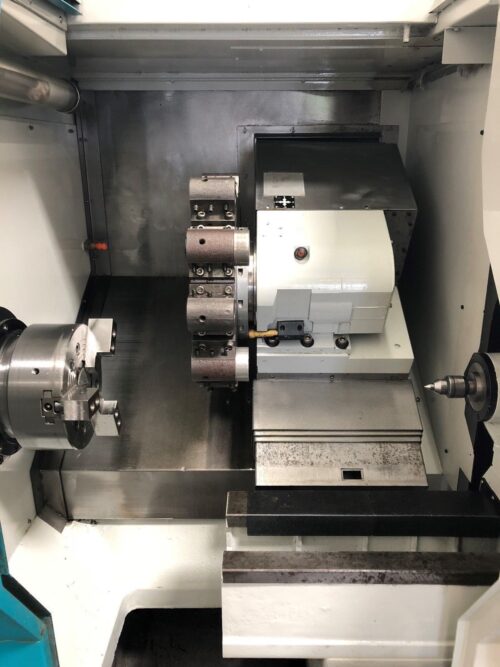

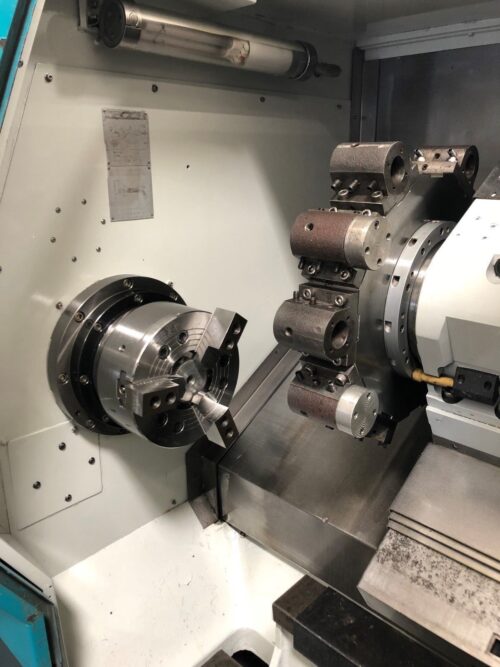

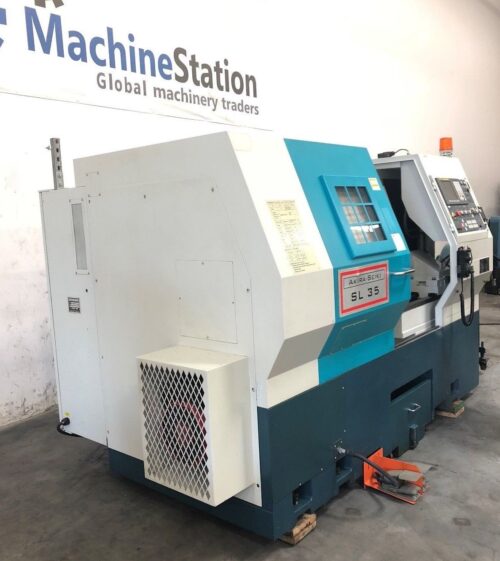

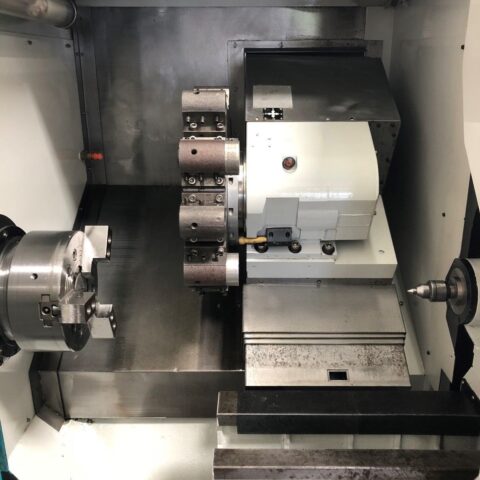

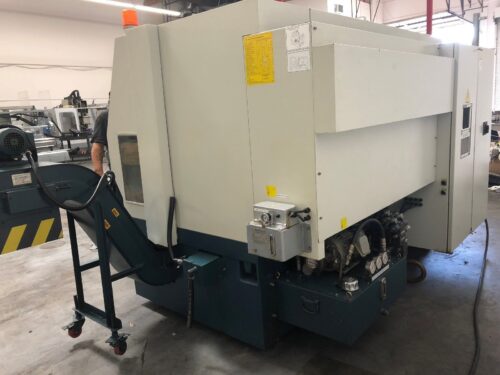

Akira Seiki SL-35 Comes as shown in pictures..
