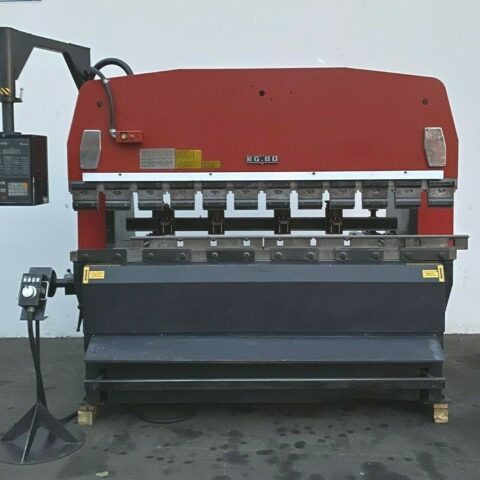

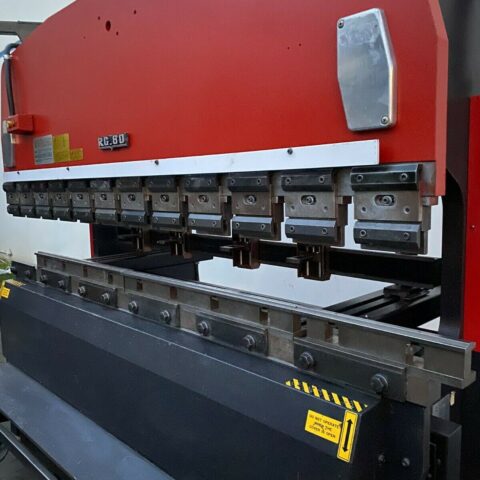

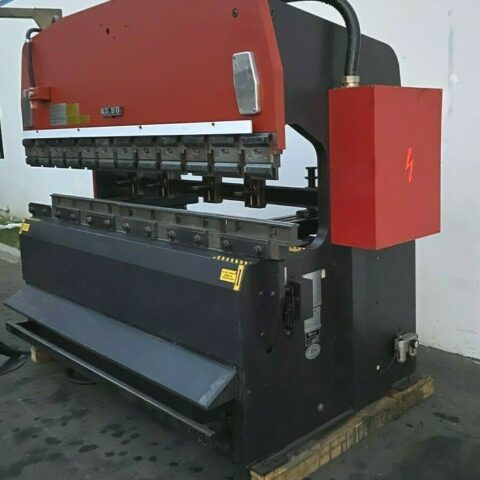

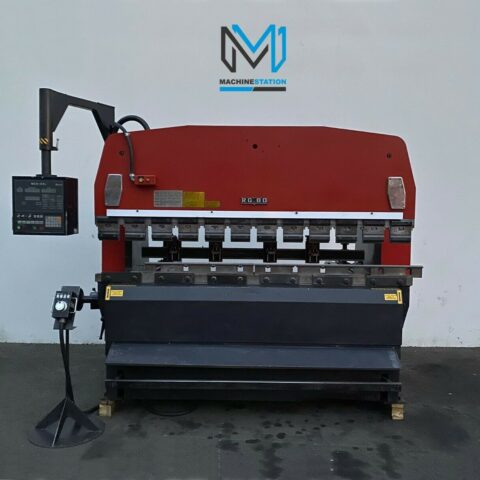

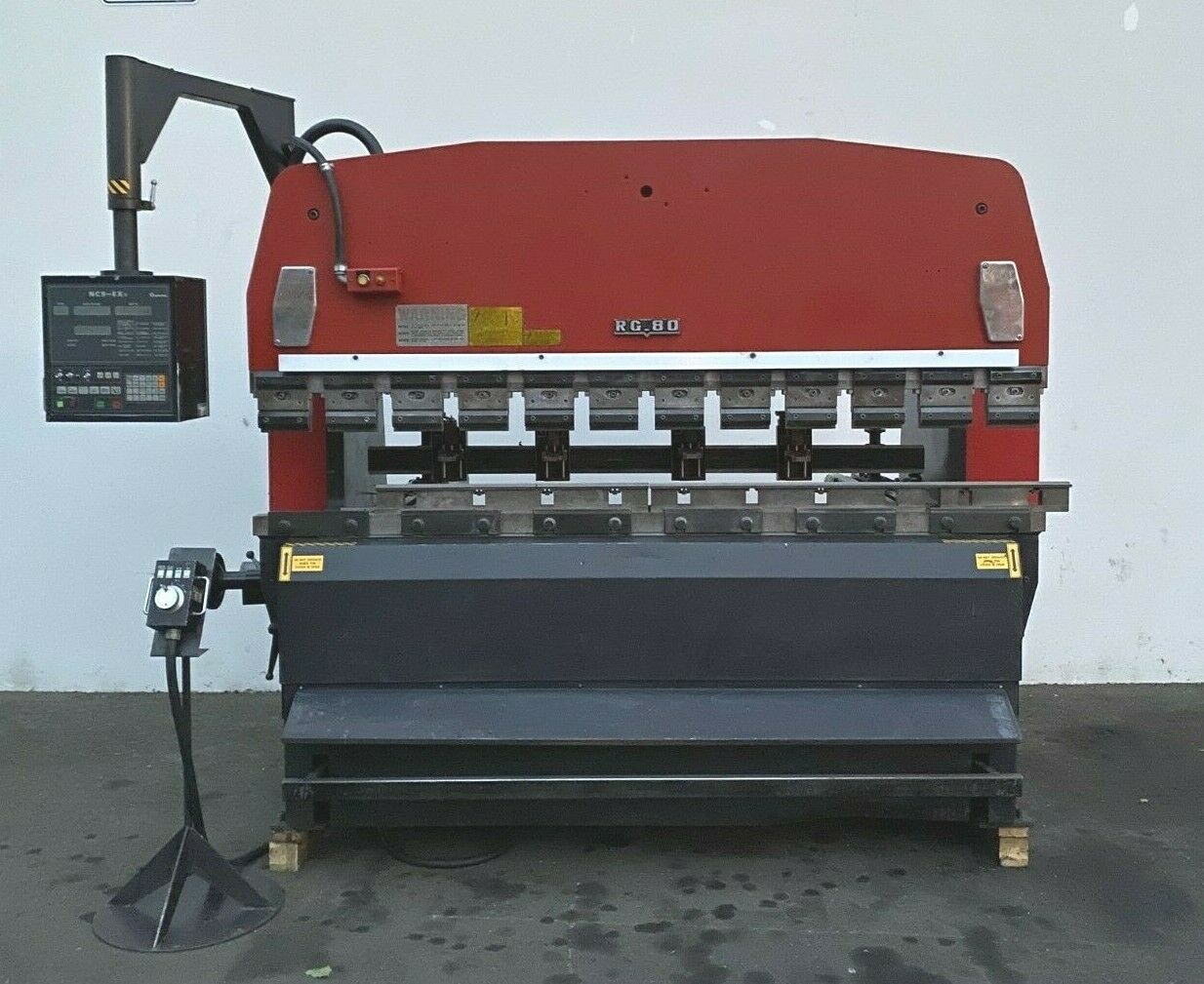

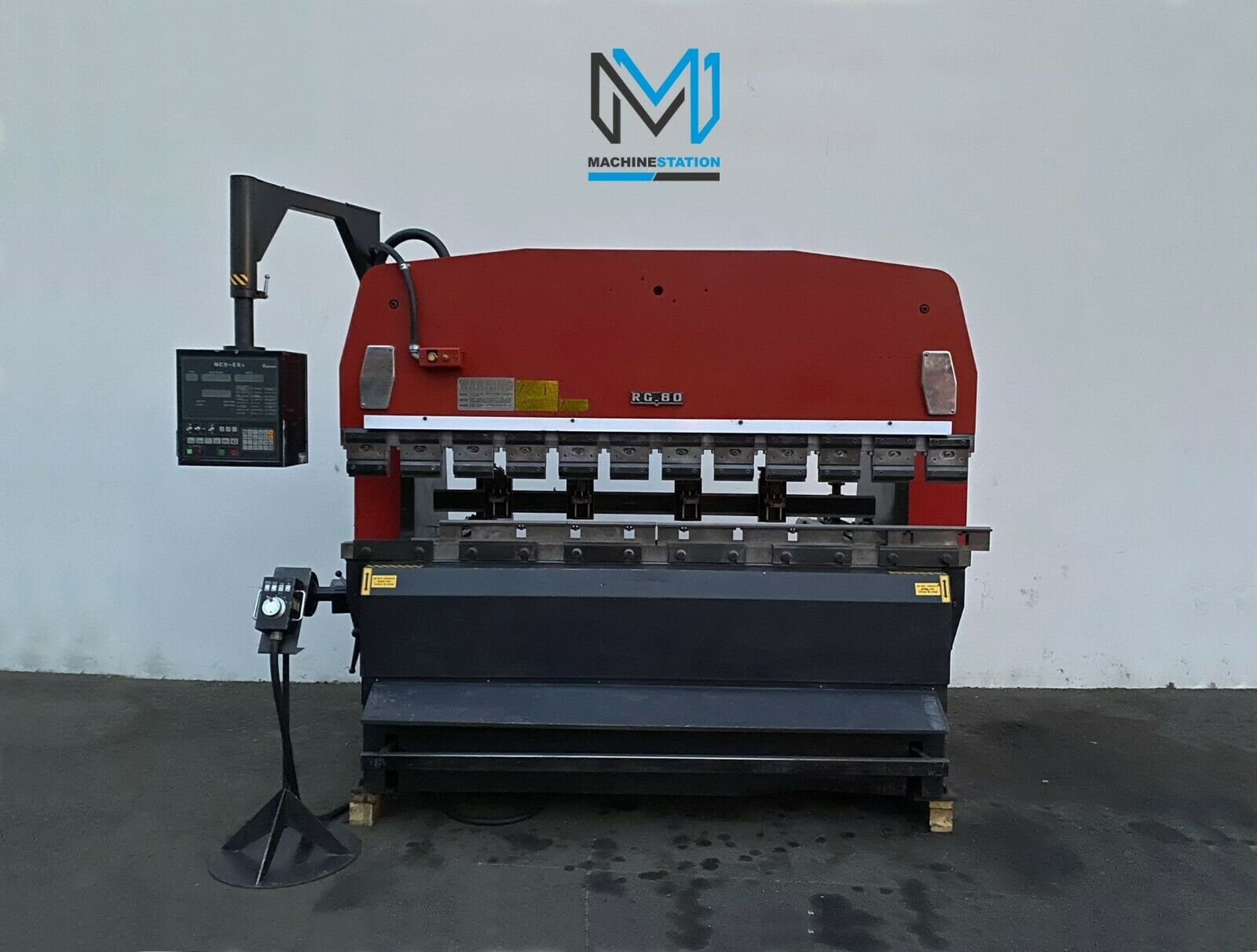

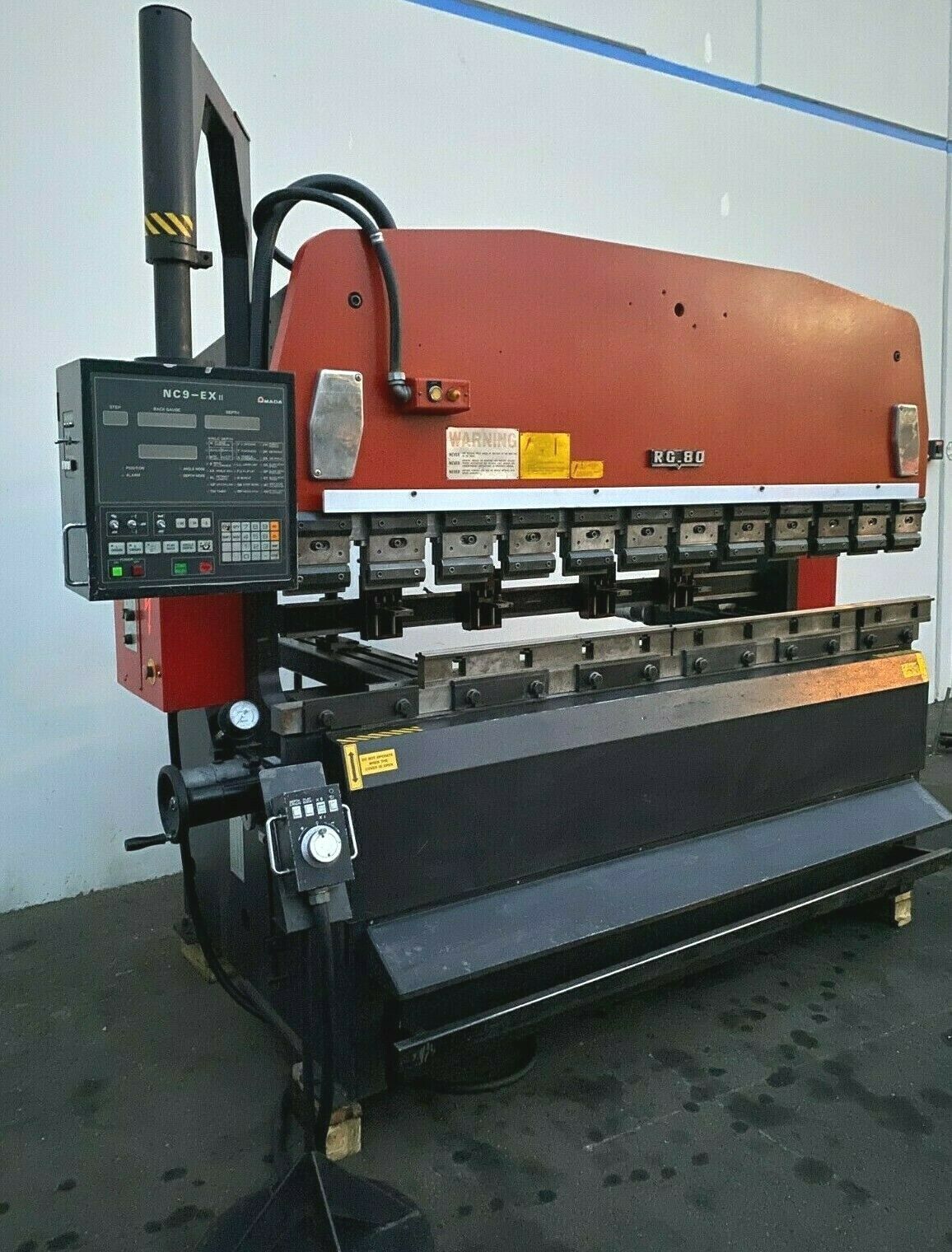

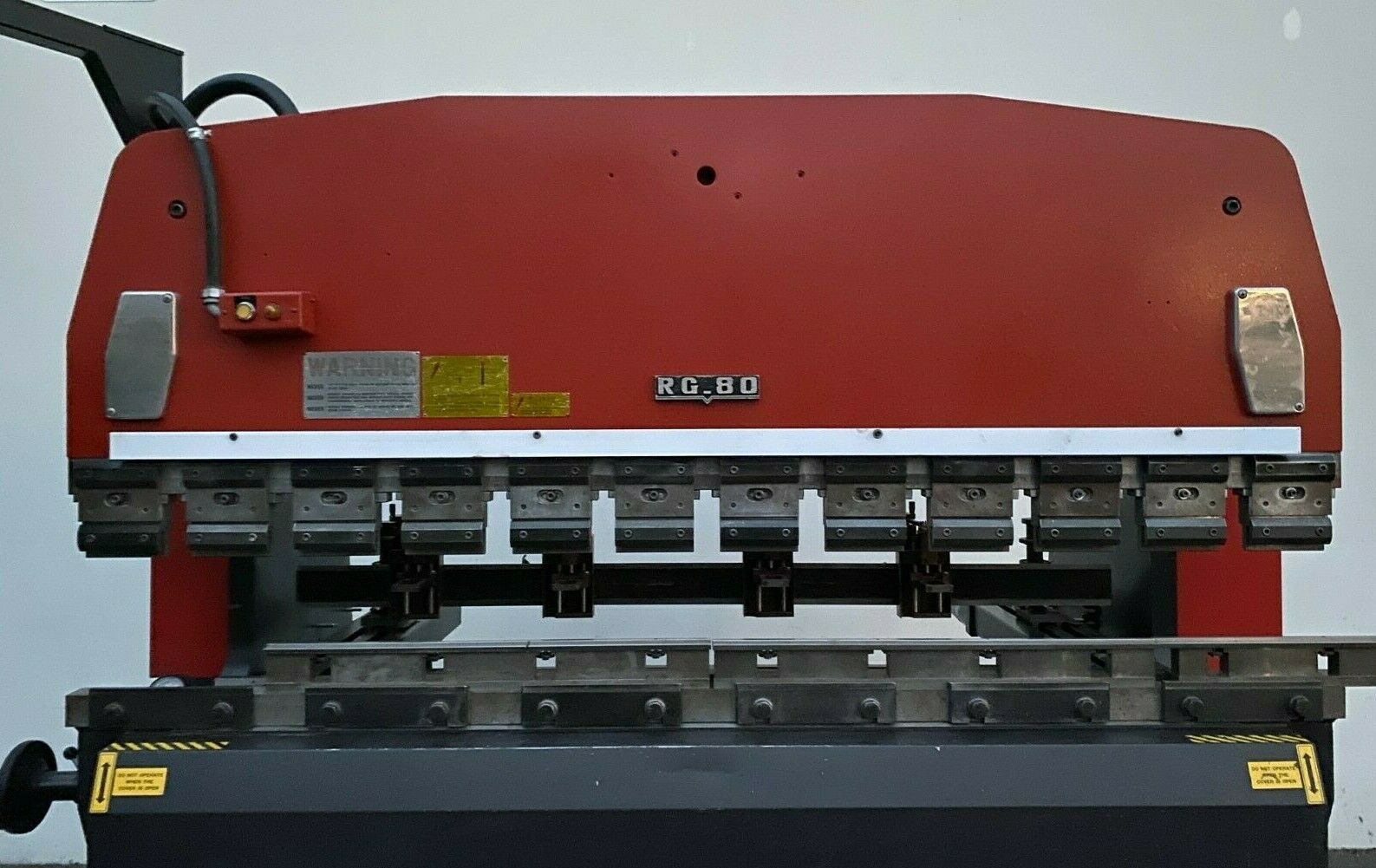

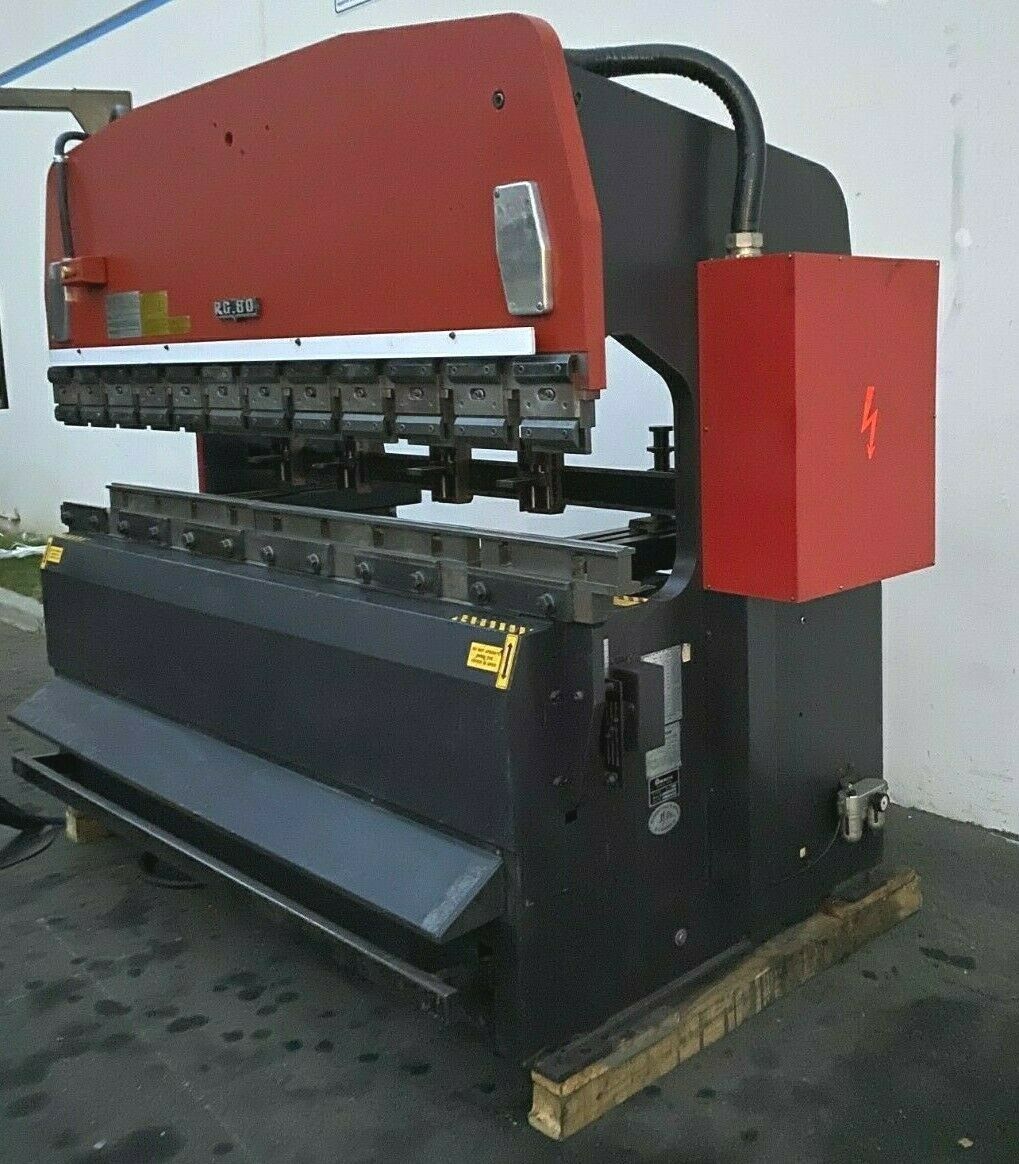

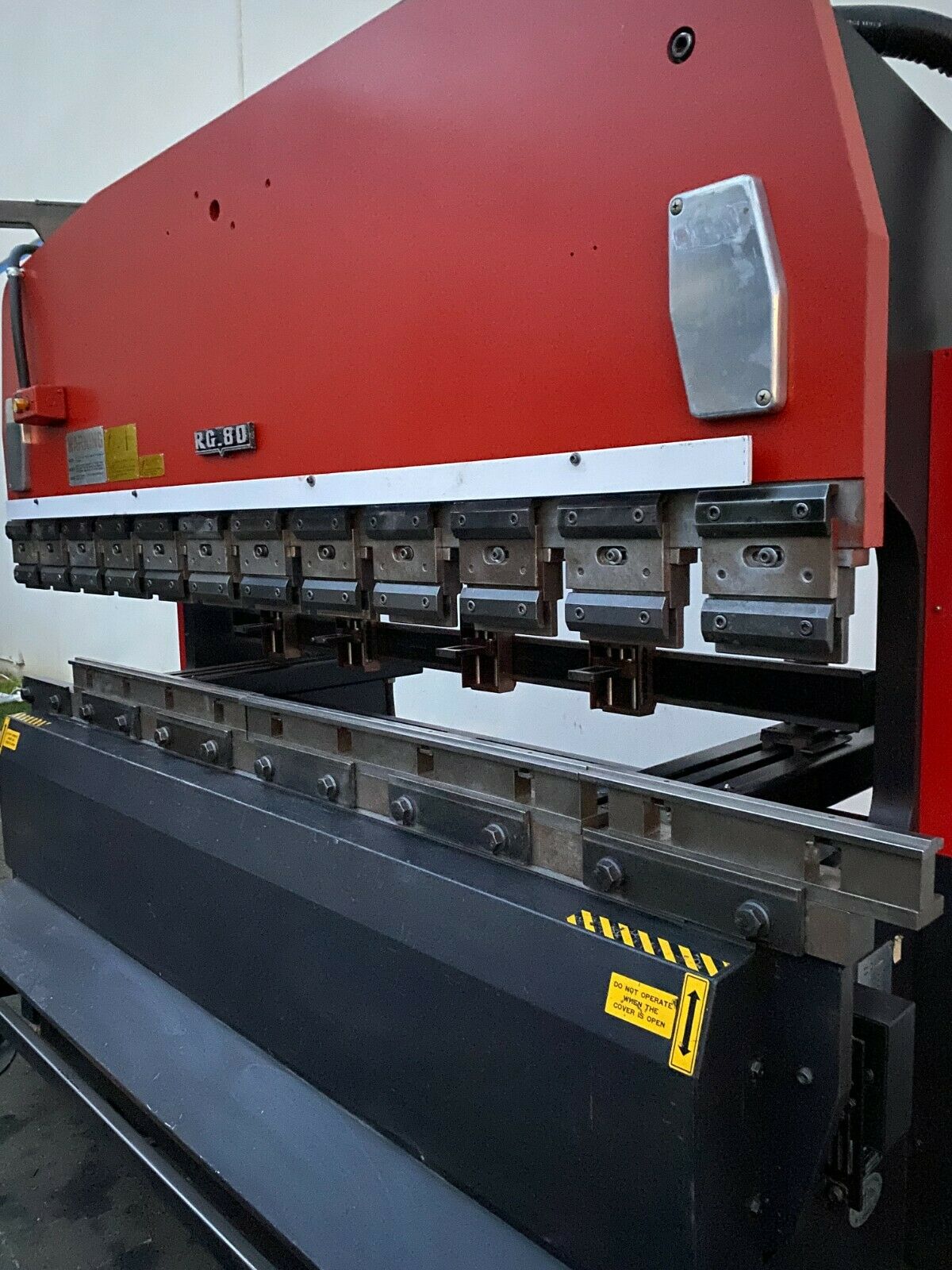

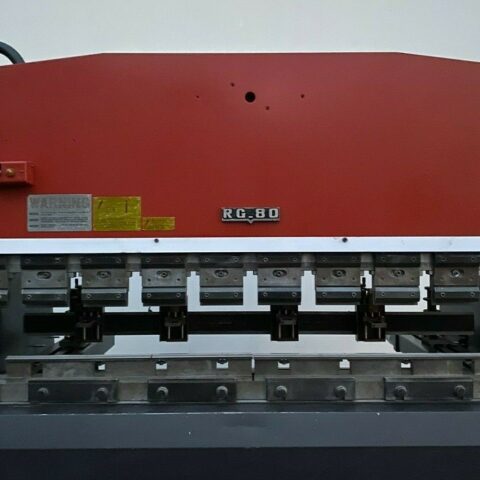

Used AMADA RG-80 CNC Press Brake

AMADA RG-80 CNC Press Brake

SKU 2045

Make AMADA

Model No. RG-80

Year 1994/95

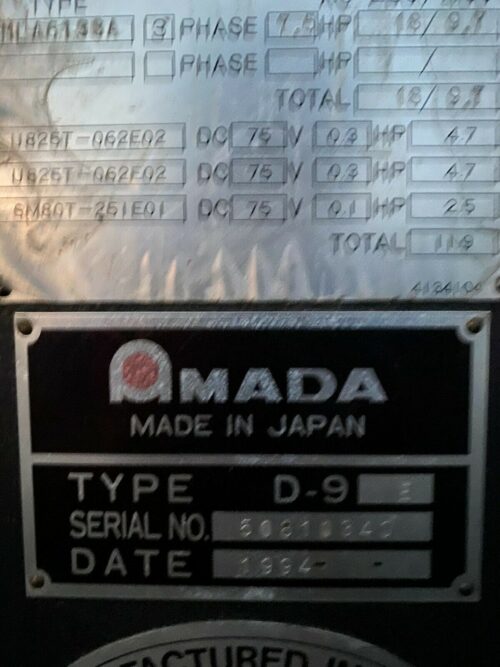

Serial # 810340

Condition Very Good

Out of stock

SKU	2045
Make	AMADA
Model No.	RG-80
Year	1994/95
Serial #	810340
Condition	Very Good

SKU: 2045

SKU	2045
Make	AMADA
Model No.	RG80
Year	1994/95
Serial #	810340
Condition	Very Good

AMADA RG-80 CNC Equipped With:

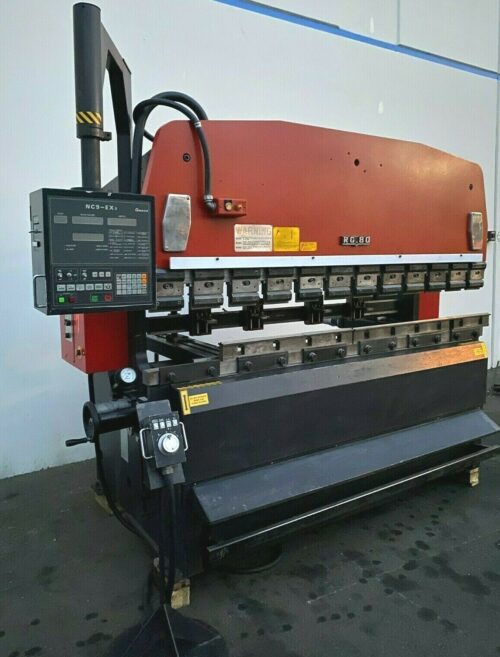

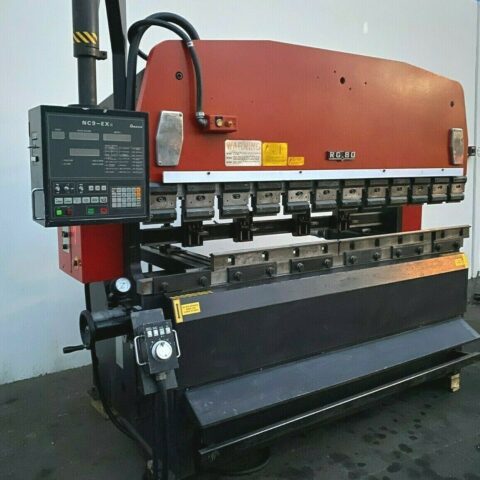

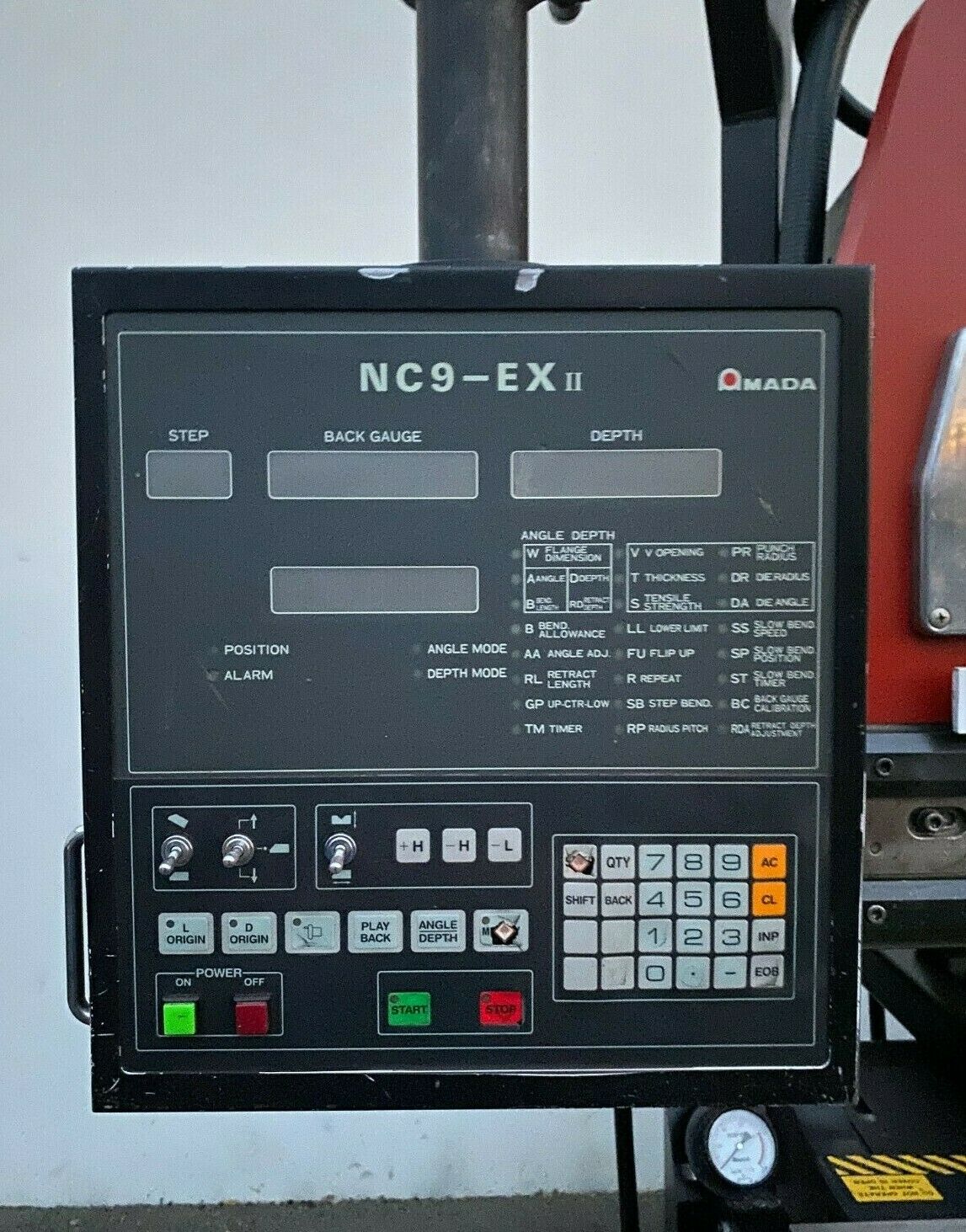

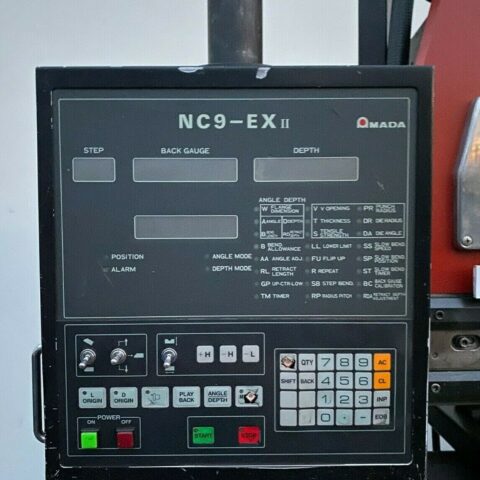

NC9-EXII CNC Control

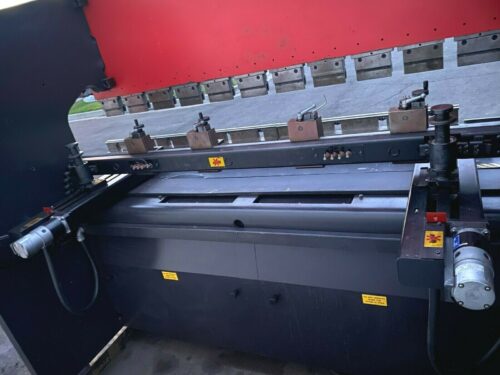

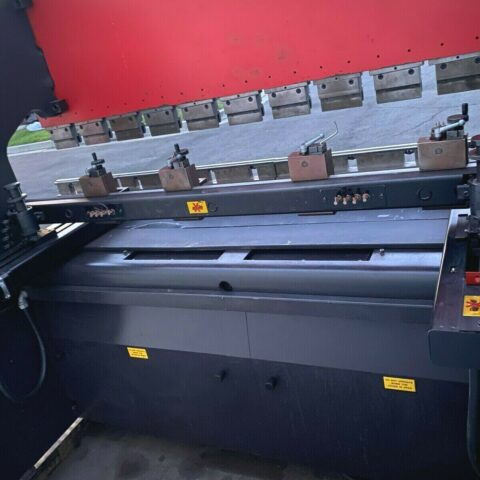

3 Axis Control and Back Gauge

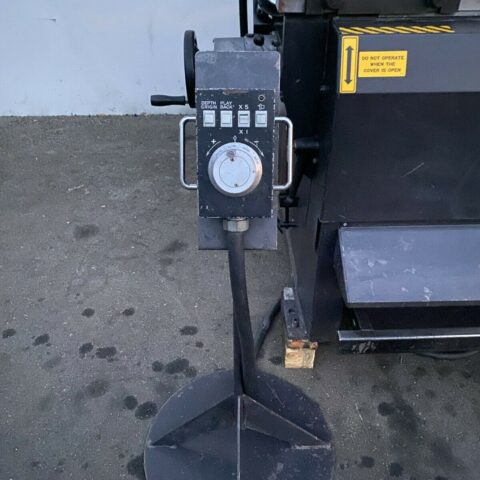

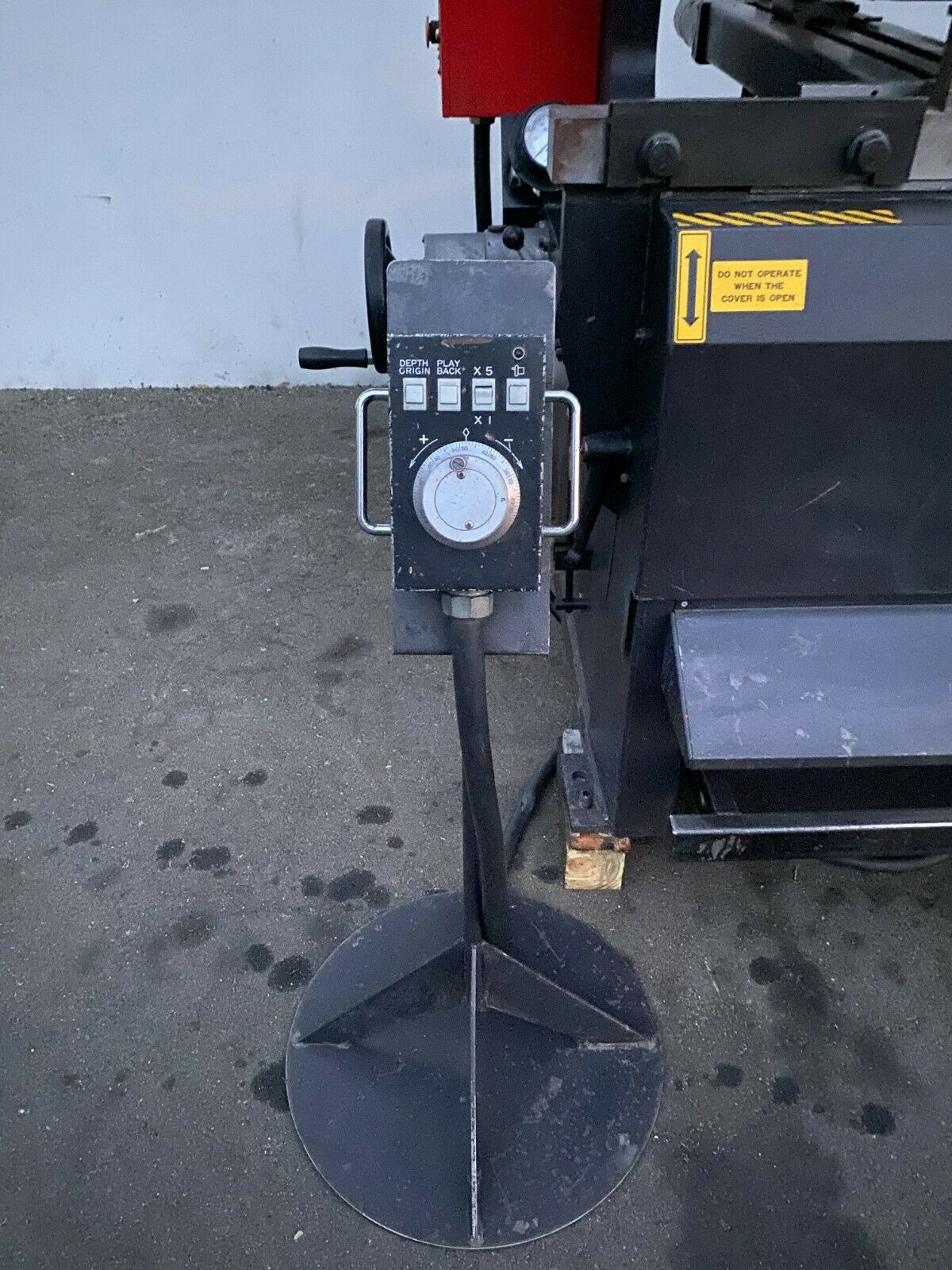

Remote Handwheel Depth Control
Pneumatic Fingers
Foot Treadle
Pressure Gauge
RS-232 Port

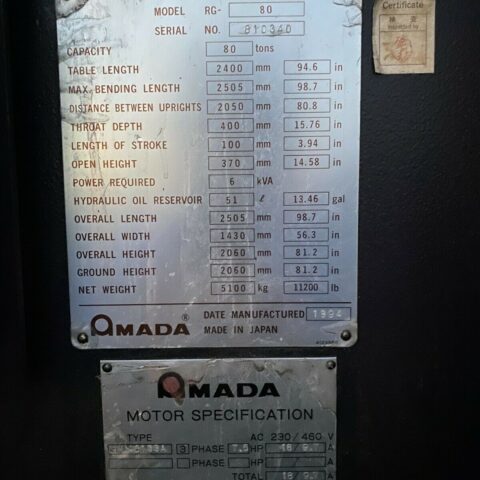

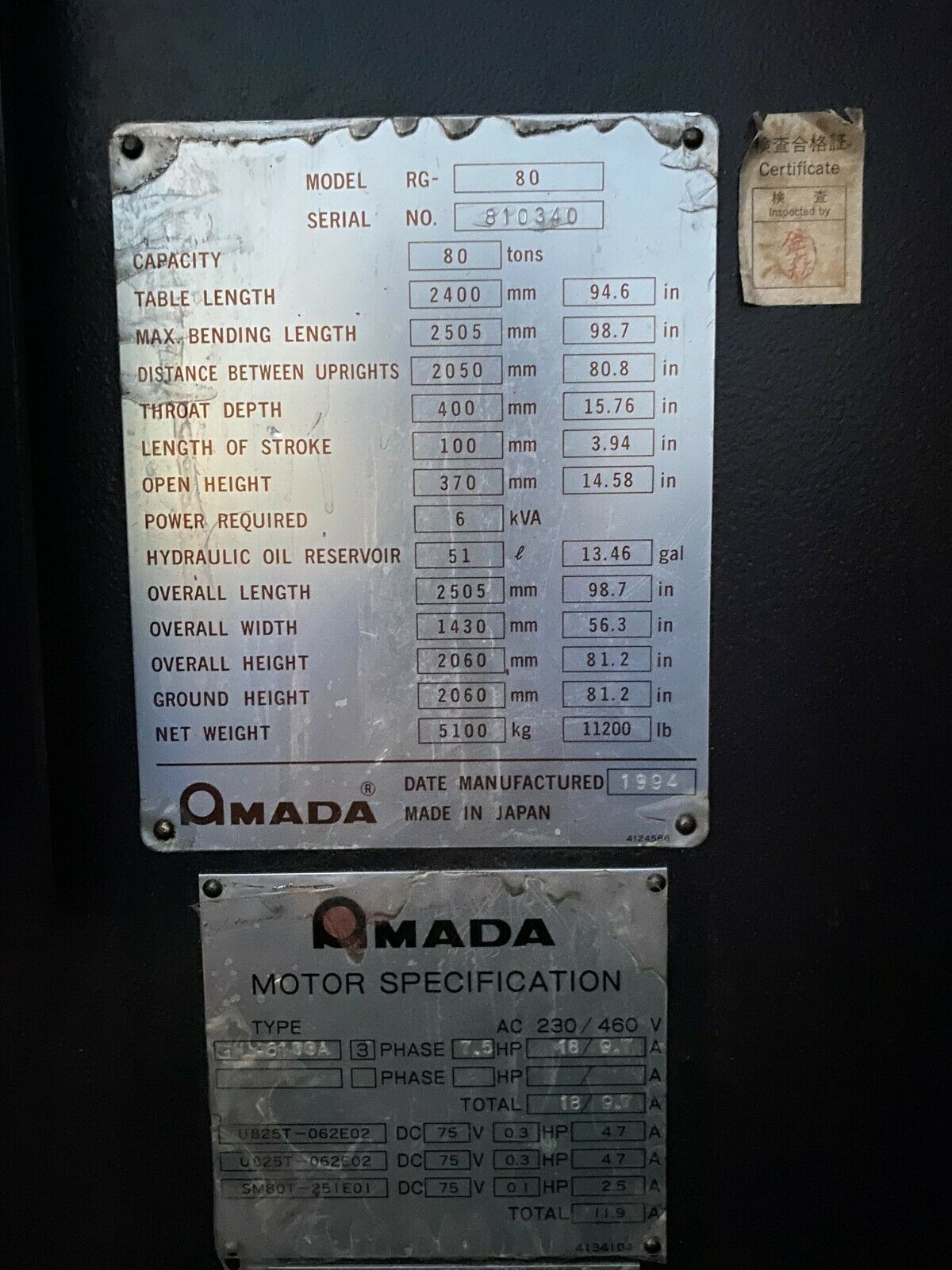

AMADA RG-80 CNC Specification:
Capacity: 80 Ton
Overall Bending Length: 98″
Distance Between Housings: 86″
Stroke: 0″ – 3.94″
Open Height: 14.57″
Shut Height: 10.67″
Throat Depth: 15.76″
Back Gauge Travel: 19.6″

Ram Speeds:
Approach: 106″ Per Minute
Forming: 19” Per Minute
Return: 122” Per Minute
Main Motor: 7.5 HP

General:
Power: 220v / 3-Phase
Overall Dimensions: 98″ X 60″ X 81″ High
Weight: 11,000 lbs

AMADA RG-80 CNC Equipped With:
NC9-EXII CNC Control
3 Axis Control and Back Gauge
Remote Handwheel Depth Control
Pneumatic Fingers
Foot Treadle
Pressure Gauge
RS-232 Port

AMADA RG-80 CNC Specification:
Capacity: 80 Ton
Overall Bending Length: 2,489 mm
Distance Between Housings: 2,184 mm
Stroke: 0 mm – 100 mm
Open Height: 370 mm
Shut Height: 271 mm
Throat Depth: 400 mm
Back Gauge Travel: 498 mm

Ram Speeds:
Approach: 2,692 mm Per Minute
Forming: 19” Per Minute
Return: 122” Per Minute
Main Motor: 7.5 HP

General:
Power: 220v / 3-Phase
Overall Dimensions: 2,489 mm X 1,524 mm X 2,057 mm High
Weight: 11,000 lbs
