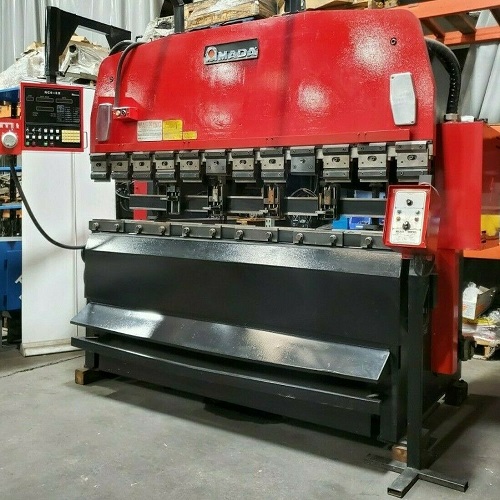

| AMADA RG-80 CNC PRESS BRAKE W/ NC9-EX 80 TON HYDRAULIC | |
|---|---|
| SKU | 2101 |
| Make | AMADA |
| Model No. | RG-80 |
| Serial # | 806910 |
| Year | 1986 |
| Cutting Time: | Hours |
| Condition: | Very Good |
All specifications are approximations and are subject to verification.
- Equipped With:

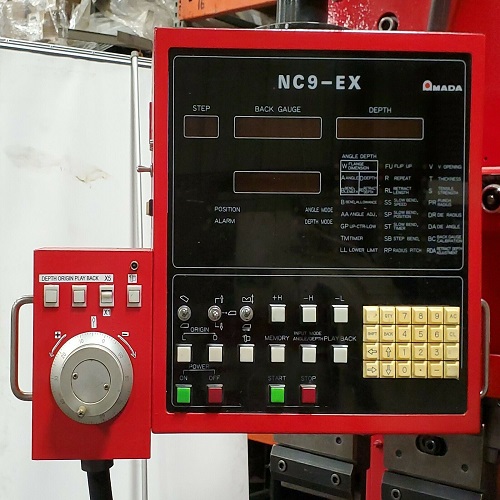

- NC9-EX CNC Control

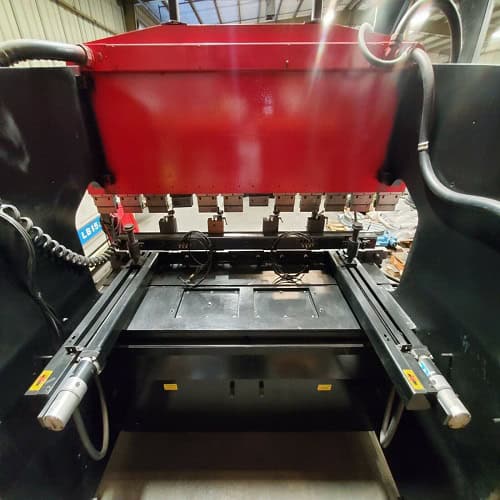

- 3 Axis Control and Back Gauge
- Remote Handwheel Depth Control
- Pneumatic Fingers
- Foot Treadle
- Pressure Gauge
- Ram Speeds:
- Approach: 106″ Per Minute
- Forming: 19” Per Minute
- Return: 122” Per Minute
- Main Motor: 7.5 HP

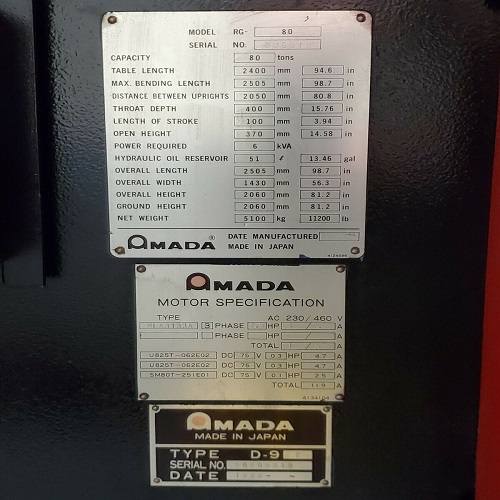

- Specifications:
- Capacity: 80 Ton
- Overall Bending Length: 98″
- Distance Between Housings: 86″
- Stroke: 0″ – 3.94″
- Open Height: 14.57″
- Shut Height: 10.67″
- Throat Depth: 15.76″
- Back Gauge Travel: 19.6″
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 98″ X 60″ X 81″ High
- Weight: 11,000 lbs
