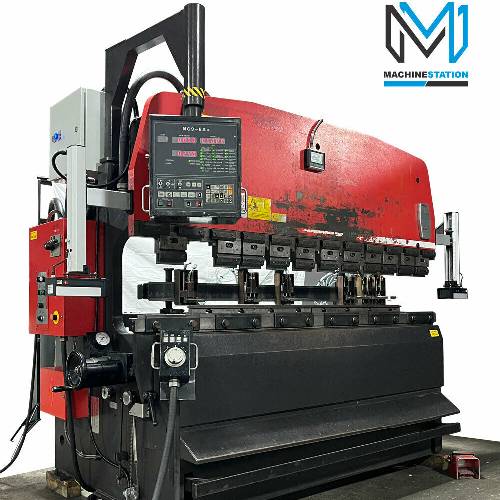

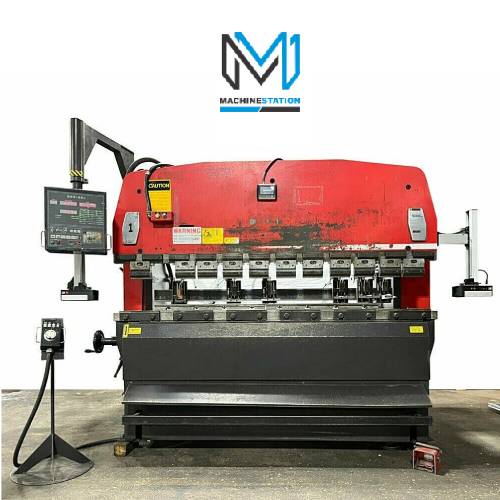

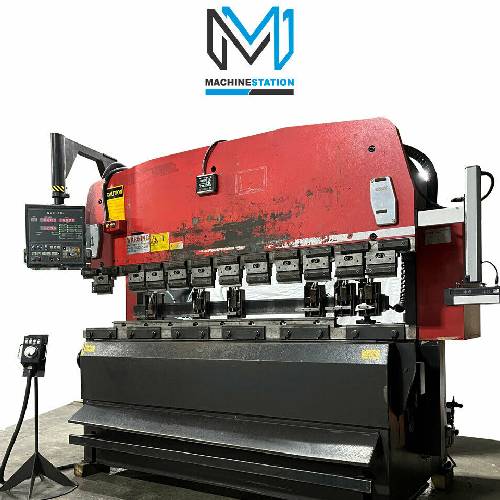

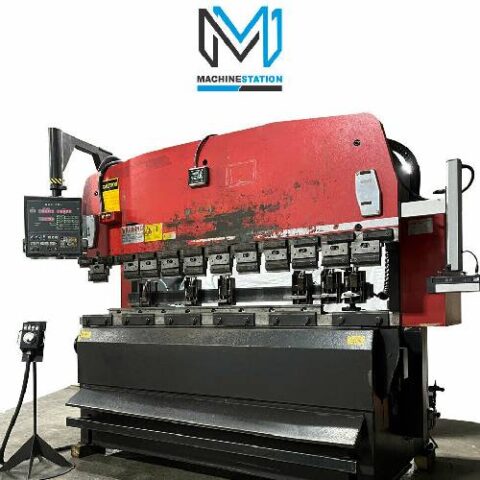

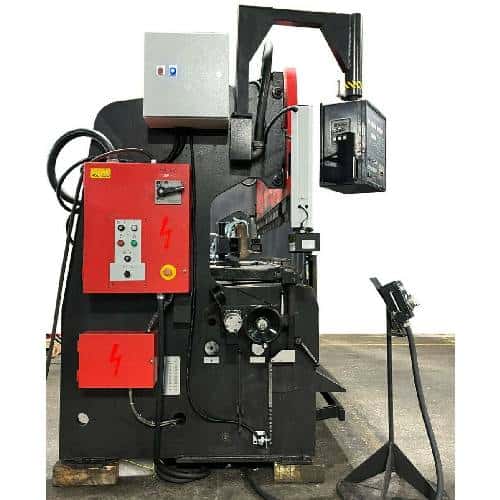

| AMADA RG-80 CNC PRESS BRAKE | |
|---|---|
| SKU | 2302 |
| Make | AMADA |
| Model No. | RG-80 |
| Serial No. | 810267 |
| Year: | 1993 |
| Condition: | Very Good |
| Cutting Hours: | Only |
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
- Equipped With:

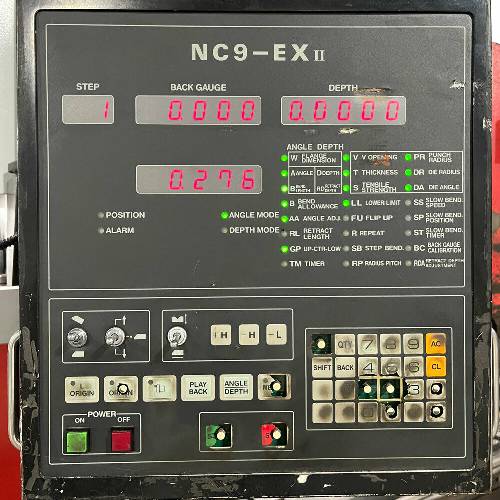

- NC9-EXII CNC Control

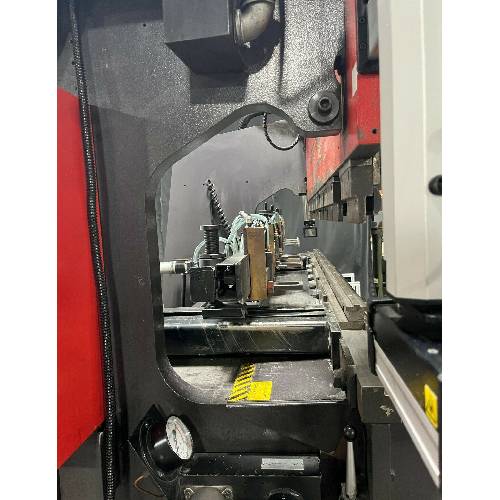

- 3 Axis Control and Back Gauge
- Remote Handwheel Depth Control

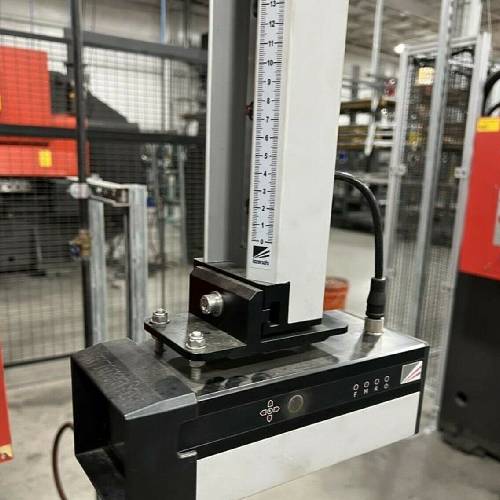

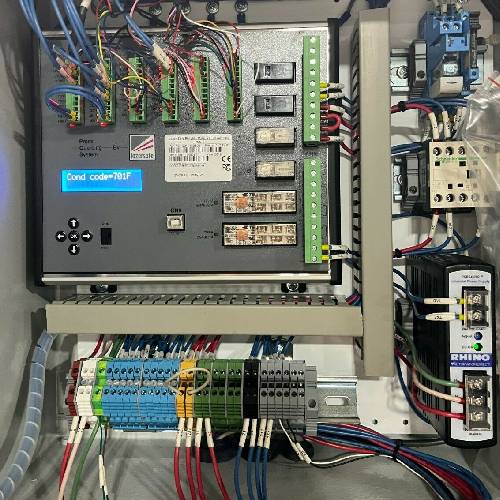

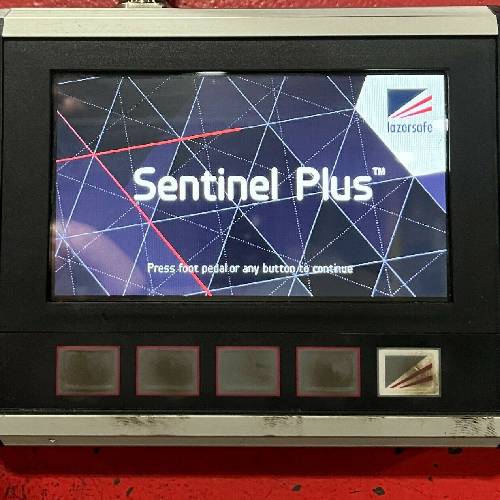

- Lazer Safe Unit installed in 2019 ($18000 Option)
- Pneumatic Fingers
- Foot Treadle
- Pressure Gauge
- RS-232 Port
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 98.7″ X 56.3″ X 81.2″ High
- Weight: 11,200 lbs
- Specifications:
- Capacity: 80 Ton
- Table Length :94.6″
- Maximum Bending Length: 98.7″
- Distance Between Uprights: 80.8″
- Length of Stroke: 3.94″
- Open Height: 14.57″
- Shut Height: 10.67″
- Throat Depth: 15.76″
- Back Gauge Travel: 19.6″
- Ram Speeds:
- Approach: 106″ Per Minute
- Forming: 19” Per Minute
- Return: 122” Per Minute

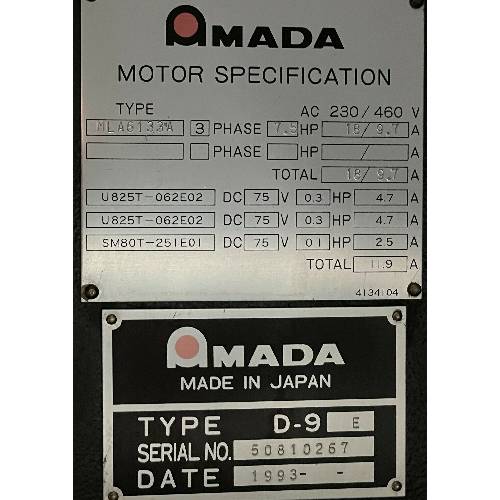

- Main Motor: 7.5 HP
