| USED AMURA SEIKI CNC VERTICAL MACHINING CENTER | |
|---|---|
| Make | Amura Seiki |
| Year of Mfg: | 1997 |
| Condition | Very Good |
“REDUCED!! its a complete Machine & shows signs of use. Selling AS-is”
- USED AMURA SEIKI CNC VERTICAL MACHINING CENTER Feature:

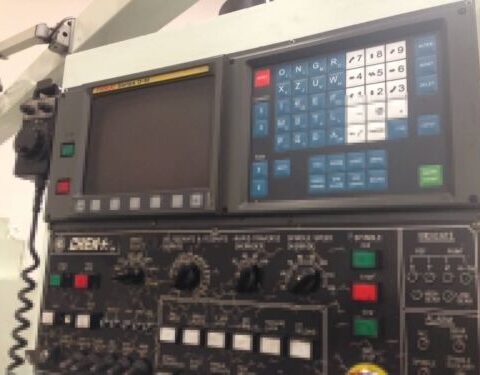

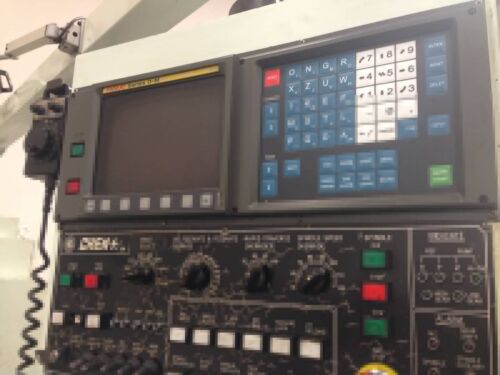

- Fanuc Series O-M Control.
- RS-232 Port.
- BT 50 Spindle Taper.

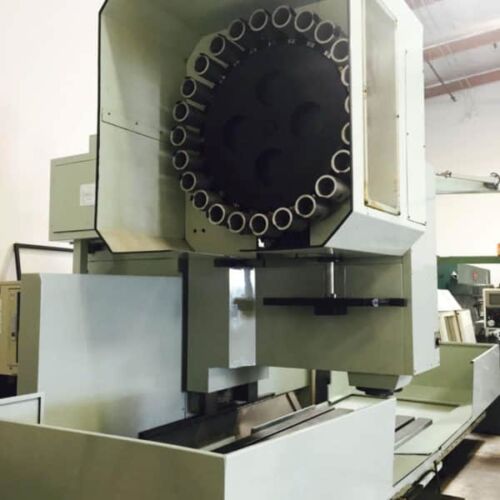

- 24-Station Automatic Side Tool Changer.
- Coolant System.
- Chip Auger.
- USED AMURA SEIKI CNC VERTICAL MACHINING CENTER Specifications:
- MODELMCV1600

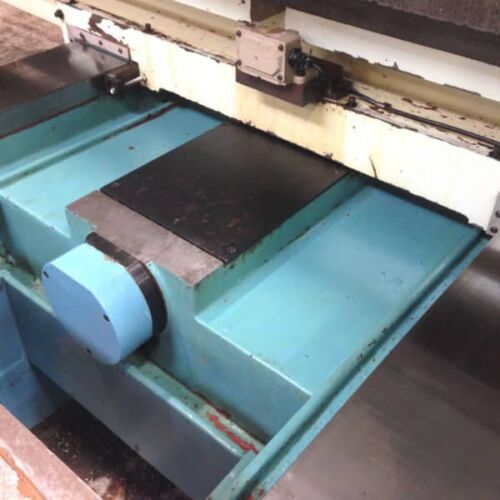

- Table
- Table size67″ X 28″
- Working surface67″ X 26.5″
- T-slots5 x 7/8″ x 5″
- Max. Table load2500kgs
- Travel
- X-axis62.99″
- Y-axis32.28″
- Z-axis29.52
- Spindle end to table top8″~36″
- Spindle
- Nose taperB.T.50#
- Spindle speed36~5000 rpm
- ATC (automatic tool changer)
- Tool storage24 pcs
- Tool Dia. X Length(max.)5″x10″
- Max. tool weight15kg
- Tool selectionBidirection
- Motor
- Spindle motor15hp(11kw)
- X. Y. Z.-axis DC motor4.69hp(3.5kw)
- Cooling motor2hp(1400w)
- Lubrication motor0.036hp(25w)
- Feed
- Cutting feed rate8000mm/min
- Rapid traverse rate(X.Y.Z)X,Y:12000mm/min,
- Z:12000mm/min
- Machine weight and packing
- N.W.13200kgs
- G.W.13300kgs
- General:>
- Machine Weight: 20,000 lbs. approx.
- Electrial: 220 / 440 Volt, Three Phase
- Overall Dimensions: 130″ x 160″ x 150″ tall
“Comes as shown in pictures. Selling As-is”
USED AMURA SEIKI CNC VERTICAL MACHINING CENTER and Comes as shown in pictures.
