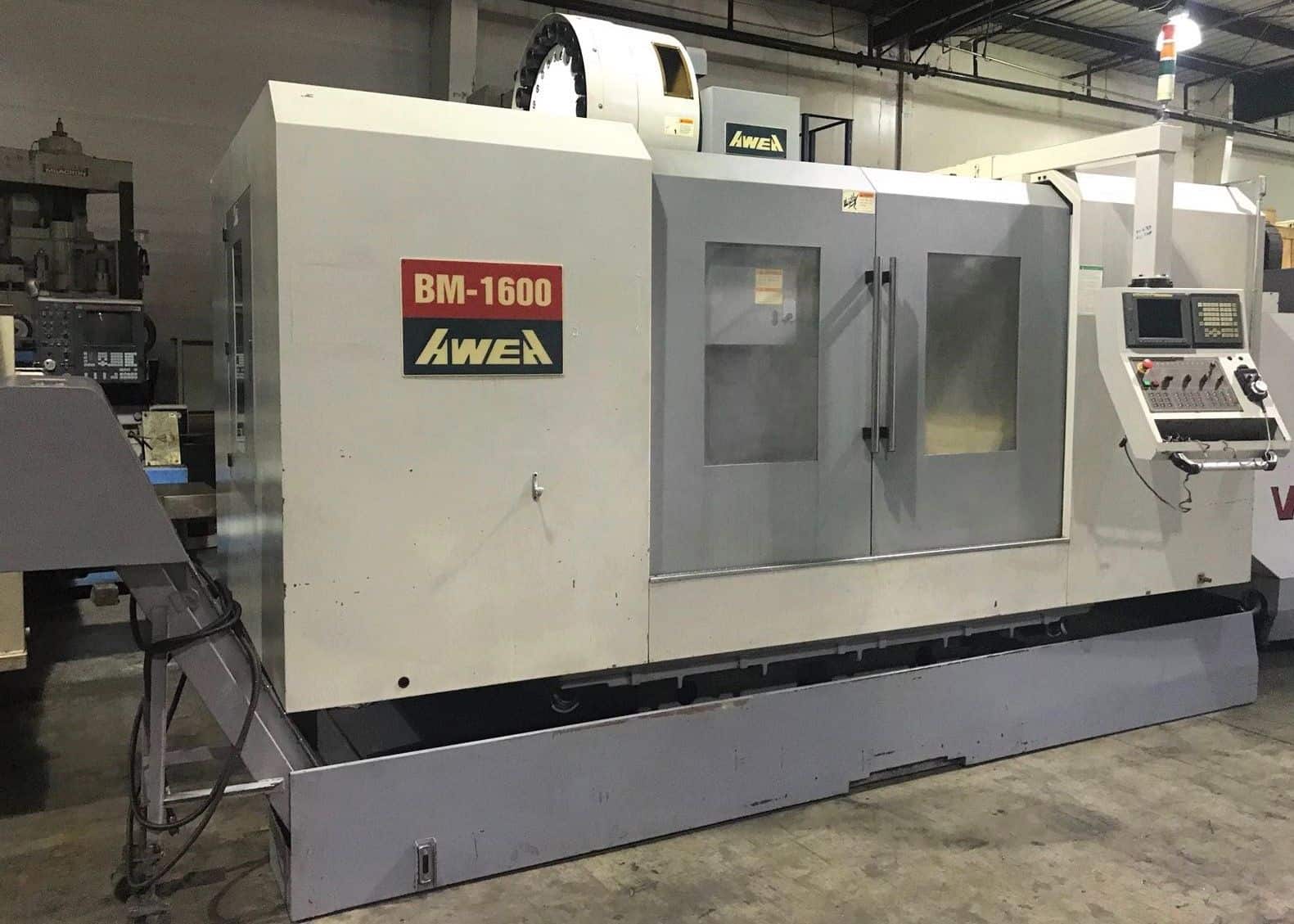

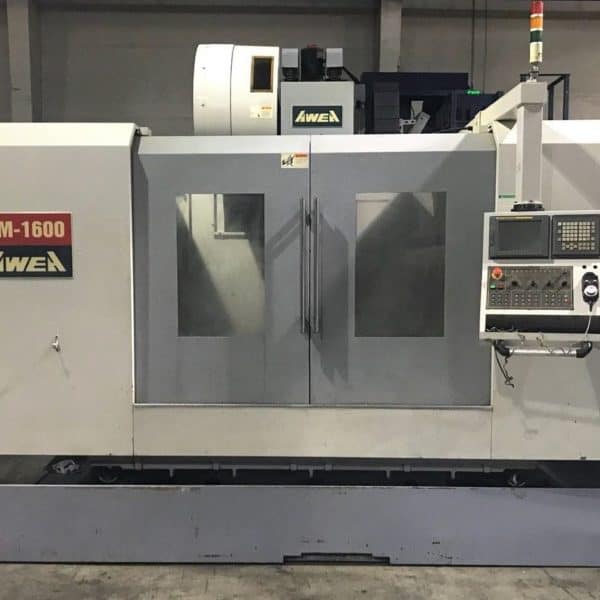

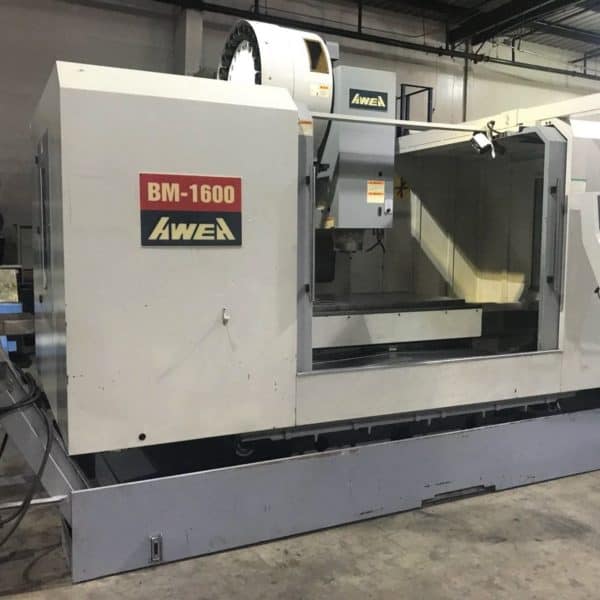

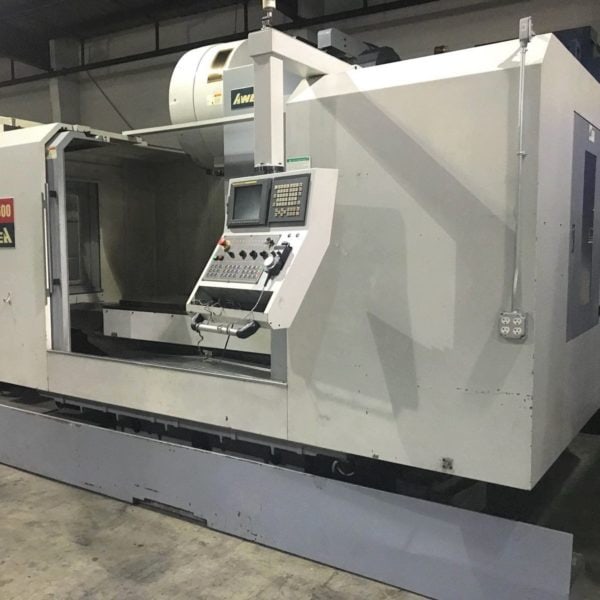

AWEA BM-1600 VERTICAL MACHINING CENTER | |
---|---|
Make | AWEA |
Model No. | BM-1600 |
Year of Manufacture: | 10-2005, Installed 2007 |
Serial # | 5033 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has very low Cutting Hours, 50 Taper, 24 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- AWEA BM-1600 Features:

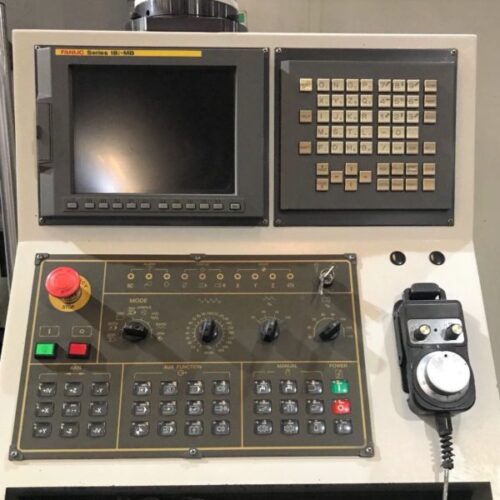

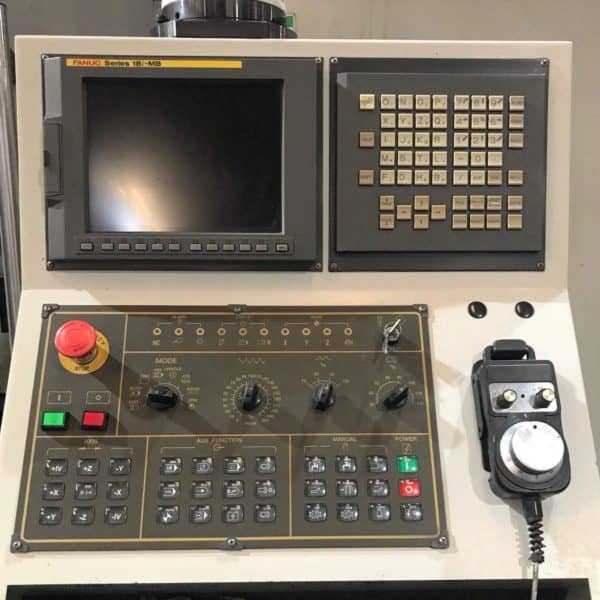

- Fanuc 18i-MB CNC Control
- 50 Taper Geared Head Spindle
- 24 Tools Side Mount Bidirectional Tool Changer
- PCMCIA Card Slot
- Box Way Construction All Axis
- Powerful 35 hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Electrical Panel AC
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Conveyor
- Work light
- Books and Manuals
- AWEA BM-1600 Specifications:
- Travels:
- X-Axis: 63.0″
- Y-Axis: 31.5″
- Z-Axis: 31.5″
- Spindle Nose to Table (Min.- Max.): 7.87″ – 39.3″
- Spindle Nose to Column: 35.4″

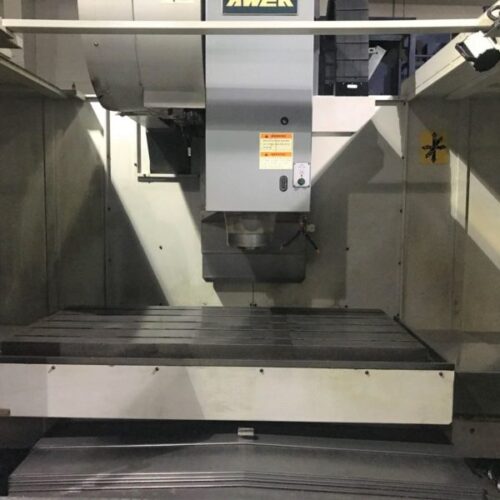

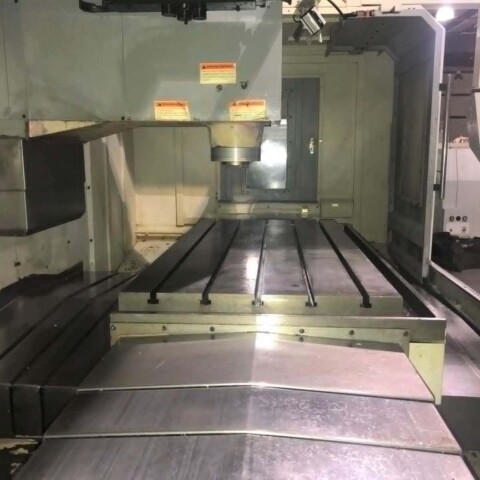

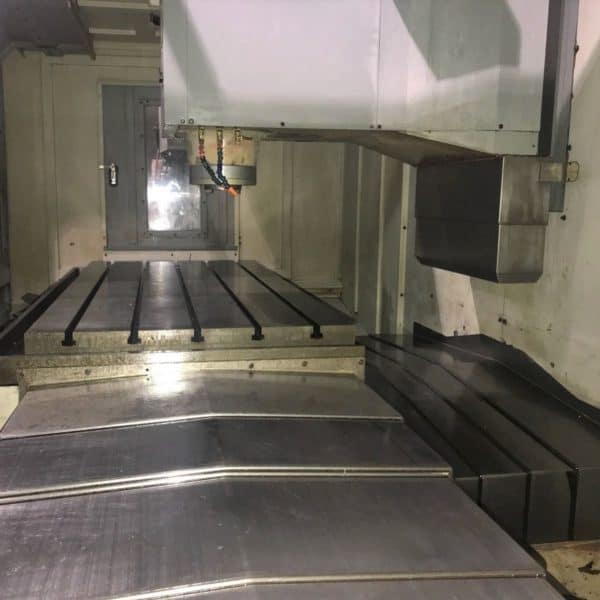

- Table:
- Length: 67″
- Width: 31.5″
- Max Weight on Table: 4400 lbs
- T-Slot no. & Width: 5 X 0.7″
- Gear Head Spindle:
- Taper Size: 50
- Speed Range: 60 – 6,000 RPM
- Spindle Power: 35 HP
- Feed rates:
- Rapid X,Y & Z: 788 inch/P.M
- Cutting Feedrate: 315″ inch/ P.M
- Automatic Tool Changer:
- 50 Taper
- Capacity: 24
- Max Tool Weight: 33 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 7.87″
- General:
- Air Required: 90 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 185″ x 128″ x 122″ High
- Weight: 35000 lbs
AWEA BM-1600 Comes as shown in pictures.
