| Awea SP-2012 CNC Double Column Bridge Type Vertical Machining Center | |
|---|---|
| Make | Awea |
| Model No. | SP-2012 |
| Year | 1998 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
- Awea SP2012 Equipped With:
- TABLE SIZE 78.7″ x 43″
- CNC CONTROL FANUC O-M
- BETWEEN COLUMNS 51.5″
- X AXIS TRAVEL 78.7″
- Y AXIS TRAVEL 47.2″
- Z AXIS TRAVEL 30″
- RAPID TRAVERSE X,Y/Z 787/590 IPM
- SPINDLE SPEEDS 5,000 RPM MAX
- SPINDLE TAPER CAT 50
- SPINDLE MOTOR 30/20 HP
- TOOL CHANGER CAPACITY 40 POSITIONS
- Main machine……..18’ 6” L x 10’ W x 10’ 9” H
- Hydraulic system……………34” L x 63” W x 44” H
- Coolant pan…………………29” L x 77” W x 12”H
- Chip conveyor……………100” x 14” x 54”
- Weight 40,000 LBS

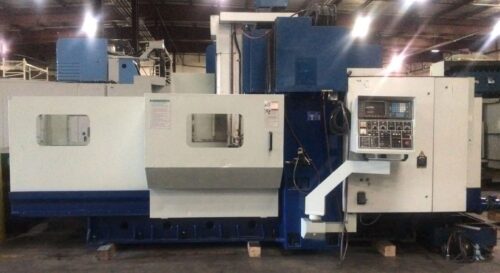

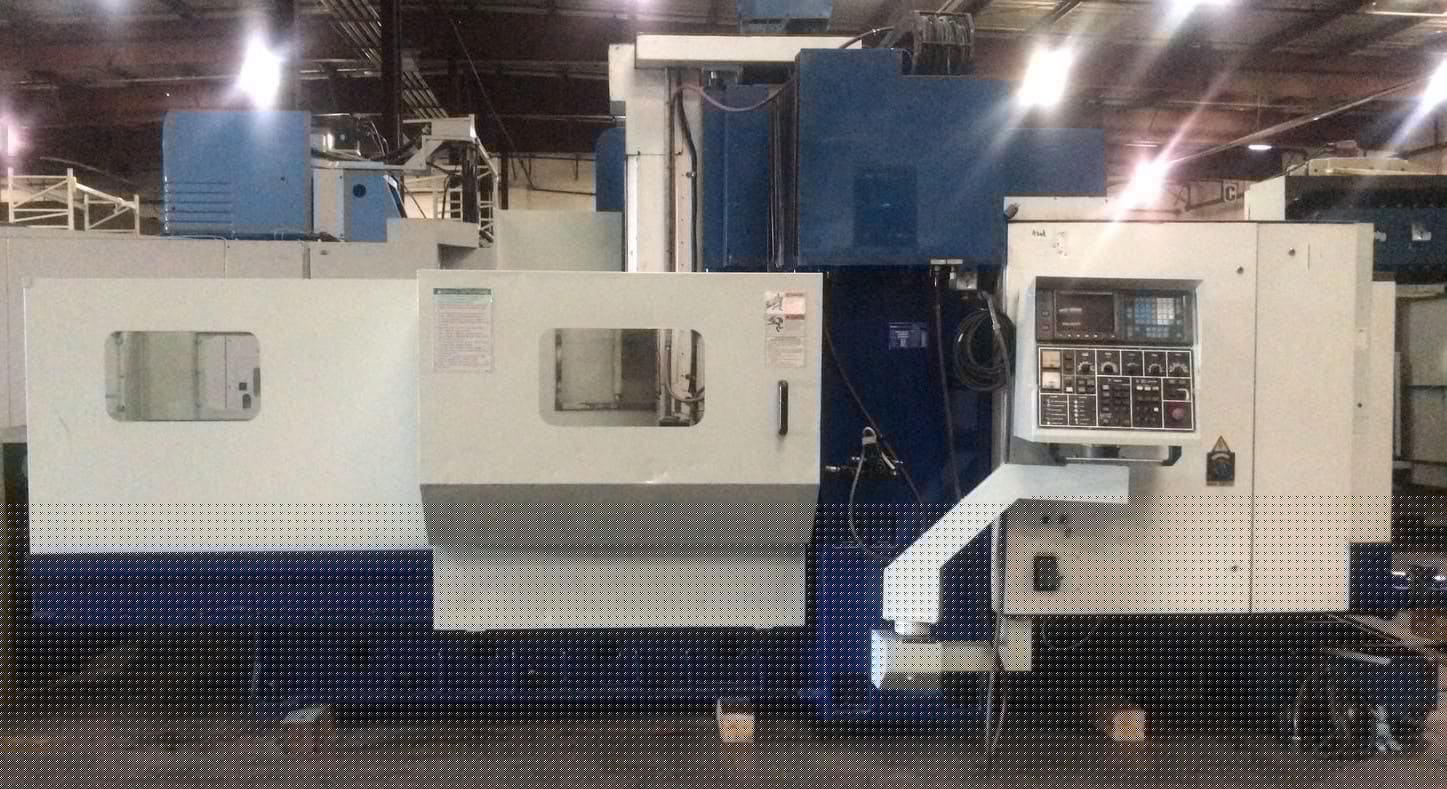

Awea SP-2012 CNC VMC comes as shown in Pictures….
