Awea VP-2012 CNC Vertical Bridge Mill

Awea VP-2012 CNC Vertical Bridge Mill

Out of stock

SKU: 1817
Make/Model: AWEA VP-2012
Video:



SKU: 1817 Category:

Description

AWEA VP-2012 CNC VERTICAL BRIDGE MILL
MakeAWEA
Model No.VP-2012
Year2000 Installed 2004
Serial #0126
ConditionVery Good
  • Awea VP-2012 CNC Vertical Bridge Mill Equipped With:
  • Fanuc 18M CNC Control
  • Tsudakoma 401L 16″ Rotary Table w/ Tailstock
  • 80″ X 44″ Jig Table
  • 30 Station Side Mount Tool Changer
  • 50 Taper Geared Head
  • 5000 RPM Spindle
  • Powerful 35 HP high torque spindle motor
  • RS-232 Port
  • Spindle Orientation
  • Box Way Construction
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank Base
  • Flush Chip Disposal with Dual Auger
  • Chip Conveyor
  • Spindle Chiller Unit
  • Foot Switch
  • Levelling Pads
  • Awea VP-2012 CNC Vertical Bridge Mill Specifications:
  • Travels:
  • X-Axis: 78.0″
  • Y-Axis: 47.6″
  • Z-Axis: 30.9″
  • Distance Between Columns: 51.5″
  • Spindle Nose to Table (Min.- Max.): ″
  • Table: Length: 78.6″
  • Width: 43.4″
  • T-Slot: 0.87″ Wide X 20 X 7.87″
  • Max Weight on Table: 33,000 lbs
  • Spindle:
  • Taper Size: 50
  • Speed Range: 5000 RPM
  • Spindle Power: 35 HP
  • Feed rates: Rapid X,Y & Z: 590 inch per minute
  • Cutting Feedrate: .04″ – 376″ inch per minute
  • Automatic Arm Type Tool Changer:
  • 50 Taper
  • Capacity: 30
  • Max Tool Weight: 43 lbs
  • Max Tool Length: 13.77″
  • Max Tool Dia.: 5.2 – 7.7″
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 3-Phase, 65 Kva
  • Floor Dimensions: 18’6″ X 10′ x 10’9″ High
  • Hydraulic Unit, Chip Conveyor extra
  • Weight: 40,600 lbs

“No Charges for loading at list Price”

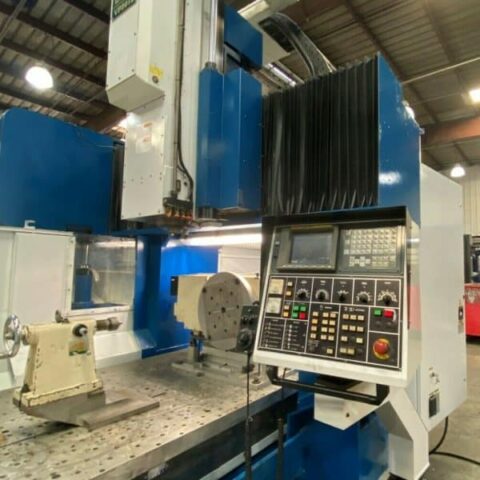

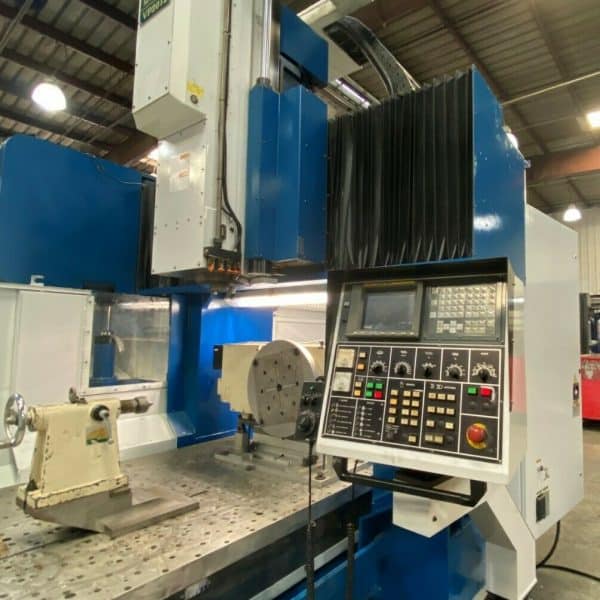

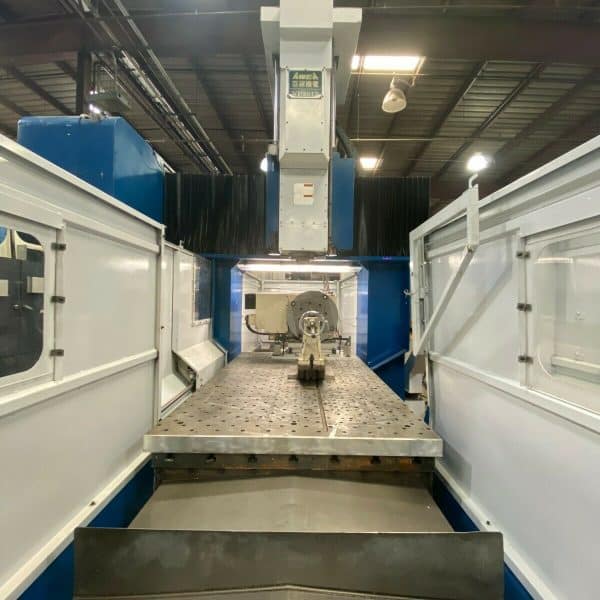

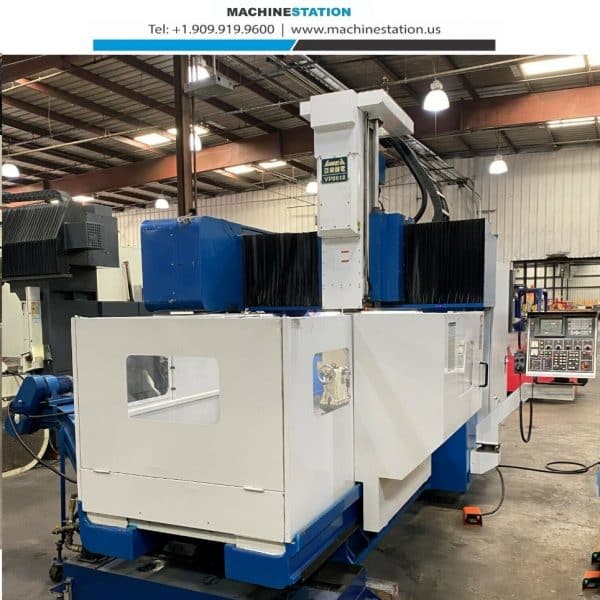

Awea VP-2012 CNC Vertical Bridge Mill comes as shown in pictures…
