*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Brother |

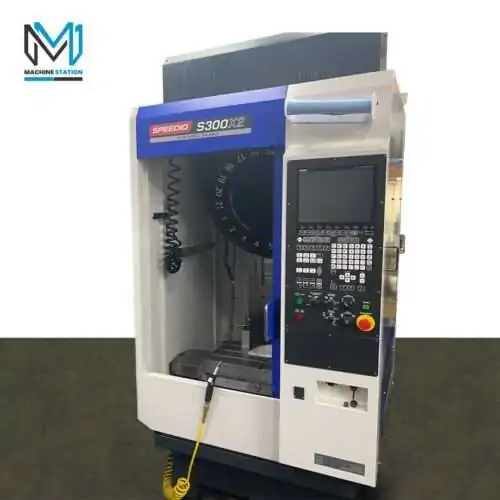

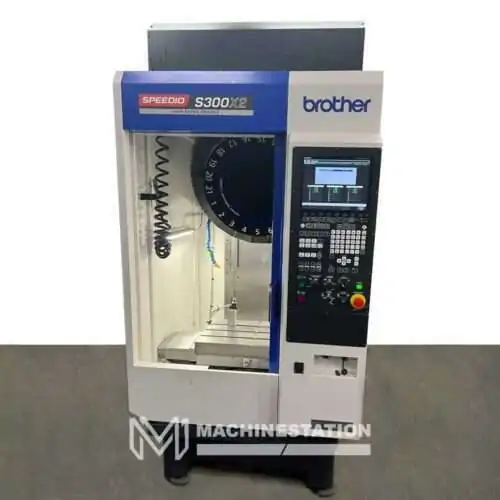

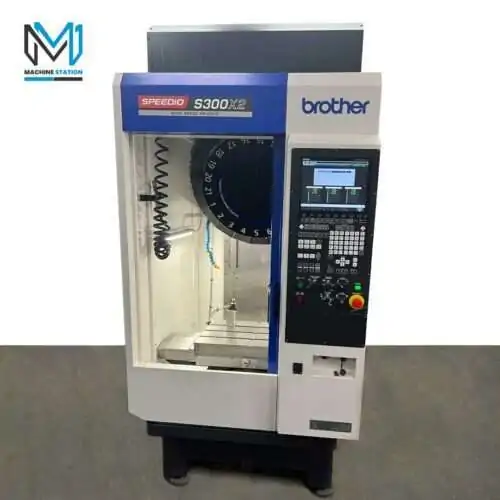

| Model: | Speedeo S300X2 |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Features: |
|---|
| Brother CNC Control |
| 27.000 RPM Inline Direct Drive Spindle |

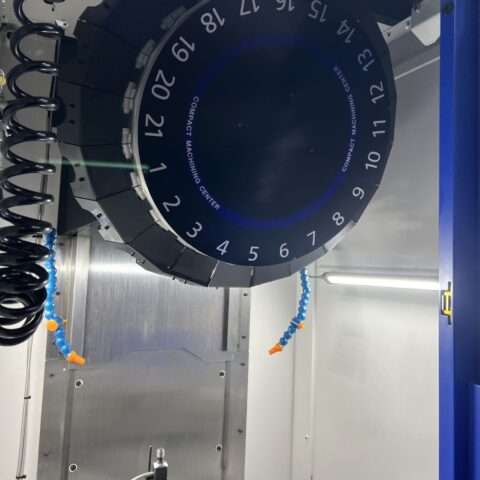

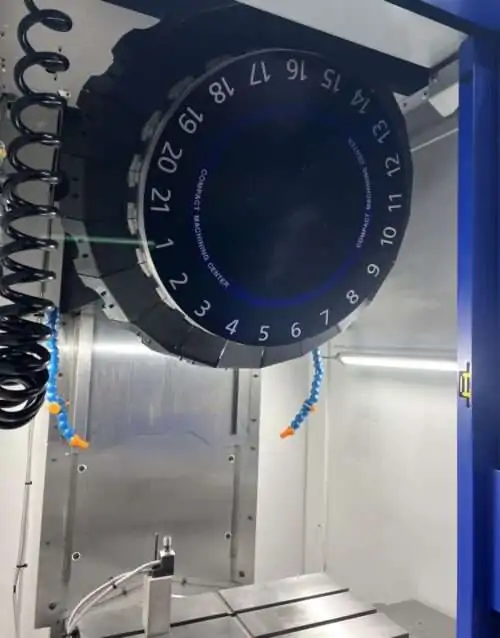

| 21 Station Automatic Quick Tool changer |

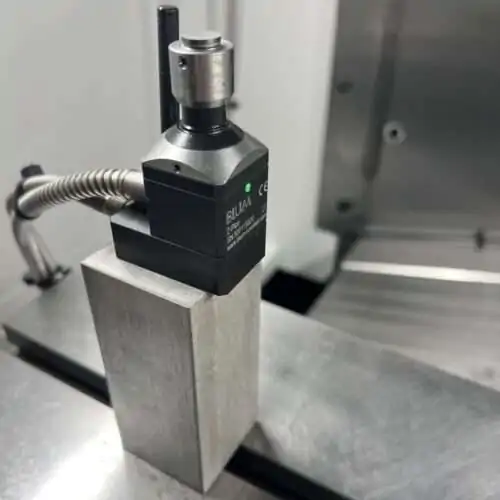

| Probe |
| Jog Handle |
| Tool Holders |
| Fast Rapid |
| Rigid Tapping |
| Telescopic way covers |
| Work Light |
| Specifications: |
|---|
| Travels: |
| X-Axis: 11.8″ |
| Y-Axis: 15.7″ |
| Z-Axis: 11.8″ |
| Rapid Traverse Rates X & Y Axis: 1969 IPM |
| Rapid Traverse Rates Z Axis: 2205 IPM |
| Cutting Feed Rates: 1181 IPM |
| Spindle Nose to Table (Min.- Max.): 7.1″ – 18.9″ |
| Table |
|---|
| Length: 23.6″ |
| Width: 15.7″ |
| Max Weight on Table: 551 lbs |
| Spindle: |
|---|
| Taper Size: 30 |
| Speed Range: 27.000 RPM |
| Spindle Power: 10 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 21 Station Quick Tool Changer |
| Max Tool Weight: 6.6 lbs |
| Max Tool Dia: 4.3″ |
| Max Tool Length: 9.8″ |
| Tool Changing Time : 0.7 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 9.5 kva / 3-Phase |
| Overall Dimensions: 42.5″ x 96.9 x 98.3” High |
| Weight: 4850 lbs. Approx. |
