| Bullard Dynatrol 46inch Vertical Boring Mill |
|---|
- Bullard Dynatrol 46inch Vertical Boring Mill Specifications:
- Table diameter 46”
- Max. swing without side head 58”
- Max. swing with side head 49”
- Max. height under cross rail 40”
- Swivel of rail heads ±30º
- Vertical ram travel 42”
- Vertical travel of head slide travel 26”
- Vertical travel of side head ram 23 ¾”
- Vertical travel of crossrail 28”
- Max. height under ram head 47 ¾”
- Max. height under turret head 50 3/8”
- 20 table speeds 8.5 to 313 RPM
- Infinite feeds from .001 IPR
- Bullard Dynatrol 46inch Vertical Boring Mill EQUIPPED WITH:
- L.H. Swivel ram head
- R.H. Swivel pentagon turret head
- with manual indexing and tool holders
- R.H. side head with square tool holder
- 46″Dia.4-jaw combination chuck with set of (4) hardened top jaws
- All hardened ways
- Control remote control pendant with twin pistol grip
- Automatic chip conveyor
- Coolant pan with splash guards and pump
- 2-axes Sony digital readout
- 50 HP 3/60/480 Volt motor and controls
- Condition: Excellent
- Approx. total weight: 52,350 lbs
- Max. height to clear ram head: 180”
- Max. height to clear pendant control:204”

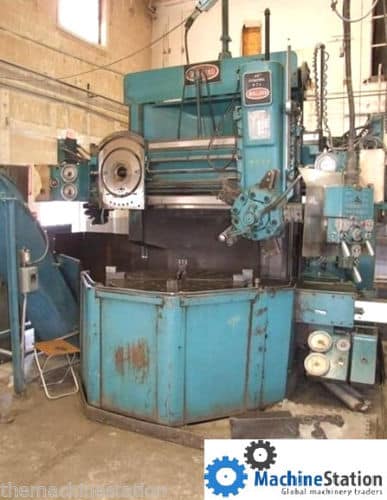

Bullard Dynatrol 46inch Vertical Boring Mill comes as shown in Pictures
GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.
WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.
MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.
BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
