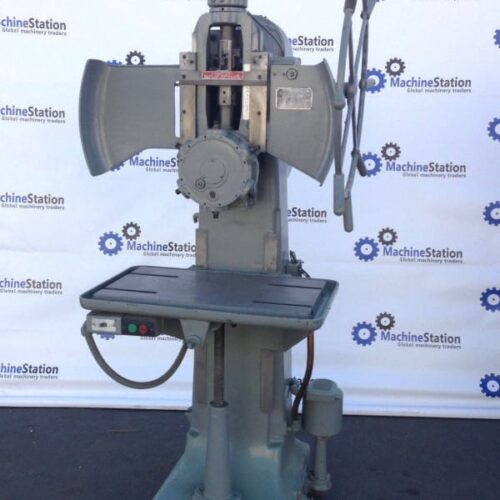

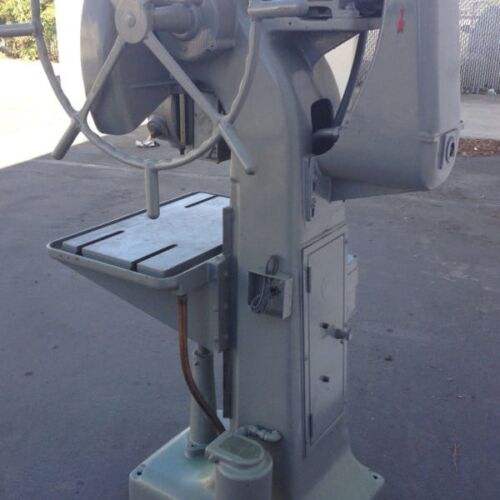

| BURGMASTER AUTOMATIC INDEXING TURRET DRILL PRESS | |
|---|---|

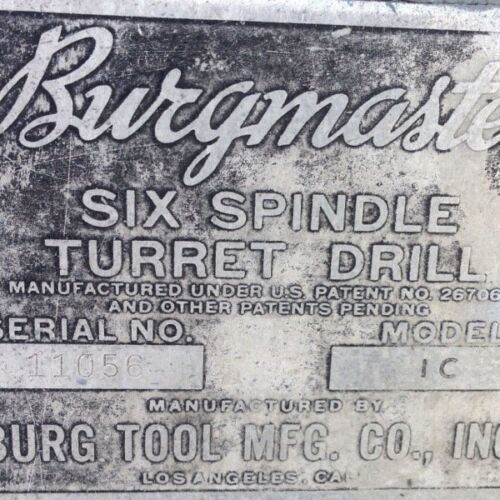

| Make | Burg Tool Manufacturing Co. |
| Model No. | 1C |
| Country of Origin: | USA |
| Serial # | 11056 |
| Condition | Very Good |
- BURGMASTER AUTOMATIC INDEXING TURRET DRILL PRESS Features:
- The 1C Burgmaster is a precision production machine, with sensitivity and accuracy built-in for high quality work, but rugged, rigid and powerful enough to handle rough work such as castings and forgings.
- Power Indexing Turret Head performs up to six operations on a part before it is moved to another machine, with resultant savings in handling, increase in production, and improved quality of product.

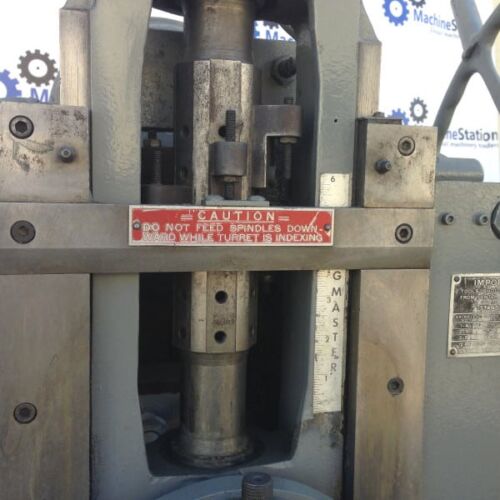

- Each position of the Turret Head is provided with a rigid Precision Ground Spindle, mounted in preloaded, Double Ball Bearings. Spindle Nose has a 5/8″-16 TPI Male Thread for mounting tools, making for quick interchangeablity of chucks, Morse Taper Sleeves, Tapping Heads, etc. Each Spindle is driven through helical gears by individual clutches, mounted in extra capacity bearings. Only spindle in operating position is revolving. Gears and Bearings of spindle in operating position are lubricated by a gravity feed oil bath.
- 7″ Spindle Travel – Perform deep hole drilling or boring, with spindle travel to spare.
- Power Turret Index – Change quickly from one tool to the next.

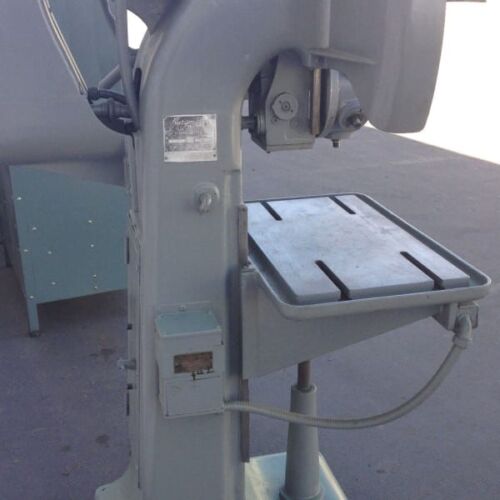

- Precision Table – Has “T” Slots and Coolant Trough. 24″ x 17″ surface ground work surface, with hand scraped Dovetail Ways assure very close alignment of table to spindles.
- Built-In Coolant System.
- BURGMASTER AUTOMATIC INDEXING TURRET DRILL PRESS Specifications:
- Table:
- Surface Area: 24″ x 17″
- Slots: 2 @ 7″ centers
- Adjustment Travel: 10″ approx.

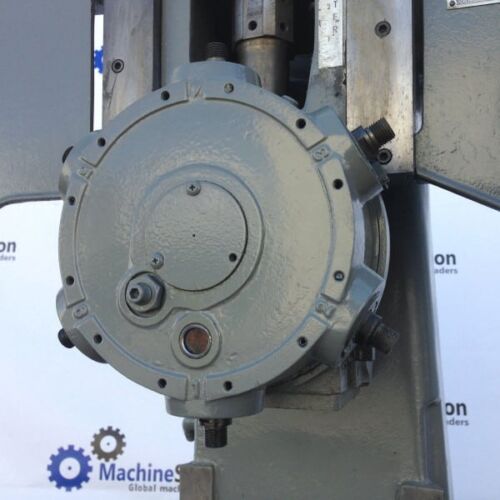

- Turret Head:
- Throat: 9-3/8″
- Mount: 5/8″-16 TPI
- Number of Stations: 6
- Travel: 7″
- Speeds: (spindle 1 & 4) 815-1,630-2,025-4,050 RPM / (spindle 2 & 5) 520-1,040-1,285-2,570 RPM / (spindle 3 & 6) 325-650-815-1,630 RPM
- Motor: 1 / .5 Horsepower, 220 Volt, 1,800 / 900 RPM, 3.2 / 3 Amps, 60 Hz
- General:
- Electrical: 220 Volt, Three Phase, 60 Hz
- Overall Dimensions: 32″ x 40″ x 74″ tall
Comes as shown in pictures….
