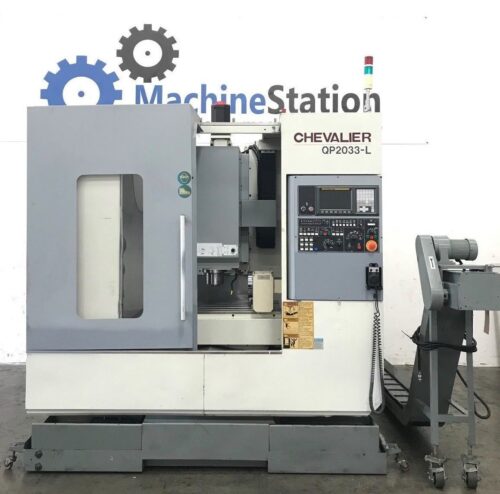

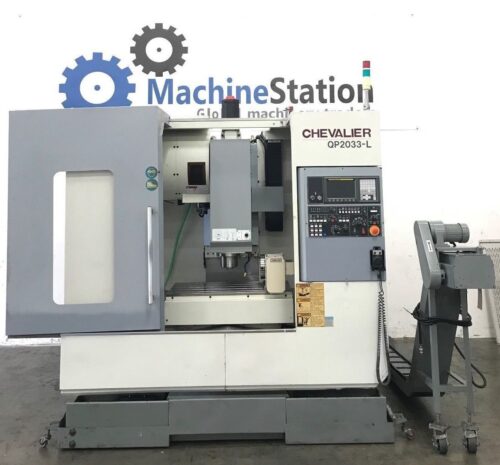

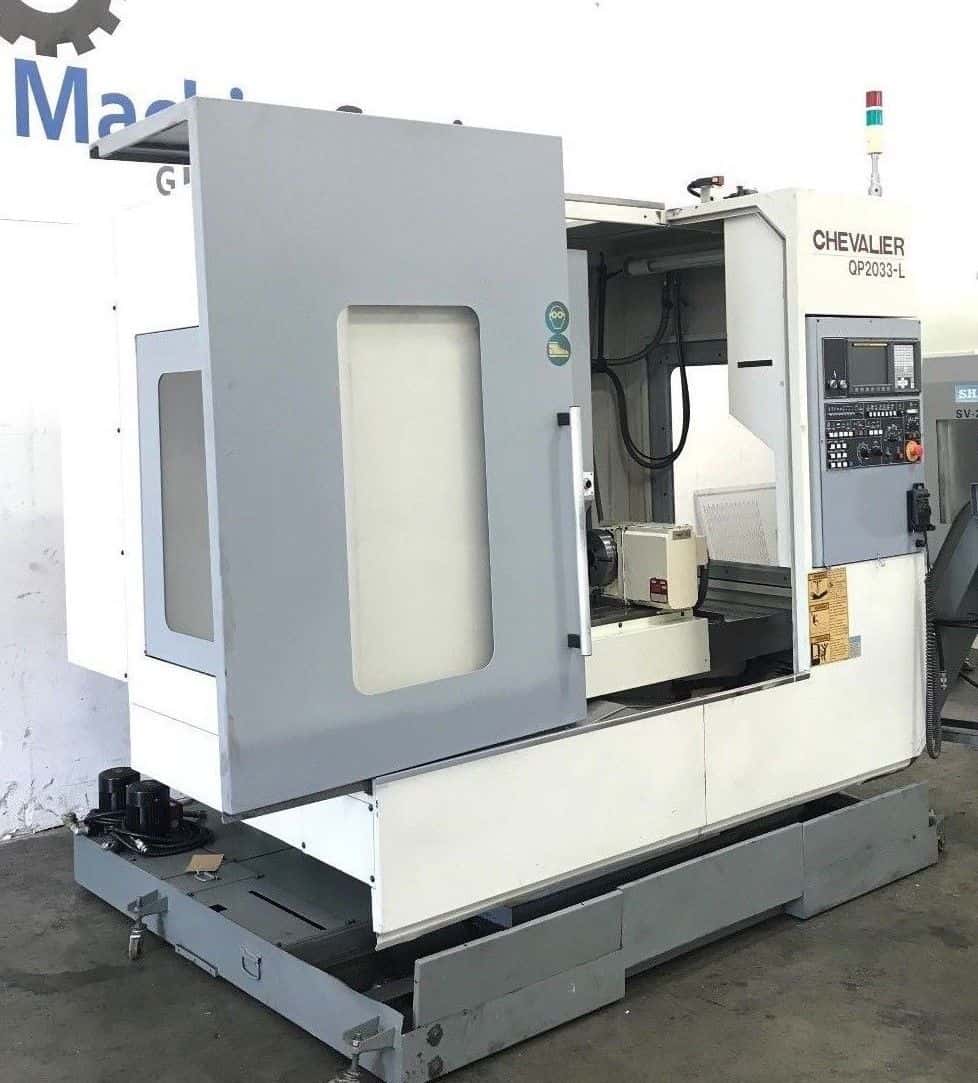

| CHEVALIER QP-2033L VERTICAL MACHINING CENTER | |
|---|---|

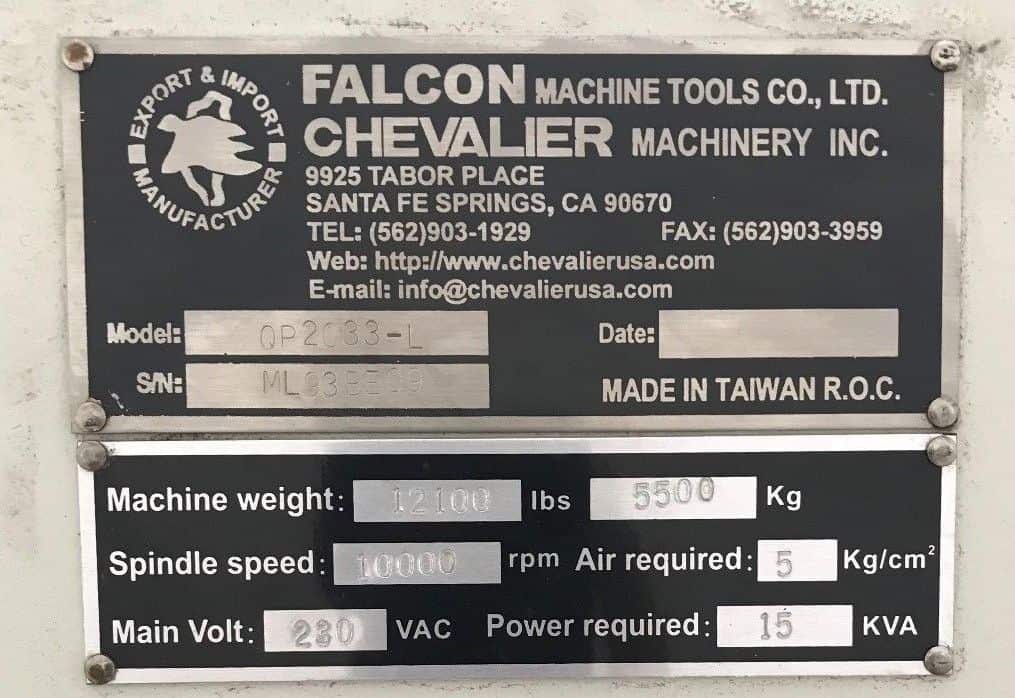

| Make | CHevalier |
| Model No. | QP-2033L |
| Year of Manufacture: | 2004 |
| Serial # | ML93BE09 |
Condition: Excellent, Original Paint Machine.
All specifications are approximations and are subject to verification.

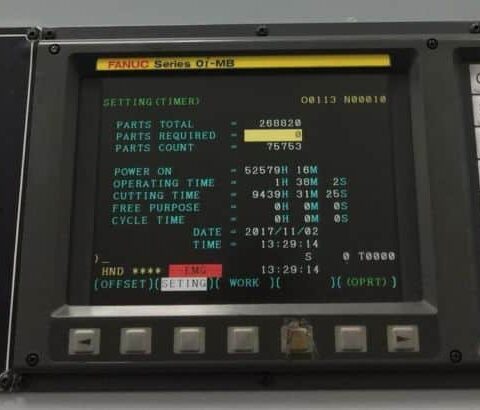

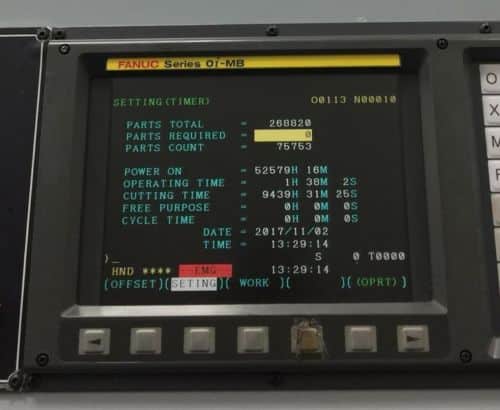

“This One Owner Machine has 9439 Cutting Hours, Original Paint, 4th Axis Rotary table, 10000rpm, 24 tool High speed tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- CHEVALIER QP-2033L Features:

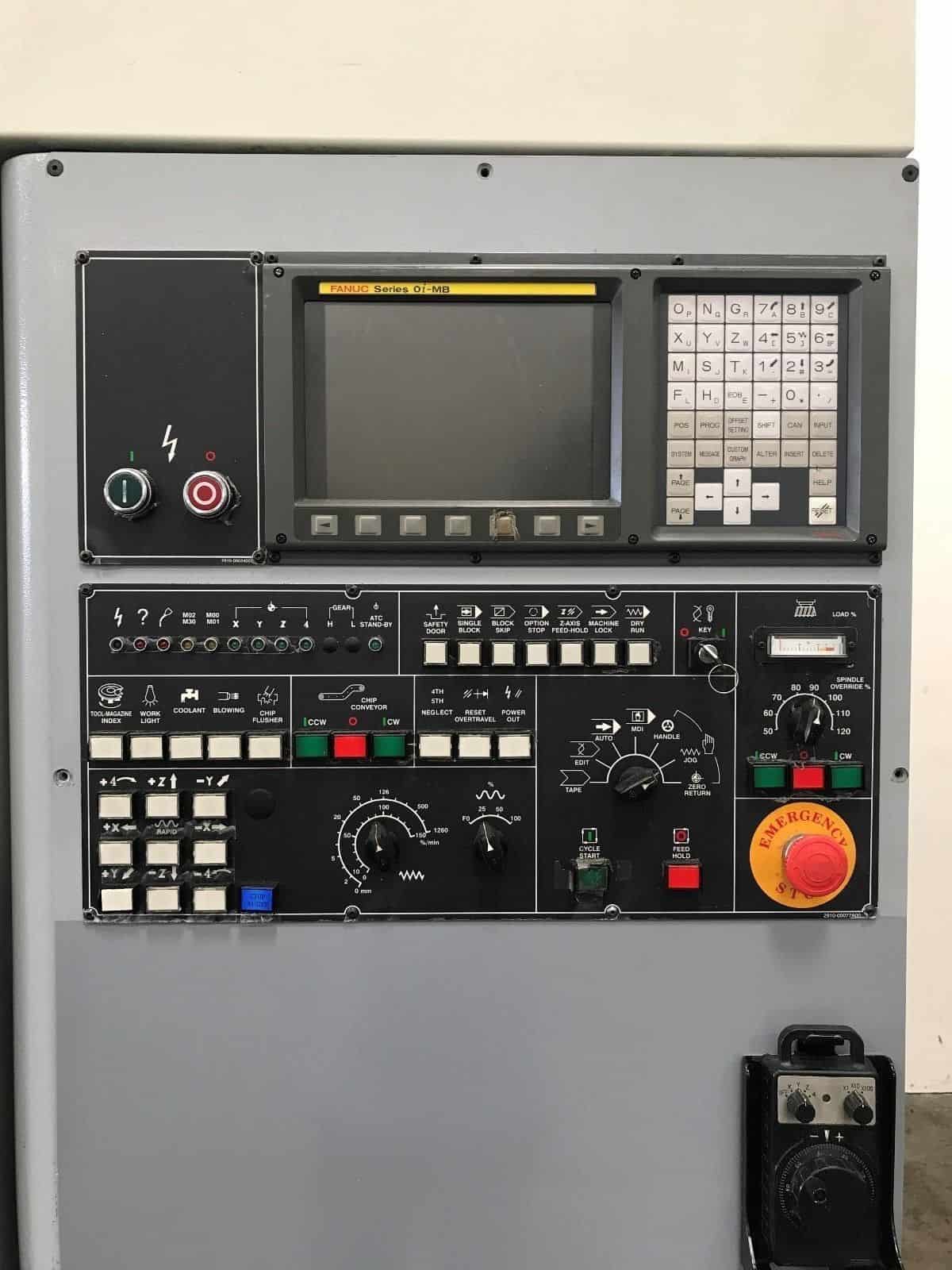

- Fanuc 0iMB CNC Control

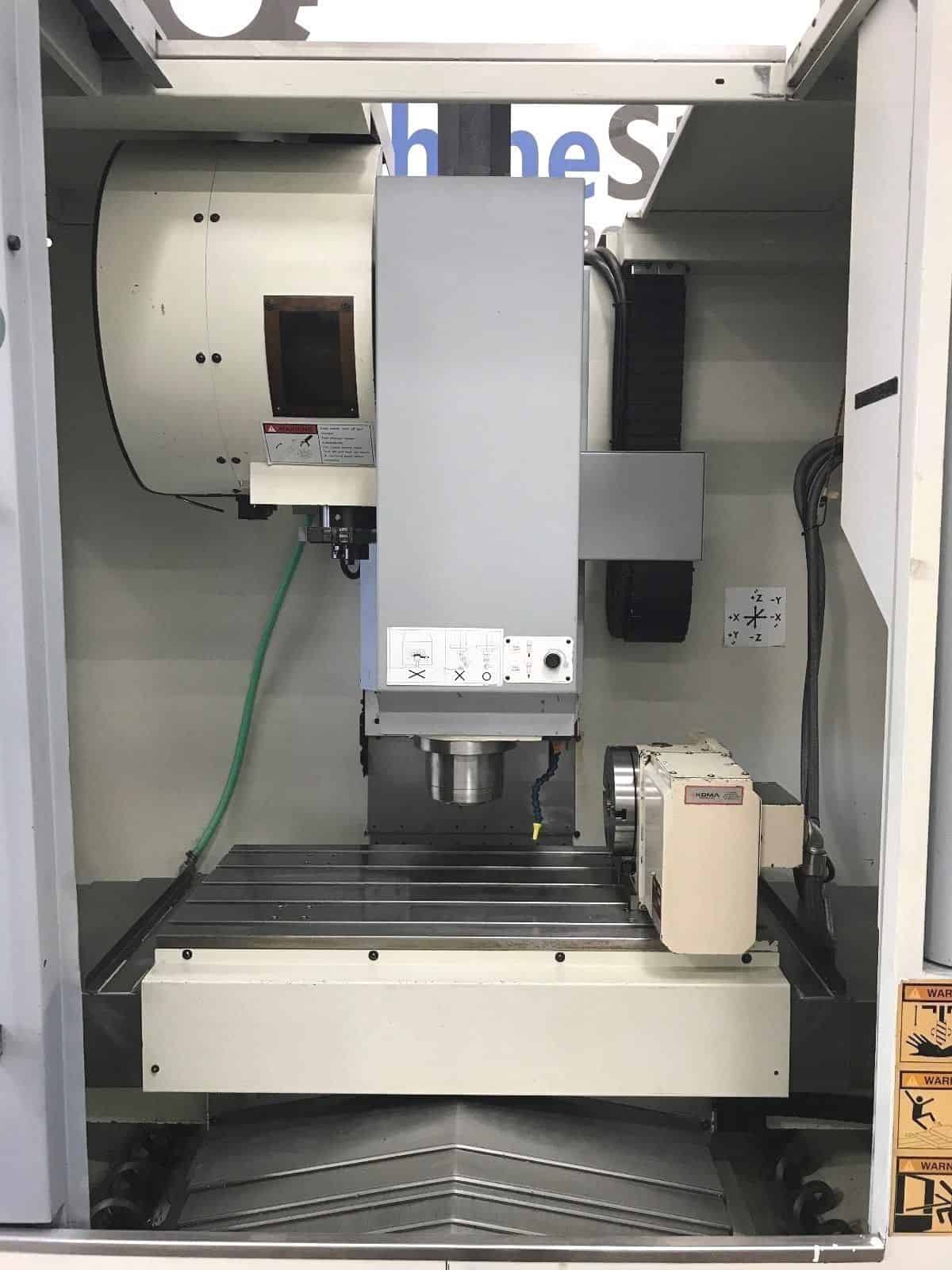

- 4th Axis Installed

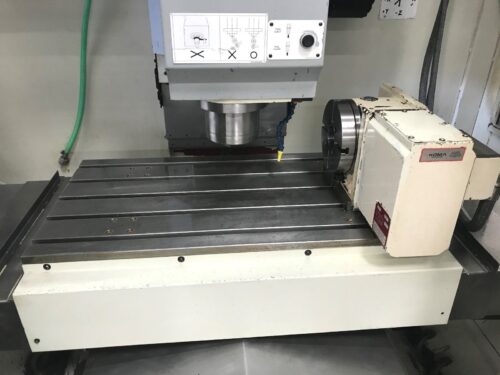

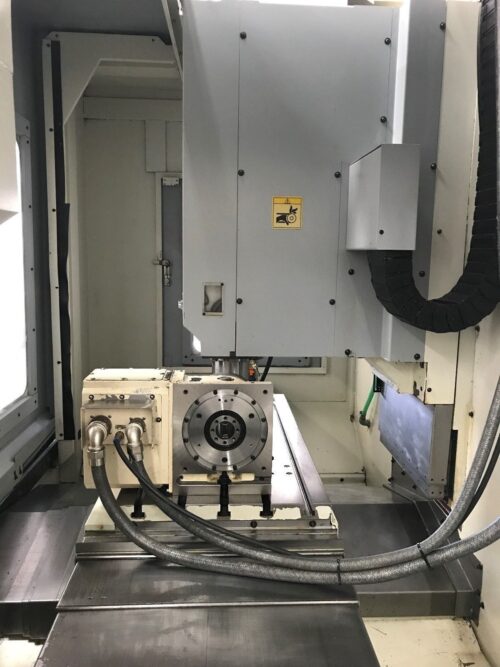

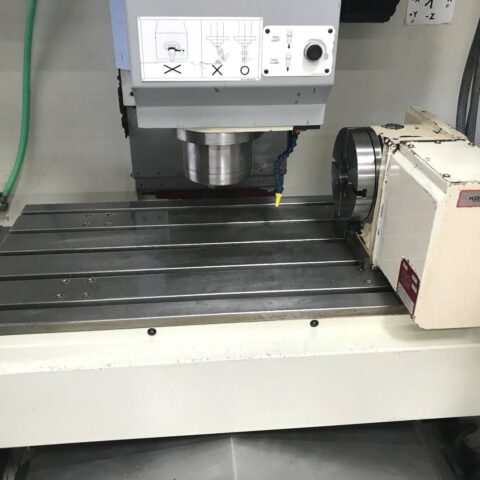

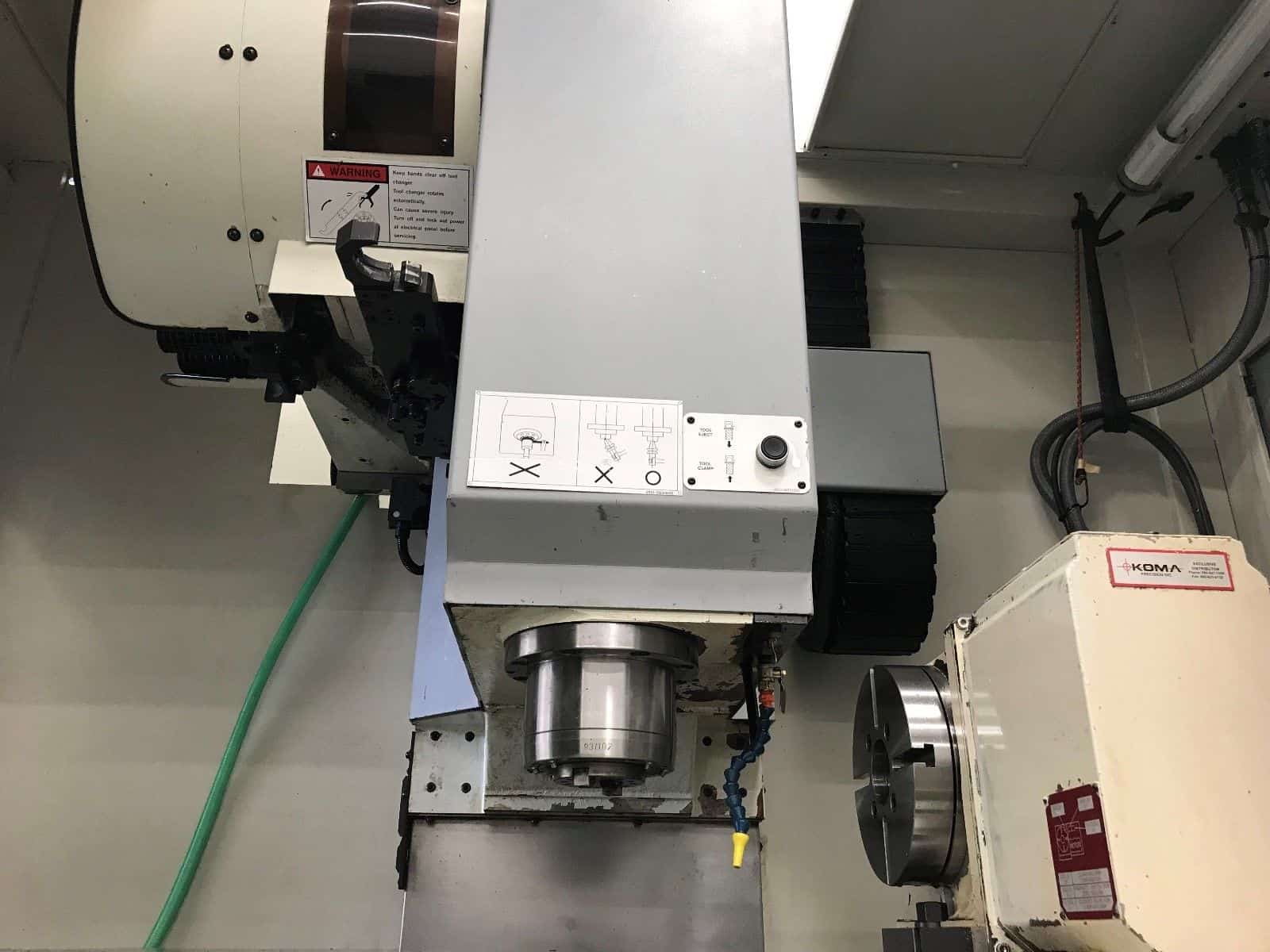

- KOMA Rotary Table Included
- 24 Tools Side Mount Tool Changer
- High precision 10,000 RPM Spindle
- Powerful 15 hp high torque spindle motor
- Manual Pulse Generator
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Dual Chip Augers

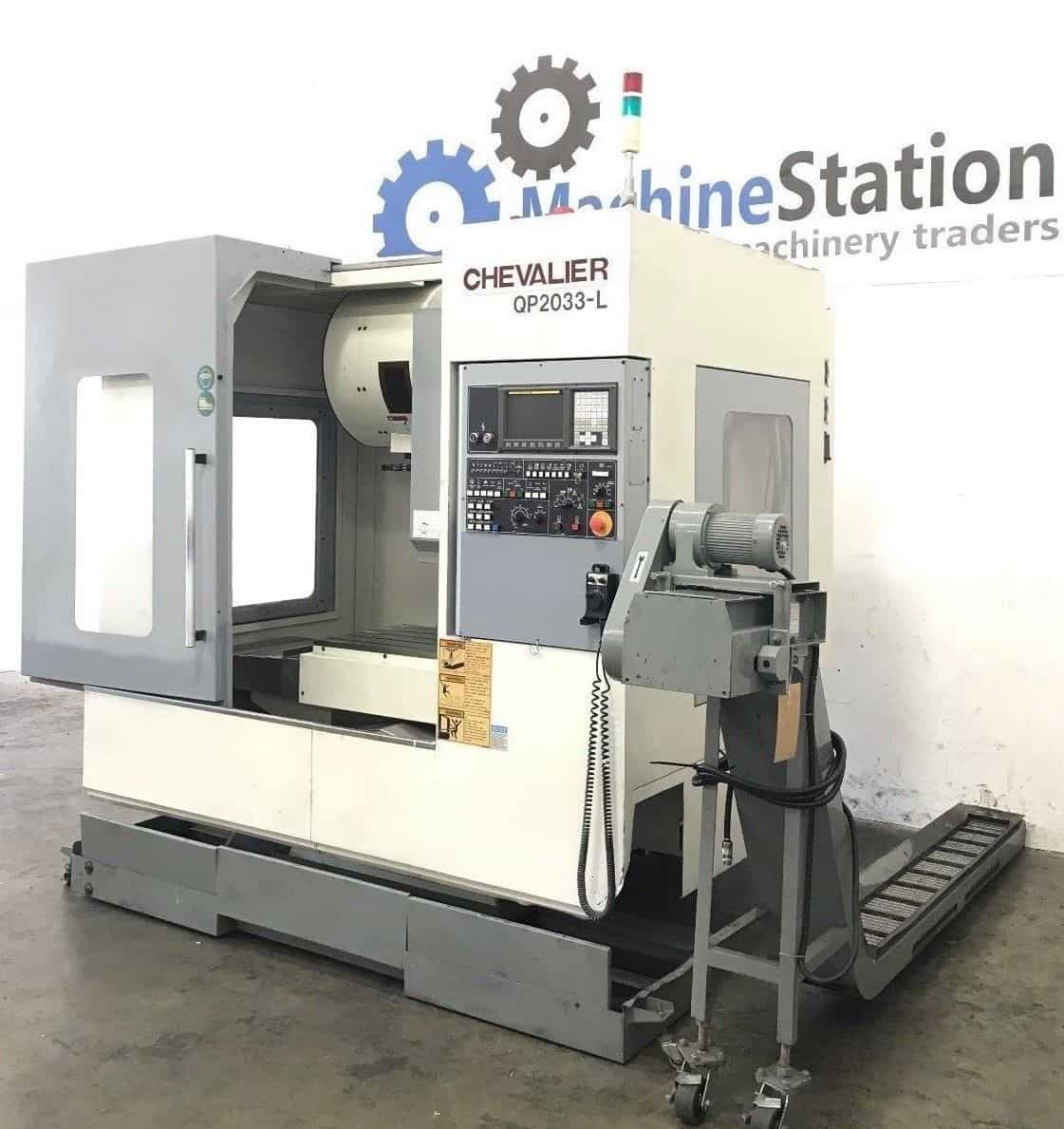

- Chip Conveyor
- Manuals
- CHEVALIER QP-2033L Specifications:
- Travels:
- X-Axis: 33.46″
- Y-Axis: 20.86″
- Z-Axis: 20.07″
- A Axis Rotation: 360,000
- Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″
- Spindle Center to Column: 23″
- Table:
- Length: 39.4″
- Width: 20.0″
- Max Weight on Table: 1100 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 15 HP
- Feed rates:
- Rapid X,Y & Z: 1417,1417 & 945 inch/P.M
- Cutting Feedrate: 393″ inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 13.2 lbs
- Max Tool Length: 9.84″
- Max Tool Dia.: 5.90″
- General:
- Air Required: 80 psi, 4 scfm
- Power: 220kva, 220v / 3-Phase
- Overall Dimensions: 87″ x 84″ x 100″ High
- Weight: 12800 lbs
Comes as shown in pictures….
