*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

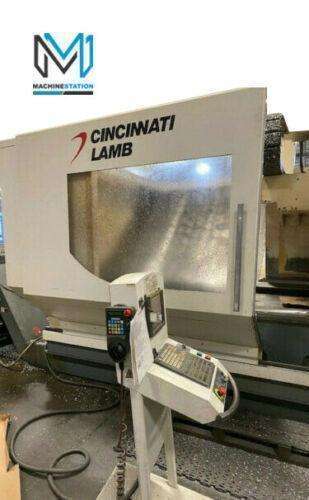

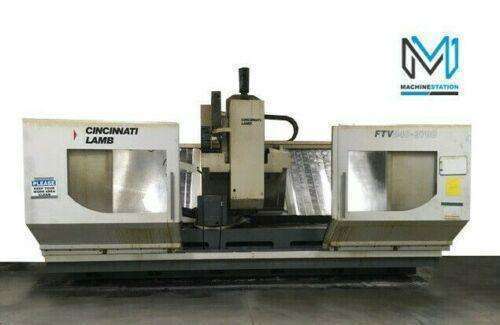

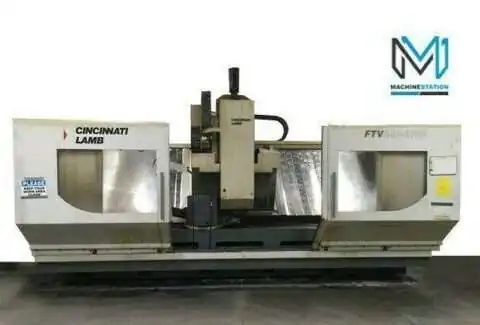

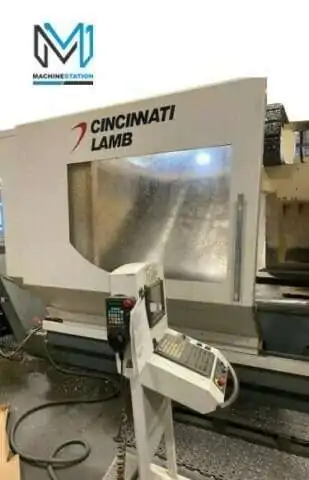

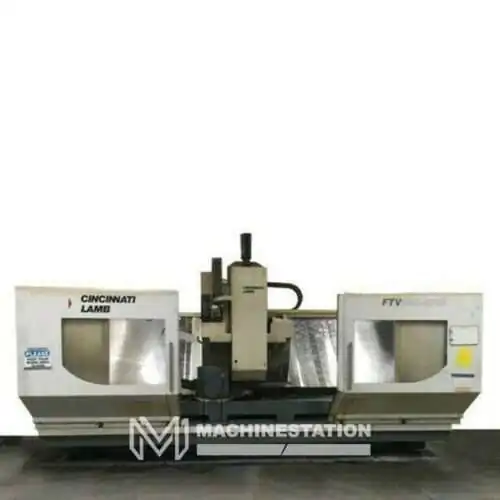

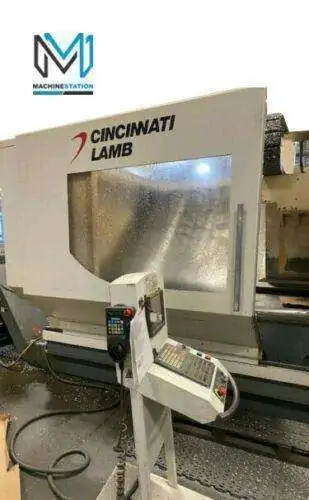

| Make: | CINCINNATI LAMB |
| Model: | FTV840 3700 |
| Year: | 2004 |
| Equipped With: |
|---|

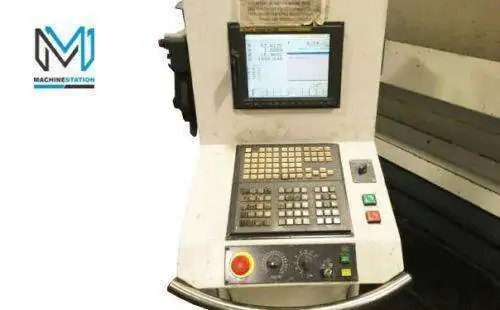

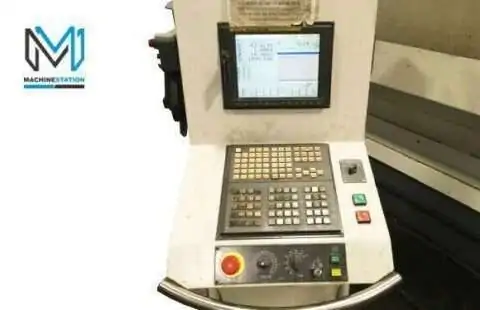

| Fanuc 18i-MB CNC Control |
| Renishaw RMI-Q Radio Controlled Probe |
| 25 HP High Torque Spindle Motor |
| 40 Taper 10000 RPM Geared Head Spindle |
| PCMCIA Card Slot |
| MPG Control |
| 50 Automatic tool changer |
| Chip Conveyor |
| Full Enclosure |
| Telescopic way covers |
| Coolant Through Spindle |
| Coolant System |
| Travels: |
|---|
| X-Axis: 145″ |
| Y-Axis: 31.5″ |
| Z-Axis: 32″ |
| Rapid Traverse Rates: 1575 Inch Per Minute |
| Cutting Feed Rates: Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): ” – “ |
| Table: |
|---|
| Length: 165″ |
| Width: 31.5″ |
| Number of Std T-Slots: |
| T-Slot Width: “ |
| Max Weight on Table: lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
| Capacity: 50 |
|---|
| Max Tool Weight: lbs |
| Max Tool Dia: “ |
| Max Tool Length: “ |
| Tool Changing Time: Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 23’6″ x 11′ 6″ x 12′ 3″ High |
| Weight: 48000 lbs |
| “No Charges for loading at list Price” |
| Comes as shown in pictures.. |
