*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

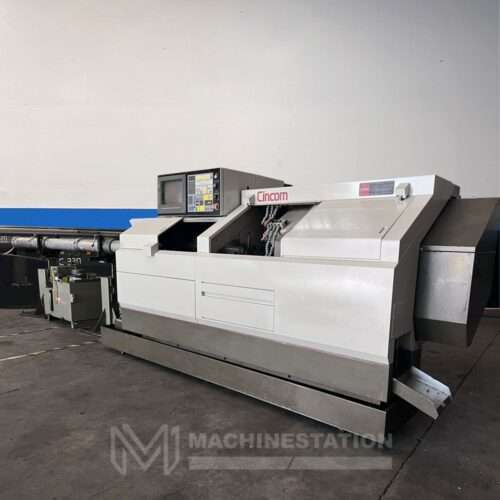

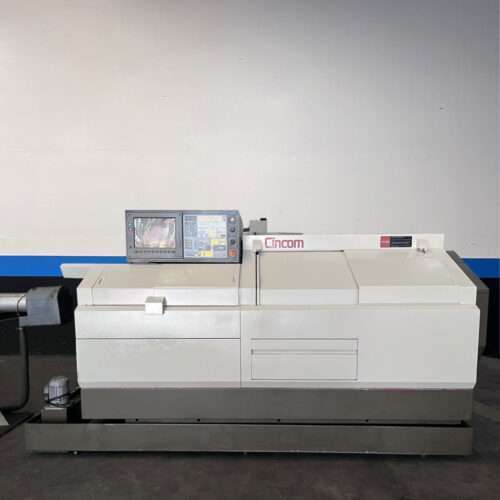

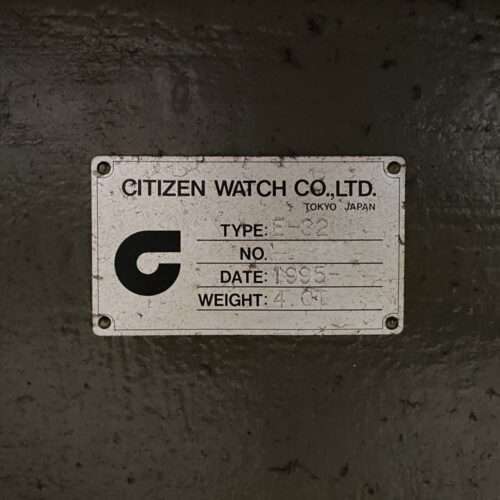

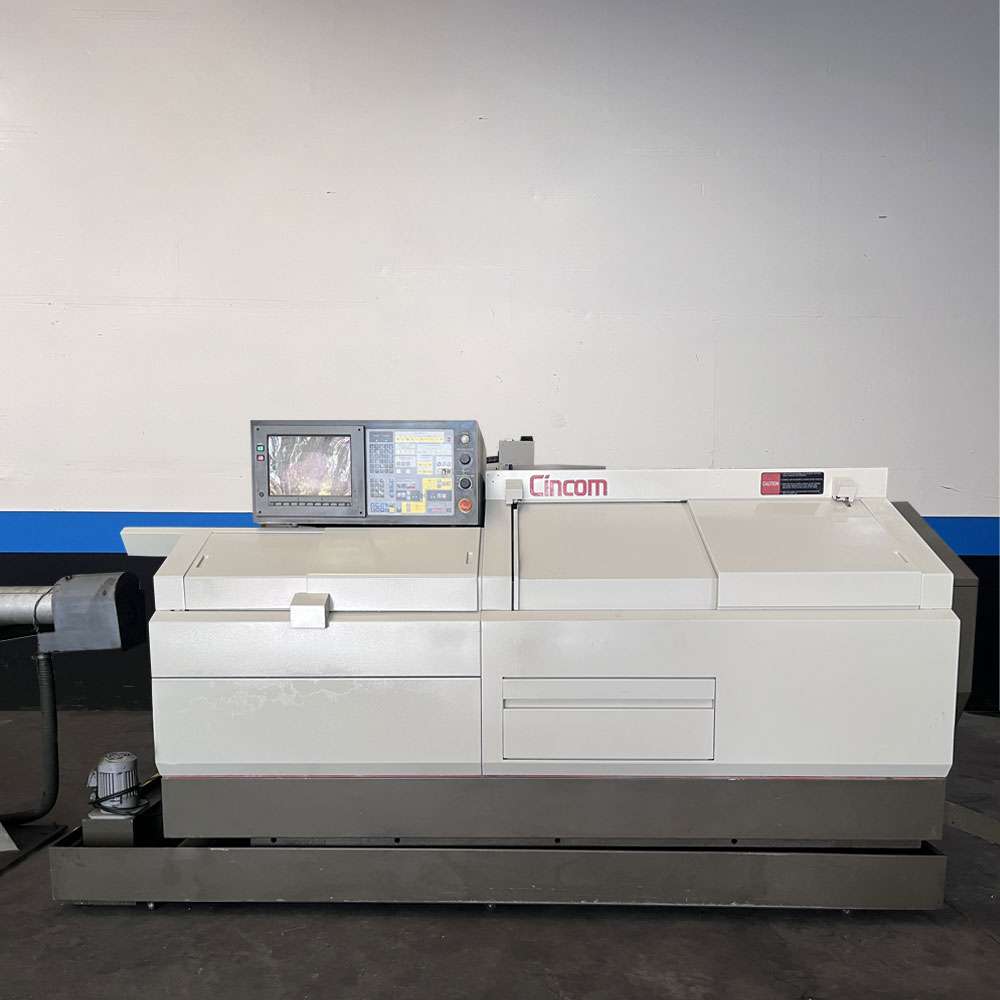

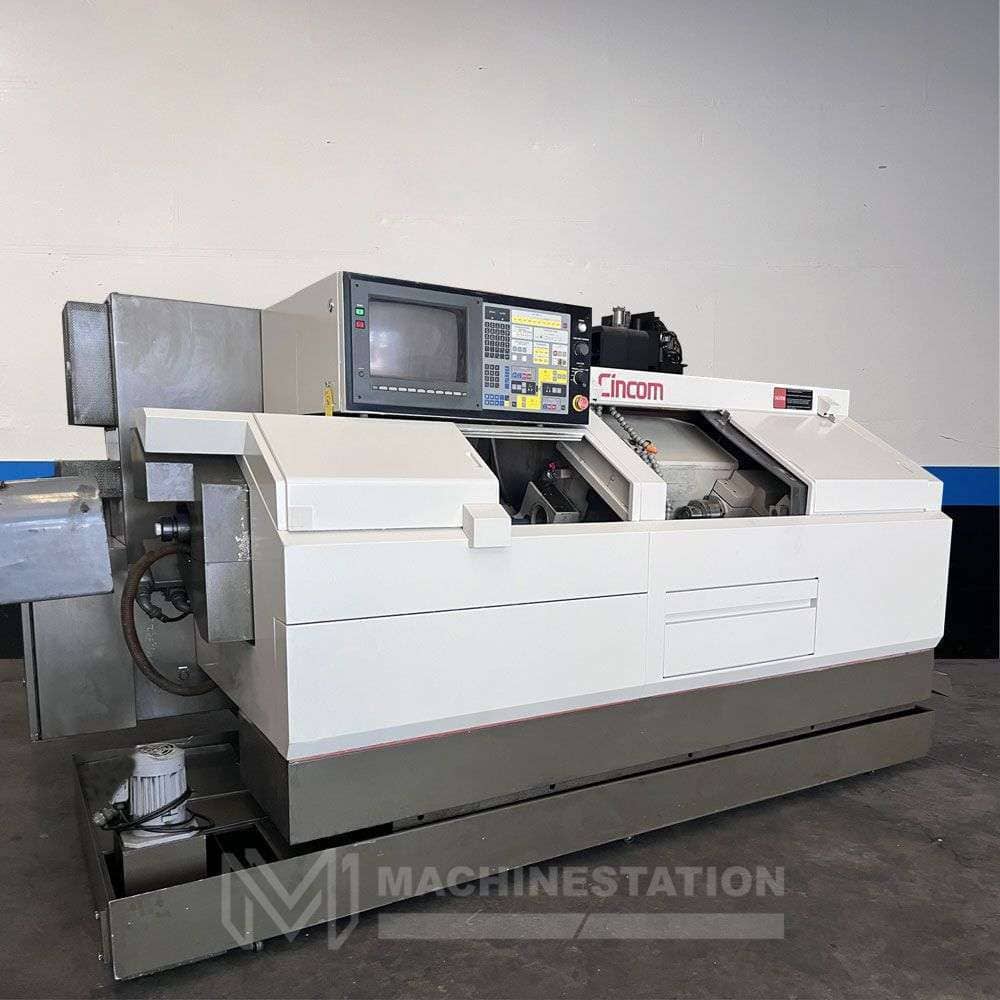

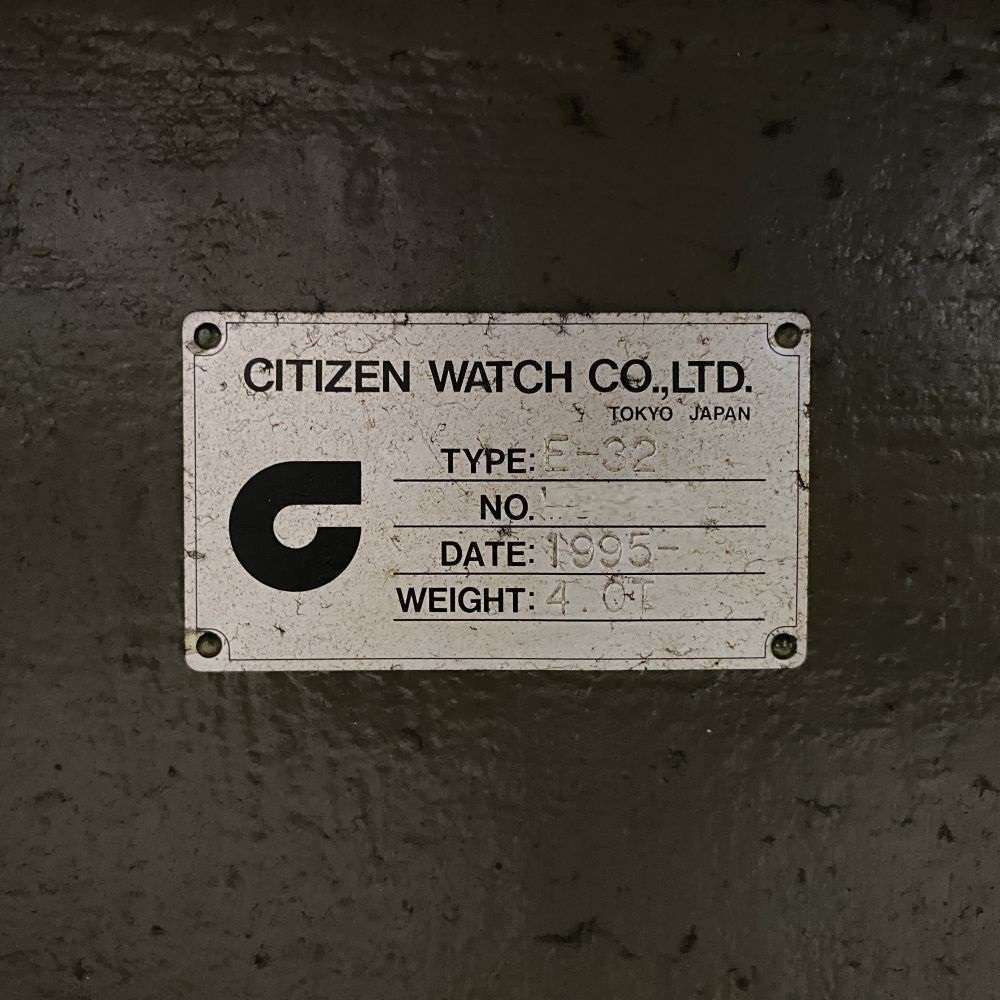

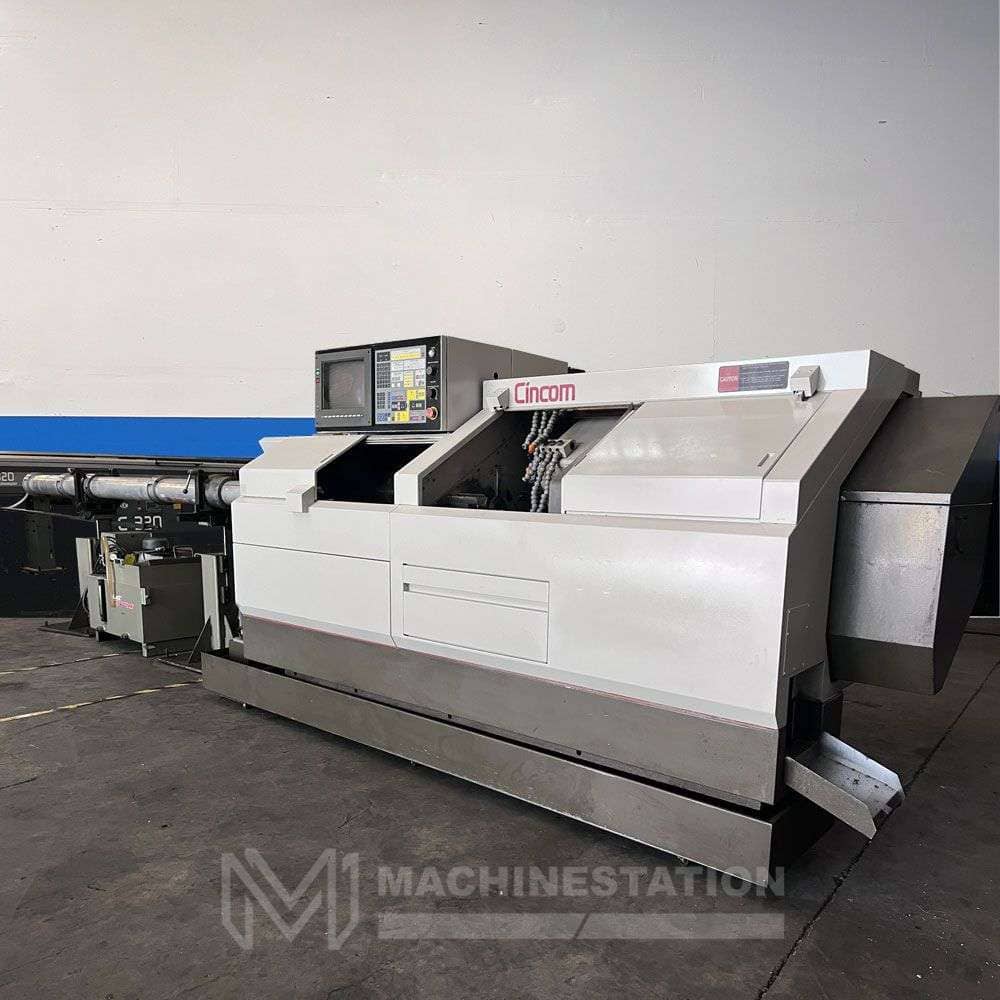

| Make: |

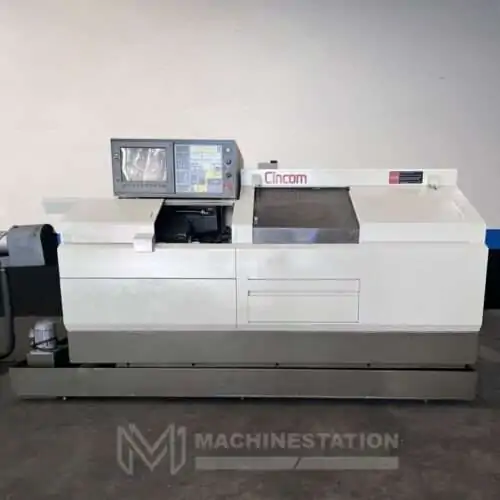

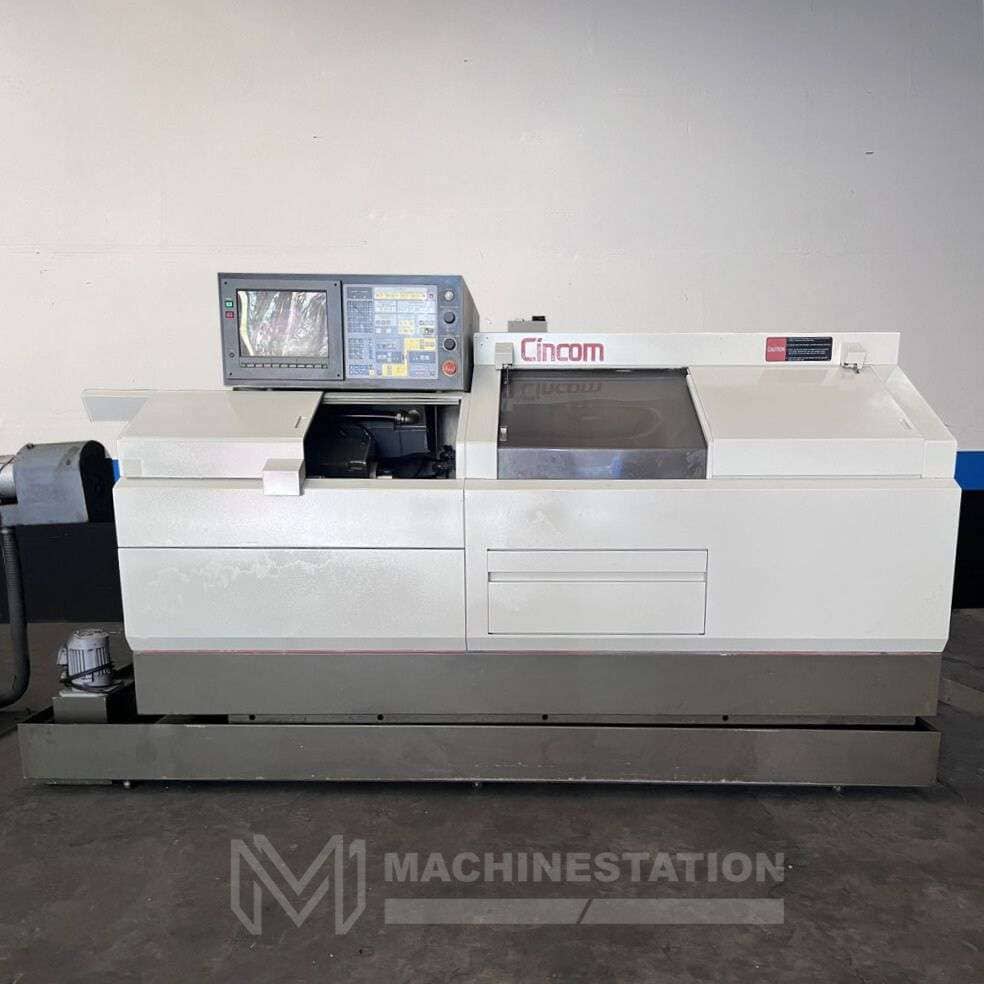

Citizen Cincom |
| Model: |
E-32 |
| Year: |
1995 |
| Condition: |
Used – Good |
| Equipped With: |

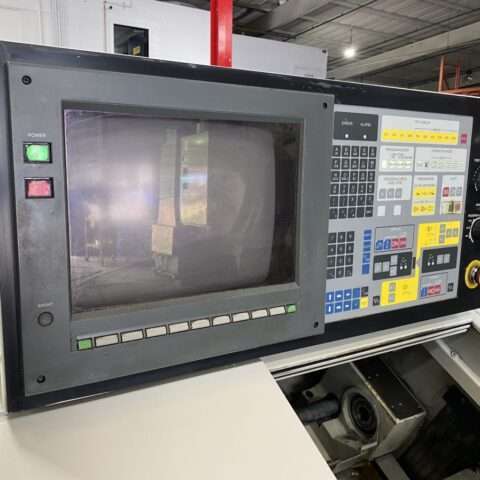

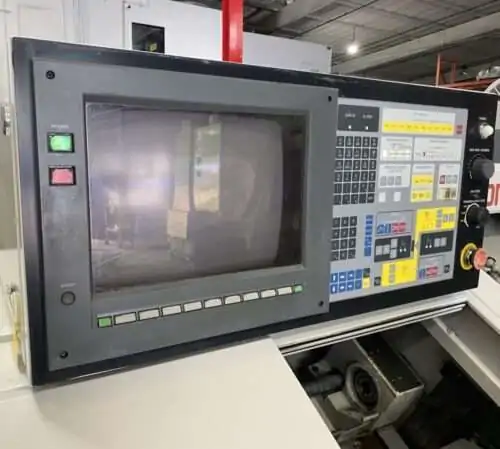

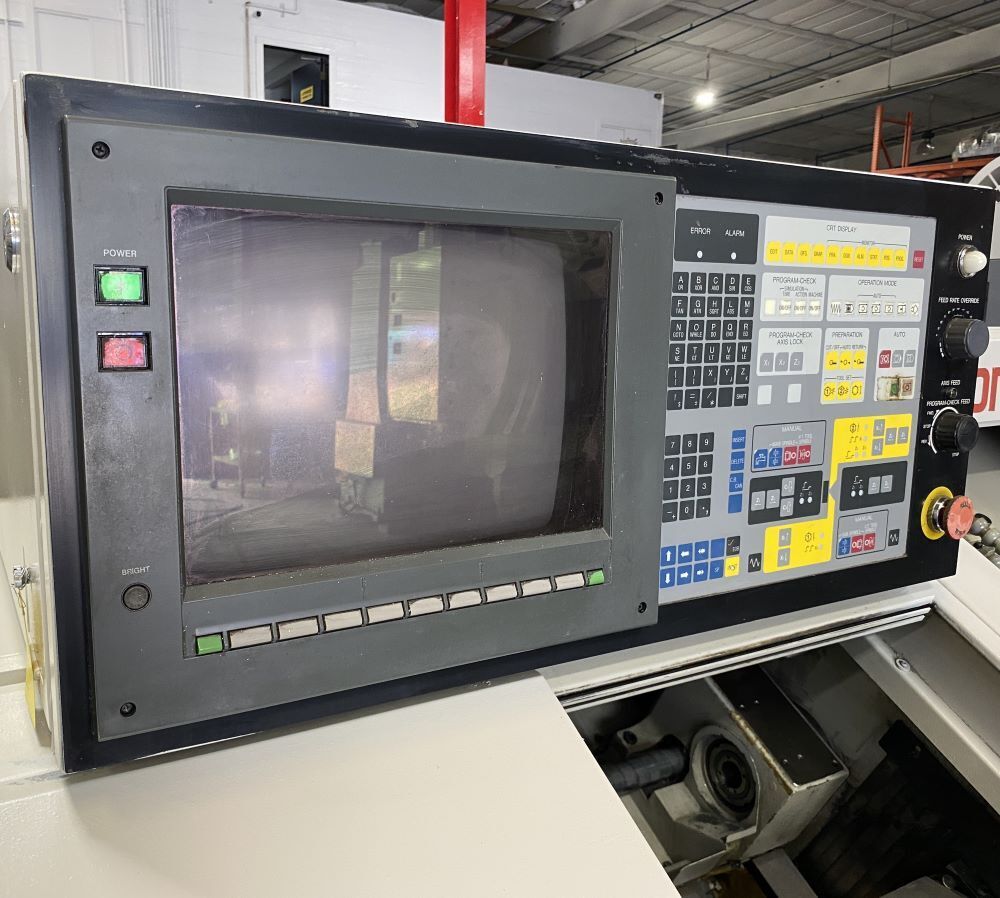

- Cincom 6 Axis CNC Control

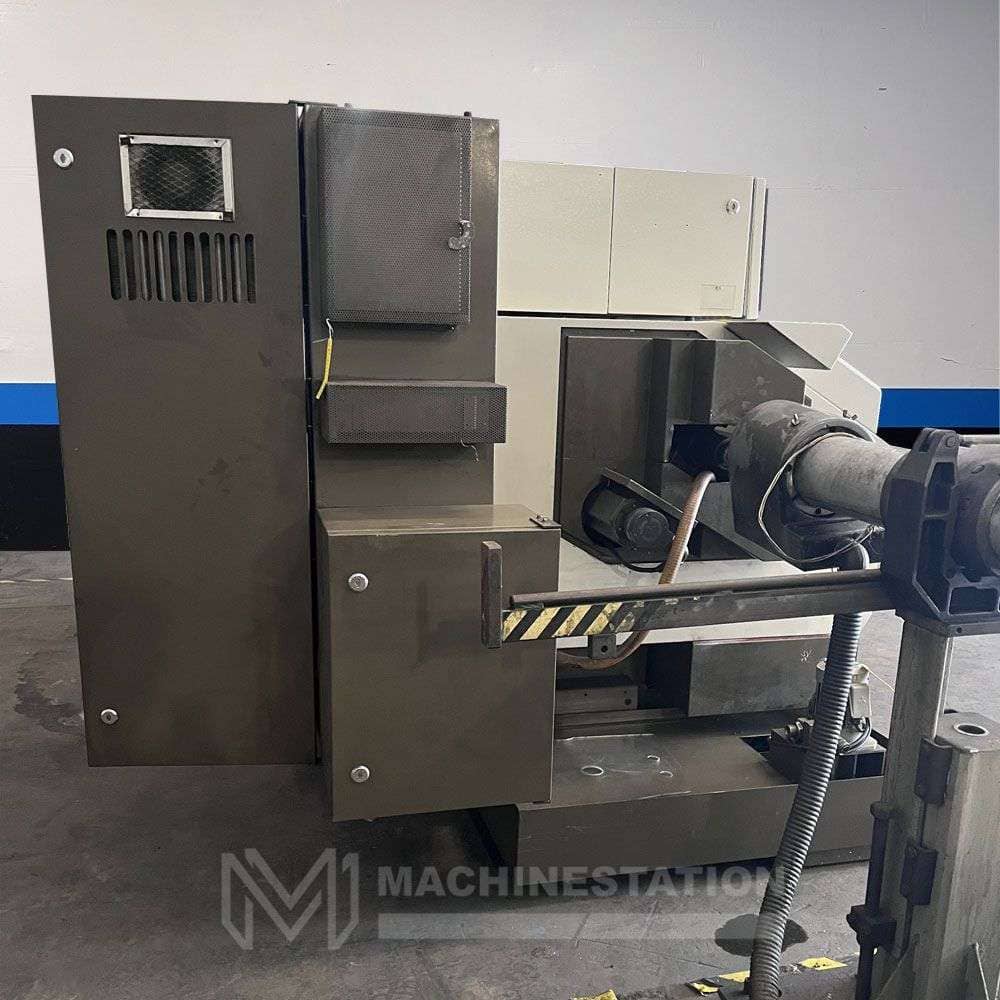

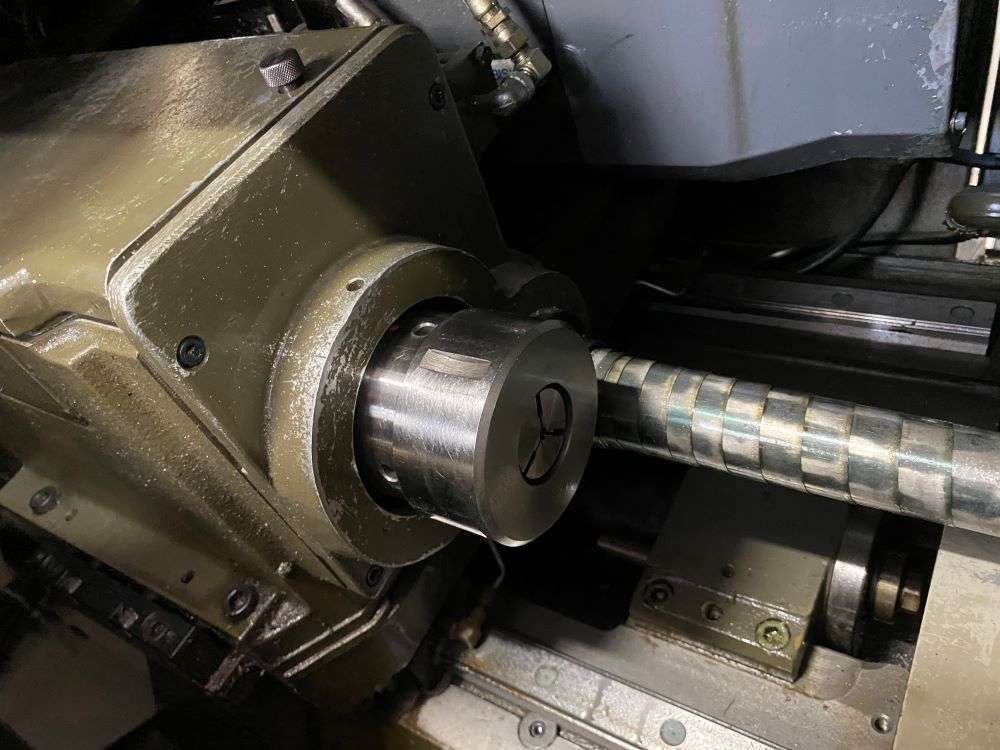

- LNS Hydraulic Bar Feeder

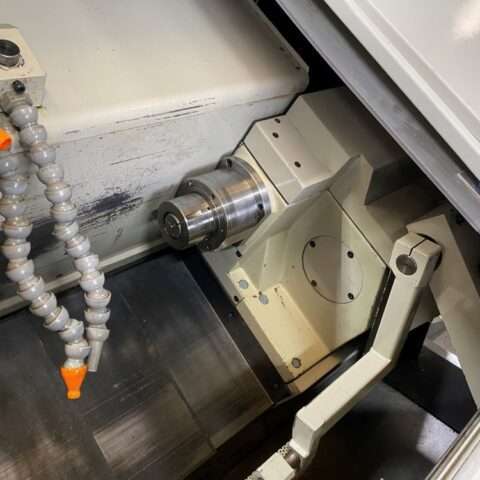

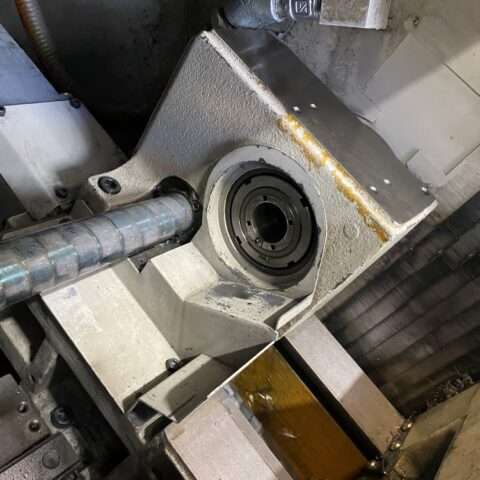

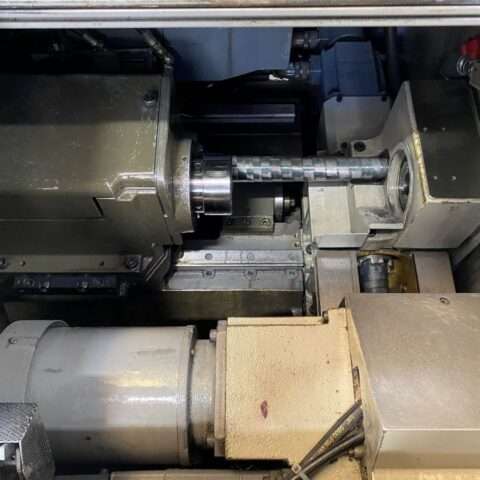

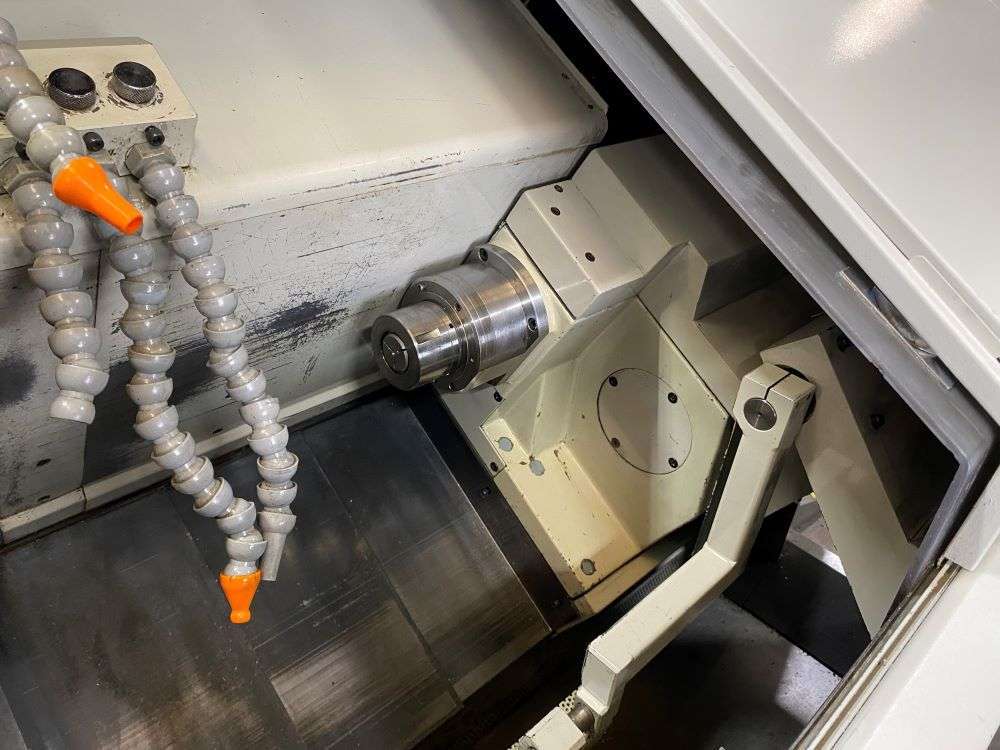

- Sub Spindle
- C Axis Capable

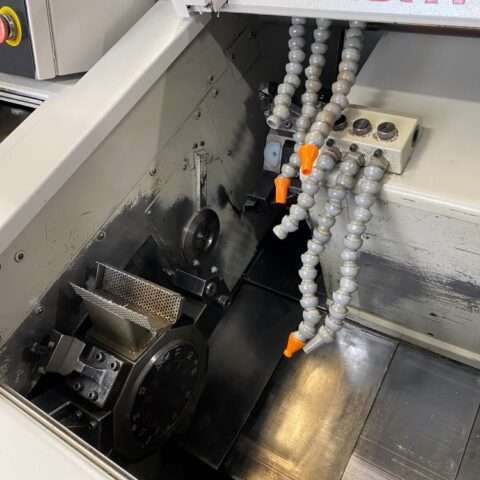

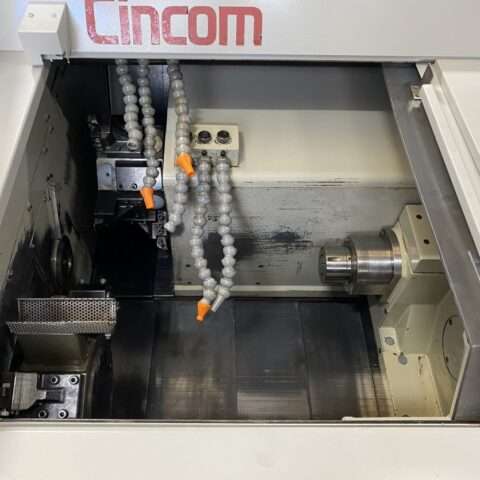

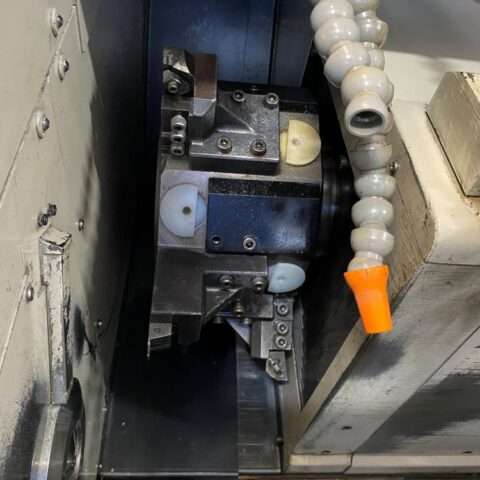

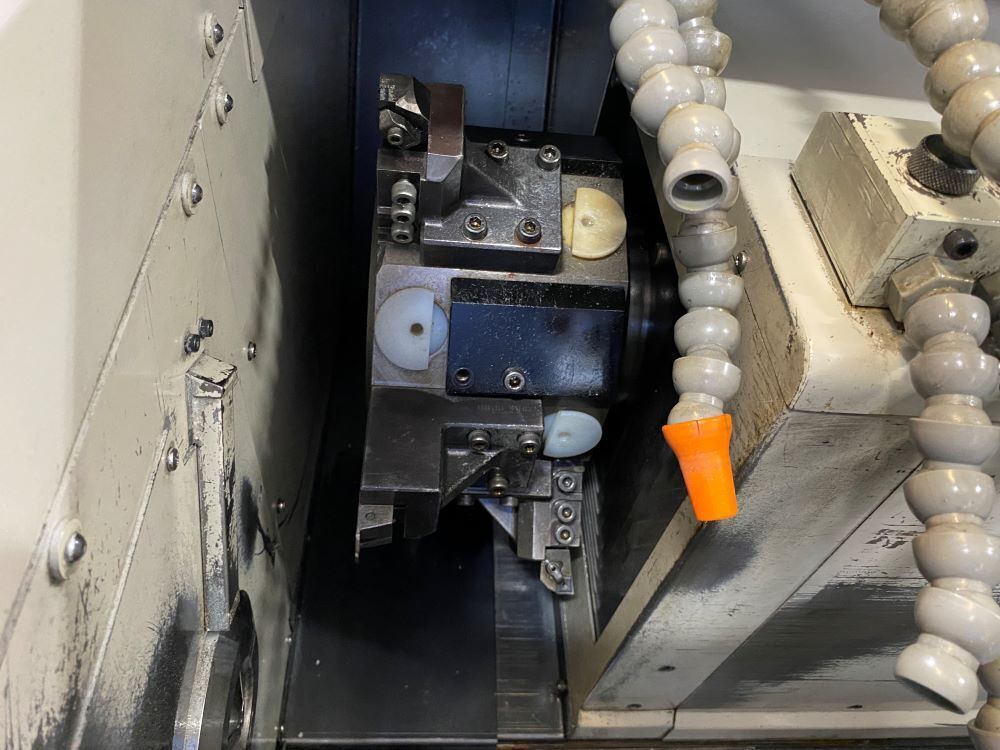

- Twin Live Tool Turrets
- Long Parts Capable
- Coolant System
- Part Catcher
- Automatic Lubrication System
|
| Capacity: |
- Max Turning Diameter: 1.26″ (32 mm)
- Max Turning Length: 12.6″ (320 mm)
- Max Bar Capacity: 1.26″ (32 mm)
- Tool Capacity: 20
|
| Spindle: |
- Main Spindle Index: 0.01 Degree (C-axis control)

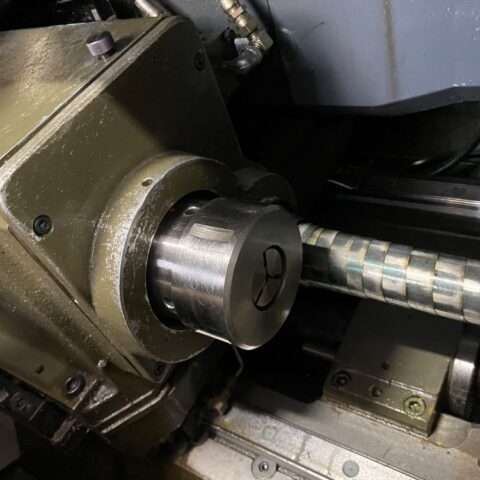

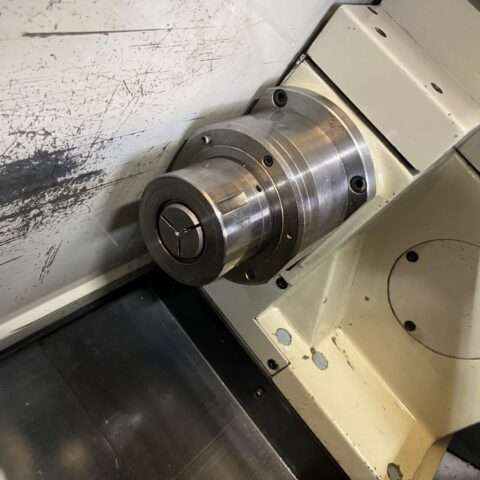

- Main Spindle Bore: 1.26″ (32 mm)
- Main Spindle Speed: 6,000 RPM
- Main Spindle Motor: 7.5 HP

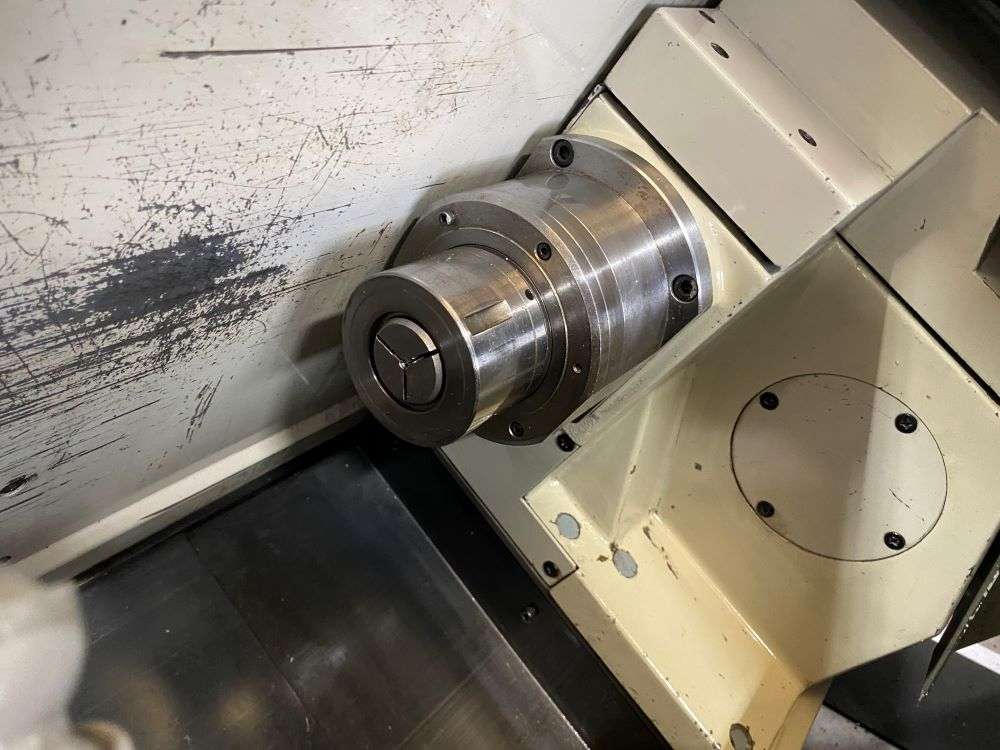

- Back Spindle Speed: 5,000 RPM
- Back Spindle Motor: 5 HP
|
| Turret: |

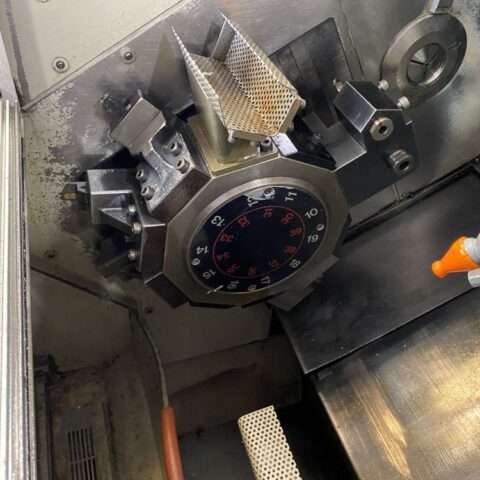

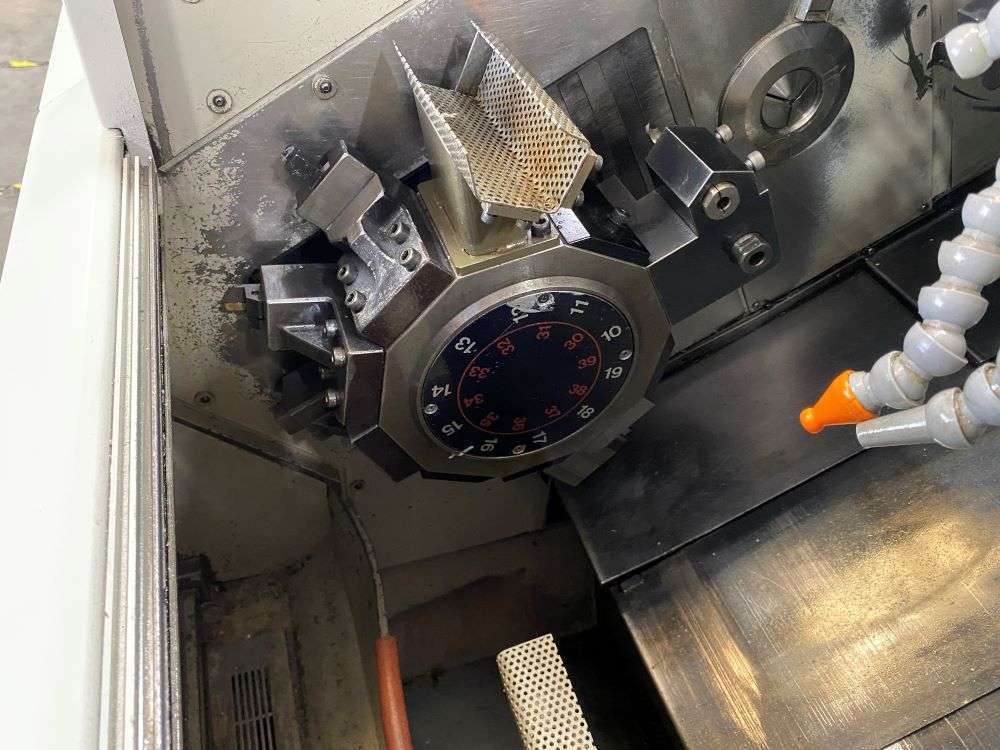

- Upper Turret Capacity: 10 Stations
- Lower Turret Capacity: 10 Stations
- Live Milling Speed: 5000 RPM
- Live Milling Motor: 5 HP
- Max Drilling Capability: 25/64″ (10 mm)
- Max Tapping Capability: M8 x P1.25
|
| General: |
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 120″ x 61″ x ″ High
- Weight: 8800 lbs Approx.
|
