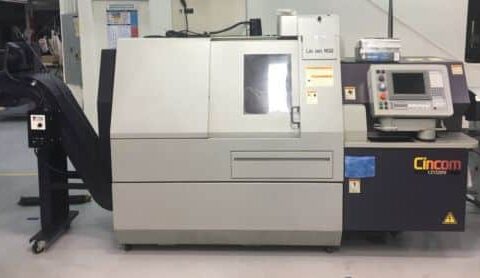

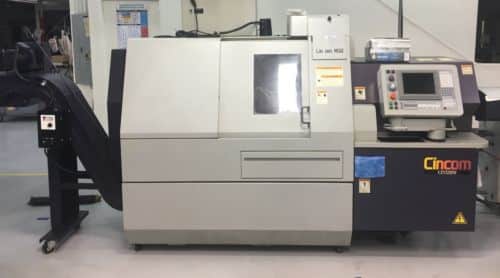

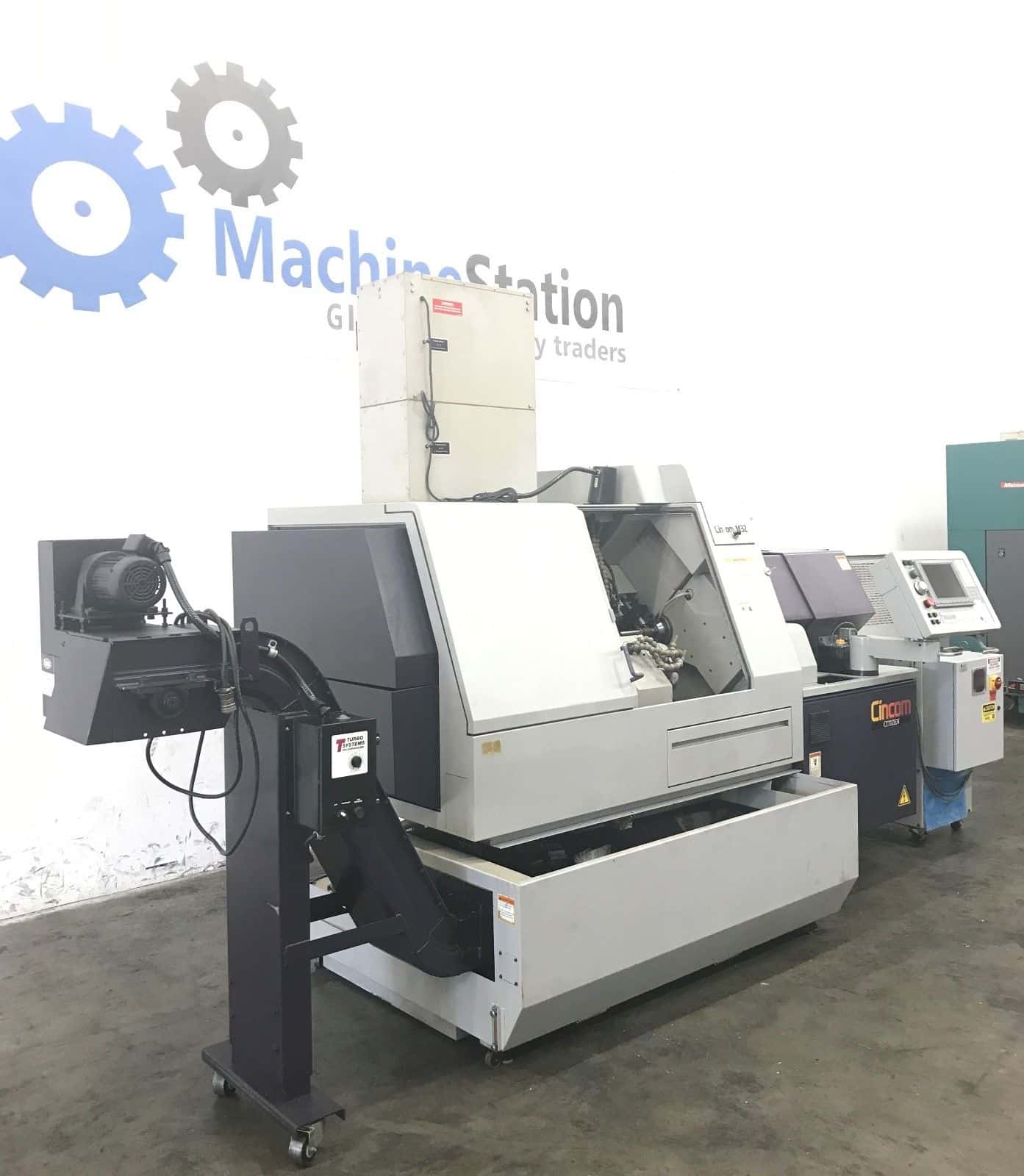

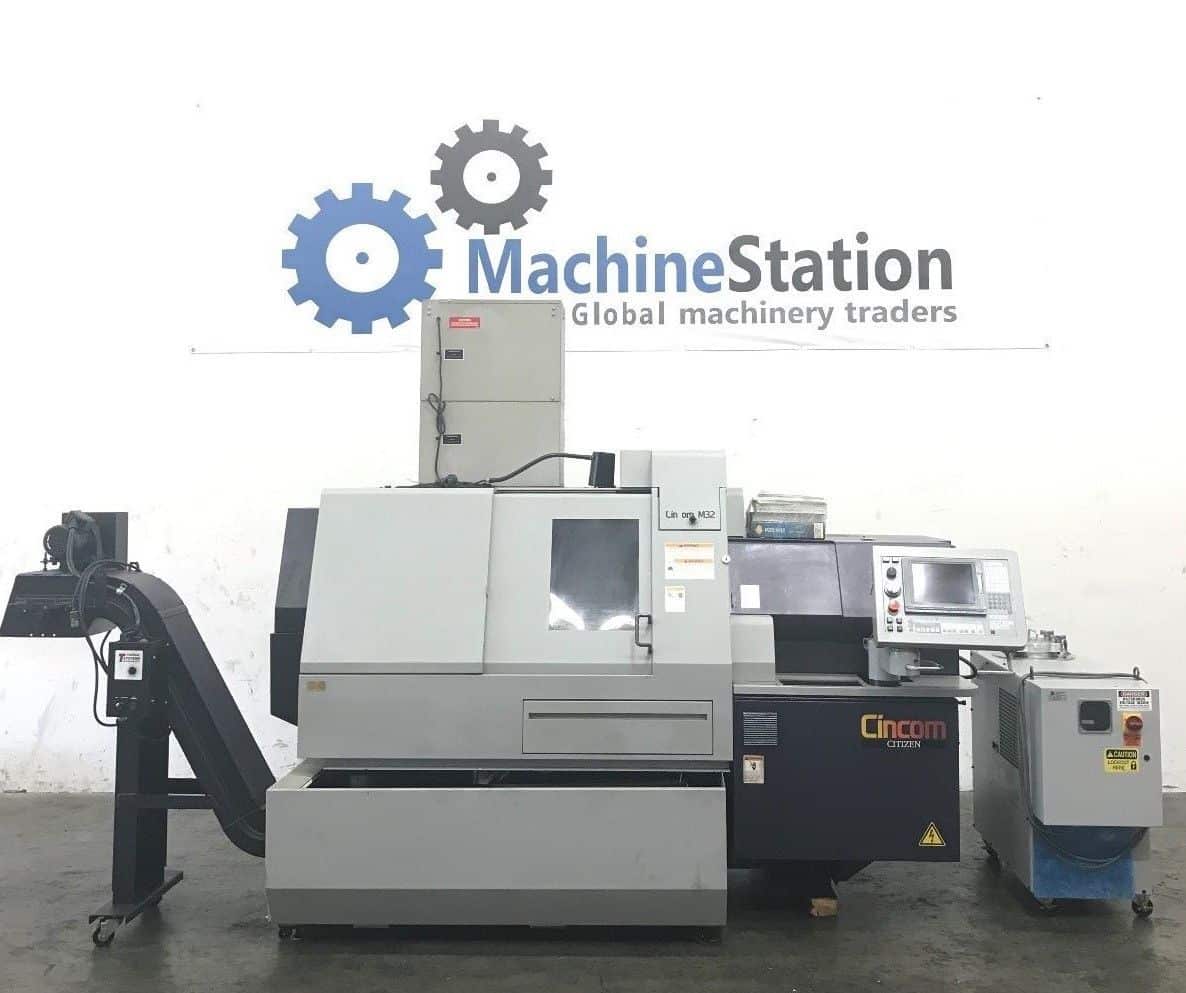

| CITIZEN CINCOM M-32 III CNC LATHE | |
|---|---|

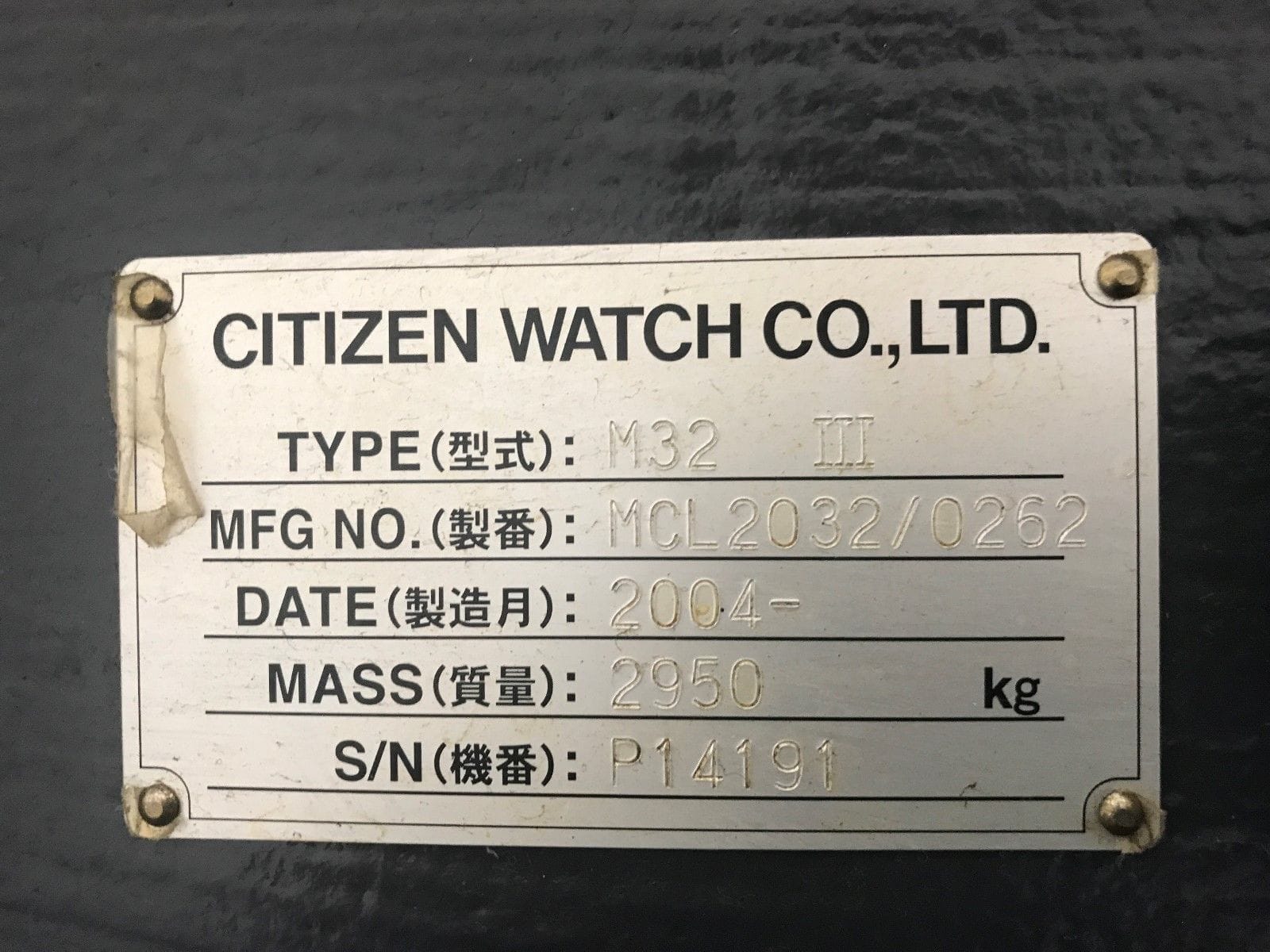

| Make | Citizen |
| Model No. | Cincom M-32 III |
| Year Of Manufacture: | 2004 |
| Country of Origin: | Japan |
Condition: Pristine Condition, All Original Paint.
All specifications are approximations and are subject to verification.

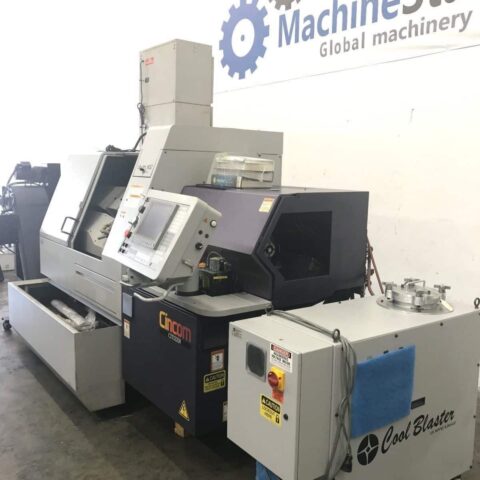

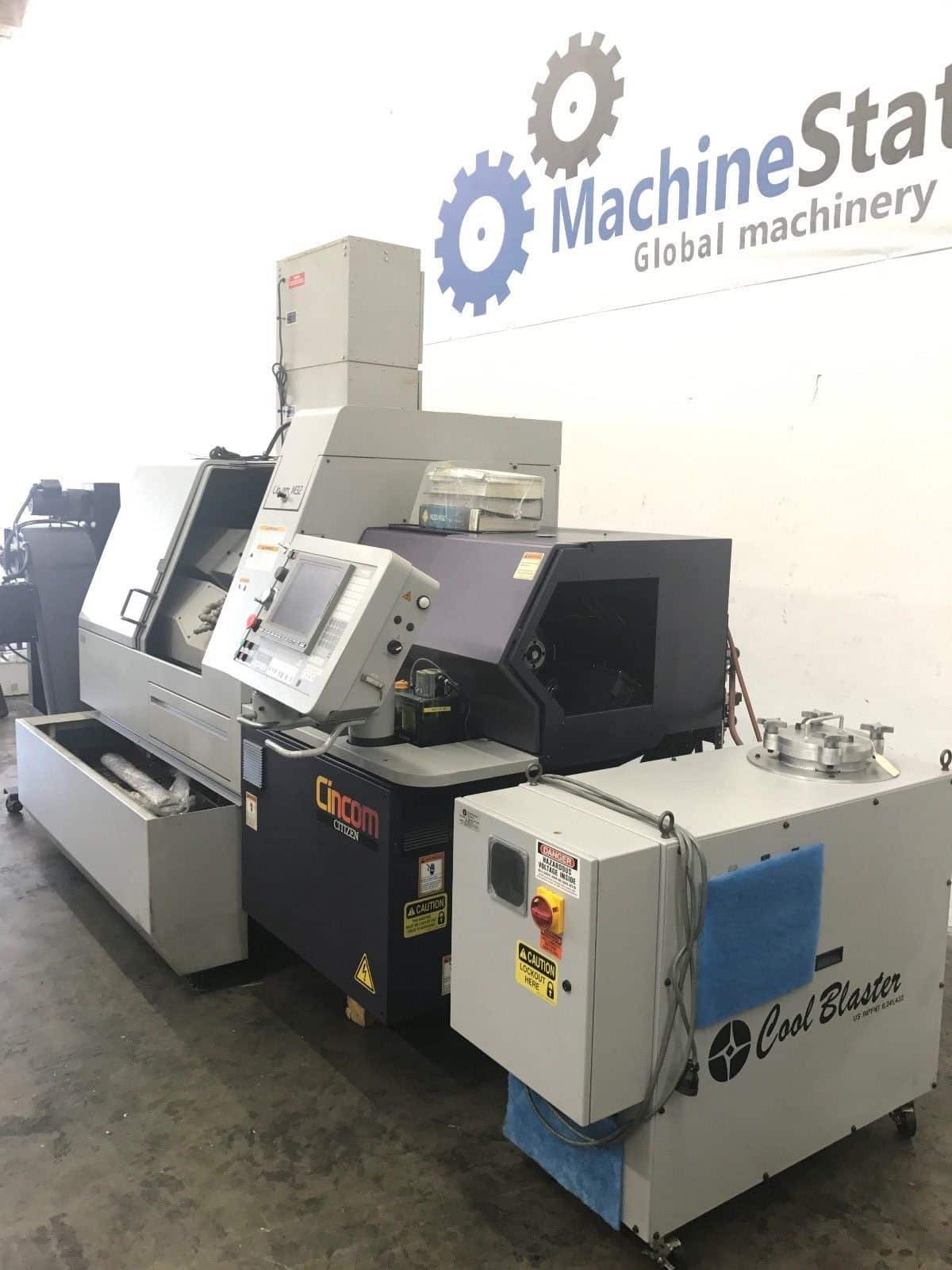

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. All Original Paint, Comes with Chip conveyor, Tool holders, Bar Feeder, Coolant Blaster.”
- CITIZEN CINCOM M-32 III Equipped With:

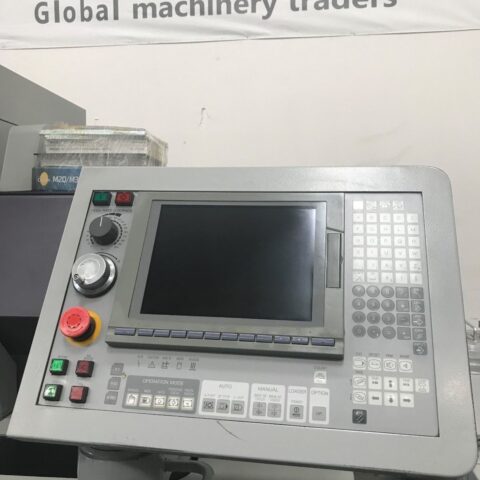

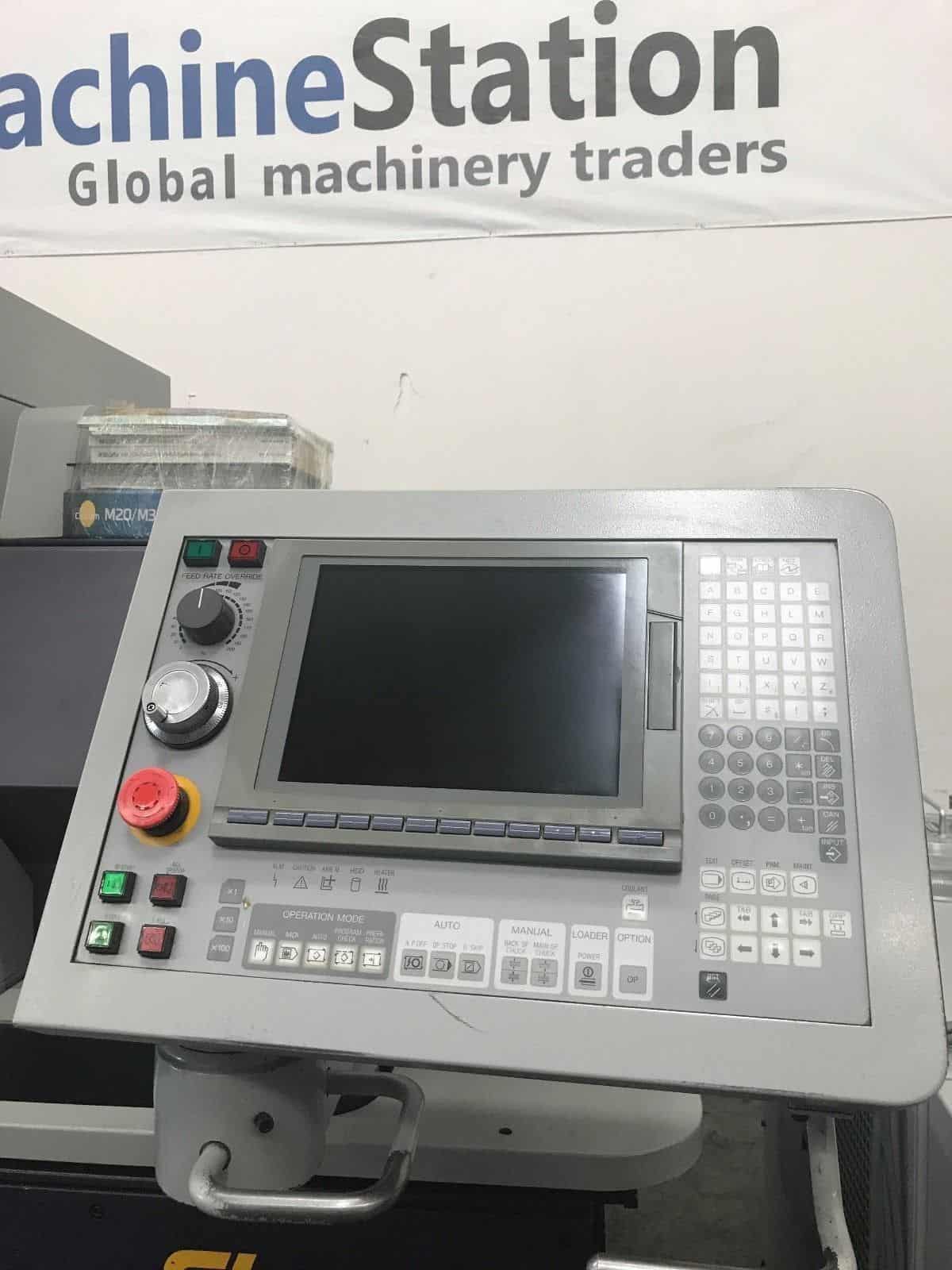

- Cincom Mitsubishi CNC Control
- 10’4″ Color LCD Control Panel
- PCMCIA Card Slot
- Auto Parts Catcher
- Main & Back Spindle Synchronization
- Chip Conveyor

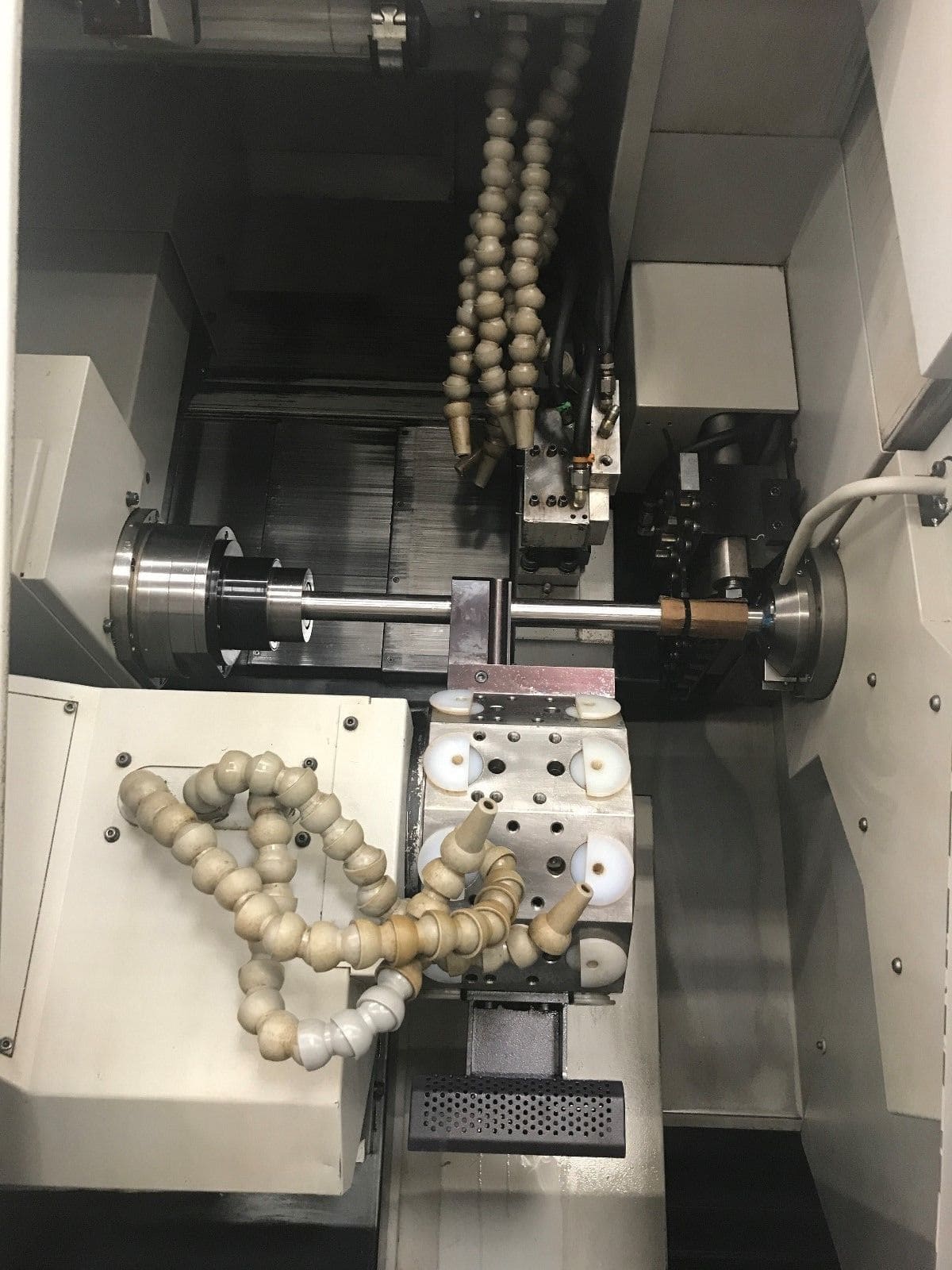

- High Pressure Coolant System 8 line
- Automatic Lubrication system
- Coolant Tank

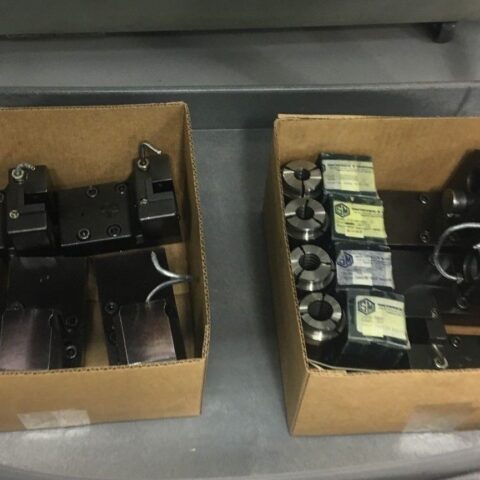

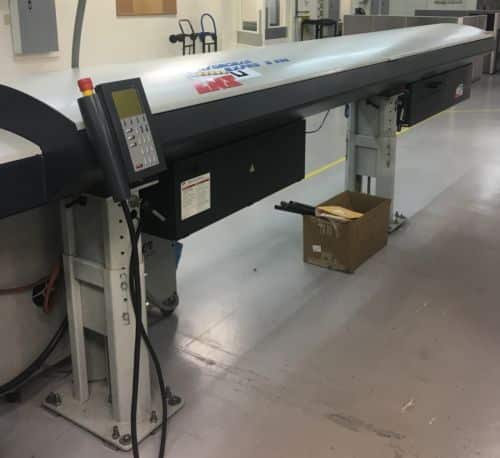

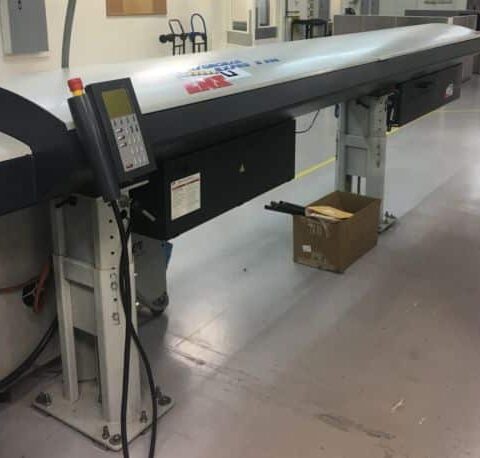

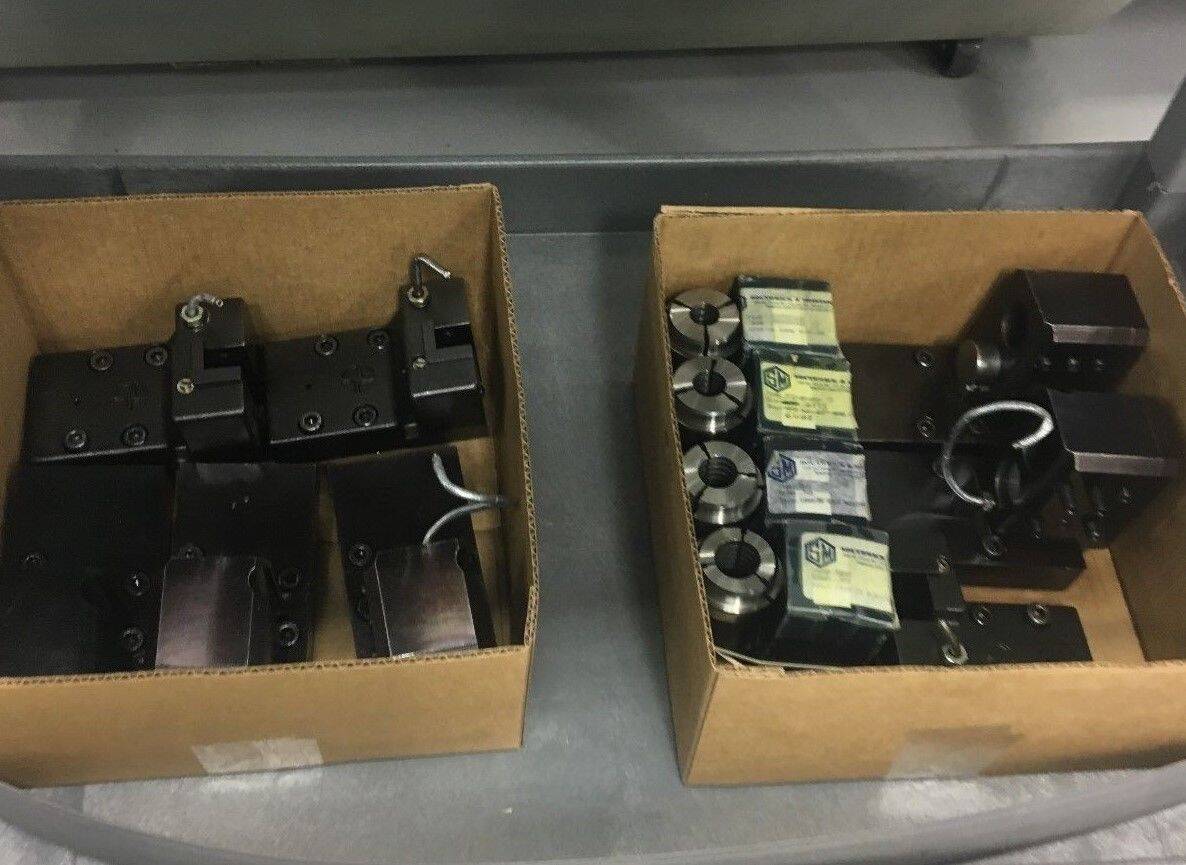

- Comes with Bar Feeder, Chip Conveyor, Levelling Pads, Tooling & Manuals.
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 110″ x 50″ x 69″ High
- Weight : 6900 lbs Approx.
- CITIZEN CINCOM M-32 III Specifications:
- Max Turning Diameter: 1.25″ (32mm)
- Max Turning Length: 12.59″ (320mm)
- Max Bar Capacity: 1.25″ (32mm)
- X1 Axis Travel: 0.75″
- X2 Axis Travel: 0.75″
- Y1 Axis Travel: 1.0″
- Z1 Axis Travel: 4.92″
- Z2 Axis Travel: 12.6″
- C Axis Index: 1 Degree
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 787 IPM
- Main Spindle Index: 1 Degree
- Main Spindle C Axis: 0.001 Degree
- Main Spindle Bore: 1.41″
- Main Spindle Speed: 200 – 8000 RPM
- Main Spindle Motor: 7.5 HP
- Back Spindle Index: 1 Degree
- Back Spindle Speed: 180 – 7000 RPM
- Back Spindle Motor: 3 HP
- Tool Capacity: 21
- Turret Index : 20 (10 Position)
- Gang Tools: 5
- Live Tools: 3
- Back work Tools: 3
- Live Tool Speed: 200-5000 RPM
- Live Tool Motor: 0.5 HP
- Max Front Rotary Drilling/Tapping Dia.: 0.27″ M6
- Max Front Drilling/Tapping Dia.: 0.47″ M12
- Max Back Drilling/Tapping Dia.: 0.39″ M8

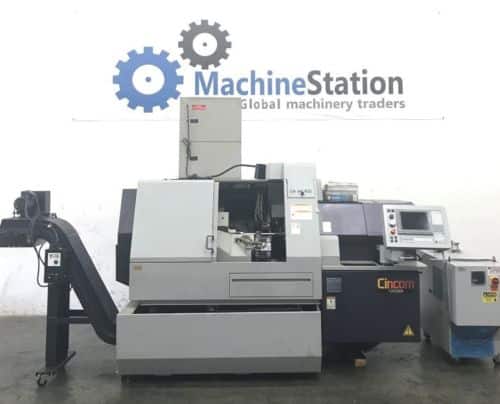

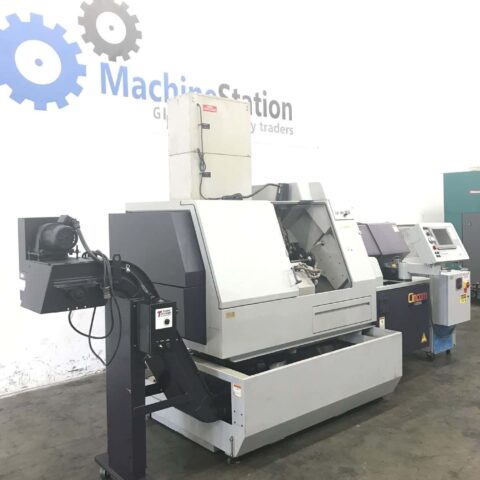

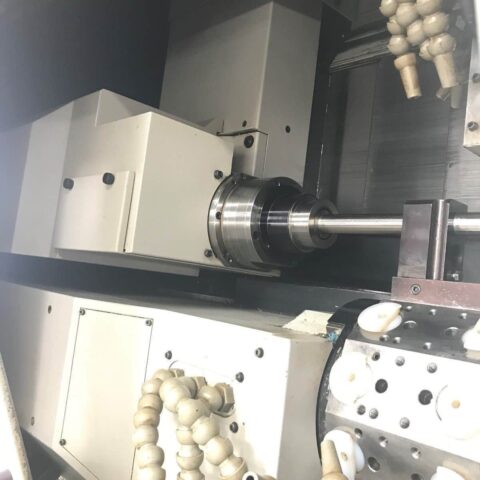

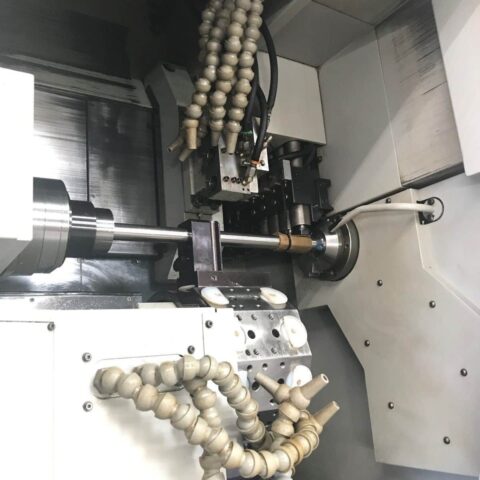

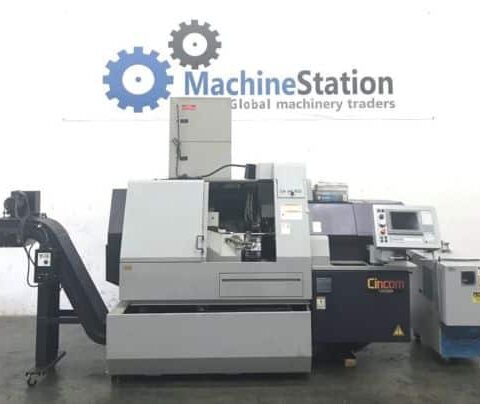

CITIZEN CINCOM M-32 III Comes as shown in pictures.
