Citizen M-32 CNC Swiss Screw Sliding Head Lathe

Out of stock

SKU:	1748
Make/Model:	CITIZEN M-32
Video:	[fusion_button link=”https://www.youtube.com/watch?v=K4XN1Uo4cjk” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1748

CITIZEN M-32 CNC SWISS SCREW SLIDING HEAD LATHE
Make	CITIZEN
Model No.	M-32
Year	2001

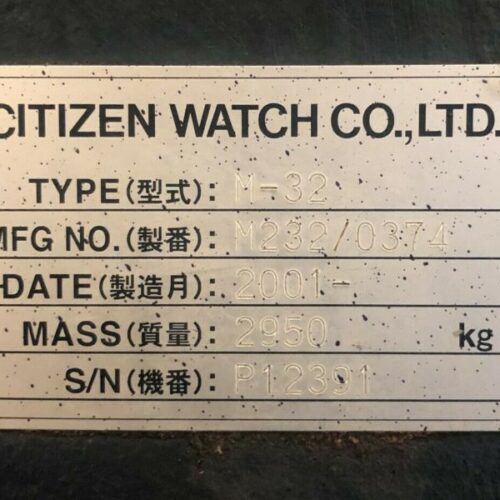

Serial #	P12391
Condition	Very Good

All specifications are approximations and are subject to verification.

Citizen M-32 Equipped With:

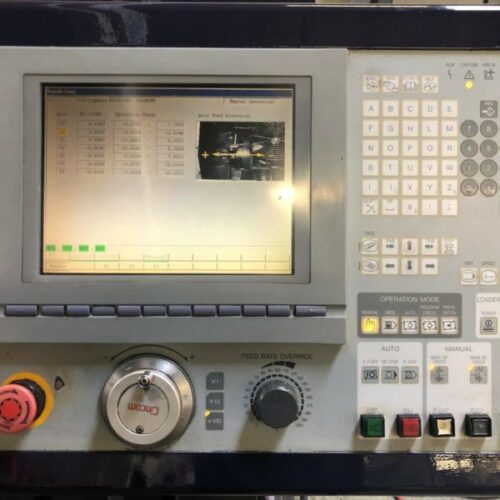

Cincom Mitsubishi CNC Control
10’4″ Color LCD Control Panel
Auto Parts Catcher
Main & Back Spindle Synchronization
Coolant System 8 line
Automatic Lubrication system
Coolant Tank

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Overall Dimensions: 110″ x 50″ x 69″ High
Weight : 6900 lbs Approx.

Citizen M-32 Specifications:
Capacity:
Max Turning Diameter: 1.25″ (32mm)
Max Turning Length: 12.59″ (320mm)
Max Bar Capacity: 1.25″ (32mm)
X1 Axis Travel: 0.75″
X2 Axis Travel: 0.75″
Y1 Axis Travel: 1.0″
Z1 Axis Travel: 4.92″
Z2 Axis Travel: 12.6″
C Axis Index: 1 Degree
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM
Main Spindle Index: 1 Degree
Main Spindle C Axis: 0.001 Degree
Main Spindle Bore: 1.41″
Main Spindle Speed: 200 – 8000 RPM
Main Spindle Motor: 7.5 HP
Back Spindle Index: 1 Degree
Back Spindle Speed: 180 – 7000 RPM
Back Spindle Motor: 3 HP
Tool Capacity: 21
Turret Index : 20 (10 Position)
Gang Tools: 5
Live Tools: 3
Back work Tools: 3
Live Tool Speed: 200-5000 RPM
Live Tool Motor: 0.5 HP
Max Front Rotary Drilling/Tapping Dia.: 0.27″ M6
Max Front Drilling/Tapping Dia.: 0.47″ M12
Max Back Drilling/Tapping Dia.: 0.39″ M8

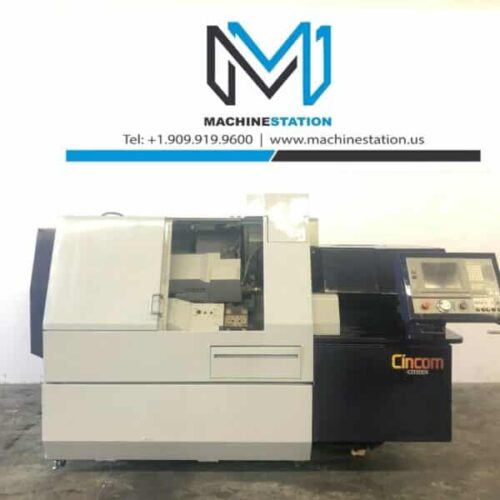

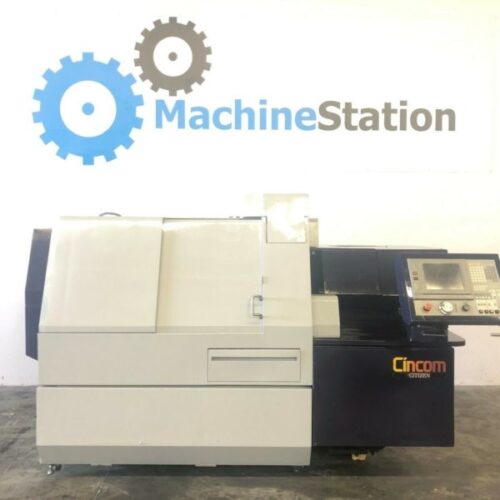

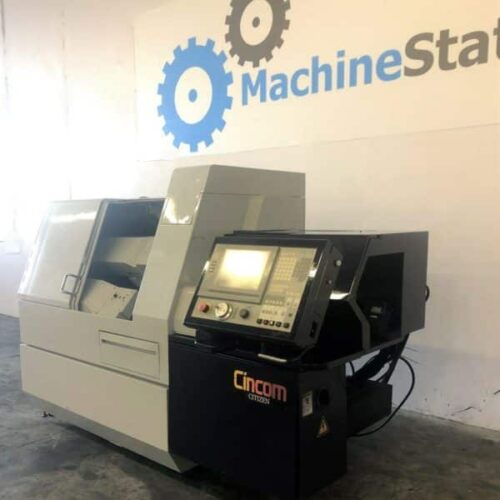

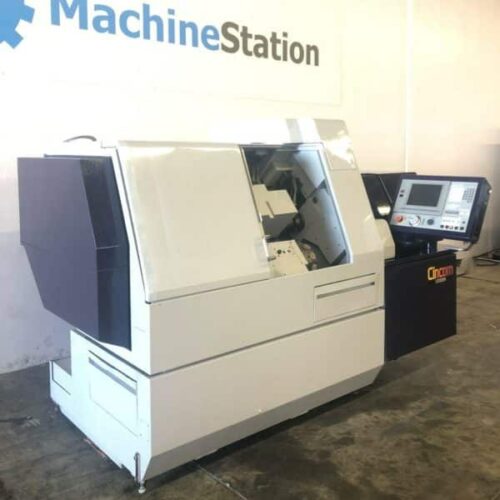

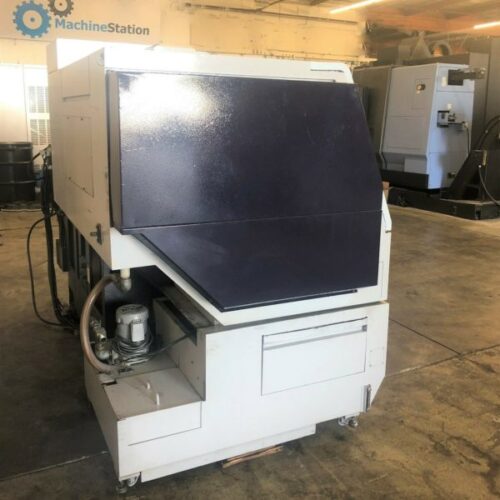

Citizen M-32 Comes as shown in pictures..
