Clausing Colchester Radial Drill

Share

Description

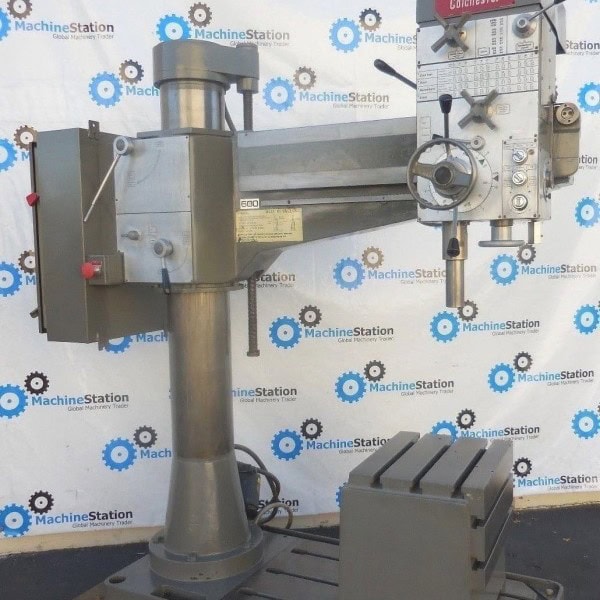

Clausing Colchester Radial Drill

Make Clausing Colchester (Other Machines)
Country of Origin: England
Condition Very Good
  • CLAUSING COLCHESTER Features:
  • Powerful 3 HP spindle drive motor for heavy-duty cutting.
  • High speed gears are made of Nickel-Chrome Steel, heat-treated and ground for durability.
  • Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance.
  • Coolant system
  • CLAUSING COLCHESTER Specifications:
  • Capacity
  • Drilling
  • In Steel 2.0″
  • In Cast Iron 2.50″
  • Tapping
  • In Steel 1.5″
  • In Cast Iron 1.76″
  • Boring
  • In Steel 2.75″
  • In Cast Iron 4.06″
  • Drill Head
  • Spindle Taper 4MT
  • Spindle Stroke 8.00″
  • Quill Diameter 2.95″
  • Number of Spindle Speeds 12
  • Spindle Speeds (rpm) 50 – 2000
  • Number of Feeds 8
  • Spindle Feed Rate (in/rev.) 0.004″ – 0.016″
  • Spindle Drive Motor 3 hp

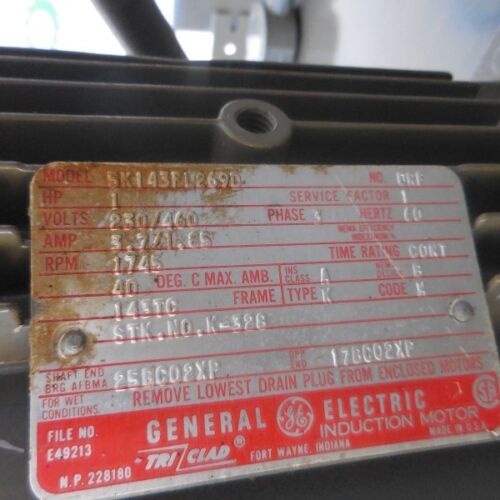

  • Elevating Motor 1 hp
  • Coolant Pump Motor 1 hp
  • Working Area
  • Column Sleeve Dia.  9.00″
  • Column Face to Spindle Center, Maximum 36.00″ Minimum 9.00″
  • Spindle Head Travel 26.00″
  • Base Surface to Spindle End, Maximum  47.00″ Minimum 12.00″
  • Arm Vertical Travel 28.00″
  • Arm Rotation (Right & Left) 180°
  • Baseplate Working Surface 38.00 x 23.00″

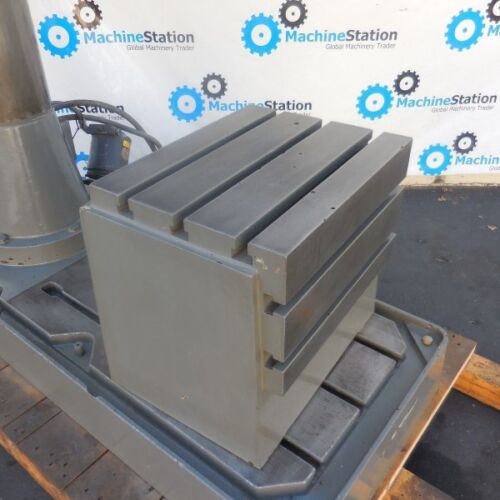

  • Box Table Area
  • Length 19.50″ x Width 15.50″ x Height 19.50″
  • Base Dimensions Floor Area 58″ x 27″
  • Net weight:          4000lbs Approx
  • Dimensions:          75″x 36″x 86″ High

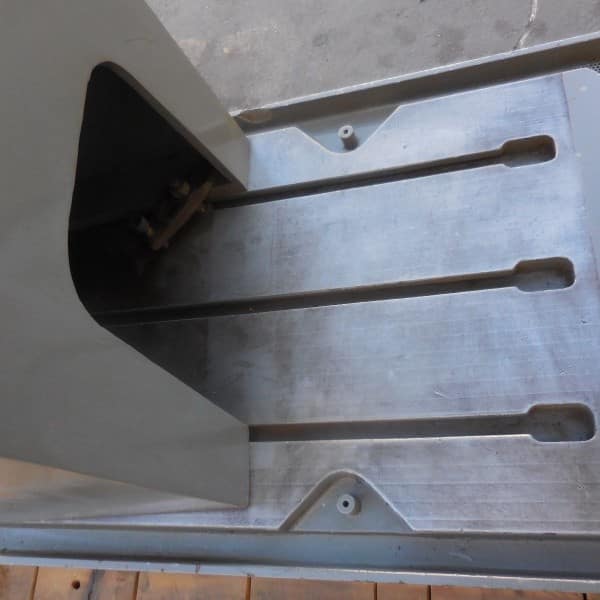

CLAUSING COLCHESTER Comes as shown in pictures.
