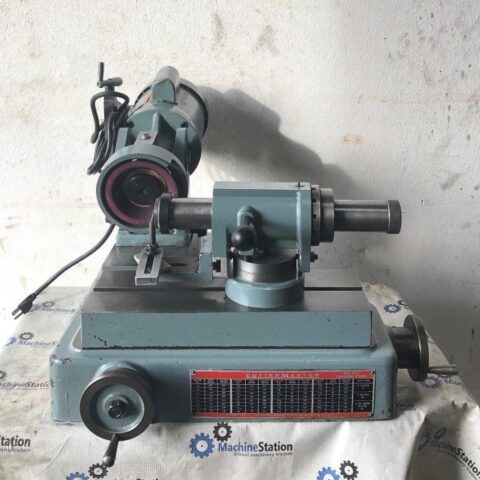

| CUTTERMASTER FCG-30 TOOL & CUTTER END MILL DRILL GRINDER | |
|---|---|
| Make | Cuttermaser |
| Model No. | FCG-30 |

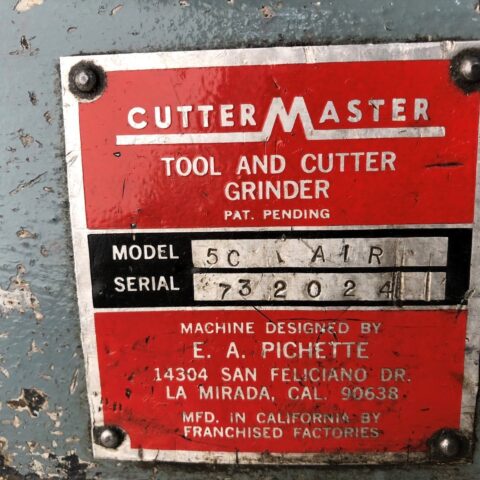

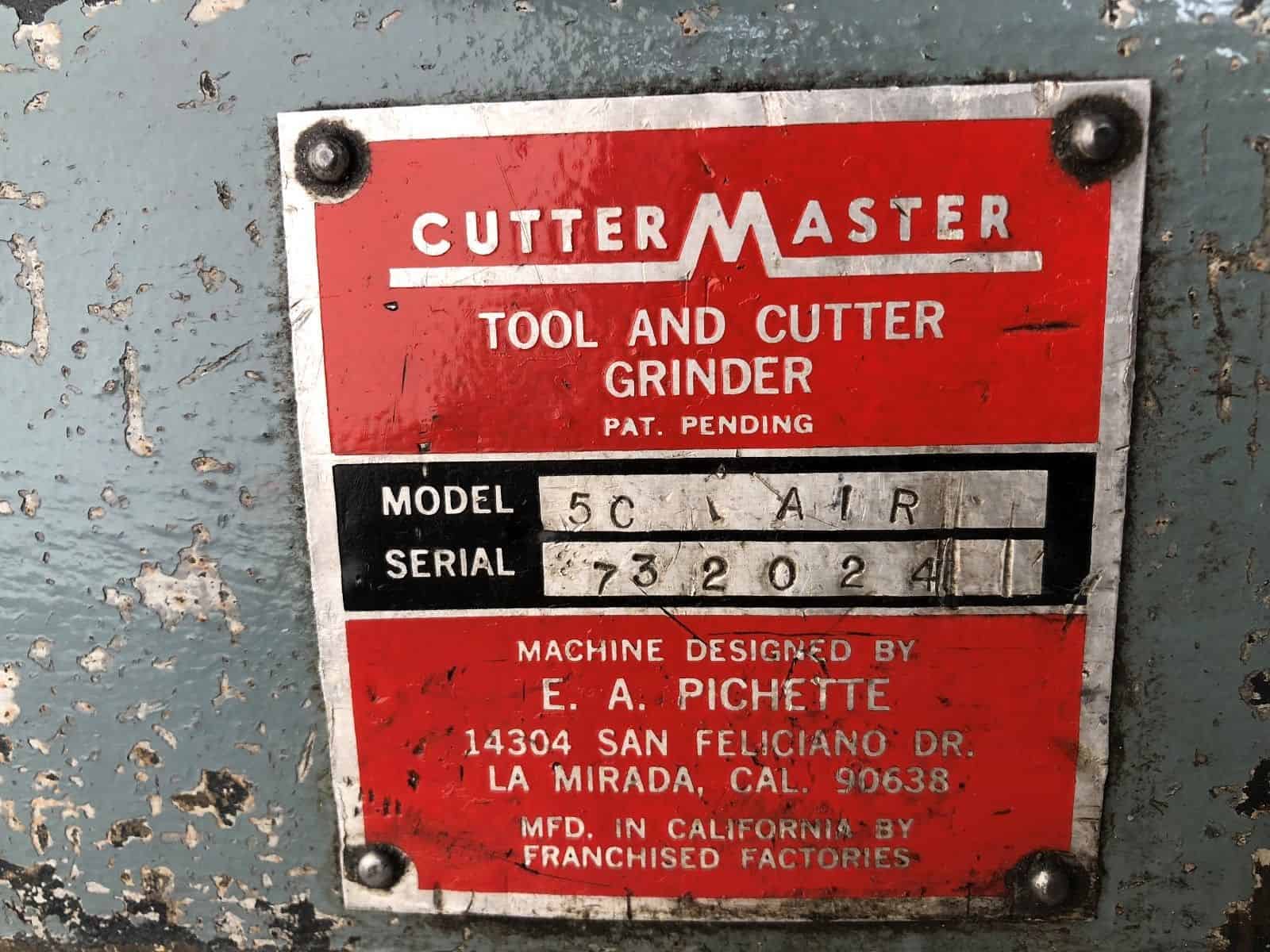

| Serial # | 732024 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
- CUTTERMASTER FCG-30 Features:
- Air bearing spindle that accepts 5C collets
- 360° swivel base for taper grinding

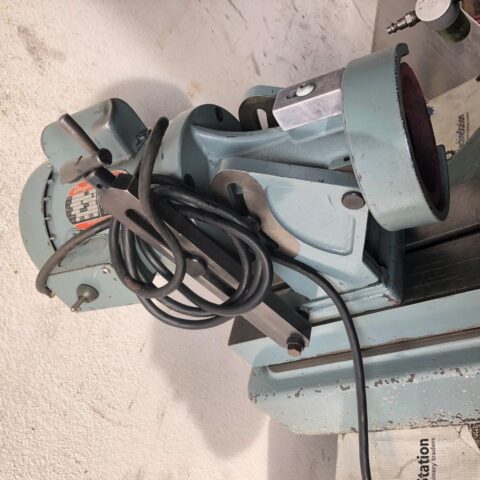

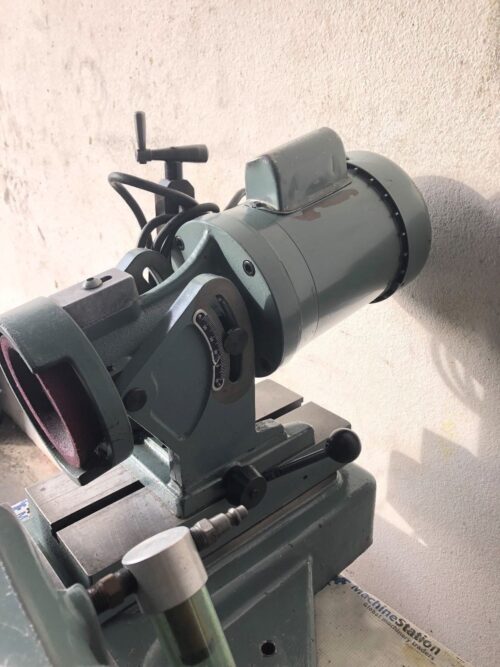

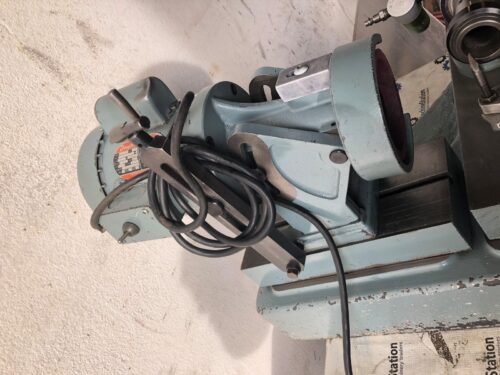

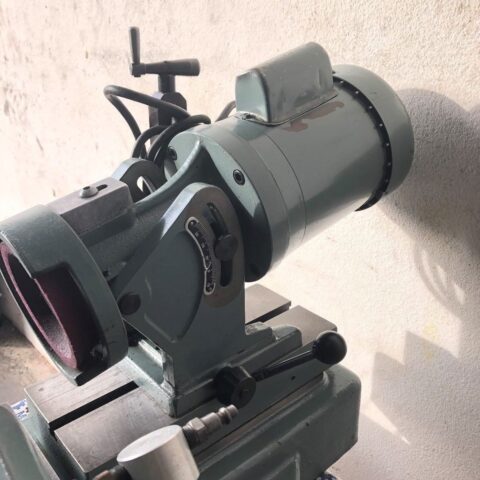

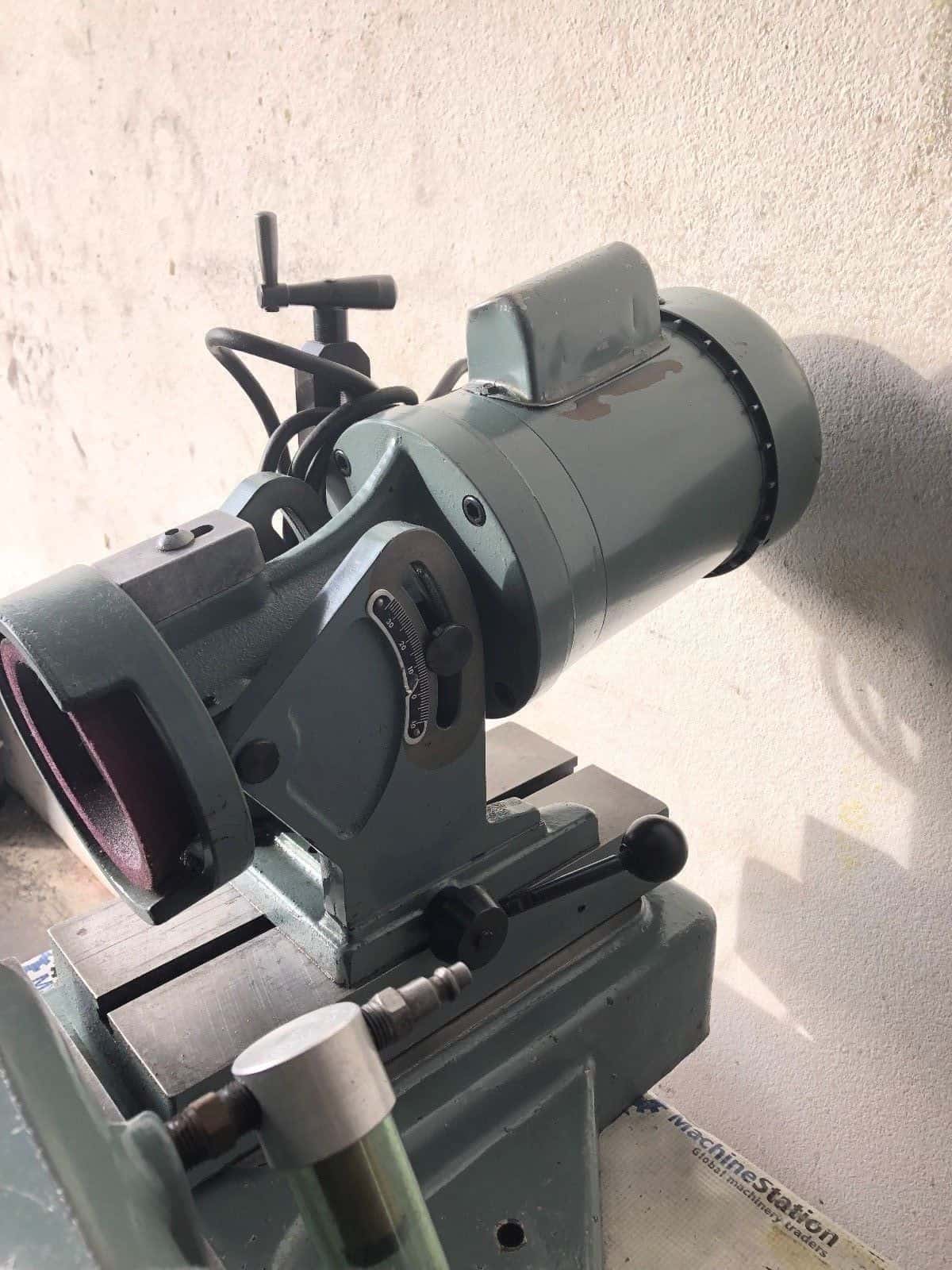

- Tilting wheel motor assembly for positive and negative angles
- Forward/Reverse directional spindle controls
- 2″ Cast iron and precision ground t-slotted tables

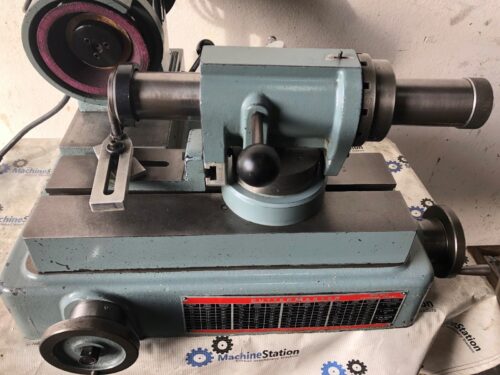

- Workhead mounted end mill holding fixture

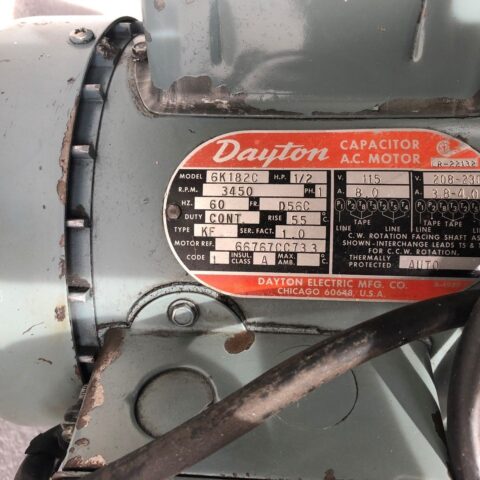

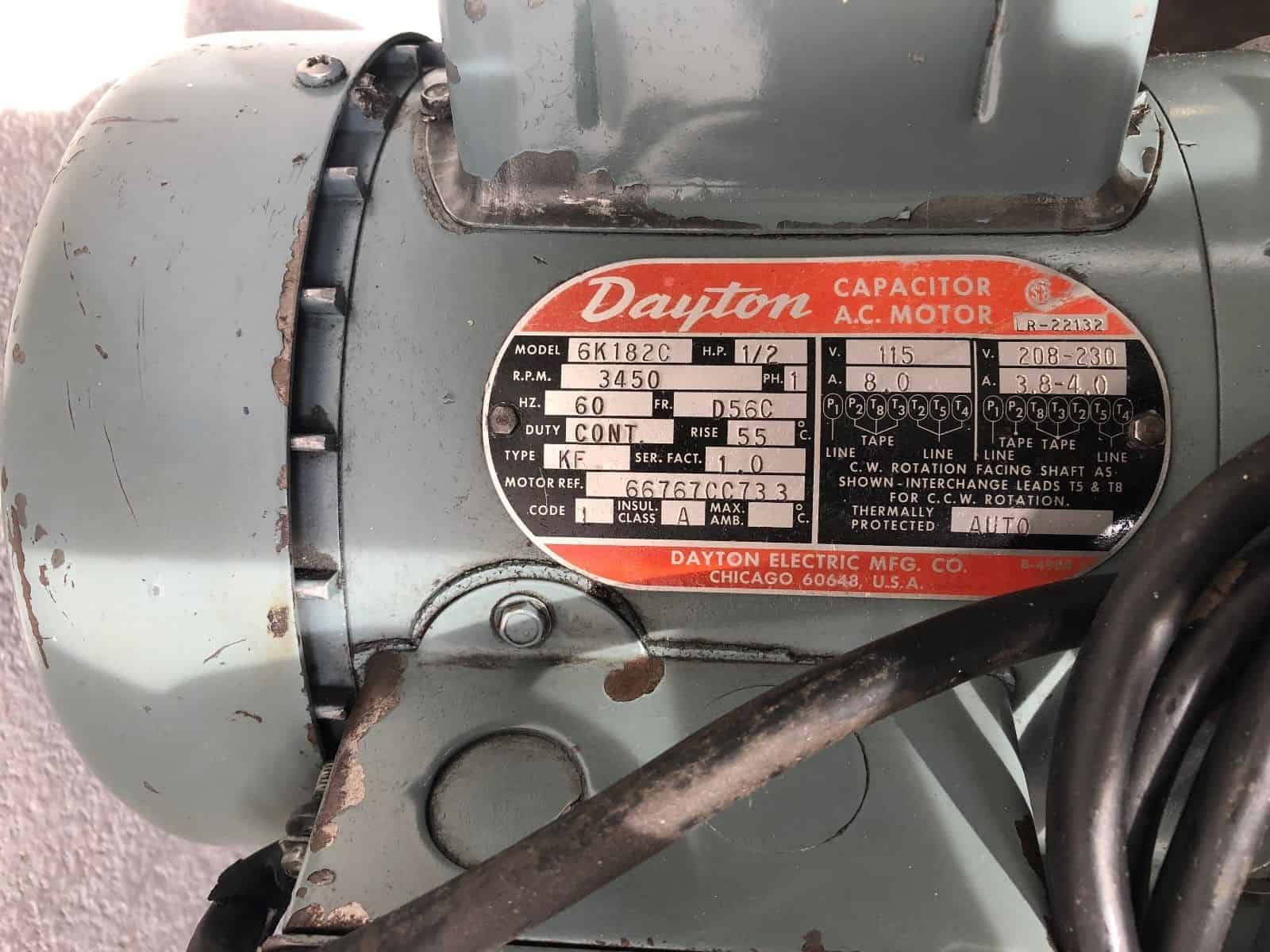

- 1/3 H.P. 1/60/110-220 volt 3,450 R.P.M. motor
- Machine is wired for single phase operation.
- Comes As Shown.
- Free Shipping Within USA
- General:
- Approximate Dimensions: 36″ x 28″ x 50″ H
- Weight: 250 lbs
- CUTTERMASTER FCG-30 Specifications:
- Minimum/Maximum end mill capacity – .0625″/3″
- Cutting tool capacity – 2″ Shank, 9.8″ O.D.
- Air bearing stroke over table – 9.8″
- Swing over table – 9.75″
- Longitudinal travel of table (X-axis) – 6″
- Cross travel of wheel table (Y-axis) – 3″ (and motor slides back/forth 6″)
- Vertical travel of wheel motor assembly (Z-axis) – 8″
- X-axis table working space – 16.5″ x 5.5″
- Y-axis table working space – 13″ x 5.5″
- T-Slot dimensions – 0.8″ x 0.5″ x 0.67″
- Table feed graduations – .001″
- Flute length – 10.5″
- Tilt adjustment of wheel – +35°/-10°
- Swivel adjustment of head stock – 360°
- Maximum wheel size – 5″ x 2″ x 1-1/4″
- Wheel speed – 3,450 R.P.M.
- Air pressure – 90 P.S.I.

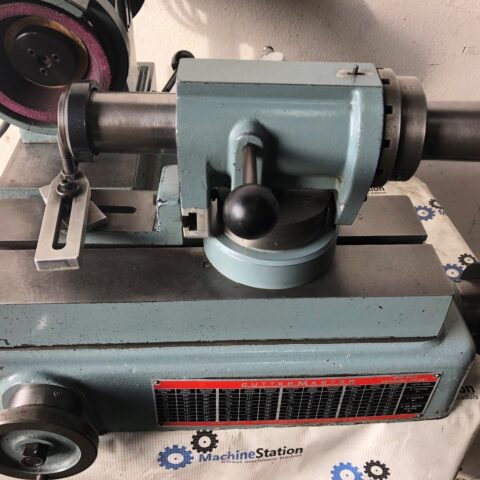

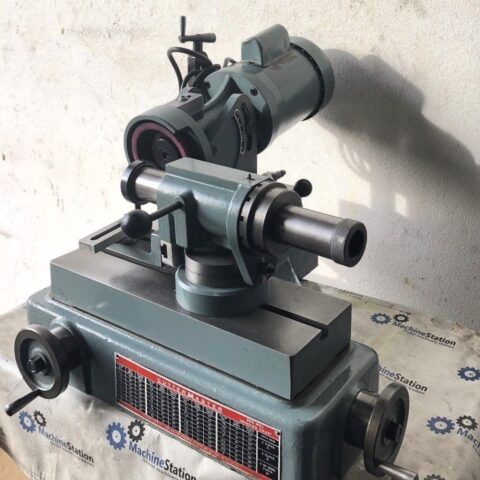

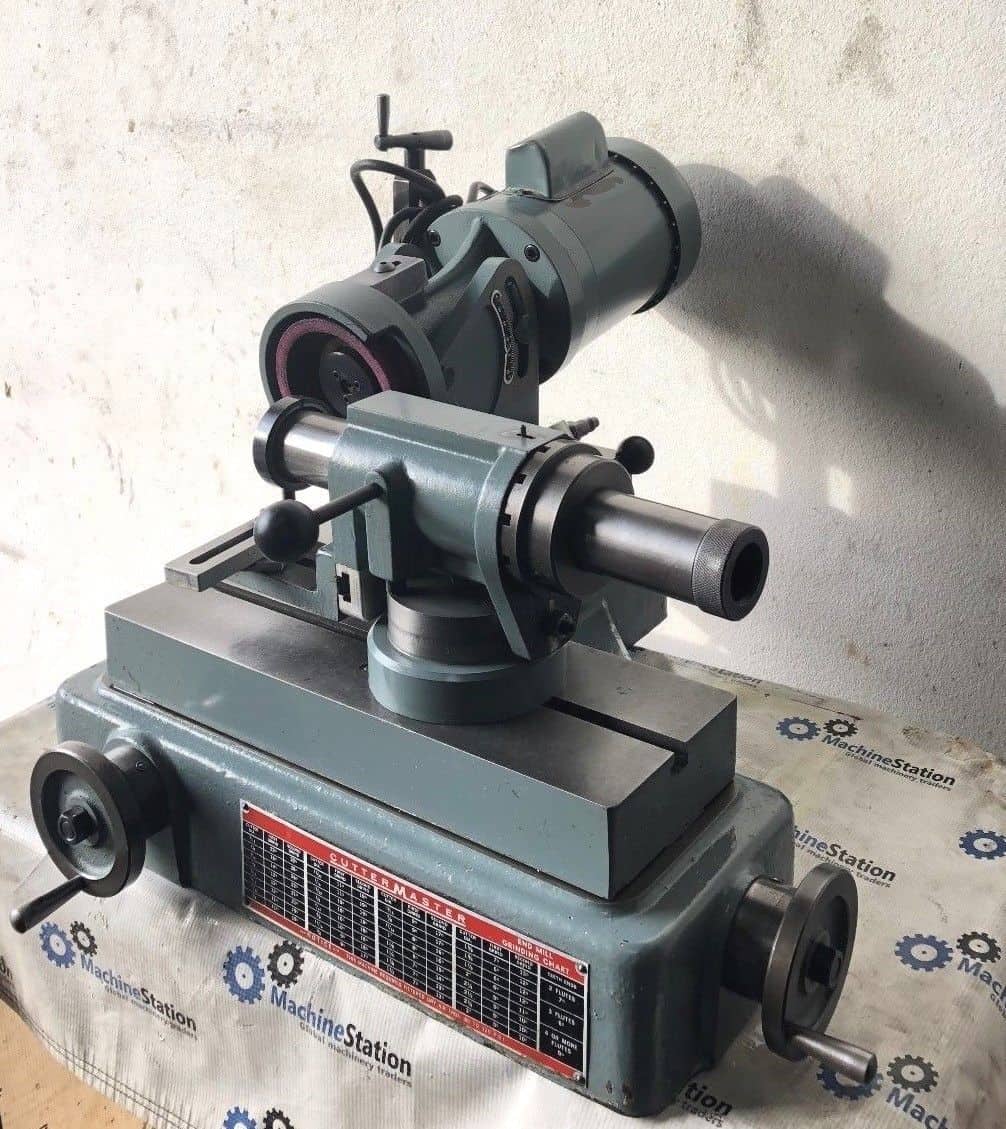

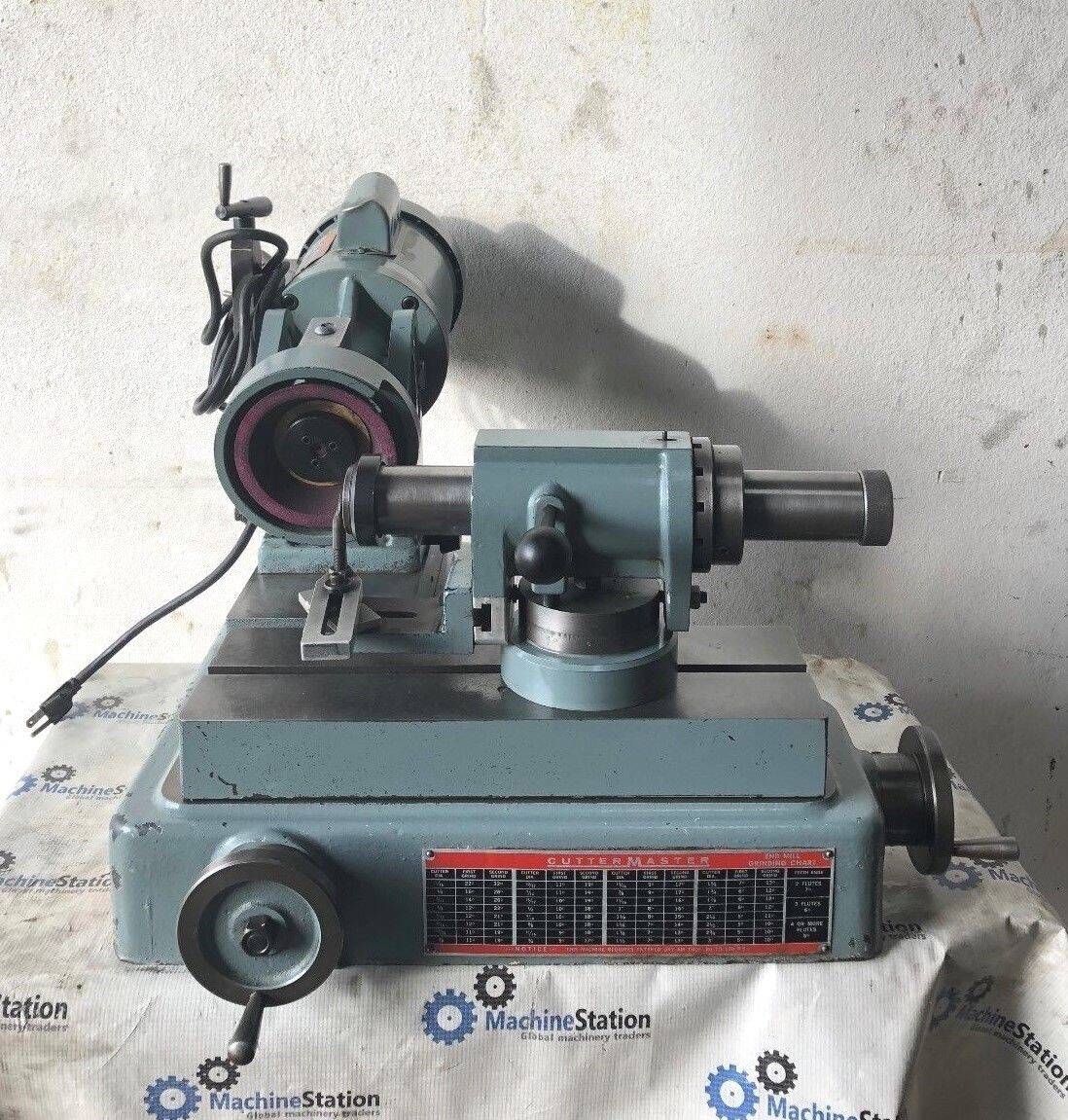

CUTTERMASTER FCG-30 Comes as shown in pictures.
