DAEWOO 150G CNC GANG LATHE | |
---|---|
Make | Daewoo |
Model No. | 150G |
Year of Manufacture: | 1998 |

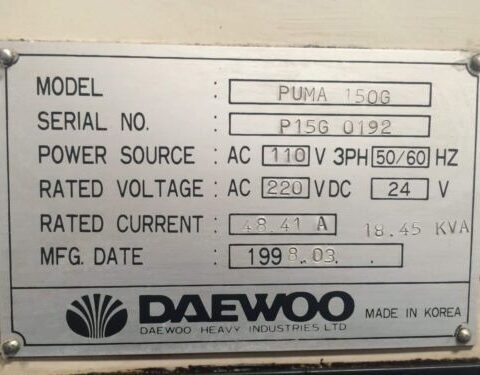

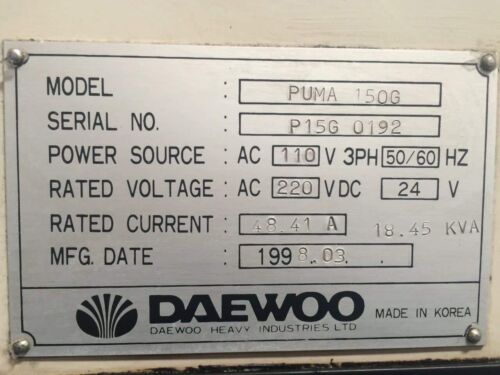

Serial # | P15G 0192 |
Condition | Very Good |
Comes with All Original Manuals |
All specifications are approximations and are subject to verification.
Check VIDEO Below.
- DAEWOO 150 G Features:
- 6″ Hydraulic Chuck

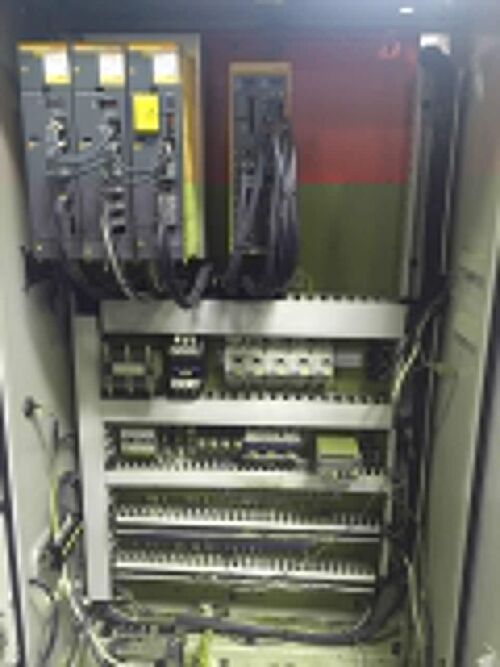

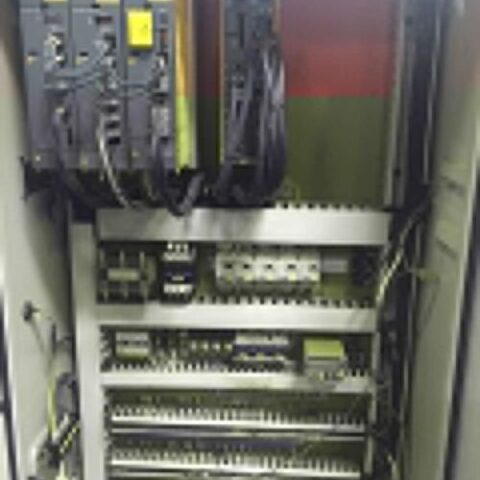

- Fanuc Control

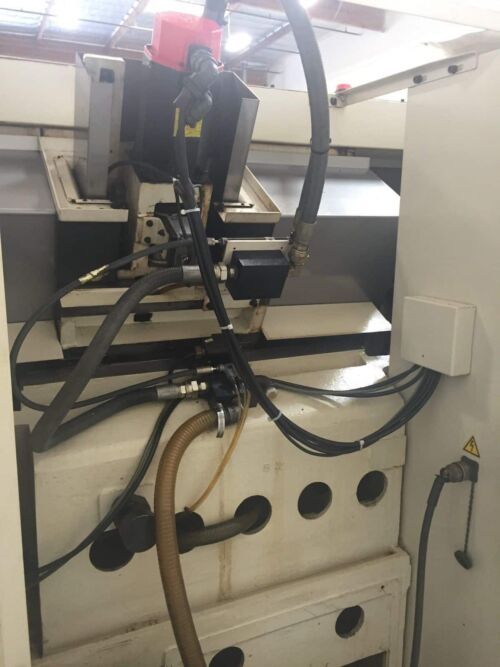

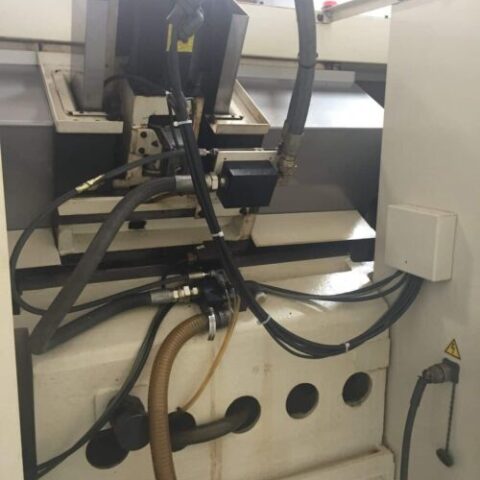

- Parts Catcher
- Chip Conveyor
- RS-232 ports

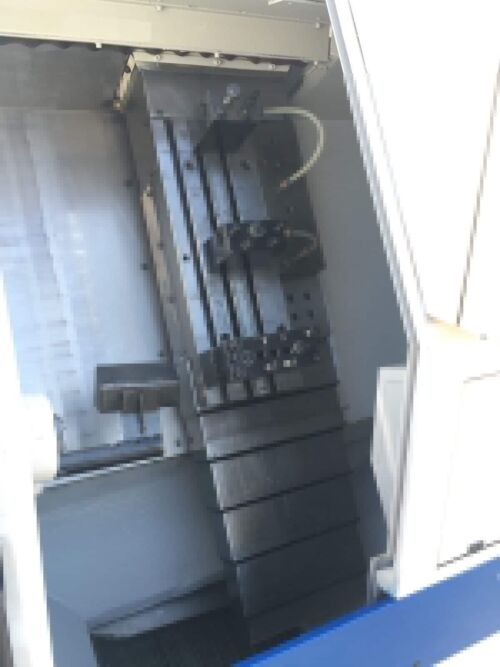

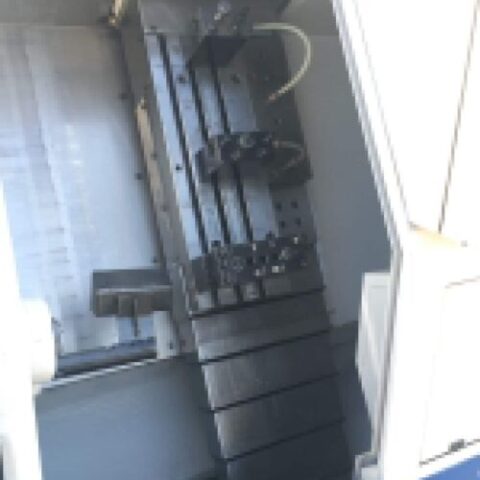

- 6 Station Tool Carriage With Coolant
- General:
- Power: 220v / 3-Phase 18.45 Kva
- Overall Dimensions: 125″ x 63″ x 70″ High With Conveyor
- Overall Dimensions: 82″ x 63″ x 70″ High Without Conveyor
- Weight: 6000 lbs

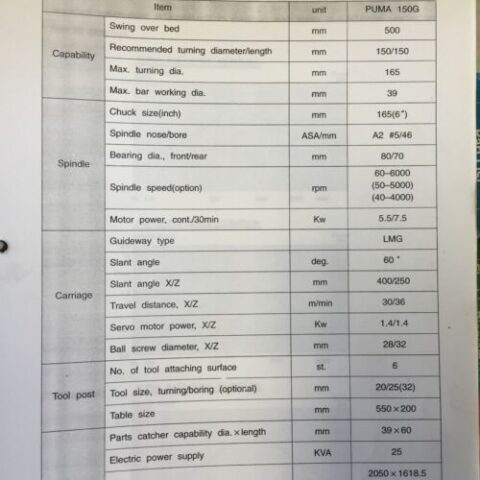

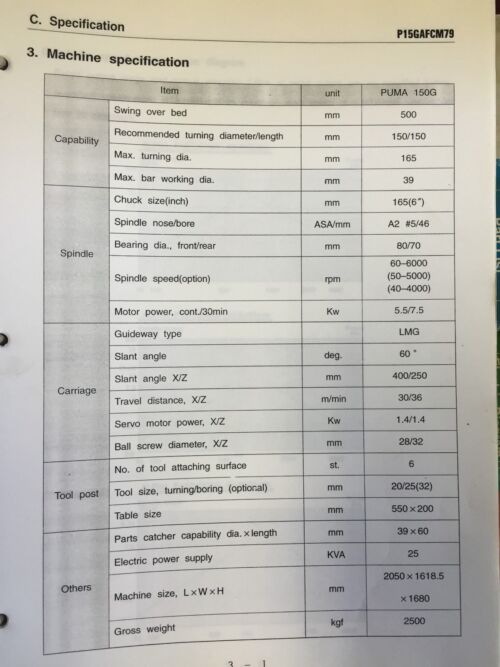

- DAEWOO 150G Specifications:
- MAXIMUM TURNING DIAMETER: 6.50″
- MAXIMUM TURNING LENGTH: 8.0″
- MAXIMUM BAR WORKING DIA: 1.53″
- SWING OVER BED 19.68″
- X AXIS TRAVEL 15.70″
- Z AXIS TRAVEL 9.8″
- RAPID TRAVERSE RATE X AXIS 30 MPM
- RAPID TRAVERSE RATE Z AXIS 36 MPM
- SPINDLE NOSE A2-5
- SPINDLE BORE 1.60″
- SPINDLE SPEEDS: 60 – 6,000 RPM
- SPINDLE MOTOR: 7.5 KW
- TOOL CAPACITY: 6 STATIONS

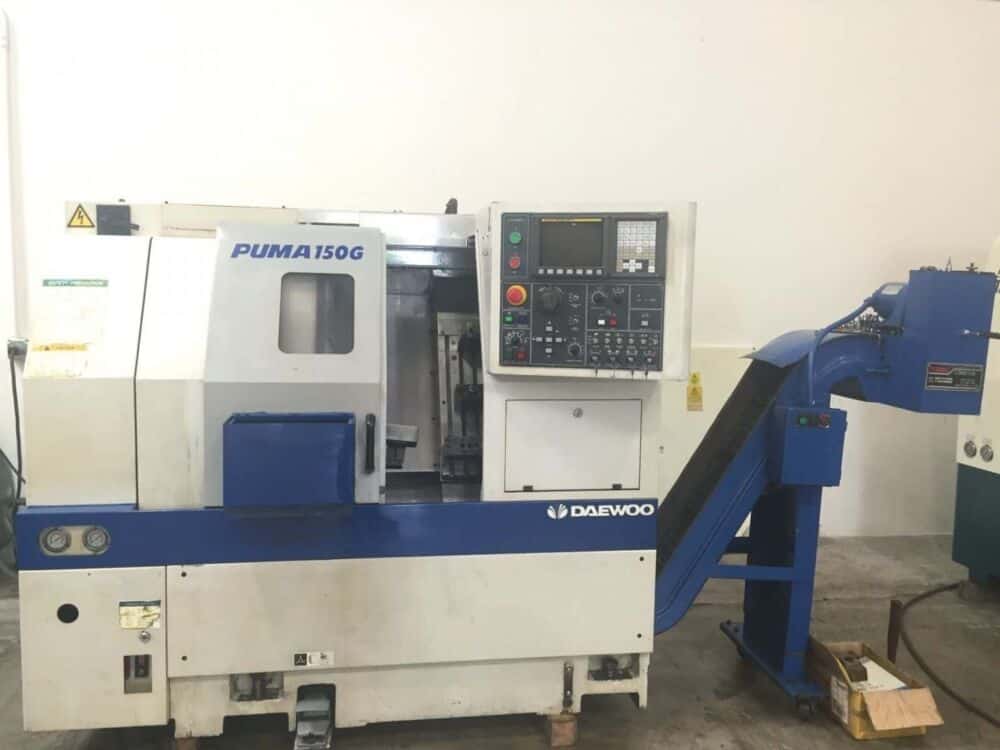

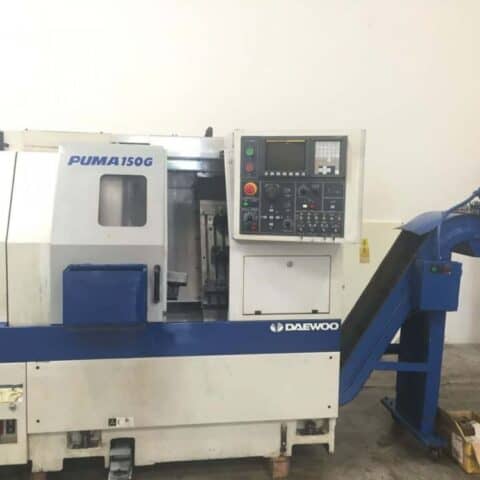

DAEWOO 150G Comes as shown inpictures.
