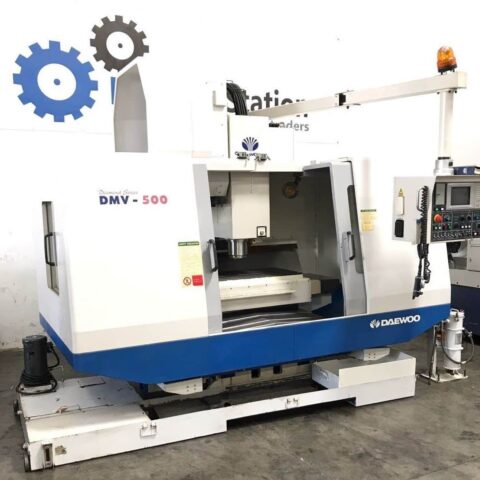

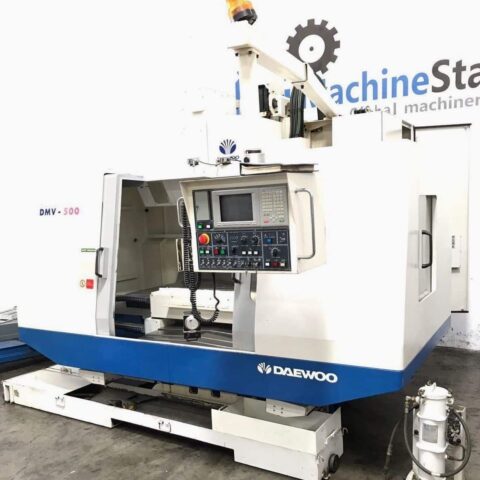

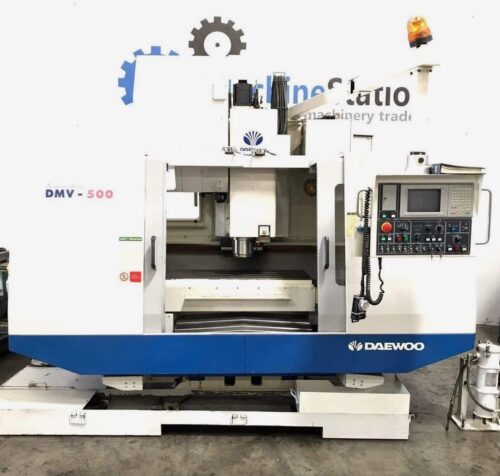

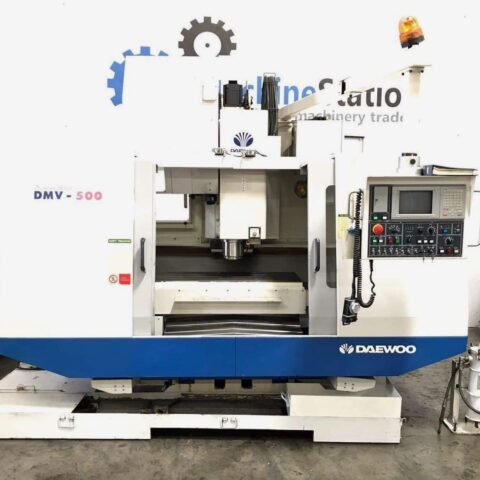

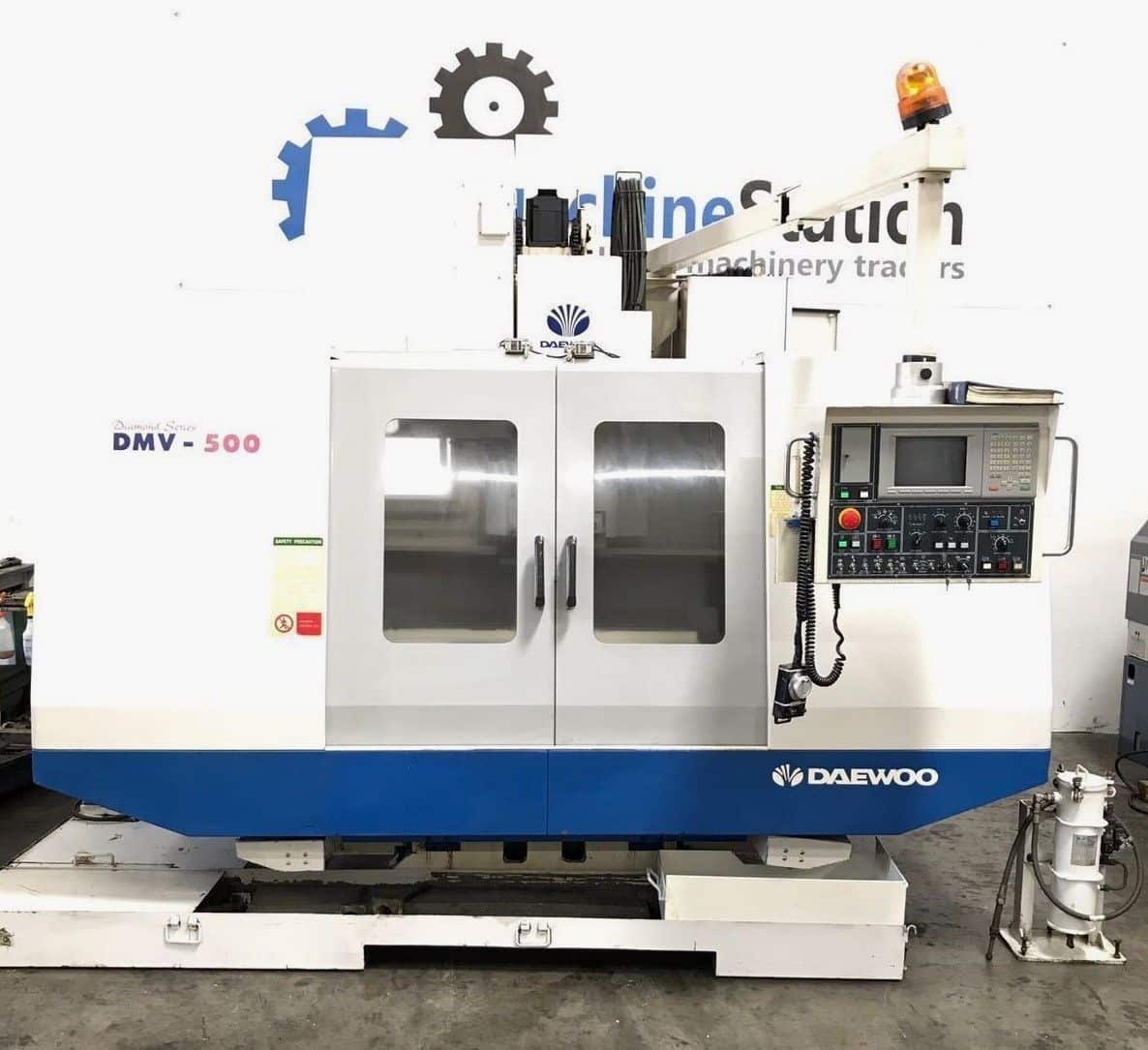

DAEWOO ACE DMV-500 VERTICAL MACHINING CENTER | |
---|---|
Make | Daewoo |
Model No. | DMV-500 |
Year of Manufacture: | 2000.08 |

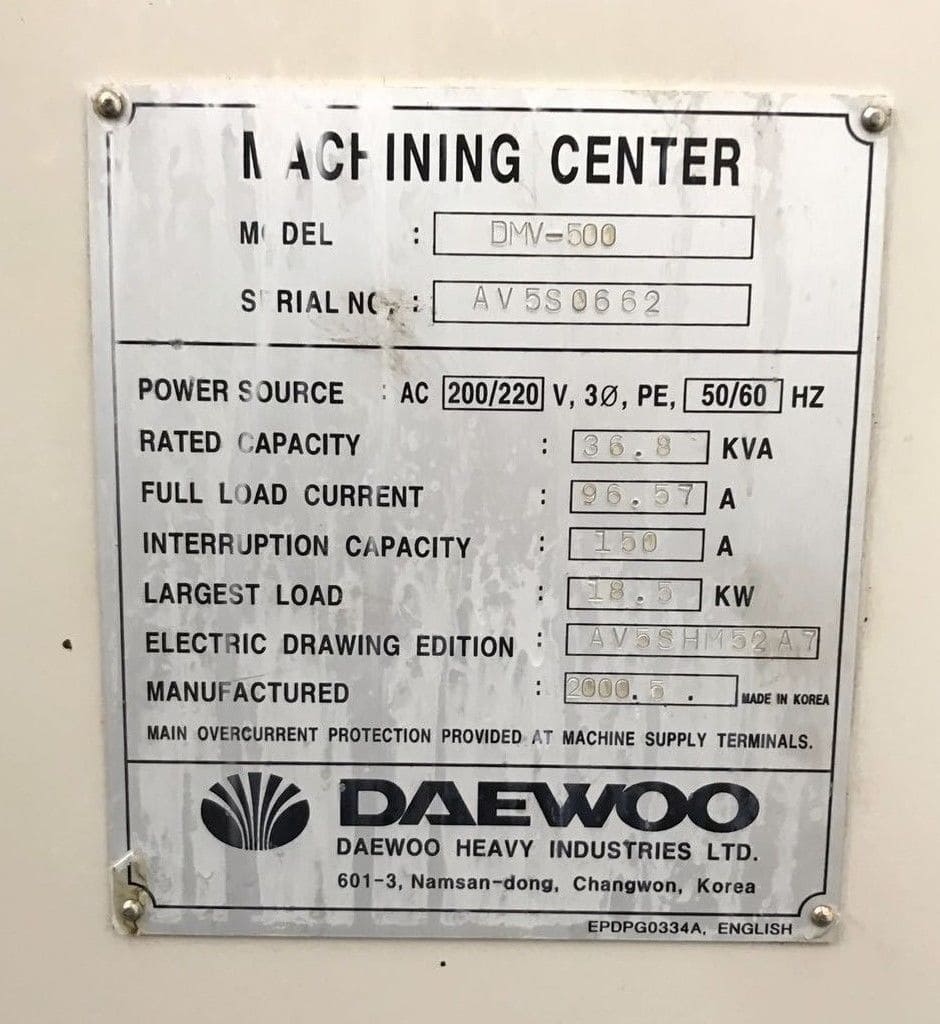

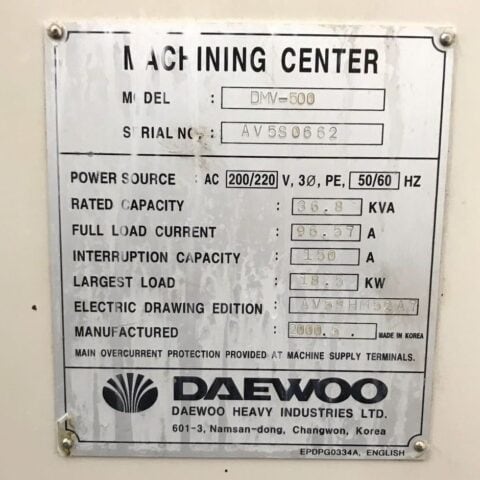

Serial # | AV5S0662 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has very low Cutting Hours, Thru Spindle Coolant, 10,000RPM, 30 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- DAEWOO ACE DMV-500 Features:

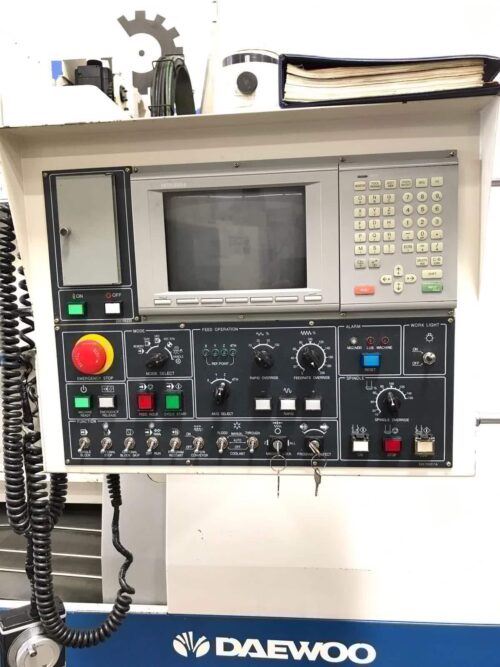

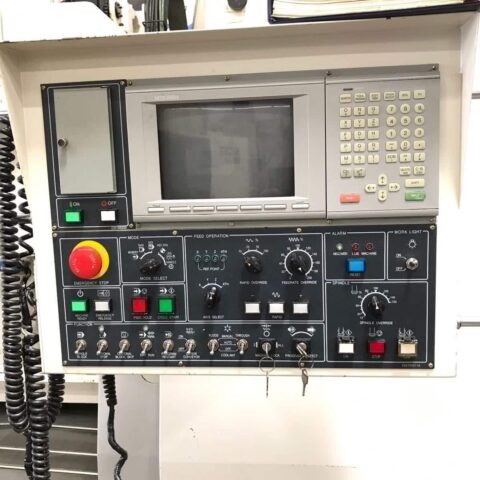

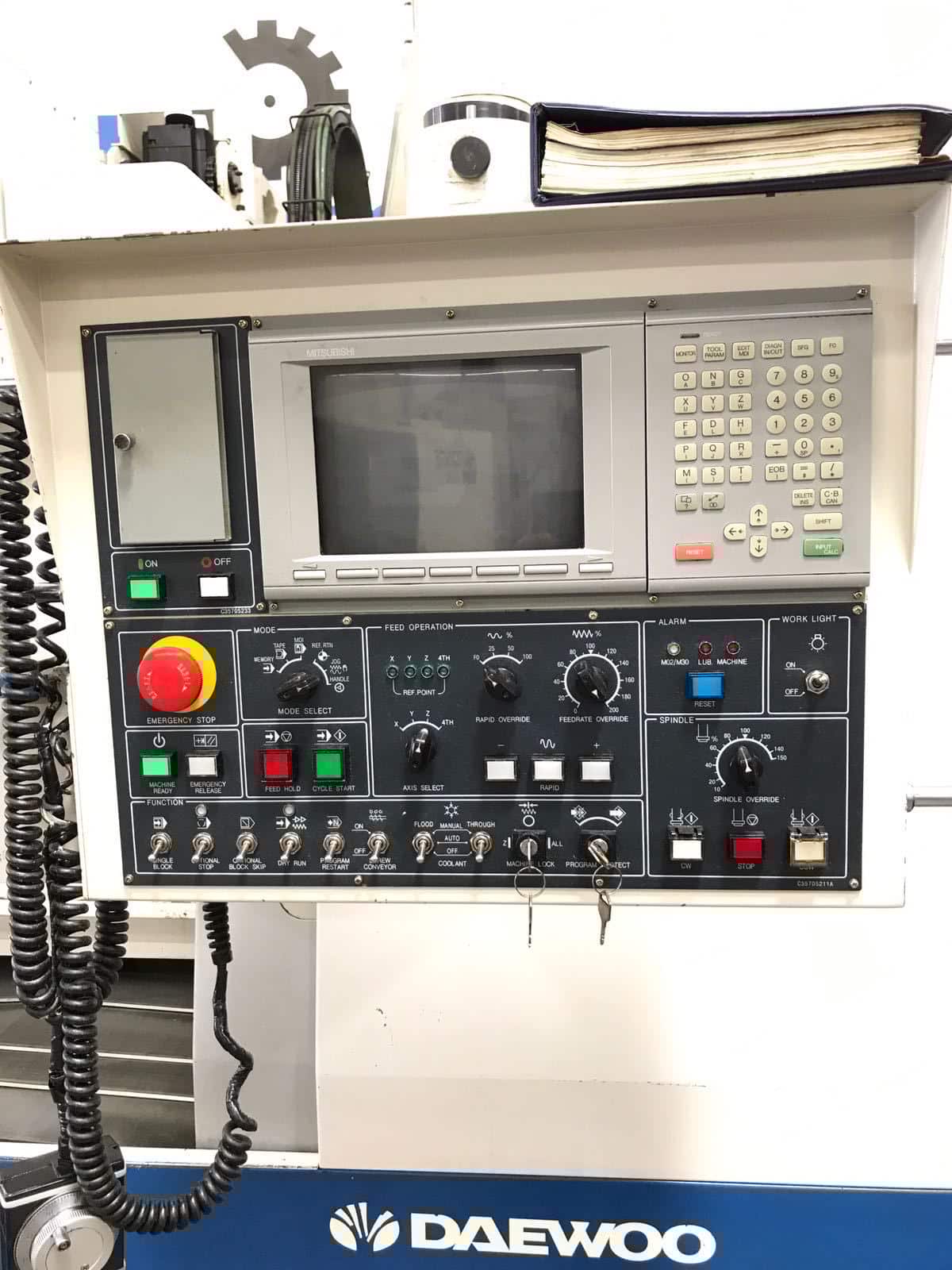

- Mitsubishi 520 CNC Control
- Through Spindle Coolant
- 30 Tools Side Mount Double Arm Hi-Speed Tool Changer
- High precision 10,000 RPM Spindle
- PCMCIA Card Slot
- Box Way Construction All Axis
- Powerful 20 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Auger
- Work light
- Books and Manuals
- DAEWOO ACE DMV-500 Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 20″
- Z-Axis: 20.2″
- Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

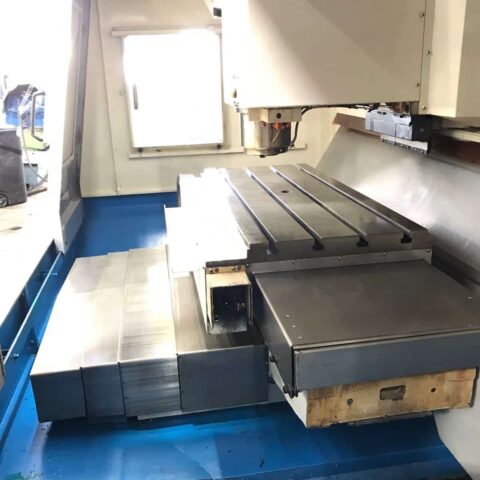

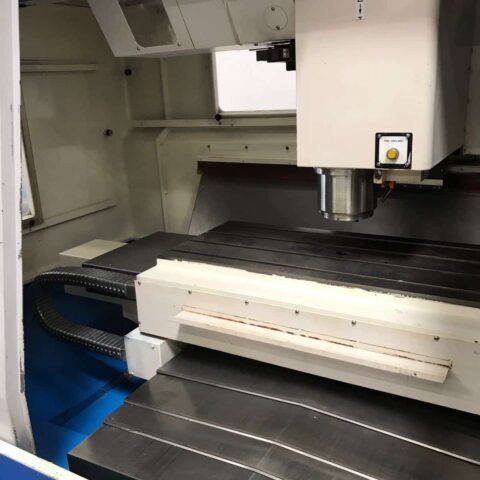

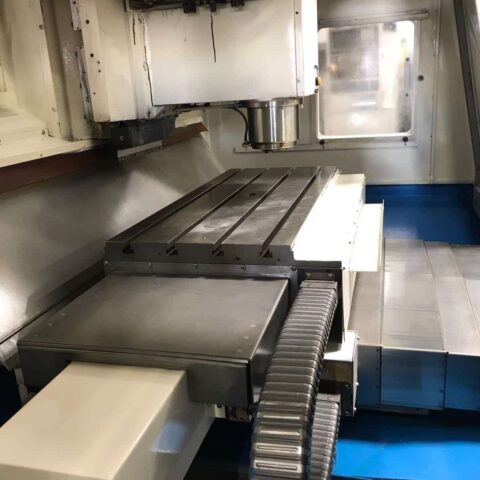

- Table:
- Length: 47.2″
- Width: 19.7″
- Max Weight on Table: 1800 lbs

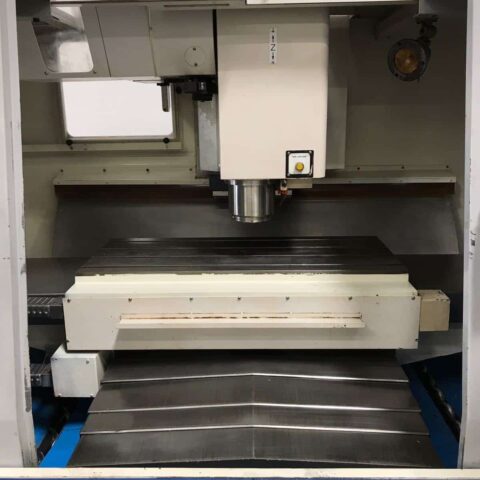

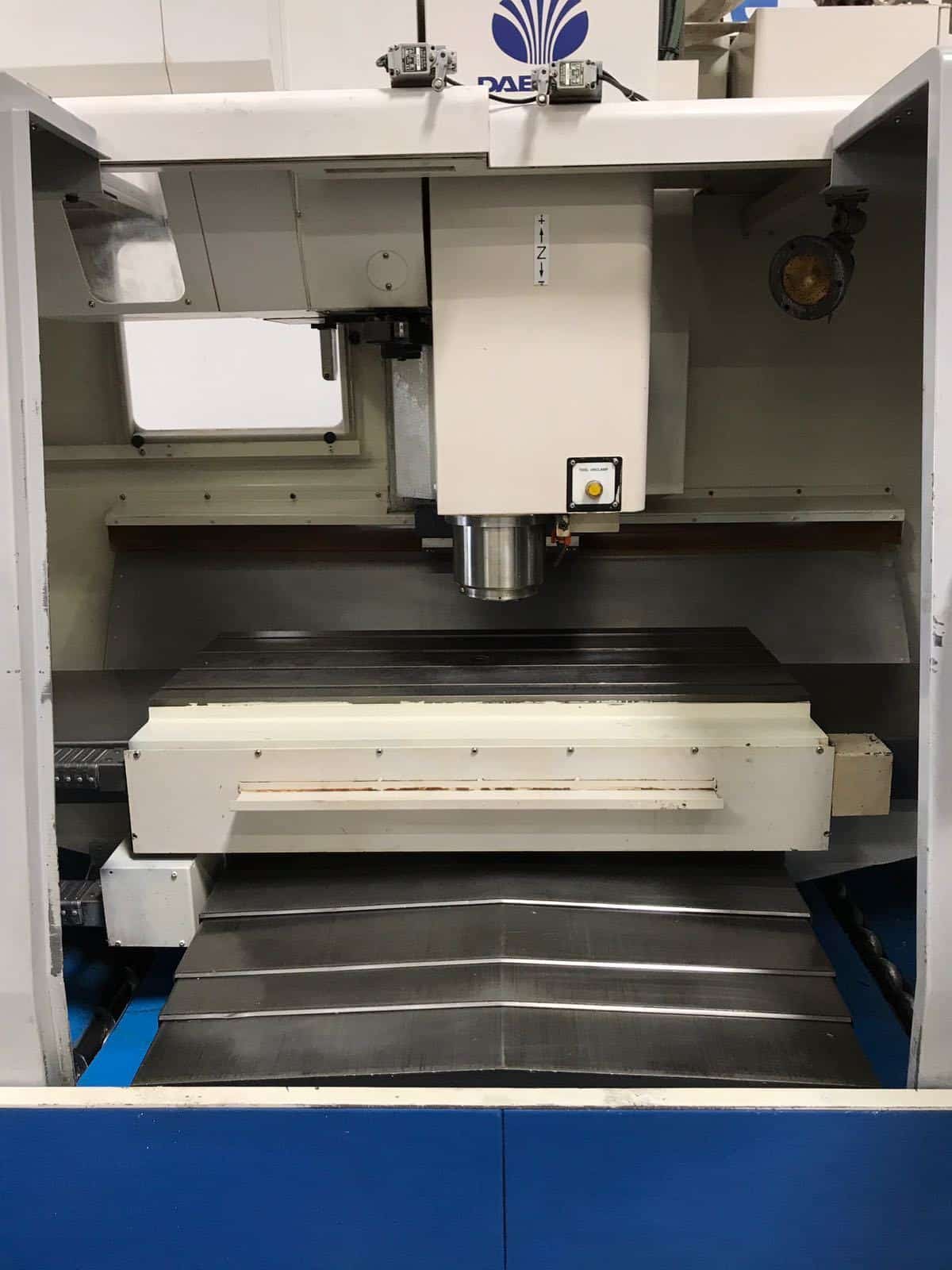

- Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 20 HP
- Feed rates:
- Rapid X,Y & Z: 1181 inch/P.M
- Cutting Feedrate: 593″ inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 30
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 5.90″
- Tool Change Time: 1.5 Second
- General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 142″ x 130″ x 110″ High
- Weight: 16500 lbs

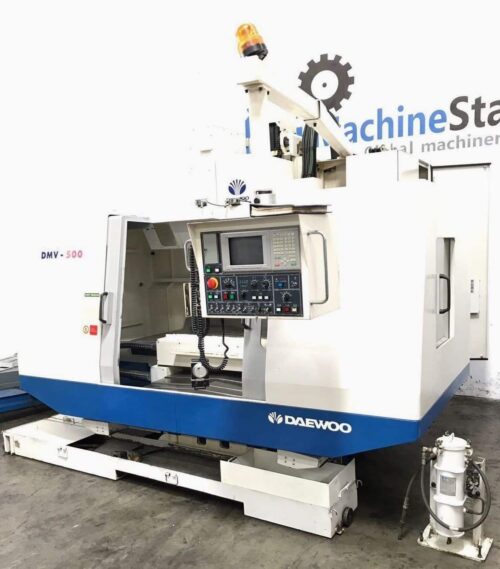

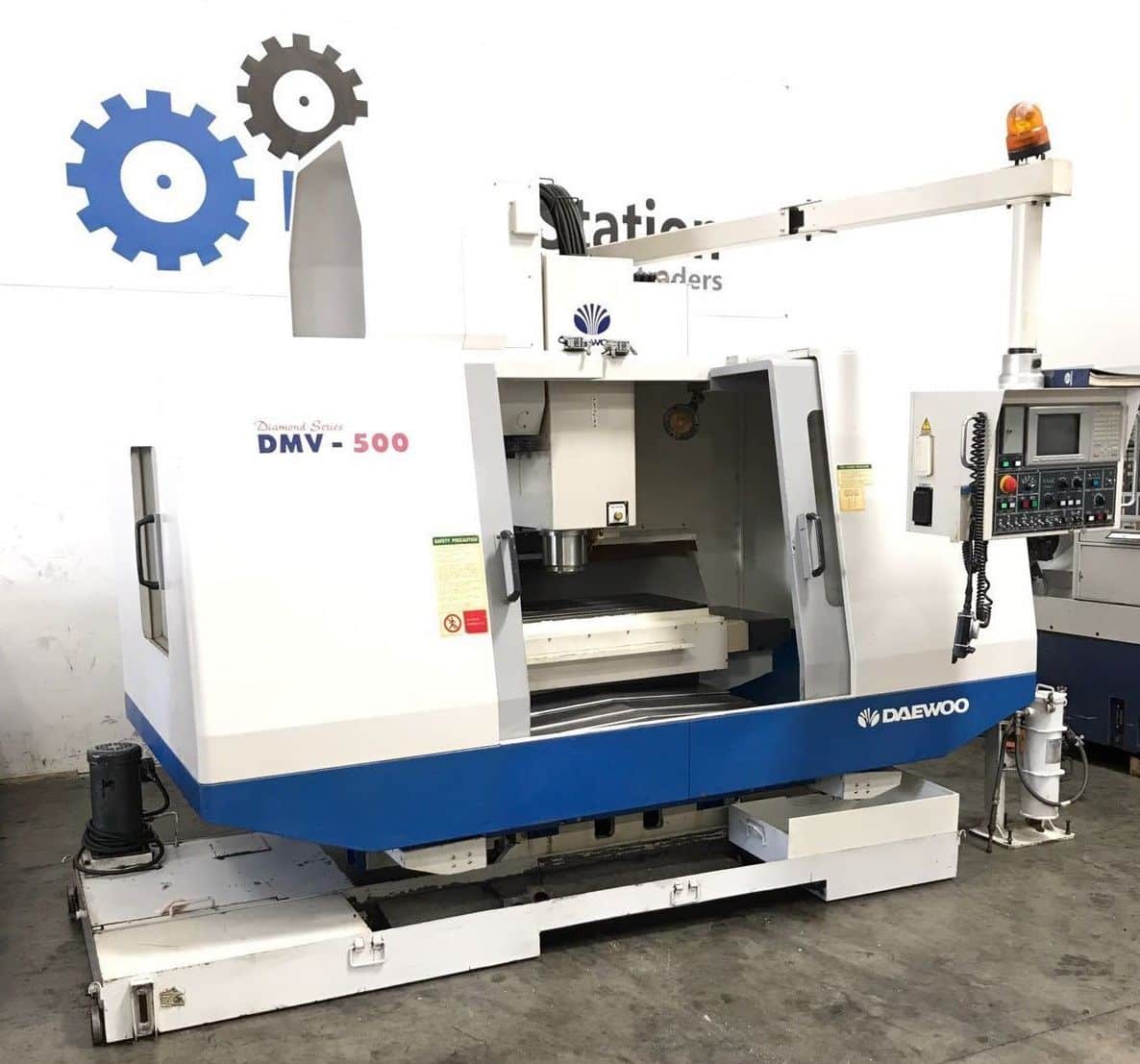

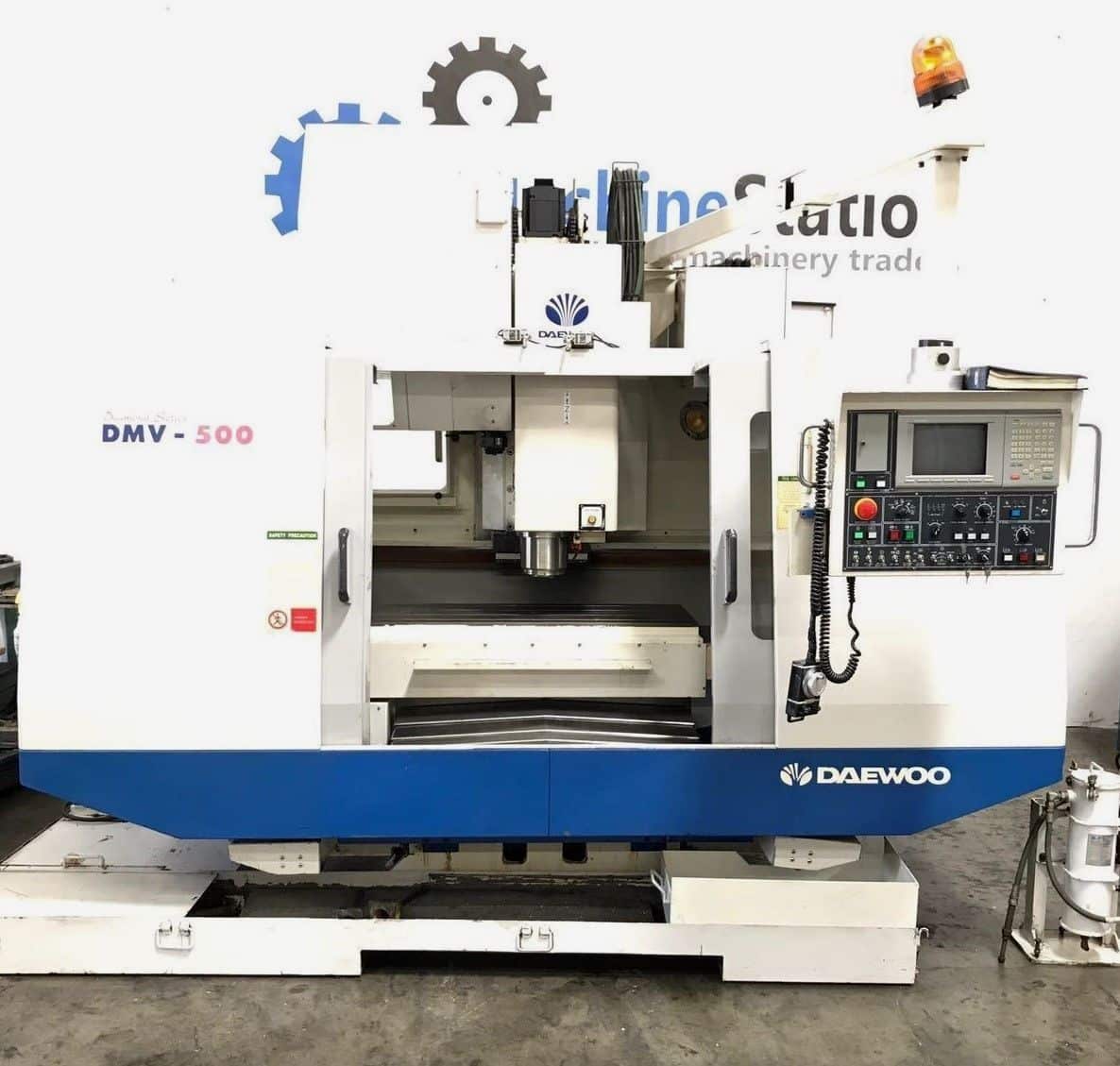

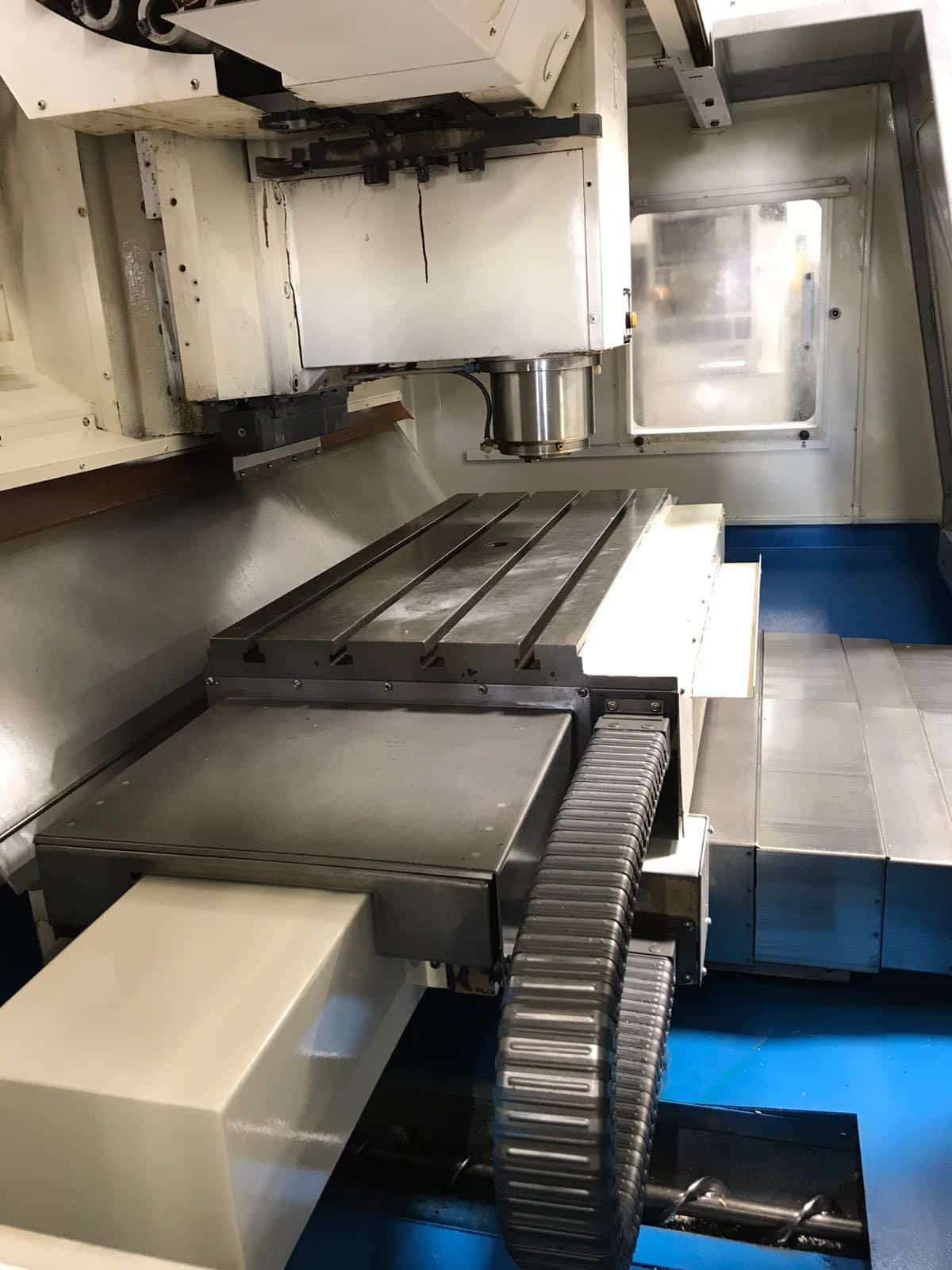

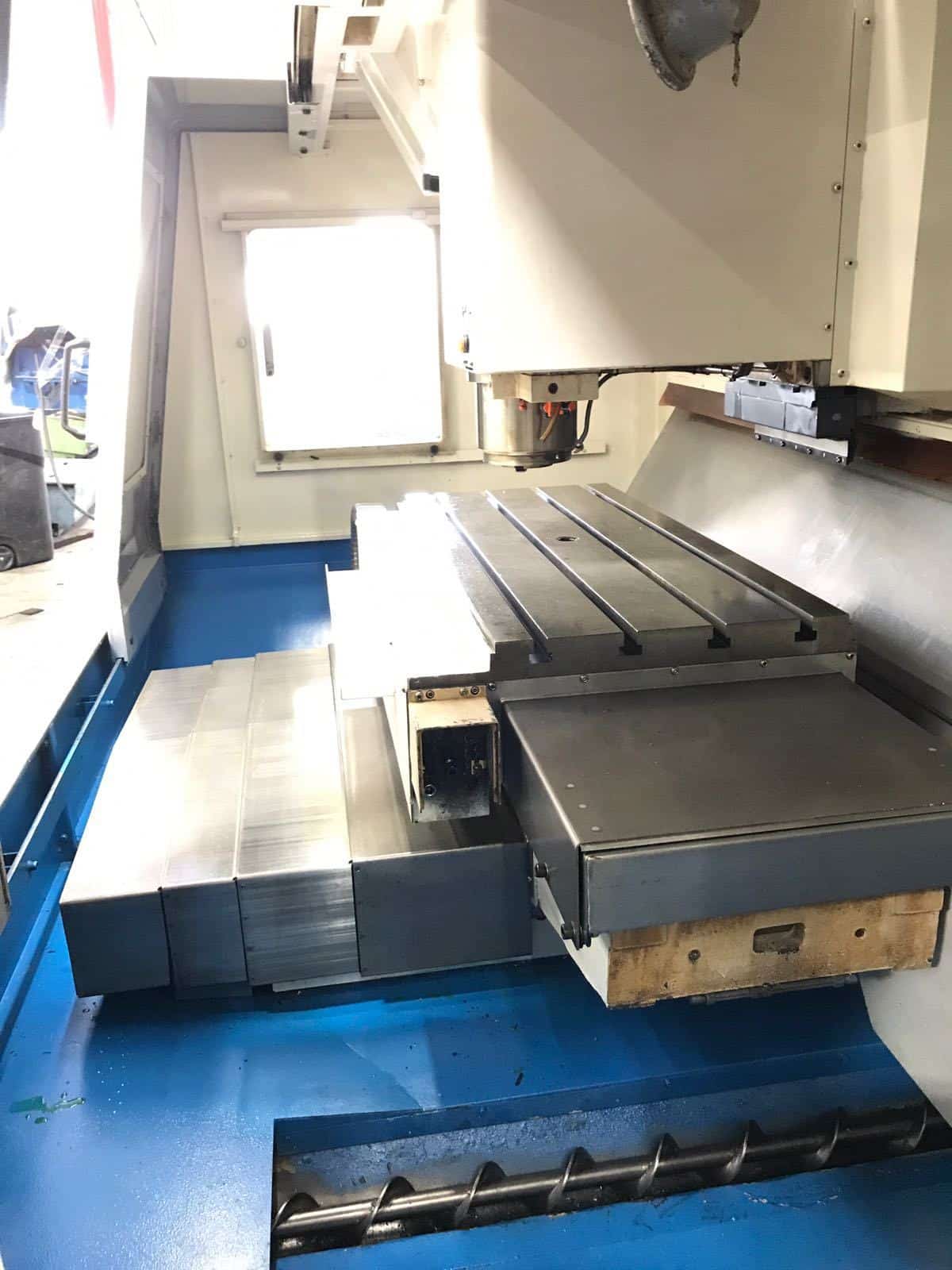

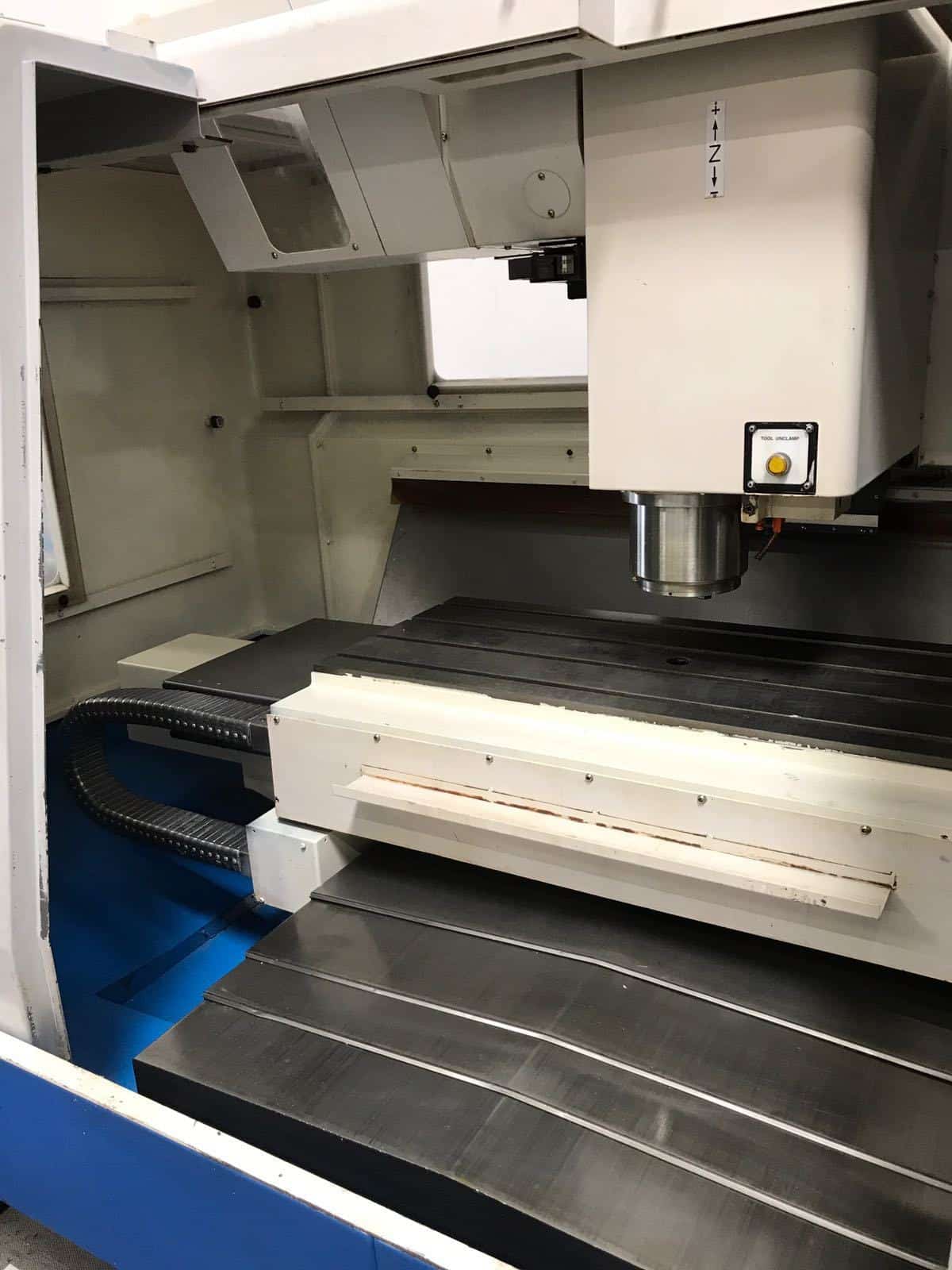

DAEWOO ACE DMV-500 Comes as shown in pictures.
