Daewoo Doosan 250LMB CNC Turn Mill Center

Out of stock

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

SKU:	1627
Make/Model:	DAEWOO Puma 250LMB
Video:	[fusion_button link=”https://www.youtube.com/watch?v=CbbQ1u22iE0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

Tags: Daewoo

SKU: 1627

DAEWOO DOOSAN 250LMB CNC TURN MILL CENTER
Make	DAEWOO
Model No.	Puma 250LMB
Year	1998, Installed: 2000
Serial #	25LM0102
Condition	Very Good

All specifications are approximations and are subject to verification.

Daewoo Doosan 250LMB CNC Turn Mill Center Equipped With:

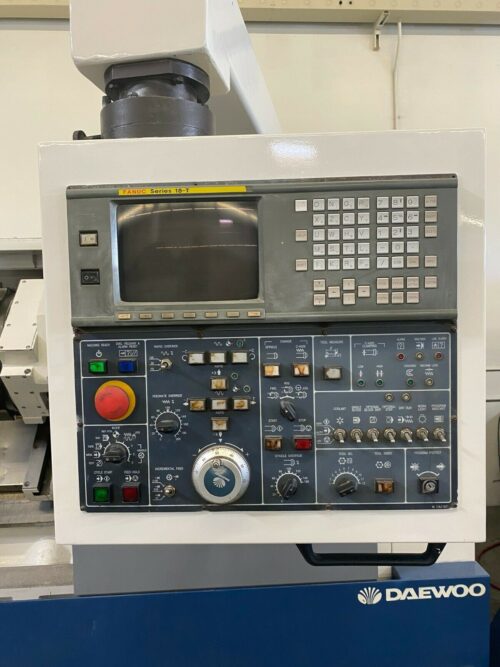

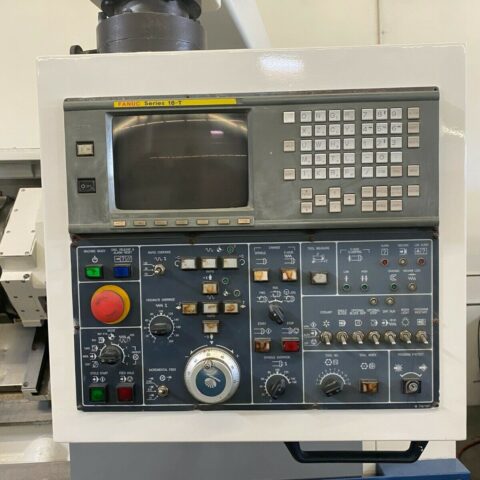

Fanuc 18T CNC Control
Long Bed Box way construction
C Axis Capable

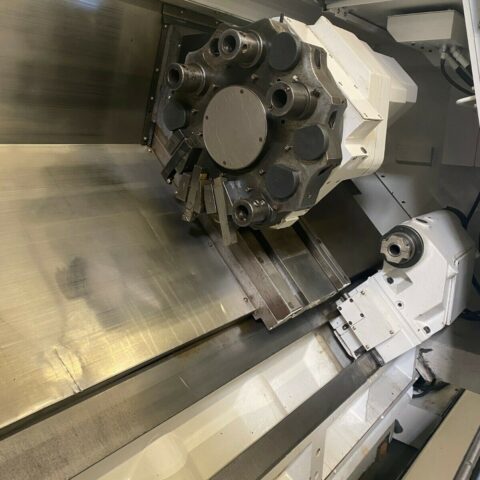

12 Station Live Tool Turret

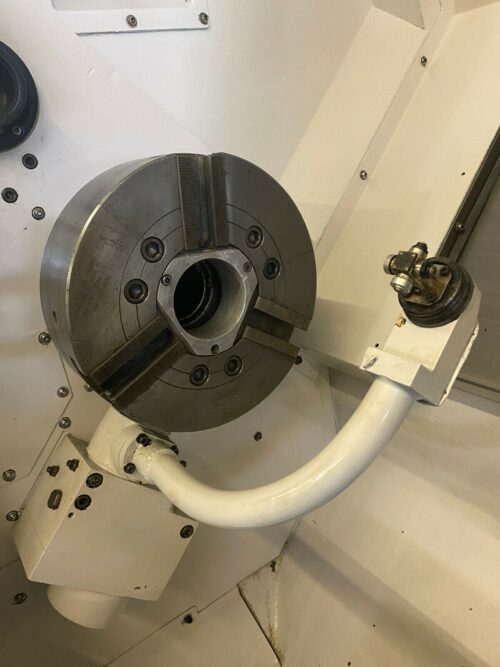

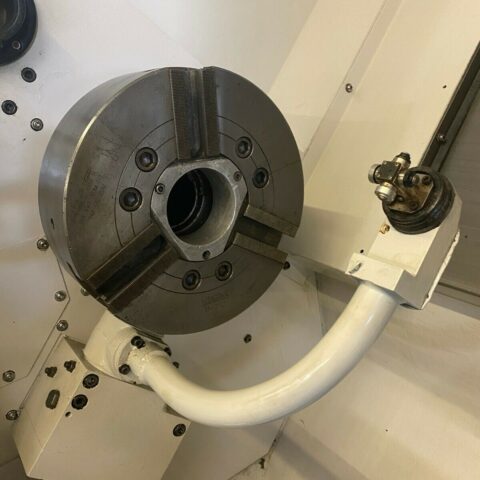

12″ Kitagawa Hydraulic Chuck
A2-8 Gear Head Spindle
Tool Presetter
Hydraulic Tailstock and Quill
RS-232
Coolant System
Barfeed Interface
Foot Switch
Turbo Chip Conveyor

Daewoo Doosan 250LMB CNC Turn Mill Center Specifications:
Capacity:
Max Turning Diameter: 13.97″
Max Turning Length: 51.18″
Max Bar Capacity: 3.03″
Swing Over Bed: 22.44″
Swing Over Carriage: 15.4″
Distance Between Centers: 53.8″

Travel:
X Axis Travel: 11.10″
Z Axis Travel: 52.36″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.54″
Spindle Speed: 35 – 3500 RPM
Spindle Motor: 25 HP

Turret:
Turret Capacity: 12 Stations Live
Turret Index Time: 0.2 Second

TailStock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.07″
Tailstock Quill Travel: 3.7″

General:
Power: 35 kva, 220v / 3-Phase
Overall Dimensions: 130″ x 77″ x 80″ High
Overall Dimensions: 148″ x 77″ x 80″ High with Chip Conveyor
Weight: 12600 lbs

“No Charges for loading at list Price”

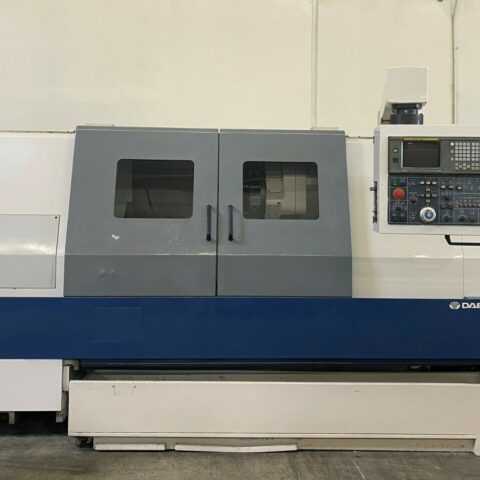

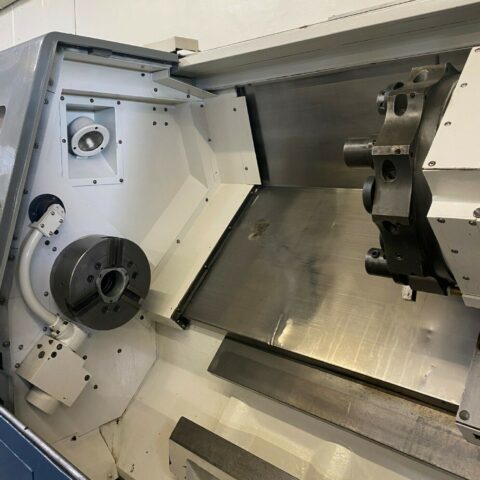

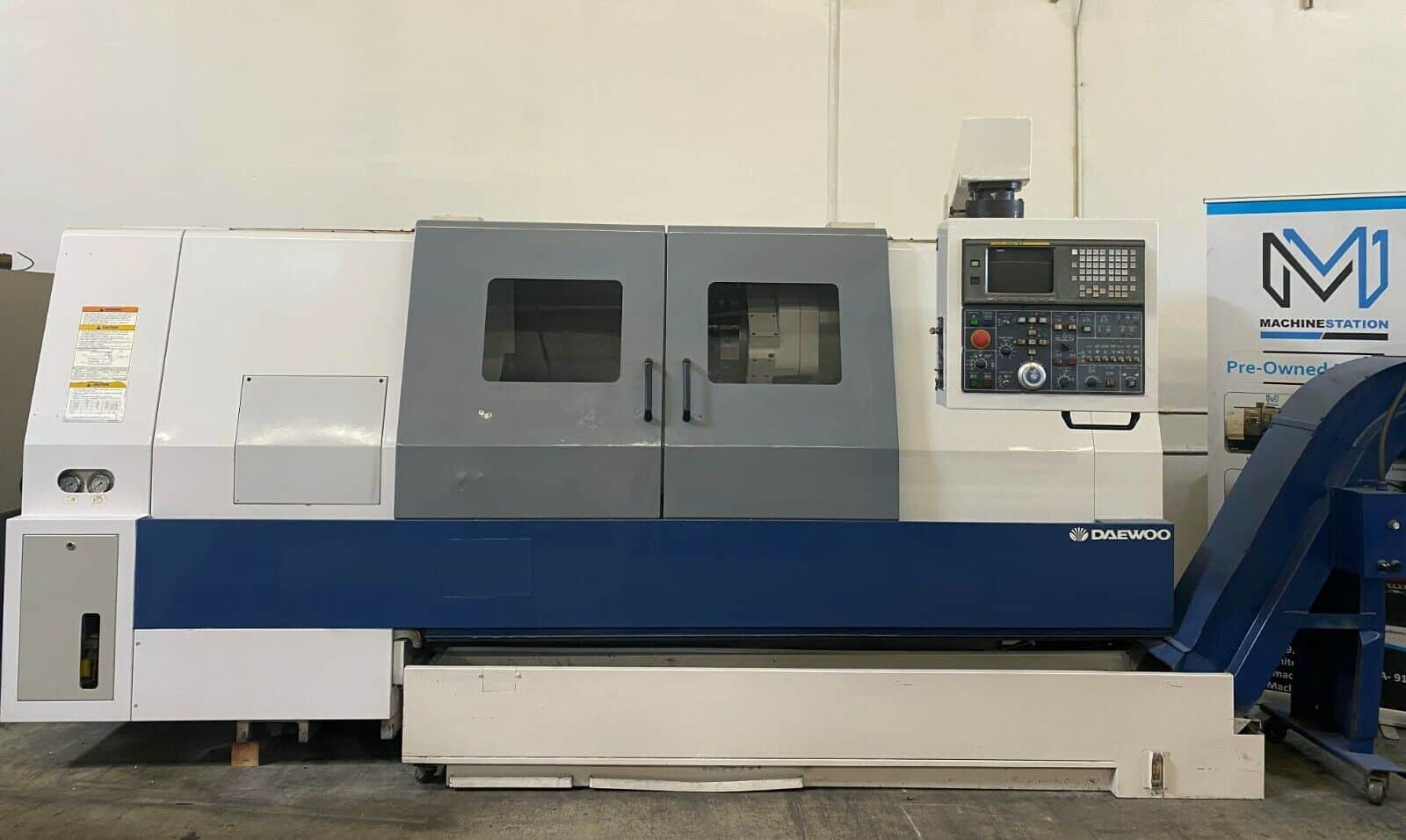

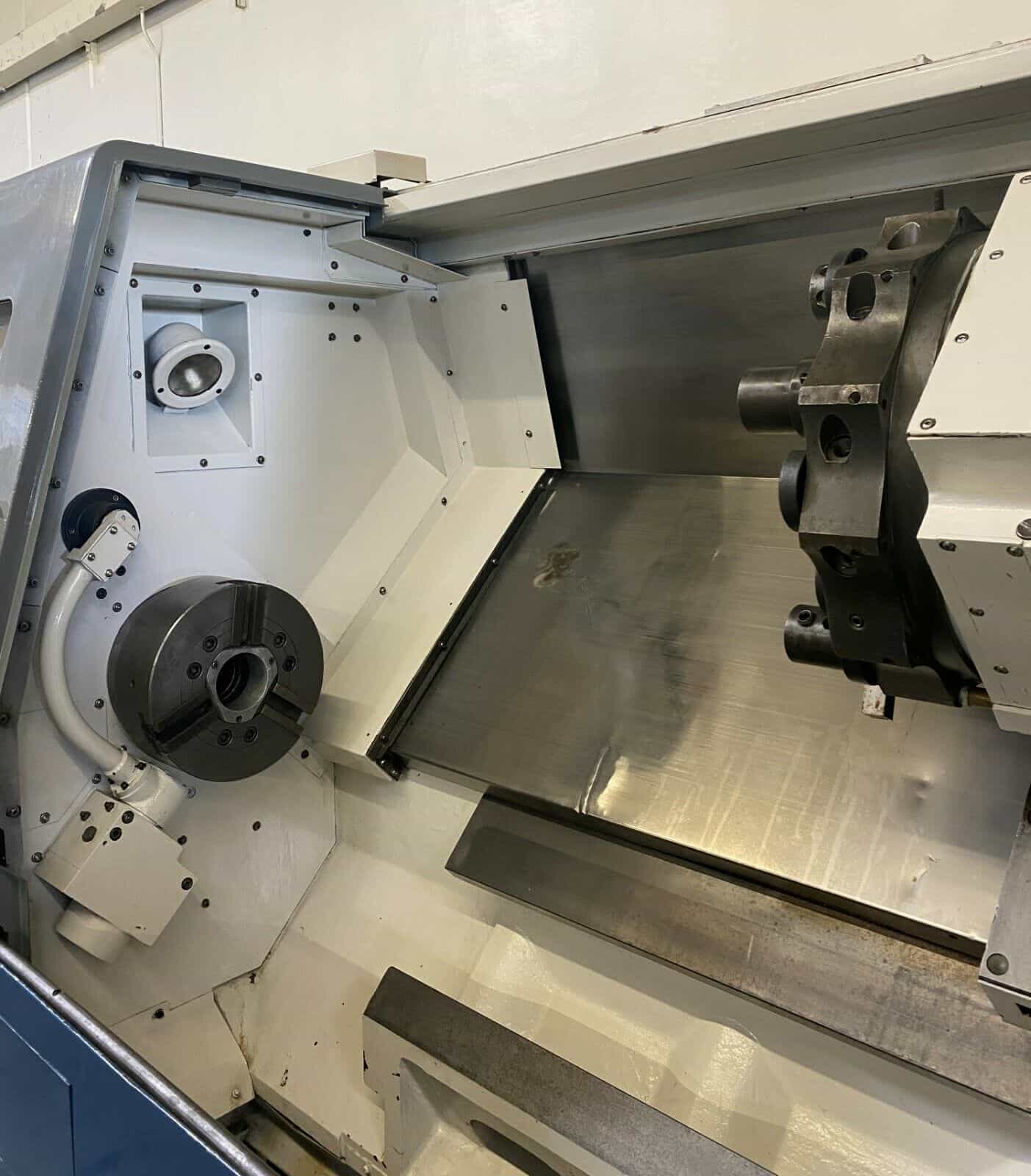

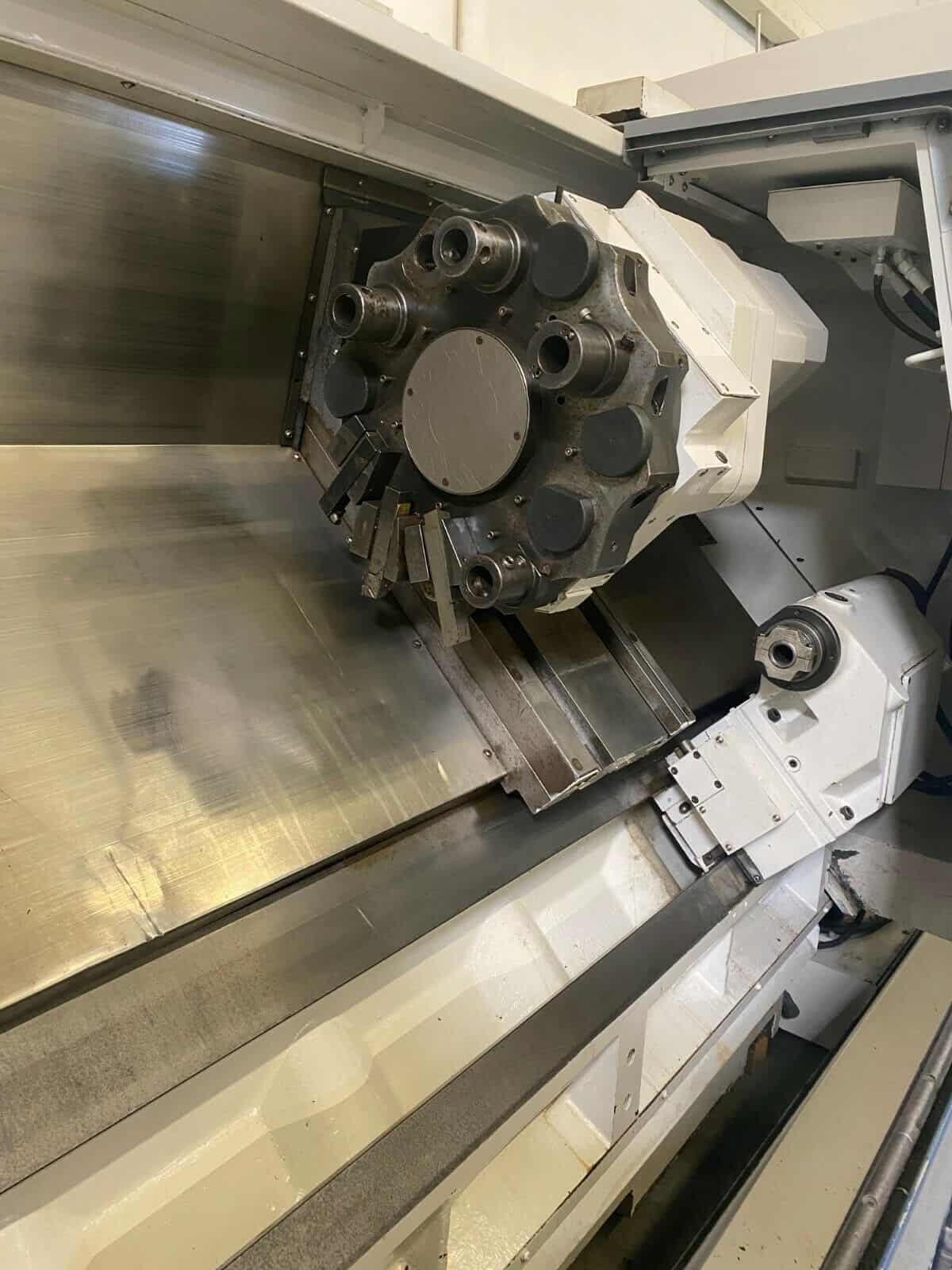

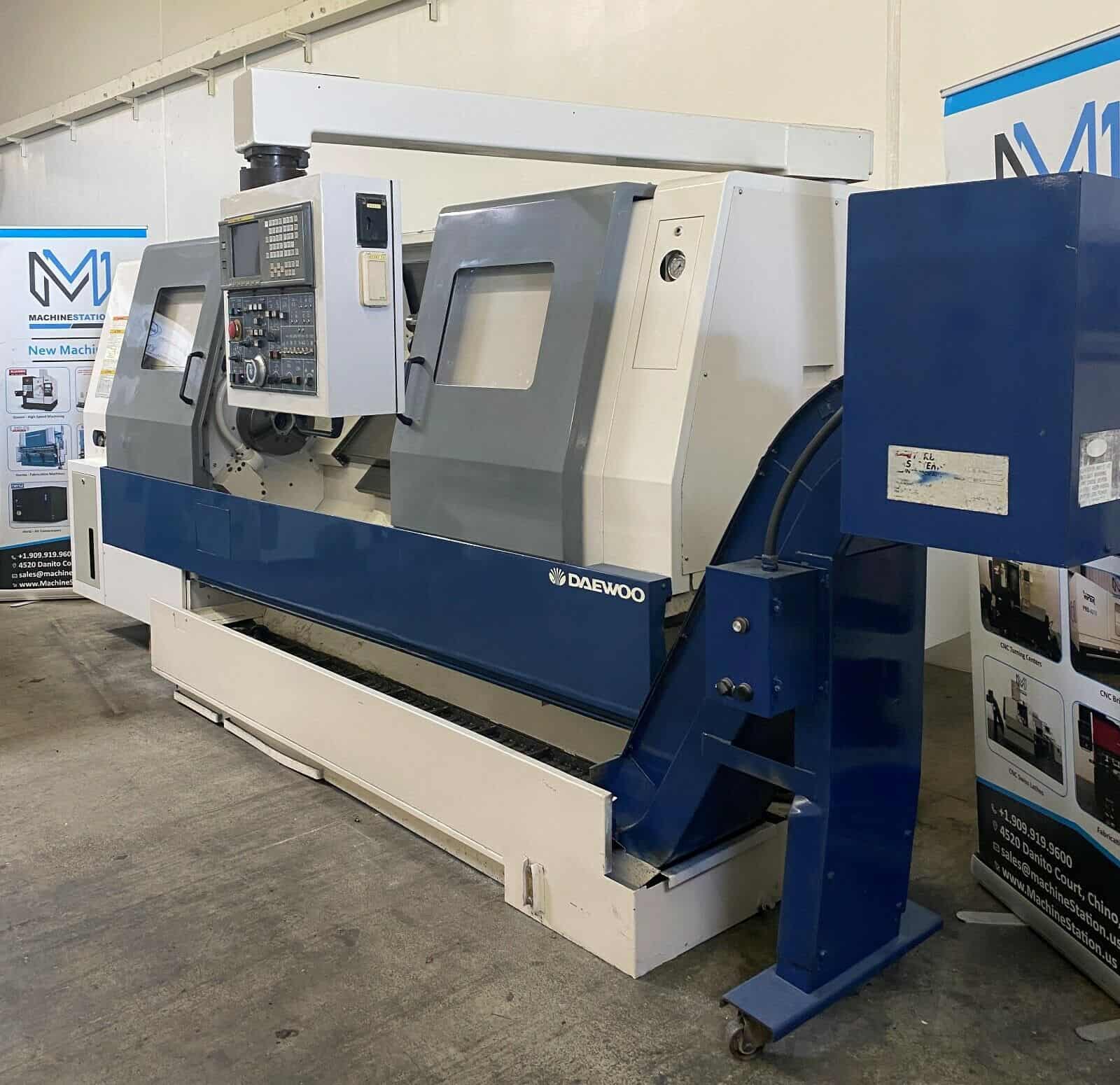

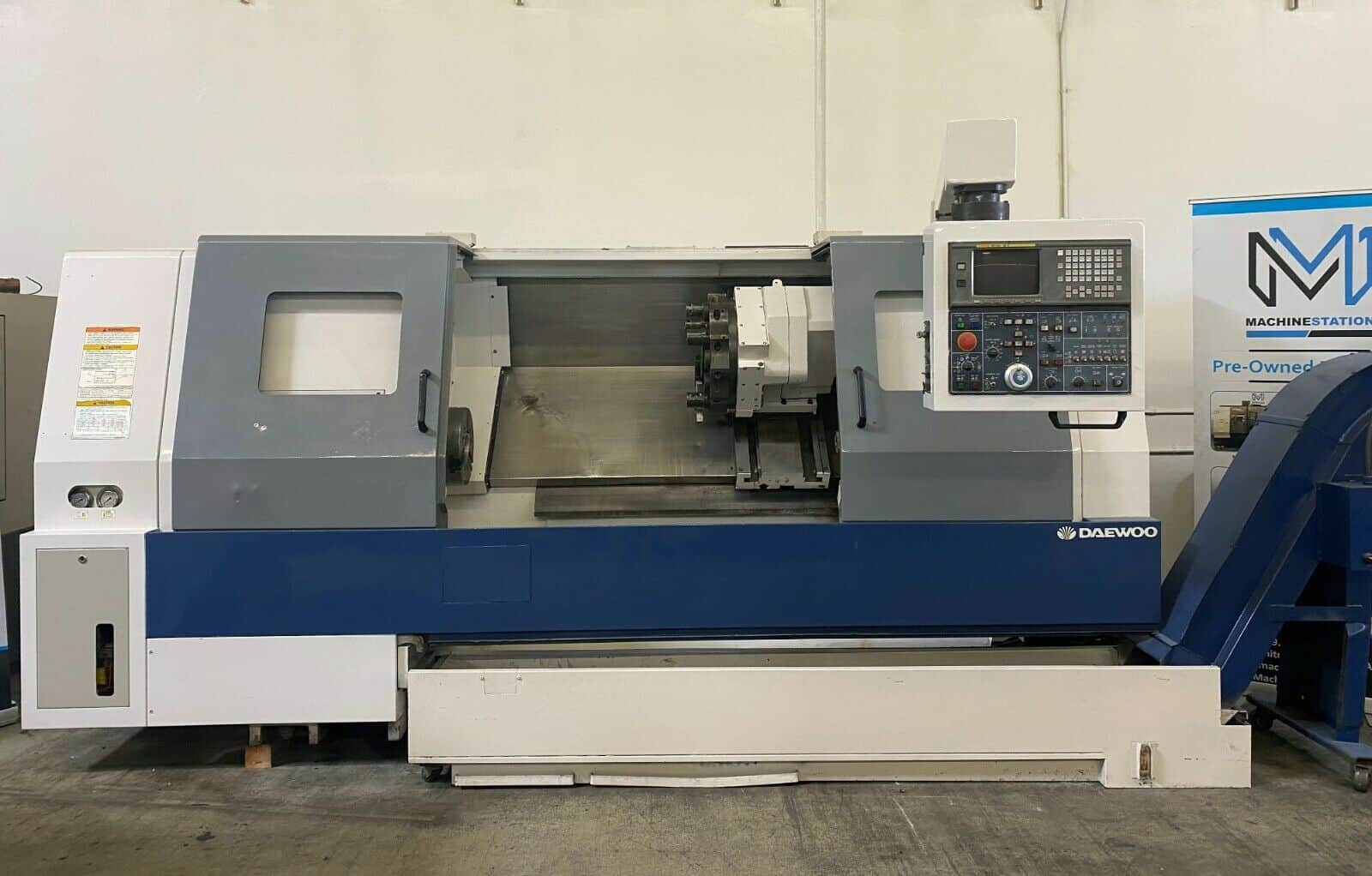

Daewoo Doosan 250LMB CNC Turn Mill Center Comes as shown in pictures…
