All specifications are approximations and are subject to verification.

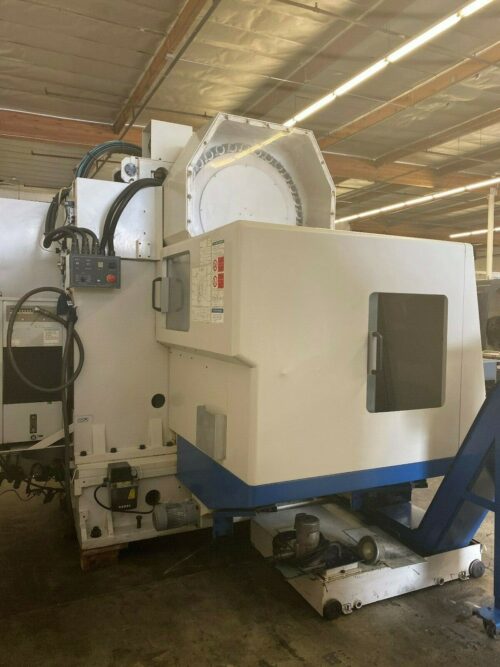

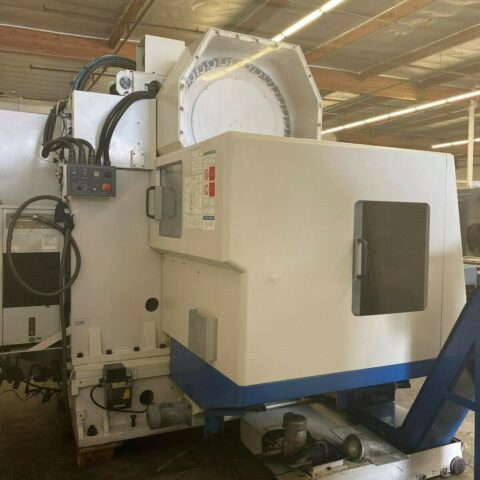

“10,000 RPM Machine on our Floor now, fully powered / tested & is in Great working condition.”

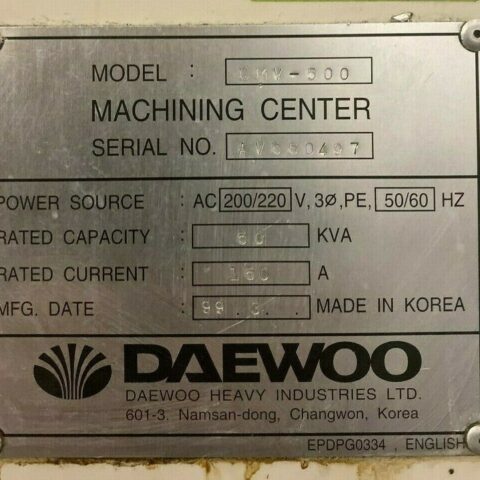

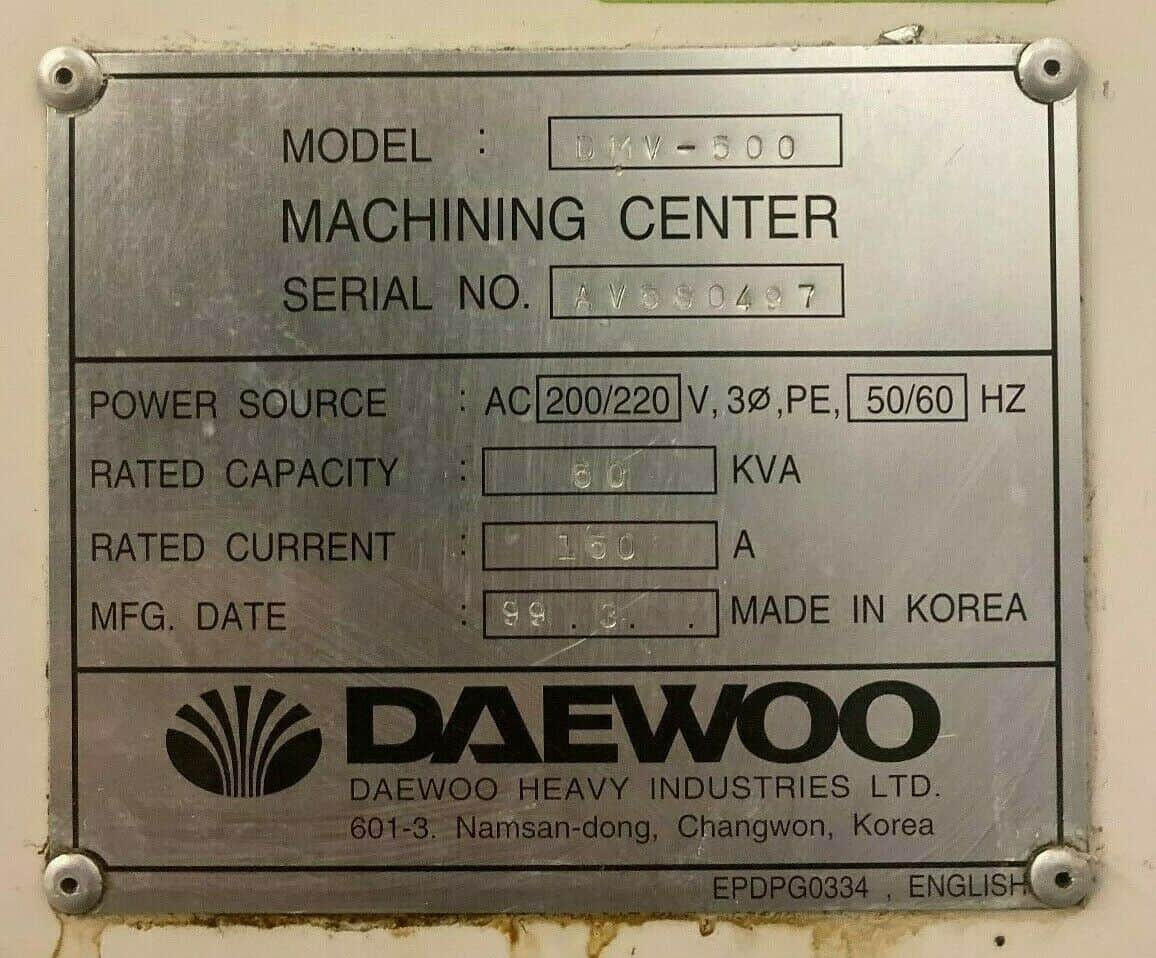

| Make | Daewoo |
| Model No. | DMV-500 |
| Year | 2000 |
| Serial # | AV5S0497 |
| Condition | Very Good |
-

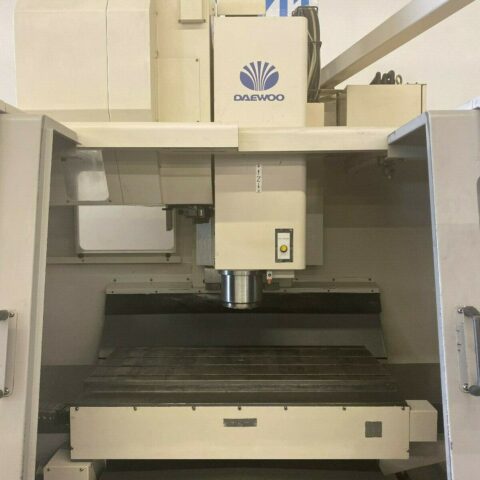

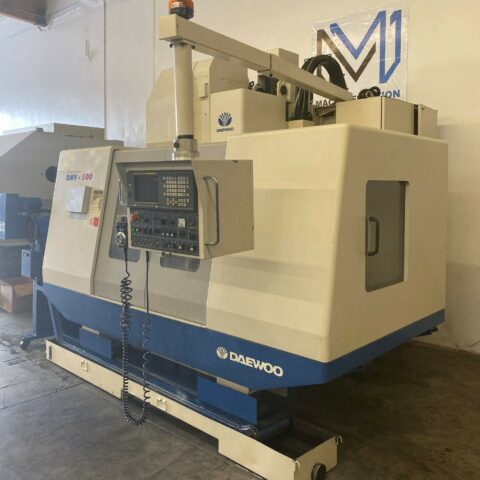

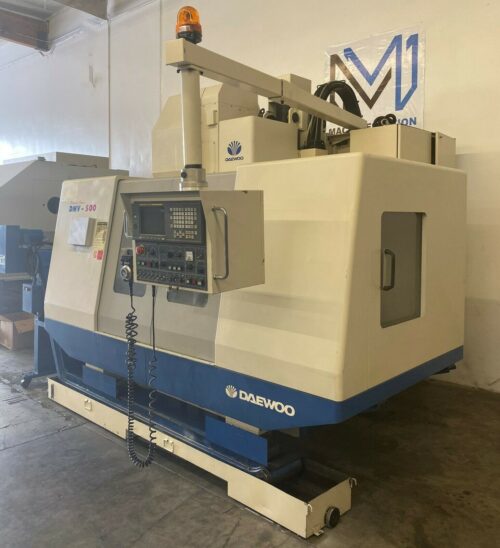

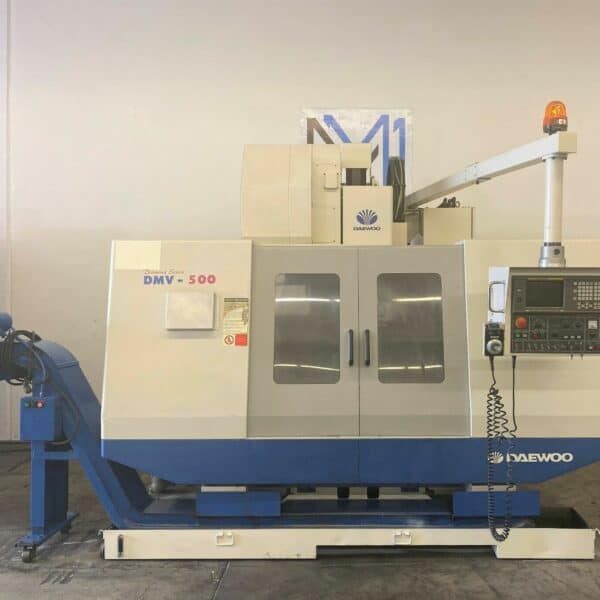

Daewoo Doosan DMV-500 Features:

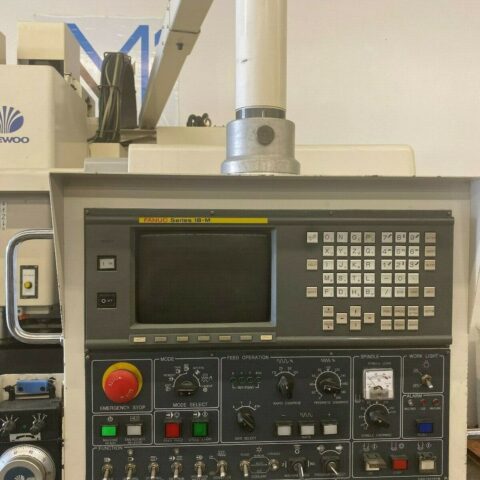

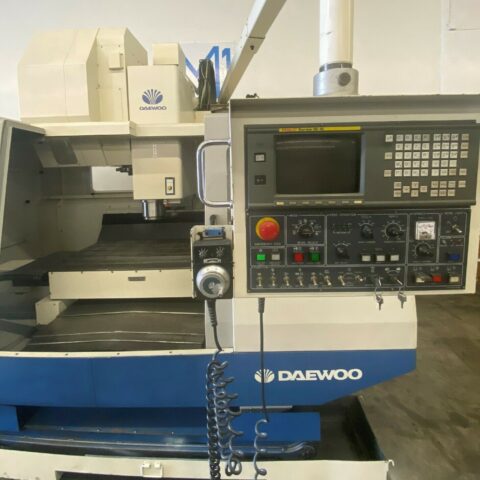

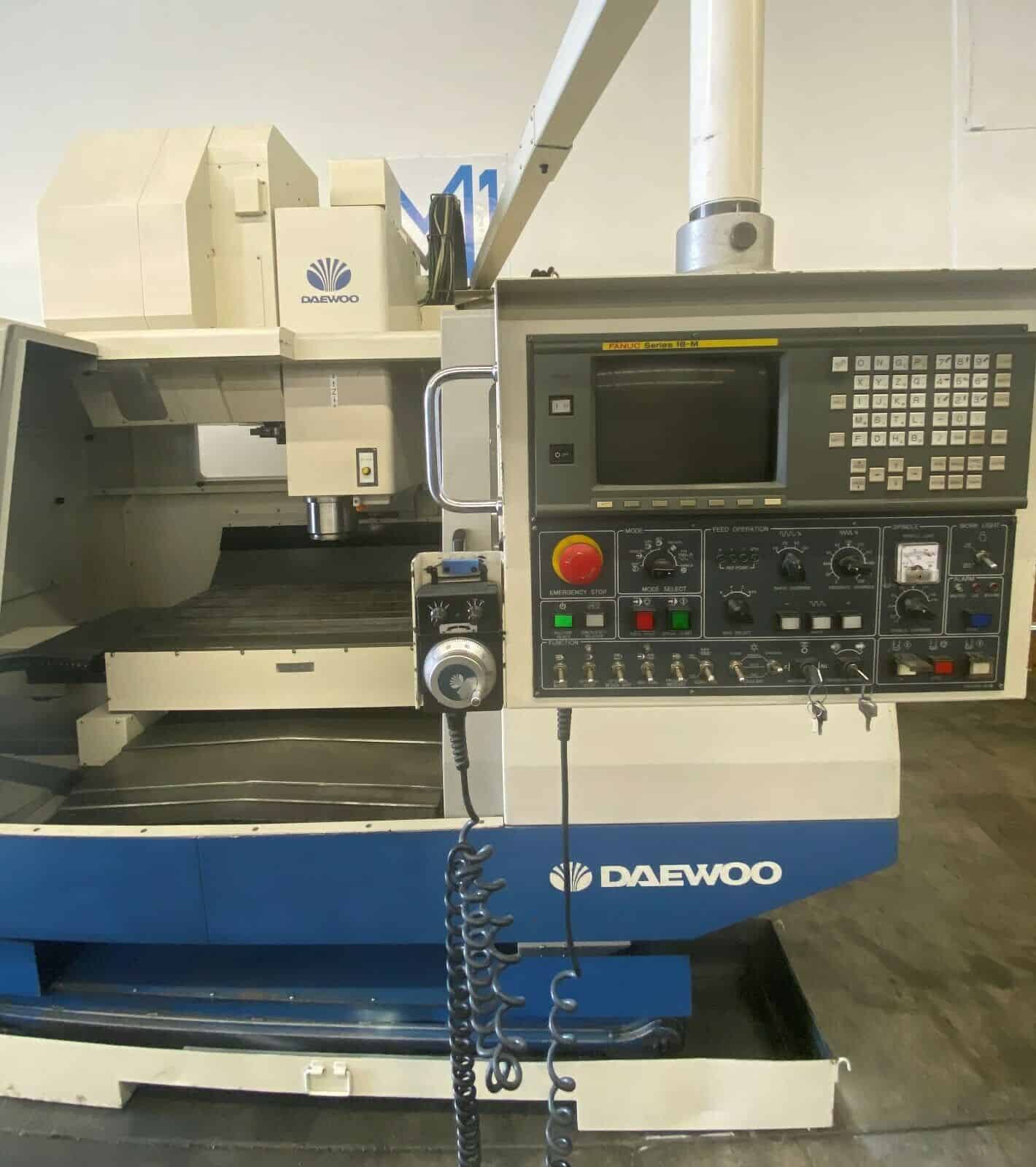

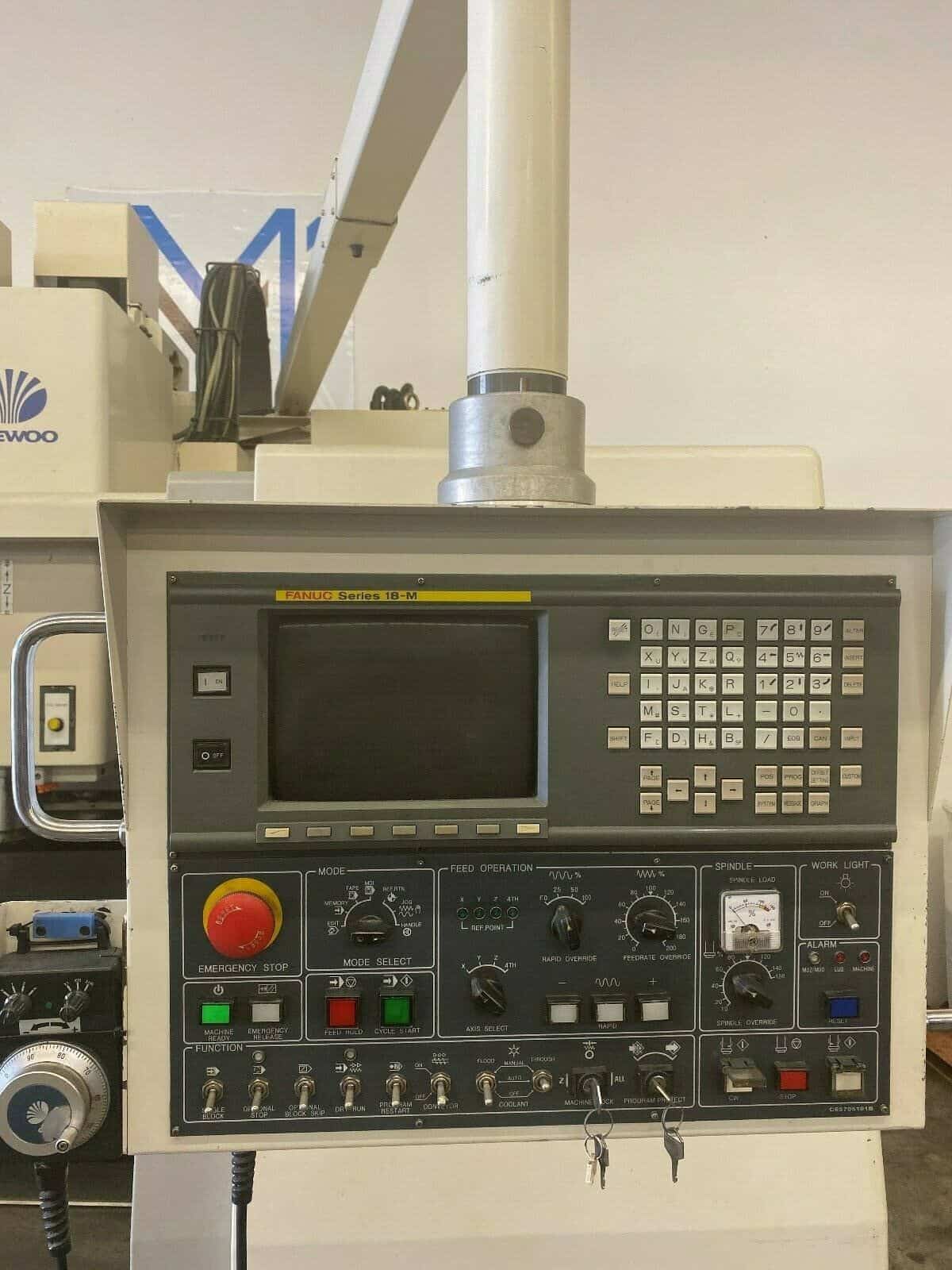

- Fanuc 18M CNC Control
- 10,000 RPM Precision Spindle
- 4th Axis Wired
- Box Way Construction on All Axis
- Rigid Tapping
- Spindle Orientation

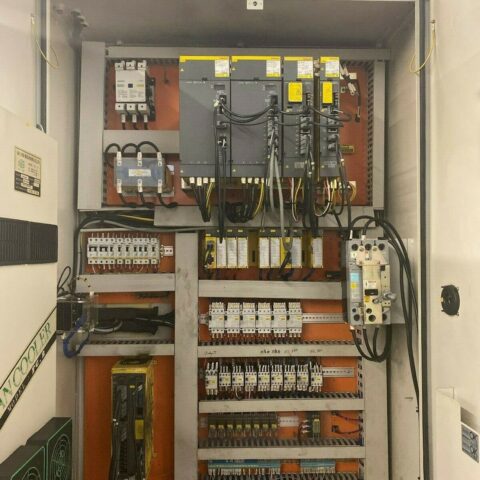

- Brushless servo drive motors on all axis
- 30 Automatic high speed tool changer
- Programmable coolant
- Telescopic way covers
- Spindle Chiller Unit
- Flood Coolant system

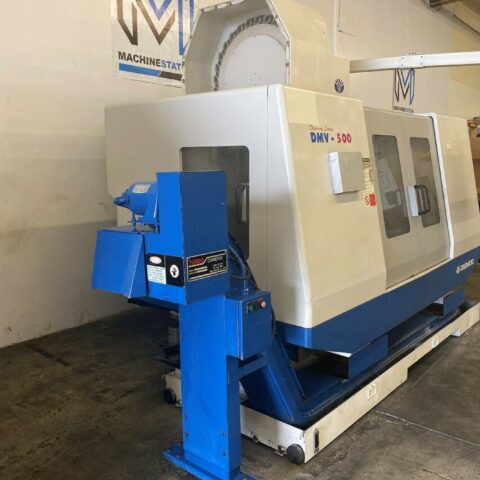

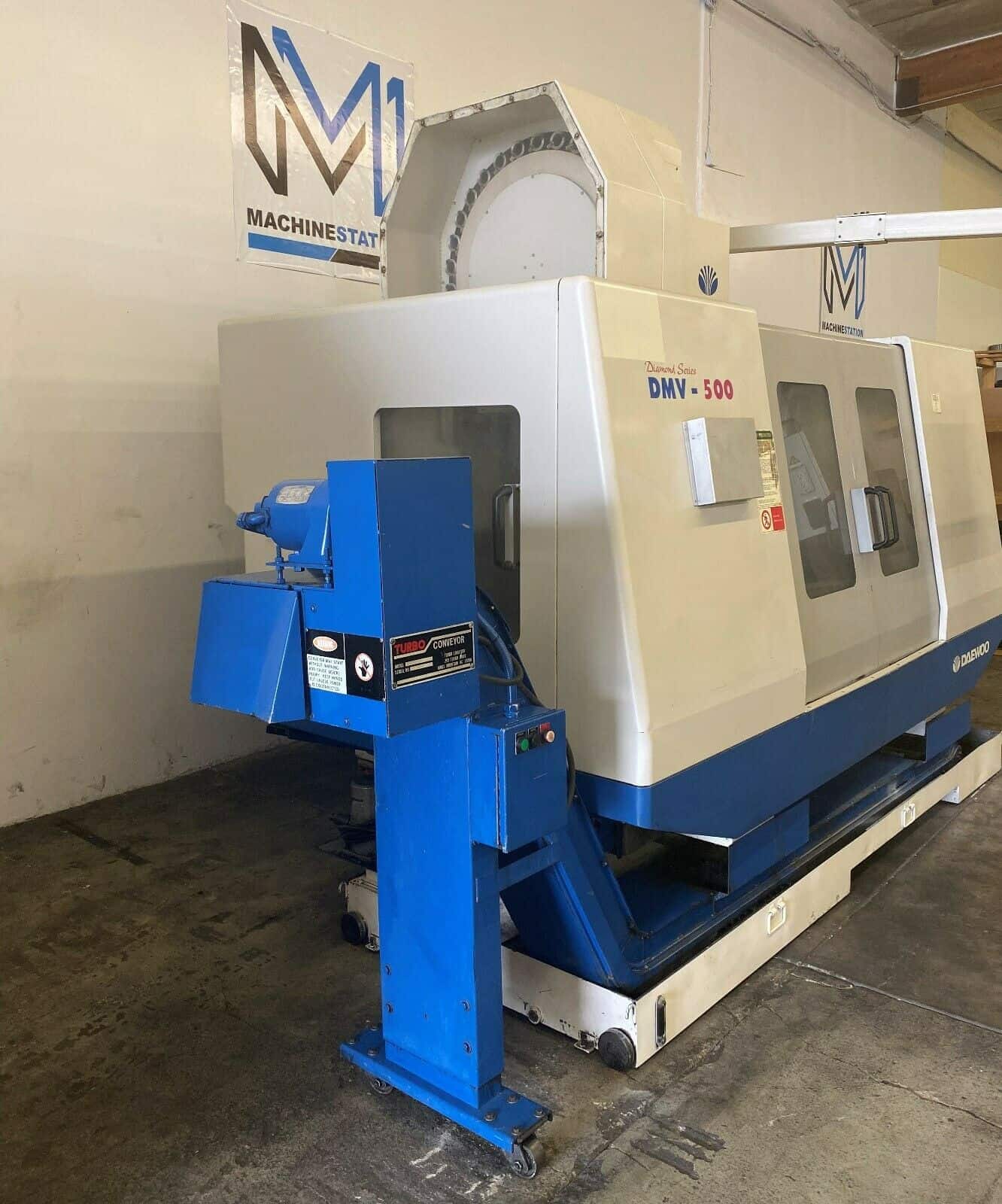

- Chip Conveyor
- Levelling Pads
- Manuals & Books
-
Daewoo Doosan DMV-500 Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 20.0″
- Z-Axis: 20.2″
- Rapid Traverse Rates: 1181″ Per Minute
- Feed Rates: 593″ Per Minute
- Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″
-

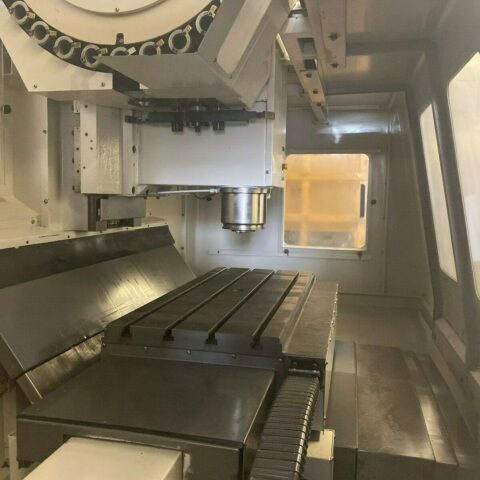

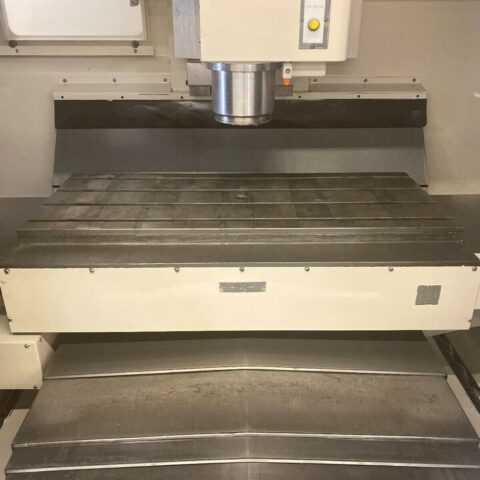

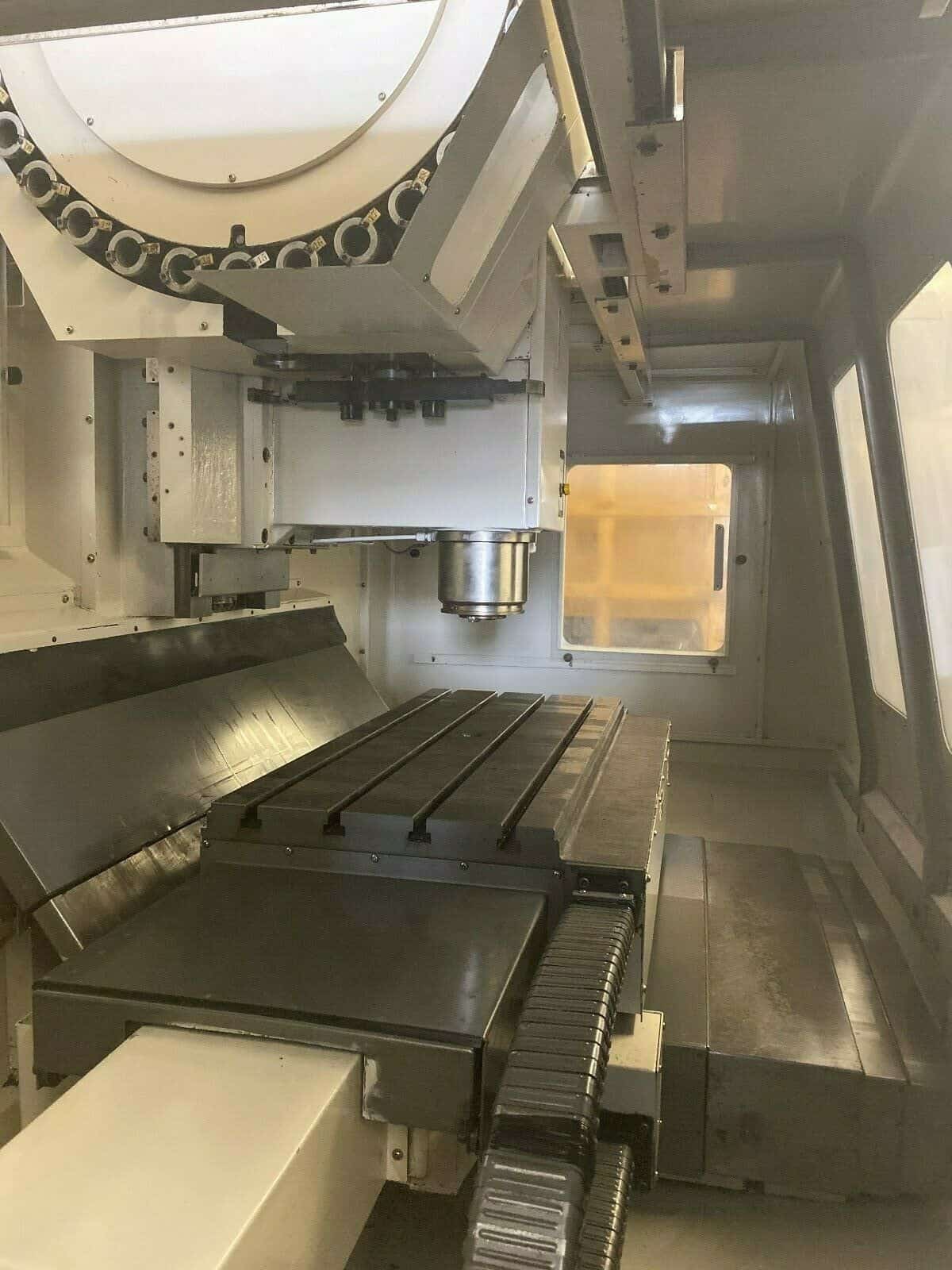

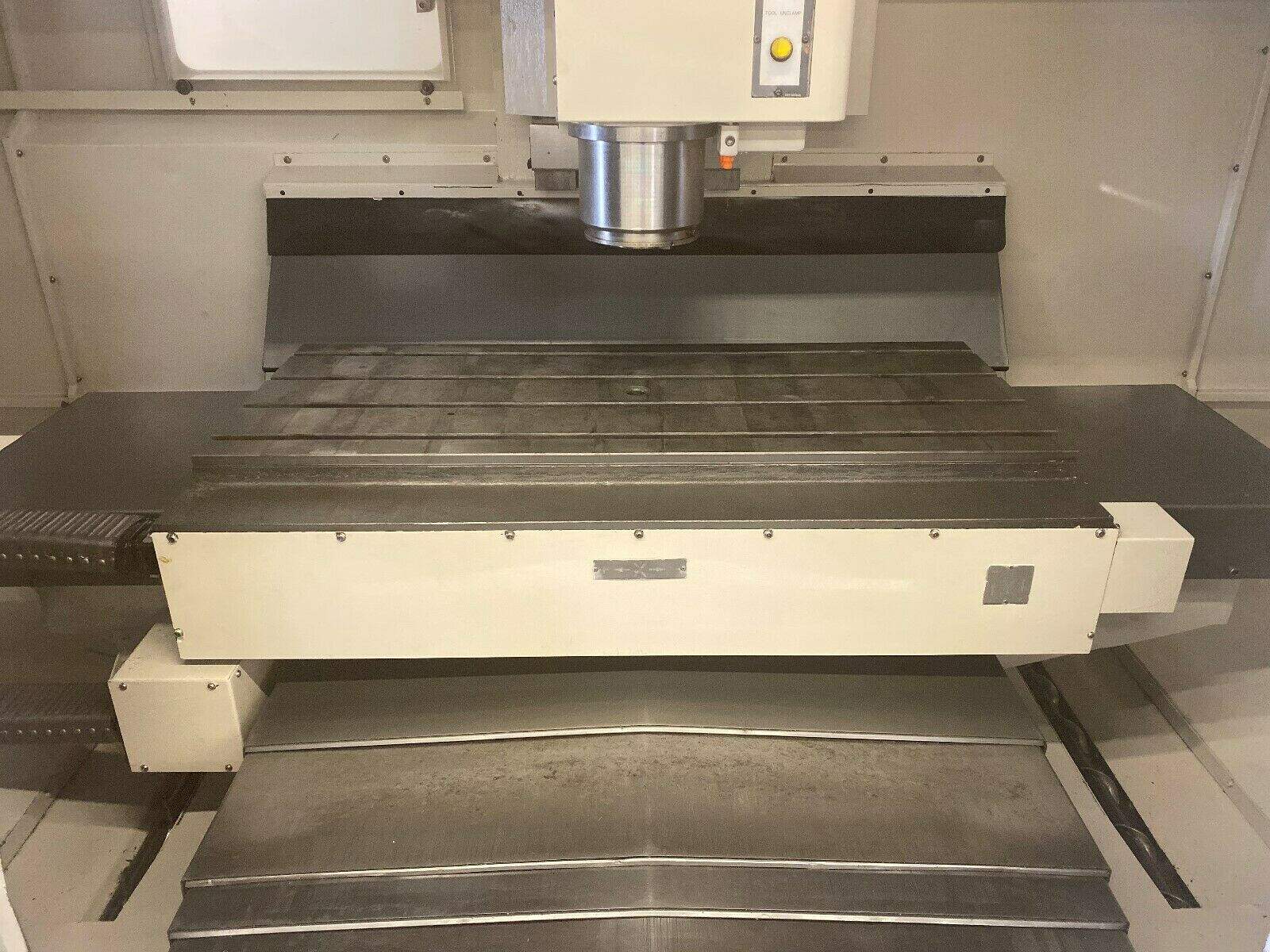

Table:
- Length: 47.2″
- Width: 19.7″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs
-

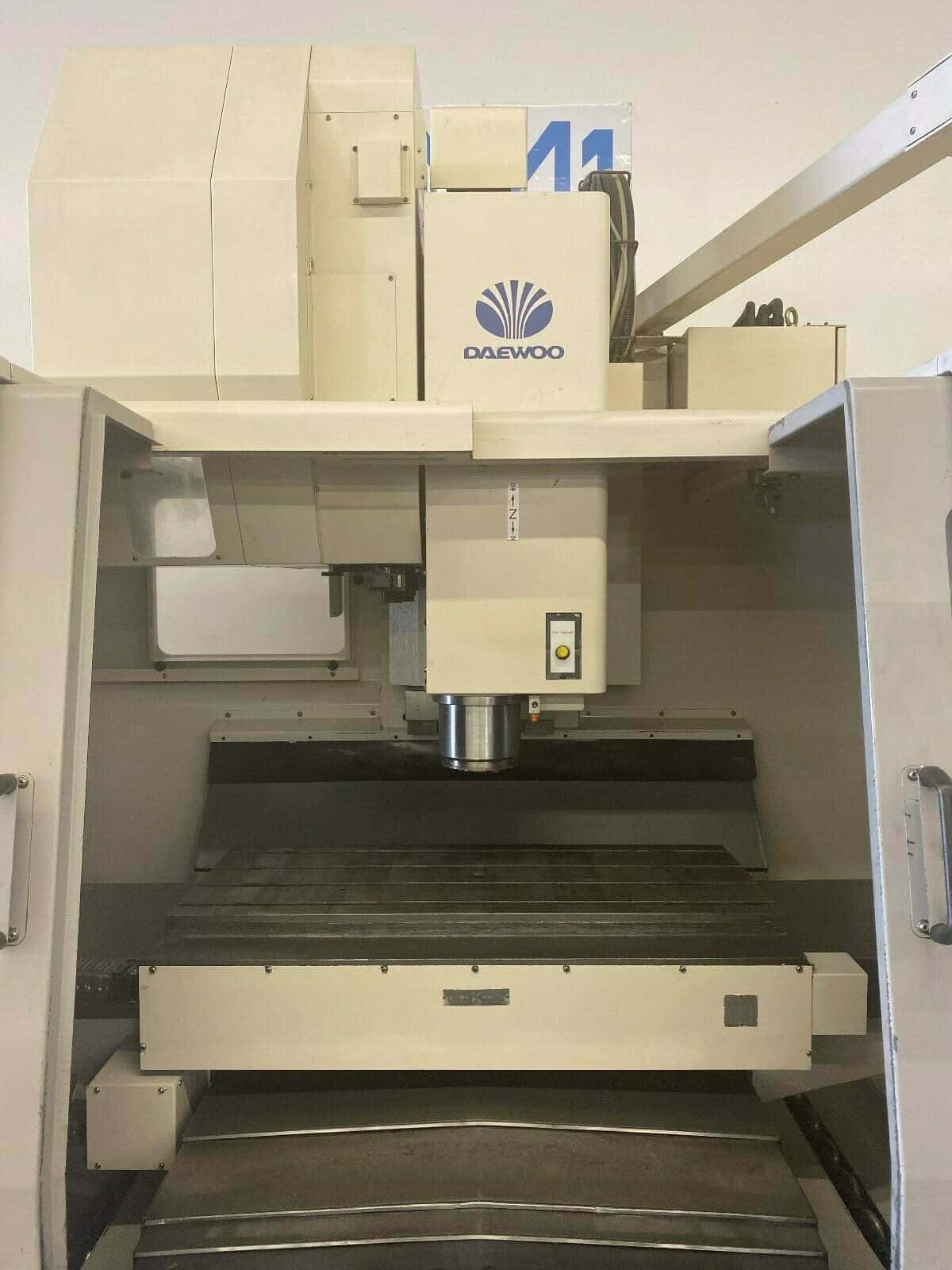

Spindle:
- Spindle: Taper Size: 40
- Speed Range: 0 – 10,000 RPM
- Spindle Type: Direct Drive
- Spindle Power: 20 HP
-
Automatic Tool Changer:
- Capacity: 30
- Tool Weight: 17.6 lbs
- Max Tool Dia: 5.9″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.5 Seconds
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 140″ x 100″ x 110″ High
- Overall Dimensions: 160″ x 100″ x 110″ High W/Chip Conveyor
- Weight: 16500 lbs
