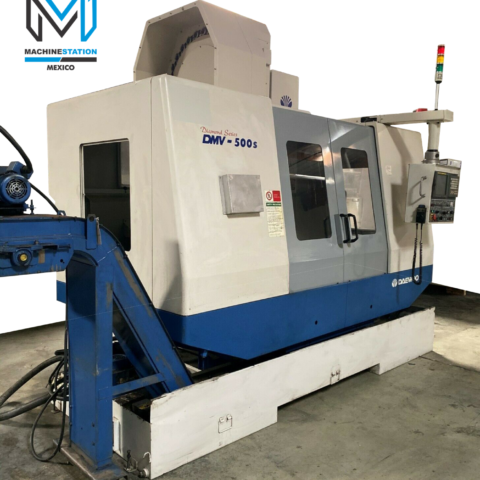

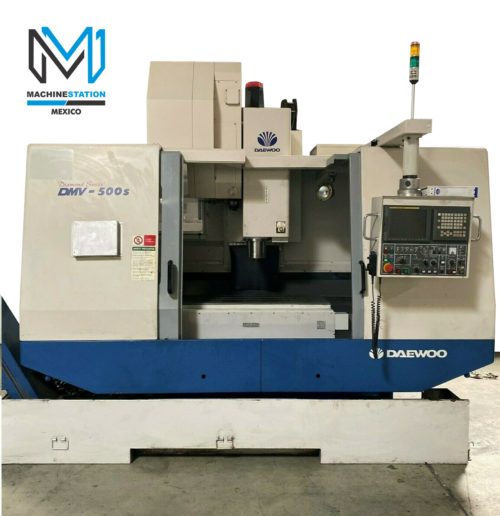

Daewoo Doosan DMV-500S Vertical Machining Center

Out of stock

SKU:	1840
Make/Model:	Daewoo DMV-500S
Video:	[fusion_button link=”https://www.youtube.com/watch?v=ZJ6La6Hizj0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

Tags: Daewoo

SKU: 1840

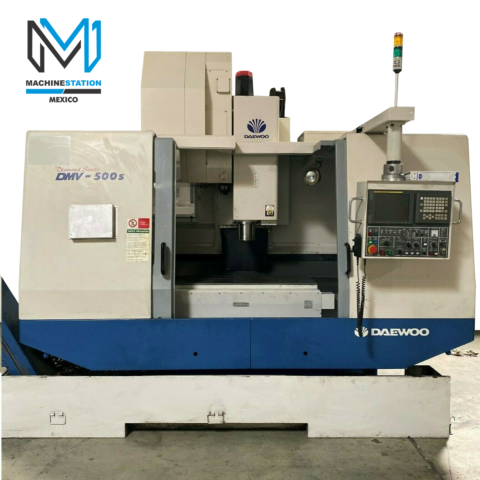

DAEWOO DOOSAN DMV-500S VERTICAL MACHINING CENTER
SKU	1840
Make	Daewoo
Model No.	DMV-500S
Year	2001

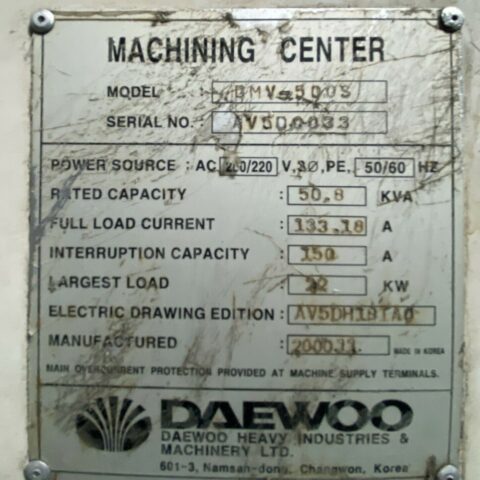

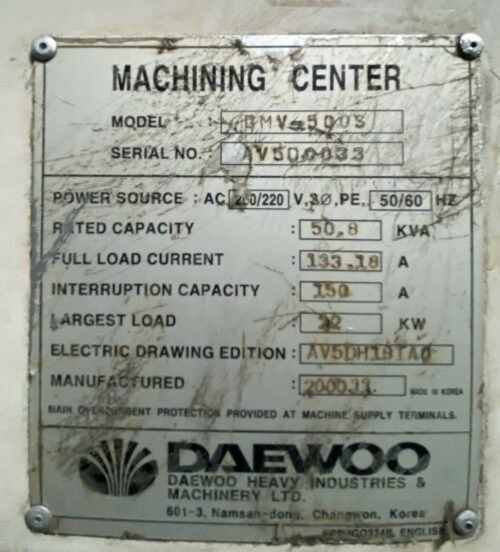

Serial #	AV5D0033
Condition	Very Good

All specifications are approximations and are subject to verification.

Daewoo Doosan DMV-500S Features:
Box Way Construction

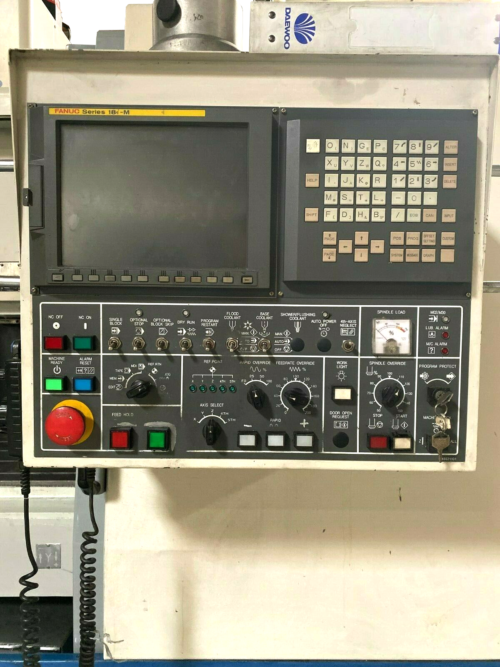

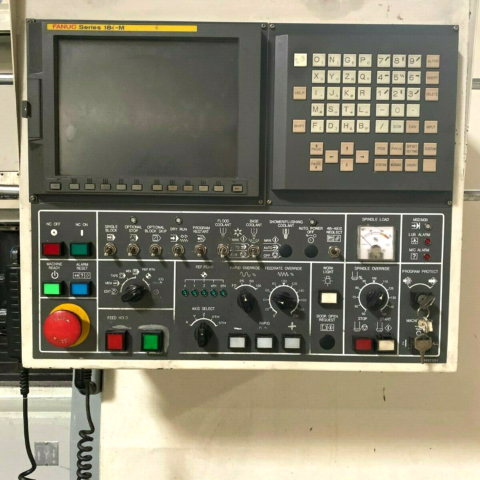

Fanuc 18iM CNC Control
10,000 RPM Precision Spindle
Through Spindle coolant
4th Axis Wired
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
Brushless servo drive motors on all axis
30 Automatic high speed tool changer
Telescopic way covers
Spindle Chiller Unit
Flood Coolant system

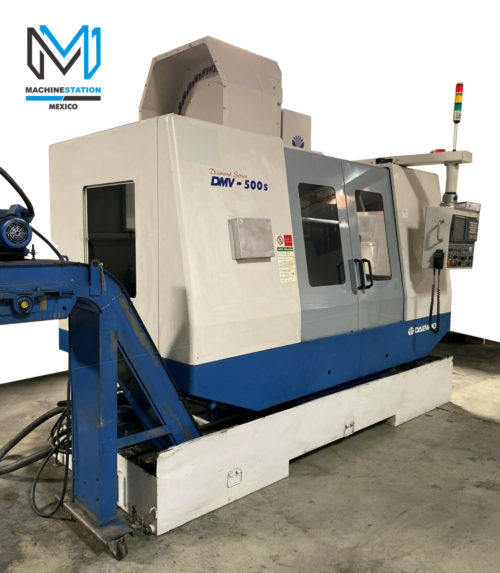

Chip Conveyor
Manuals & Books

Daewoo Doosan DMV-500S Specifications:
Travels:
X-Axis: 40.2″
Y-Axis: 20.0″
Z-Axis: 20.2″
Rapid Traverse Rates: 1181″ Per Minute
Feed Rates: 593″ Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

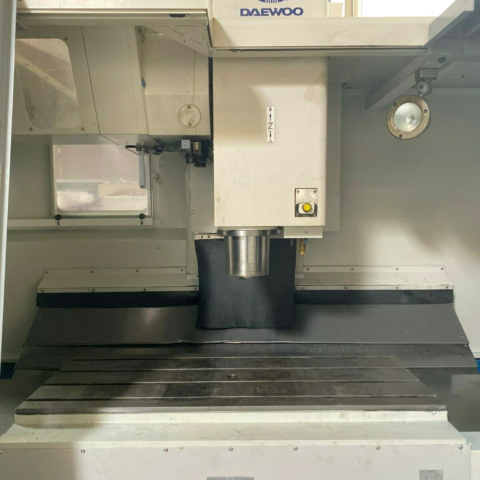

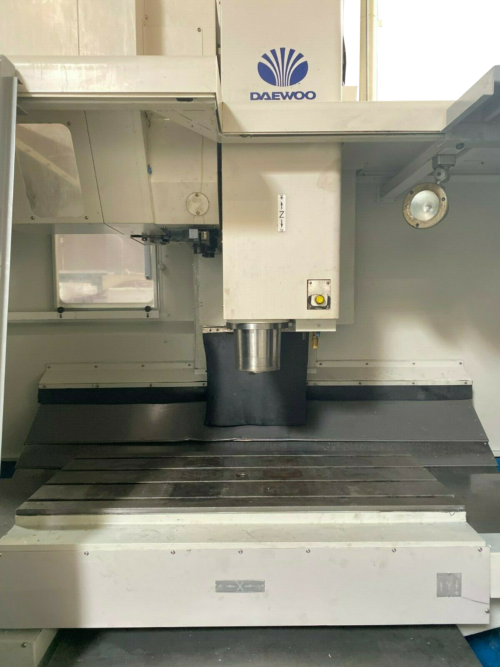

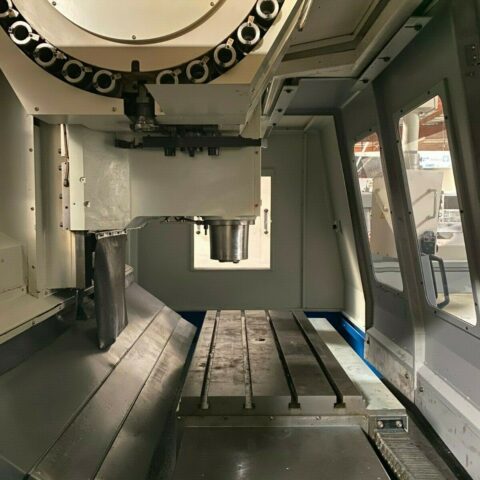

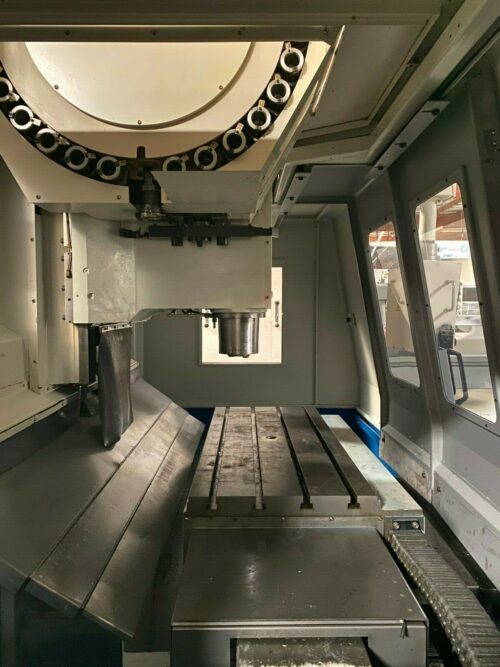

Table:
Length: 47.2″
Width: 19.7″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1800 lbs

Spindle:
Spindle: Taper Size: 40
Speed Range: 0 – 10,000 RPM
Spindle Type: Direct Drive
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 30
Tool Weight: 17.6 lbs
Max Tool Dia: 5.9″
Max Tool Length: 11.8″
Tool Changing Time: 1.5 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 140″ x 100″ x 110″ High
Overall Dimensions: 170″ x 100″ x 110″ High W/Chip Conveyor
Weight: 16500 lbs

Comes as shown in pictures….
