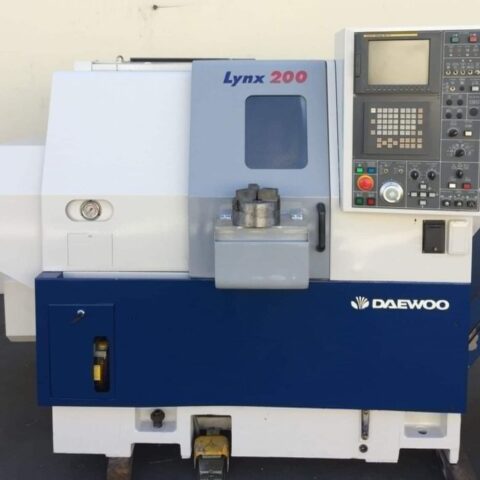

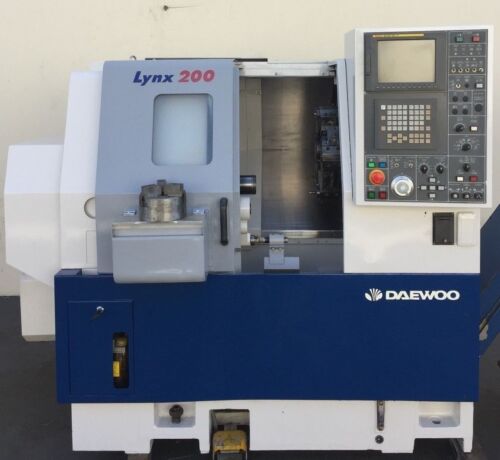

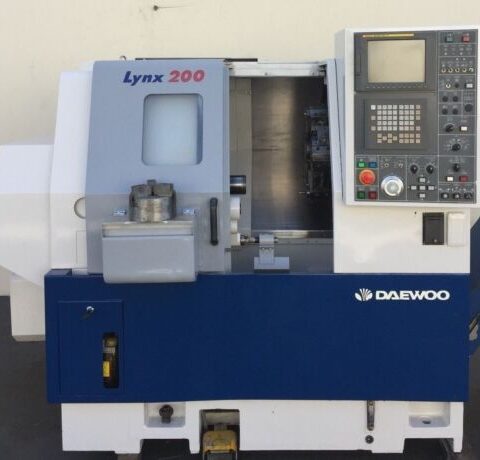

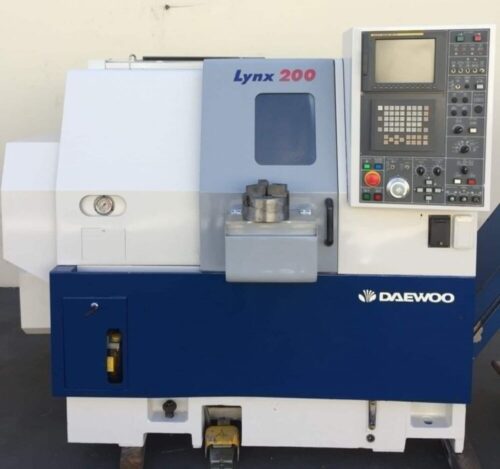

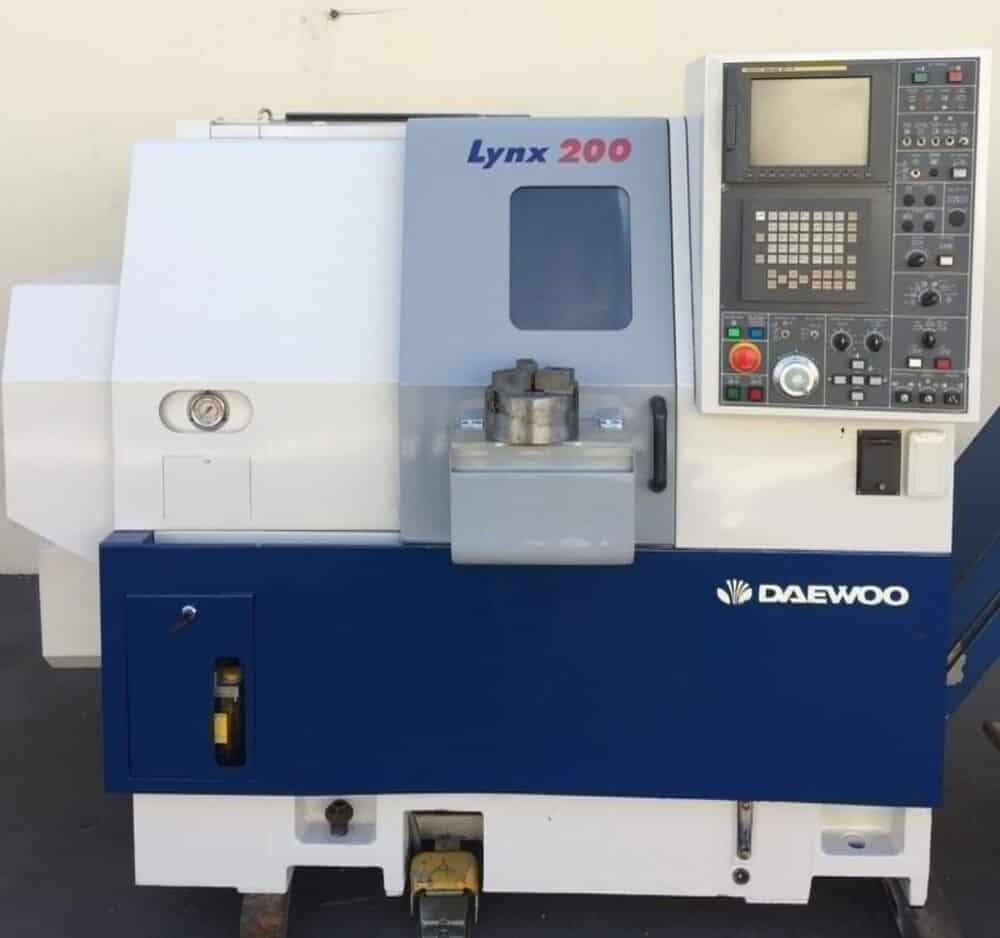

| DAEWOO LYNX 200 A CNC Turning | |
|---|---|
| Make | Daewoo |
| Model No. | 200 A |
| Year of Manufacture: | 2001.02 |
| Serial # | L2002009 |
| Condition | Very Good |
Comes with All Original Manuals, Tool Holders & Tooling.
All specifications are approximations and are subject to verification.
“This One Owner machine has 6″ Kitagawa Chuck, Tool Setter. On Our Floor fully powered / tested & is in Great working condition.”
- DAEWOO LYNX 200 A Equipped With:

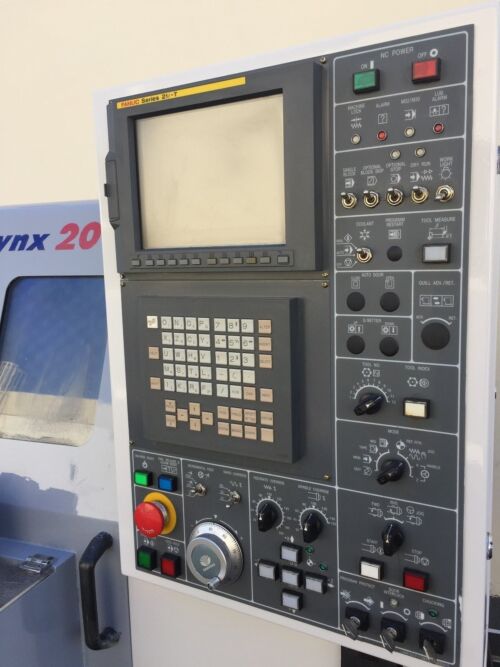

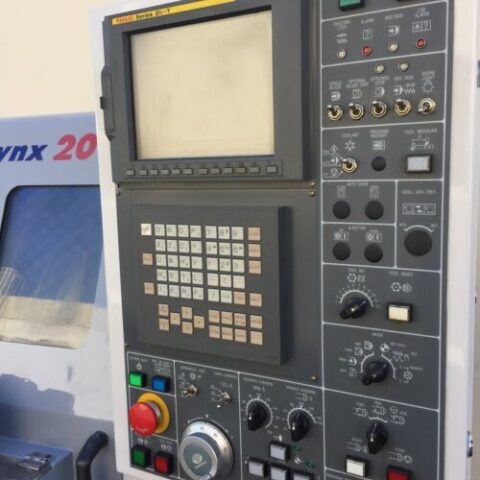

- Fanuc 21iT CNC Control

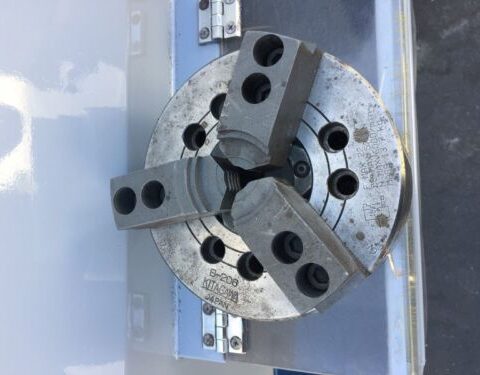

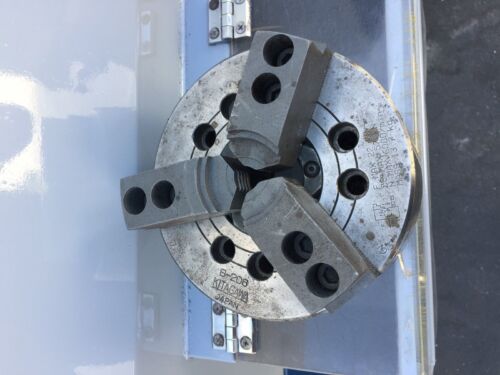

- Kitagawa 6″ B-206 Hydraulic Chuck
- ATS A5-3J Collet Nose

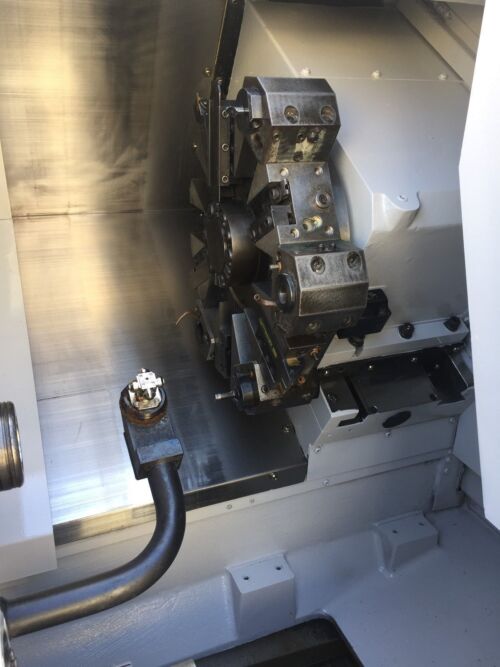

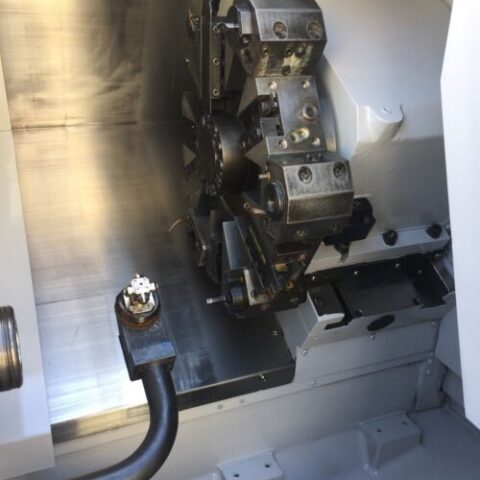

- Tool Pre-setter
- Coolant System
- Barfeed Interface
- Parts Catcher
- RS-232 ports

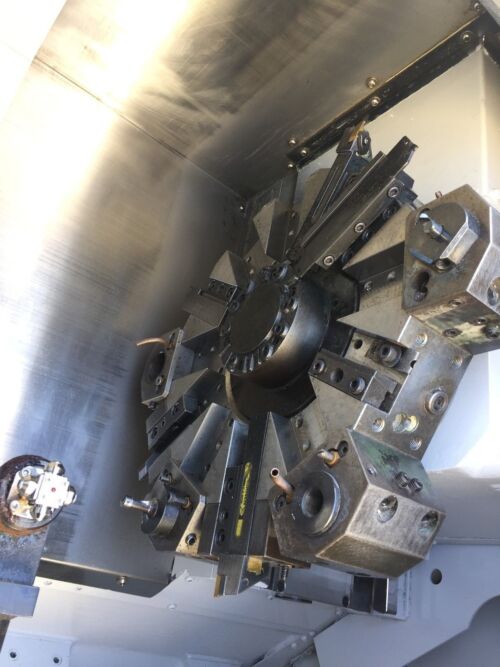

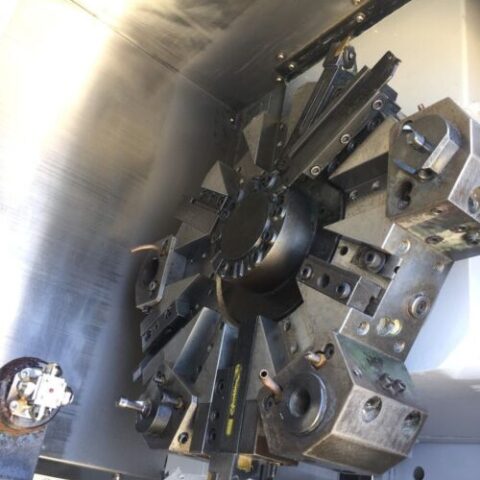

- 12 Station Automatic Turret
- Chip Conveyor

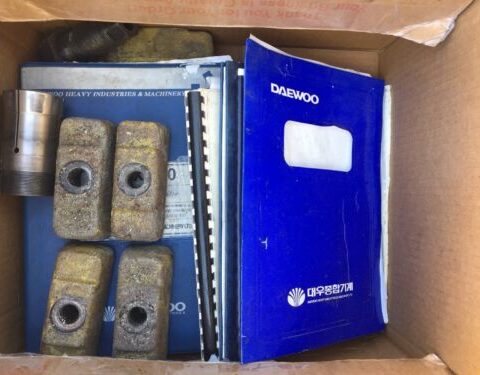

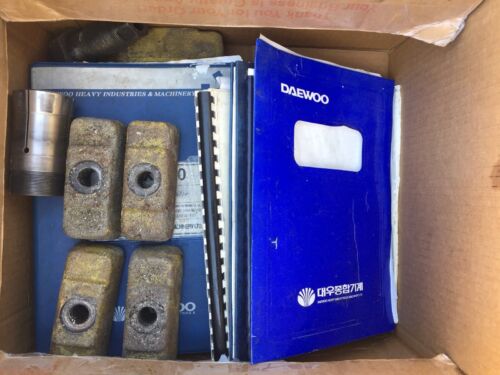

- Comes with All Available Manuals, Tool Holders & Tooling.
- General:
- Power: 25 kva, 220v / 3-Phase
- Overall Dimensions: 102″ x 63″ x 63″ High
- Overall Dimensions: 76″ x 63″ x 6″ High (w/o Chip Conveyor)
- Weight: 6500 lbs
- DAEWOO LYNX 200 A Specifications:
- Capacity:
- Max Turning Diameter: 11.02″
- Max Turning Length: 11.81″
- Max Bar Capacity: 1.75″
- Swing Over Cross Slide: 13.78″
- Swing Over Bed: 18.11″
- X Axis Travel: 6.3″
- Z AXis Travel: 13.0″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-5
- Spindle Bore: 2.09″
- Spindle Speed: 50 – 5,000 RPM
- Spindle Motor: 5.5/7.5 KW
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
DAEWOO LYNX 200 A Comes as shown in pictures.
