All specifications are approximations and are subject to verification.
“This One Owner machine has 8″ Kitagawa Chuck, Tool Setter and TailStock. On Our Floor fully powered / tested & is in Great working condition.”
-

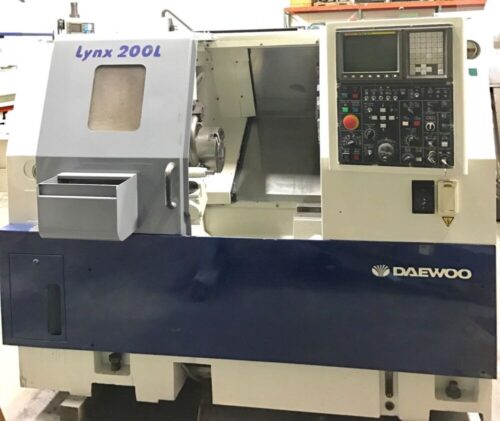

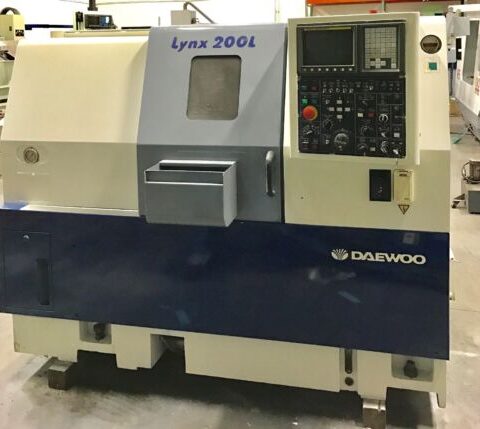

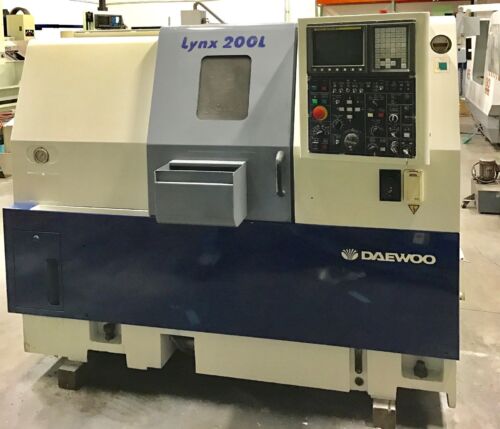

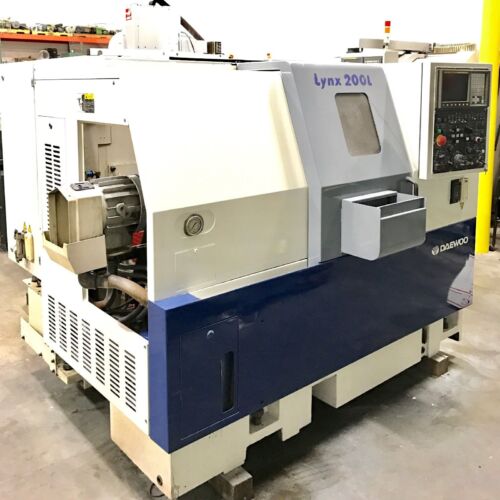

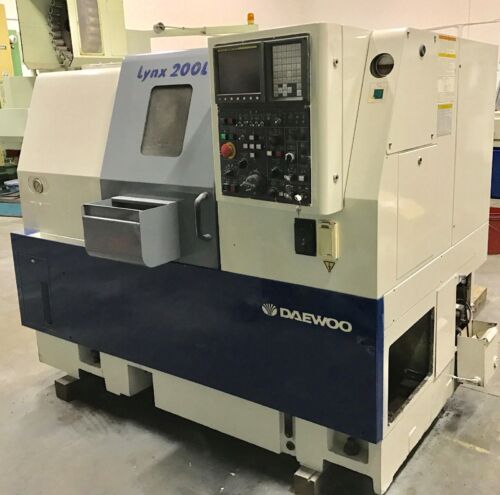

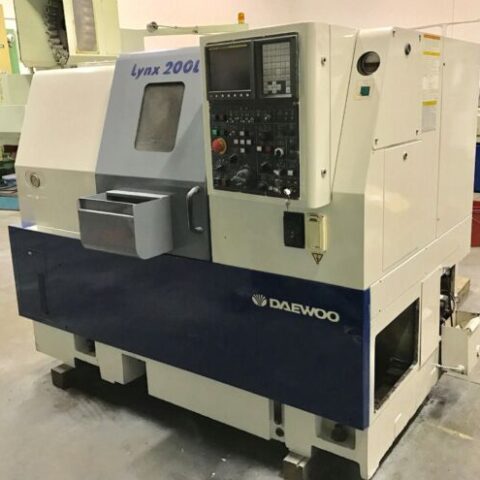

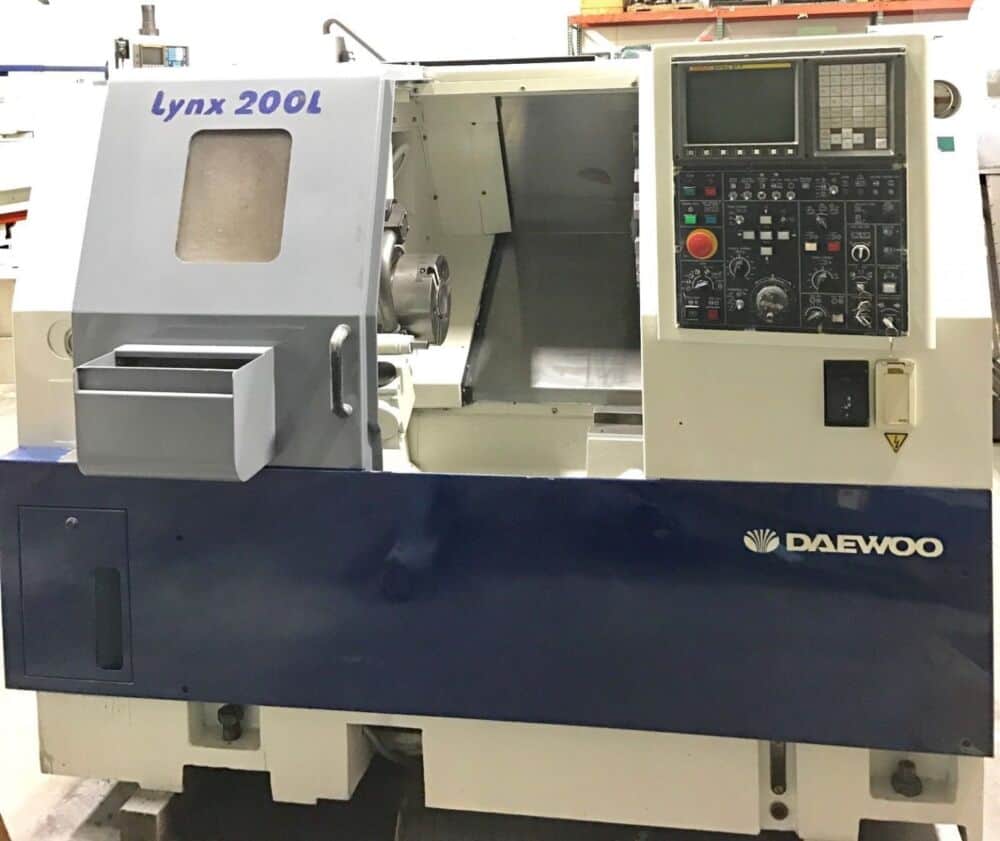

DAEWOO LYNX 200 LC Equipped With:
- Fanuc 21T CNC Control

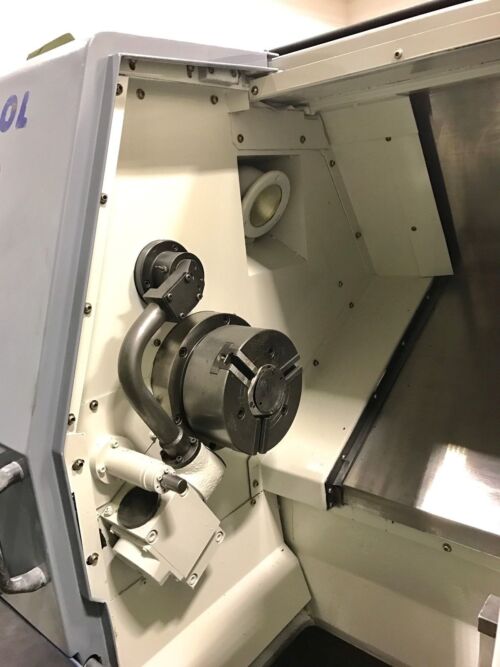

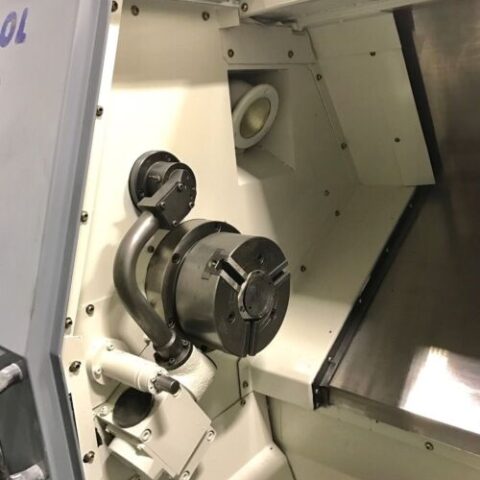

- Kitagawa 8″ B-B08 Hydraulic Chuck
- Hydraulic Tail Stock
- Tool Pre-setter Arm
- Coolant System
- Barfeed Interface
- RS-232 ports
- 12 Station Automatic Turret
- Comes with All Available Manuals, Tool Holders & Tooling.
-
DAEWOO LYNX 200 LC Specifications: Capacity:
- Max Turning Diameter: 11.02″
- Max Turning Length: 19.68″
- Max Bar Capacity: 2.59″
- Swing Over Cross Slide: 13.78″
- Swing Over Bed: 18.11″
- X Axis Travel: 6.3″
- Z Axis Travel: 20.86″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.00″
- Spindle Speed: 45 – 4500 RPM
- Spindle Motor: 9/11 kw
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
-
DAEWOO LYNX 200 LC General:

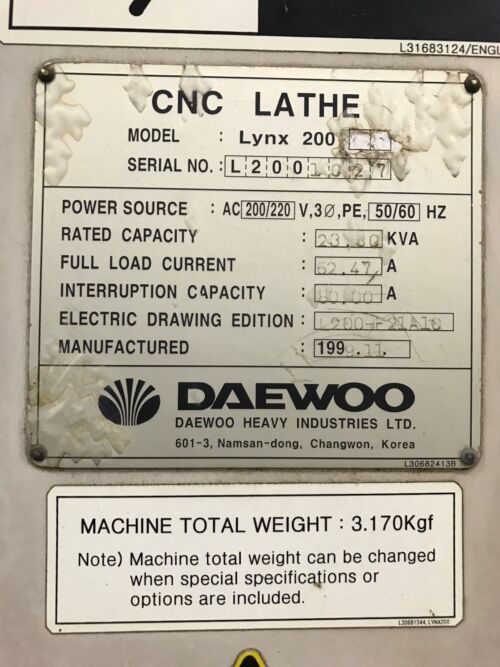

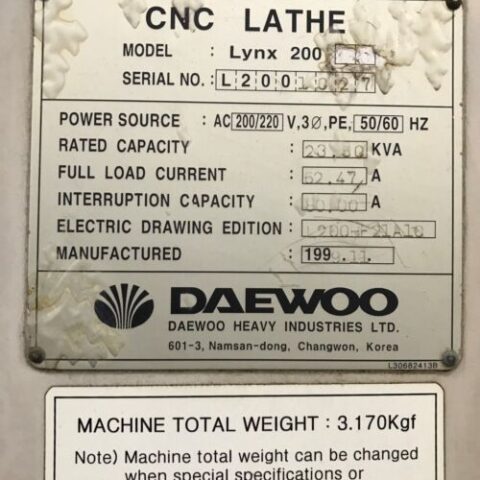

- Power: 35 kva, 220v / 3-Phase
- Overall Dimensions: 102″ x 63″ x 63″ High
- Overall Dimensions: 76″ x 63″ x 6″ High (w/o Chip Conveyor)
- Weight: 7000 lbs
