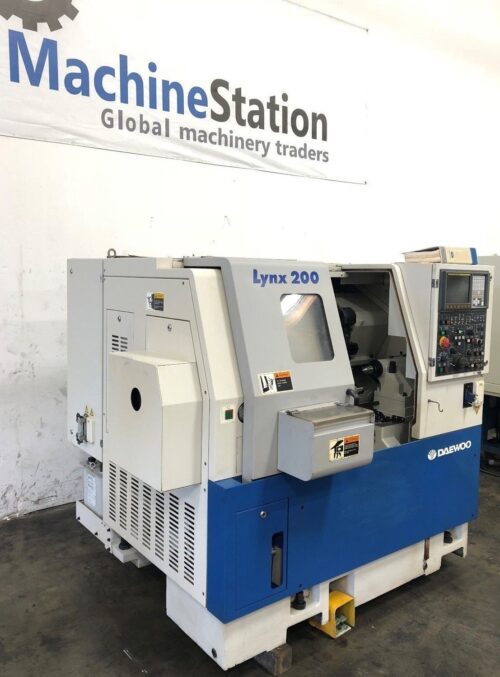

DAEWOO LYNX 200B CNC TURNING CENTER | |
---|---|
Make | Daewoo |
Model No. | Lynx 200B |

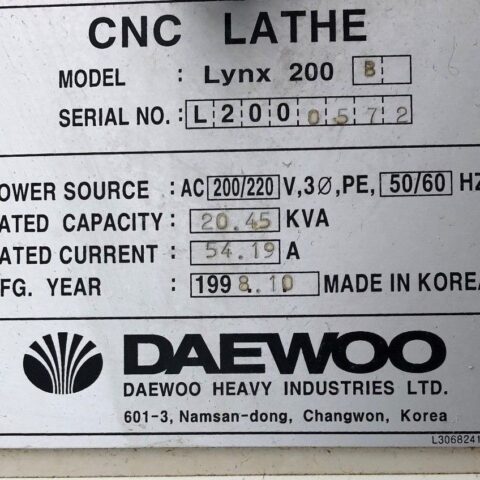

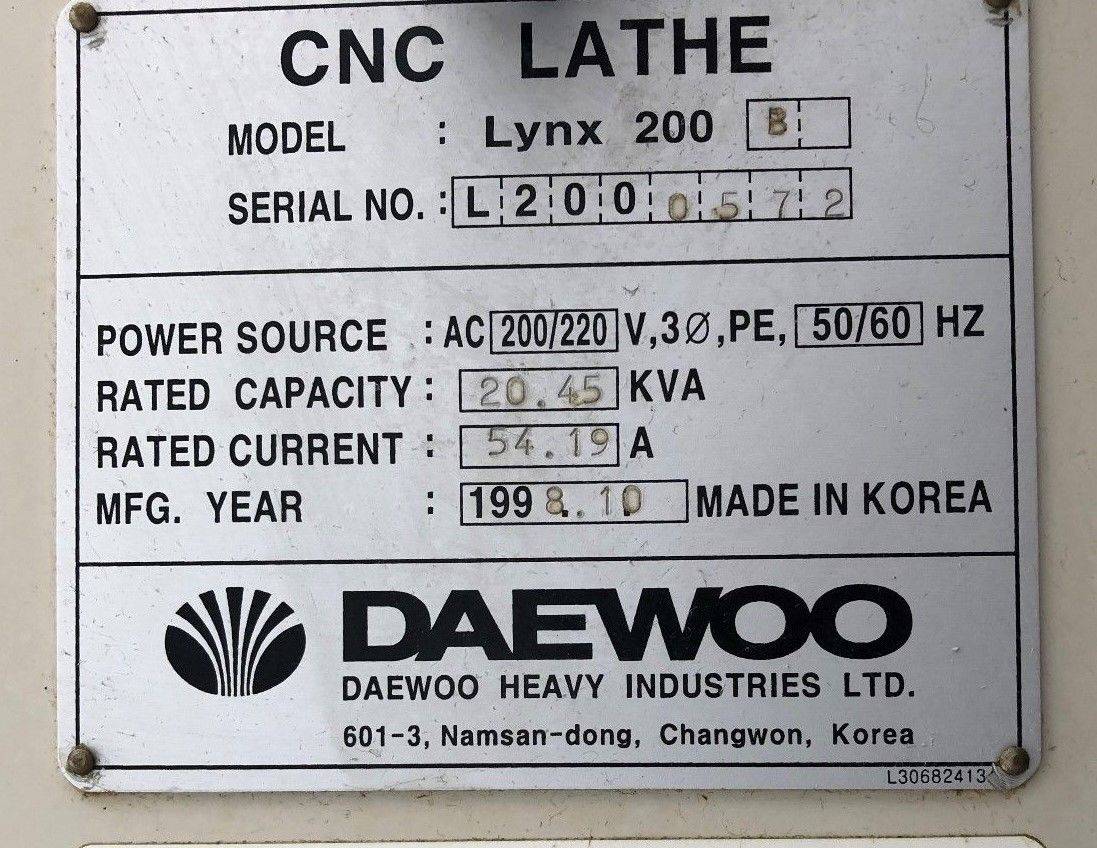

Serial # | L2000572 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This machine is in good running condition. It is equipped with 8″ Chuck & Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
Watch *VIDEO* in Spanish
- DAEWOO LYNX 200B Equipped With:

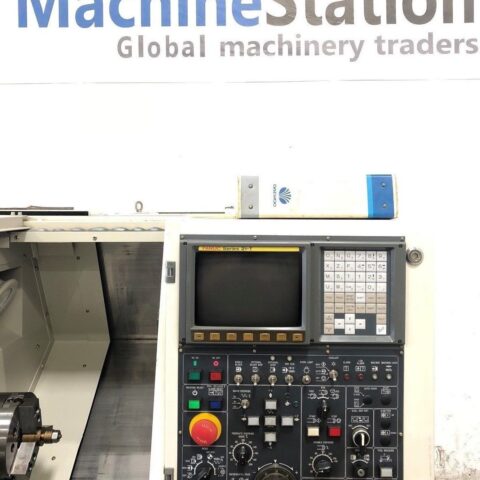

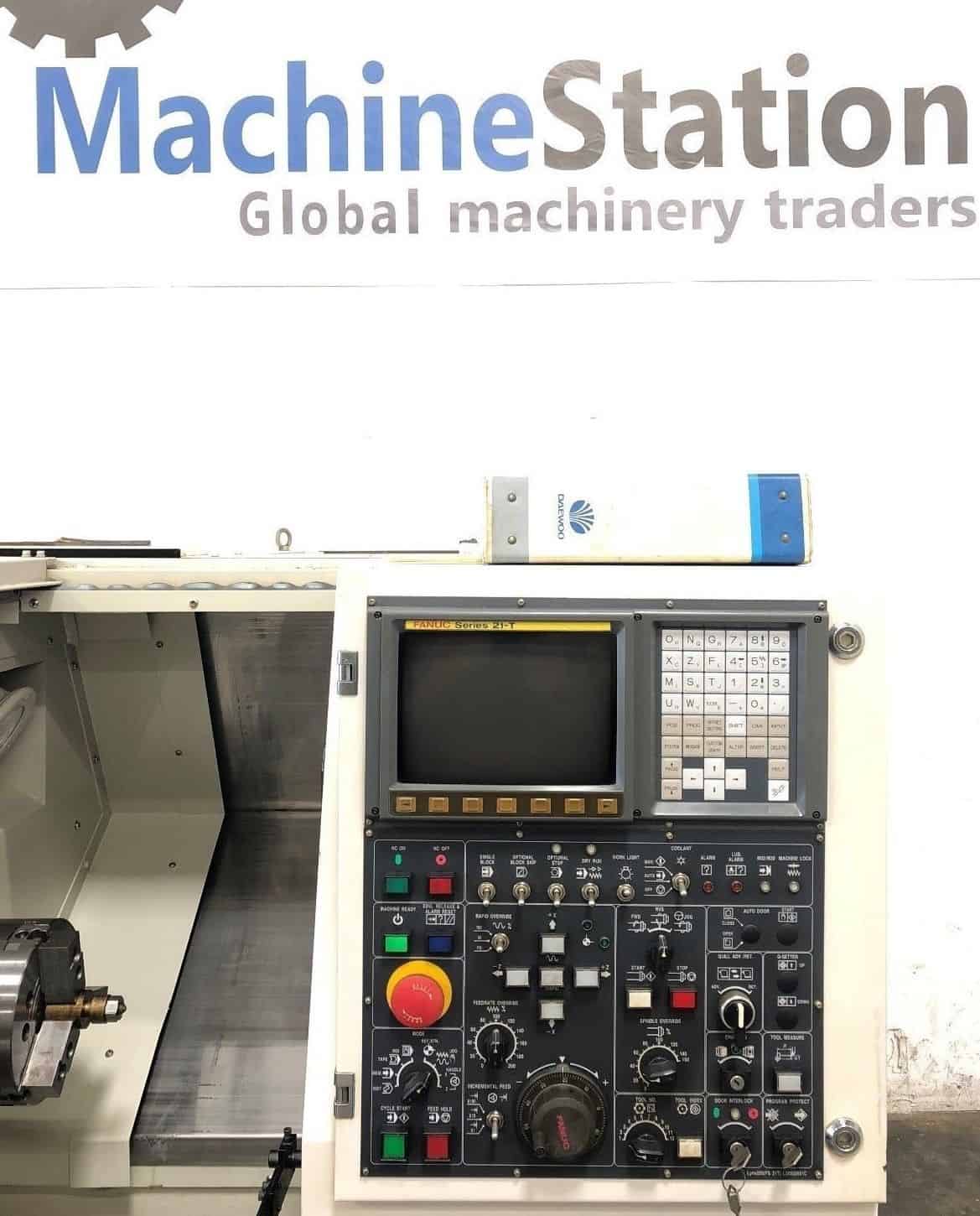

- Fanuc 21TB CNC Control

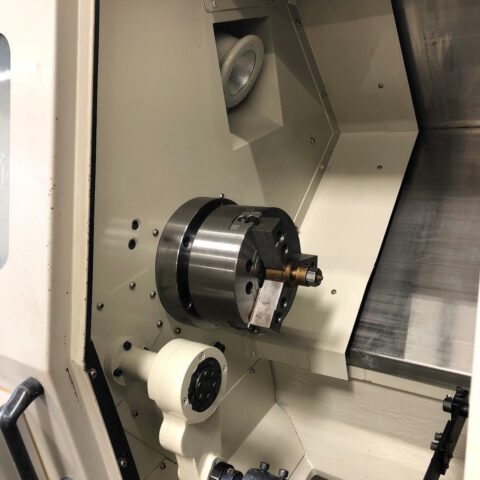

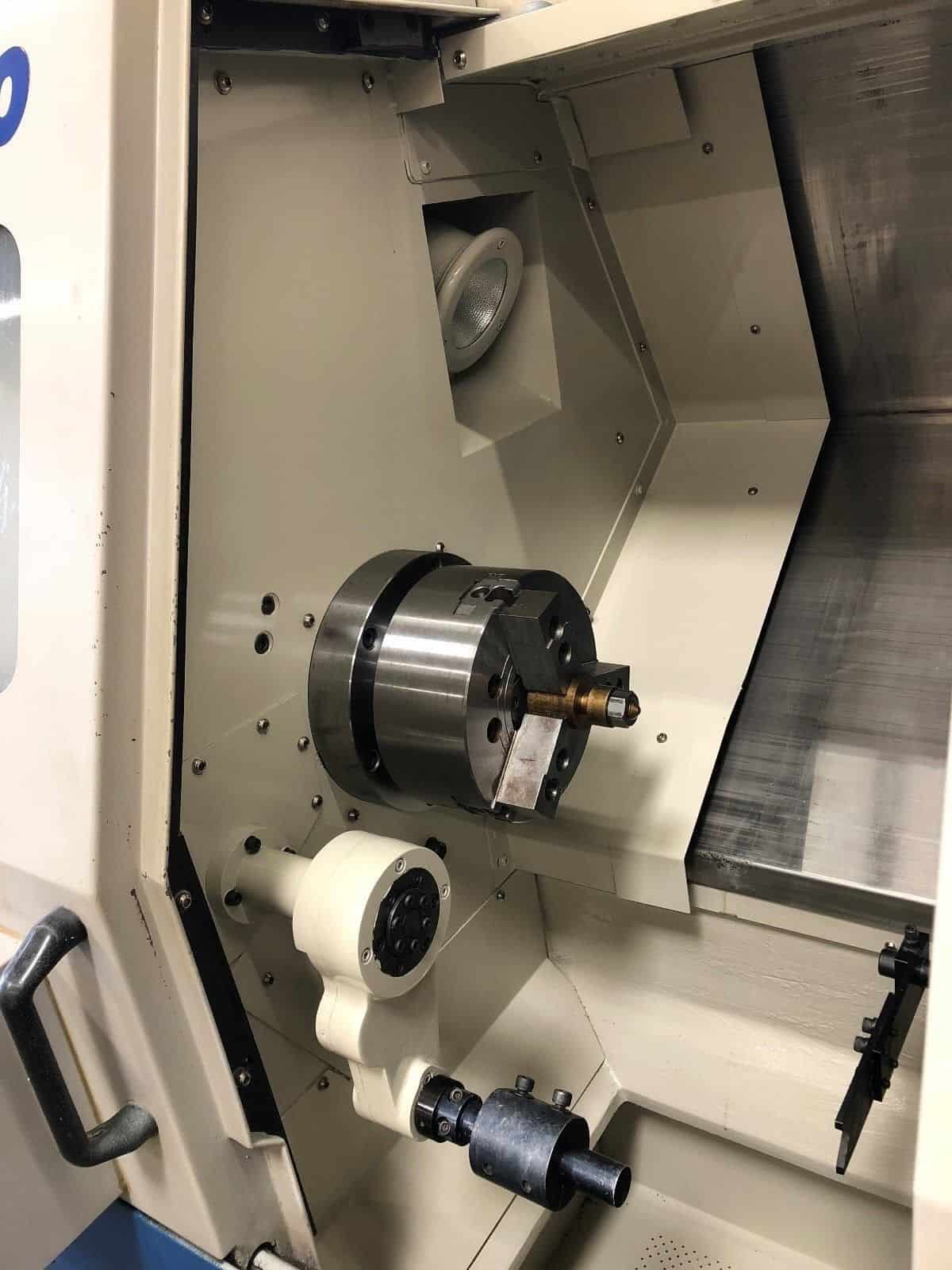

- 8″ 3 Jaw Hydraulic Chuck
- Box Way Construction
- Parts Catcher
- A2-6 Spindle
- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

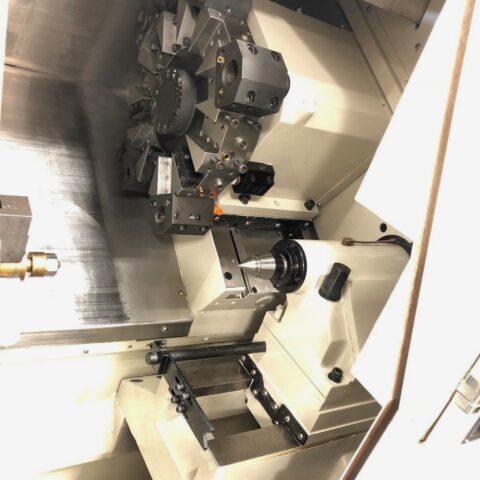

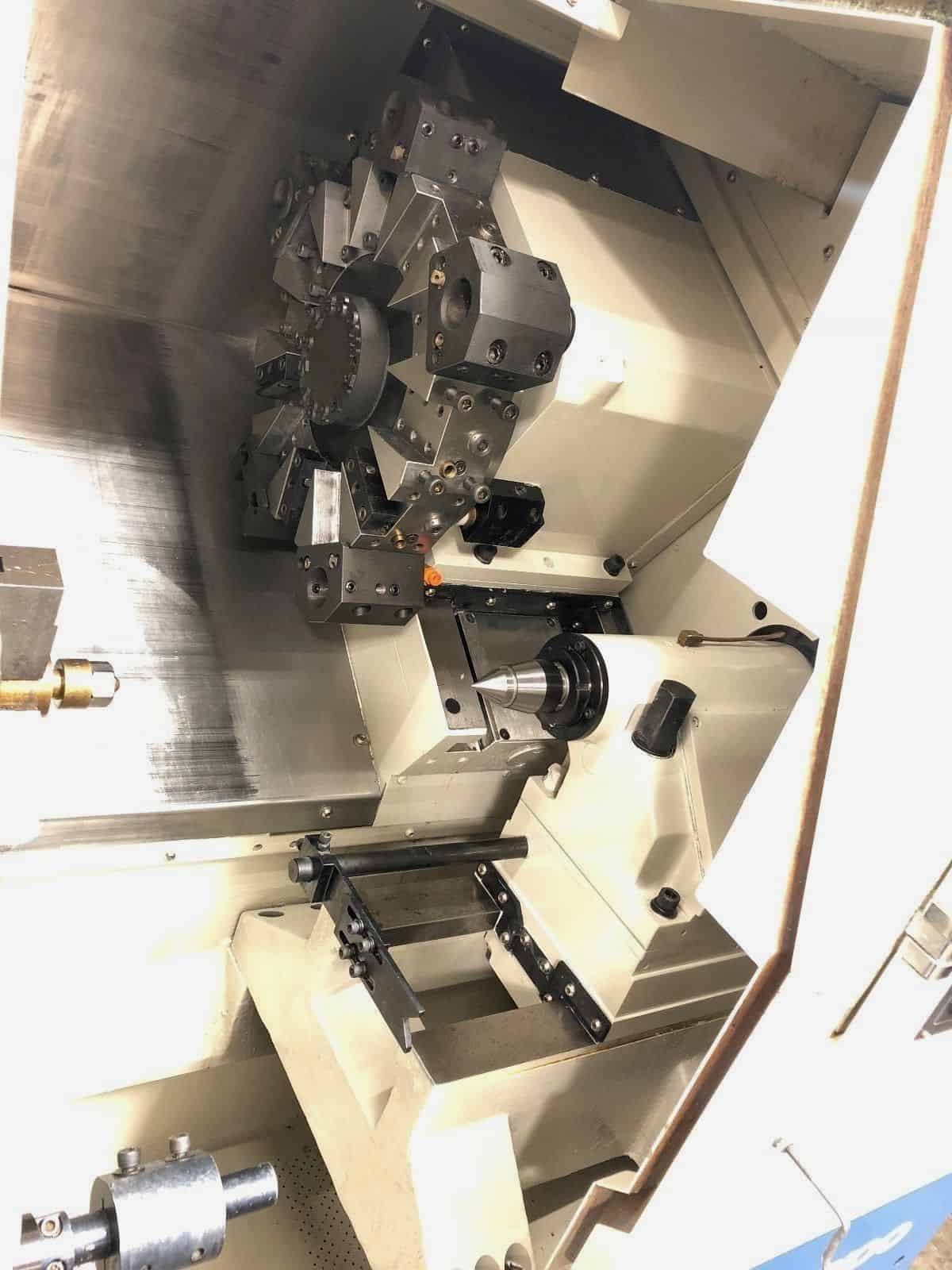

- 12 Station Automatic Turret
- Foot Switch
- Original Manuals
- Turret Tooling
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 74″ x 64″ x 62″ High
- Weight: 6500 lbs
- DAEWOO LYNX 200B Specifications:
- Capacity:
- Max Turning Diameter: 11.02″
- Max Turning Length: 11.81″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 18.11″
- X Axis Travel: 6.3″
- Z Axis Travel: 13.0″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.44″
- Spindle Speed: 40 – 4000 RPM
- Spindle Motor: 7.5 Kw
- Turret Capacity: 10 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.56″
- Tailstock Quill Travel: 3.15″
DAEWOO LYNX 200B Comes as shown in pictures..
