Daewoo Lynx 210 A CNC Turning Center

Out of stock
SKU: 1216
Make/Model: Daewoo Lynx 210 A
Video: [fusion_button link=”https://www.youtube.com/watch?v=Ek099rHkYTE” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1216

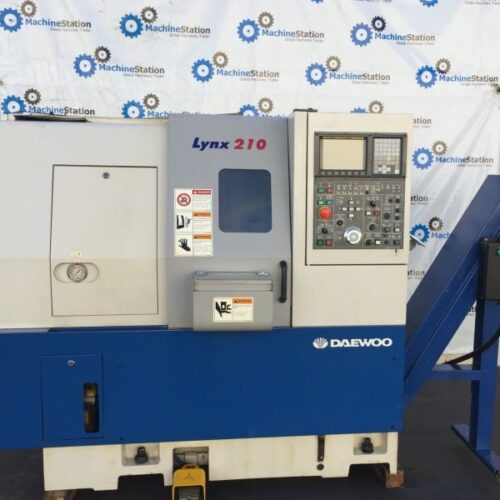

Daewoo Lynx 210 A CNC Turning Center
Make Daewoo
Model No. Lynx 210 A
Year 2002
Condition Very Good
  • Daewoo Lynx 210A Features:

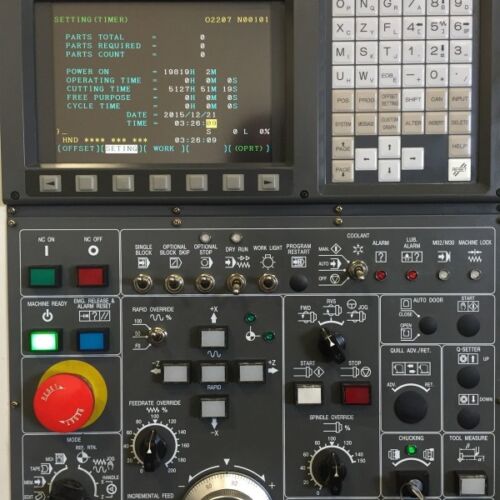

  • Fanuc I series cnc control.

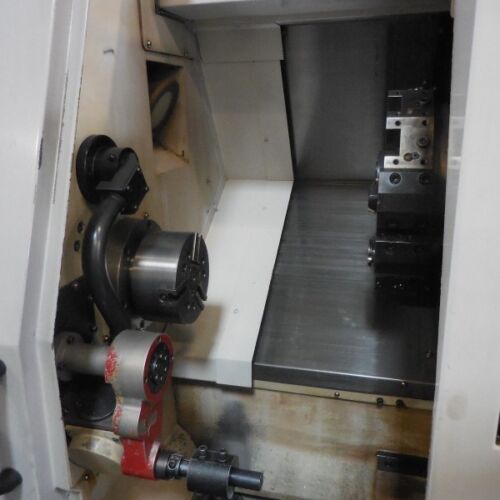

  • Kitagawa 6″ 3-Jaw Chuck.
  • Tool Presetter.

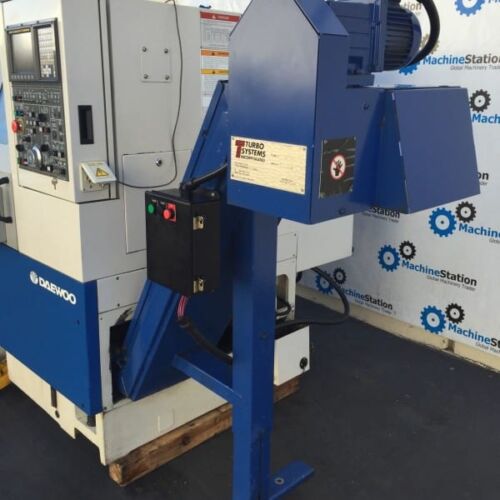

  • Turbo Chip Conveyor.
  • RS-232 Port.
  • High Pressure Coolant Pump.
  • Parts Catcher.
  • Coolant System.

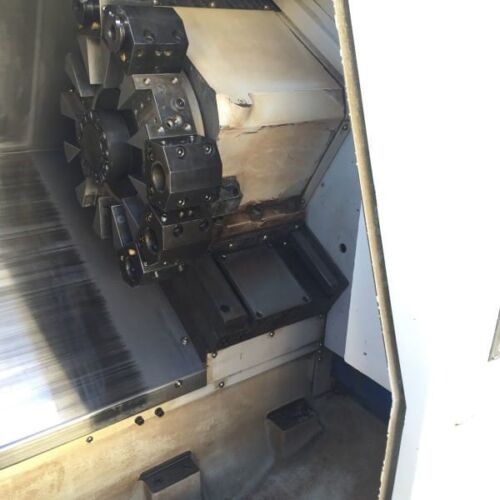

  • 12-Station ID/OD Turret.
  • Daewoo Lynx 210A Specifications:
  • Turning Diameter: 11″
  • Swing Over Bed: 18″
  • Turning Length: 11.8″
  • X-Axis Travel: 6.3″
  • Z-Axis Travel: 13.00″
  • Spindle Bore: 2.00″
  • Spindle Nose: A2-5
  • Bar Working Diameter: 1.75″
  • Spindle Speeds: 5000 RPM

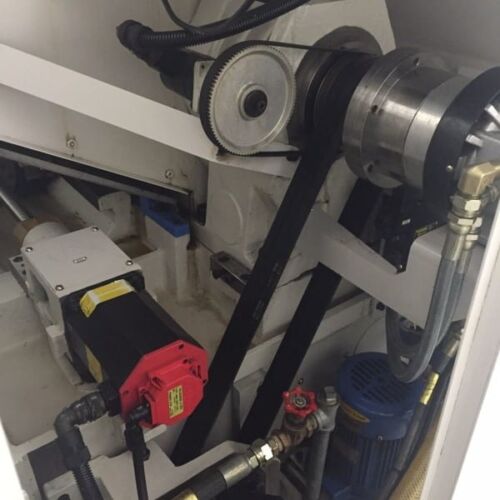

  • Spindle Motor: 10HP
  • Power Source: AC 200/220 V, Three Phase, 50/60 Hz
  • Weight :6500 lbs Approx
  • Overall Dimensions: 76″ x 63″ x 63″ tall

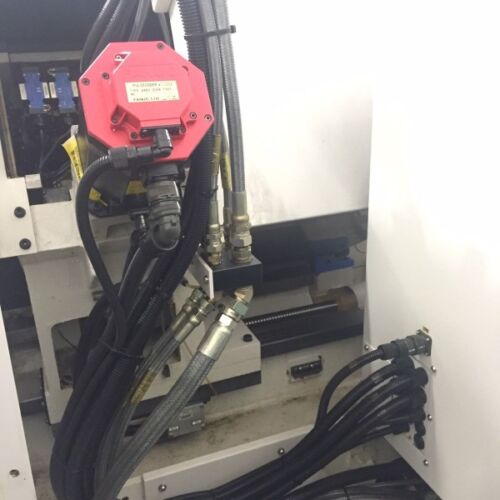

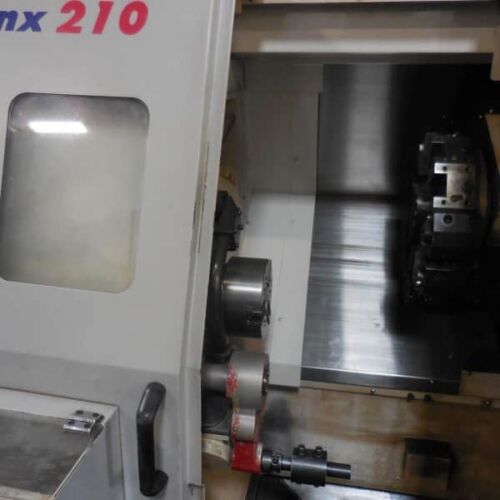

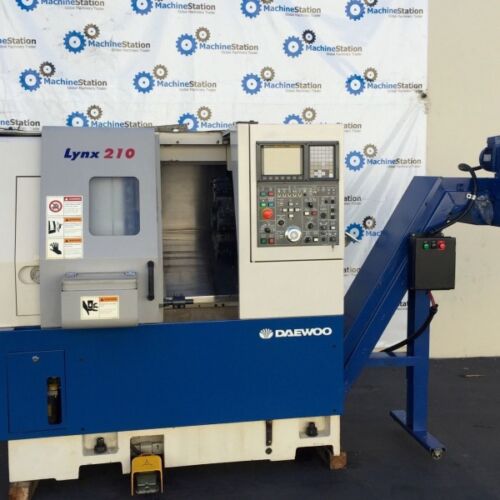

Daewoo Lynx 210 A Comes as shown in pictures.
