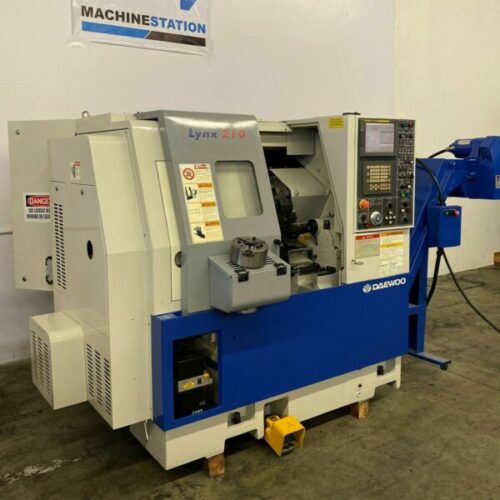

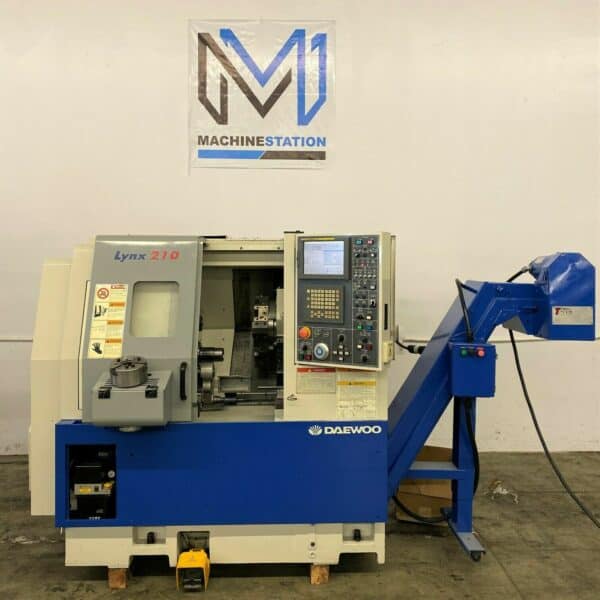

Daewoo Lynx 210 CNC Turning Center

Out of stock

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

“One Owner machine excellent running condition. It is equipped with Jaw Chuck and Collet Chuck, 12 tool turret & Hydraulic Tailstock, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

SKU:	1845
Make/Model:	Daewoo/Lynx 210A
Video:	[fusion_button link=”https://www.youtube.com/watch?v=jQSfdt8Txnc” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1845

DAEWOO LYNX 210 CNC TURNING CENTER

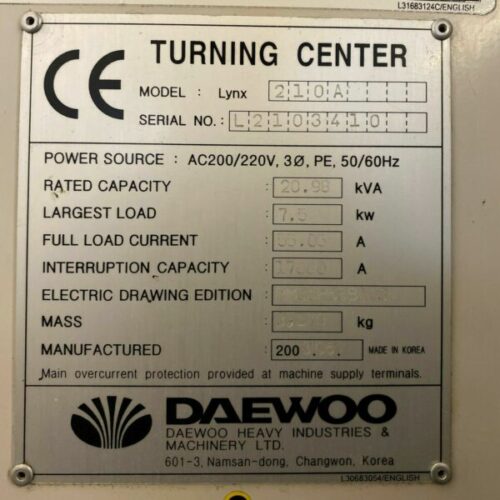

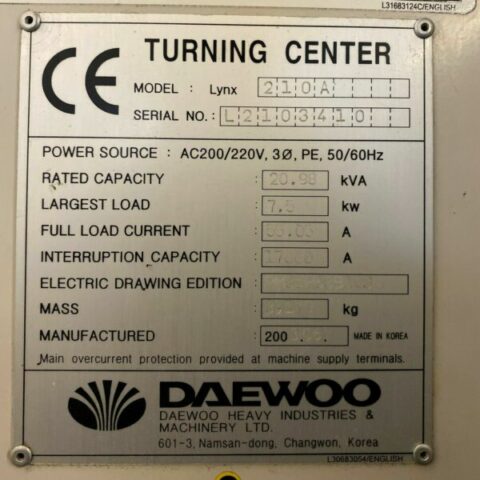

Make	Daewoo
Model No.	Lynx 210A
Year	03/06
Serial #	L2103410
Condition	Very Good

All specifications are approximations and are subject to verification.

Daewoo Lynx 210 Equipped With:

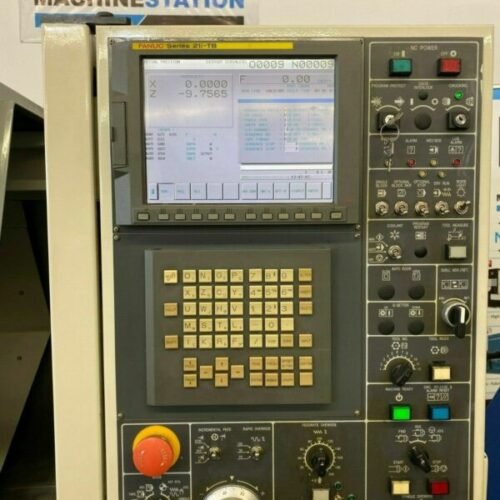

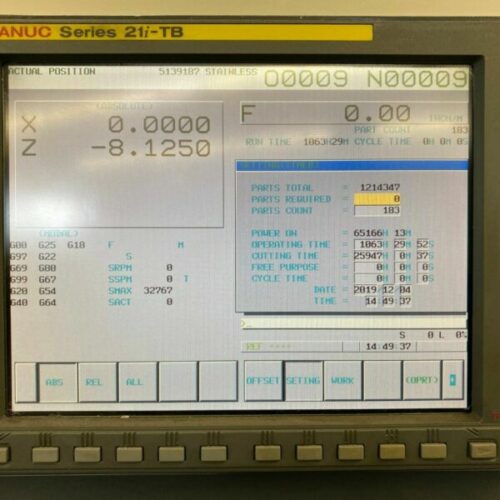

Fanuc 21i-TB series CNC Control
Rigid Tapping

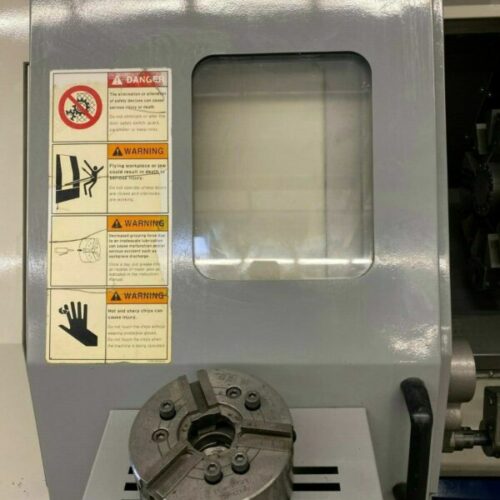

6″ 3 Jaw Hydraulic Chuck
Collet chuck
A2-5 Spindle Nose
Tool Presetter
Parts Catcher
Hydraulic Tailstock and Quill
PCMCIA Card Slot
RS-232 & LAN connectivity
Coolant System
Barfeed Interface

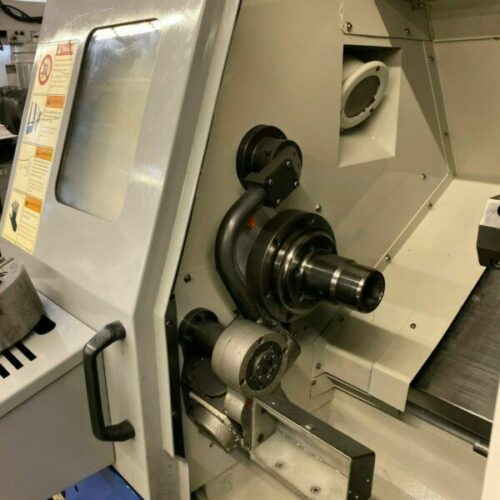

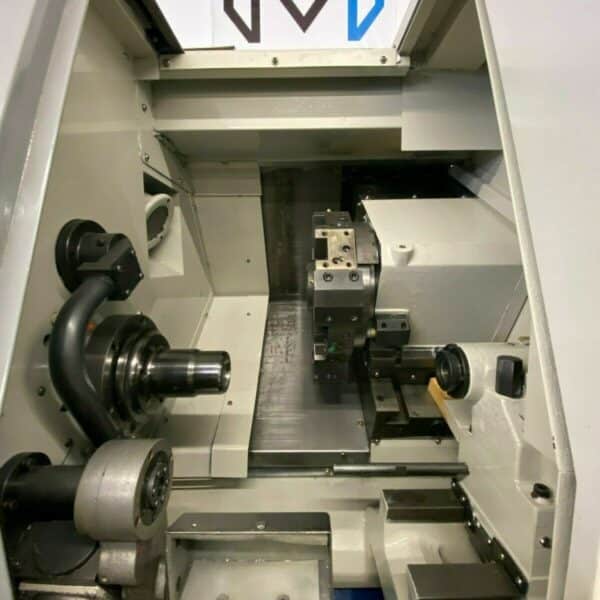

12 Station Automatic Turret
Foot Switch

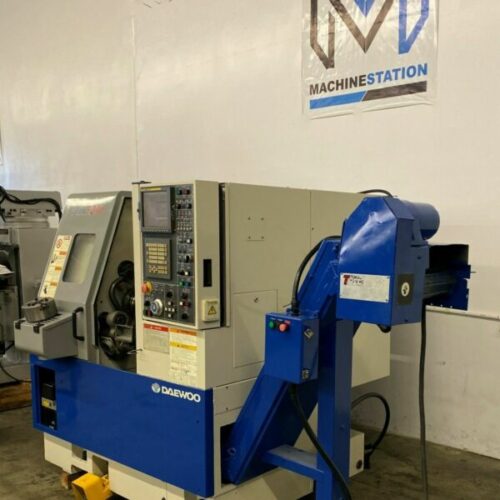

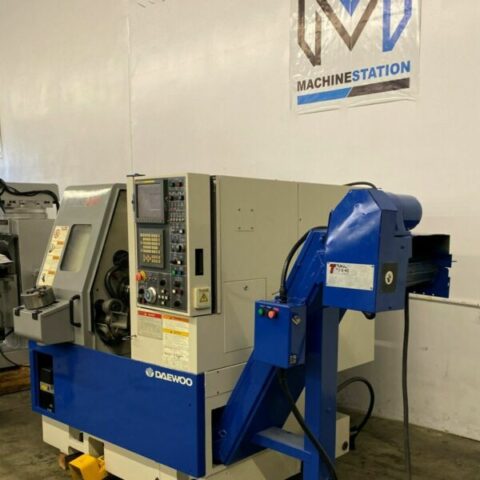

Turbo Chip Conveyor
Manuals

Daewoo Lynx 210 Specifications:
Capacity:
Max Turning Diameter: 11.0″
Max Turning Length: 11.8″
Max Bar Capacity: 1.75″
Swing Over Bed: 18.0″
Distance Between Centers: 20.0”

Travel:
X Axis Travel: 6.3″
Z Axis Travel: 13.0″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.0″
Spindle Speed: 35 – 5000 RPM
Spindle Motor: 15hp

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second

Tailstock:
Tailstock Taper: MT-3
Tailstock Quill Dia.: 2.97″
Tailstock Quill Travel: 3.15″

General:
Power: 35 kva, 220v / 3-Phase
Overall Dimensions: 160″ x 77″ x 80″ High with Chip Conveyor
Weight: 7600 lbs

Comes as shown in pictures….
