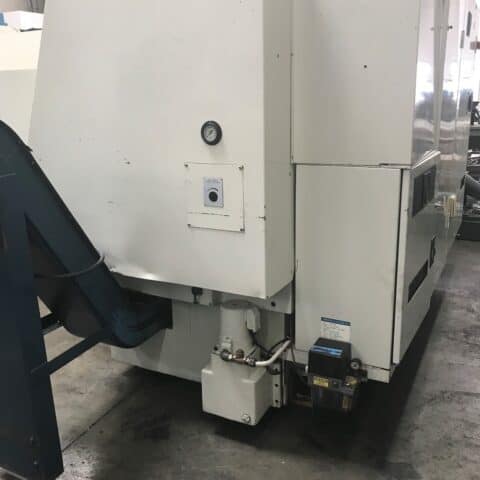

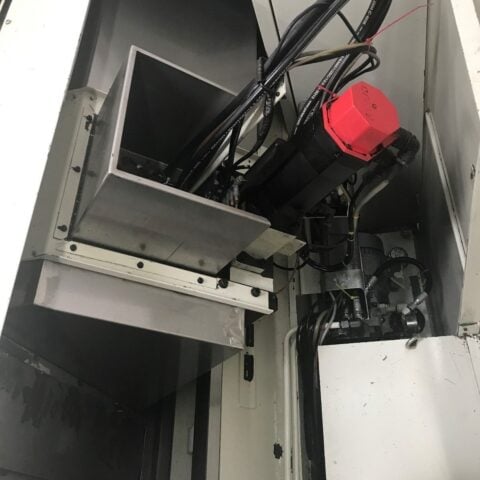

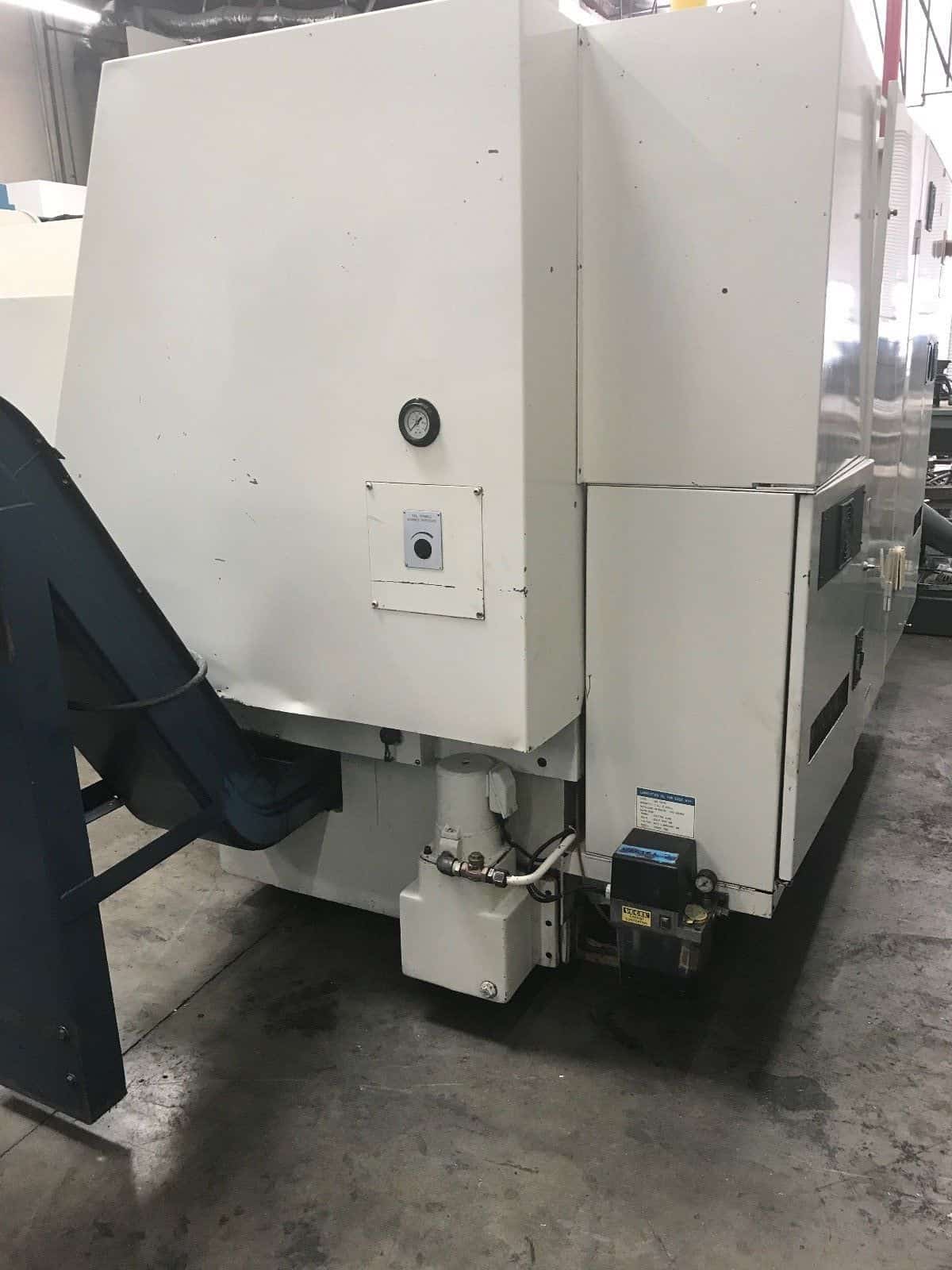

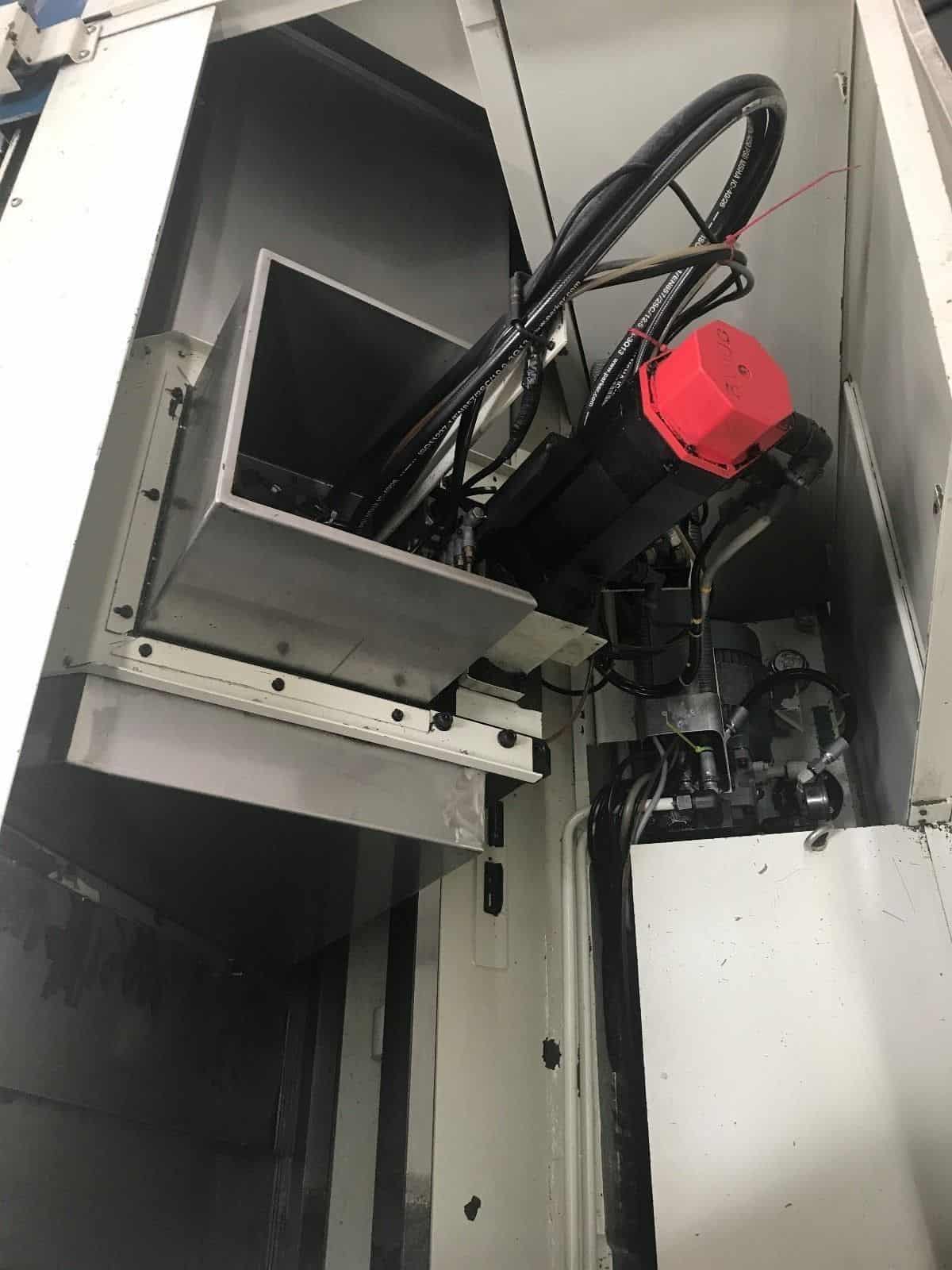

Daewoo Puma 10HC CNC Turning Center
Out of stock
| SKU: |
1455 |
| Make/Model: |
Daewoo Puma 10HC |
-
DAEWOO PUMA 10HC Equipped With:

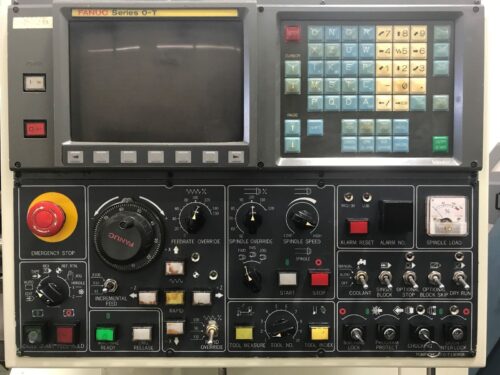

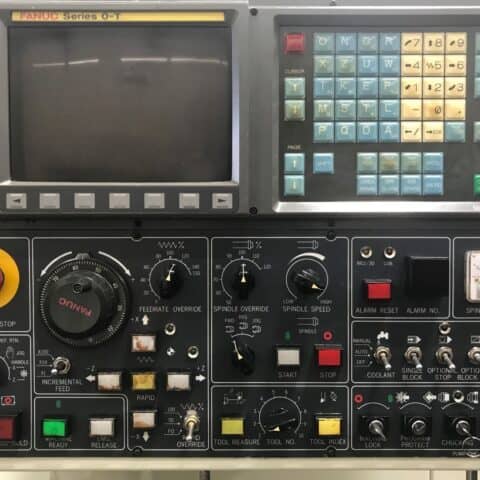

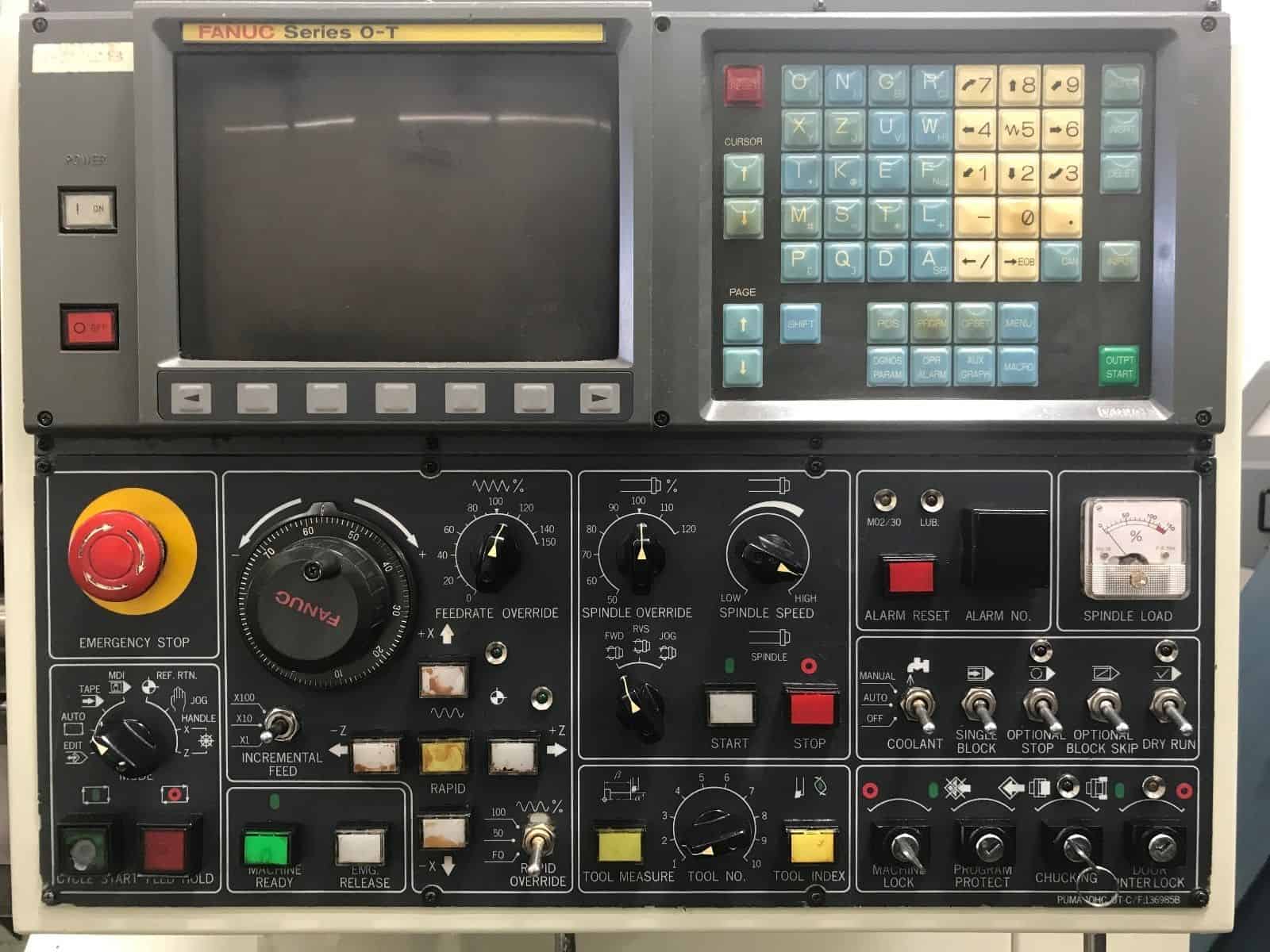

- Fanuc OT CNC Control
- 10″ 3 Jaw Hydraulic Chuck
- A2-8 Spindle
- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- 10 Station Automatic Turret
- Foot Switch
- Turbo Chip Conveyor
-
DAEWOO PUMA 10HC Specifications:
- Capacity:
- Max Turning Diameter: 14.6″
- Max Turning Length: 20.7″
- Max Bar Capacity: 3.0″
- Swing Over Bed: 19.7″
- Distance Between Centers: 21.9″
- X Axis Travel: 8.3″
- Z Axis Travel: 21.7″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.4″
- Spindle Speed: 0 – 3500 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
-
General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 114″ x 76″ x 77″ High
- Overall Dimensions: 138″ x 76″ x 77″ High with Chip Conveyor
- Weight: 11000 lbs
