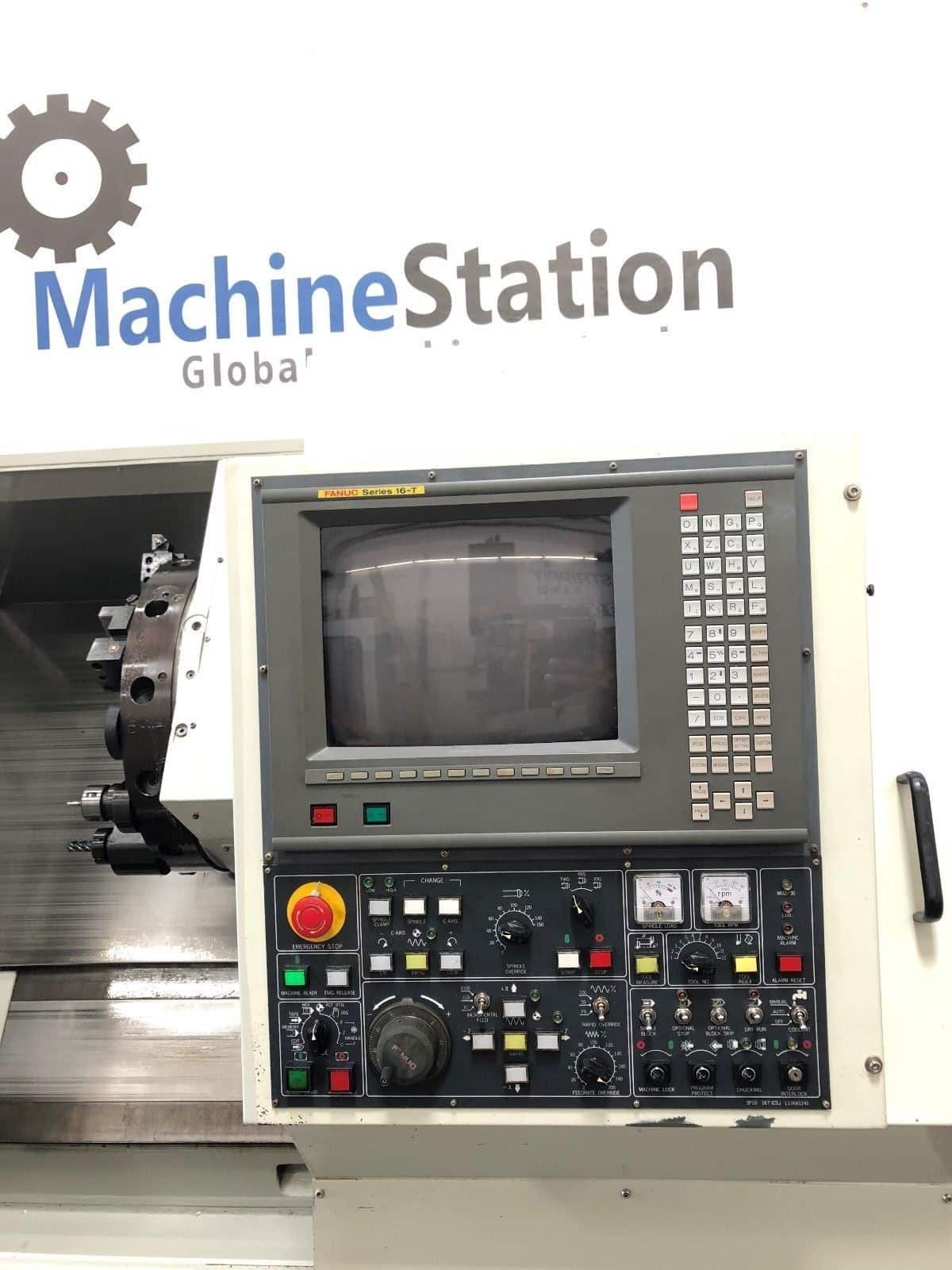

| DAEWOO PUMA 12S-3A CNC TURN MILL | |
|---|---|
| Make | Daewoo |
| Model No. | Puma 12S-3A |
| Serial # | 3P100018 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
- DAEWOO PUMA 12S-3A Equipped With:

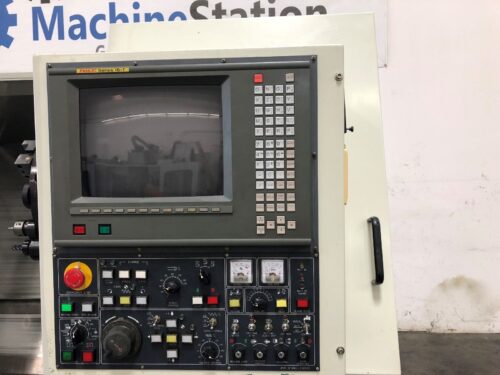

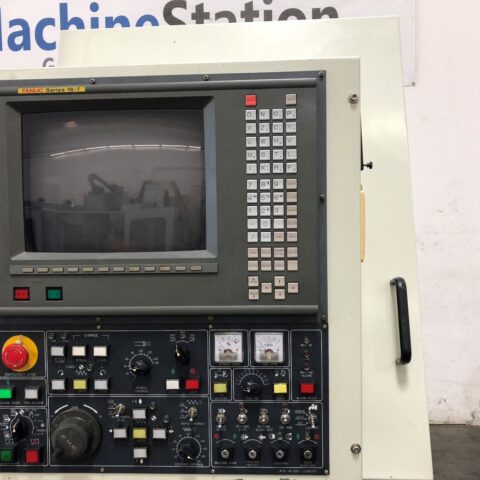

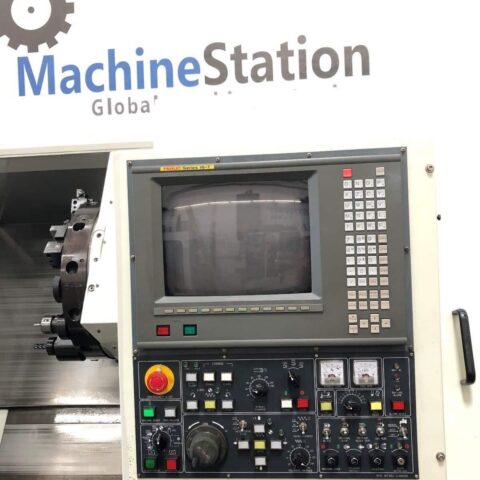

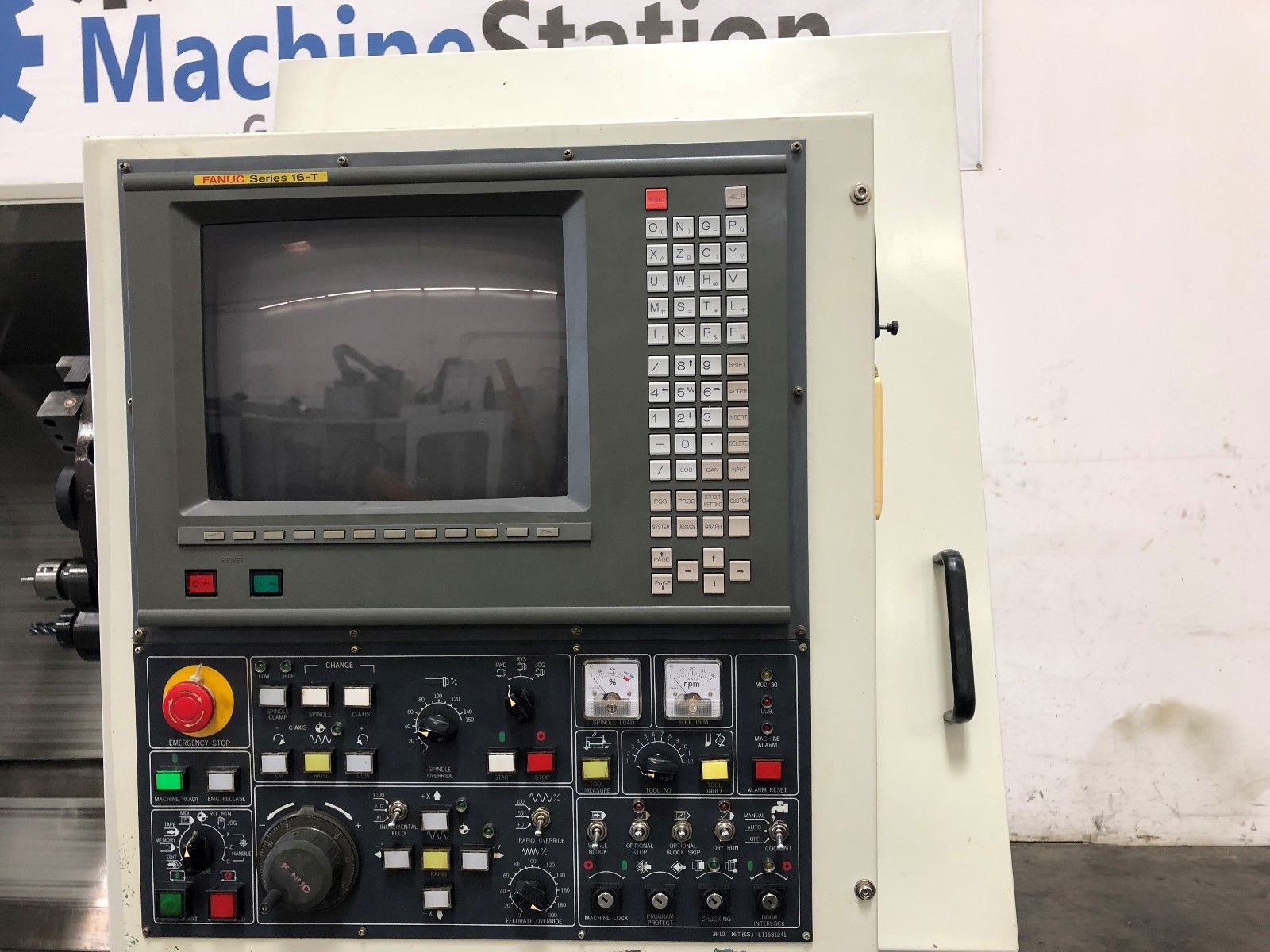

- Fanuc 16T CNC Control

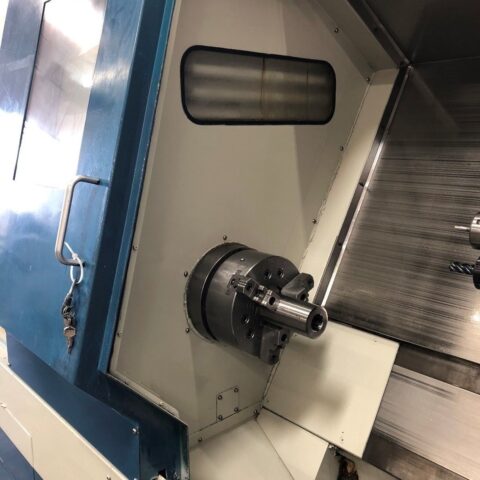

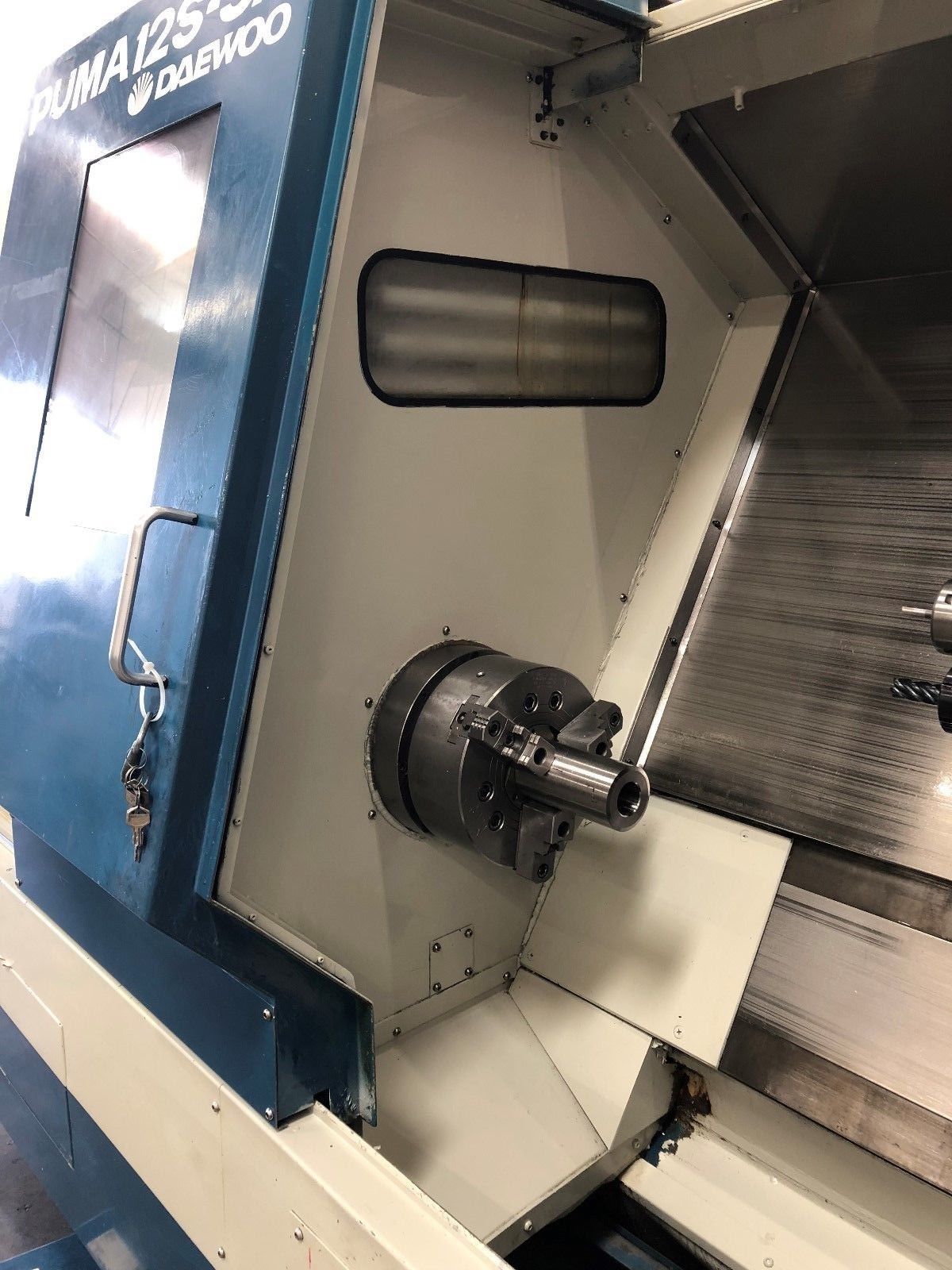

- 12″ 3 Jaw Kitagawa Hydraulic Chuck
- Full C Axis
- A2-8 Spindle

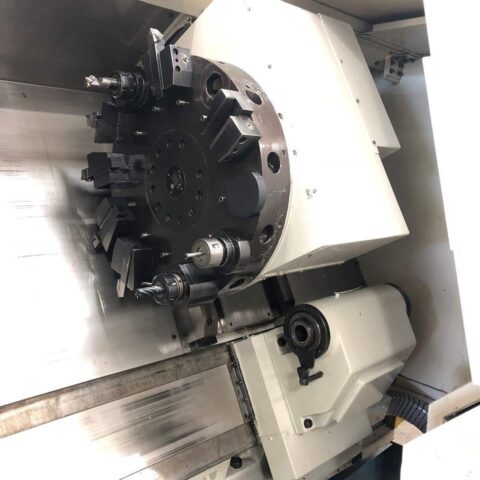

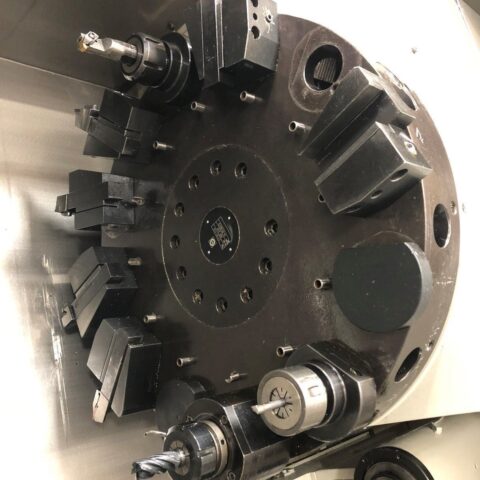

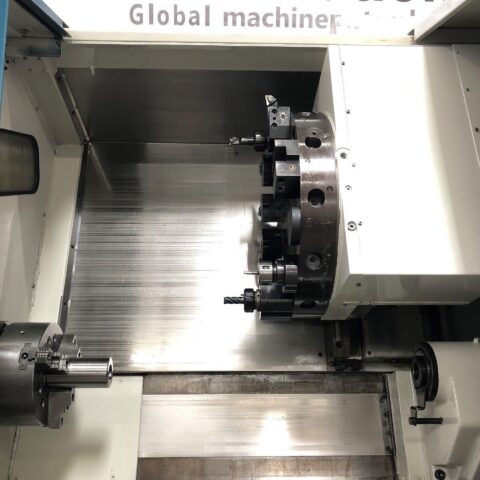

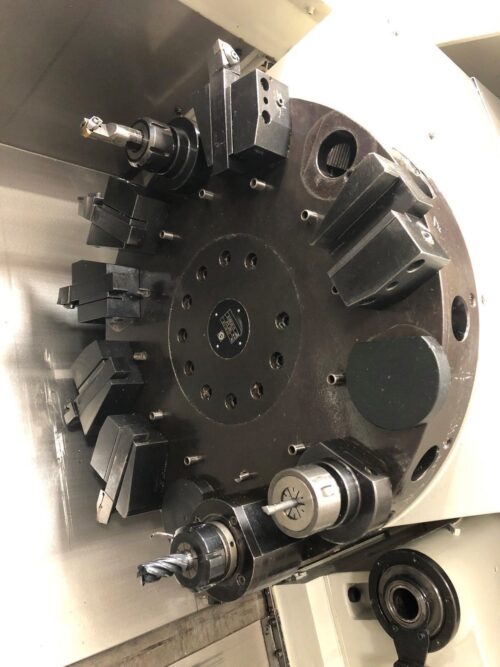

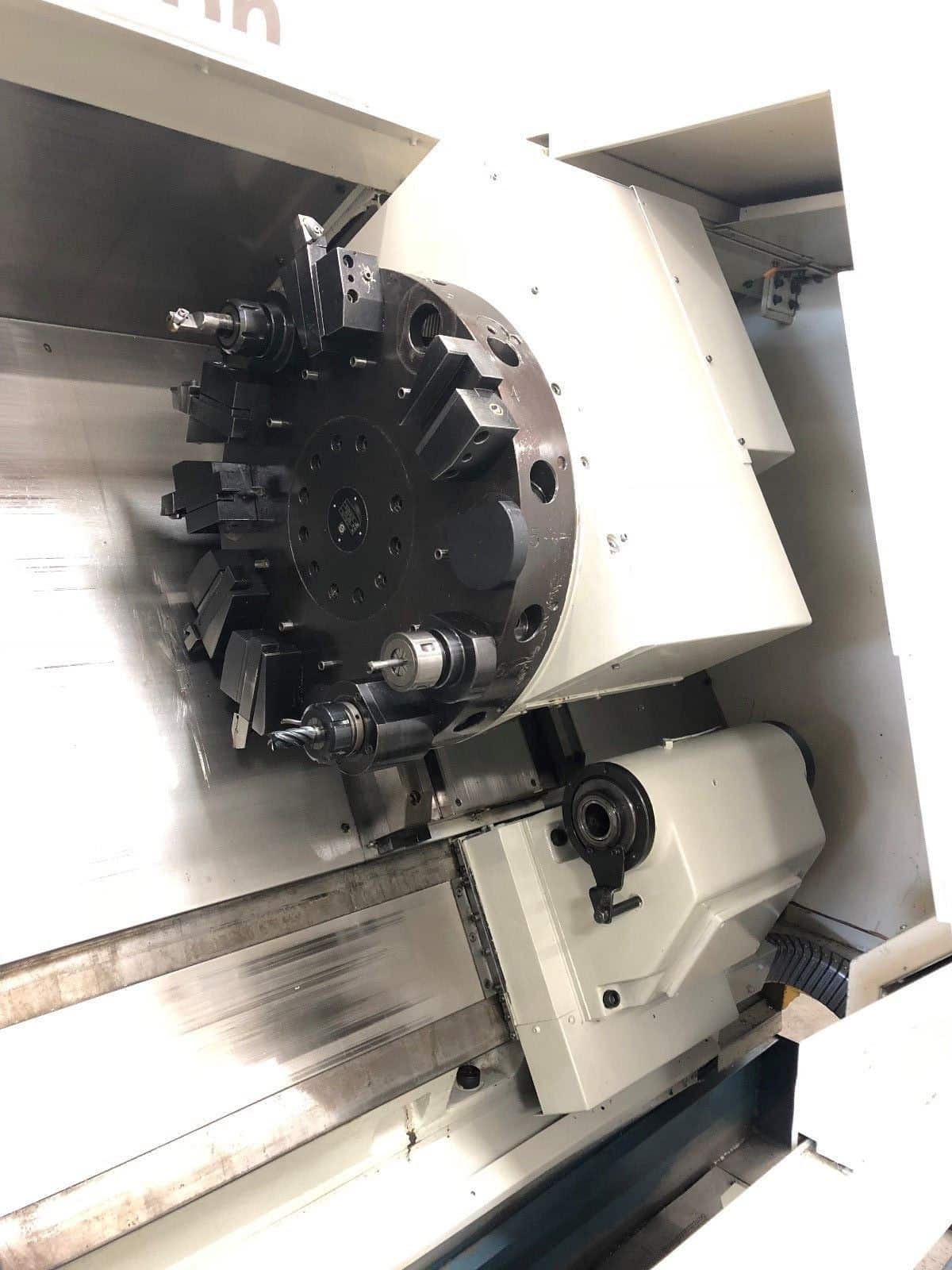

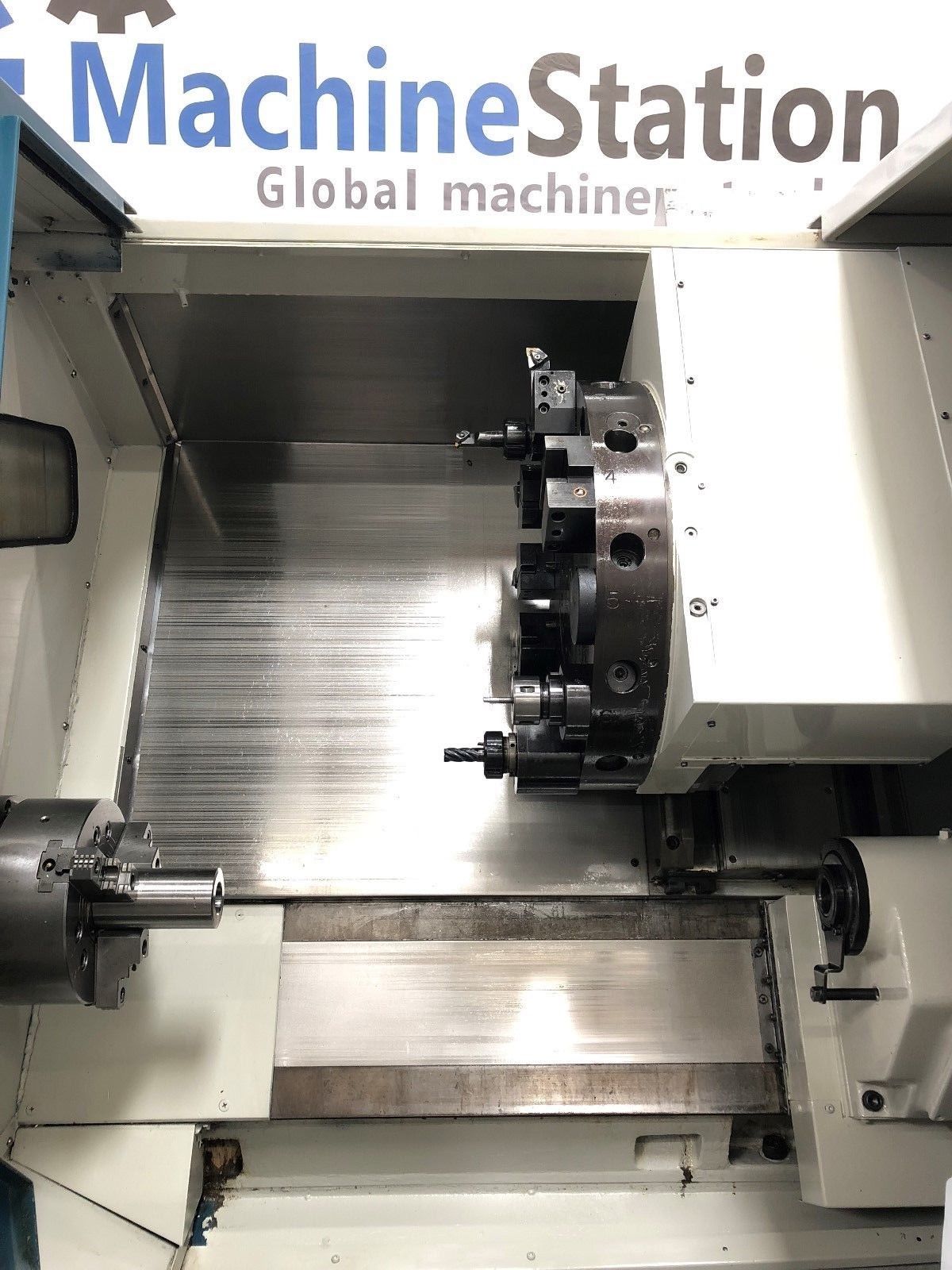

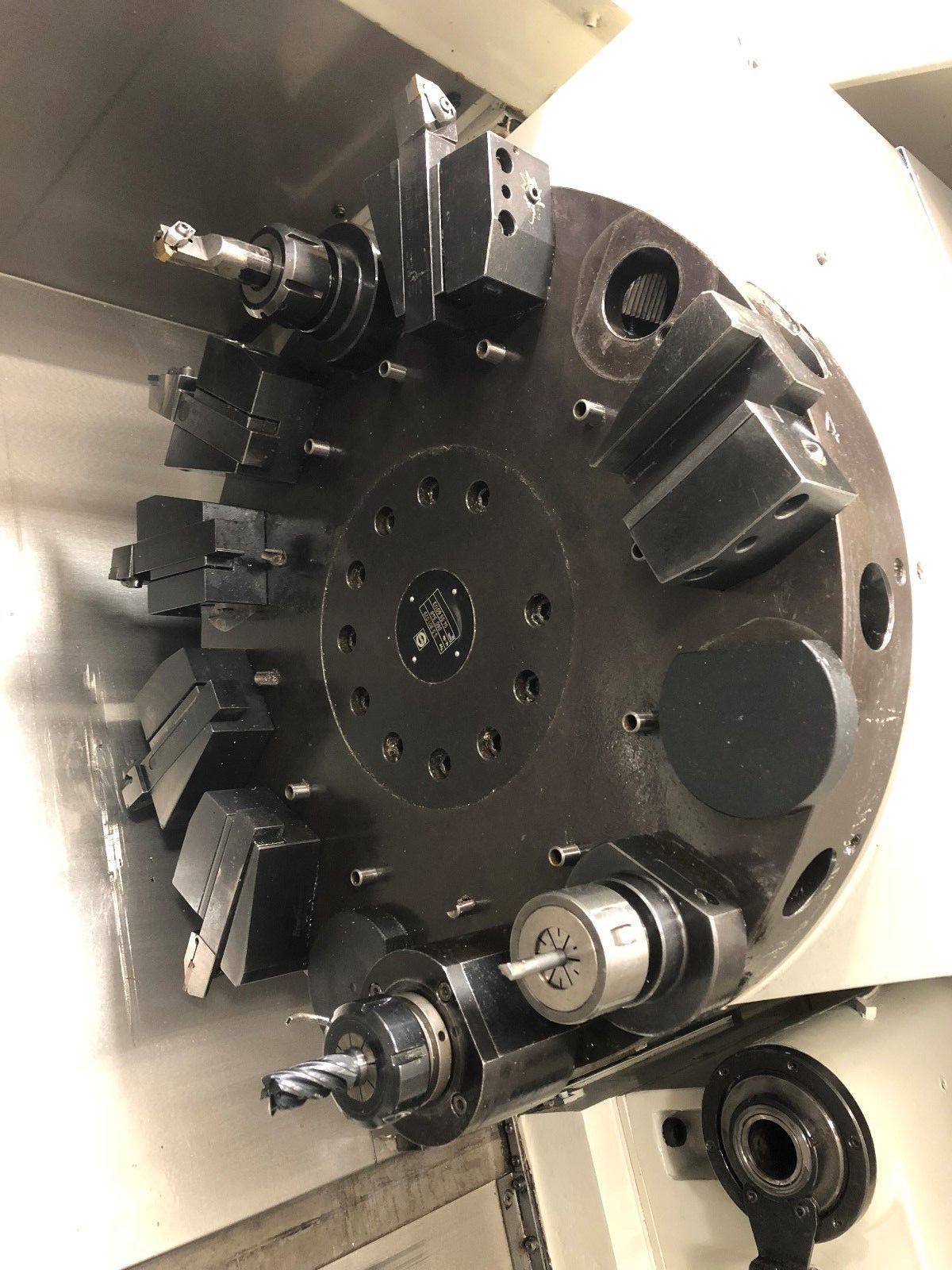

- 12 Station Bi-directional Live Tool Turret
- Hydraulic Programmable Tailstock Quill
- Coolant System
- Barfeed Interface
- RS-232 ports
- Foot Switch
- Comes with Live and Static Tool Holders
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 125″ X 82″ X 79″ High
- Weight: 15500 lbs
- DAEWOO PUMA 12S-3A Specifications:
- Capacity:
- Max Turning Diameter: 14.96″
- Max Turning Length: 30.31″
- Max Bar Capacity: 3.07″
- Swing Over Bed: 22.4″
- Distance Between Centers: 36.0″
- X Axis Travel: 7.9″
- Z Axis Travel: 31.49″
- Rapid Traverse X Axis: 480 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.58″
- Spindle Speed: 15 – 3000 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Live Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Travel: 4.0″

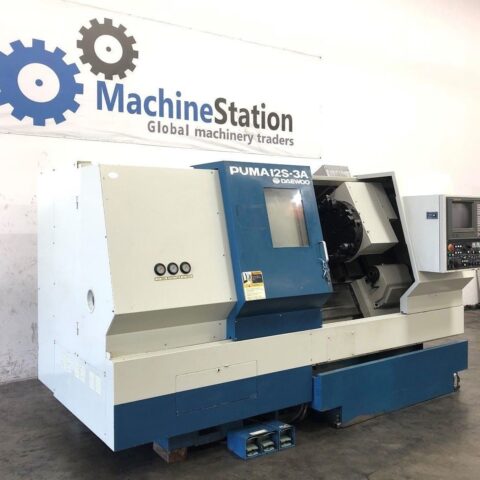

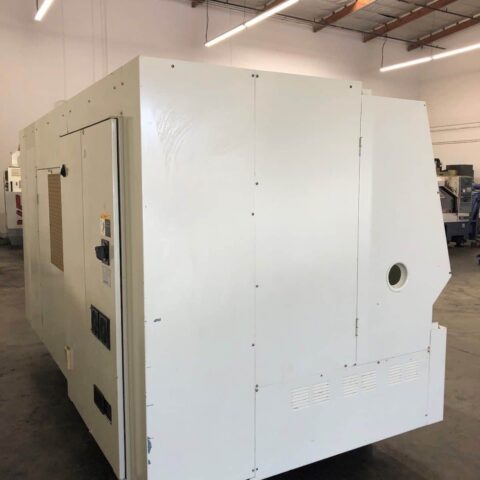

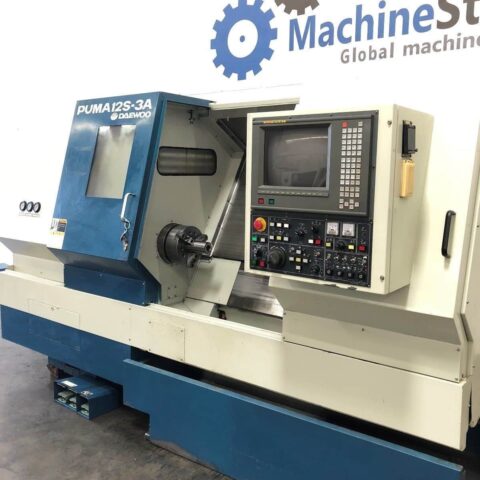

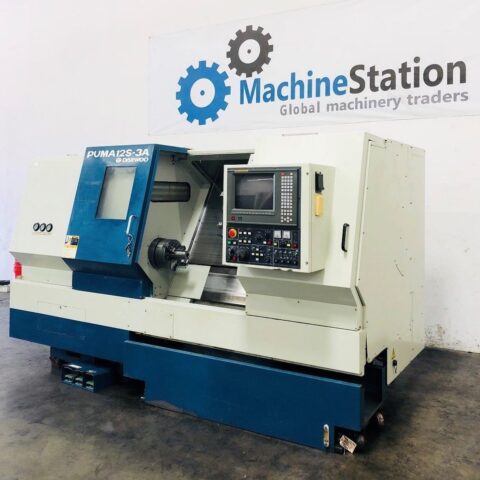

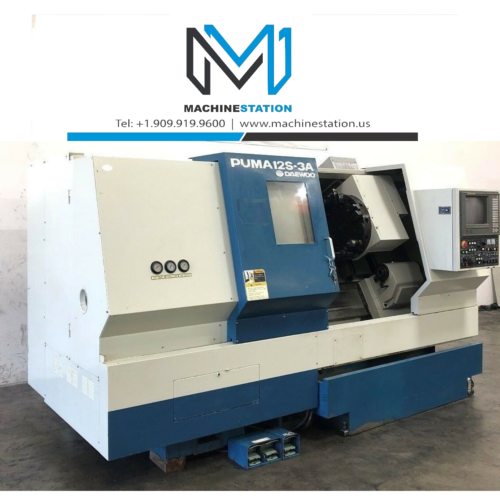

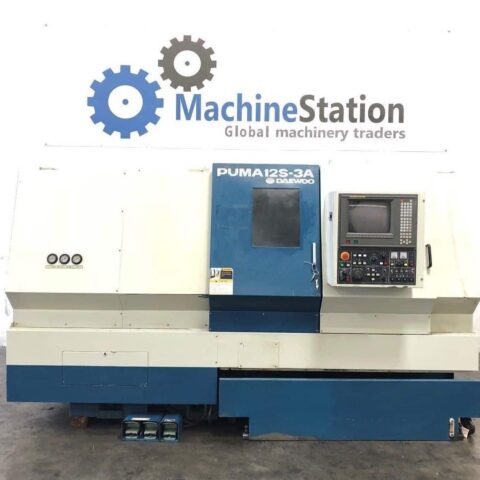

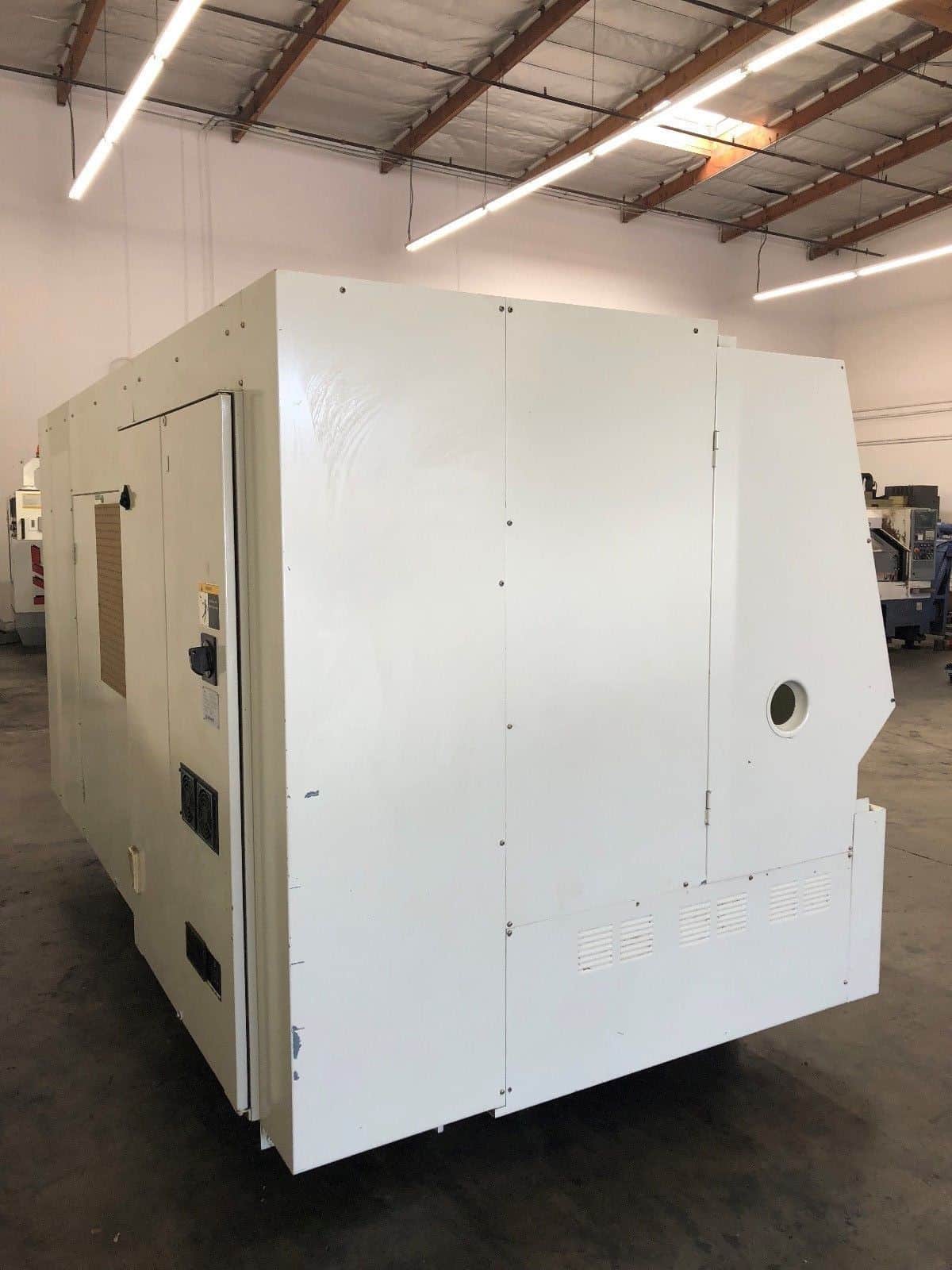

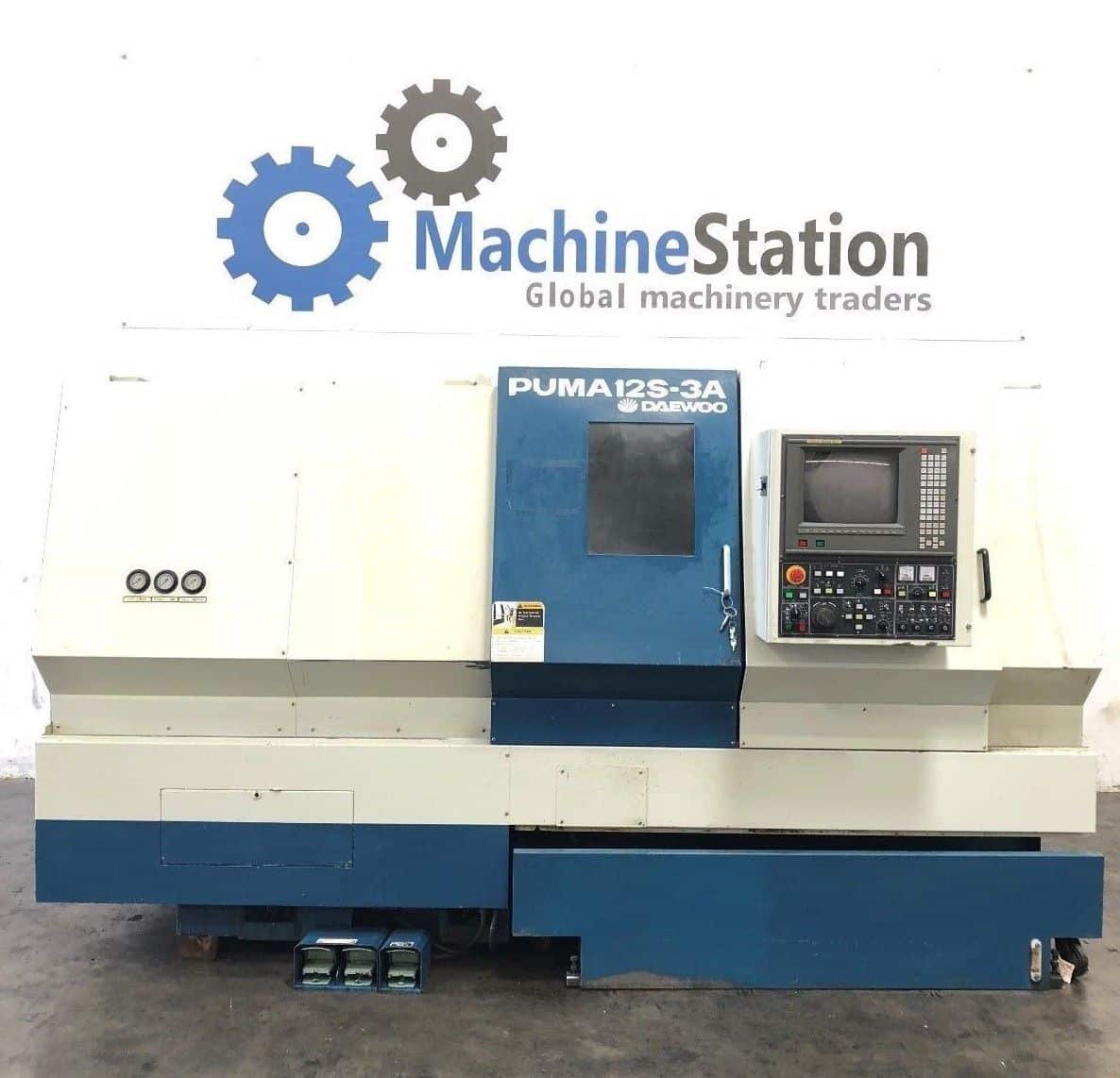

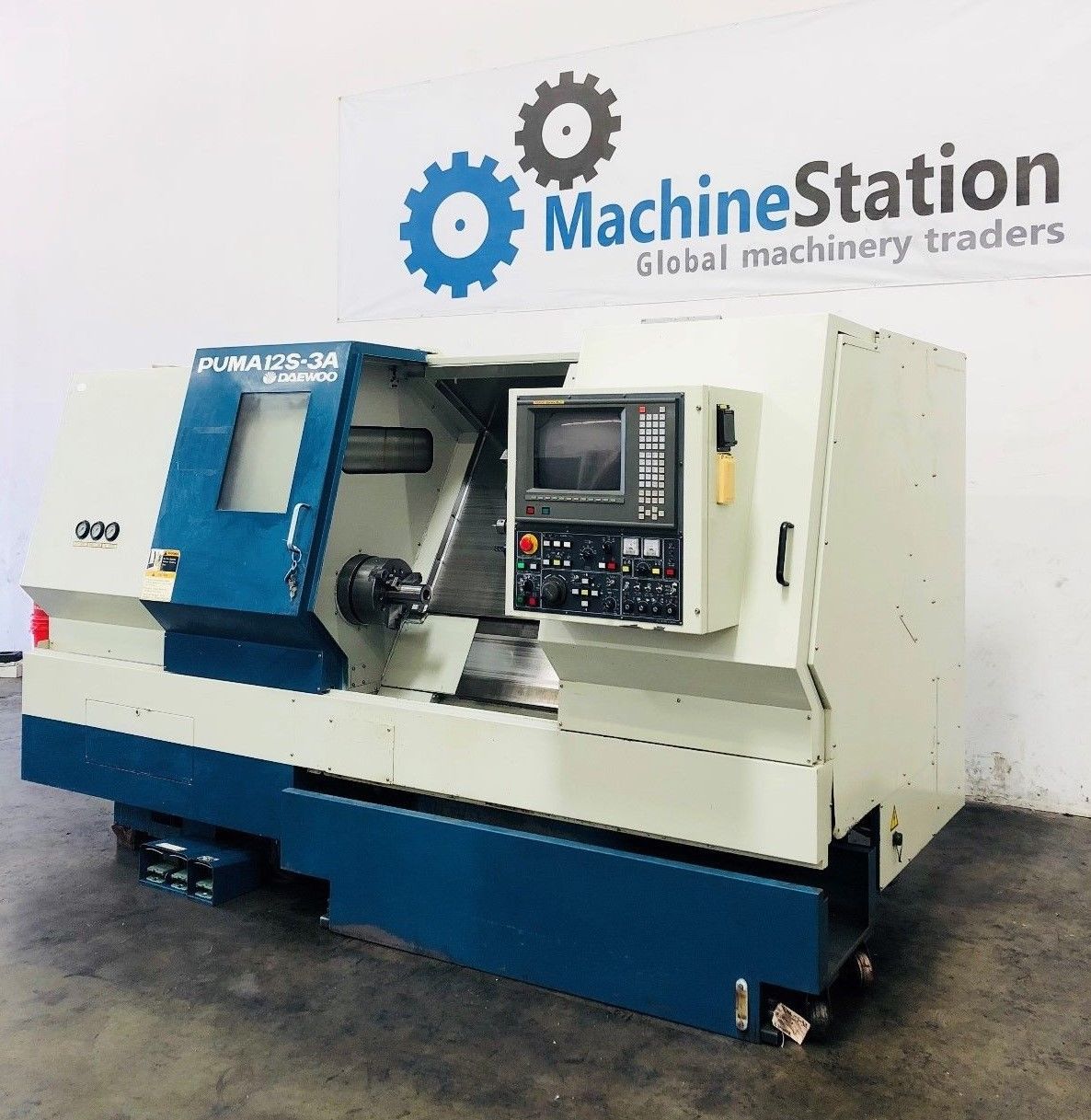

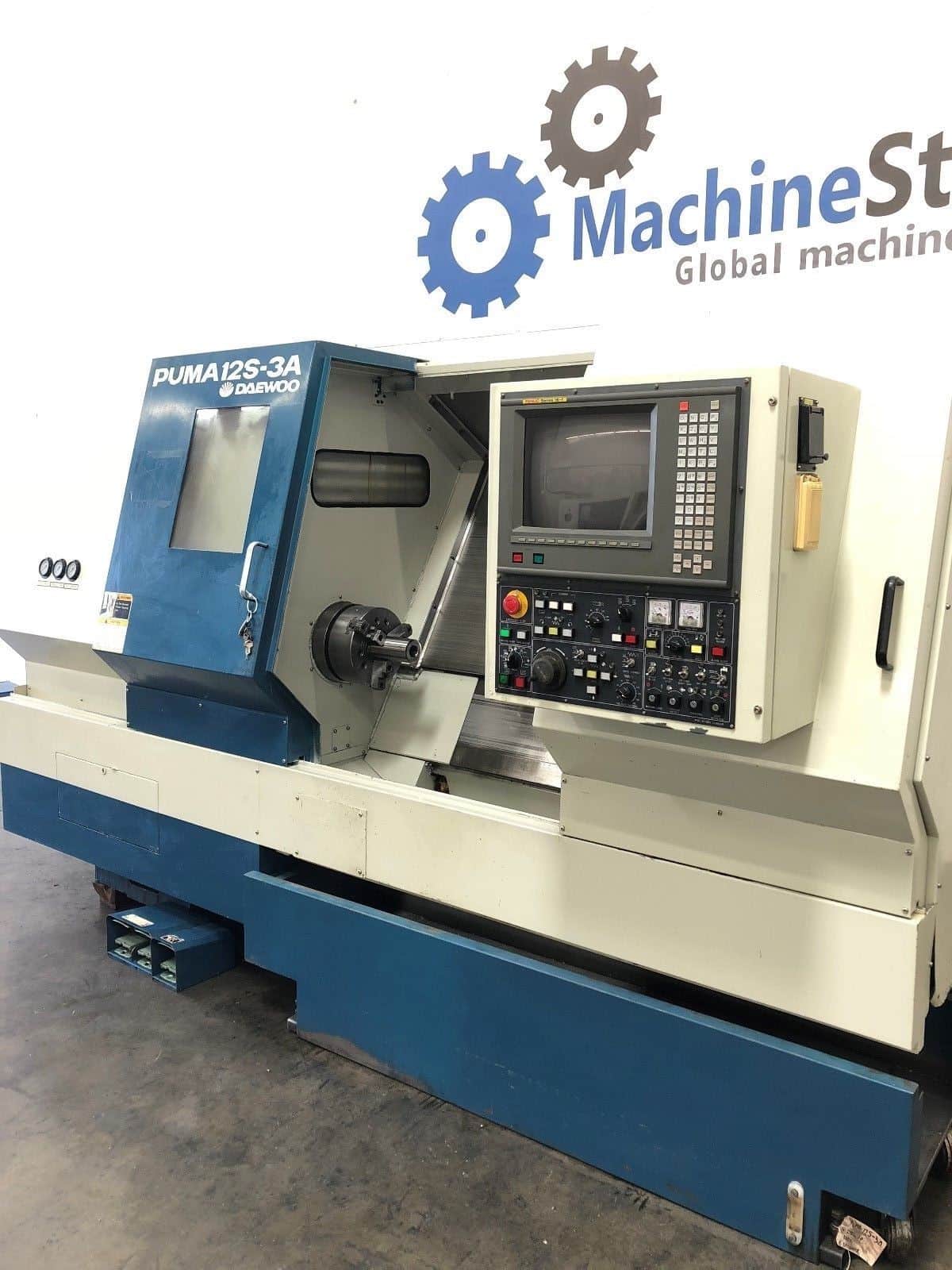

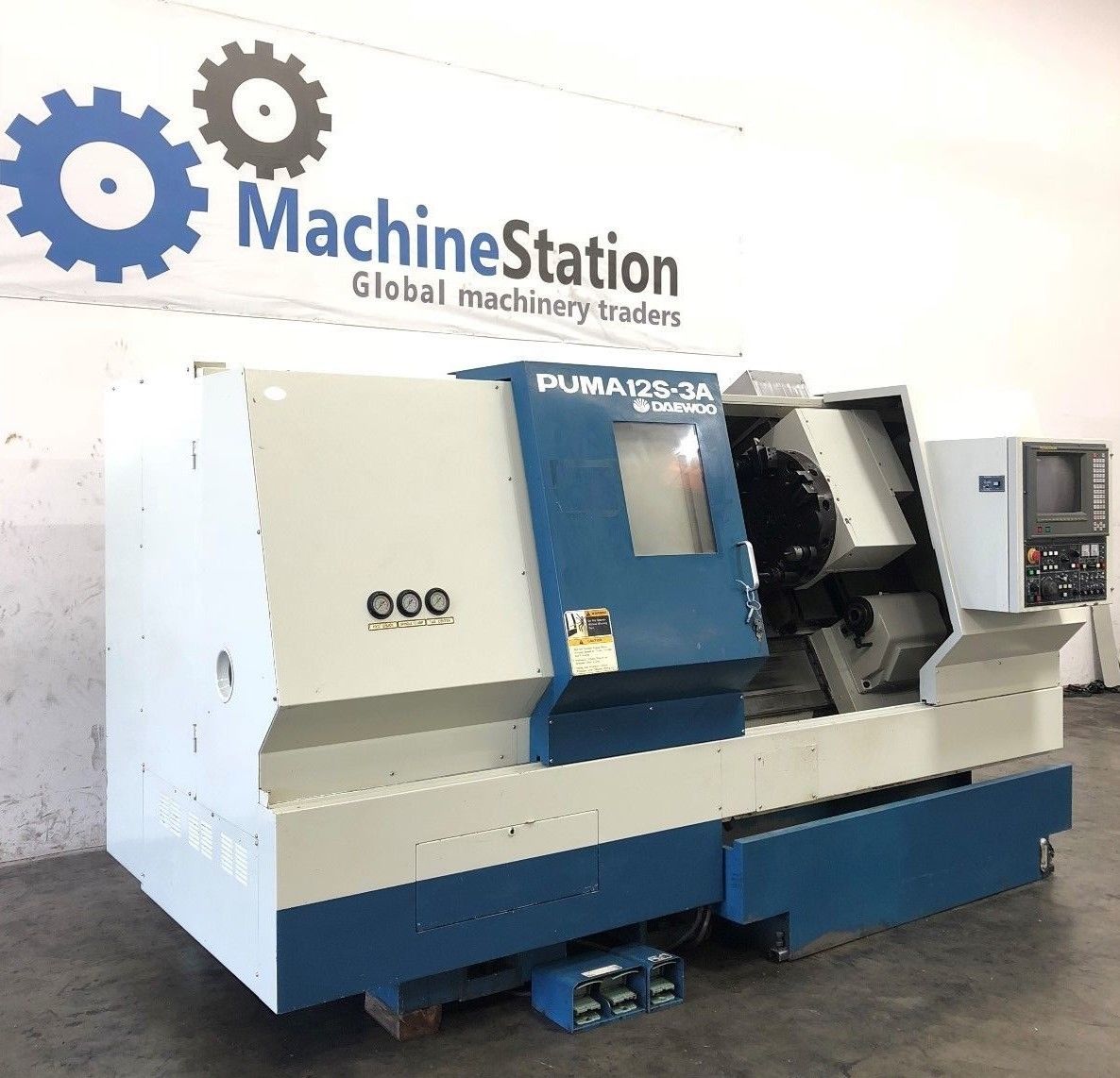

DAEWOO PUMA 12S-3A Comes as shown in pictures..
