SOLD OUT!

Daewoo Puma 1500SY CNC Turn Mill Center

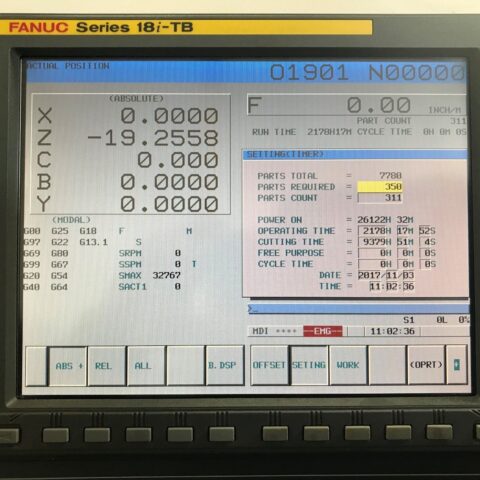

One Owner Machine only 9379 Cutting Hours, Fully powered / tested & in Great working condition. Equipped with Barfeeder, 2 X Hydraulic Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with chip conveyor, parts Conveyor, manuals, live tool holder and Barfeeder.”

Share

Description

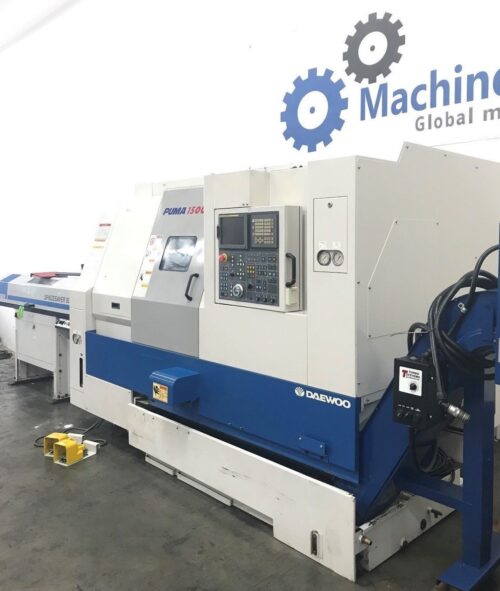

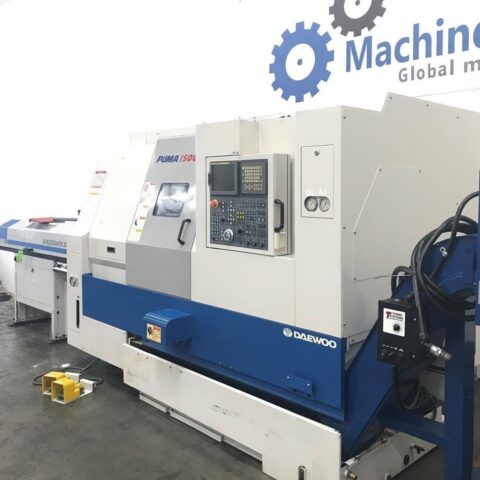

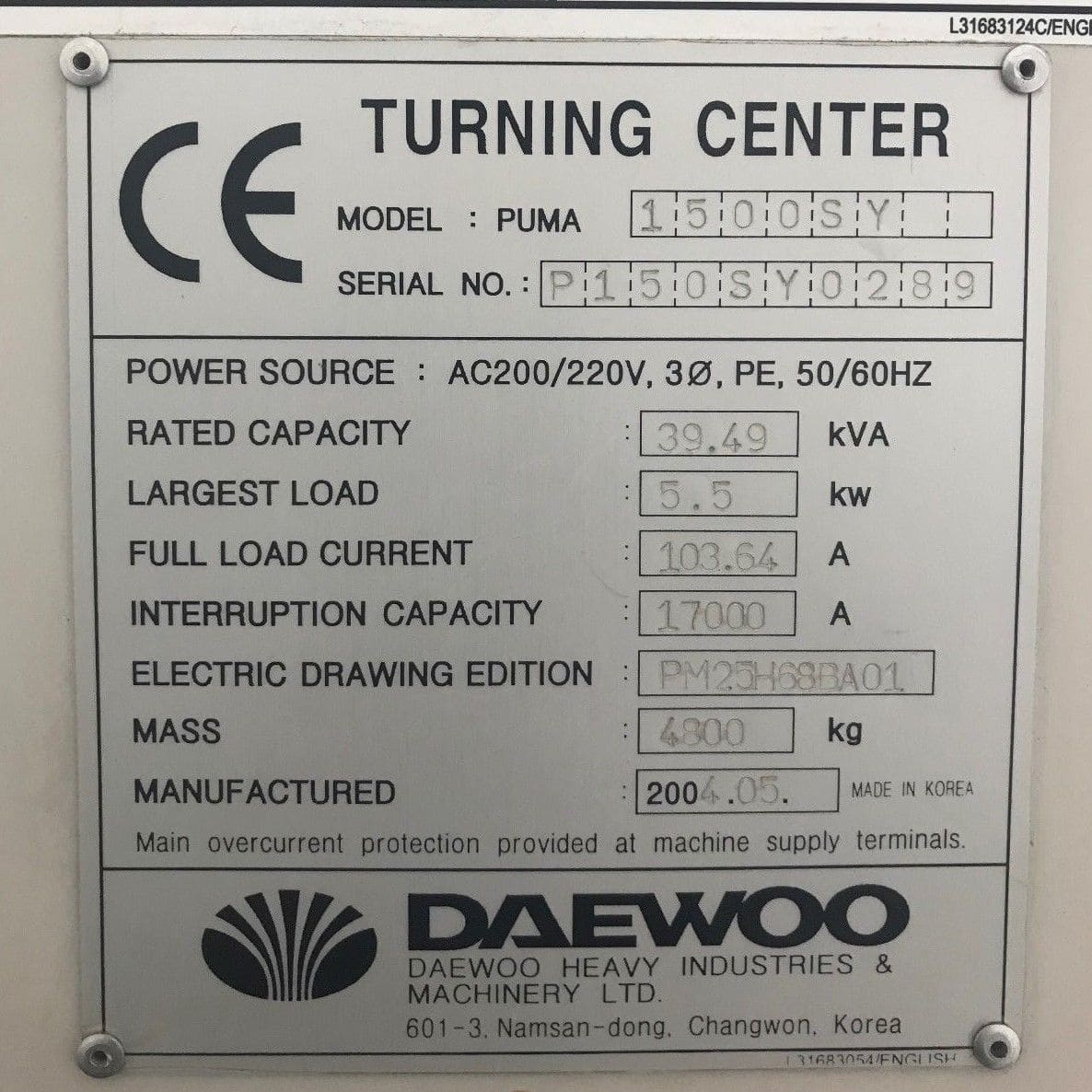

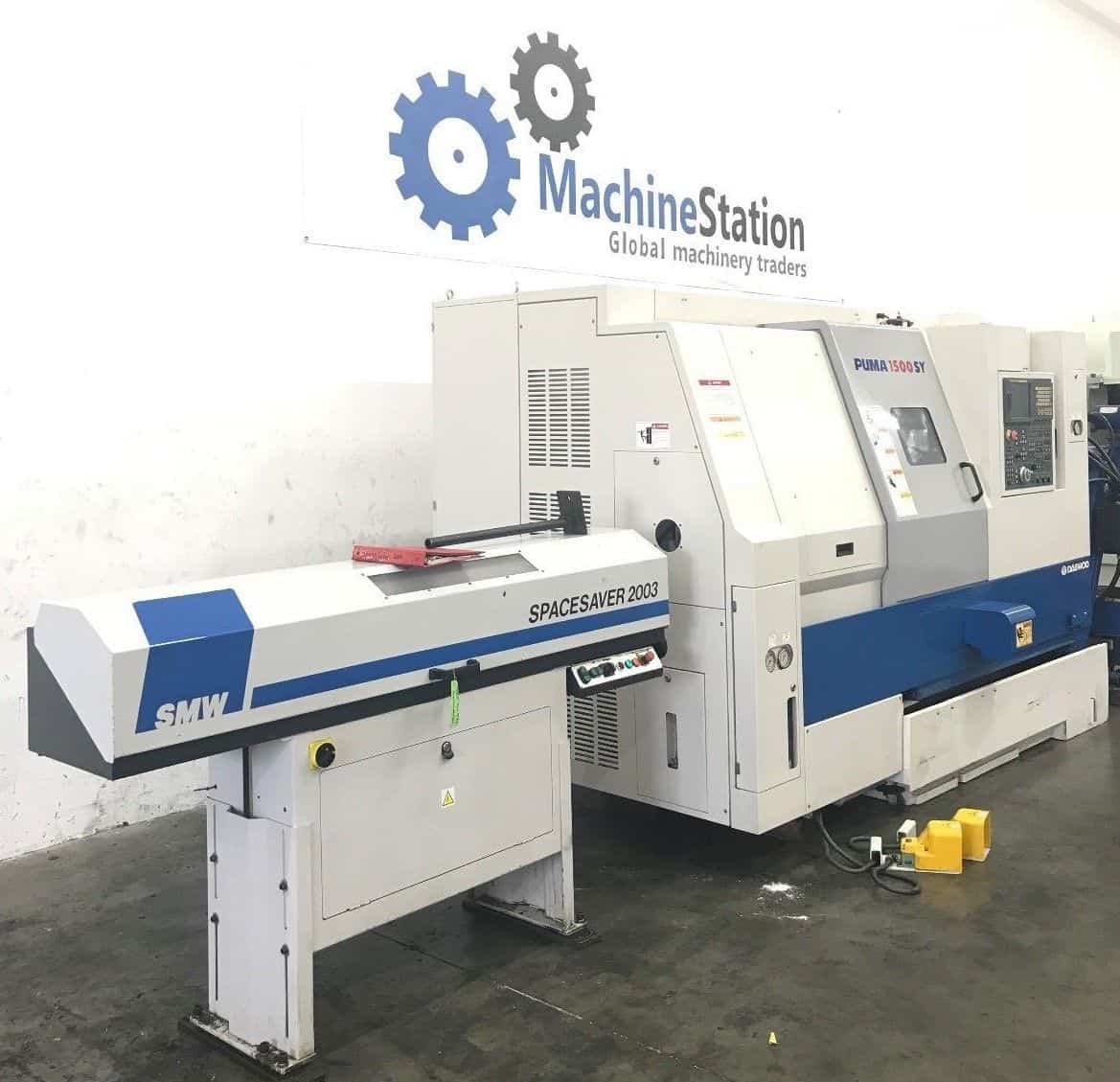

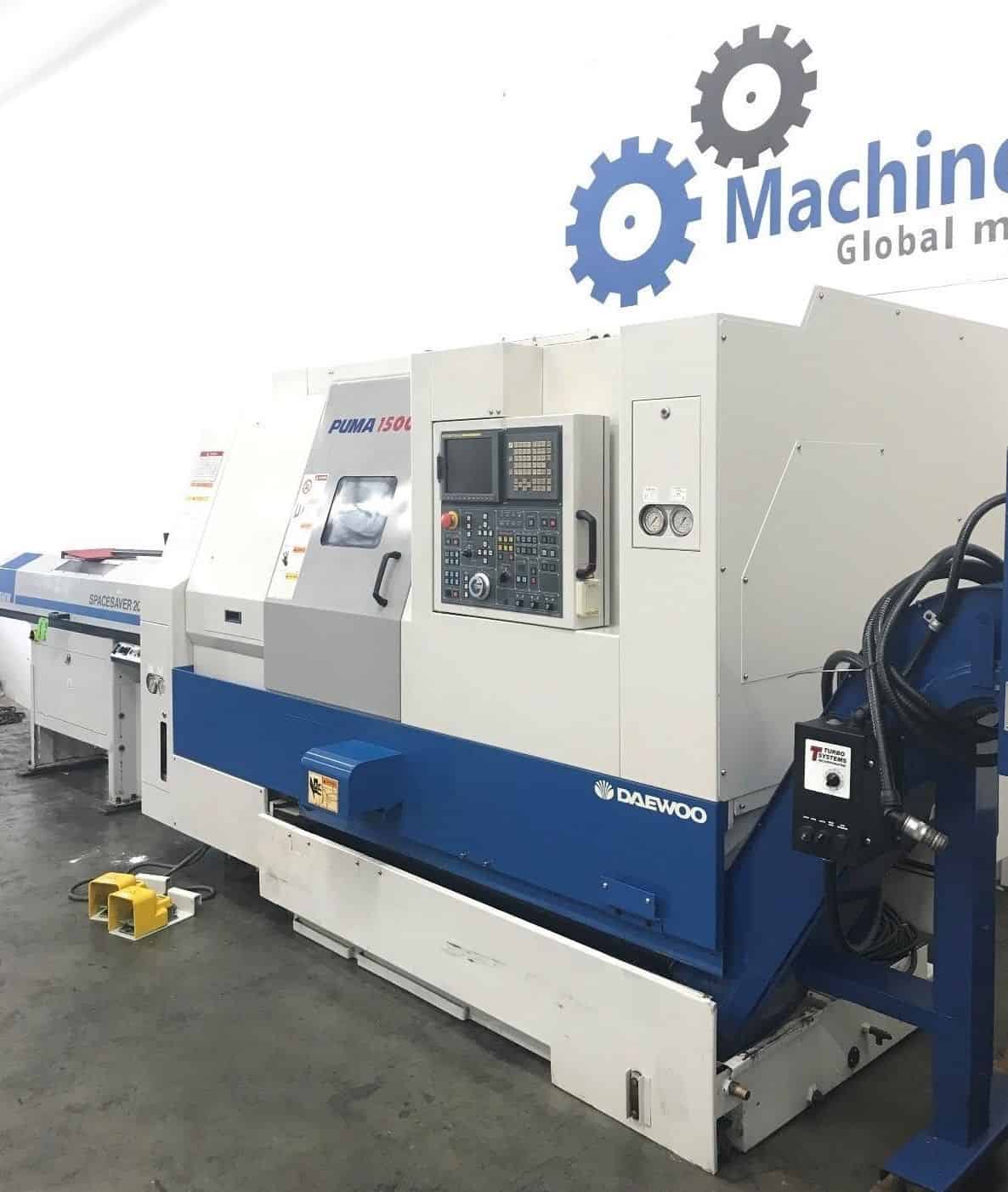

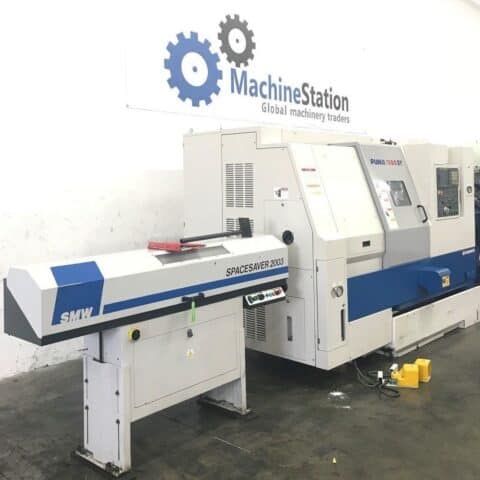

DAEWOO PUMA 1500SY CNC TURN MILL CENTER
Make Daewoo
Model No. Puma 1500SY
Year 2004.05
Serial # P150SY0289
Condition Very Good.
Country of Origin: Korea

Comes with Bar Feeder, Chip Blaster Unit, Chip, Parts Conveyor
Manuals, Live Tool Holders and Tooling.

“One Owner Machine only 9379 Cutting Hours, Fully powered / tested & in Great working condition. Equipped with Barfeeder, 2 X Hydraulic Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with chip conveyor, parts Conveyor, manuals, live tool holder and Barfeeder.”

  • DAEWOO PUMA 1500SY Equipped With:

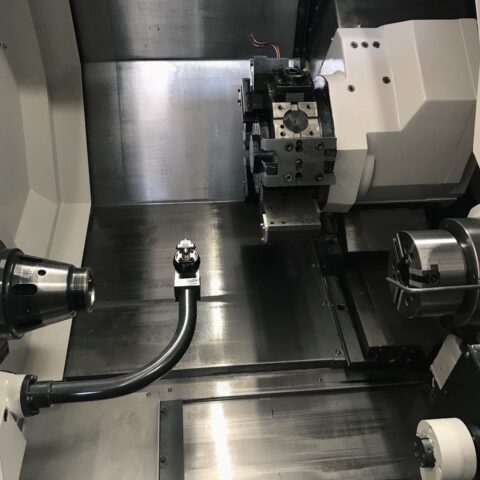

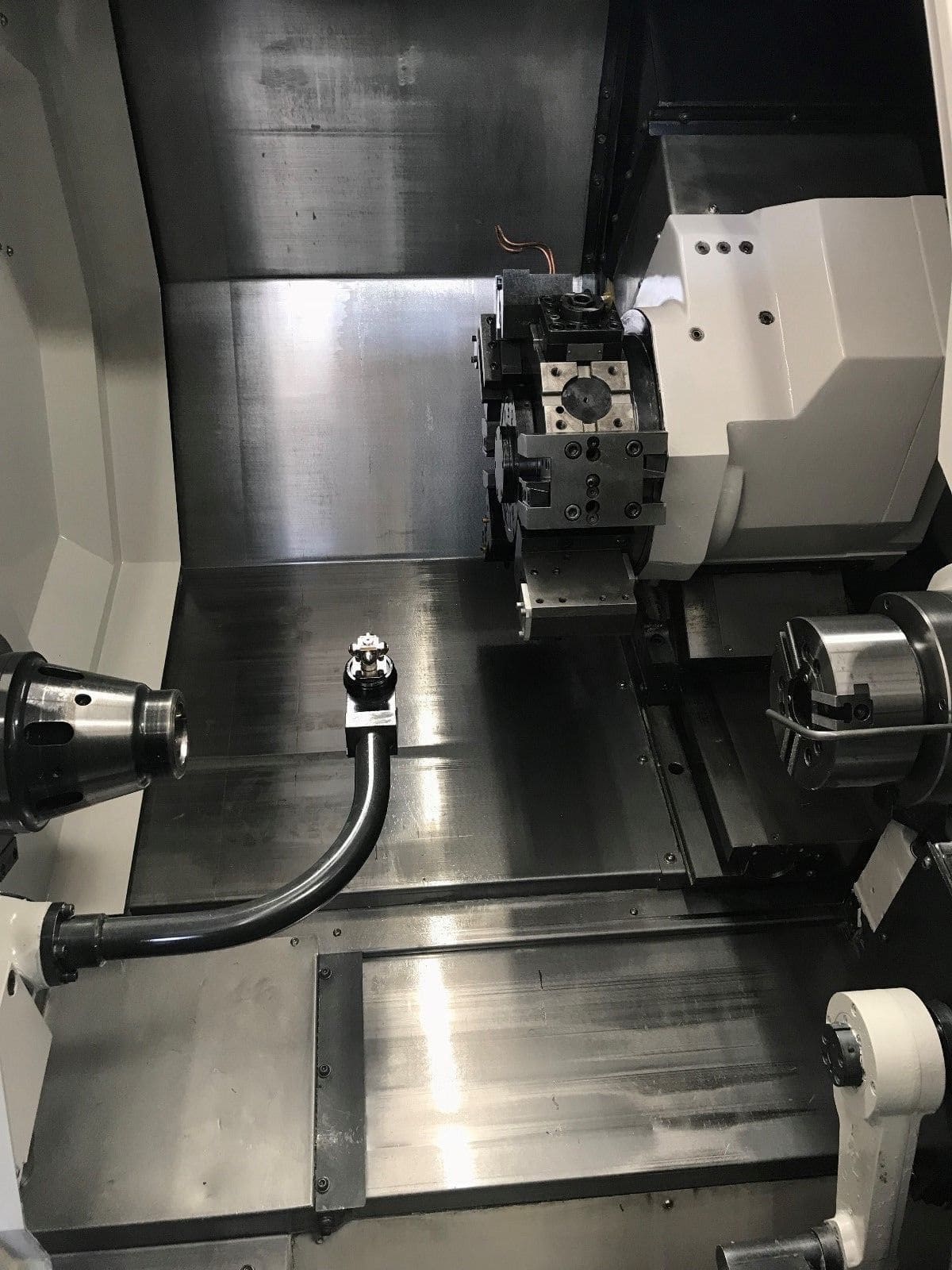

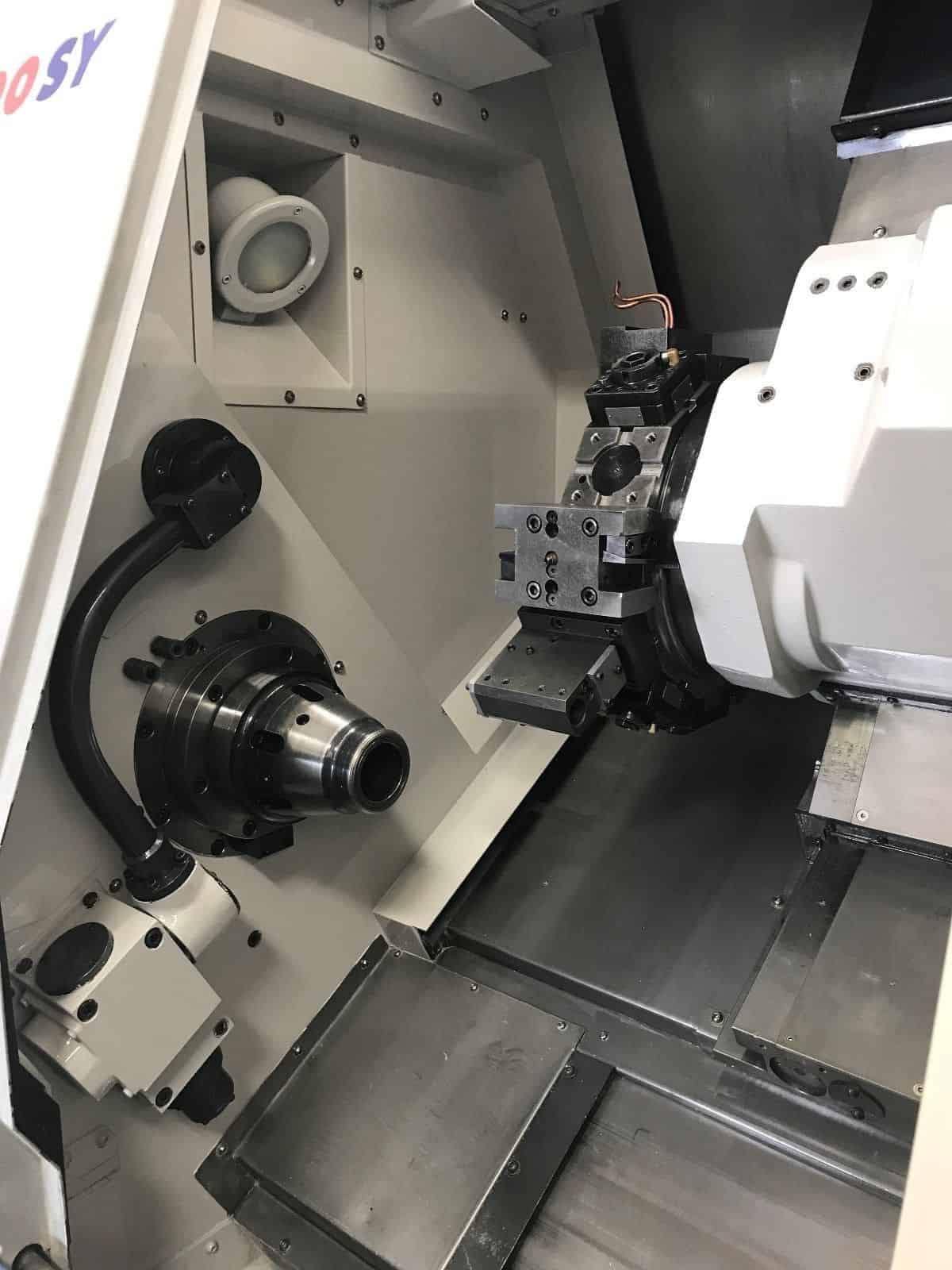

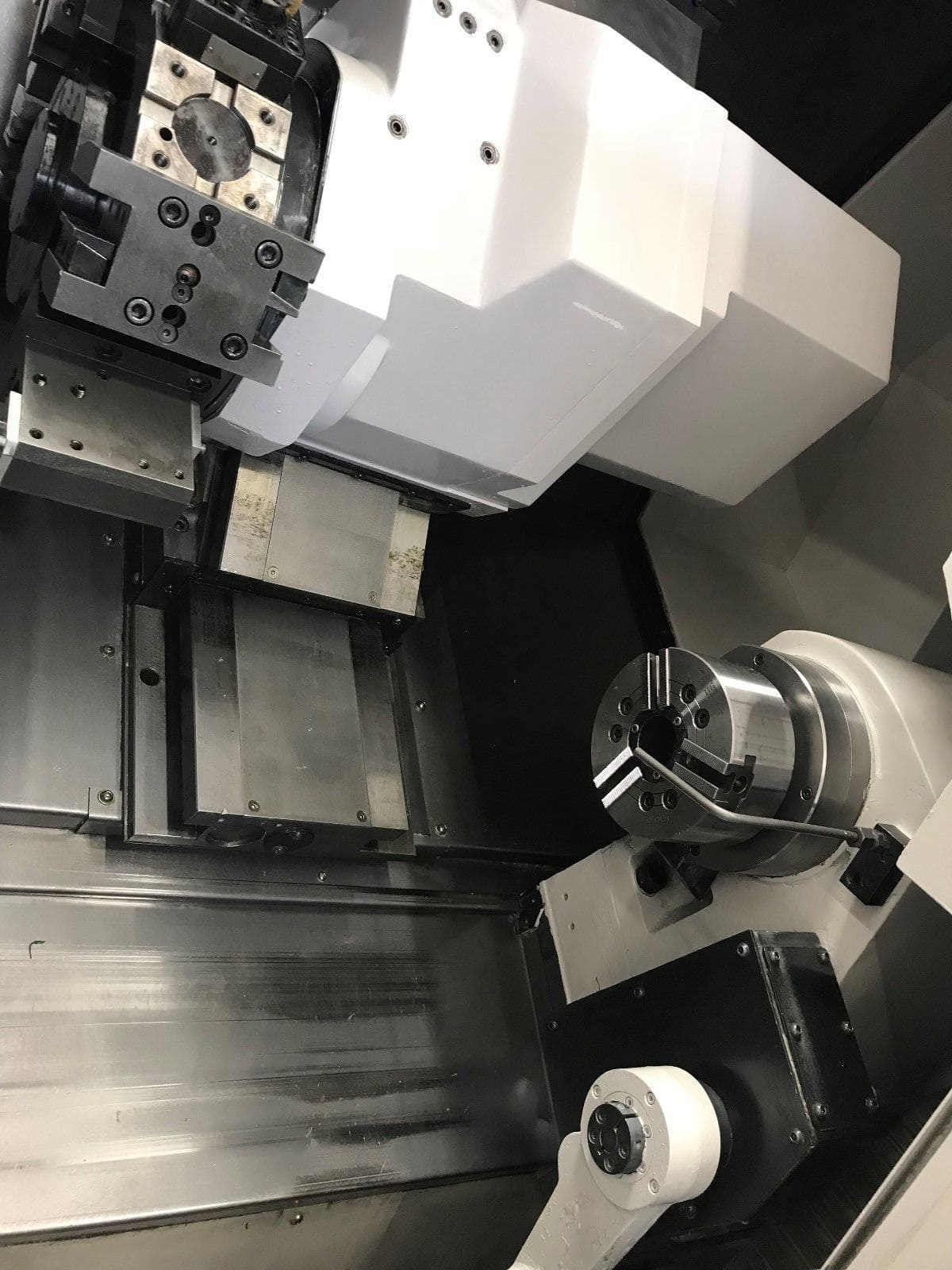

  • 12-Station Turret –  Live / Rotary Tools
  • Servo Controlled Full C-Axis on Both Spindles

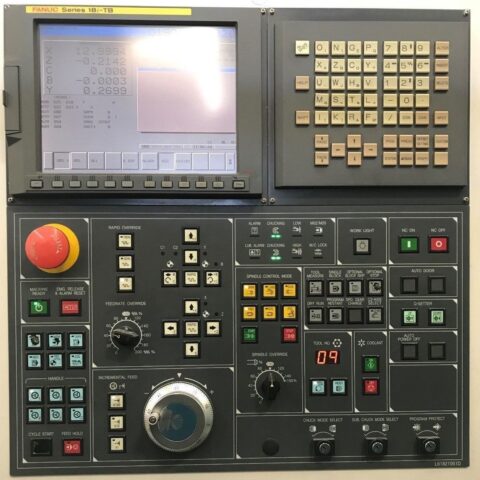

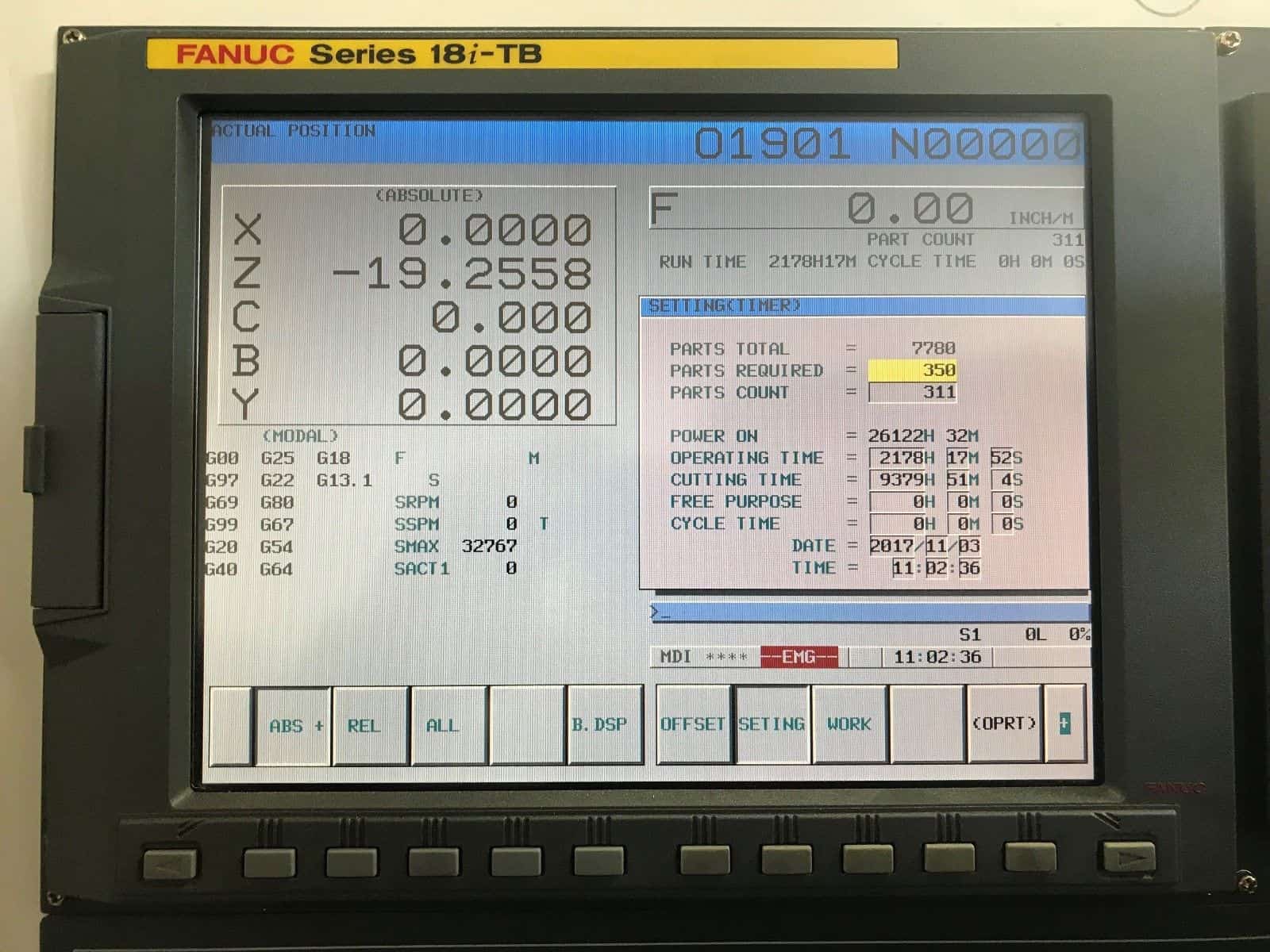

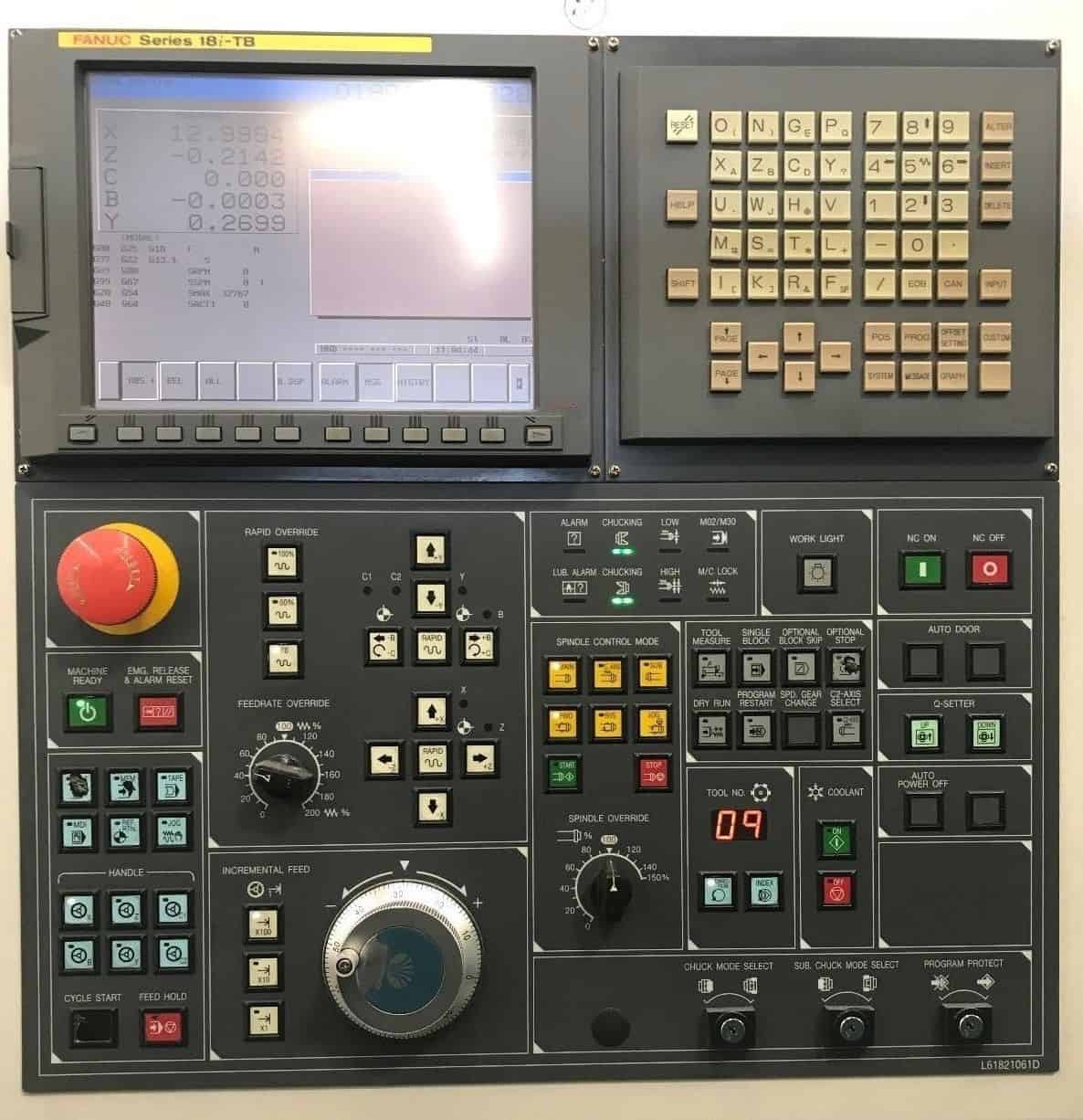

  • Fanuc 18iT CNC Control
  • PCMCIA Card Slot
  • Tool Presetter
  • Parts Catcher
  • 3 Live tools with machine
  • Parts Conveyor

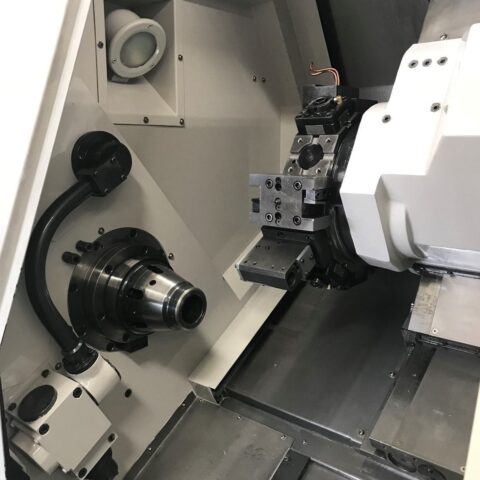

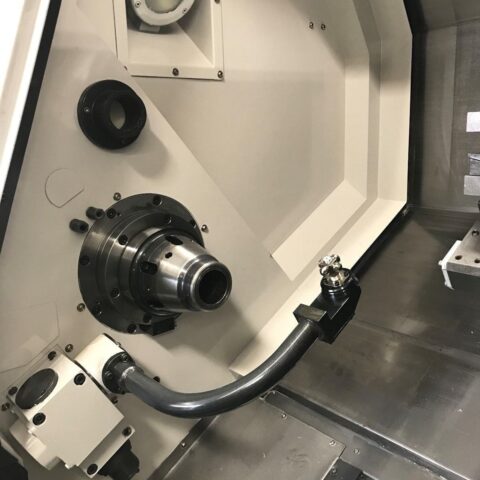

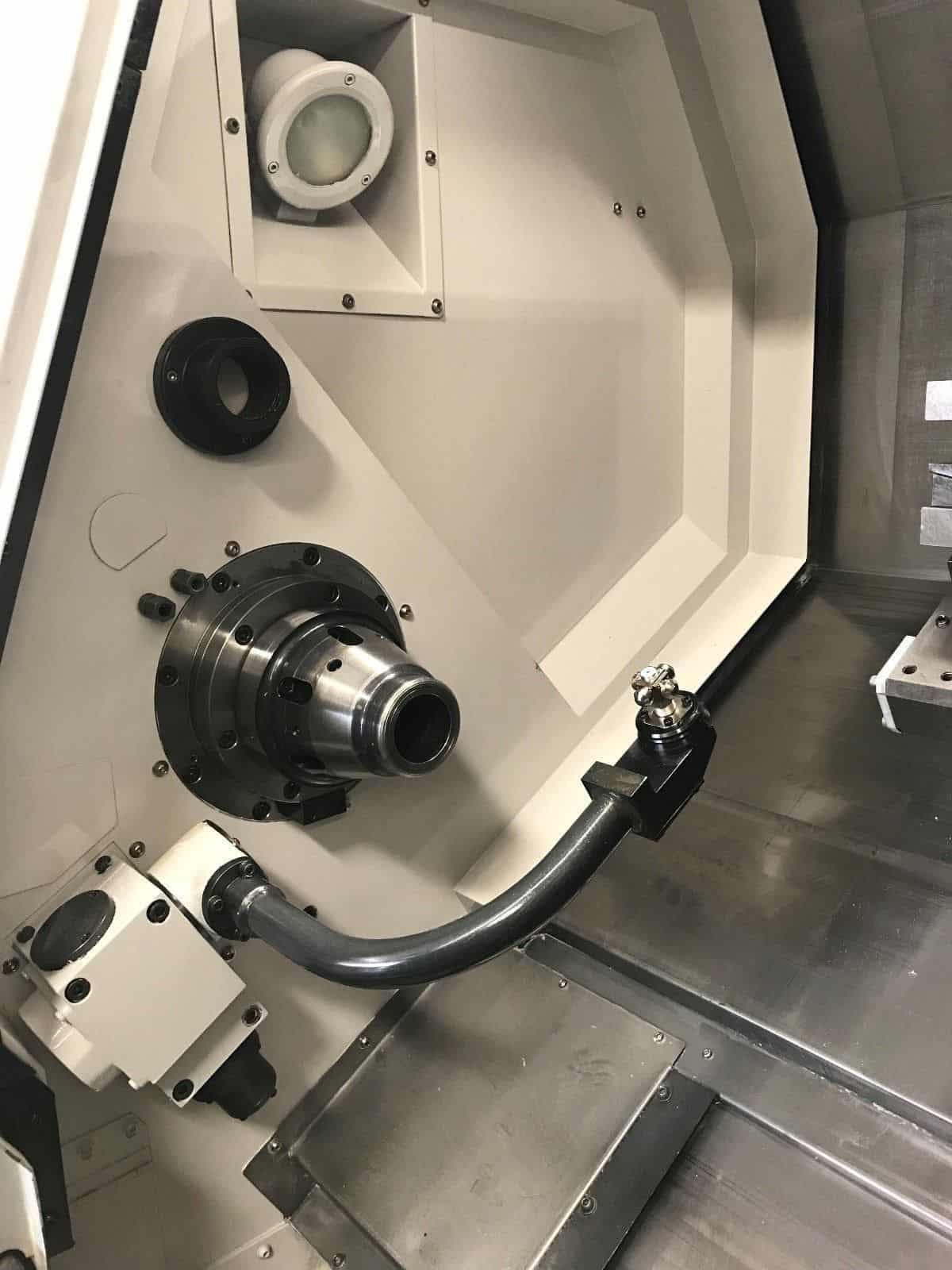

  • ATS Collet Chuck on Main Spindle

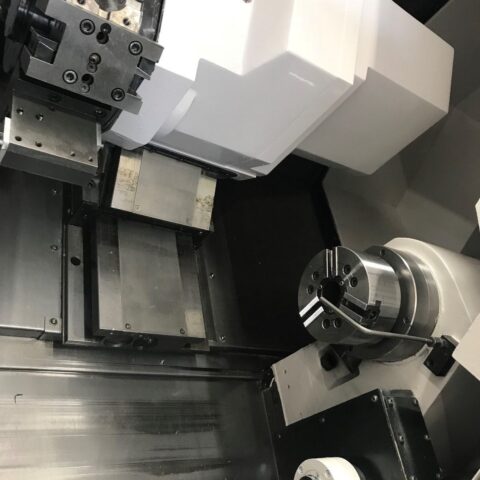

  • 3 Jaw Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck

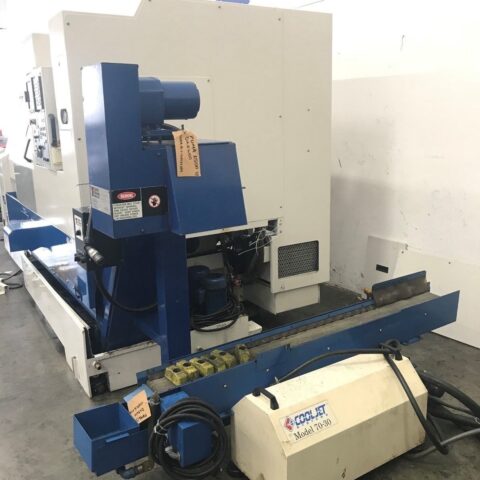

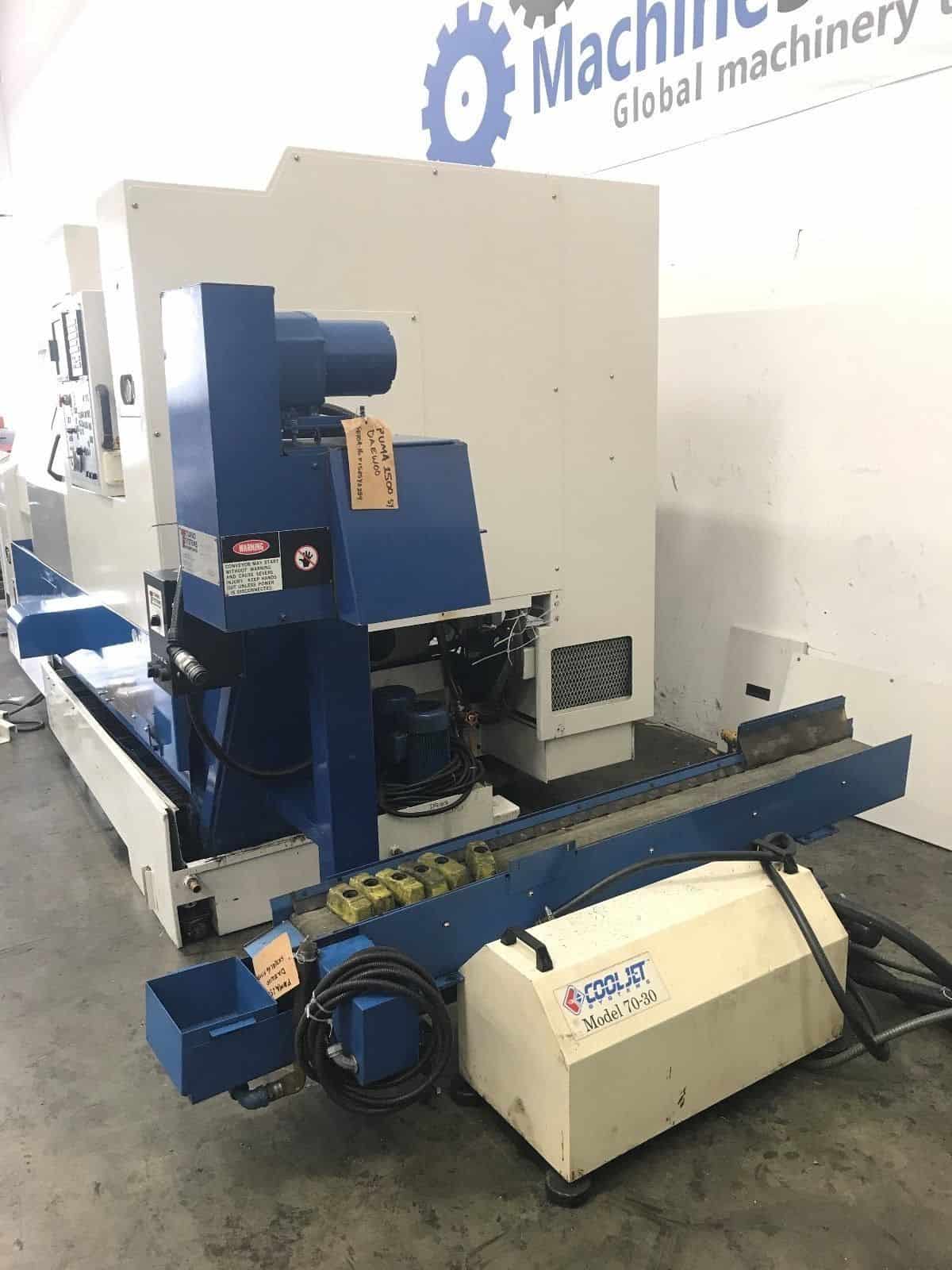

  • Turbo Systems Chip Conveyor
  • Comes with Bar Feeder.
  • Comes with Live Tools & some Static Tool Holders.
  • All Available Manuals, Tool Holders and Tooling.
  • DAEWOO PUMA 1500SY Specifications:
  • Max. Turning Diameter: 13.0″
  • Max. Swing over Bed: 23.6″
  • Max. Turning Length: 20.10″
  • Max. Bar Capacity: 1.75″
  • X-Axis Travel: 9.84″
  • Y Axis Travel: 4.0″
  • Z-Axis Travel: 22.80″
  • Z2- Sub Spindle Travels: 22.80″
  • C-Axis: 360 Degree (0.001) on Both Spindle
  • X Rapid Traverse Rate: 790 Inch Per Minute
  • Z Rapid Traverse Rate: 945 Inch Per Minute
  • Y Rapid Traverse Rate: 295 Inch Per Minute
  • Spindle Bore: 2.00″
  • Sub Spindle Bore: 1.77″
  • Main Spindle Nose: A2-5
  • Sub Spindle Nose: A2-5
  • Main Spindle Speed: 60-6000 RPM
  • Sub Spindle Speed: 60-6000 RPM
  • Main Spindle Power: 20 HP
  • Sub Spindle Power: 15 HP
  • 12 Tools Turret with ER type Collet Tools
  • Indexing Time: 0.5 Second
  • Live Tool Speed: 50-5,000 RPM”
  • Live Tool Motor: 7.5 kw
  • Power Source: AC 200/220 V, Three Phase, 50/60 Hz
  • Power Requirement: 40 kva
  • Weight : 11500 lbs Approx.
  • Overall Dimensions: 120″ x 72″ x 90″ High
  • Overall Dimensions: 136″ x 72″ x 90″ High with Chip Conveyor

DAEWOO PUMA 1500SY Comes as shown in pictures.
