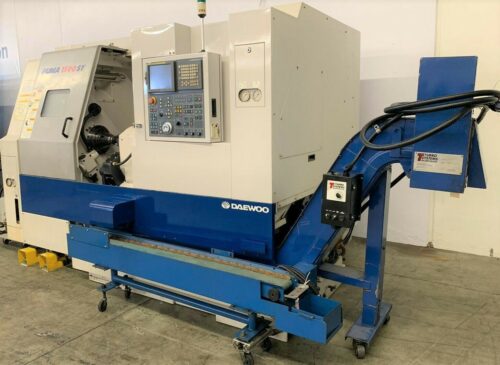

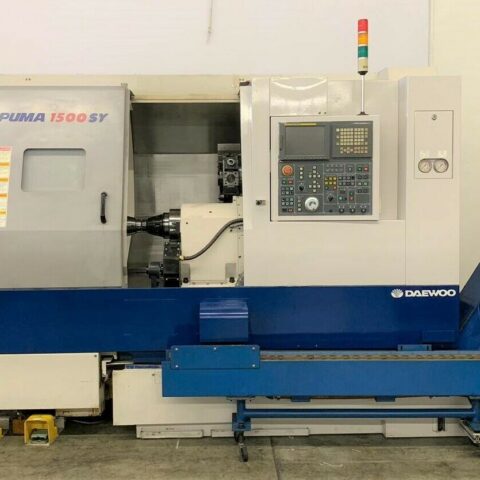

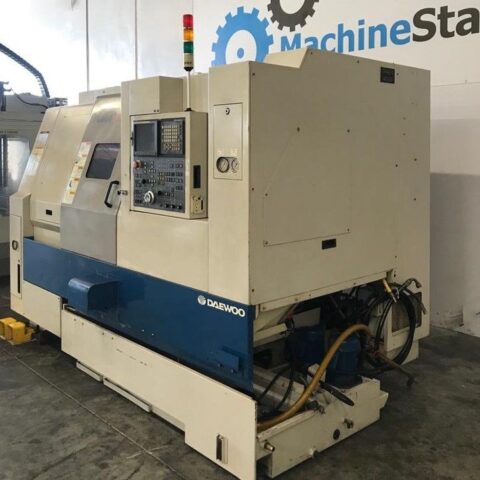

| DAEWOO PUMA 1500SY CNC SUB SPINDLE LIVE TOOL C Y AXIS TURNING Lathe | |
|---|---|
| Make | Daewoo |
| Model No. | Puma 1500SY |

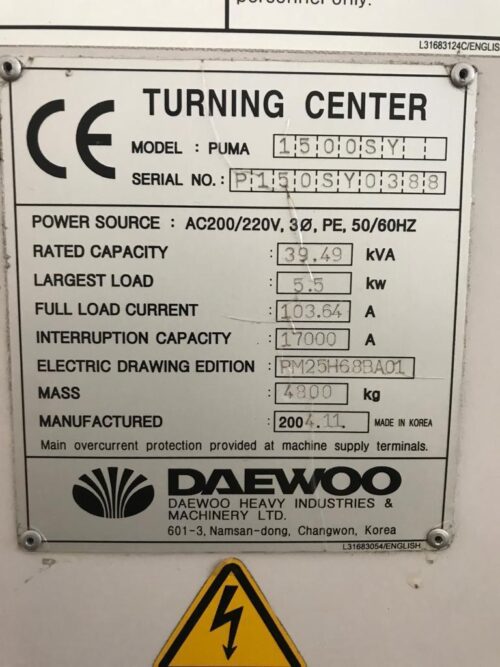

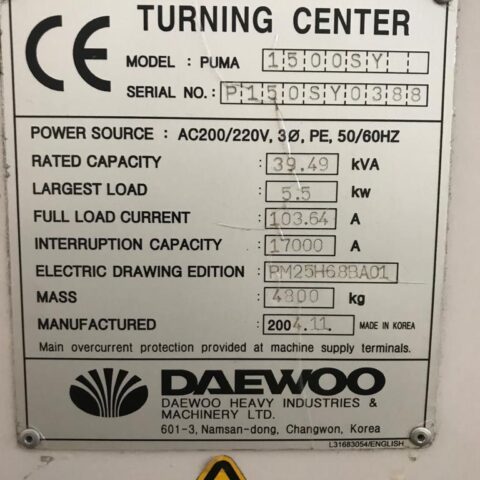

| Serial # | P150SY0388 |
| Condition | Very Good |
| Comes with 2 X Collet Chuck, Tool Holders, Cool blaster, parts & Chip Conveyor | |
All specifications are approximations and are subject to verification.
- Daewoo Puma 1500SY Equipped With:

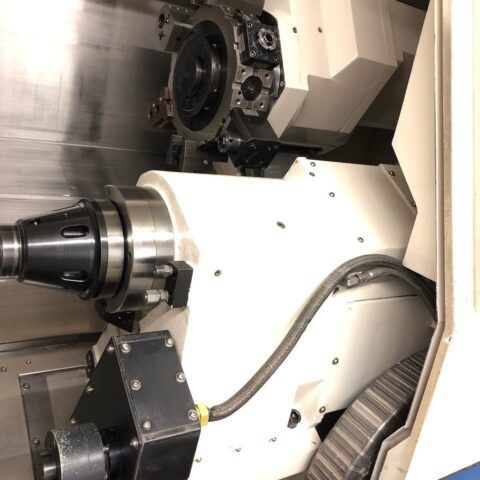

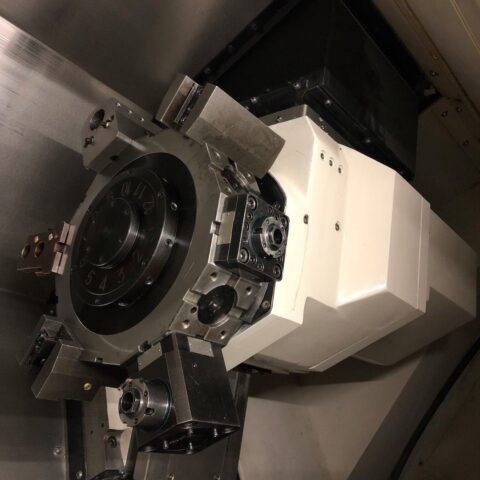

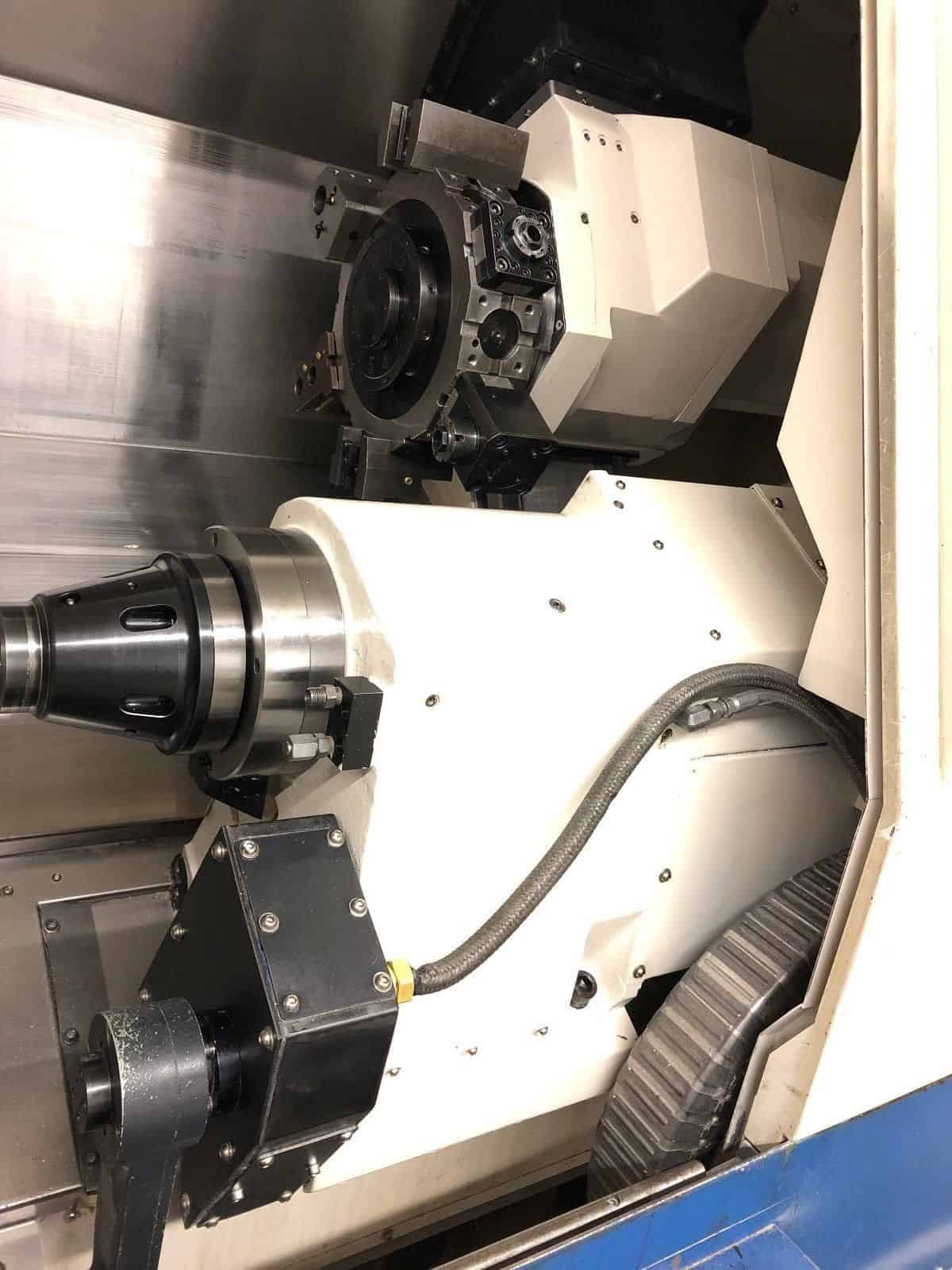

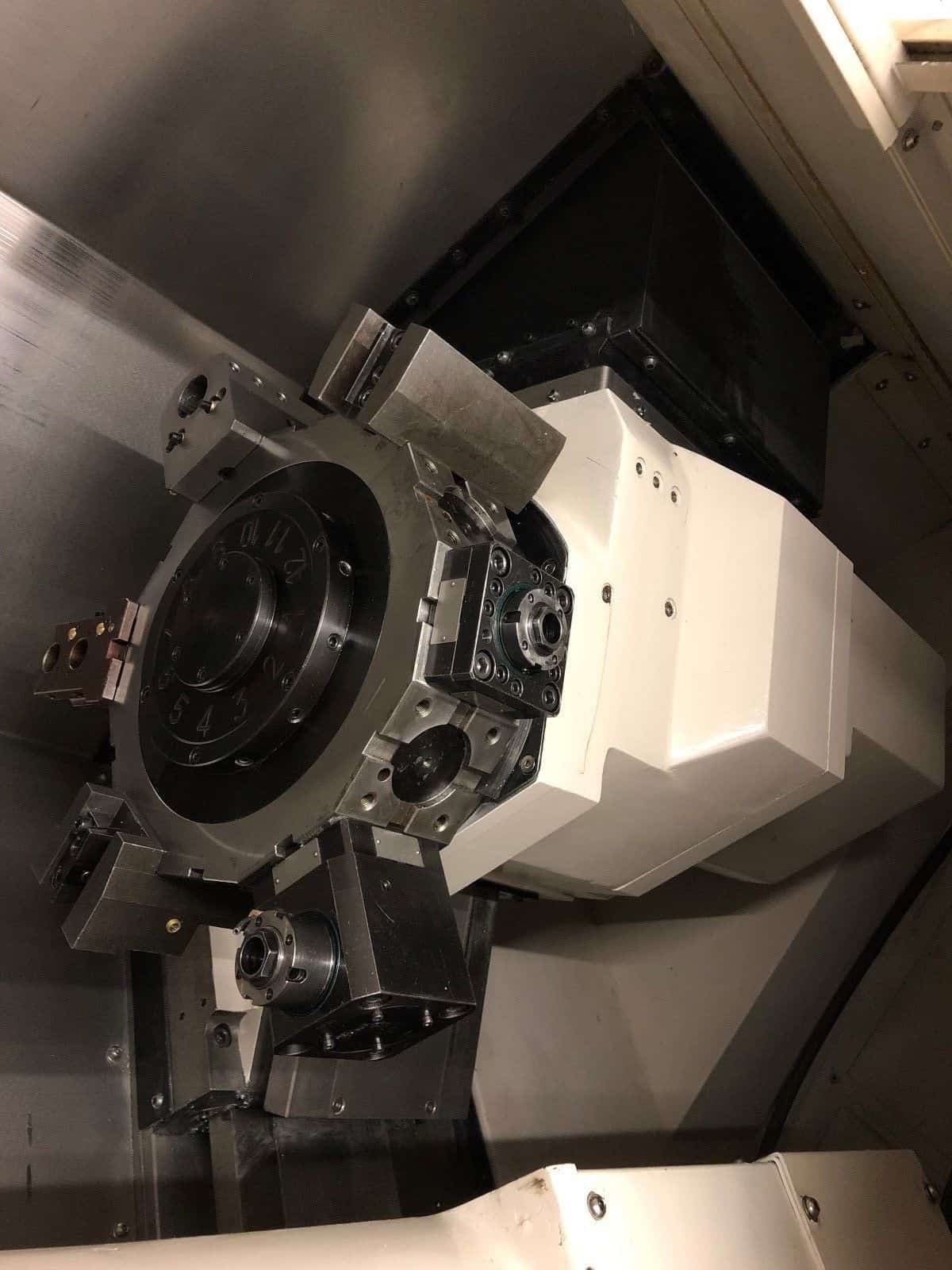

- 12-Station Turret – Live / Rotary Tools
- Servo Controlled Full C-Axis on Both Spindles

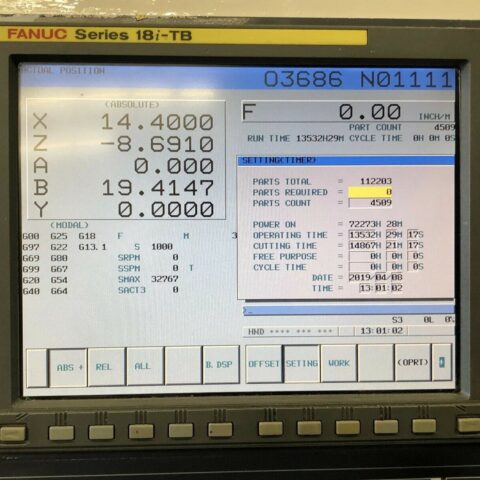

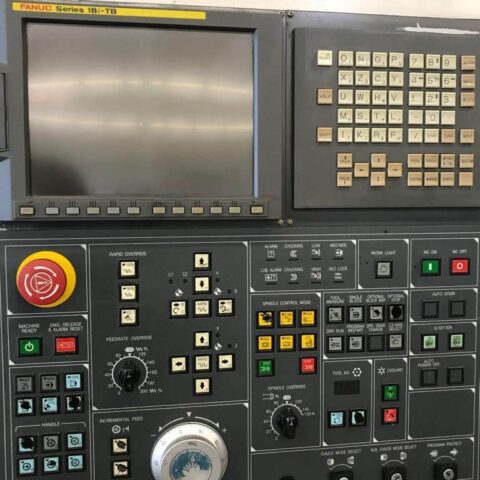

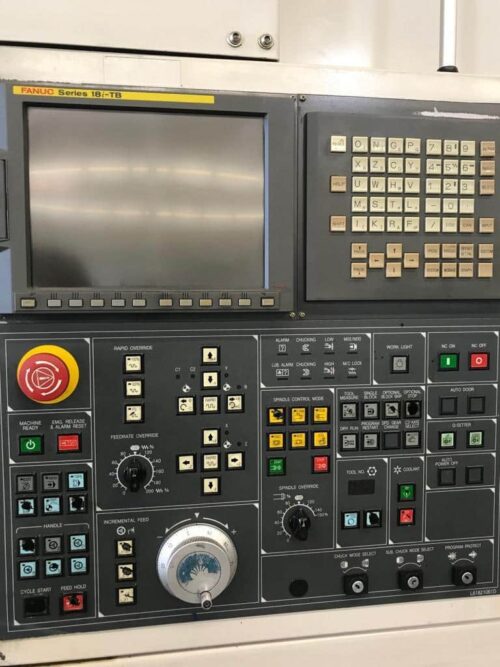

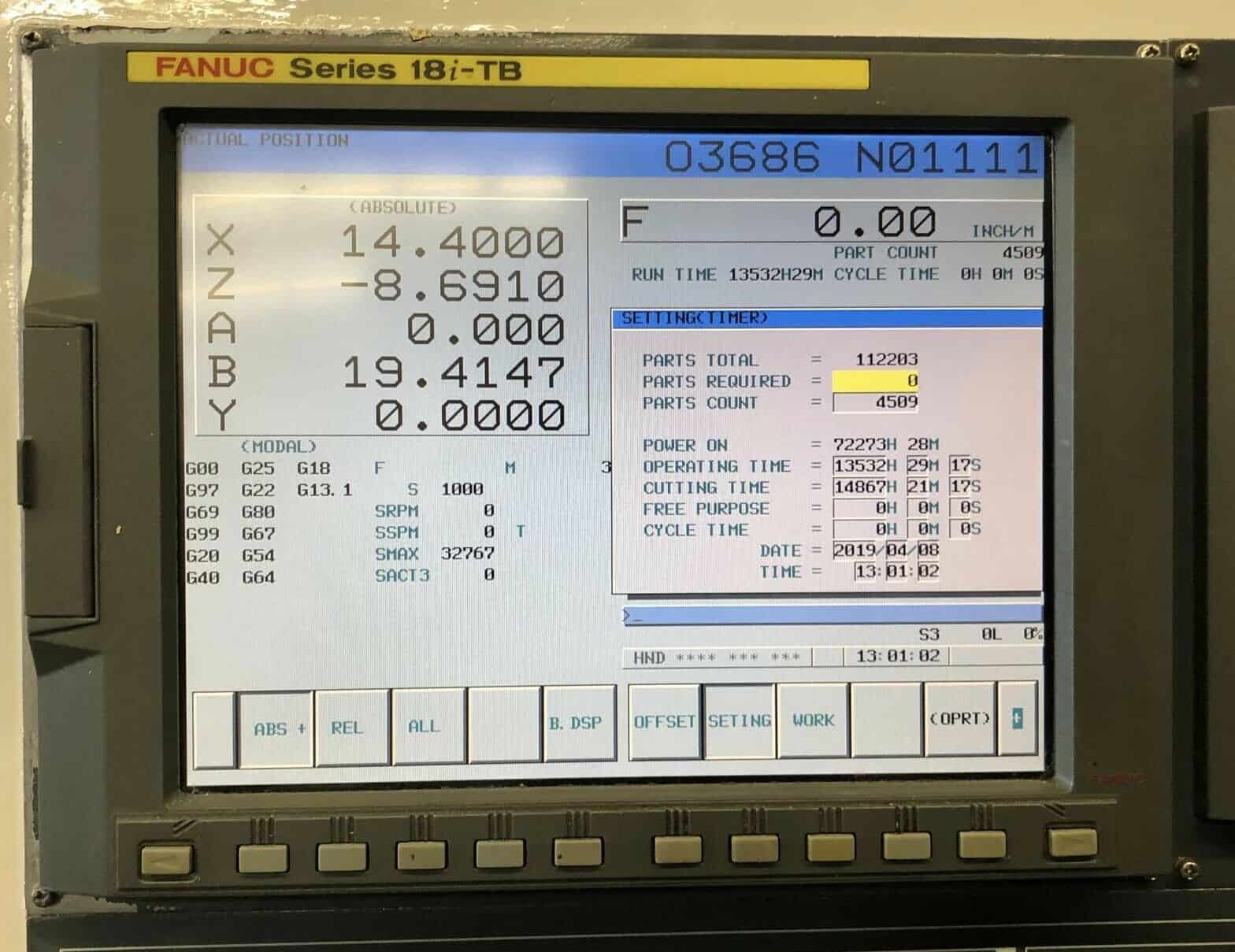

- Fanuc 18iT CNC Control
- PCMCIA Card Slot
- Tool Presetter
- Parts Catcher
- Parts Conveyor
- Collet Chuck on Main Spindle

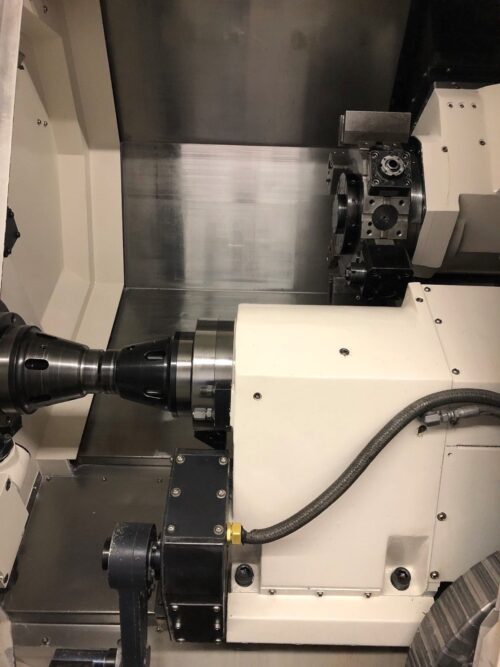

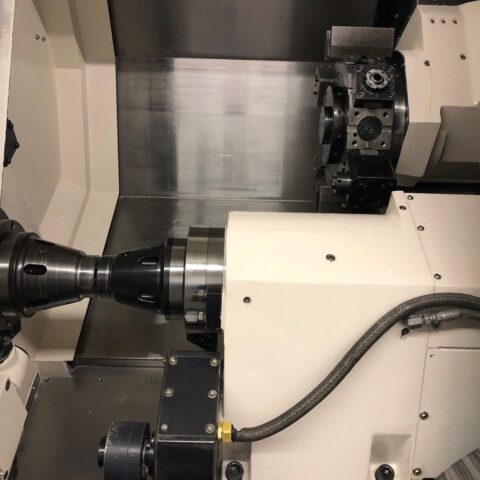

- Collet Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- Turbo Systems Chip Conveyor
- Comes with 2 Live Tools & some Static Tool Holders
- Books & Manuals
- Daewoo Puma 1500SY Specifications:
- Capacity:
- Max Turning Diameter: 12.99″
- Max Turning Length: 20.1″
- Max Bar Capacity: 1.77″
- Swing Over Bed: 23.62″
- Swing over the Saddle: 21.65″
- Travels:
- X Axis Travel: 9.84″
- Z Axis Travel: 22.80″
- Y Axis Travel: 4″
- B Axis Travel: 22.8″ ( Sub Spindle )
- C Axis: 360° (0.001°) Both Spindle
- Feedrate:
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Rapid Traverse Y Axis: 295 IPM
- Rapid Traverse B Axis: 787 IPM
- Spindle:
- Main Spindle Bore: 2.0″
- Sub Spindle Bore: 1.77″
- Main Spindle Nose: A2-5
- Sub Spindle Nose: A2-5
- Main Spindle Speed: 60-6000 RPM
- Sub Spindle Speed: 60-6,000 RPM
- Main Spindle Power: 20HP
- Sub Spindle Power: 15HP
- Live Tool Spindle Motor: 3.7 kw
- Turret:
- Capacity: 12 Live Stations
- Turret Index Time: 0.1 Second
- Live Tool Speed: 50-5,000 RPM
- General:
- Power: 53 kva, 220v / 3-Phase
- Overall Dimensions: 120″ x 67″ x 72″ High
- Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor
- Weight: 11,500 lbs

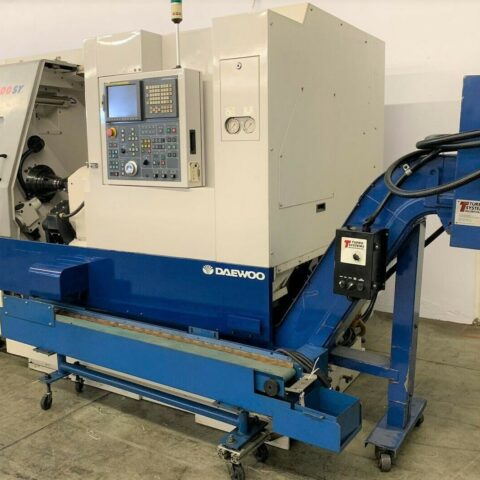

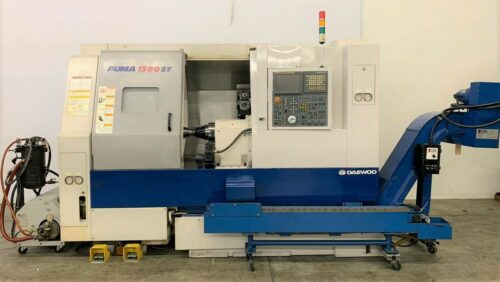

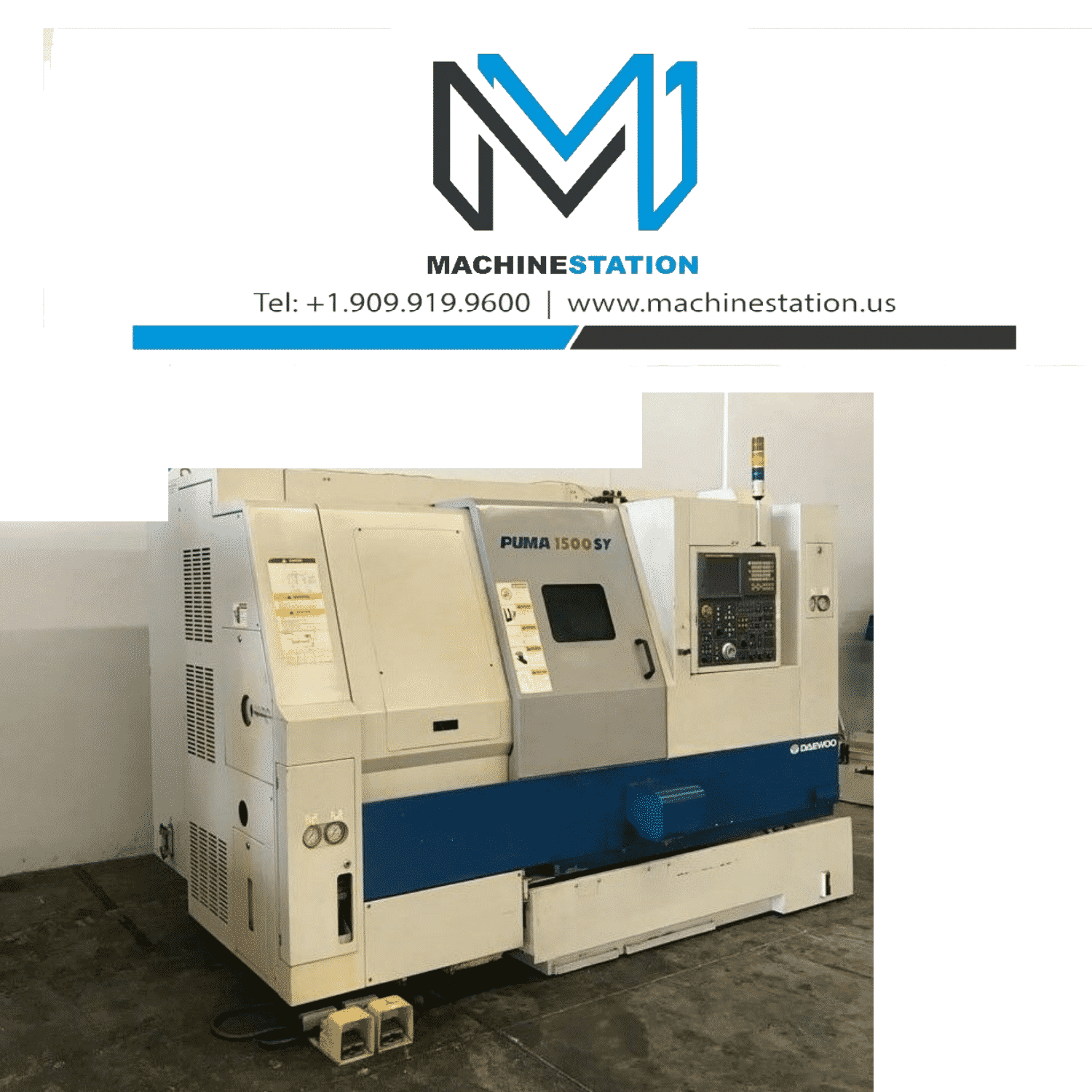

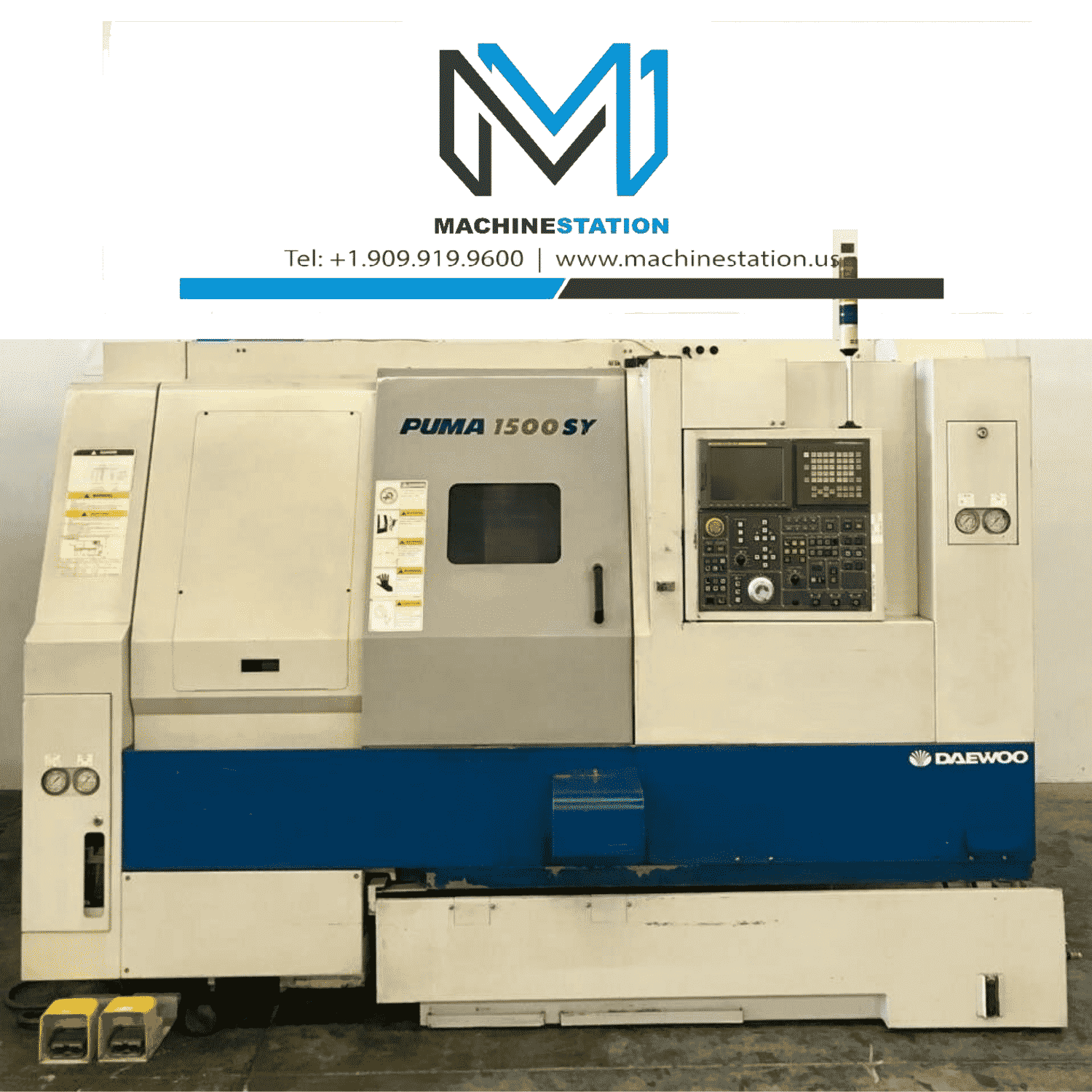

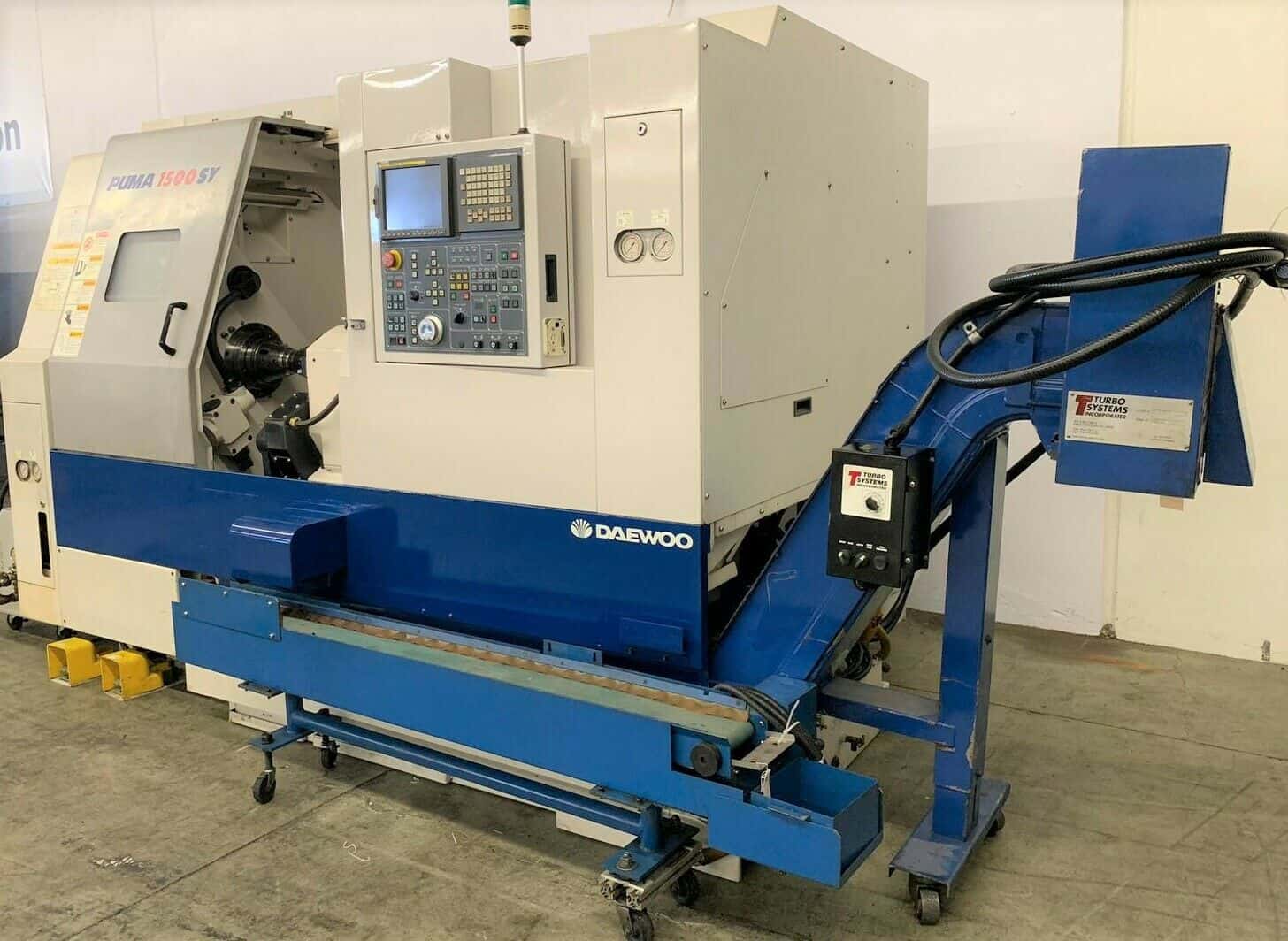

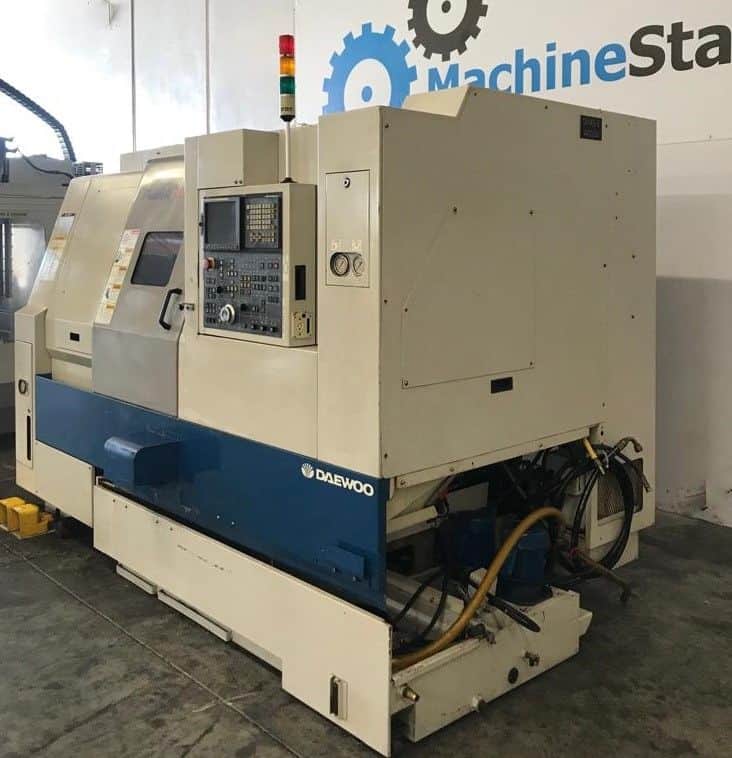

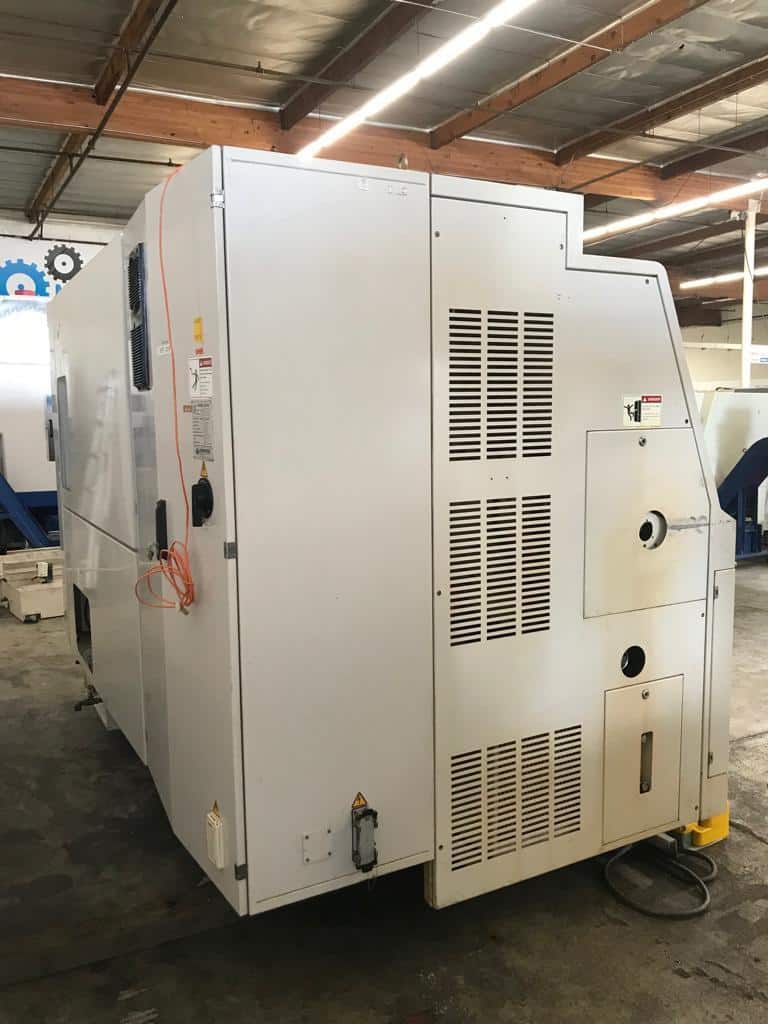

Daewoo Puma 1500SY Comes as shown in pictures..
