DAEWOO PUMA 200LMSC CNC SUB SPINDLE LIVE TOOL TURNING CENTER |
|
|---|---|
| Make | Daewoo |
| Model No. | Puma 200LMSC |
| Serial # | P20MS0207 |
| Condition | Very Good |
| Comes with 2 X 3 jaw Chuck, Tool Holders, Parts & Chip Conveyor. | |
All specifications are approximations and are subject to verification.
“One Owner Machine, Fully powered / tested & in Good working condition. Equipped with 2 X 3 jaw Chucks, Full C Axis, Milling, Sub Spindle. Comes with chip conveyor, manuals, live tool holders.”
- Daewoo Puma 200 LMSC Equipped With:

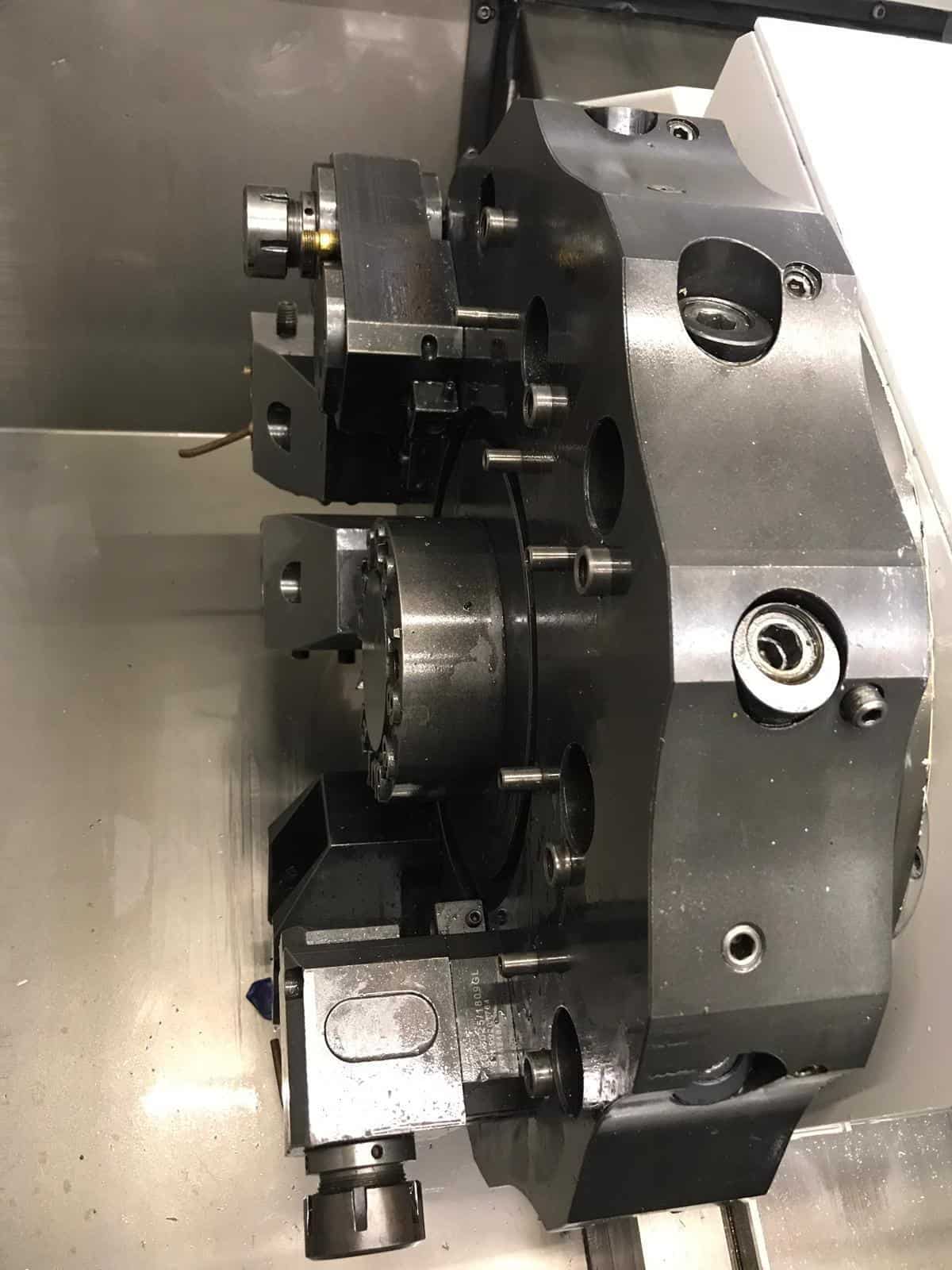

- 12-Station Turret – Live / Rotary Tools
- Servo Controlled Full C-Axis on Both Spindles
- Fanuc 18T CNC Control
- Tool Presetter
- Parts Catcher
- 8″ 3 jaw Chuck on Main Spindle

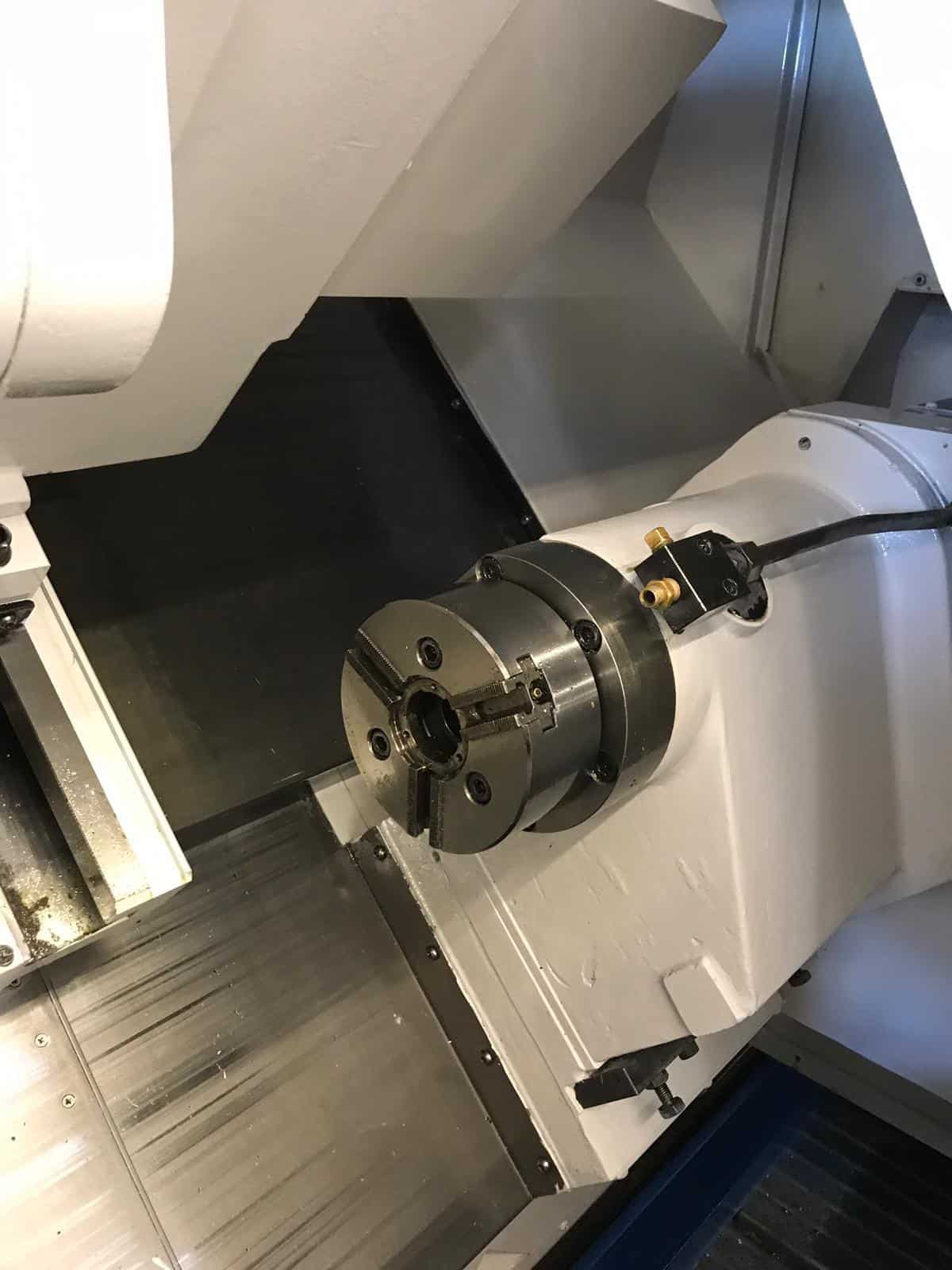

- 6″ 3 jaw Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- Turbo Systems Chip Conveyor
- Comes with Live Tools & some Static Tool Holders
- All Available Books and Manuals
- Daewoo Puma 200 LMSC Specifications:
- Capacity:
- Max Turning Diameter: 11.8″
- Max Turning Length: 15.37″
- Max Bar Capacity: 2.6″
- Swing Over Bed: 20.1″
- Travels:
- X Axis Travel: 8.77″
- Z Axis Travel: 22.83″
- C Axis: 360° (0.001°) Both Spindle
- Sub Spindle Travel: 18.90″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle:
- Main Spindle Bore: 2.99″
- Sub Spindle Bore: 1.77″
- Main Spindle Nose: A2-6
- Sub Spindle Nose: A2-5
- Main Spindle Speed: 45-4500 RPM
- Sub Spindle Speed: 60-6,000 RPM
- Live Tool Speed: 60-6,000 RPM
- Main Spindle Power: 15 kw
- Sub Spindle Power: 5.5 kw
- Turret:
- Capacity: 12 Live Stations VDI 30
- Turret Index Time: 0.15 Second
- General:
- Power: 35 kva, 220v / 3-Phase
- Overall Dimensions: 130″ x 67″ x 72″ High
- Overall Dimensions: 146″ x 62″ x 72″ High with Chip Conveyor
- Weight: 9500 lbs
Daewoo Puma 200 LMSC Comes as shown in pictures..
