*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

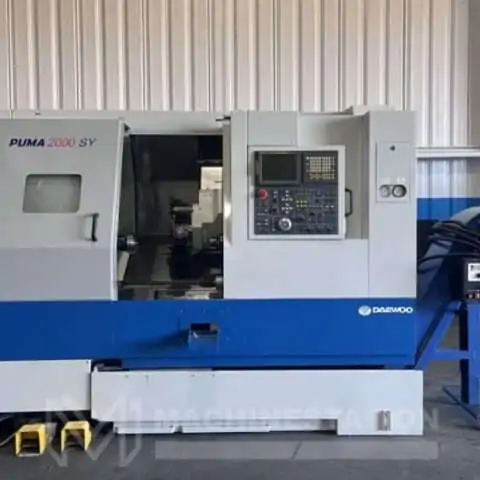

| Make: |

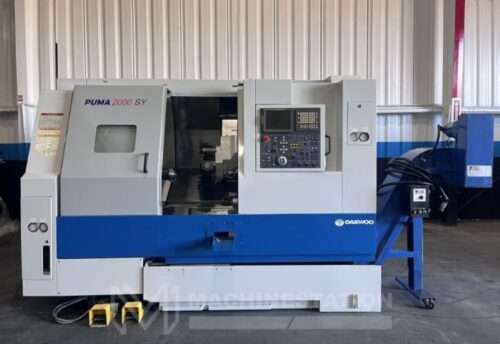

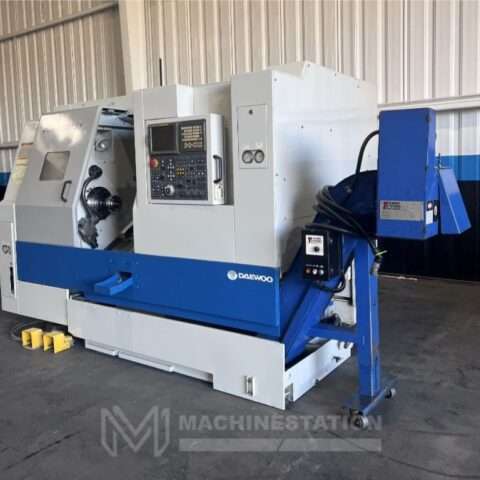

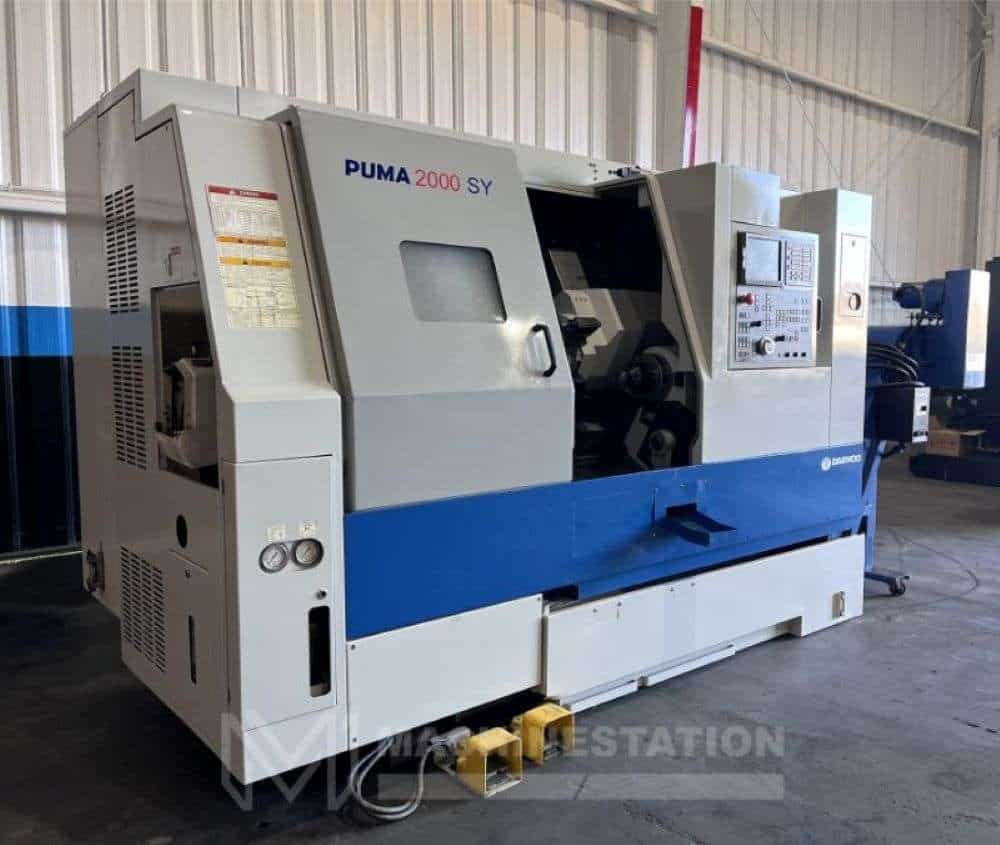

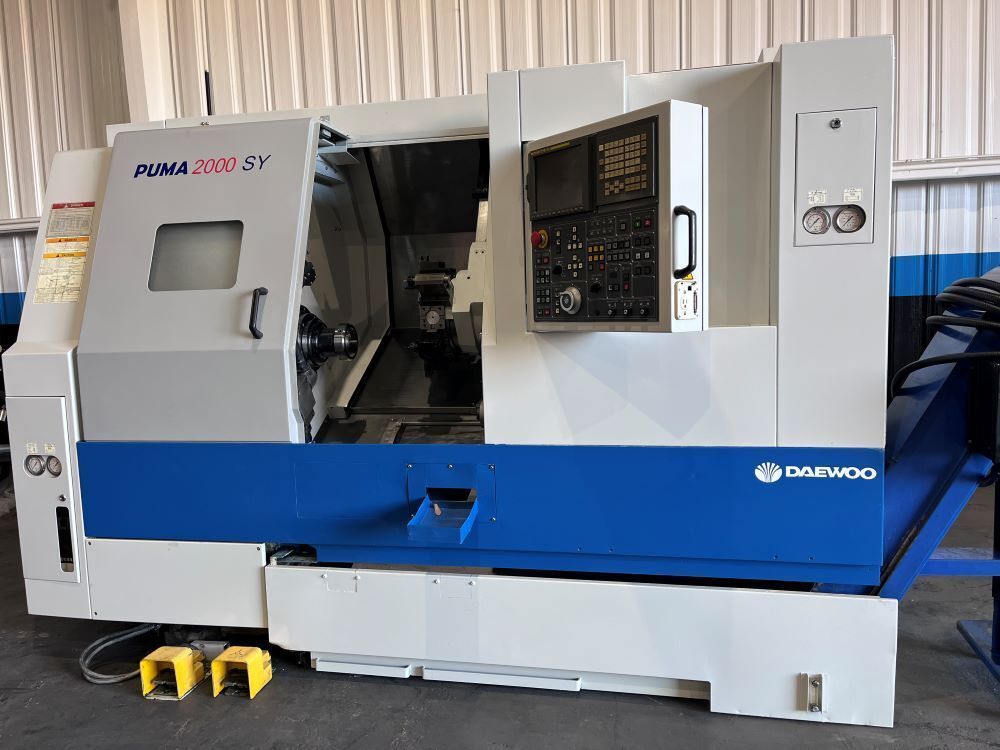

Daewoo |
| Model: |

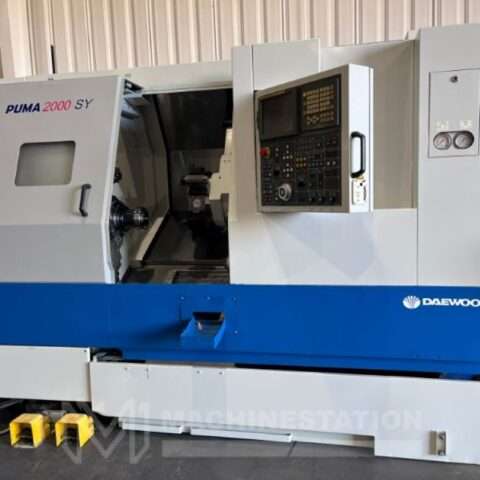

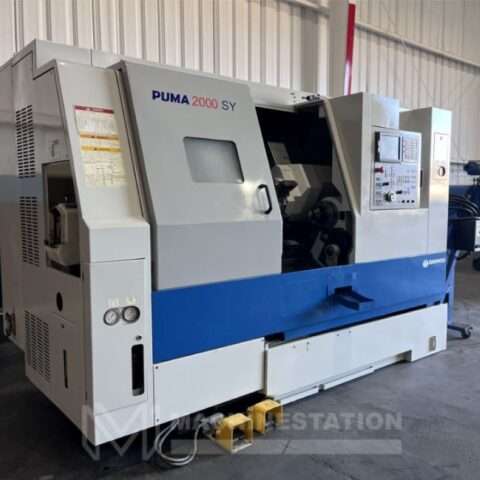

Puma 2000SY |
| Year: |
12/2003 (Installed in 2004) |
| Condition: |
Used – Good |
| Equipped With: |

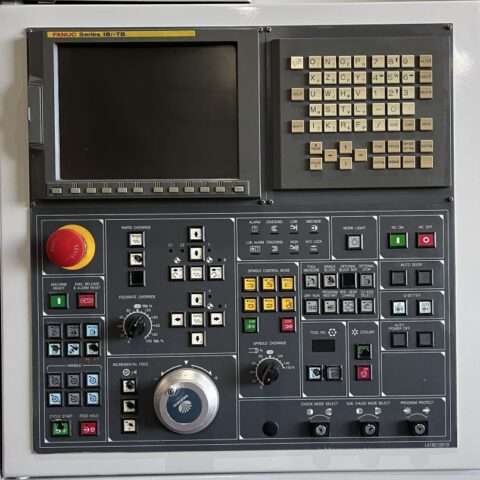

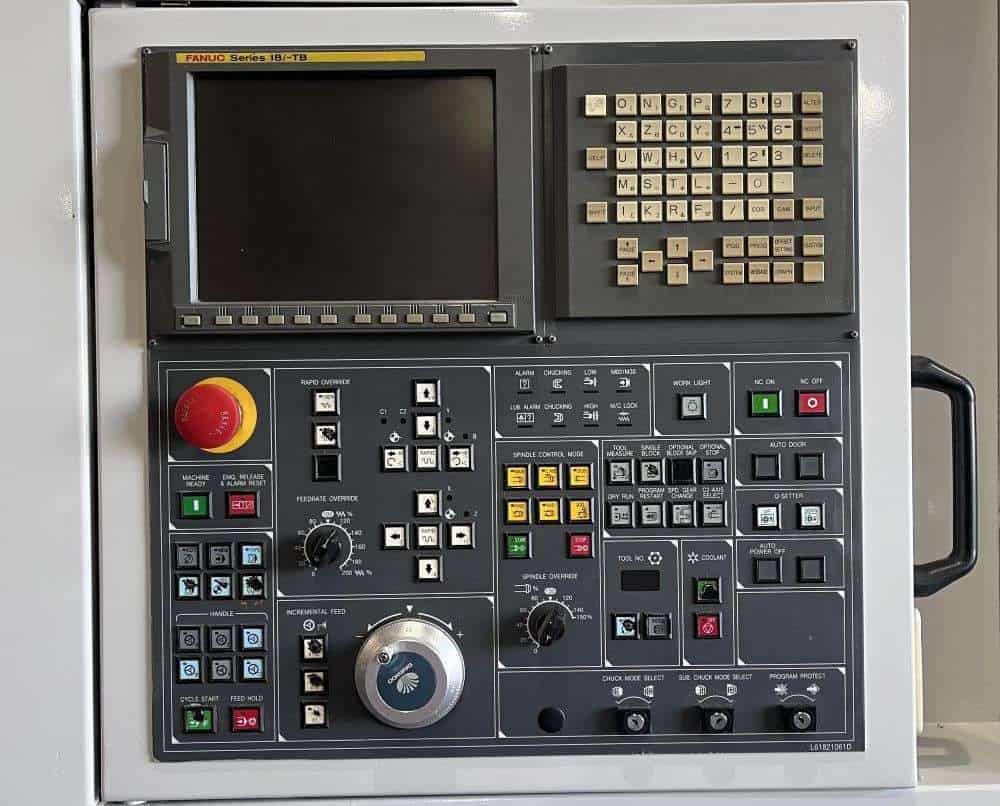

- Fanuc 18i-TB CNC Control

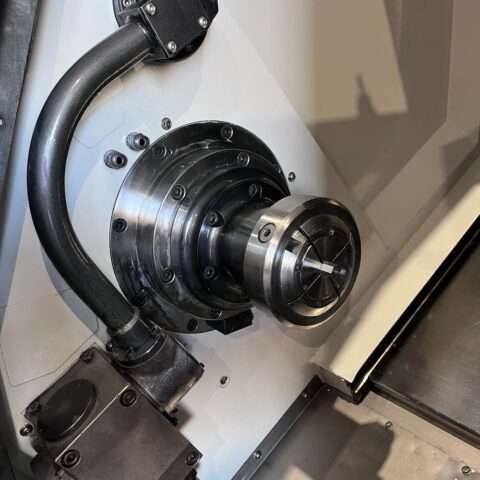

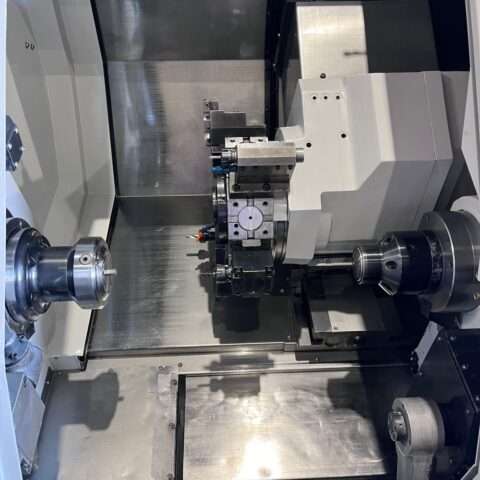

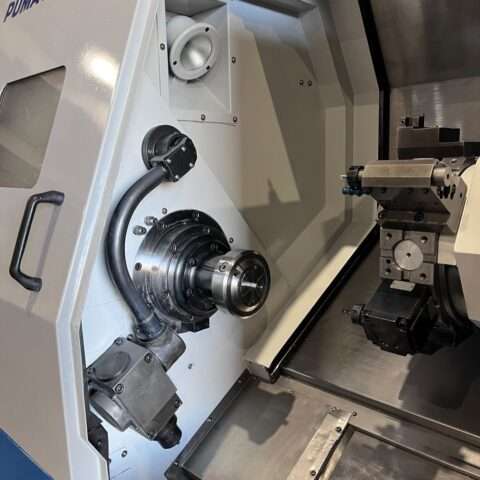

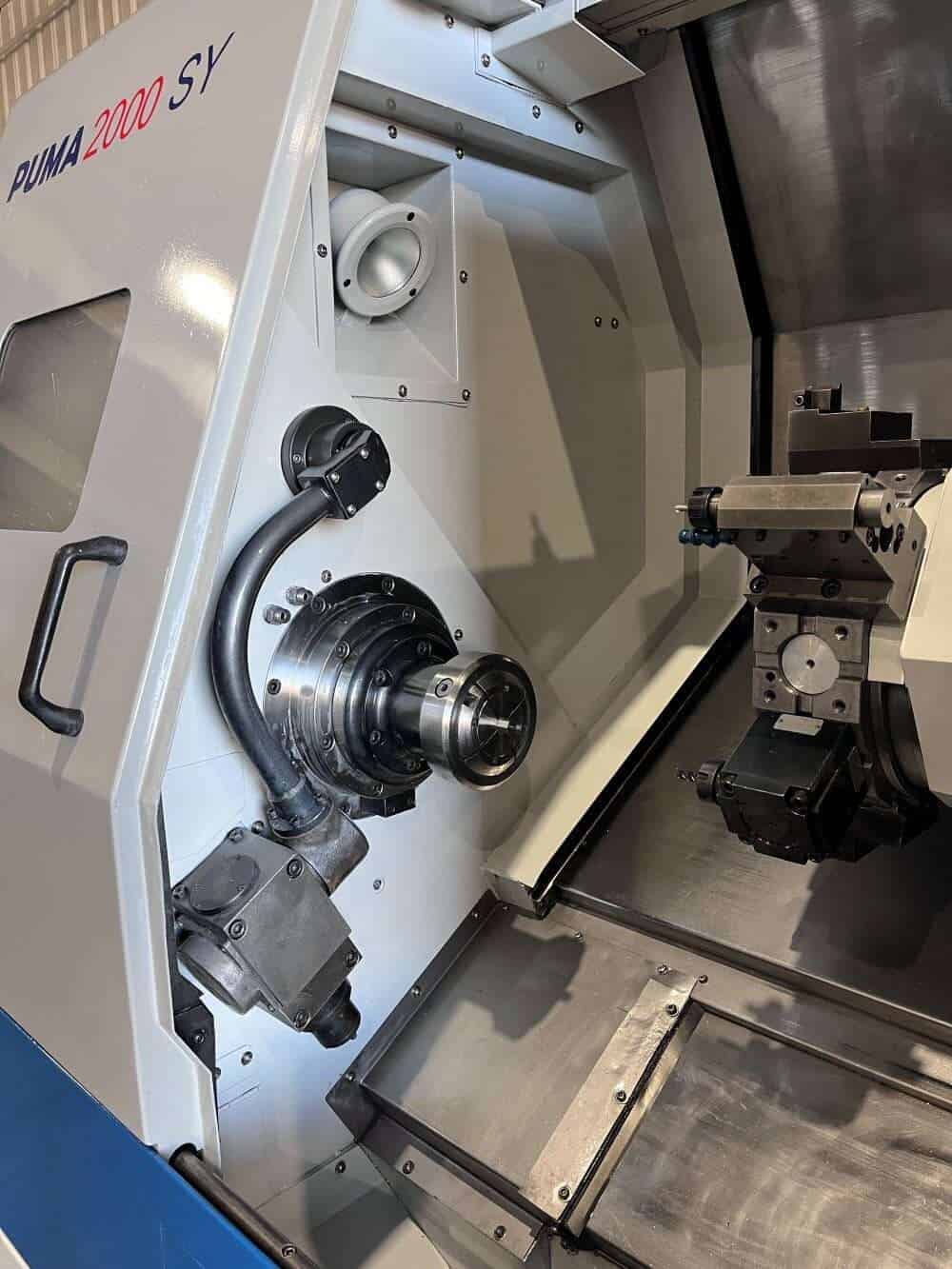

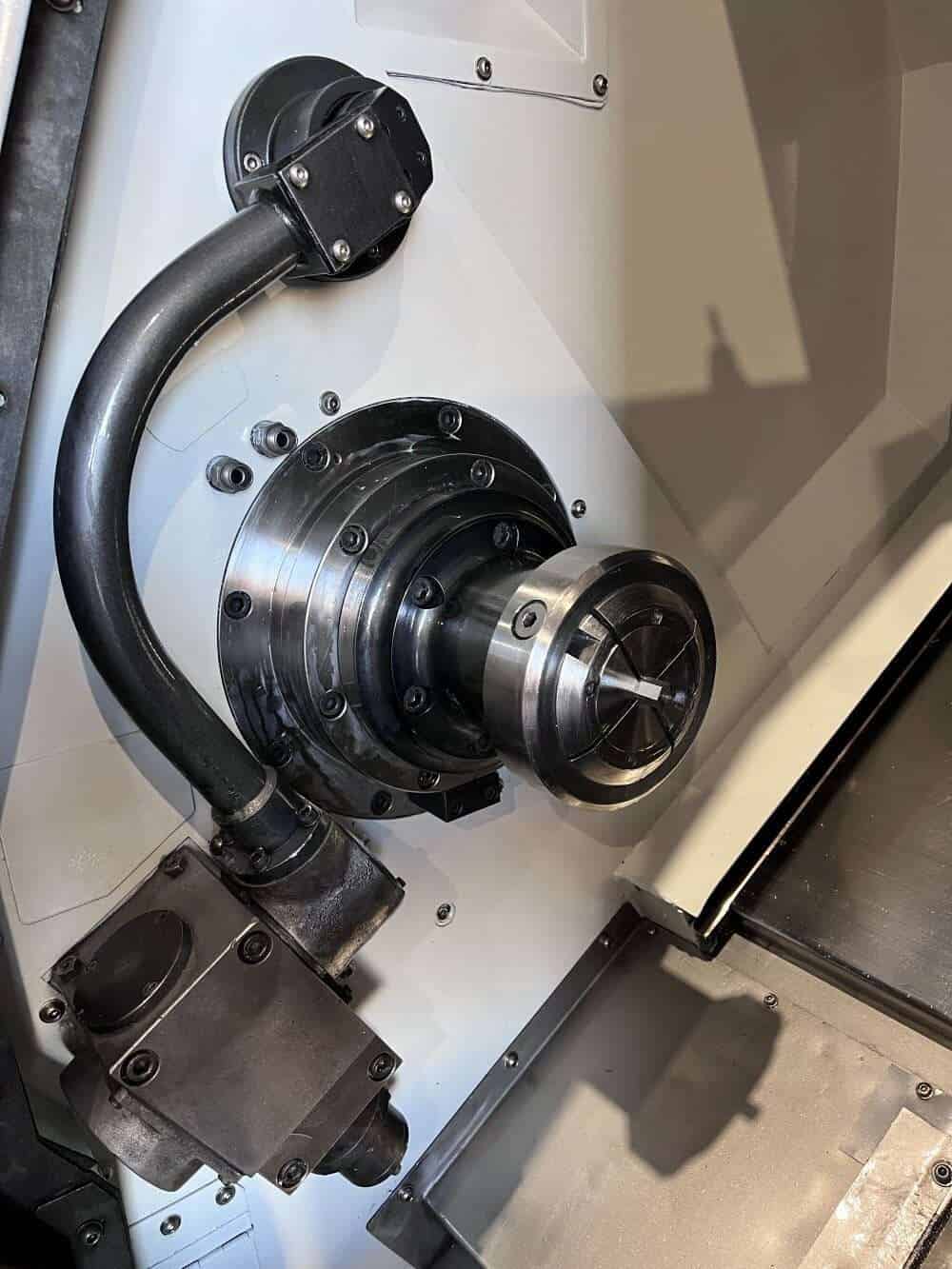

- Collet Chuck on Main Spindle

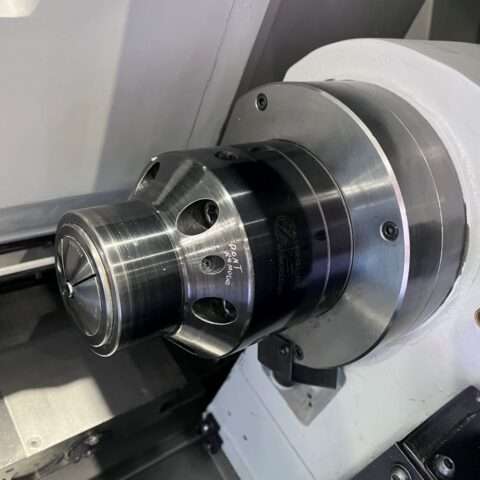

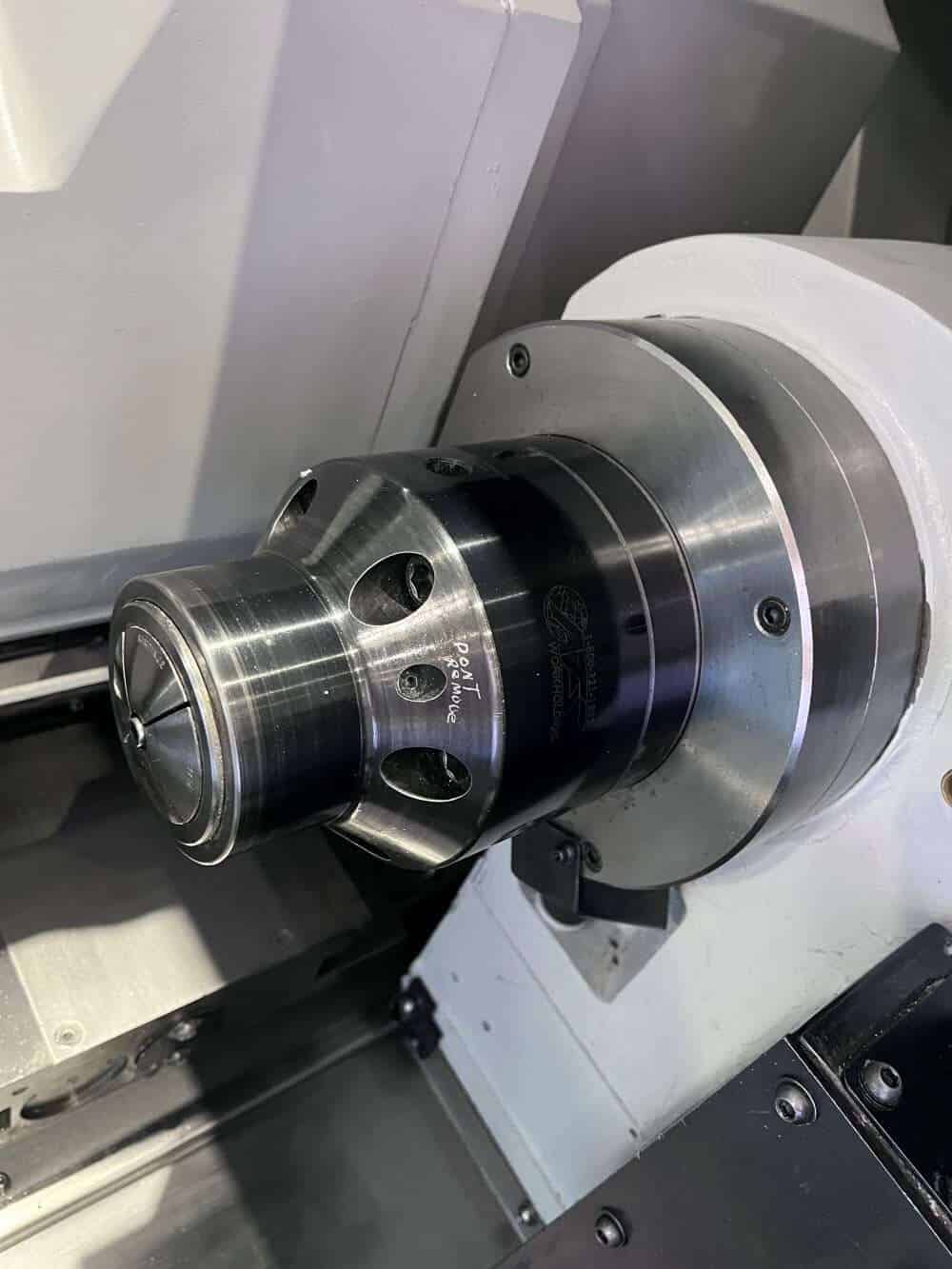

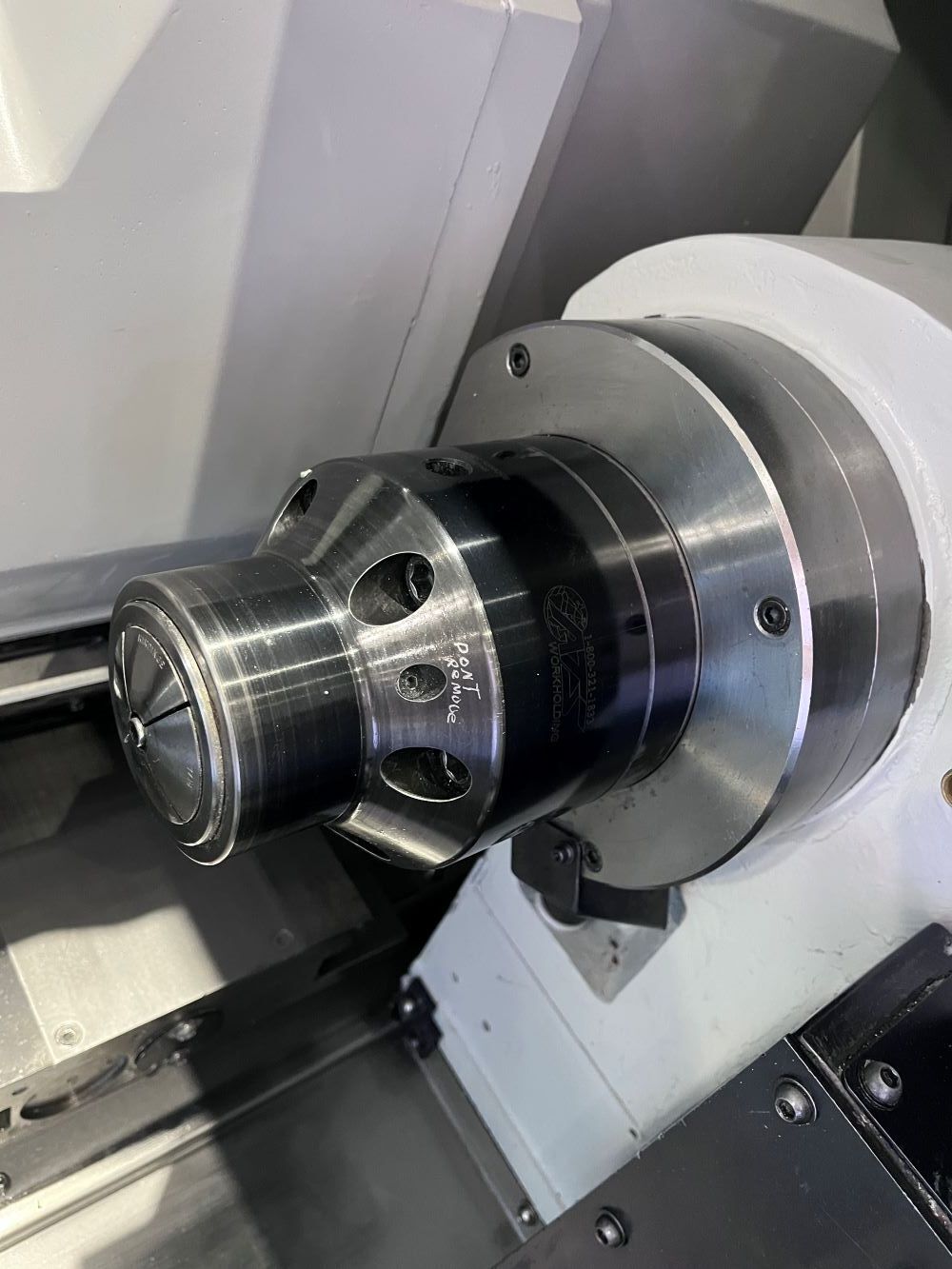

- Collet Chuck on Sub Spindle
- Servo Controlled Full C-Axis on Both Spindles

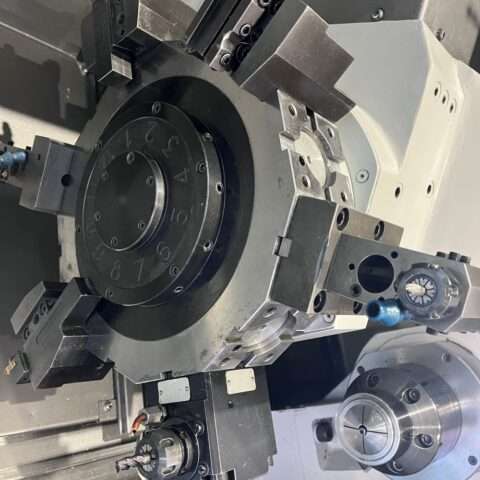

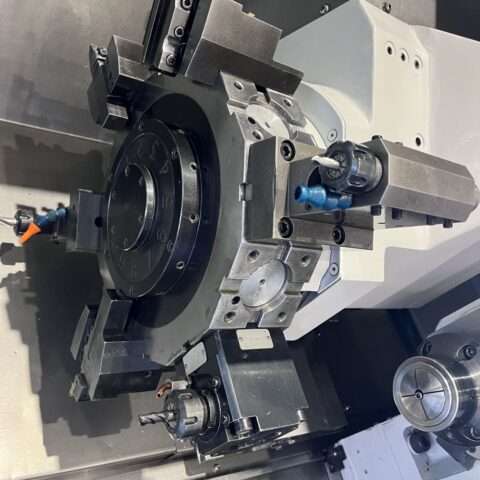

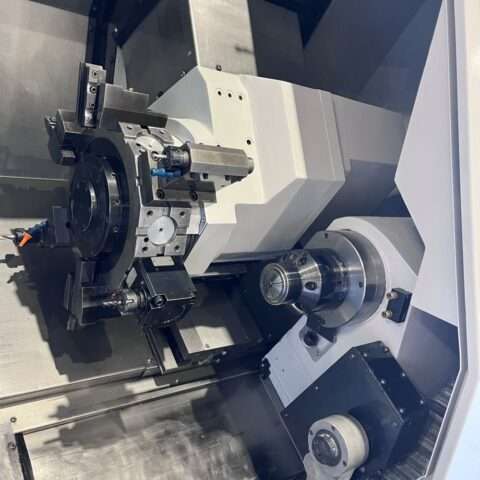

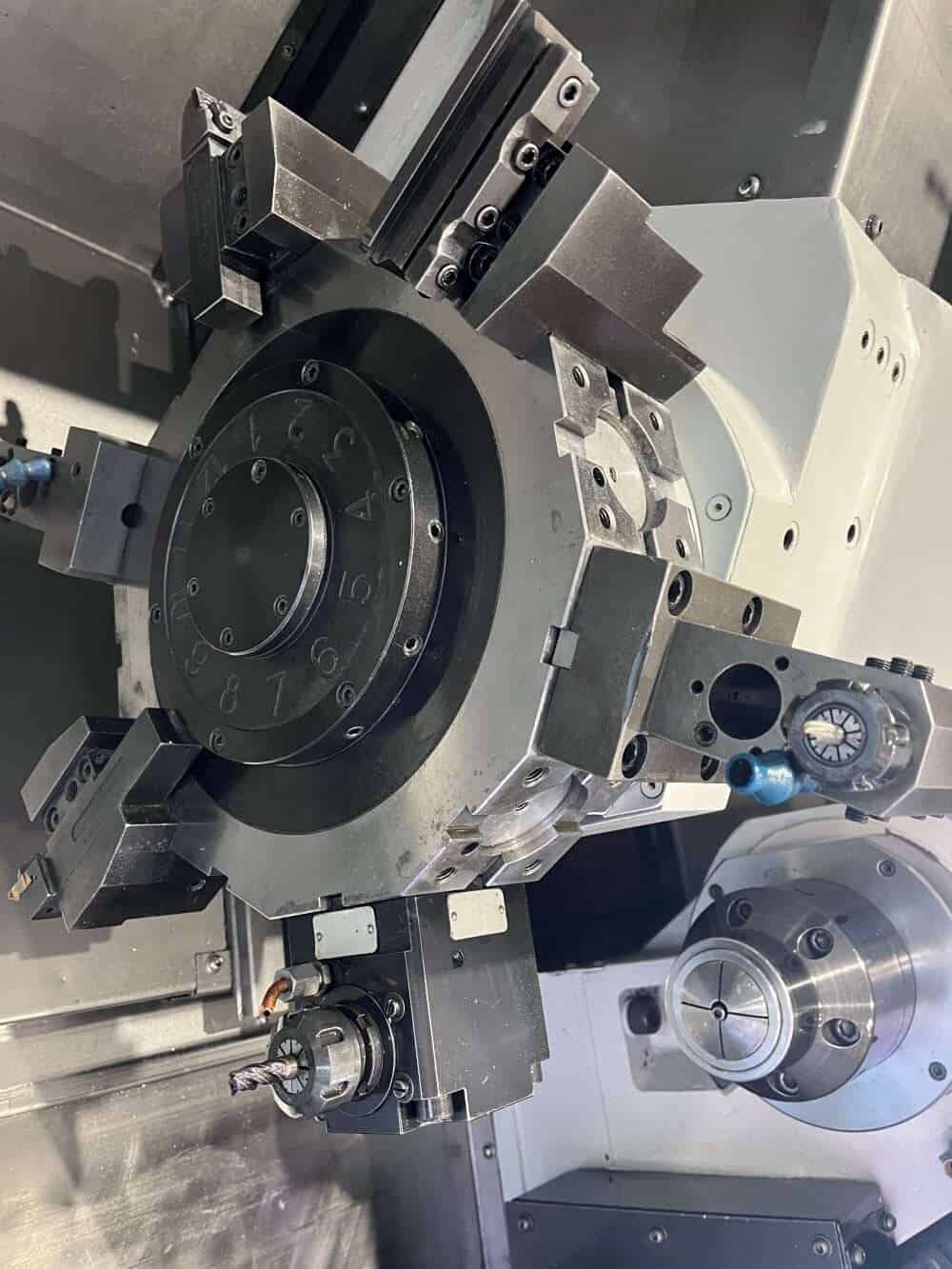

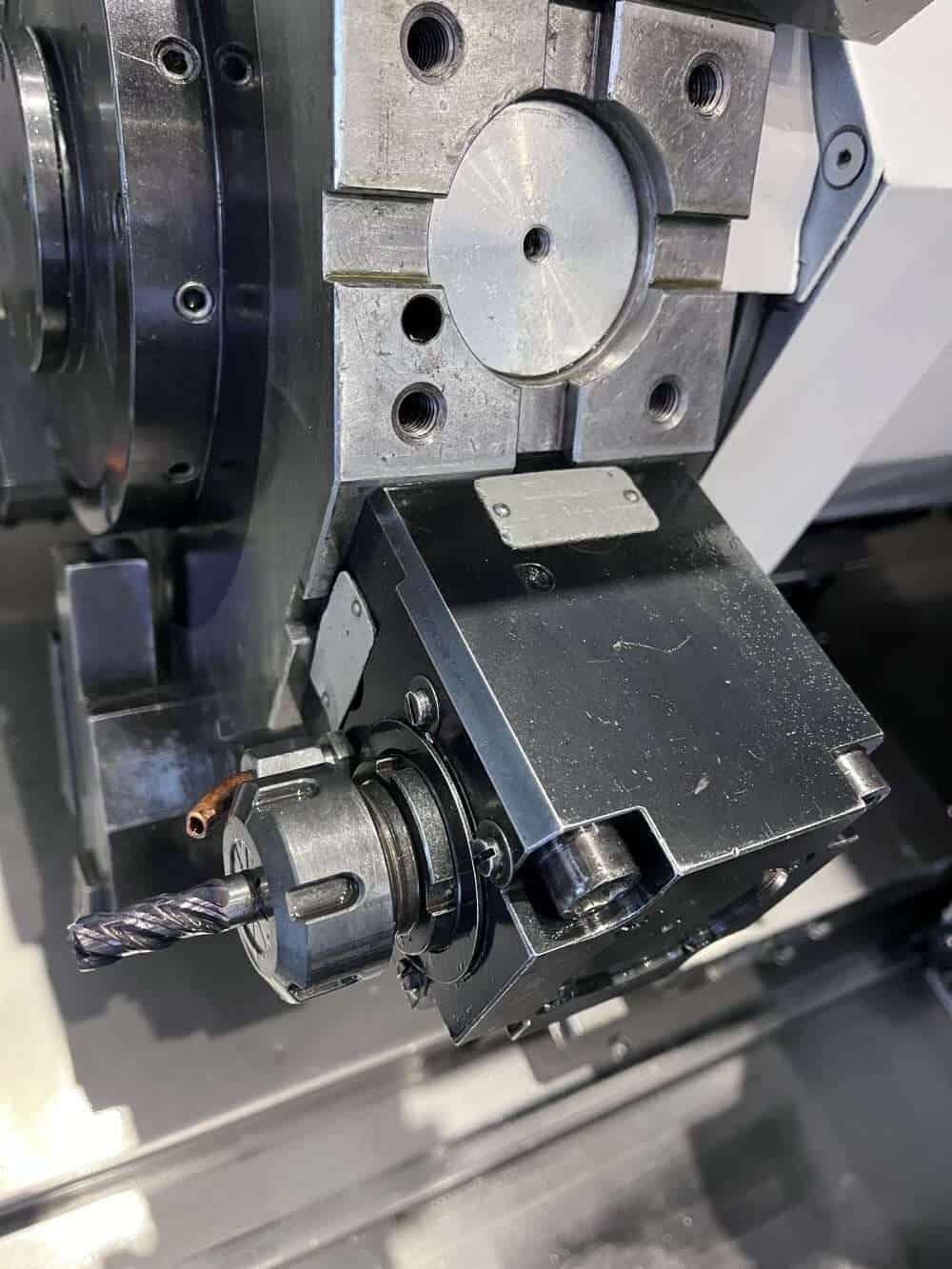

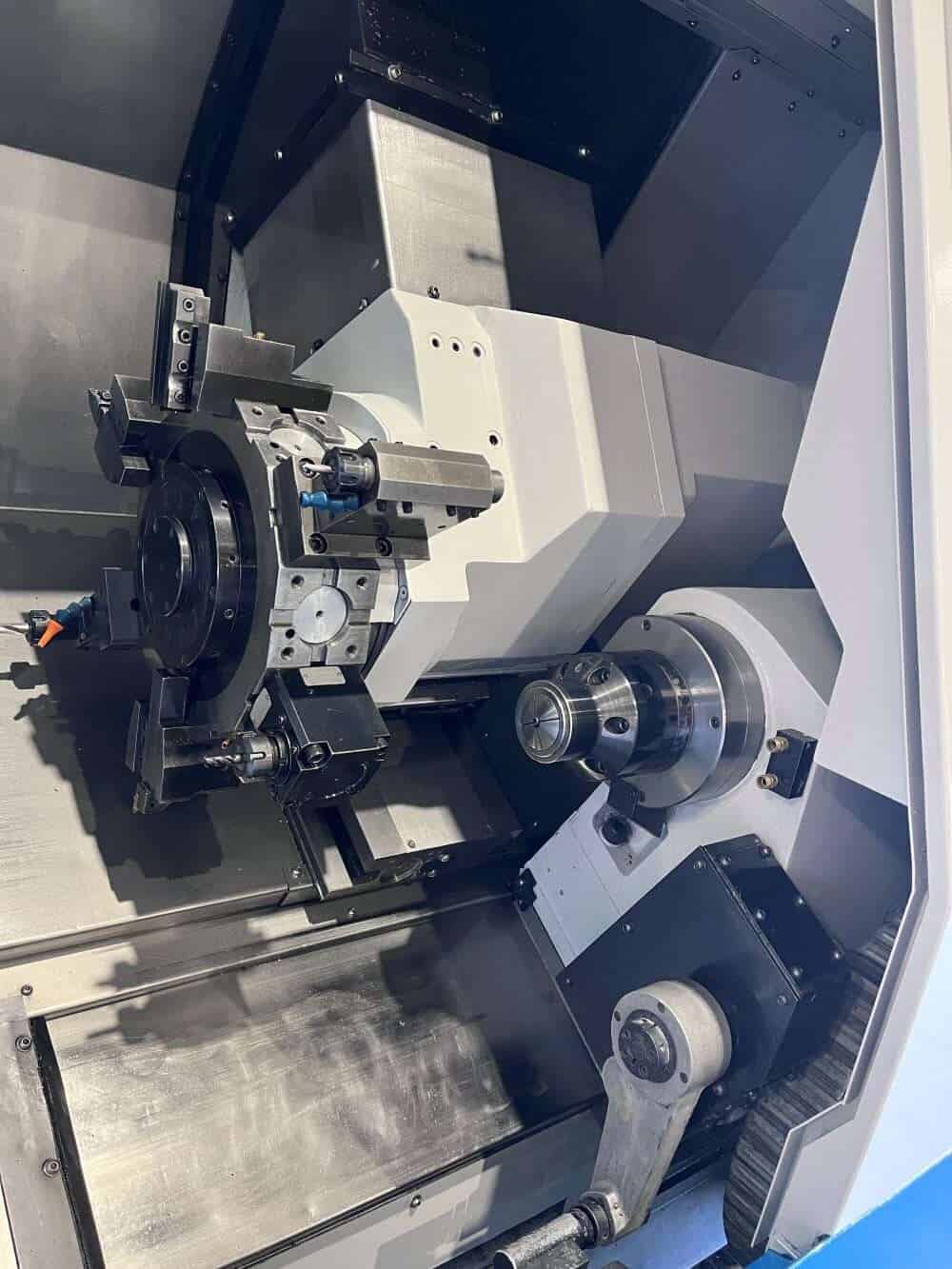

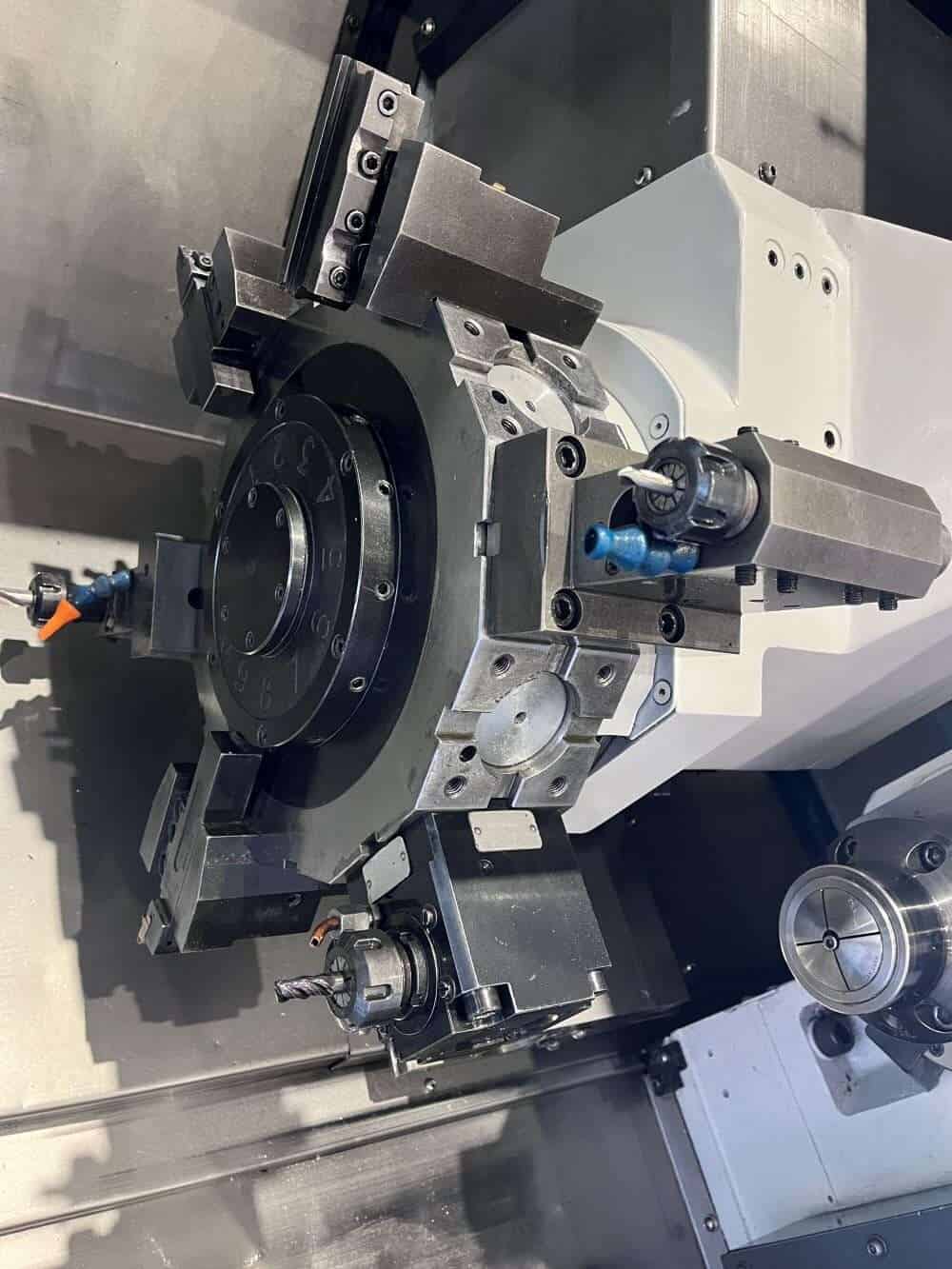

- 12-Station Turret – Live / Rotary Tools
- Tool Presetter
- Parts Catcher
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck

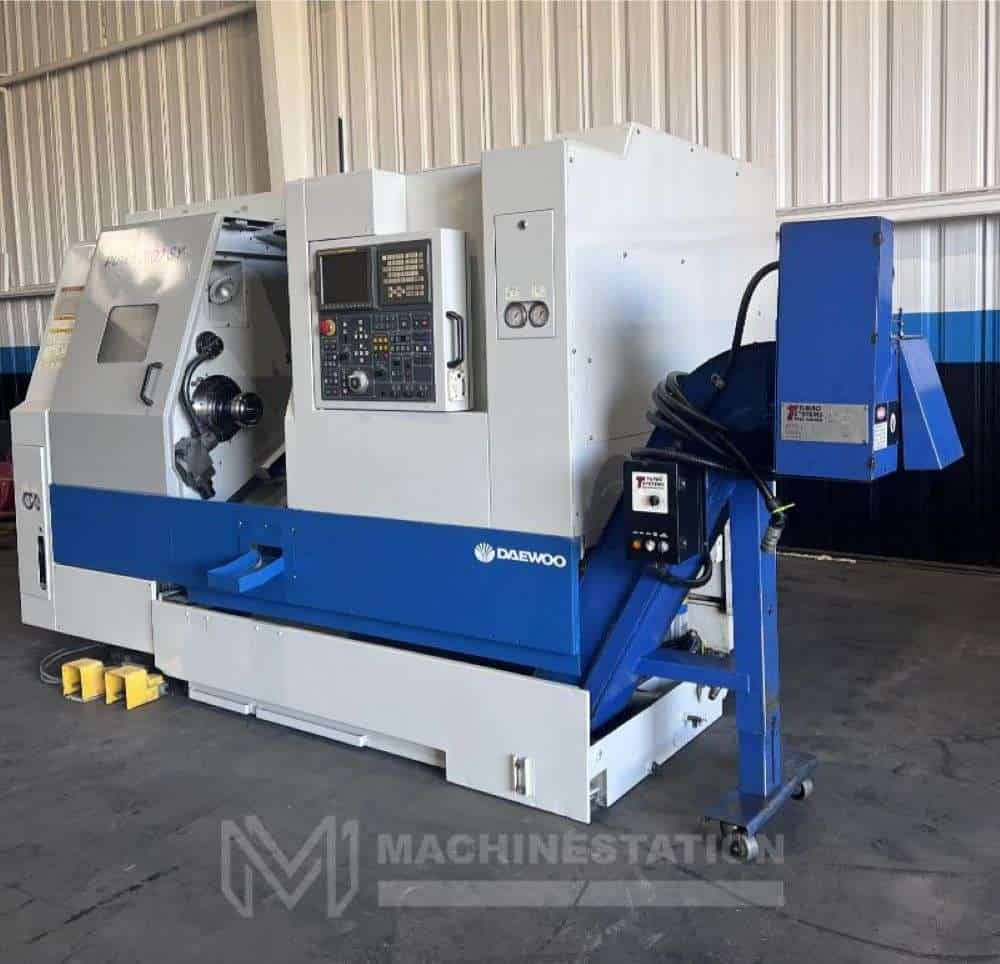

- Turbo Systems Chip Conveyor

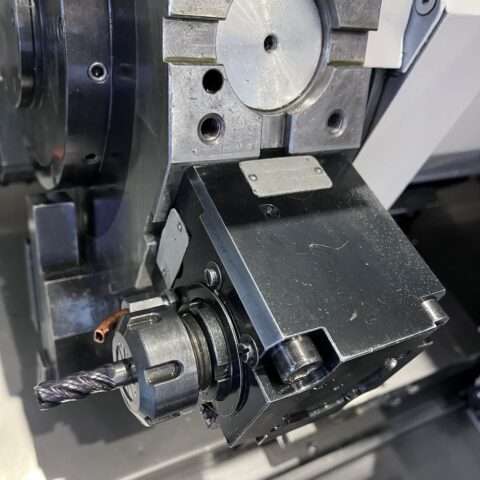

- Comes with Live Tools & Static Tool Holders
- Spindle Orientation
- Books & Manuals

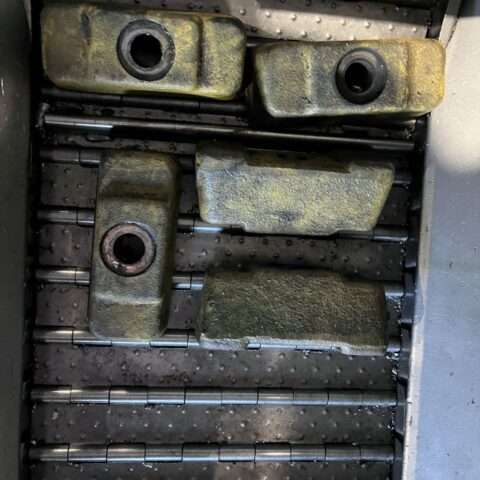

- Levelling Pads
|
| Capacity: |
- Max Turning Diameter: 12.99″
- Swing Over Bed: 23.62″
- Swing over the Saddle: 21.65″
- Max Turning Length: 20.07″
- Max Bar Capacity: 2.55″
|
| Travels: |
- X Axis Travel: 9.84″
- Z Axis Travel: 22.83″
- Y Axis Travel: 3.93″ (+ 1.96″ – 1.96″)
- B Axis Travel: 22.83″ (Sub Spindle)
- C Axis: 360° (0.001°) Both Spindle
|
| Feedrate: |
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Rapid Traverse Y Axis: 295 IPM
- Rapid Traverse B Axis: 787 IPM
|
| Spindle: |
- Main Spindle Nose: A2-6
- Sub Spindle Nose: A2-5
- Main Spindle Bore: 2.99″
- Sub Spindle Bore: 1.77″
- Main Spindle Speed: 45-4500 RPM
- Sub Spindle Speed: 60-6,000 RPM
- Main Spindle Power: 20 HP
- Sub Spindle Power: 10 HP
|
| Turret: |
- Capacity: 12 Live Stations
- Turret Index Time: 0.1 Second
- Live Tool Speed: 60-6,000 RPM
- Live Tool Spindle Power: 5 HP
|
| General: |

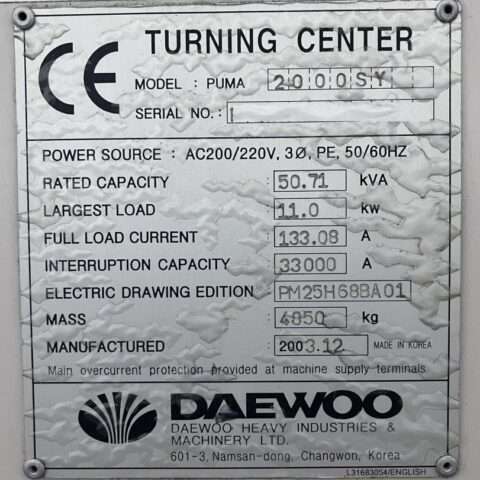

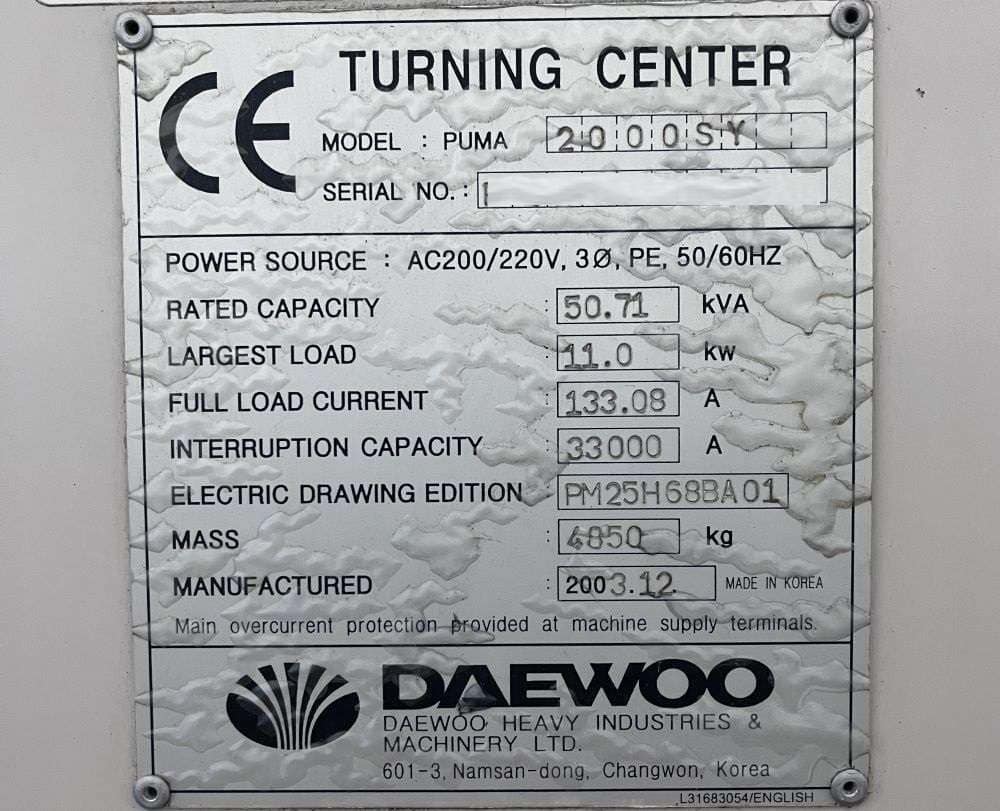

- Power Source: 50.71 kva, 220v / 3-Phase / 60 Hz
- Overall Dimensions: 123″ x 67″ x 81″ High
- Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor
- Weight: 10,700 lbs
|
