Daewoo Puma 2000SY CNC Turn Mill Center

Daewoo Puma 2000SY CNC Turn Mill Center

Out of stock

One Owner Machine only 4809 Cutting Hours, Fully powered / tested & in Great working condition. Equipped with Barfeeder, 2 X Hydraulic Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with chip conveyor, parts Conveyor, manuals, live tool holder and Barfeeder.”

SKU: 1653
Make/Model: Daewoo Puma 2000SY
Video:



SKU: 1653 Category:

Description

DAEWOO PUMA 2000SY CNC TURN MILL CENTER
MakeDaewoo
Model No.Puma 2000SY
Year2004.05
Serial #P200SY0259
ConditionVery Good.
Country of Origin:Korea

Comes with Bar Feeder, Chip Blaster Unit, Chip, Parts Conveyor
Manuals, Live Tool Holders and Tooling.

“One Owner Machine only 4809 Cutting Hours, Fully powered / tested & in Great working condition. Equipped with Barfeeder, 2 X Hydraulic Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with chip conveyor, parts Conveyor, manuals, live tool holder and Barfeeder.”

  • DAEWOO PUMA 2000SY Equipped With:

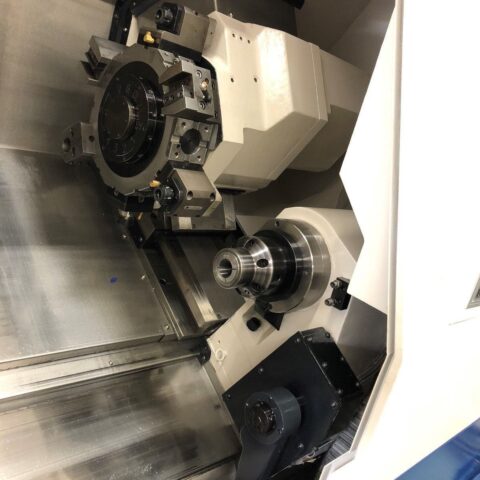

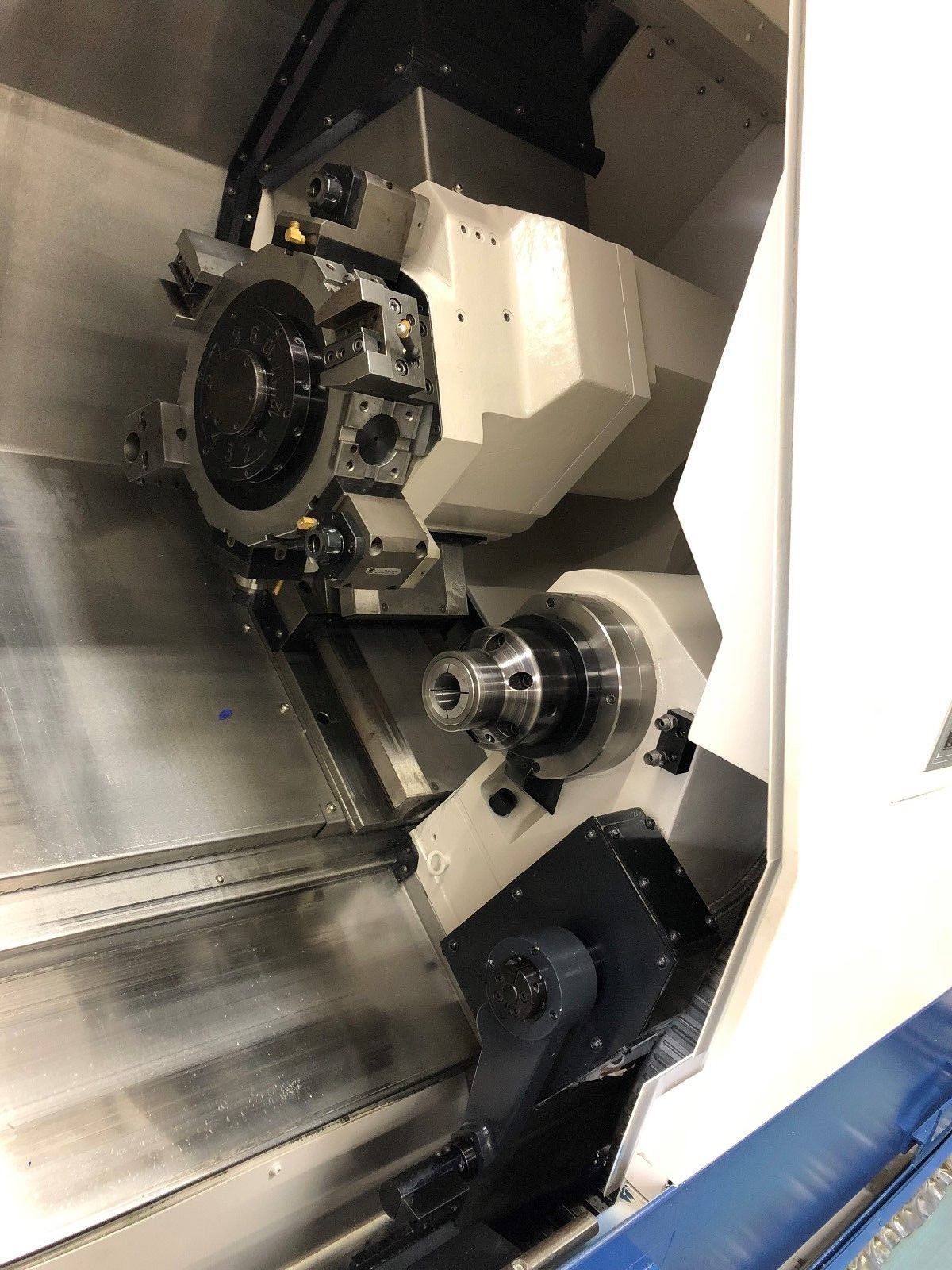

  • 12-Station Turret –  Live / Rotary Tools ( 3 Live Tools )
  • Servo Controlled Full C-Axis on Both Spindles
  • Big Bore Collet Chuck on both Spindles

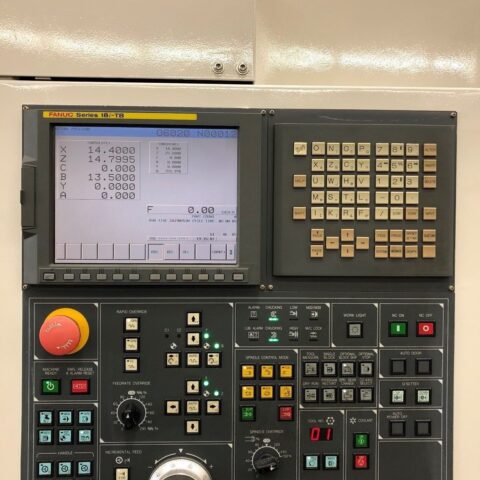

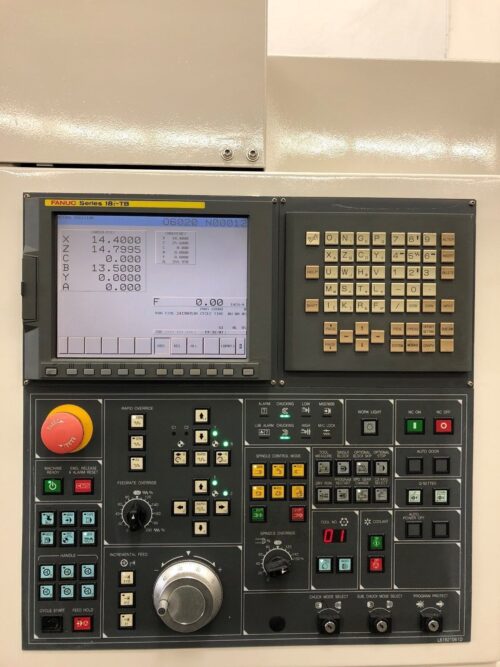

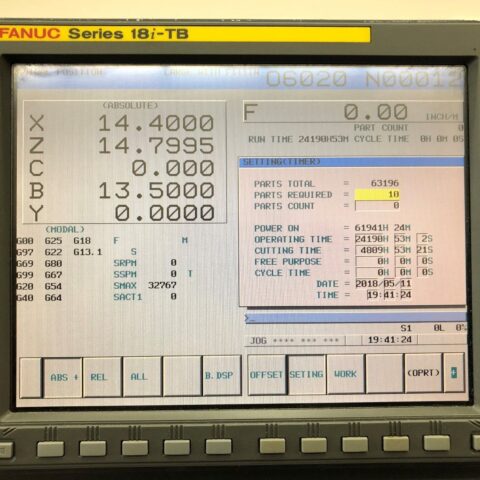

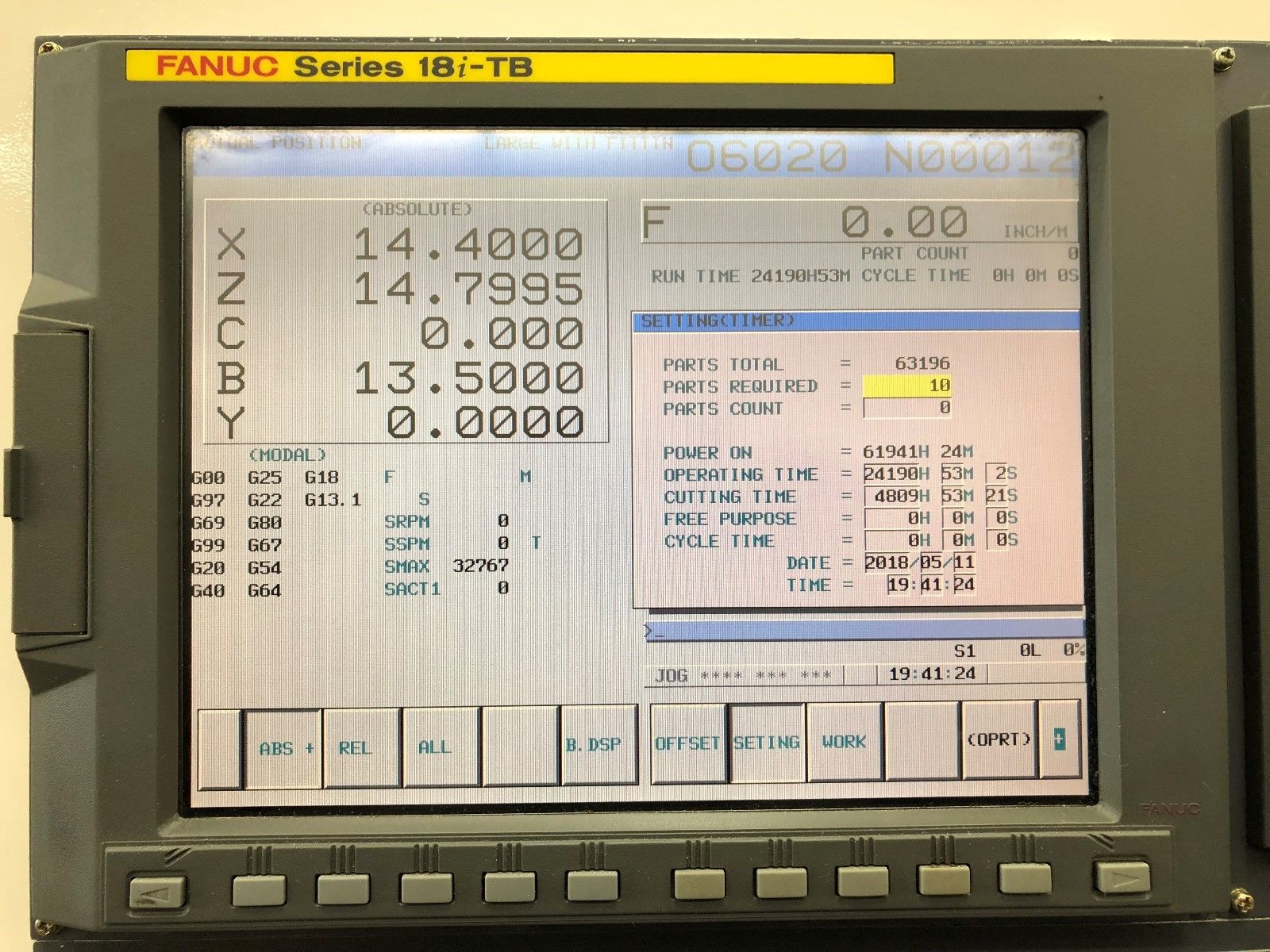

  • Fanuc 18iT CNC Control
  • PCMCIA Card Slot
  • Tool Presetter
  • Parts Catcher
  • Parts Conveyor
  • ATS Collet Chuck on Main Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • Turbo Systems Chip Conveyor

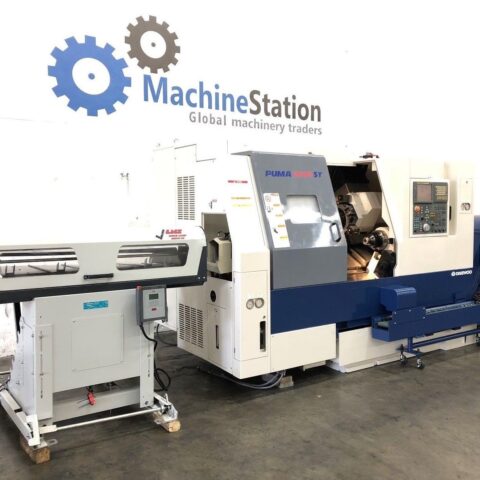

  • Comes with LNS Bar Feeder
  • Comes with 3 X Live Tools & some Static Tool Holders.
  • All Available Manuals, Tool Holders and Tooling.
  • General:
  • Power Source: AC 200/220 V, Three Phase, 50/60 Hz
  • Power Requirement: 40 kva
  • Weight : 11500 lbs Approx.
  • Overall Dimensions: 120″ x 72″ x 90″ High
  • Overall Dimensions: 136″ x 72″ x 90″ High with Chip Conveyor
  • DAEWOO PUMA 2000SY Specifications:
  • Capacity:
  • Max. Turning Diameter: 13.0″
  • Max. Swing over Bed: 23.6″
  • Max. Turning Length: 20.10″
  • Max. Bar Capacity: 2.625″
  • Distance Between Spindles: 33.8″
  • X-Axis Travel: 9.84″
  • Y Axis Travel: 5.84″
  • Z-Axis Travel: 22.83″
  • B- Sub Spindle Travels: 22.83″
  • C-Axis: 360 Degree (0.001) on Both Spindle
  • X Rapid Traverse Rate: 790 Inch Per Minute
  • Z Rapid Traverse Rate: 945 Inch Per Minute
  • Y Rapid Traverse Rate: 295 Inch Per Minute
  • Spindle Bore: 3.00″
  • Sub Spindle Bore: 1.77″
  • Main Spindle Nose: A2-6
  • Sub Spindle Nose: A2-5
  • Main Spindle Speed: 45-4500 RPM
  • Sub Spindle Speed: 60-6000 RPM
  • Main Spindle Power: 20 HP
  • Sub Spindle Power: 15 HP
  • 12 Tools Turret with ER type Collet Tools
  • Indexing Time: 0.5 Second
  • Live Tool Speed: 60-6,000 RPM”
  • Live Tool Motor: 3.7 kw

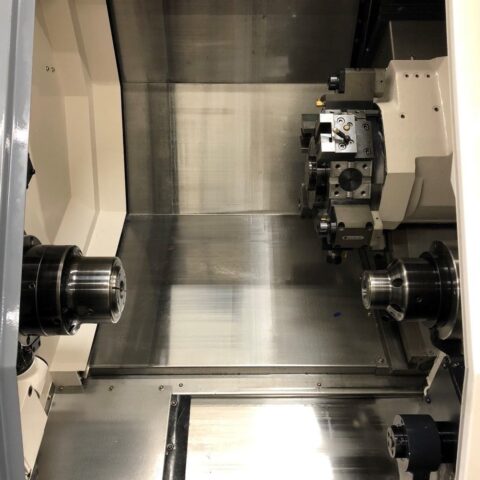

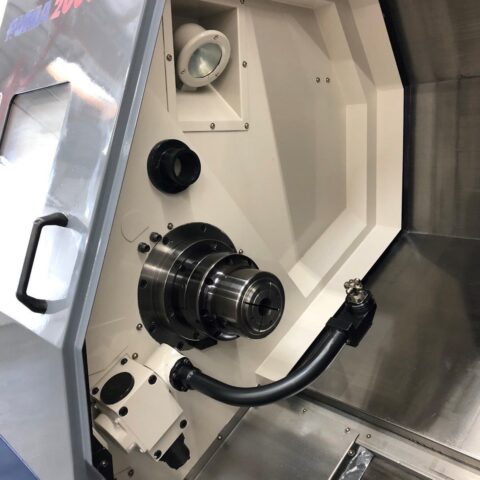

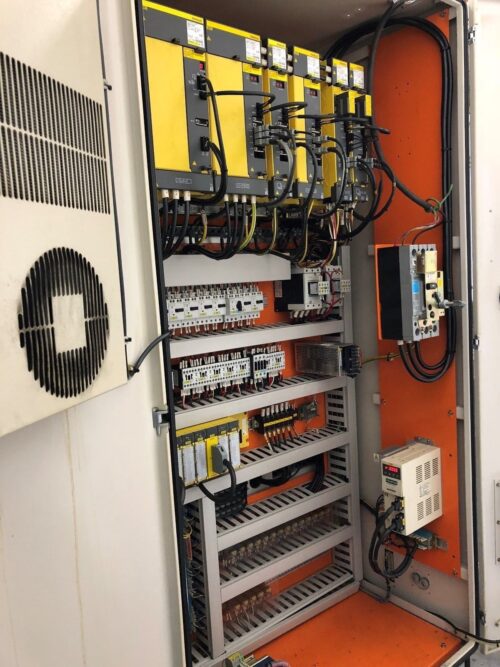

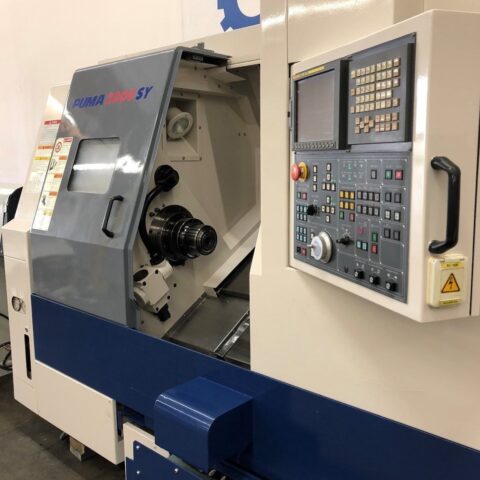

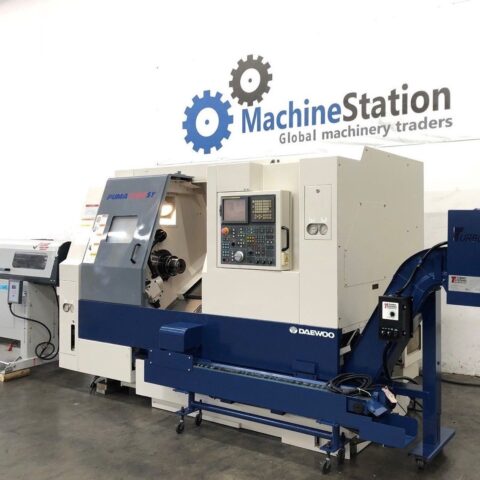

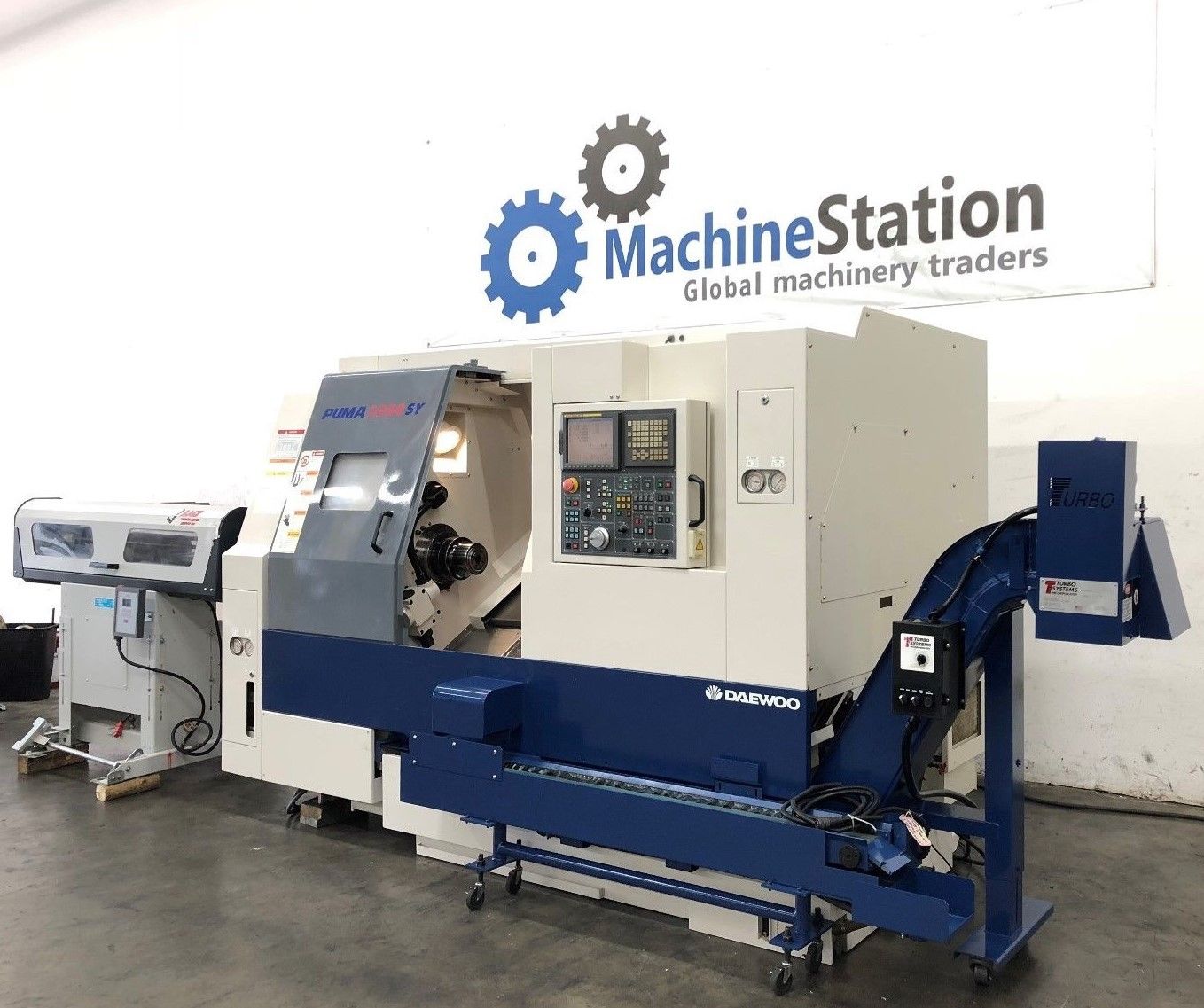

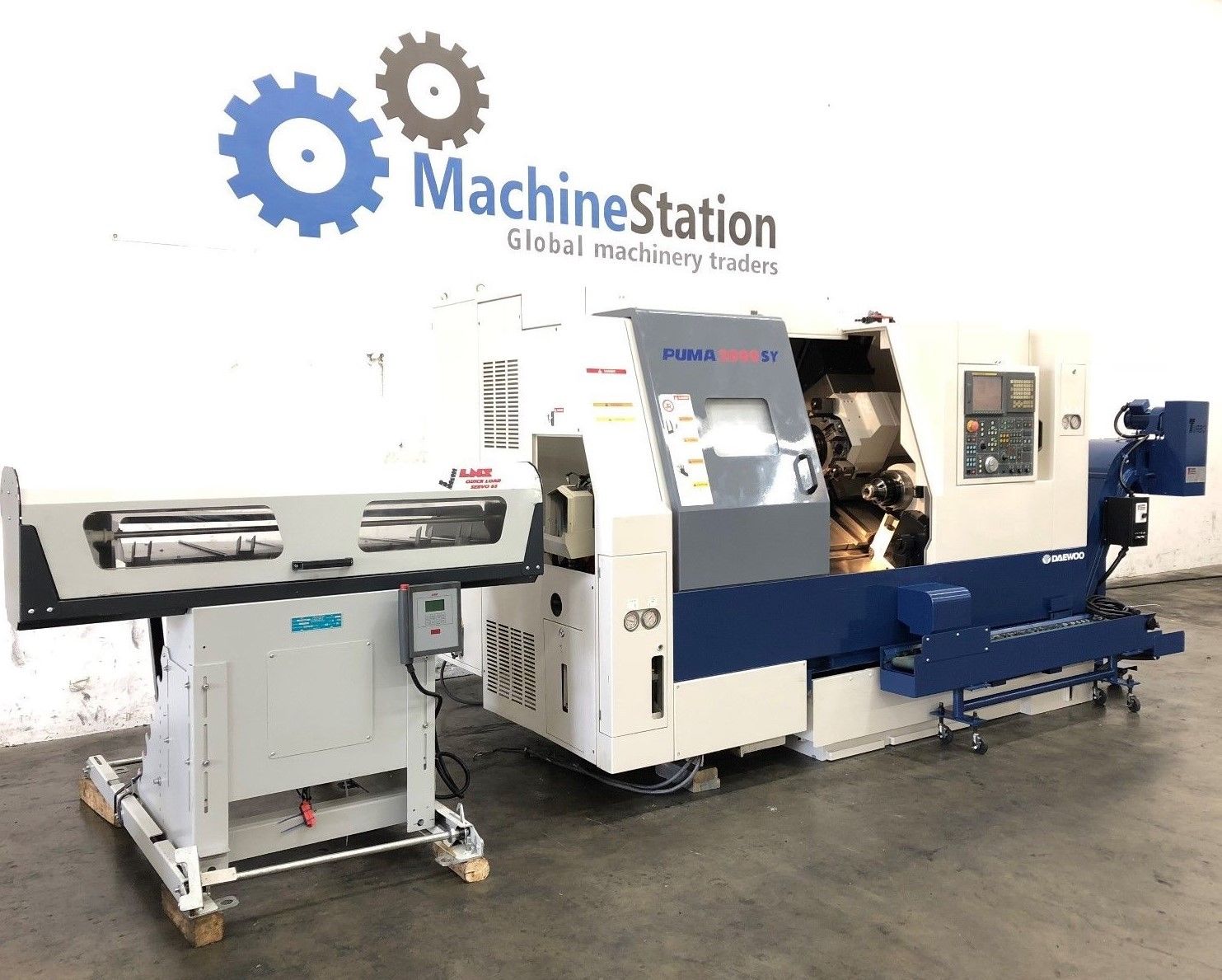

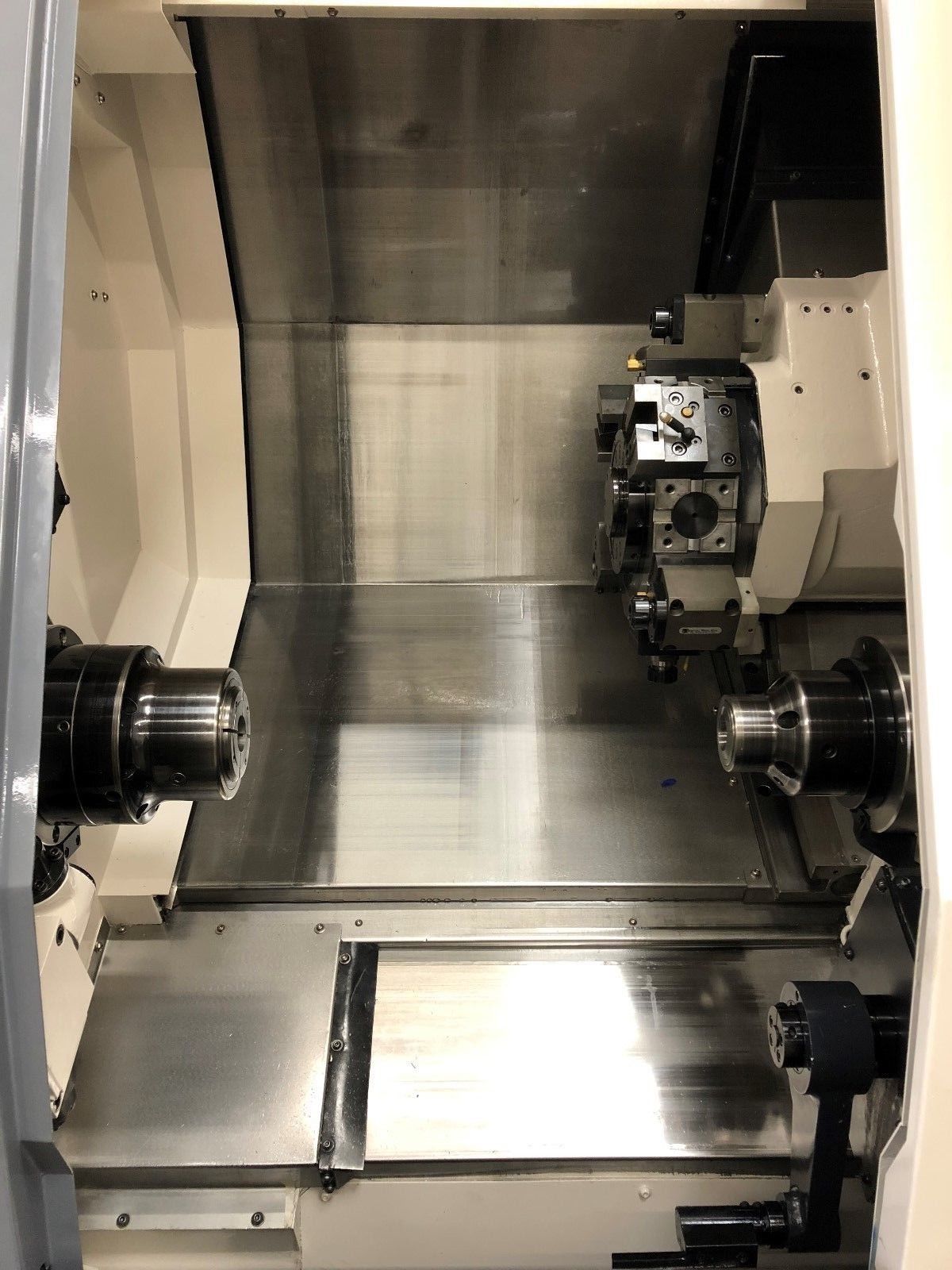

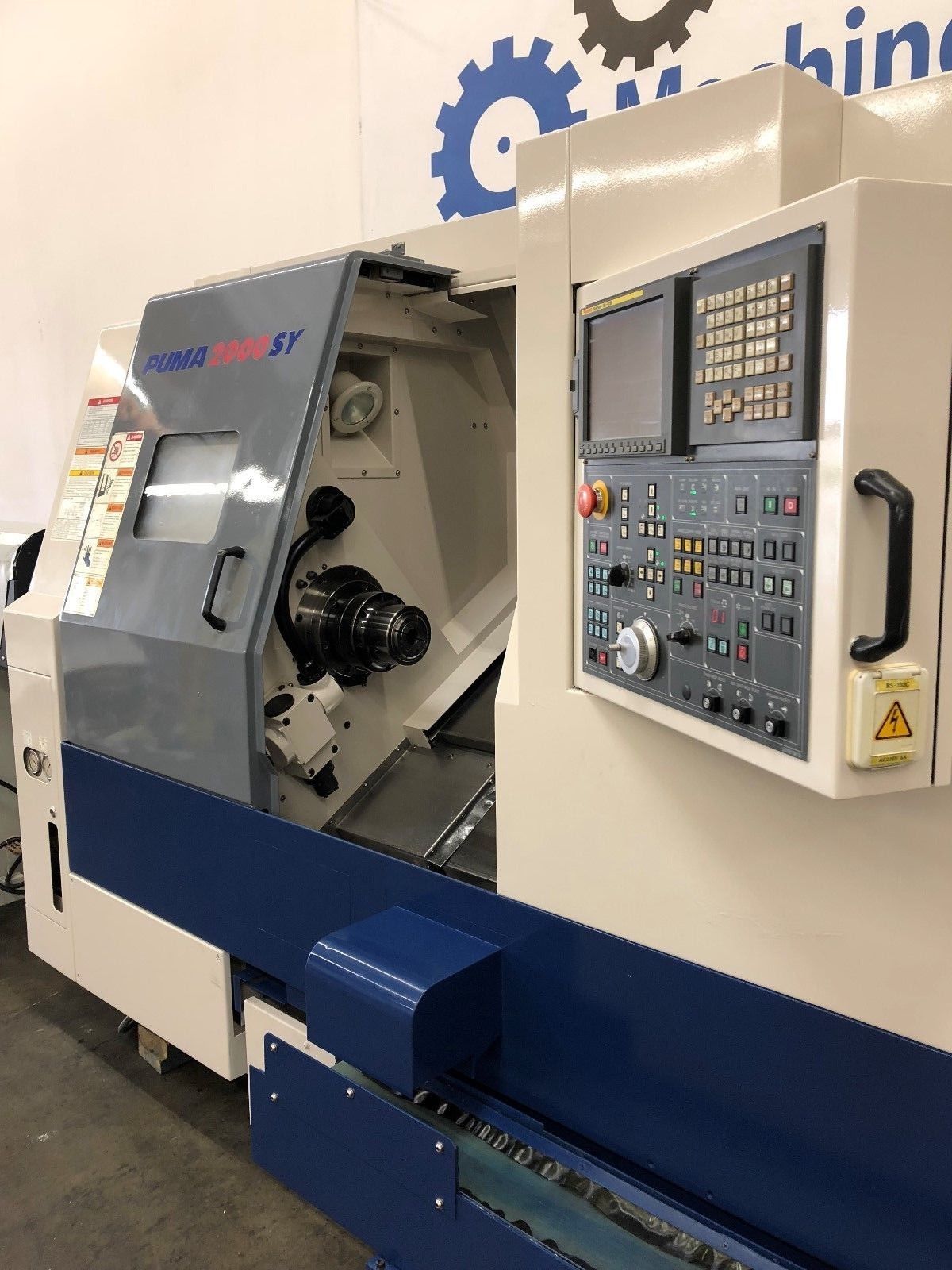

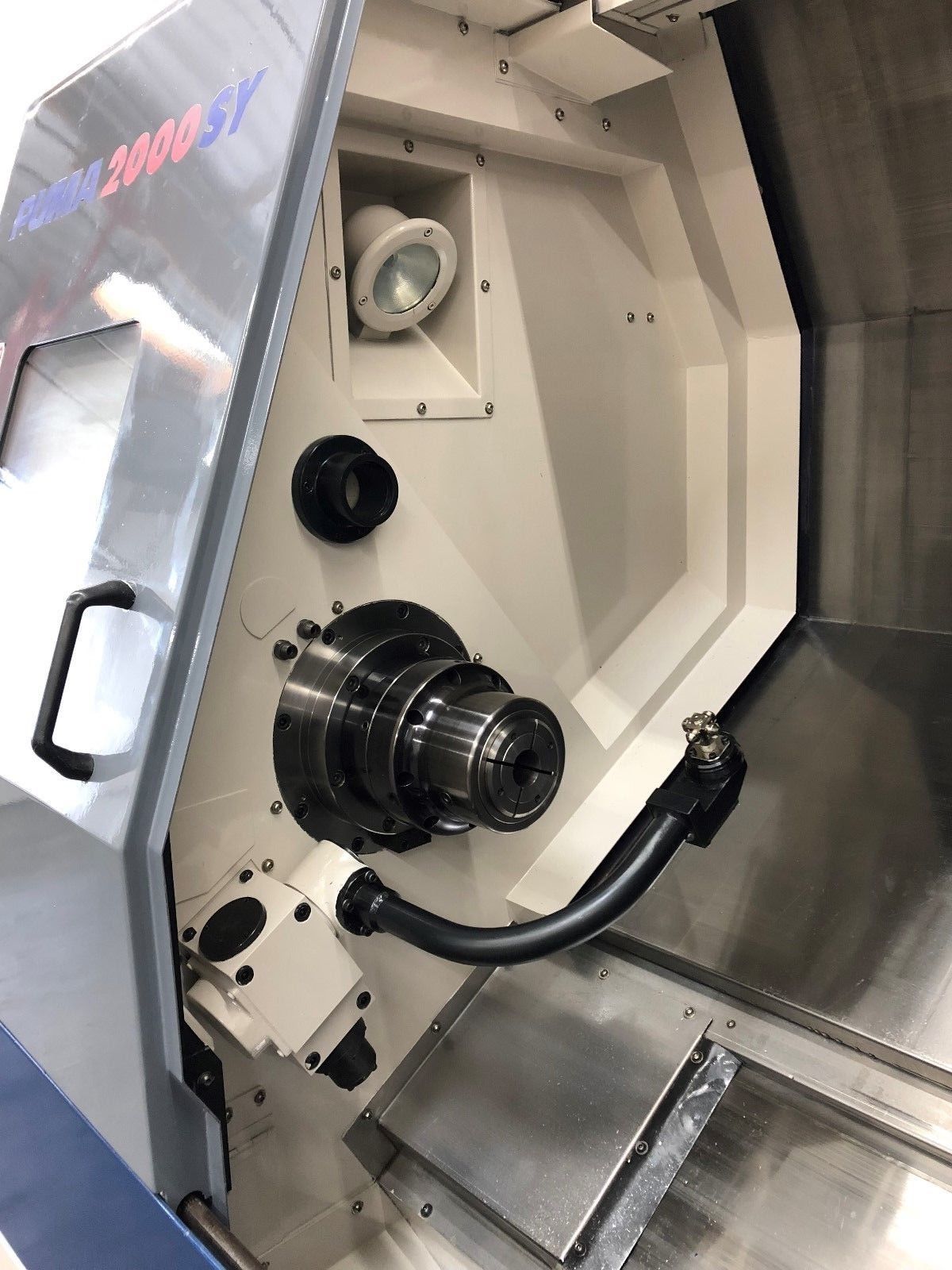

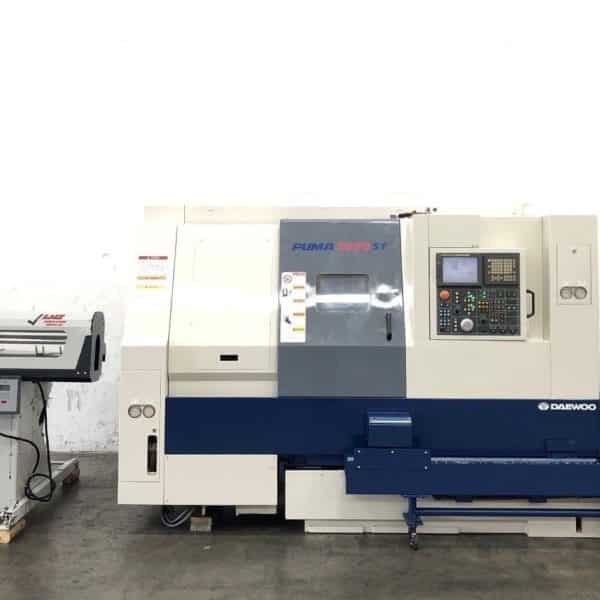

DAEWOO PUMA 2000SY Comes as shown in pictures..
