SOLD OUT!

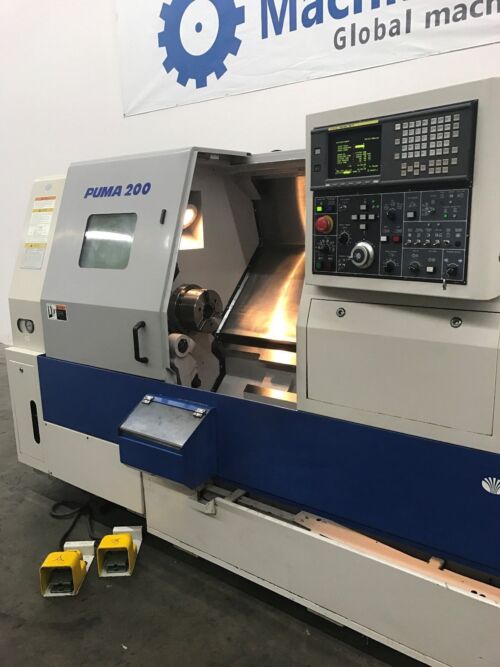

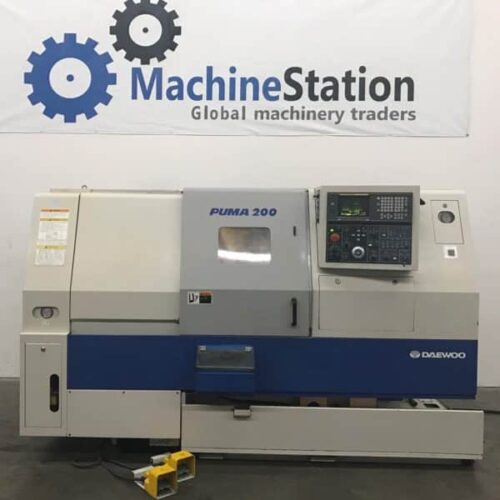

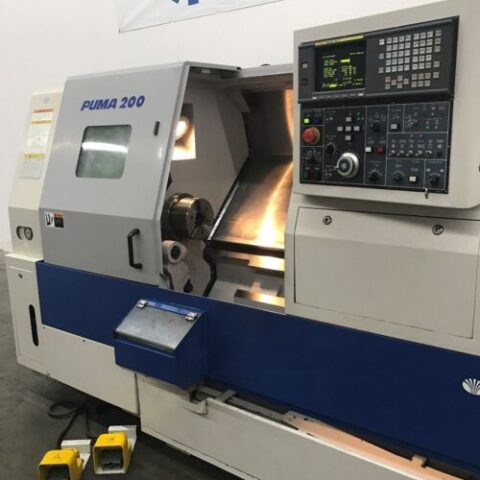

Daewoo Puma 200C CNC Turning Center Lathe

This Machine was cutting Brass & has only 5966 cutting hours. Its a Heavy Duty machine with 2.99″ Spindle Bore, Hydraulic Tailstock & Fanuc 18T control. On Our Floor now, Fully powered / tested & is in Great working condition. check *VIDEO

Share

Description

DAEWOO PUMA 200C CNC TURNING
Make DAEWOO
Model No. PUMA 200C
Serial # PM200678
Condition Very Good

Comes with Chuck, Tool Holders, Manuals.

“This Machine was cutting Brass & has only 5966 cutting hours. Its a Heavy Duty machine with 2.99″ Spindle Bore, Hydraulic Tailstock & Fanuc 18T control. On Our Floor now, Fully powered / tested & is in Great working condition. check *VIDEO”

  • DAEWOO PUMA 200C CNC TURNING Equipped With:

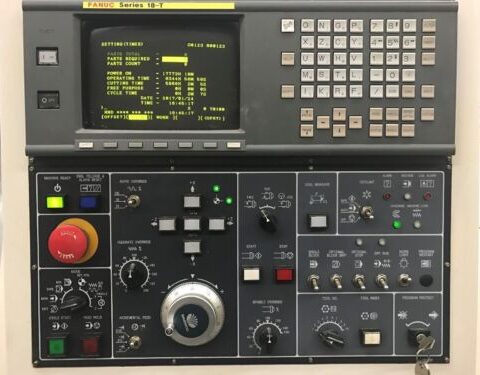

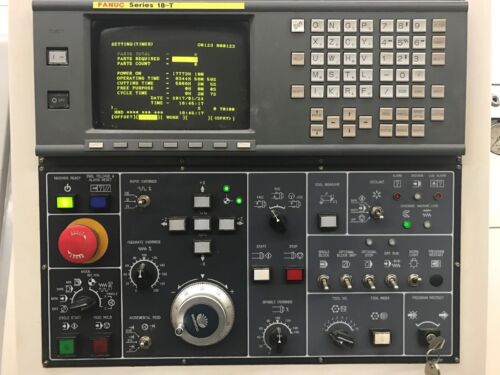

  • Fanuc 18T CNC Control
  • 8″ 3 Jaw Hydraulic Chuck
  • Hydraulic Tool Presetter
  • Hydraulic Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 ports
  • 12 Station Automatic Turret
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 105″ x 64″ x 69″ High
  • Weight: 8800 lbs
  • DAEWOO PUMA 200C CNC TURNING Specifications:
  • Capacity:
  • Max Turning Diameter: 13.78″
  • Max Turning Length: 15.75″
  • Max Bar Capacity: 2.56″
  • Swing Over Bed: 20.08″
  • X Axis Travel: 9.53″
  • Z Axis Travel: 17.32″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 1000 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.99″
  • Spindle Speed: 45 – 4500 RPM
  • Spindle Motor: 11/15 kw
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 2.95″
  • Tailstock Quill Travel: 3.15″

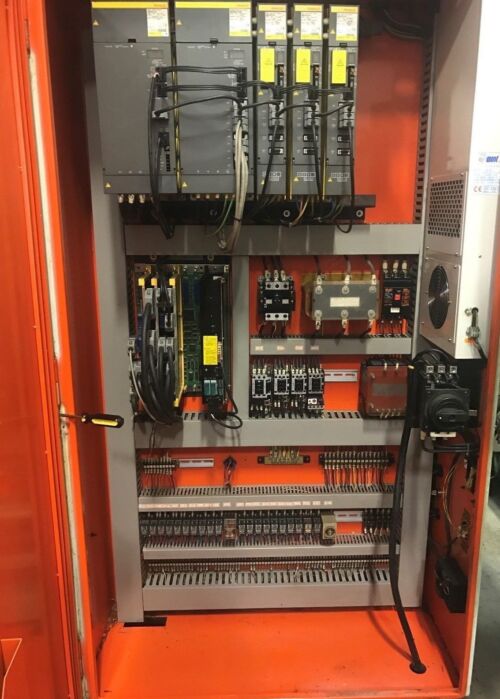

DAEWOO PUMA 200C CNC TURNING Comes as shown in pictures..
