Daewoo Puma 200LC CNC Turning Center

Out of stock

“One Owner machine excellent running condition, only 6604 cutting hours. It is equipped with 10″ Chuck, 12 tool turret & Programmable Hydraulic Tailstock, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

SKU:	1792
Make/Model:	Daewoo Puma 200LC
Video:	[fusion_button link=”https://www.youtube.com/watch?v=zCNEuPoXBUk” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1792

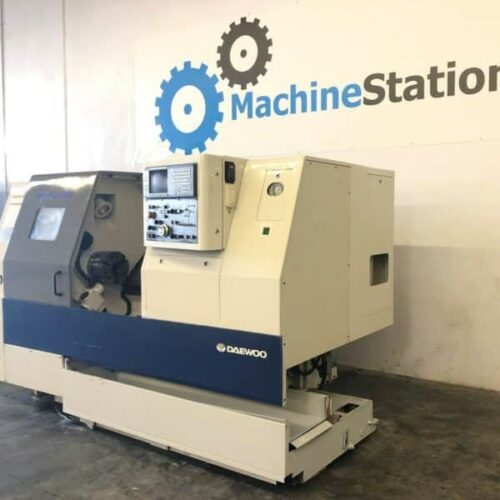

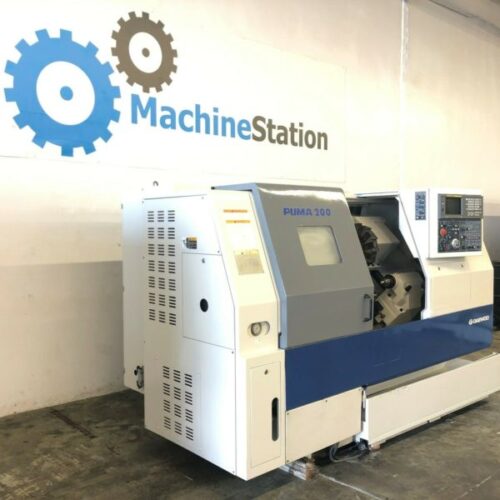

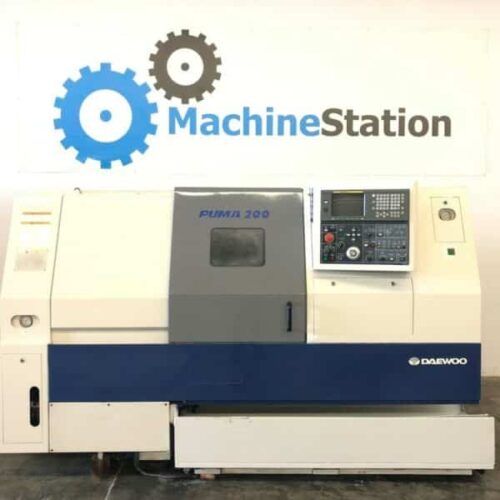

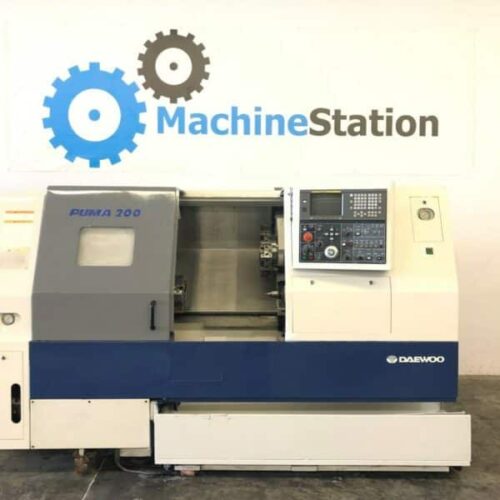

DAEWOO PUMA 200LC CNC TURNING CENTER
Make	Daewoo
Model No.	Puma 200LC
Year	11/1998

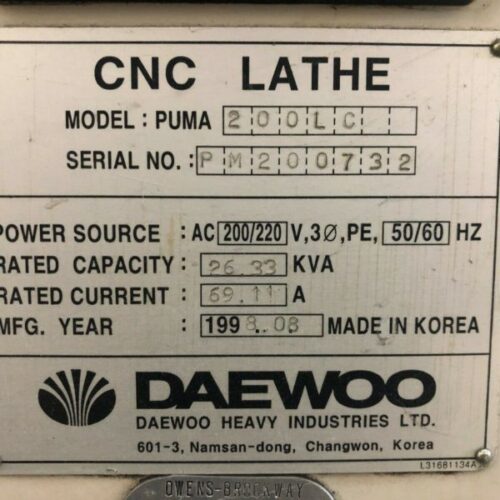

Serial #	PM200732
Condition	Very Good

All specifications are approximations and are subject to verification.

Daewoo Puma 200LC Equipped With:

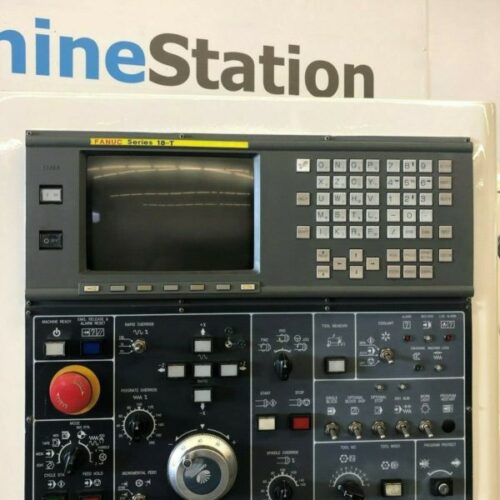

Fanuc 18T series CNC Control
Box way construction
Rigid Tapping

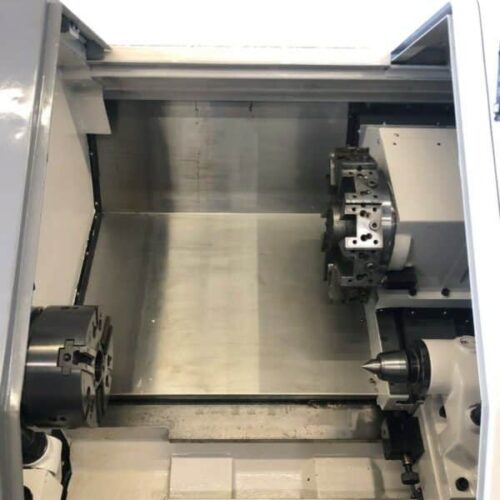

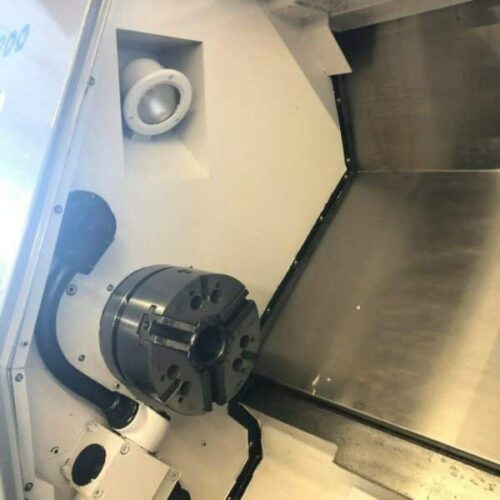

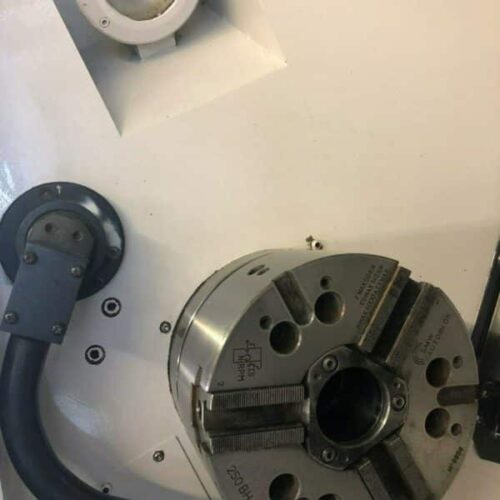

10″ 3 Jaw Hydraulic Chuck
A2-8 Gear Head Spindle
ToolPresetter
Parts Catcher
Hydraulic Programmable Tailstock and Quill
PCMCIA Card Slot
RS-232 & LAN connectivity
Coolant System
Barfeed Interface

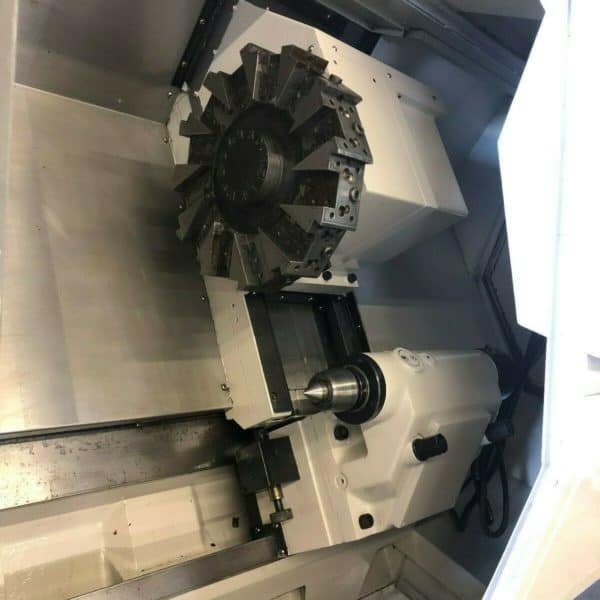

12 Station Automatic Turret
Foot Switch
Turbo Chip Conveyor

General:
Power: 35 kva, 220v / 3-Phase
Overall Dimensions: 110″ x 77″ x 80″ High
Weight: 9000 lbs

Daewoo Puma 200LC Specifications:
Capacity:
Max Turning Diameter: 13.8″
Max Turning Length: 21.65″
Max Bar Capacity: 2.69″
Swing Over Bed: 20.1″
Distance Between Centers: ”
X Axis Travel: 9.53″
Z Axis Travel: 22.83″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 2.99″
Spindle Speed: 45 – 4500 RPM
Spindle Motor: 15kw
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.97″
Tailstock Quill Travel: 3.15″

Daewoo Puma 200LC Comes as shown in pictures..
