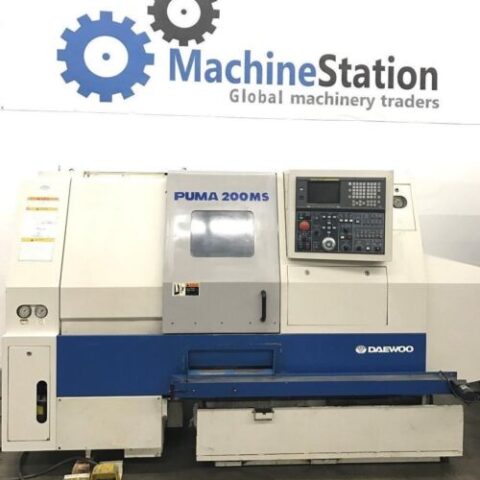

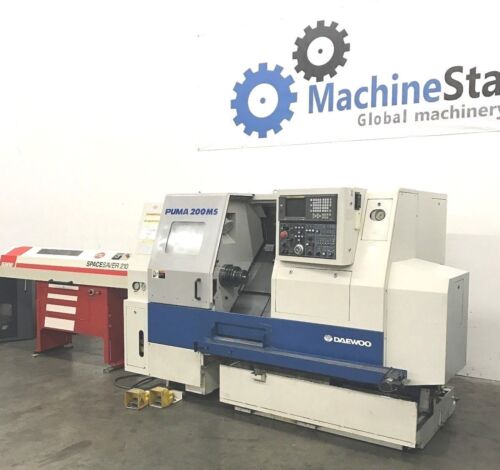

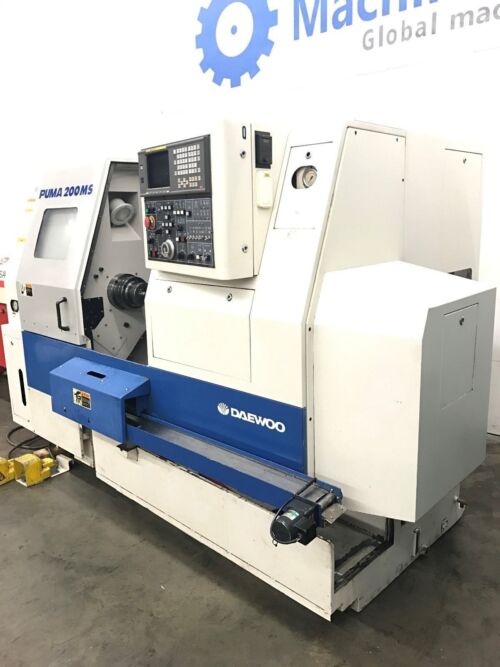

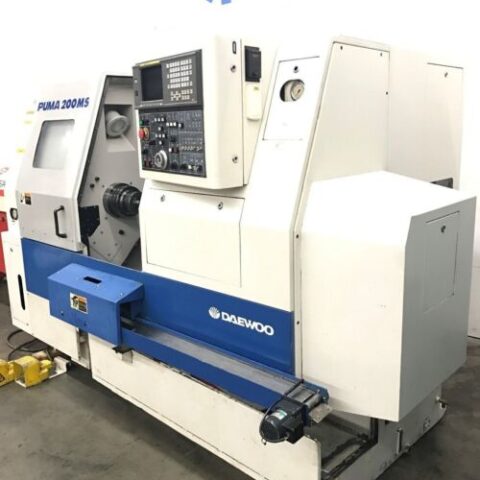

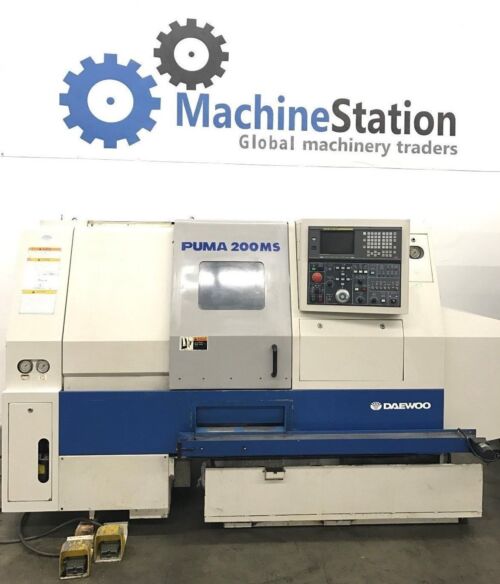

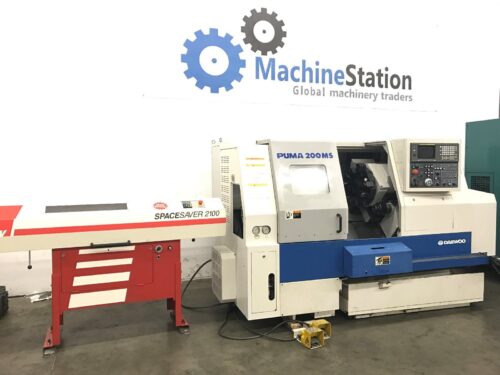

DAEWOO PUMA 200MSΒ CNC TURN MILL CENTERΒ LIVE C AXIS BARFEEDER SUB LATHE | |
---|---|
Make | Daewoo |
Model No. | Puma 200MS |
Year Of Manufacture: | 1997.10 |

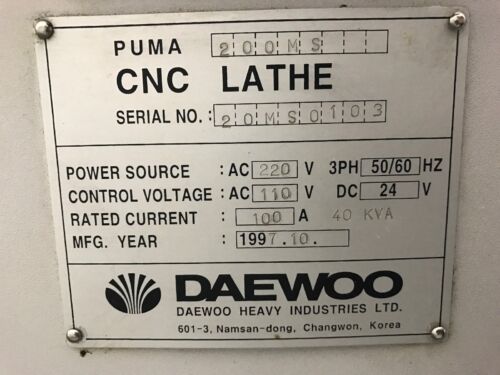

Serial # | 20MS0103 |
Condition | Very Good. |
Country of Origin: | Korea |

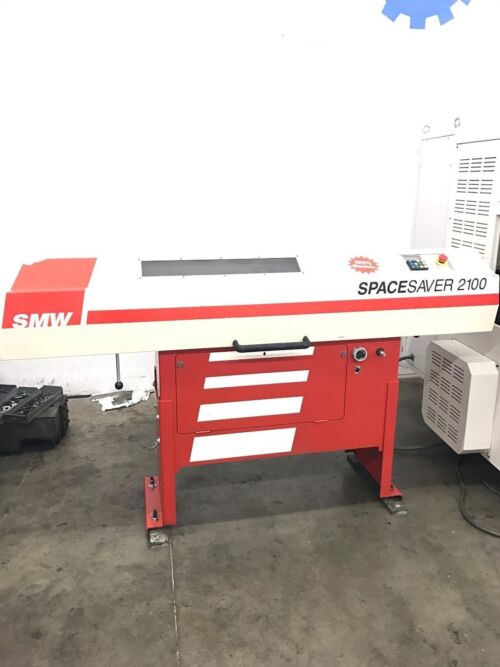

Comes with SMW Space Saver 2100 Bar Feeder.
All Available Books, 4 Live Tool Holders and Tooling.
All specifications are approximations and are subject to verification.
βOne Owner Machine, Fully powered / tested & in Great working condition. Equipped with 2 Collet Chucks, Full C Axis, Milling, Sub Spindle. Comes with Bar Feeder, chip conveyor, manuals, live tool holders. check *VIDEO*β
- DAEWOO PUMA 200MS Equipped With:

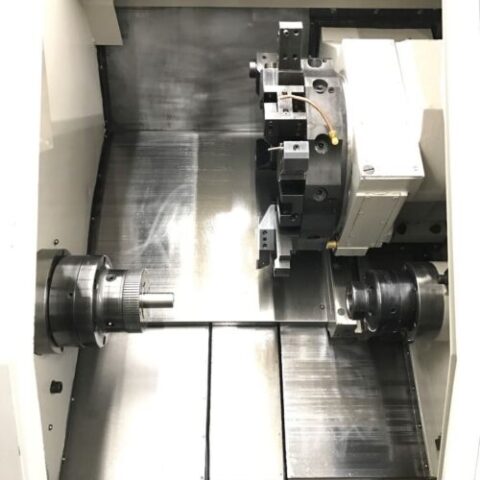

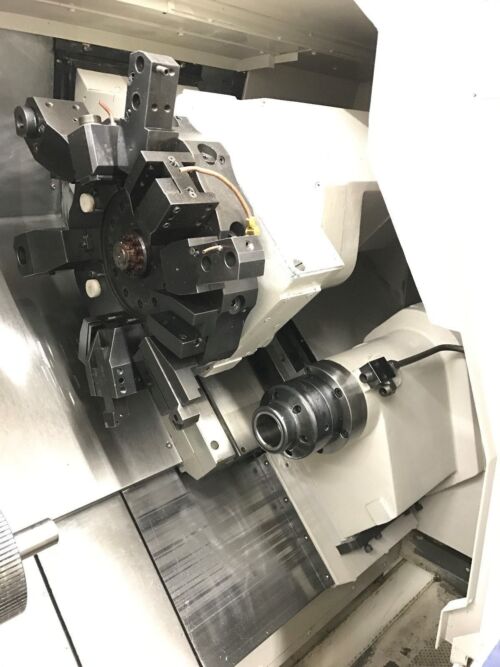

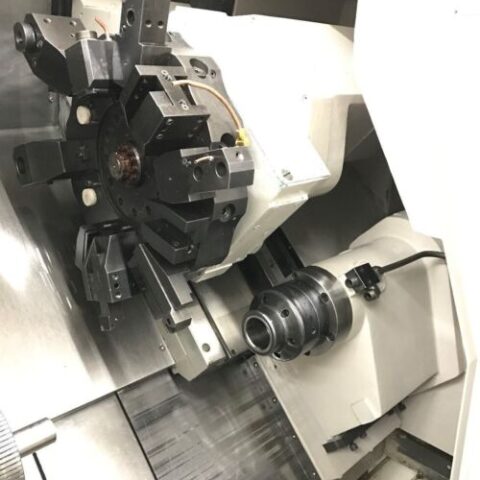

- 12-Station VDI 30 Turret βΒ Live / Rotary Tools (Β 4 Live Tools)

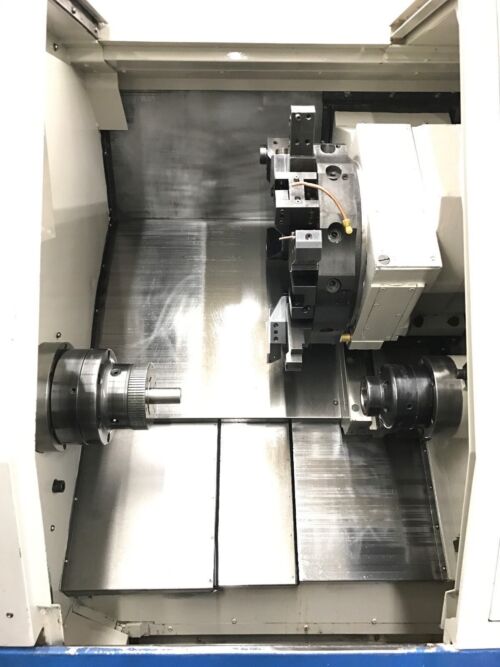

- Servo Controlled Full C-Axis on Both Spindles

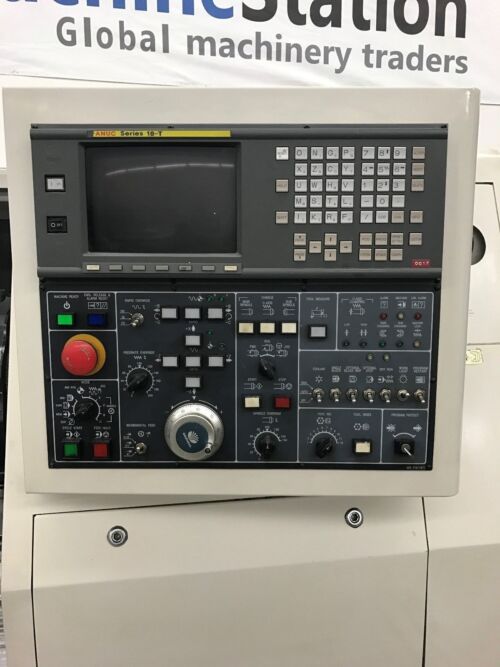

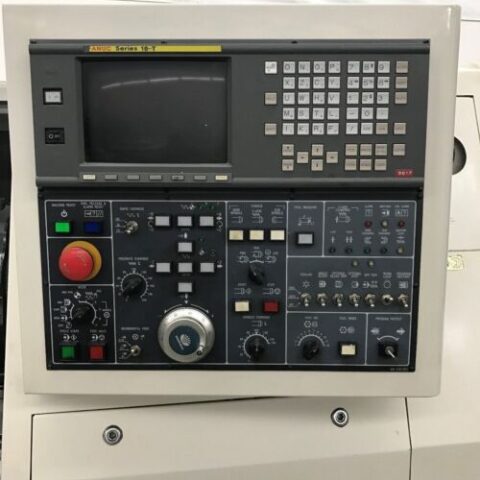

- Fanuc 18T-C CNC Control

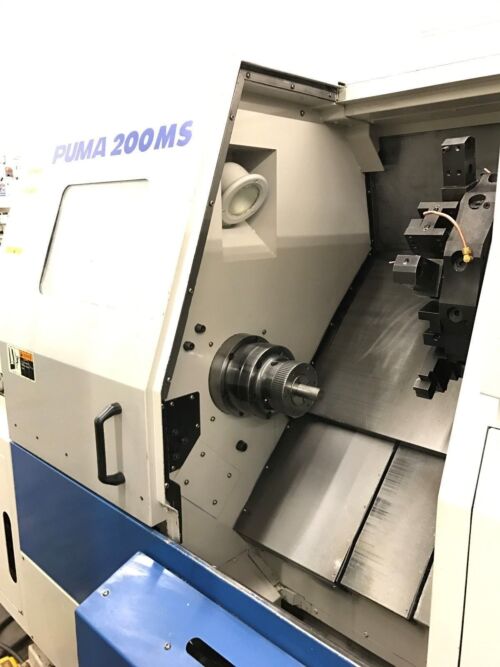

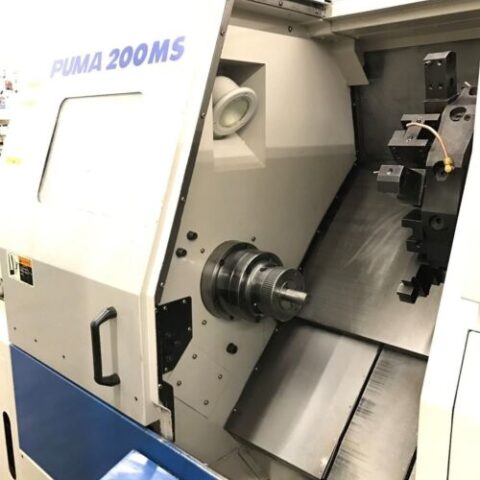

- ATS TL60 Collet Chuck onΒ Main Spindle
- ATS 3J Collet Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- Turbo Systems Chip Conveyor

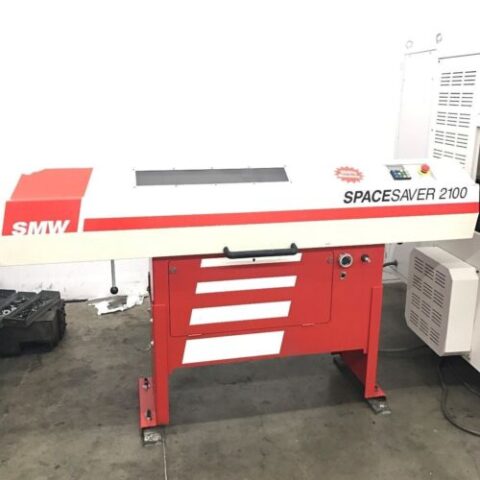

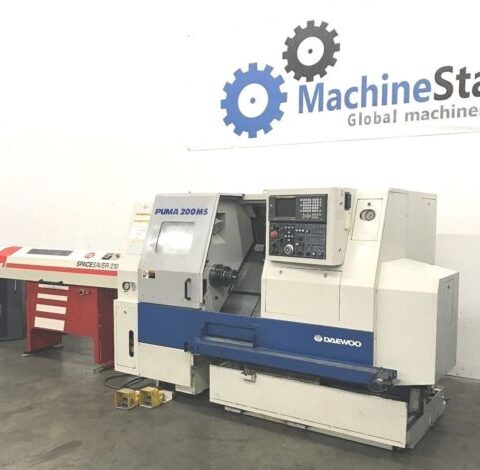

- Comes withΒ SMW Space Saver 2100Β Bar Feeder.
- Comes with 4 Live Tools & some Static Tool Holders.
- All Available Books, Tool Holders and Tooling.
- DAEWOO PUMA 200MS Specifications:
- Max. Turning Diameter: 11.81β³
- Max.Β Swing over Bed: 20.08β³
- Max. Turning Length: 15.75β³
- Max. Bar Capacity: 1.77β³
- X-Axis Travel: 8.66β³
- Z-Axis Travel: 17.32β³
- Sub Spindle Travels: 18.90β³
- C-Axis: 360 Degree (0.001) on Both Spindle
- X Rapid Traverse Rate: 740 Inch Per Minute
- Z Rapid Traverse Rate:Β 945 Inch Per Minute
- Spindle Bore: 2.09β³
- Sub Spindle Bore: 1.77β³
- Main Spindle Nose: A2-5
- Sub Spindle Nose: A2-5
- Main Spindle Speed:Β 60-6,000 RPM
- Sub Spindle Speed: 60-6,000 RPM
- Live Tool Speed: 60-6,000 RPM
- Main Spindle Power:9/11 kw
- Sub Spindle Power: 3.7/505kw
- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Power Requirement: 40kva
- Weight : 9500 lbs Approx.
- Overall Dimensions: 122β³ x 67β³ x 74β³ High
- Overall Dimensions: 146β³ x 67β³ x 74β³ High with Chip Conveyor
DAEWOO PUMA 200MS Comes as shown in pictures.
