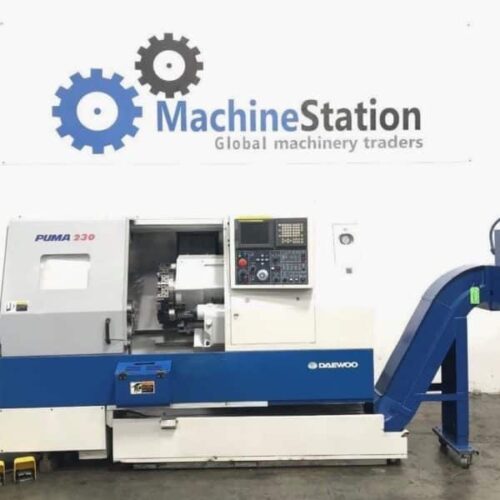

Daewoo Puma 230 CNC Turning Center

Out of stock

This One Owner machine is in good running condition. It is equipped with 8″ Chuck, Tailstock ,Chip Conveyor and tool holders. On Our Floor fully powered / tested & is in Great working condition.”

SKU: 1525
Make/Model: Daewoo Puma 230
Video: [fusion_button link=”https://www.youtube.com/watch?v=z3qC7IeS4Lo” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1525

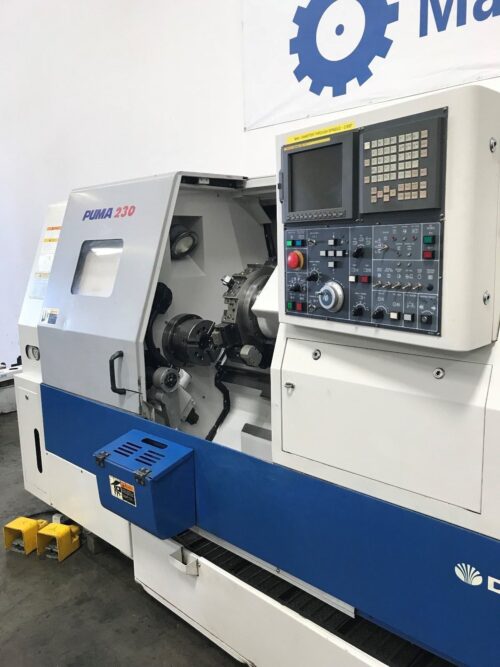

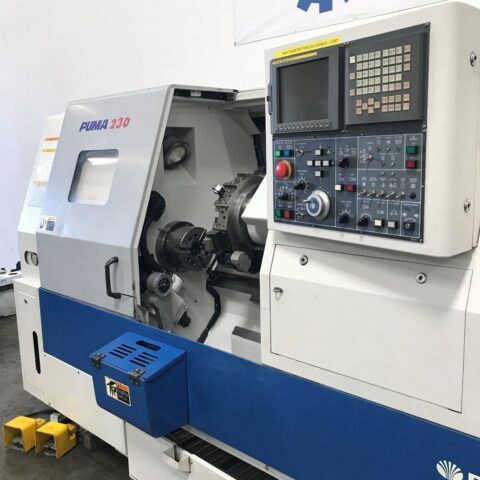

DAEWOO PUMA 230 CNC TURNING CENTER LATHE
Make Daewoo
Model No. Puma 230
Serial # P201340
Condition Very Good

Comes with 8″ Chuck, Tool Holders, Tailstock & Chip Conveyor.

“This One Owner machine is in good running condition. It is equipped with 8″ Chuck, Tailstock ,Chip Conveyor and tool holders. On Our Floor fully powered / tested & is in Great working condition.”

  • DAEWOO PUMA 230 Equipped With:

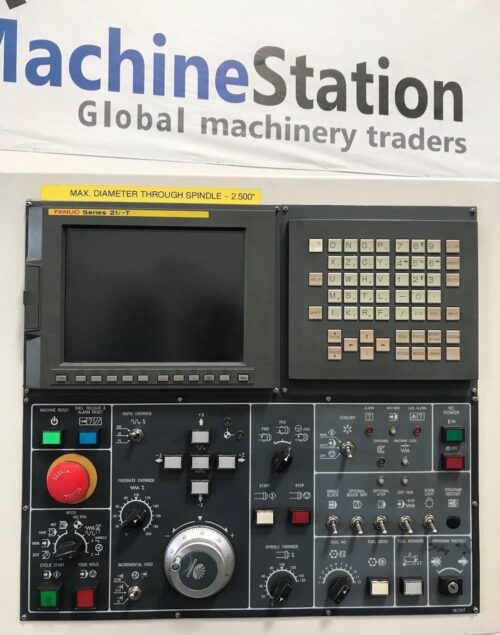

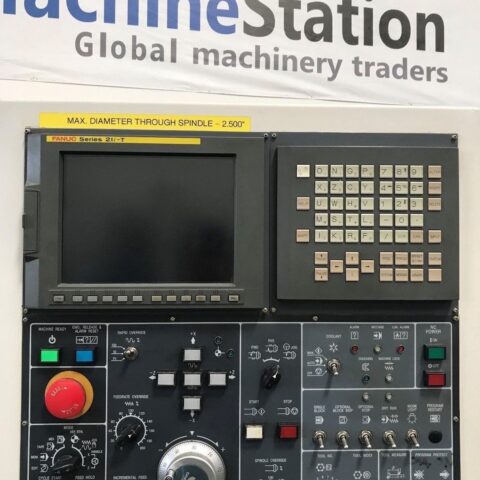

  • Fanuc 21iT CNC Control

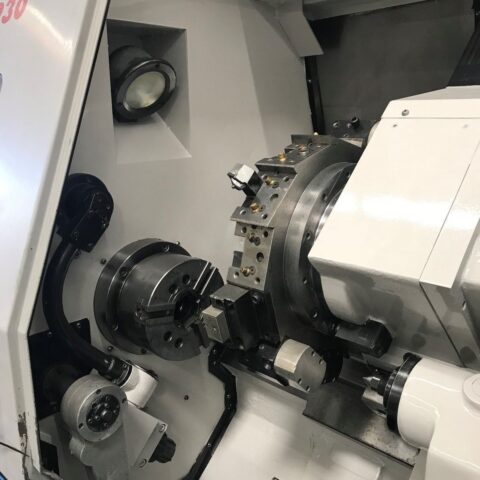

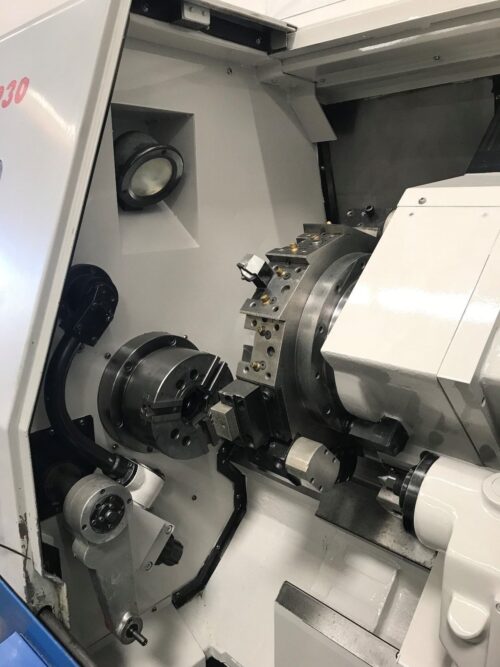

  • 8″ Kitagawa 3 Jaw Hydraulic Chuck ( 10″ Capable )
  • A2-8 Spindle
  • Auto Tool Presetter

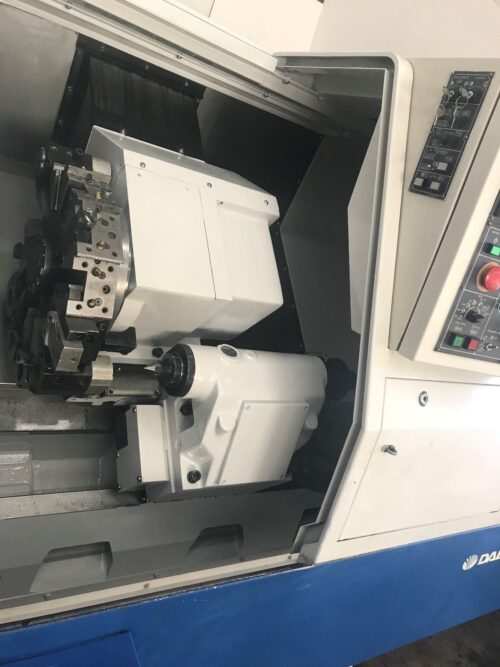

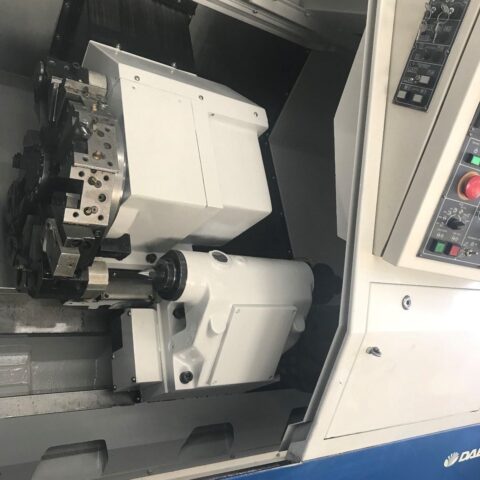

  • Hydraulic Programmable Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

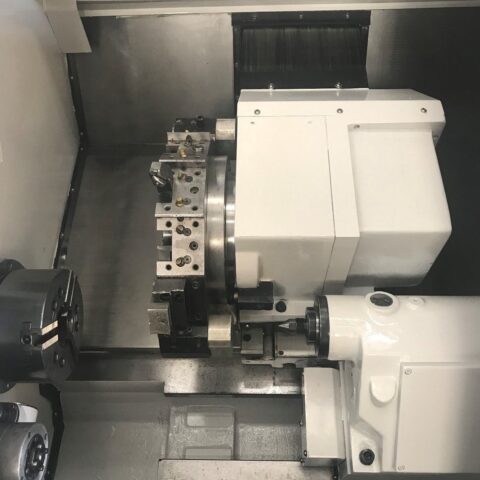

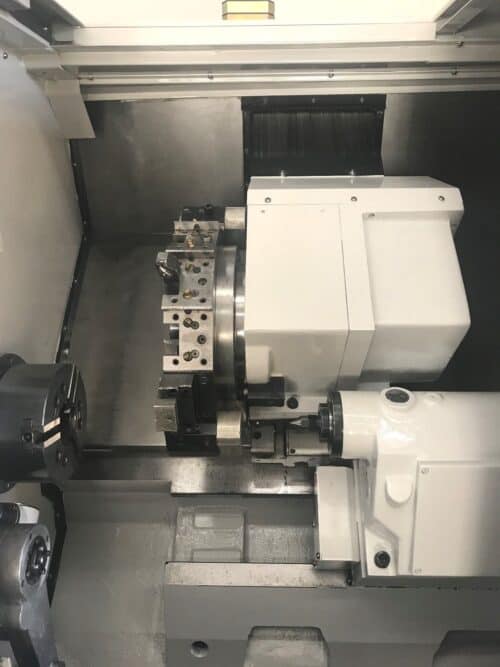

  • 12 Station Automatic Turret
  • Foot Switch
  • Turbo Chip Conveyor
  • General:
  • Power: 35 kva, 220v / 3-Phase
  • Overall Dimensions: 117″ x 62″ x 72″ High
  • Overall Dimensions: 130″ x 62″ x 72″ High with Chip Conveyor
  • Weight: 9500 lbs
  • DAEWOO PUMA 230 Specifications:
  • Capacity:
  • Max Turning Diameter: 13.78″
  • Max Turning Length: 21.57″
  • Max Bar Capacity: 3.0″
  • Swing Over Bed: 21.0″
  • Distance Between Centers: 26.3″
  • X Axis Travel: 9.53″
  • Z Axis Travel: 22.83″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 1000 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.53″
  • Spindle Speed: 35 – 3500 RPM
  • Spindle Motor: 25 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 2.9″
  • Tailstock Quill Travel: 3.15″

DAEWOO PUMA 230 Comes as shown in pictures..
