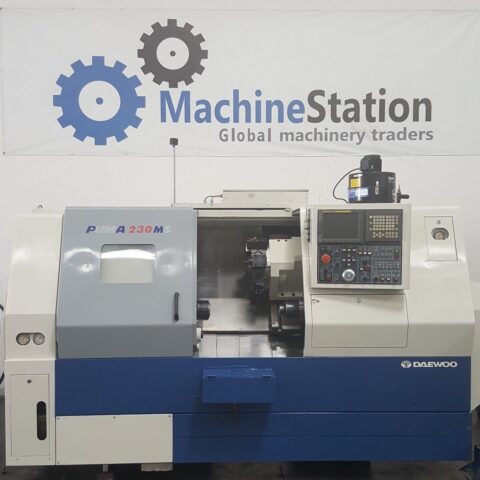

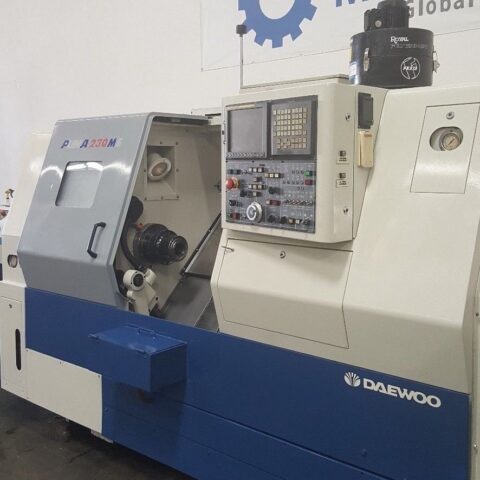

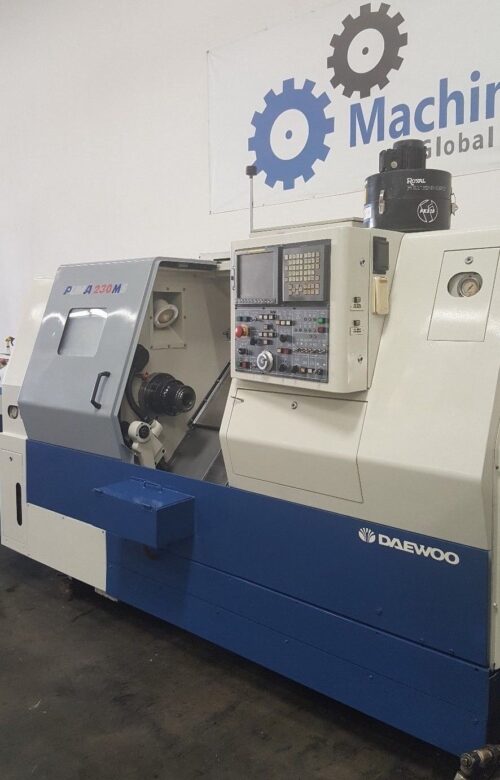

Daewoo Puma 230MS CNC Turning Center

Out of stock
SKU: 1637
Make/Model: Daewoo Puma 230MS
Video: [fusion_button link=”https://www.youtube.com/watch?v=AovTxGNEMfo” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1637

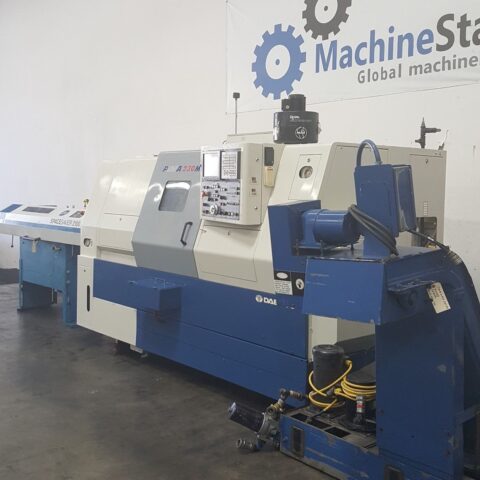

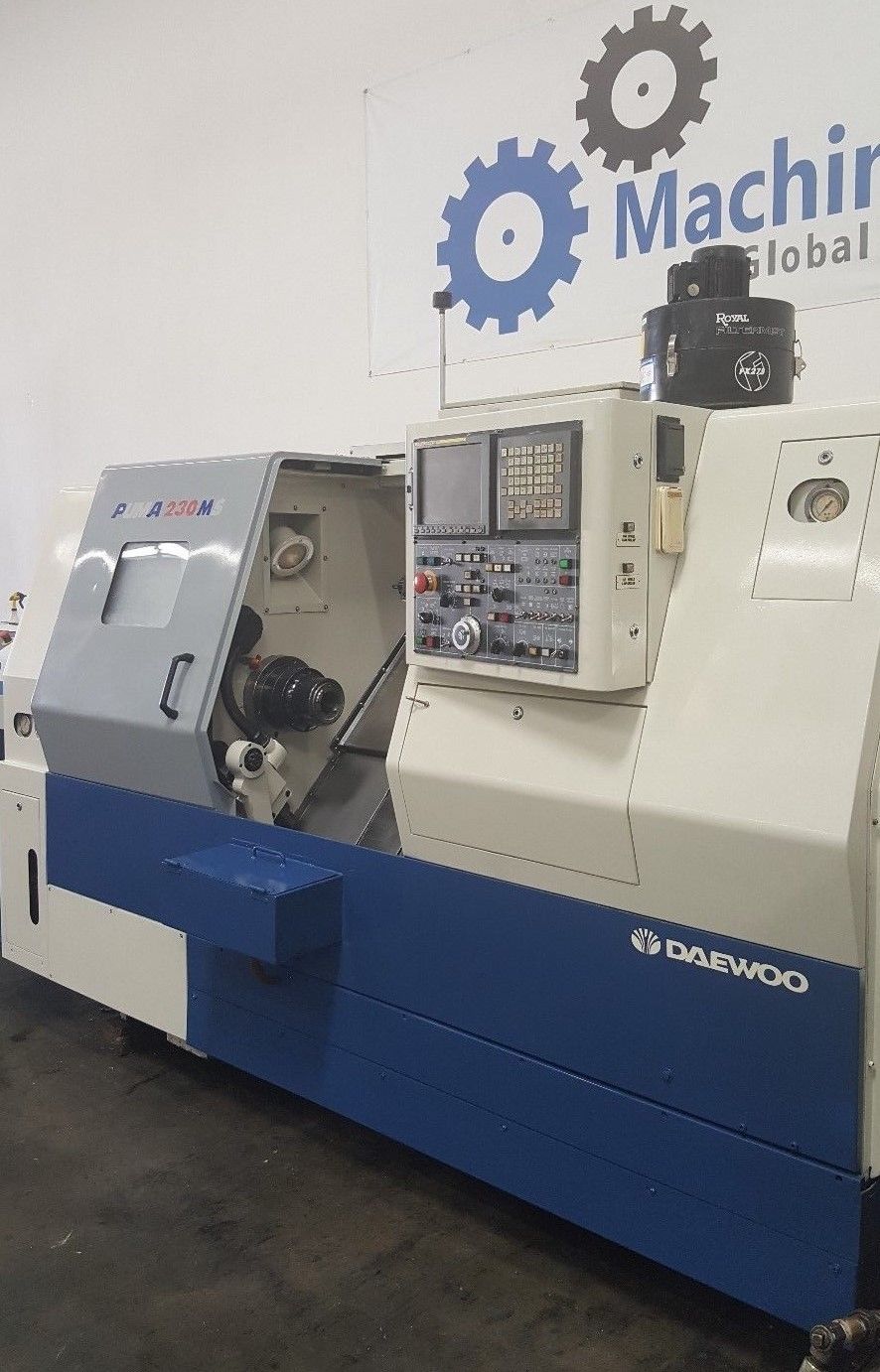

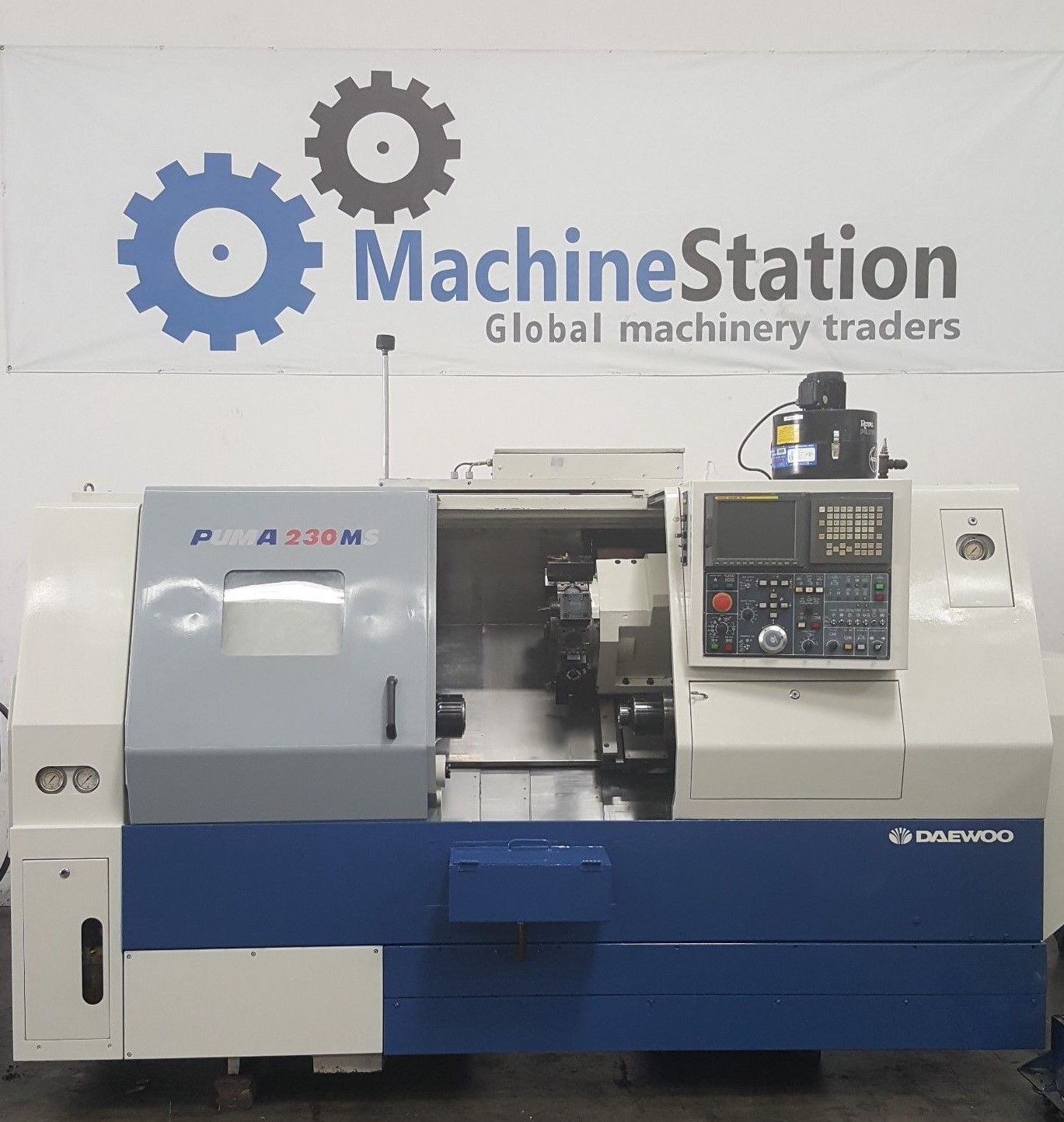

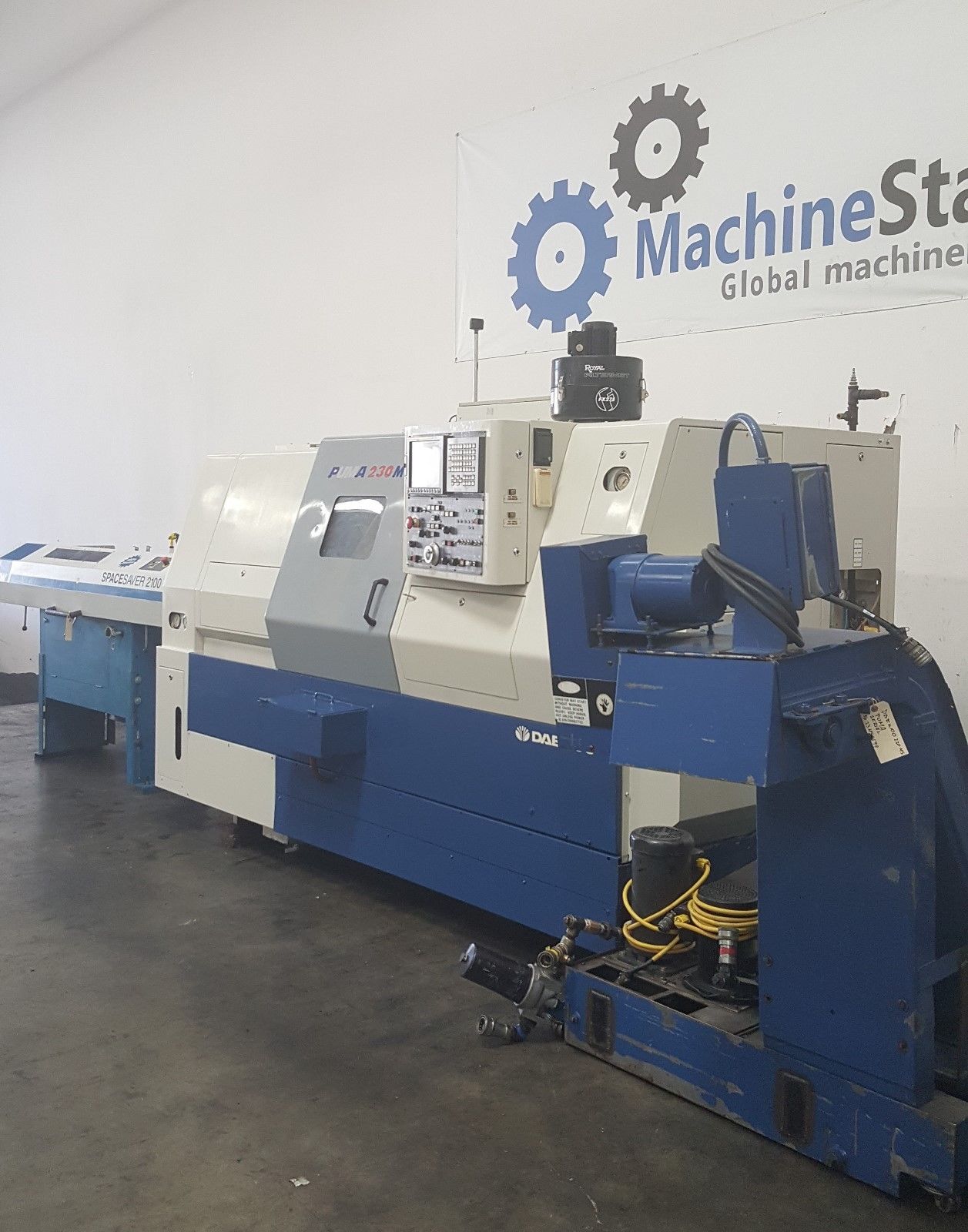

DAEWOO PUMA 230MS CNC SUB SPINDLE LIVE TOOL TURNING CENTER
Make Daewoo
Model No. Puma 230MSB
Serial # 23MS0199
Condition Very Good
  • DAEWOO PUMA 230MS CNC Equipped With:

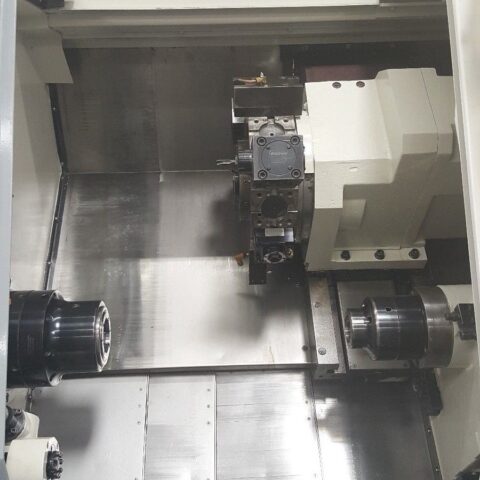

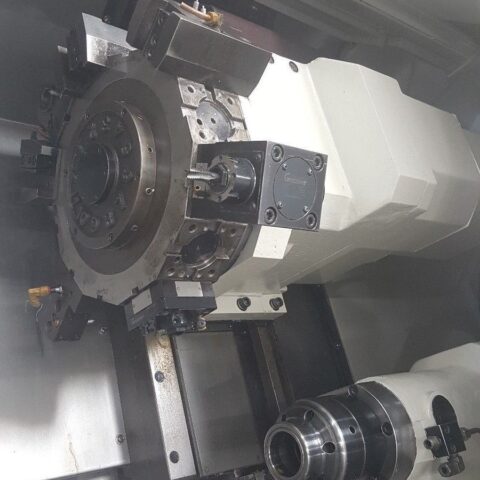

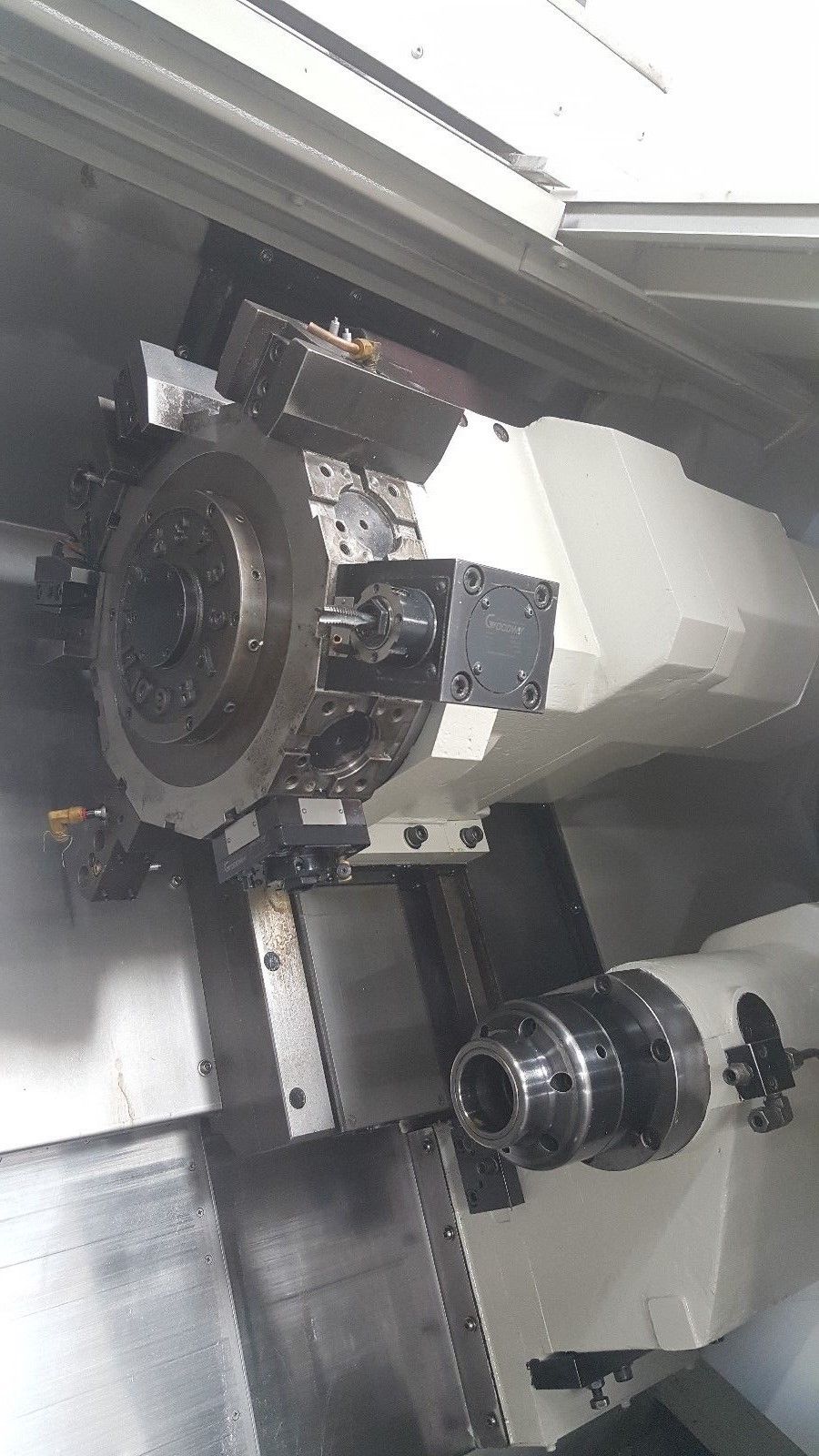

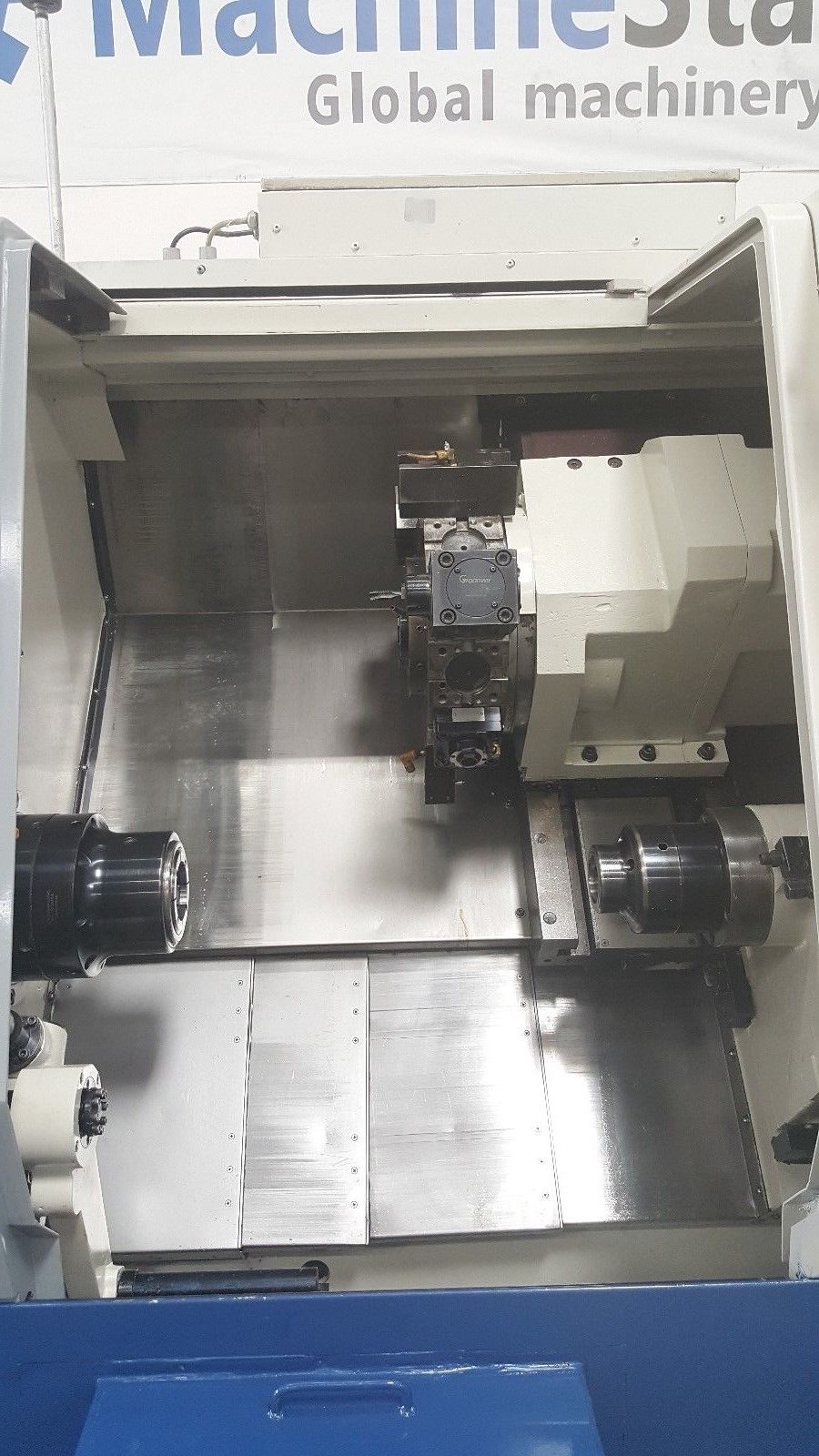

  • 12-Station Turret –  Live / Rotary Tools
  • Servo Controlled Full C-Axis on Both Spindles

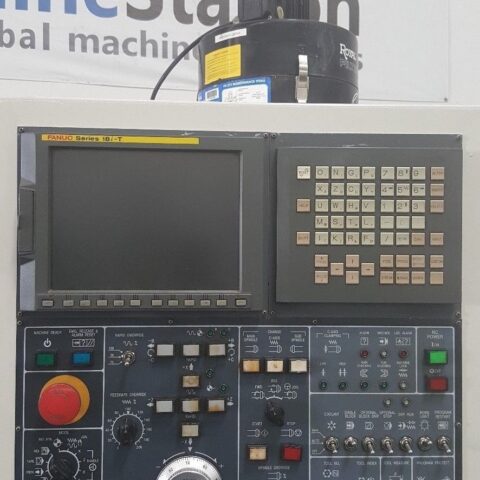

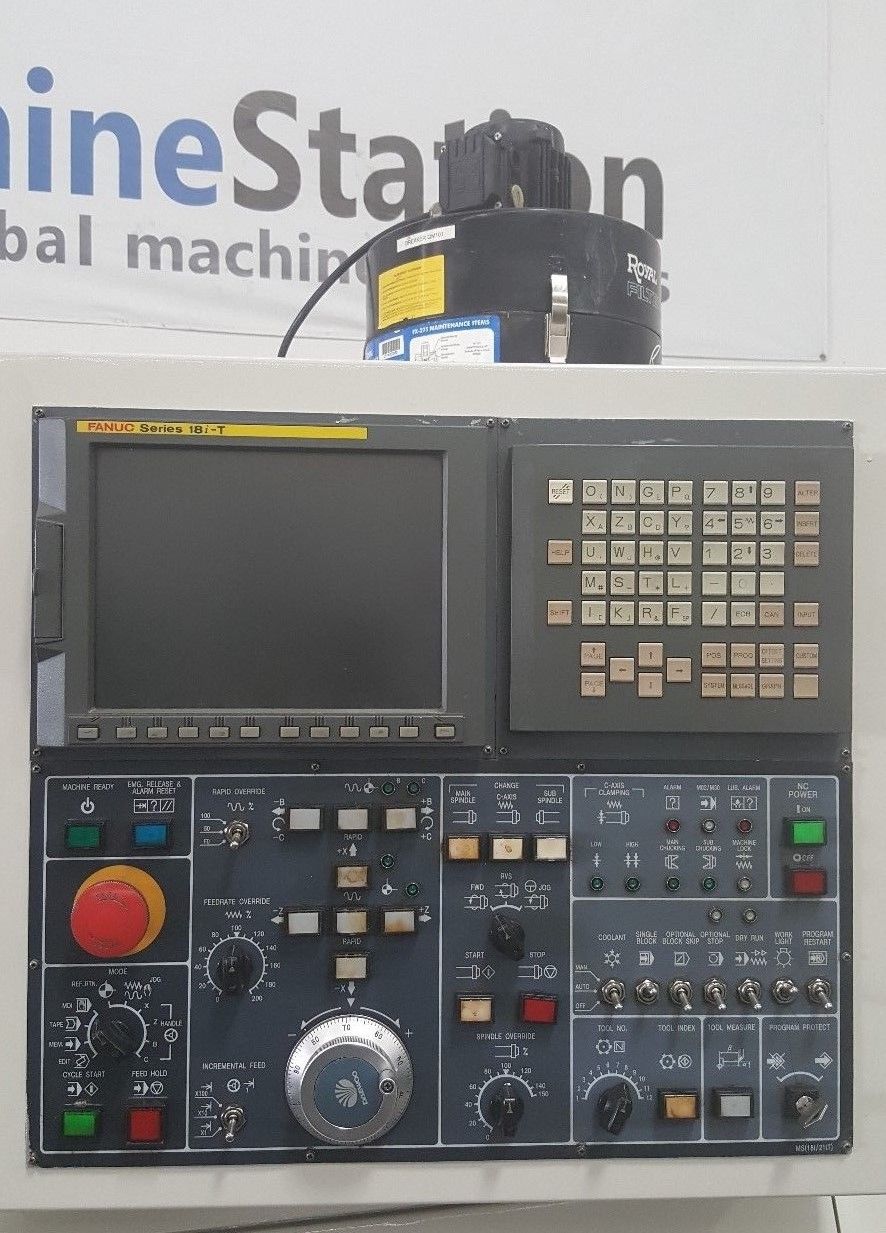

  • Fanuc 18iT CNC Control
  • PCMCIA Card Slot
  • Tool Presetter
  • Parts Catcher
  • Parts Conveyor

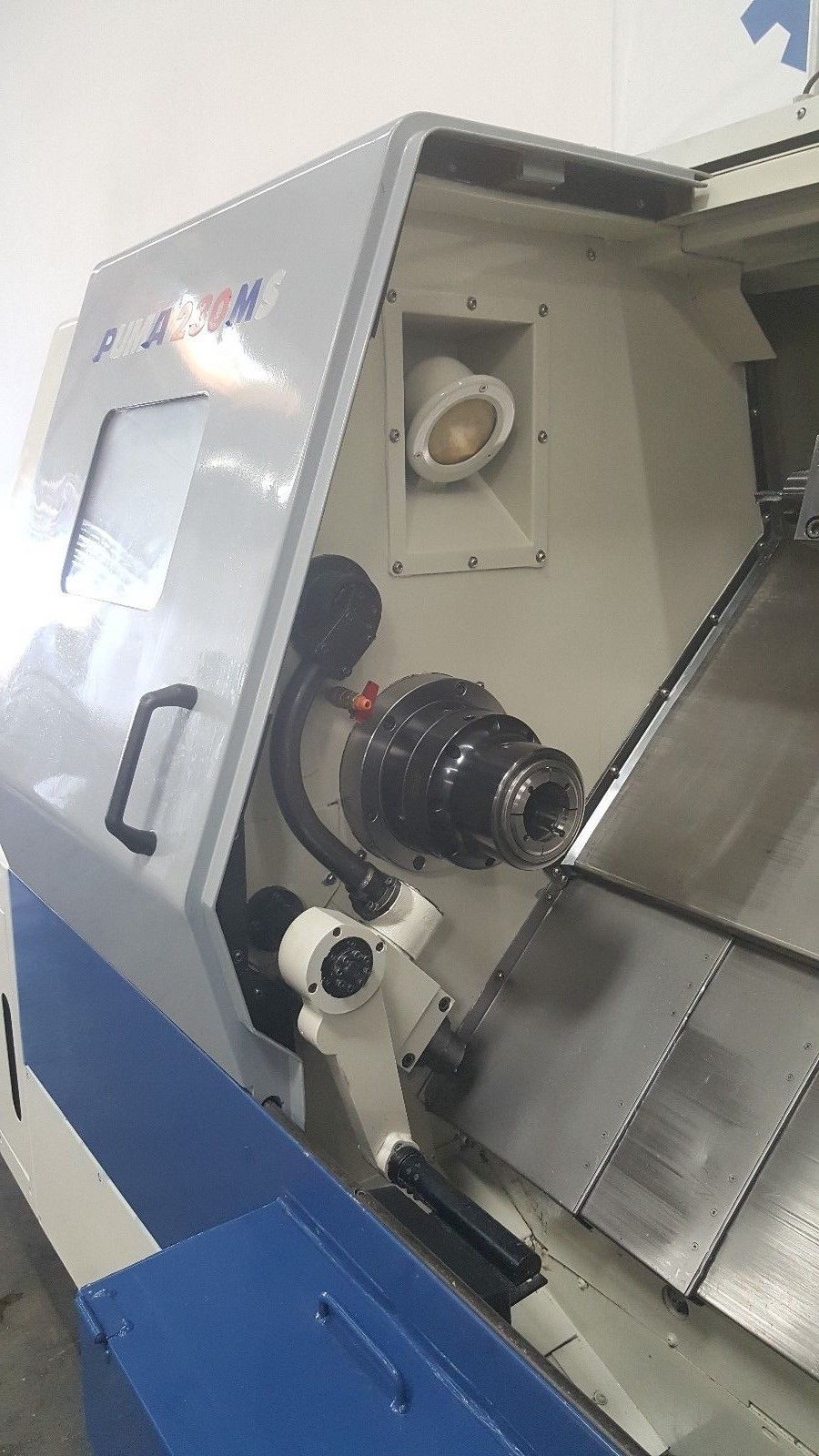

  • ATS Collet Chuck on Main Spindle
  • ATS Collet Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Royal Filet Mist Unit

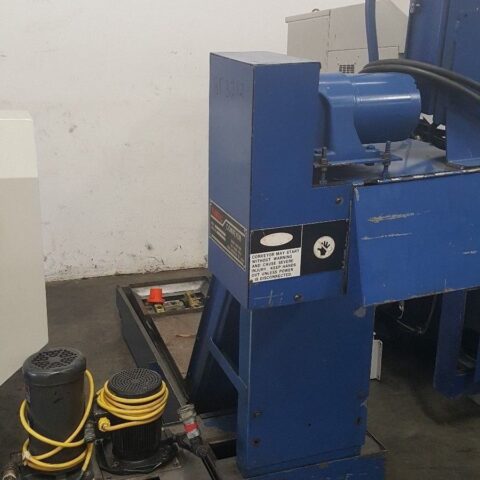

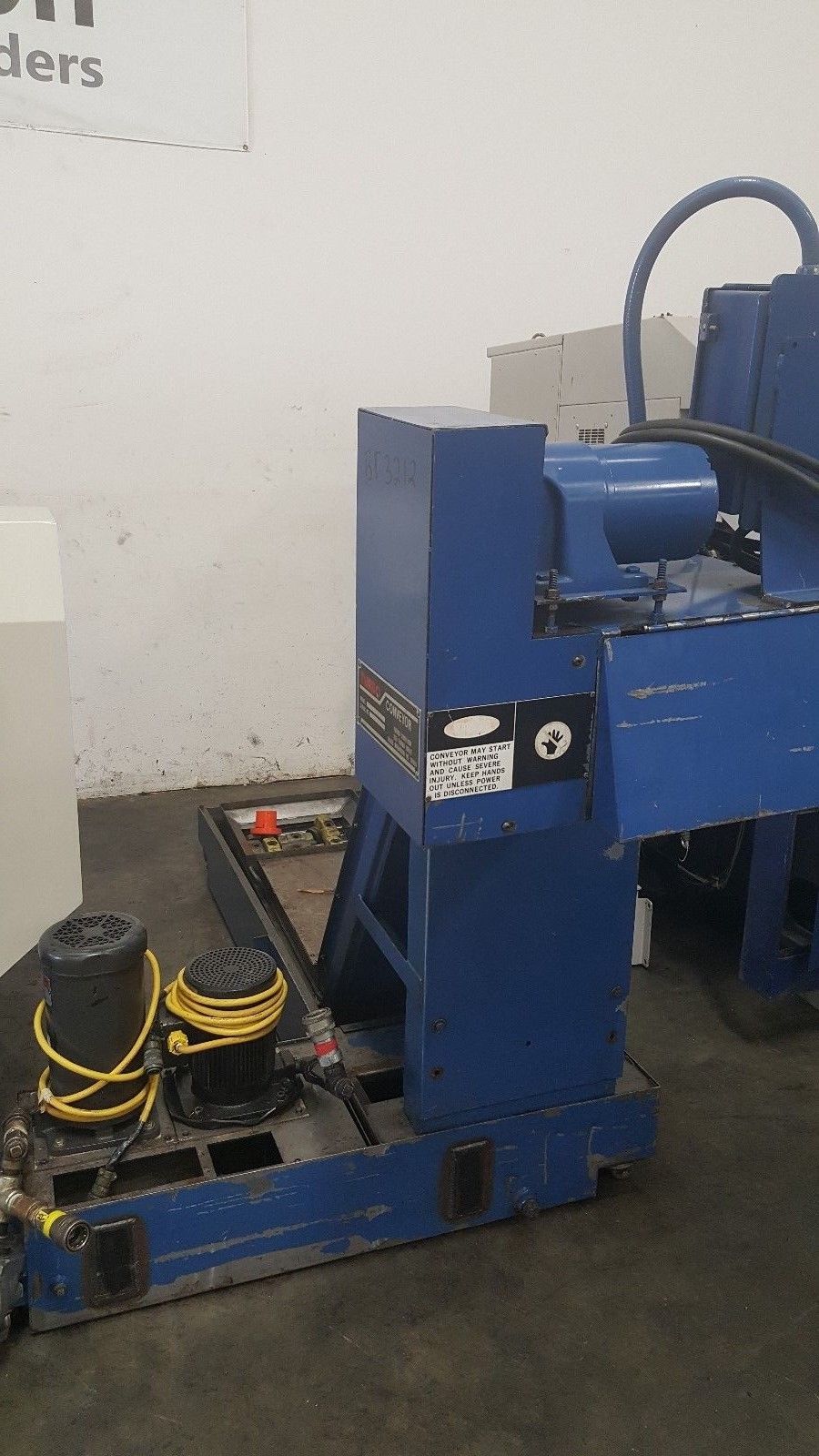

  • Turbo Systems Chip Conveyor

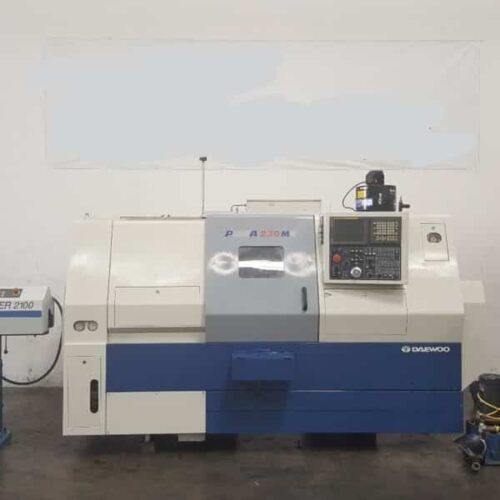

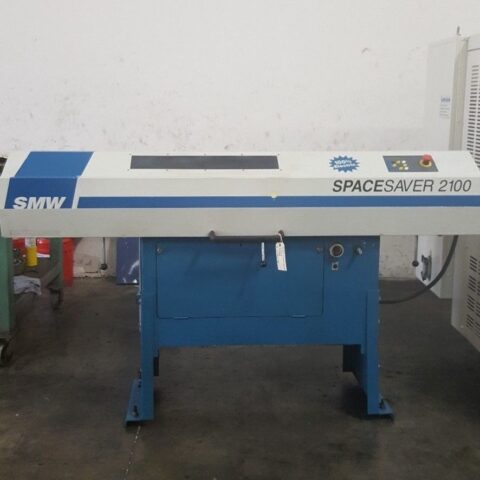

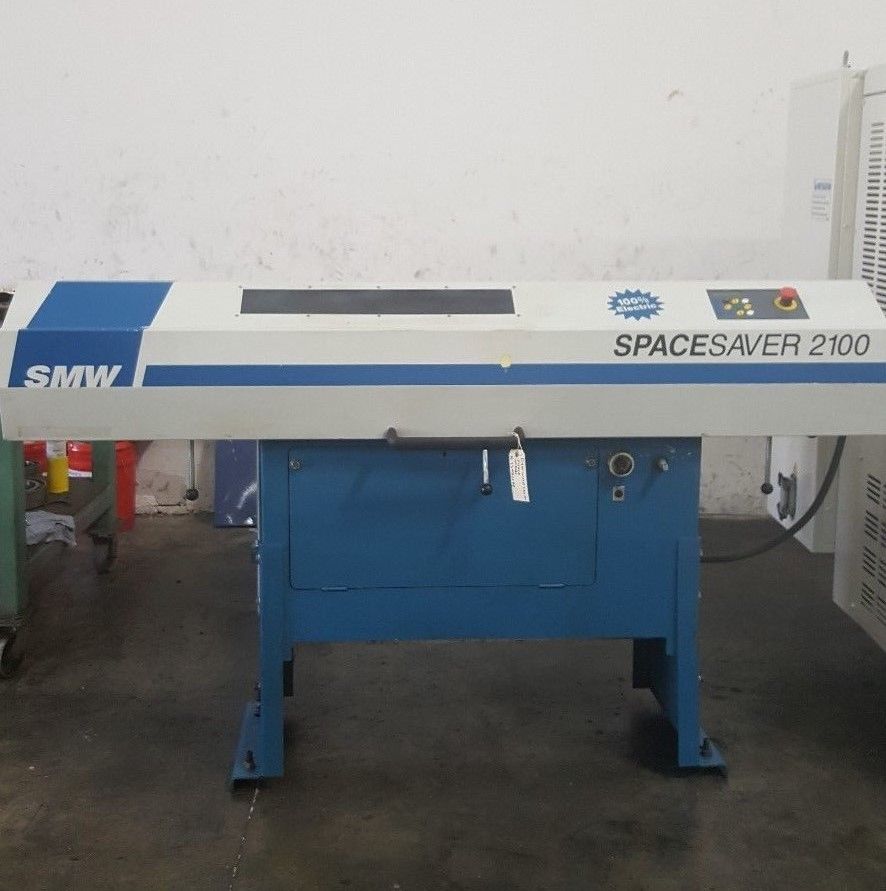

  • Comes with SMW Space Saver 2100 Bar Feeder & Spindle Liners
  • Comes with Live Tools & some Static Tool Holders
  • All Available Books and Manuals
  • General:
  • Power: 35 kva, 220v / 3-Phase
  • Overall Dimensions: 130″ x 67″ x 72″ High
  • Overall Dimensions: 146″ x 62″ x 72″ High with Chip Conveyor
  • Weight: 9500 lbs
  • DAEWOO PUMA 230MS CNC Specifications:
  • Capacity:
  • Max Turning Diameter: 11.42″
  • Max Turning Length: 19.37″
  • Max Bar Capacity: 2.6″
  • Swing Over Bed: 21.65″
  • X Axis Travel: 8.07″
  • Z Axis Travel: 22.83″
  • Sub Spindle Travel: 18.90″
  • C Axis: 360° (0.001°) Both Spindle
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Main Spindle Bore: 2.99″
  • Sub Spindle Bore: 1.77″
  • Main Spindle Nose: A2-6
  • Sub Spindle Nose: A2-5
  • Main Spindle Speed: 45-4500 RPM
  • Sub Spindle Speed: 60-6,000 RPM
  • Live Tool Speed: 60-6,000 RPM
  • Main Spindle Power: 15 kw
  • Sub Spindle Power: 5.5 kw
  • Turret Capacity: 12 Live Stations
  • Turret Index Time: 0.2 Second
