*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

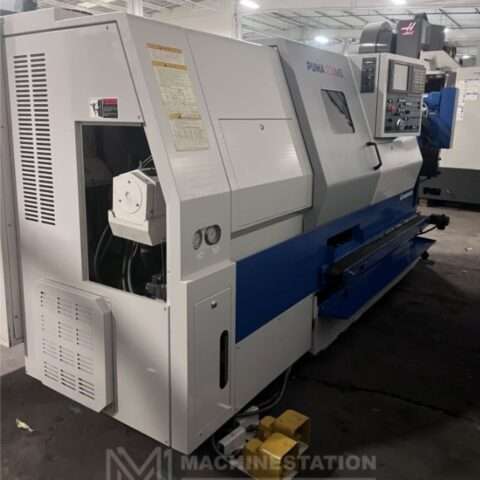

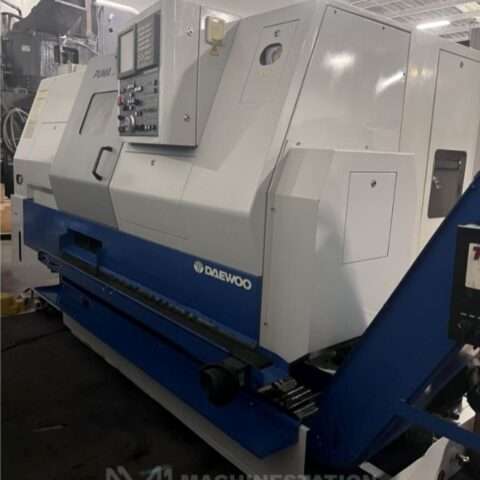

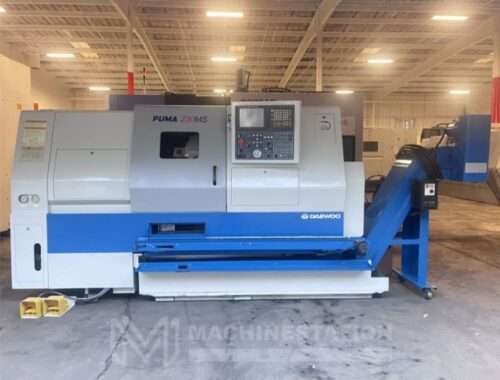

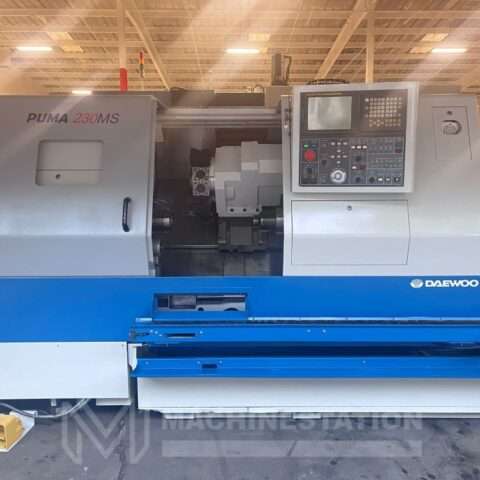

| Make: |

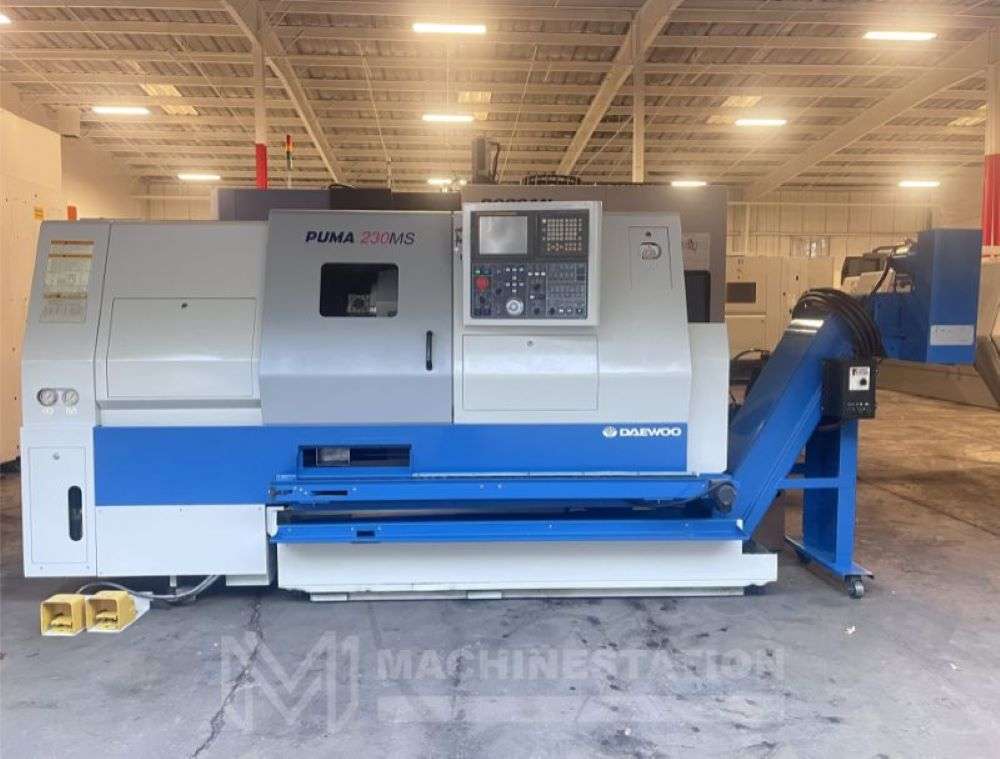

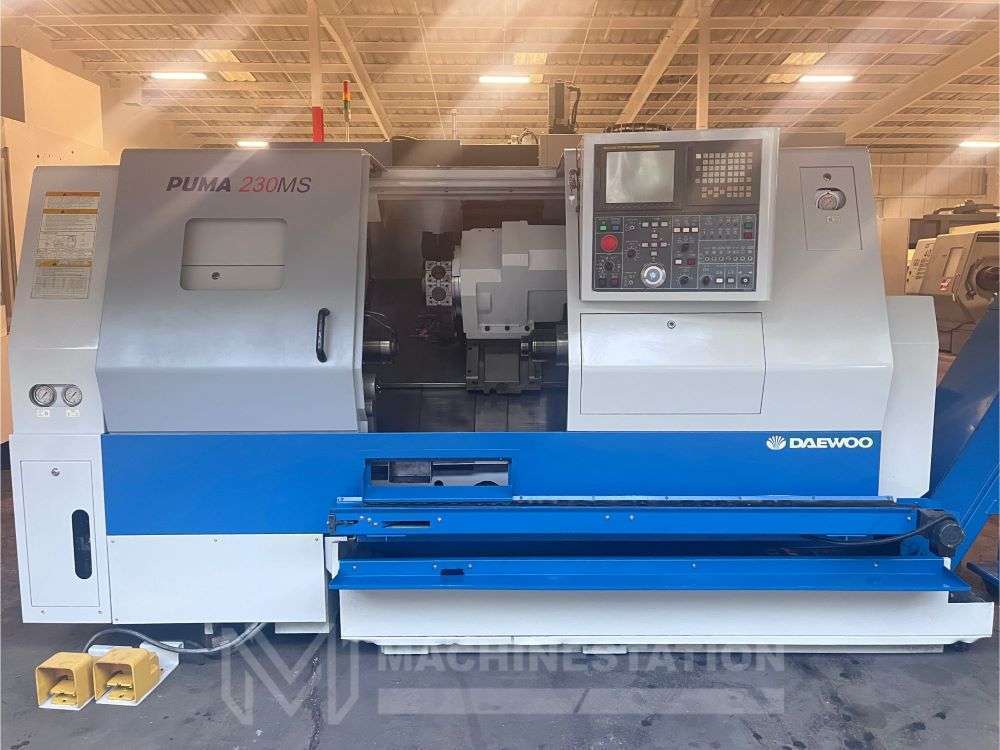

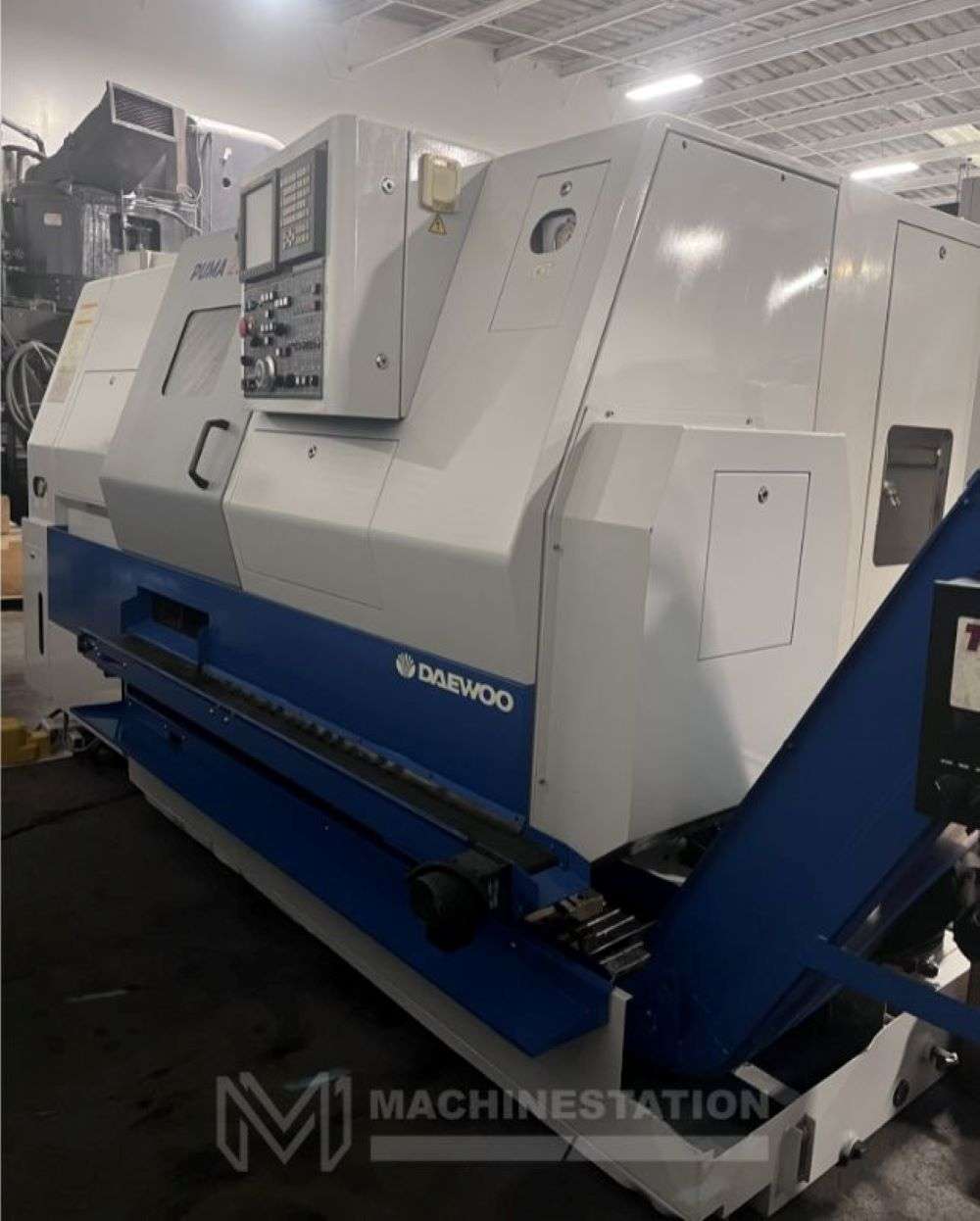

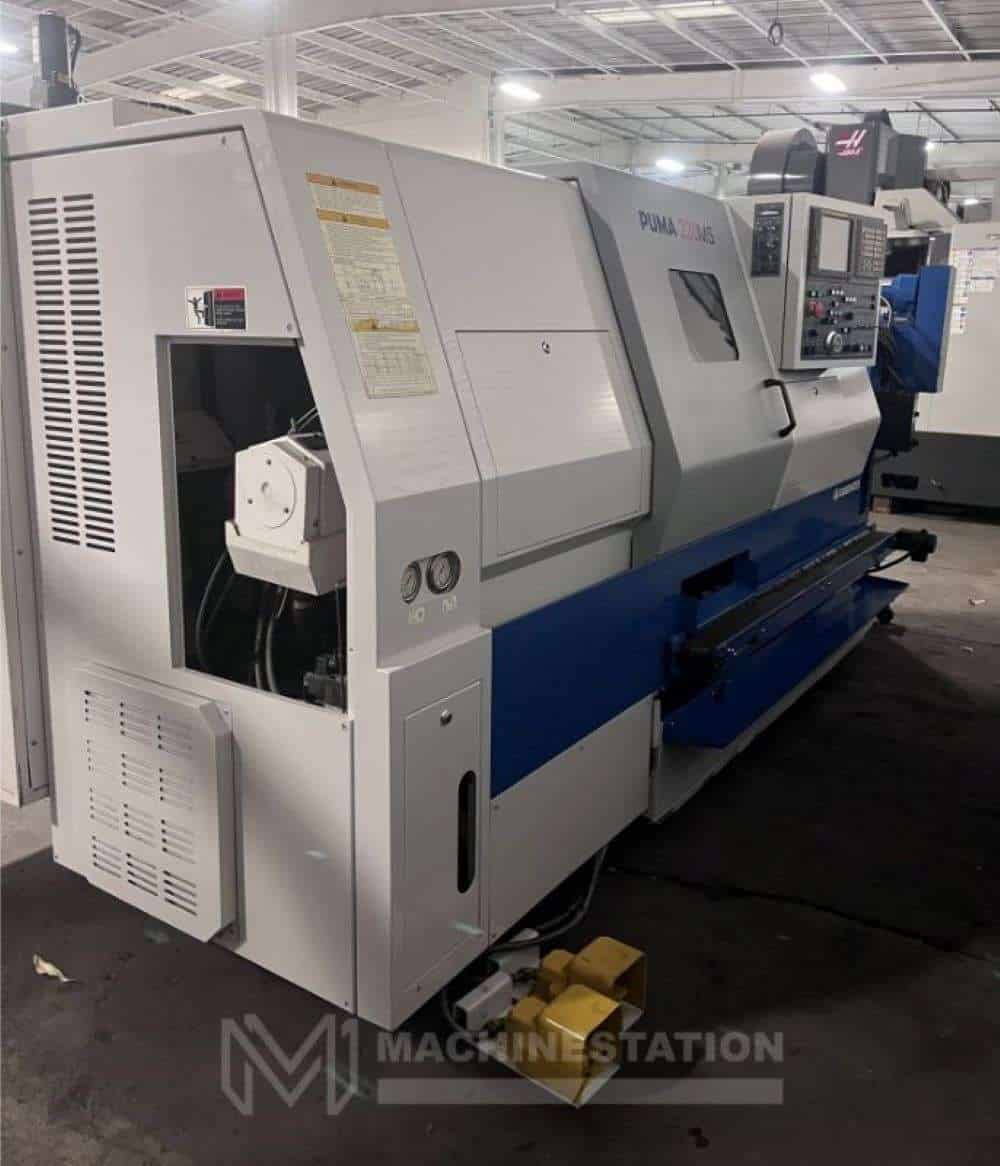

Daewoo |
| Model: |
Puma 230MSC |
| Year: |
2002 |
| Condition: |
Used – Good |
| Equipped With: |

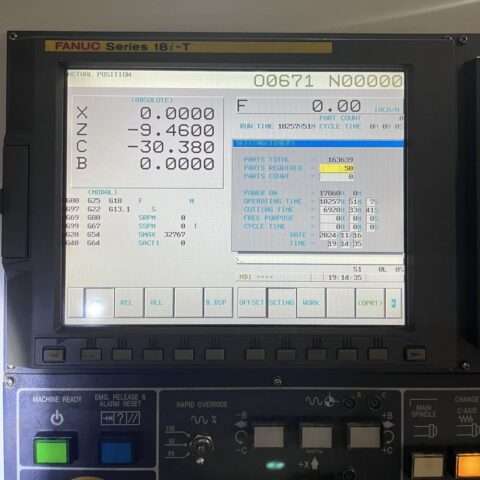

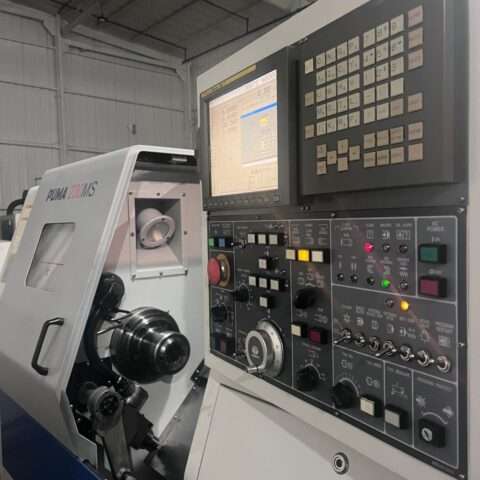

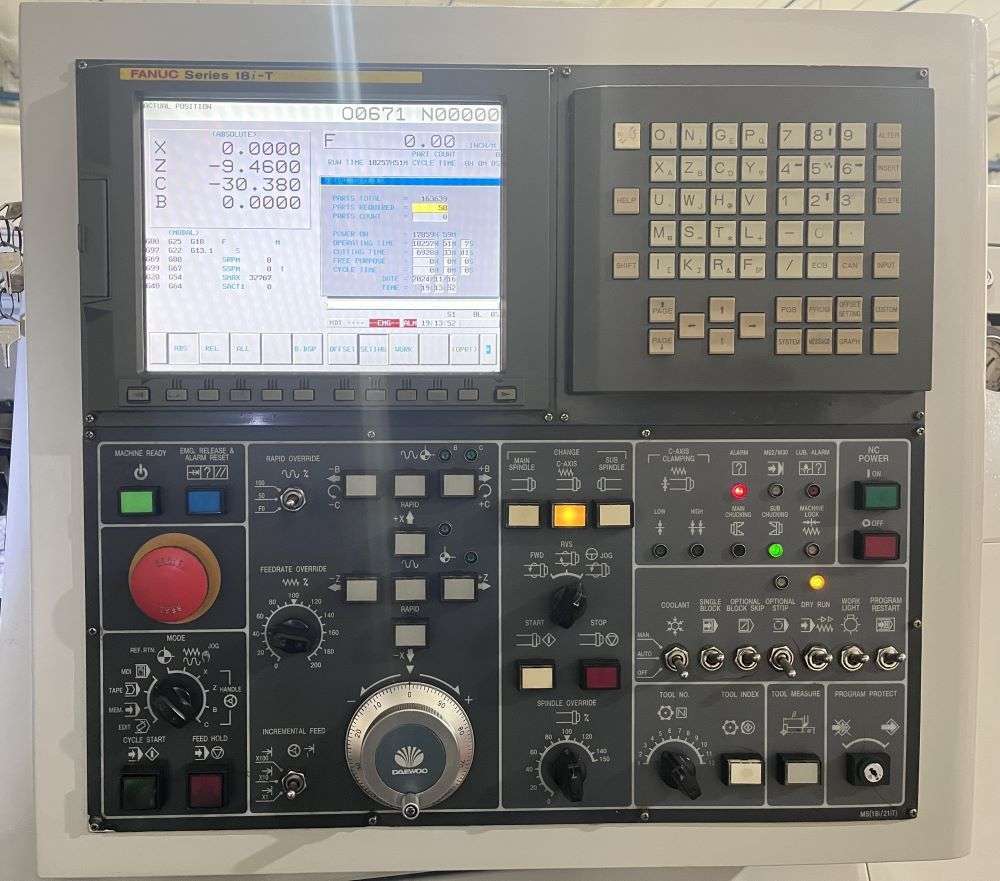

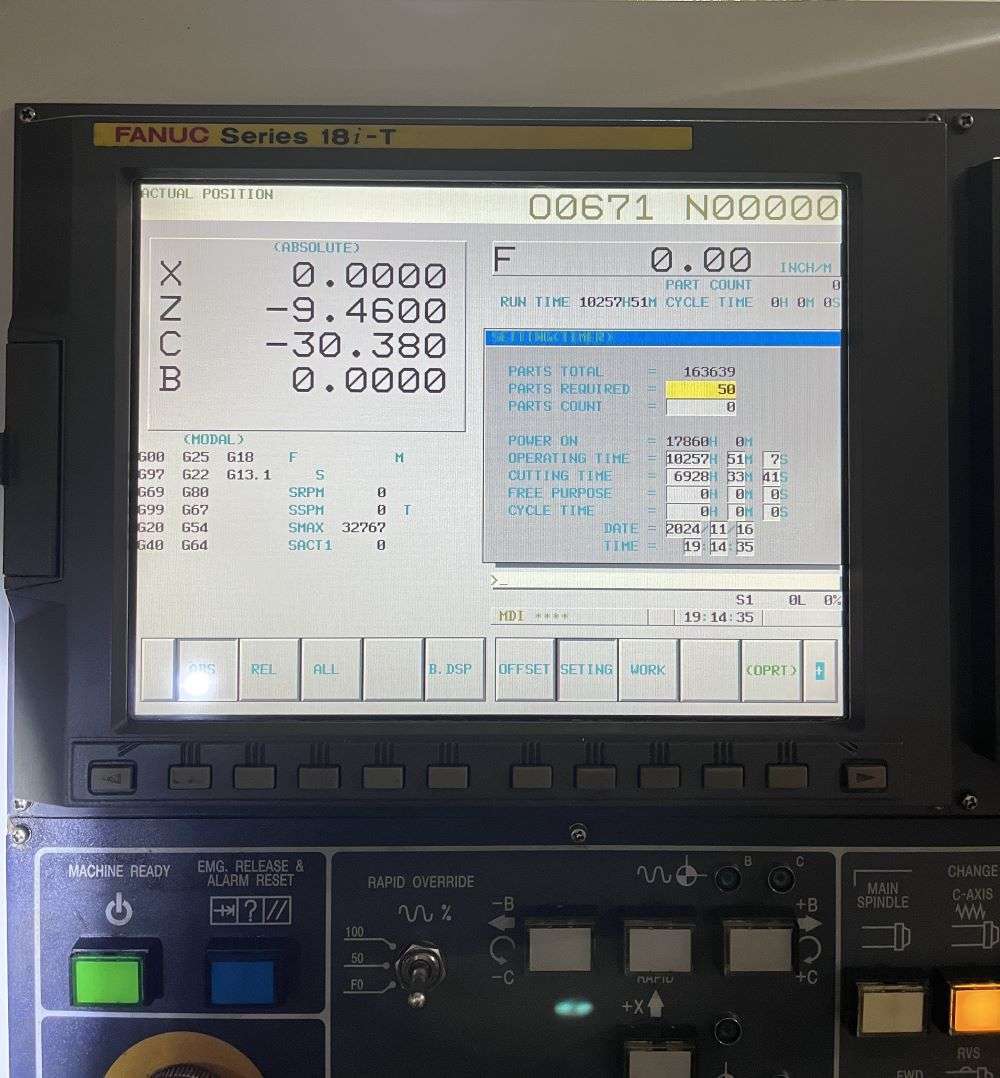

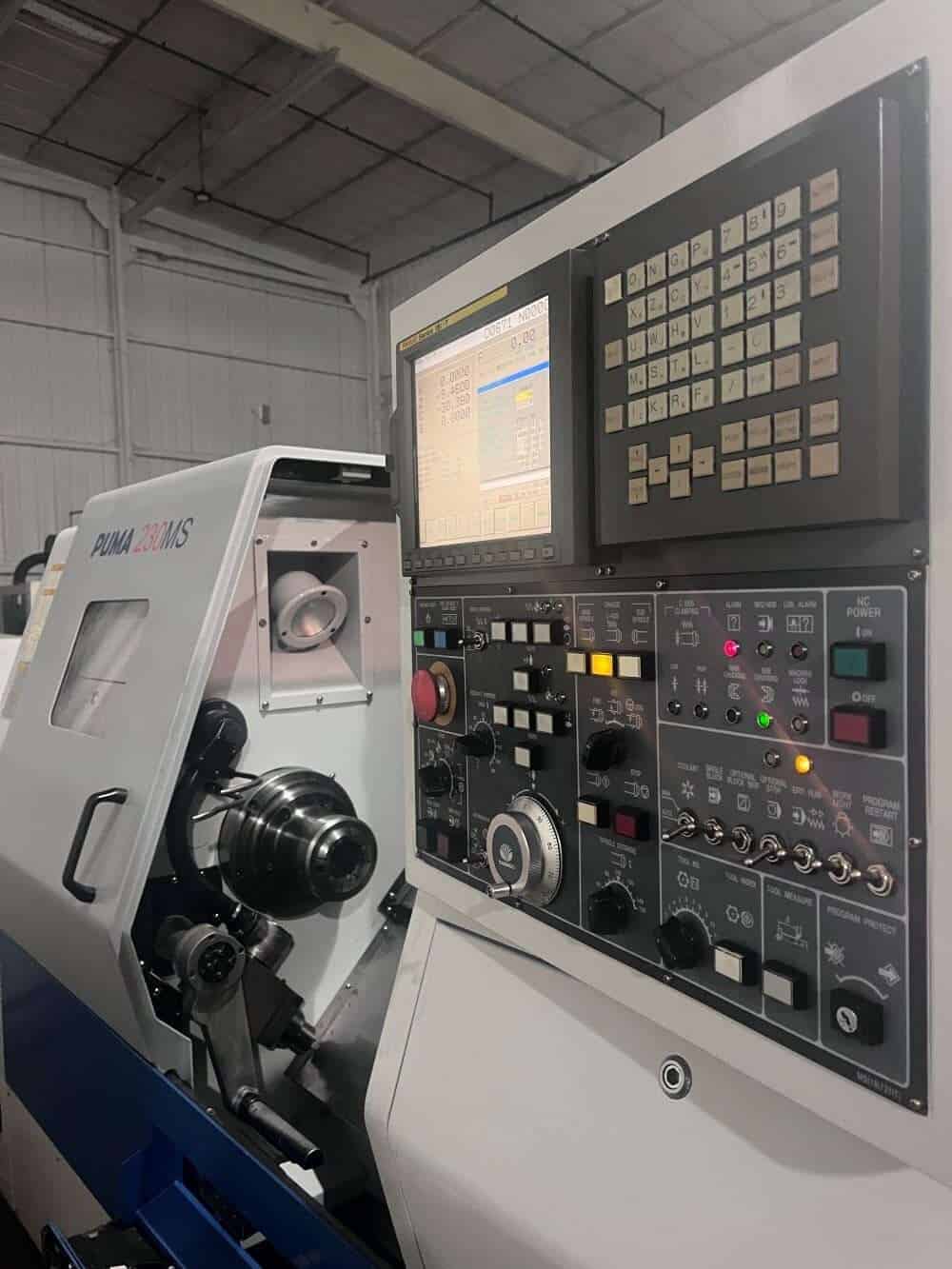

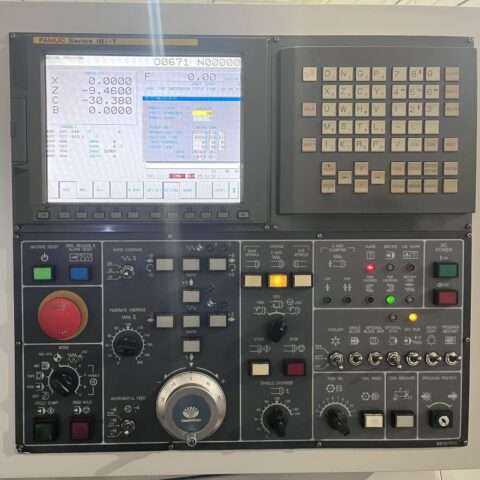

- Fanuc 18iT CNC Control

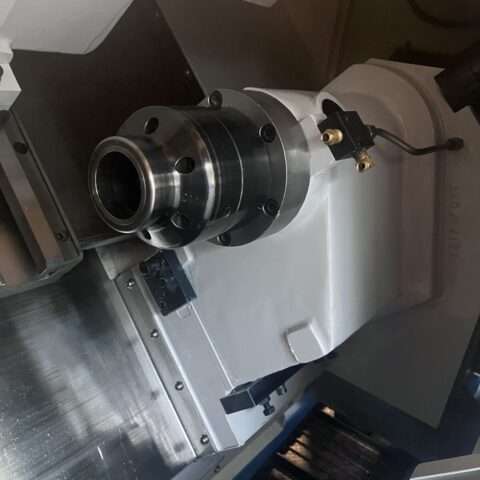

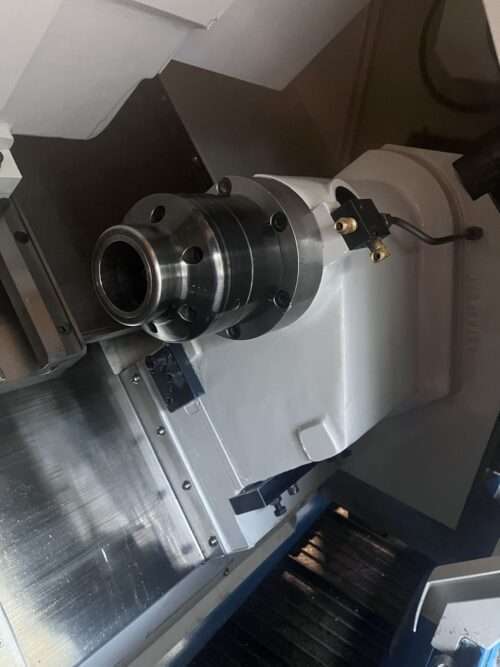

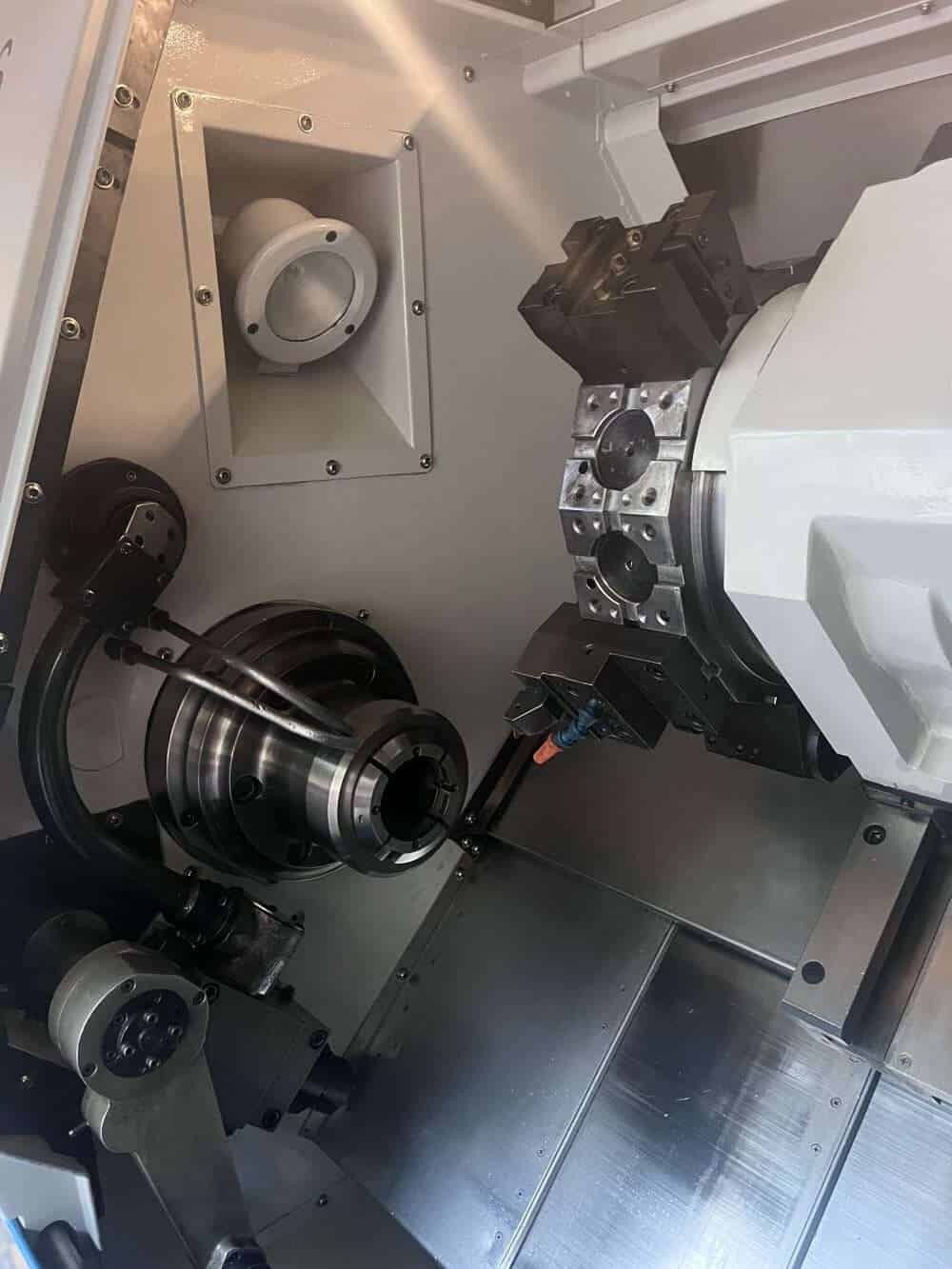

- Collet Chucks on Both Spindles

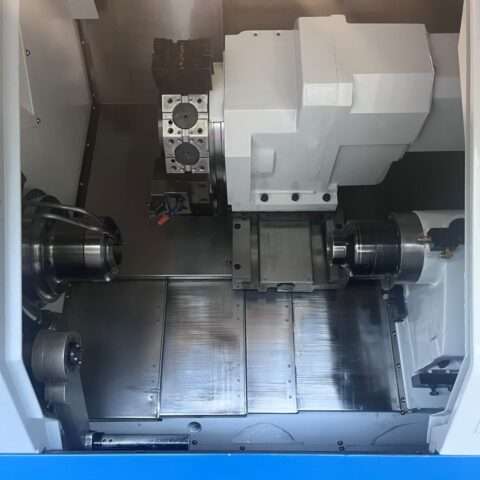

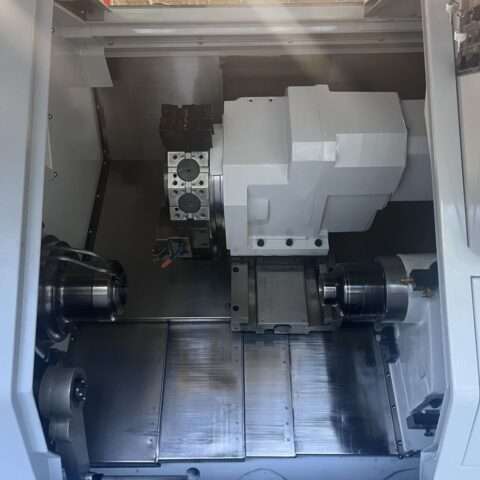

- Servo Controlled Full C-Axis on Both Spindles

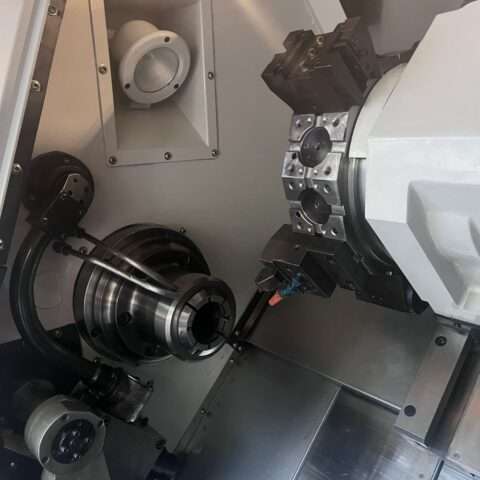

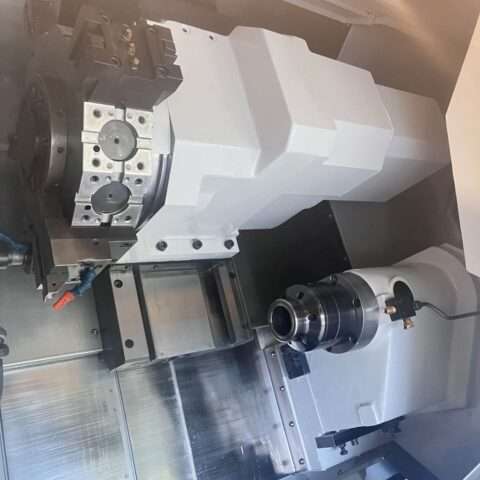

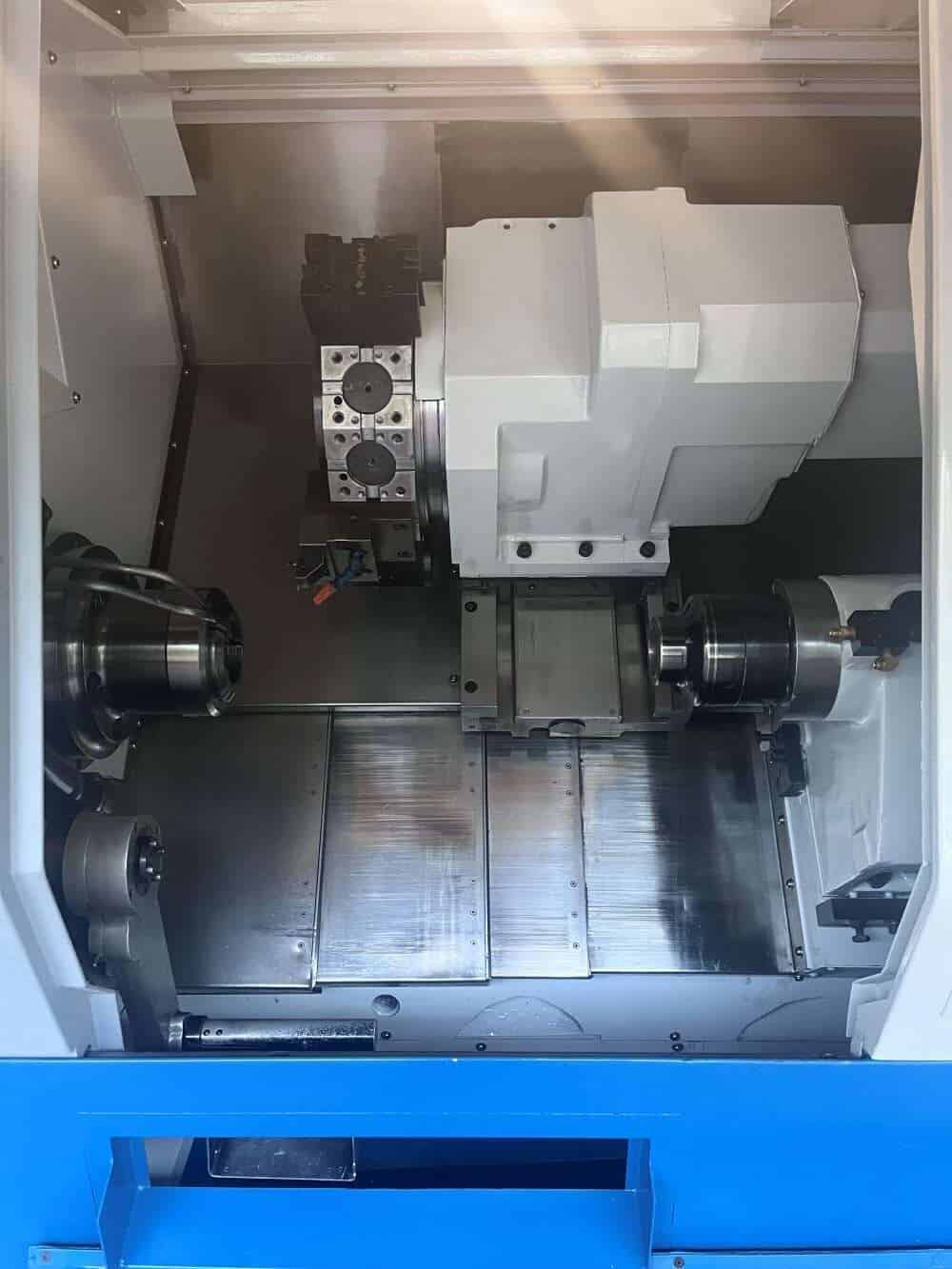

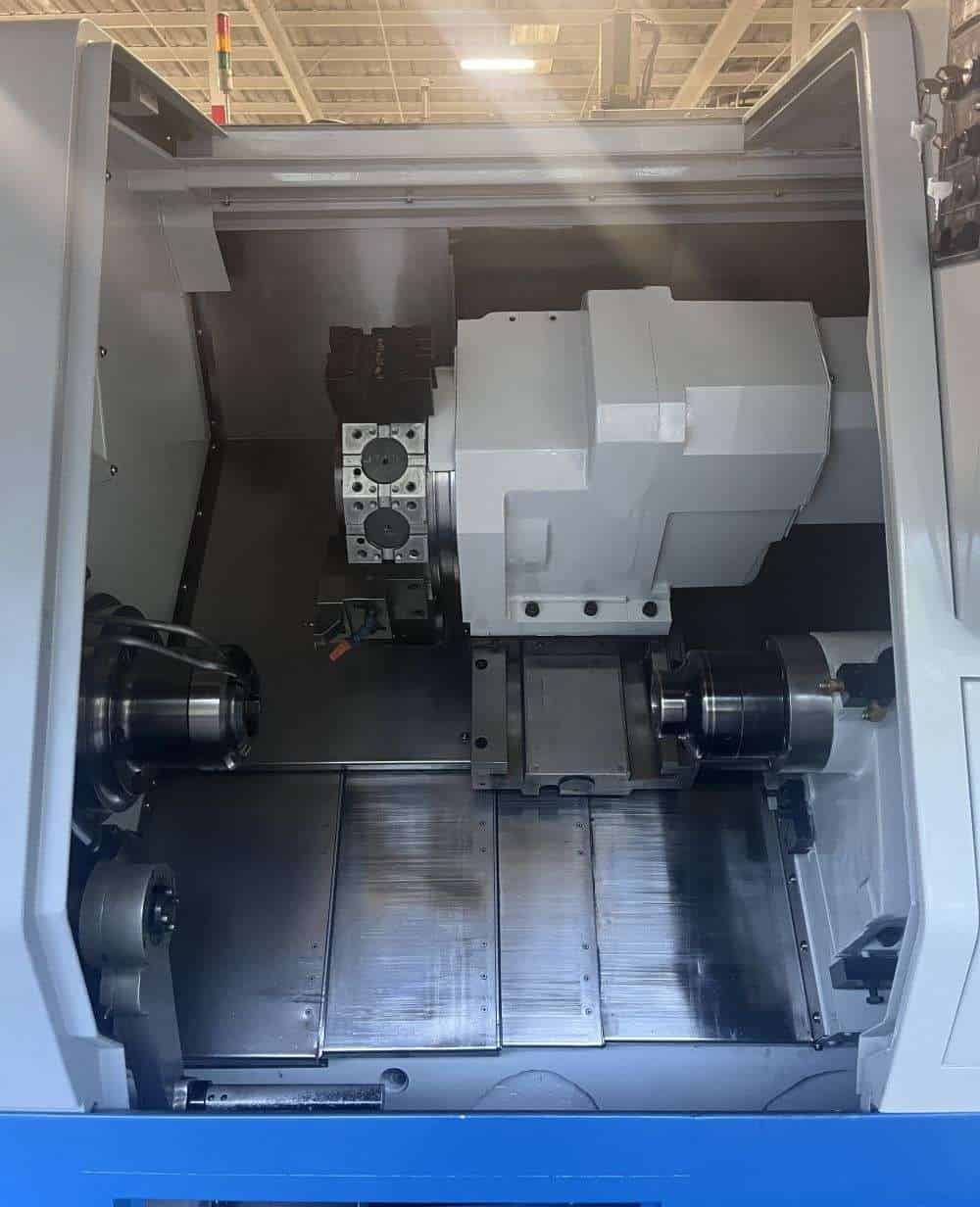

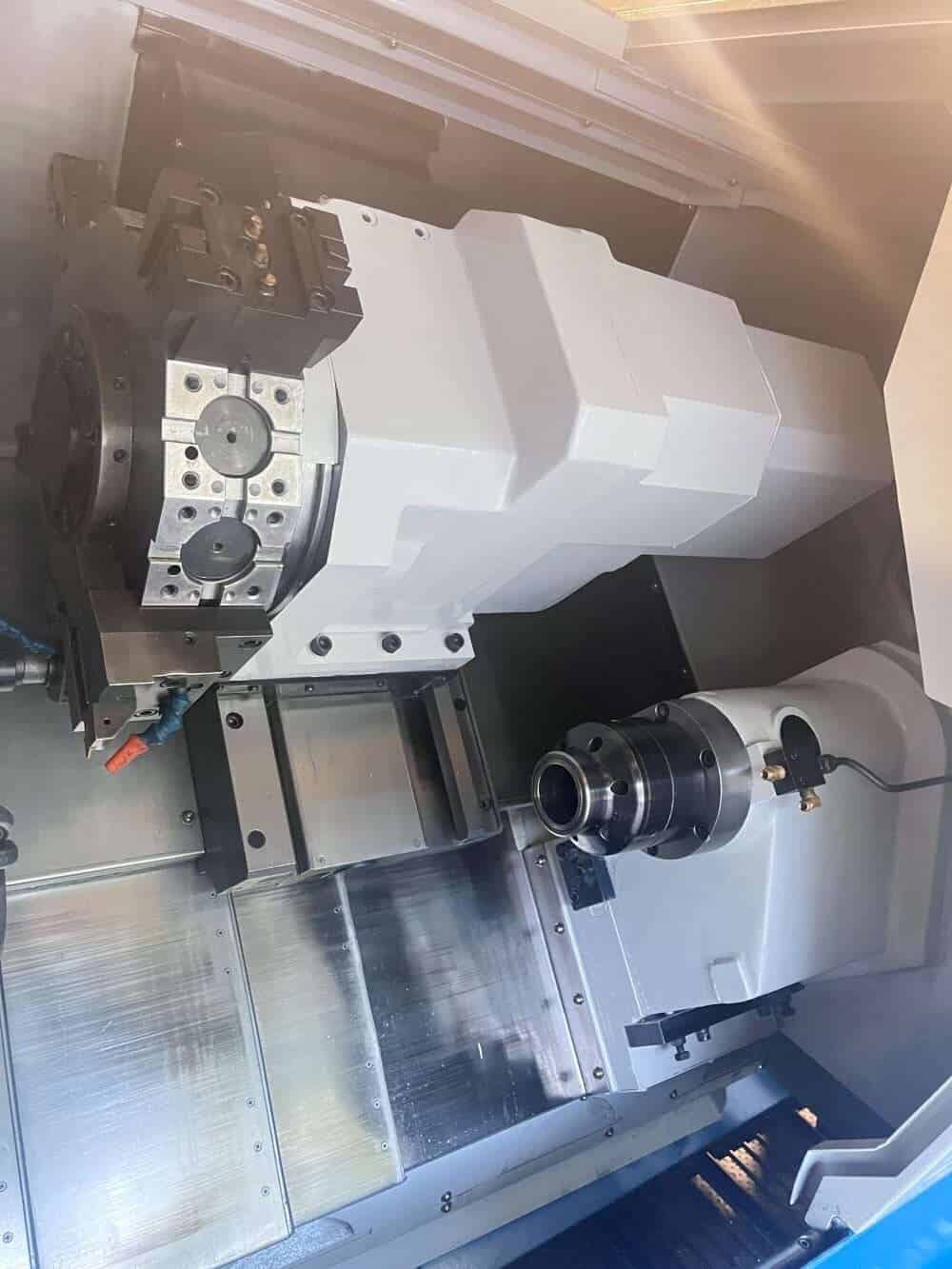

- 12 Station Live Tool Turret With Tool Holders
- Automatic Tool Presetter
- Parts Catcher
- Parts Conveyor
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- Spindle Orientation
- Rigid Tapping
- PCMCIA Card Slot
- Automatic Lubrication System
- Coolant System

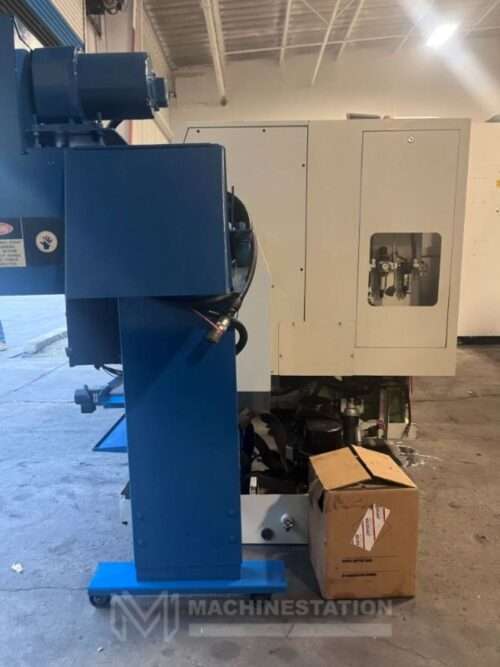

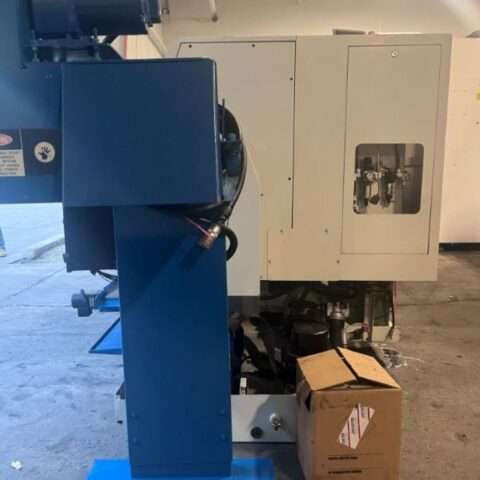

- Turbo Systems Chip Conveyor
|
| Capacity: |
- Max Turning Diameter: 11.81″
- Max Swing Over Bed: 21.65″
- Max Swing Over Saddle: 15.35″
- Max Turning Length: 19.37″
- Max Bar Capacity: 3.0″
|
| Travels: |
- X Axis Travel: 8.07″
- Z Axis Travel: 22.83″
- B Axis Travel: 18.90″ (Sub Spindle)
- C Axis Travel: 360 Degree (0.001) on Both Spindle
|
| Feedrate: |
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 984 IPM
- Rapid Traverse B Axis: 787 IPM
|
| Spindle: |
- Main Spindle Nose: A2-8
- Sub Spindle Nose: A2-6
- Main Spindle Bore: 3.54″
- Sub Spindle Bore: 1.77″
- Main Spindle Speed: 4500 RPM
- Sub Spindle Speed: 6000 RPM
- Main Spindle Motor: 15 HP
- Sub Spindle Motor: 7.5 HP
|
| Turret: |
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Live Tool Speed: 6000 RPM
- Live Tool Motor: 5 HP
|
| General: |

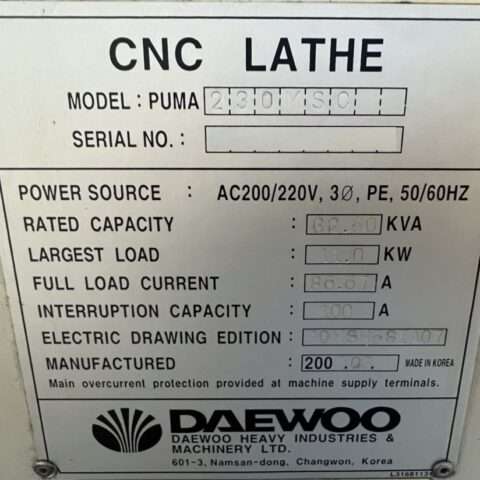

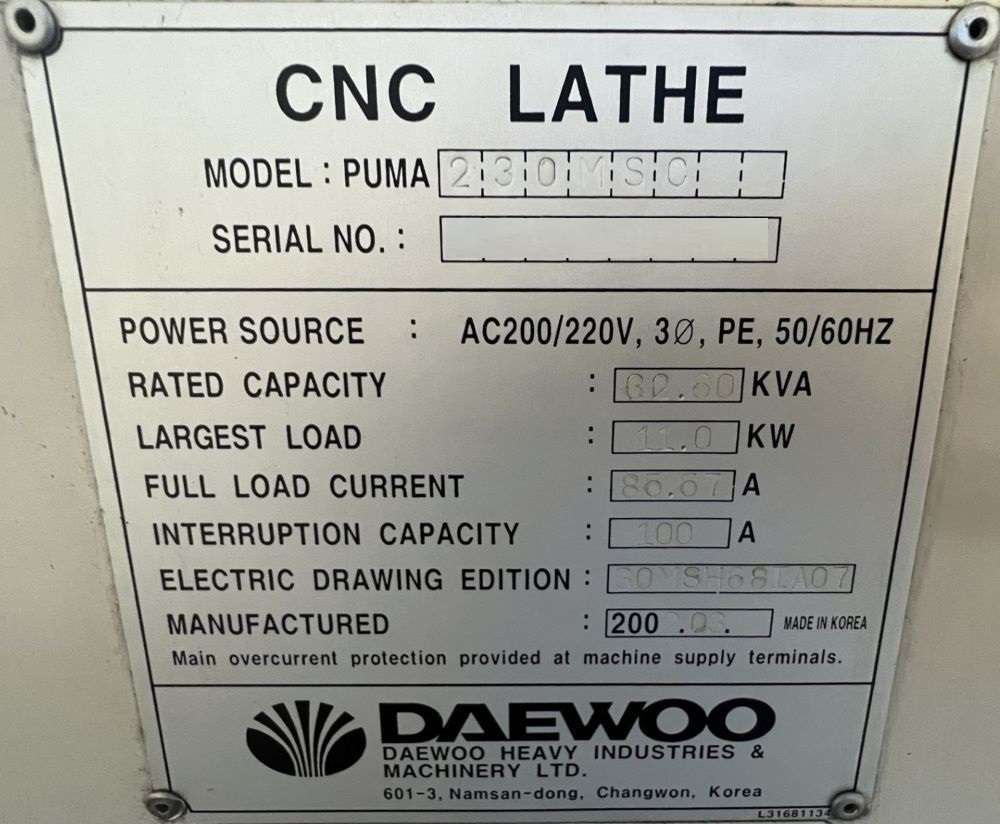

- Power Source: AC 220v / 3-Phase / 60 Hz
- Power Requirement: 40kva
- Overall Dimensions: 130″ x 67″ x 74″ High
- Overall Dimensions: 146″ x 67″ x 74″ High with Chip Conveyor
- Machine Weight: 9,500 lbs
|
