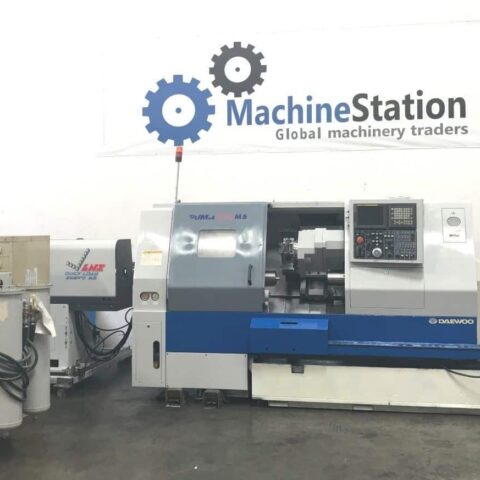

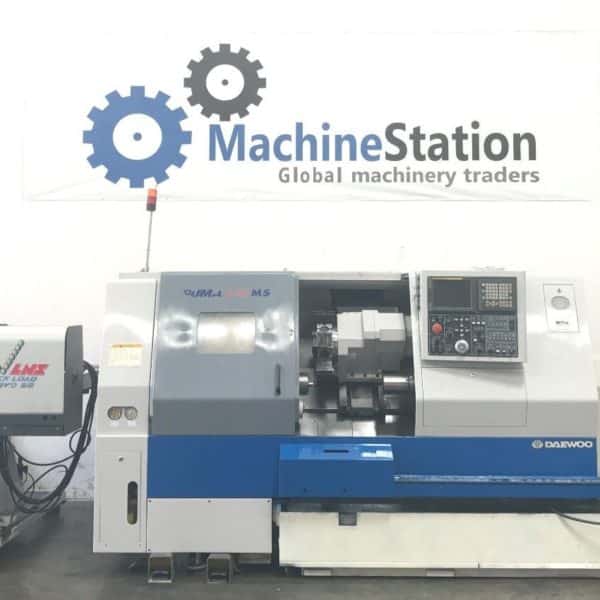

Daewoo Puma 230MSC Turn Mill Center

One Owner Machine, Fully powered / tested & in Great working condition. Equipped with 2 Collet Chucks, Full C Axis, Milling, Sub Spindle. Comes with Bar Feeder, chip conveyor, manuals, live tool holders.”

Share

Description

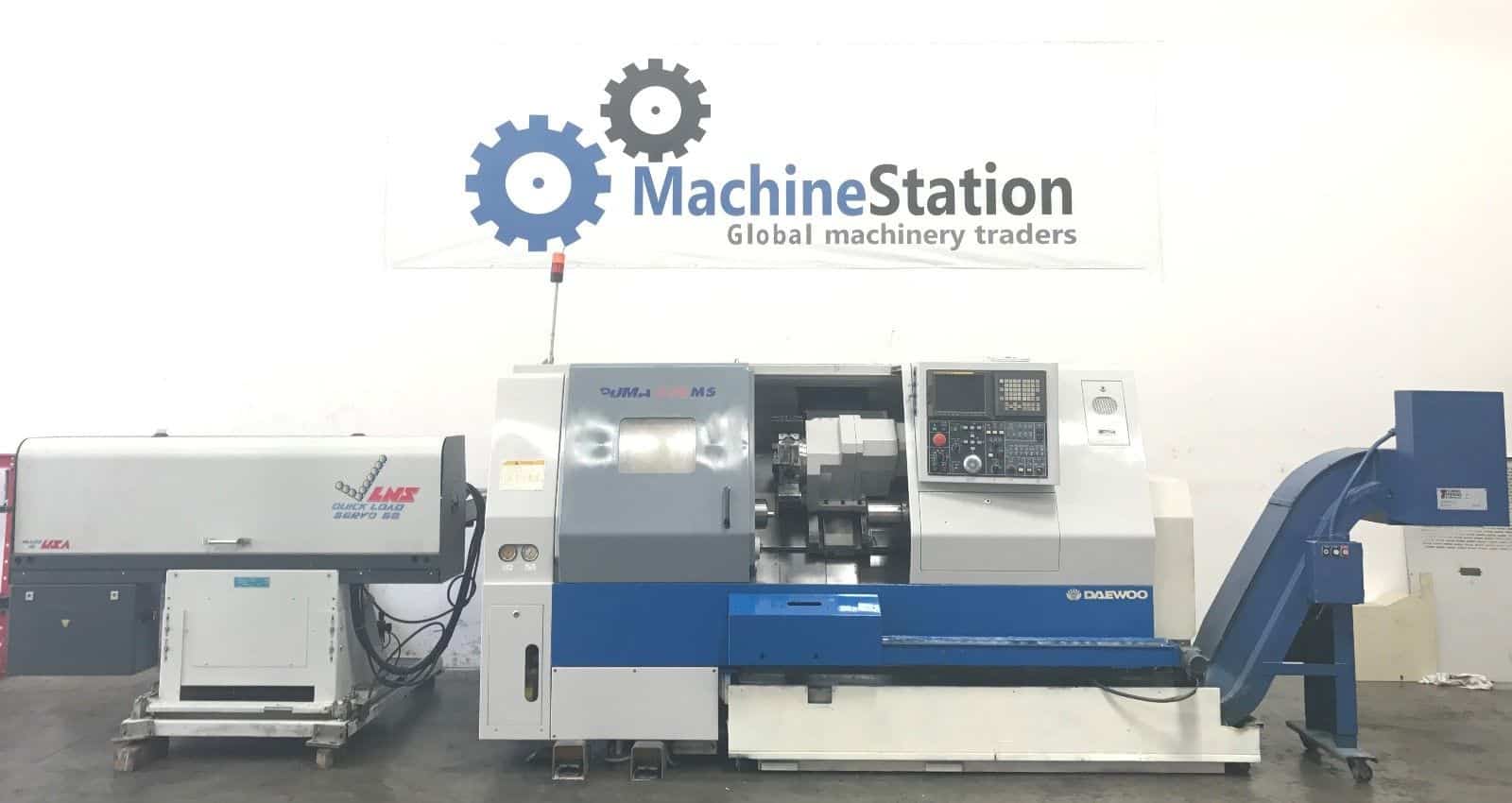

DAEWOO PUMA 230MSC CNC LIVE TURN MILL CENTER
Make Daewoo
Model No. Puma 230MSC
Year Of Manufacture: 01.07
Serial # 23MS2066
Condition Very Good.
Country of Origin: Korea

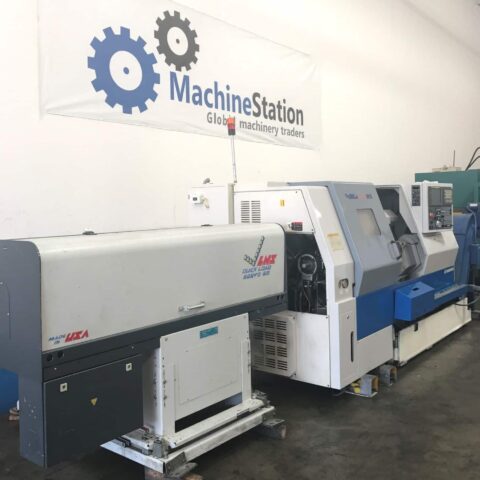

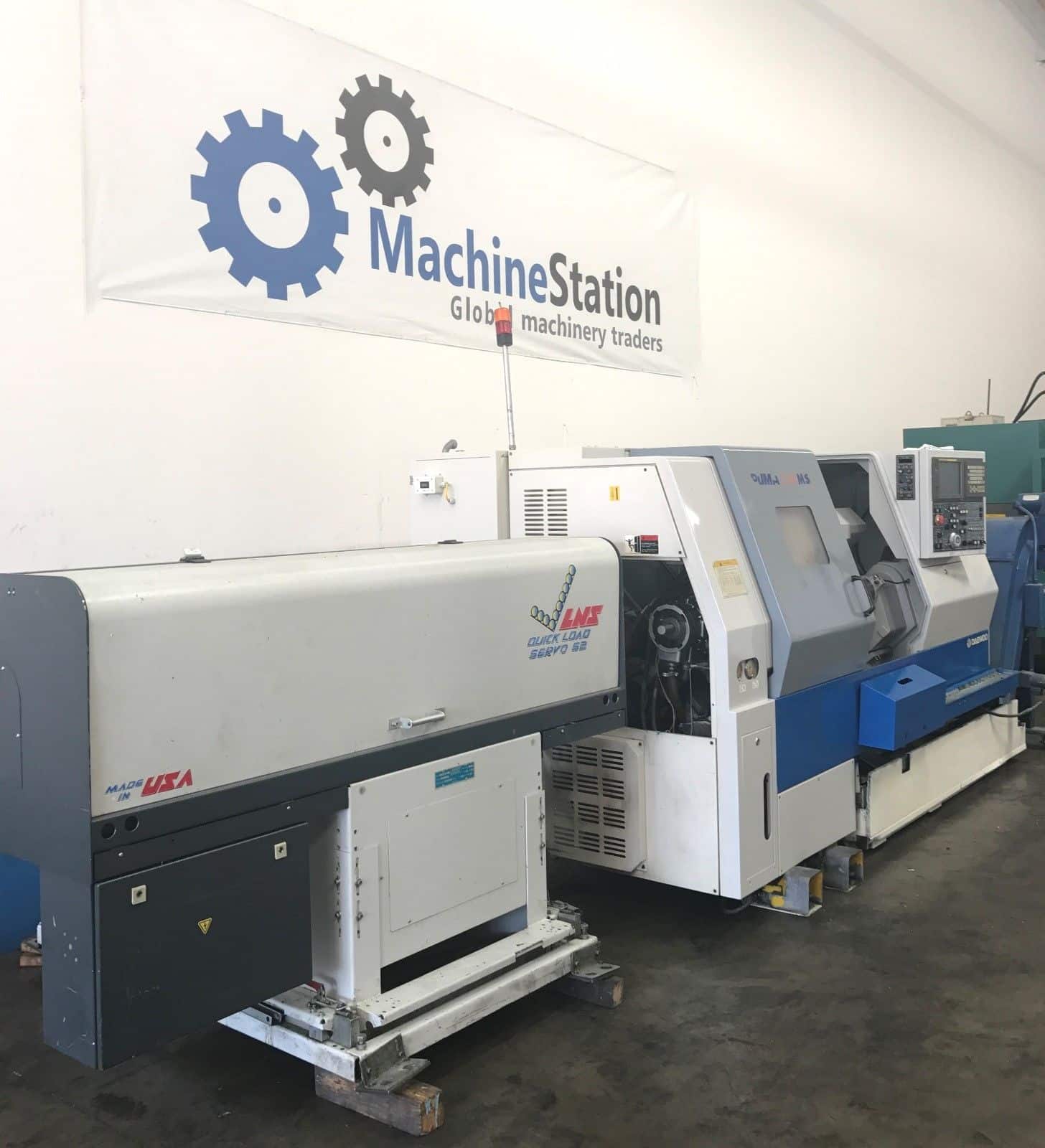

Comes with LNS Servo S2 Bar Feeder, Chip Blaster Unit

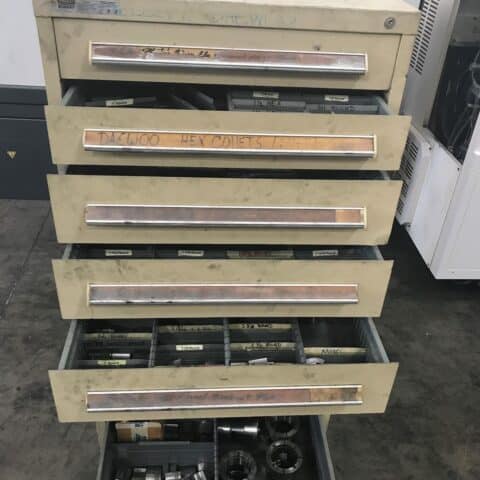

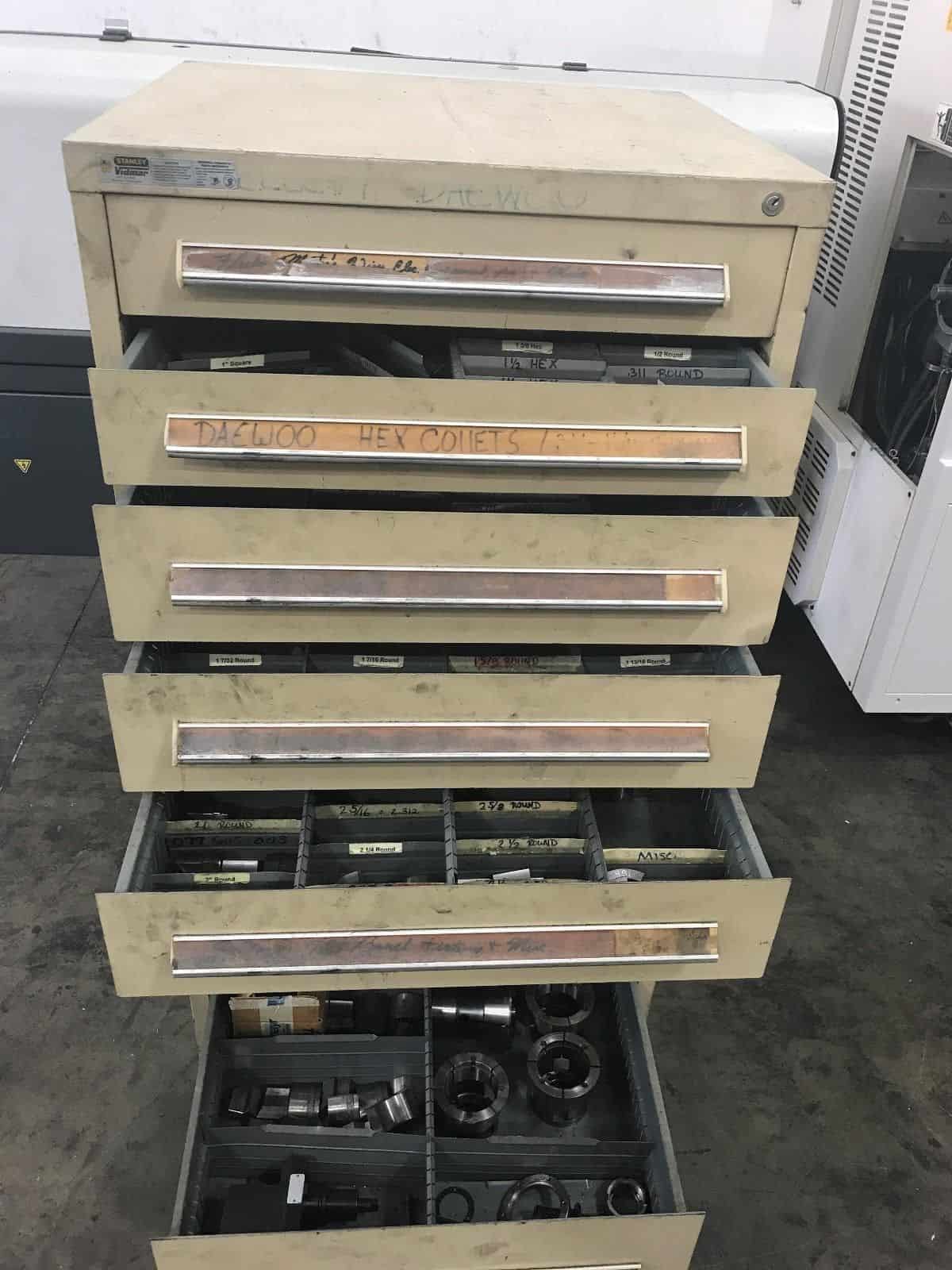

Cabinet full of Collets, Live Tool Holders and Tooling.

“One Owner Machine, Fully powered / tested & in Great working condition. Equipped with 2 Collet Chucks, Full C Axis, Milling, Sub Spindle. Comes with Bar Feeder, chip conveyor, manuals, live tool holders.”

  • DAEWOO PUMA 230MSC Equipped With:

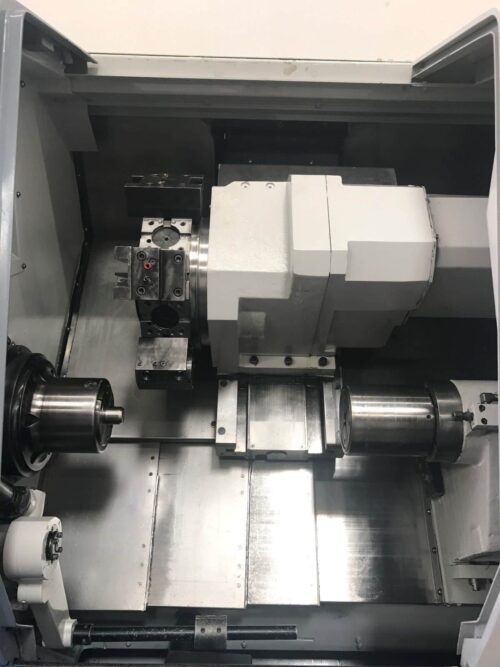

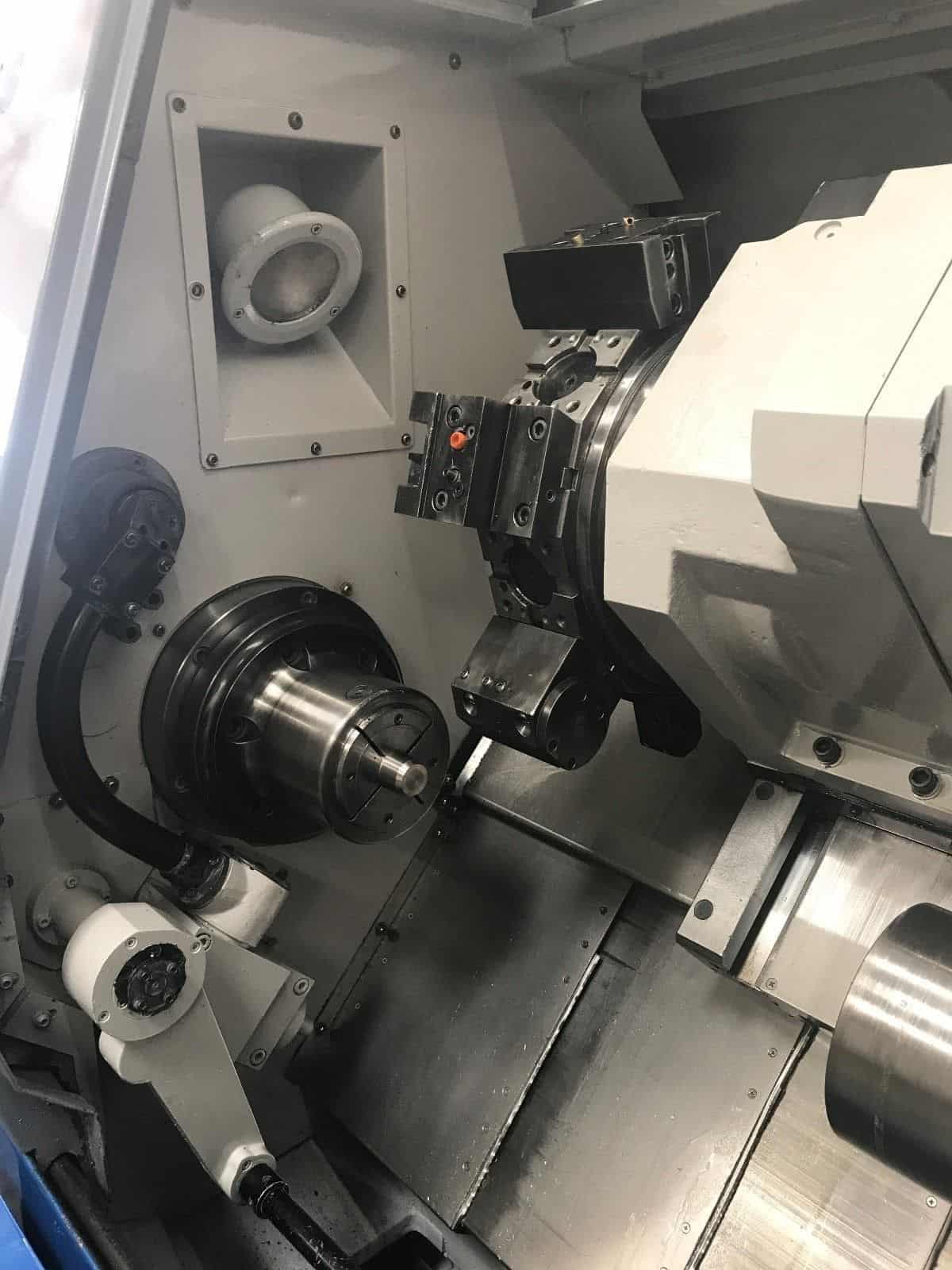

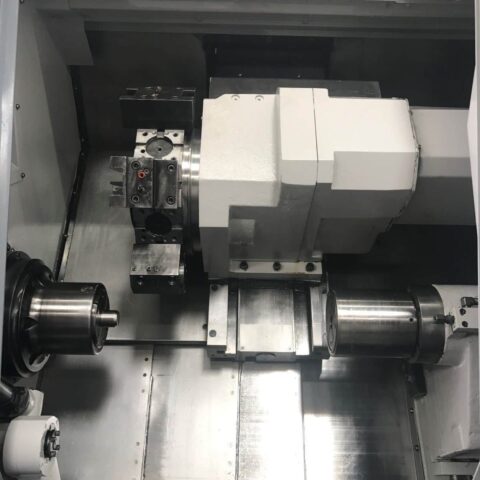

  • 12-Station Turret –  Live / Rotary Tools
  • Servo Controlled Full C-Axis on Both Spindles

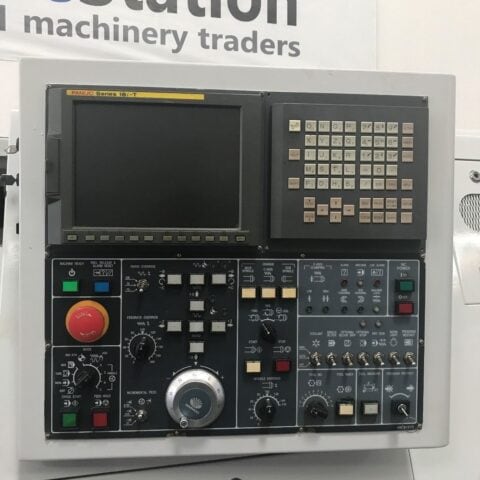

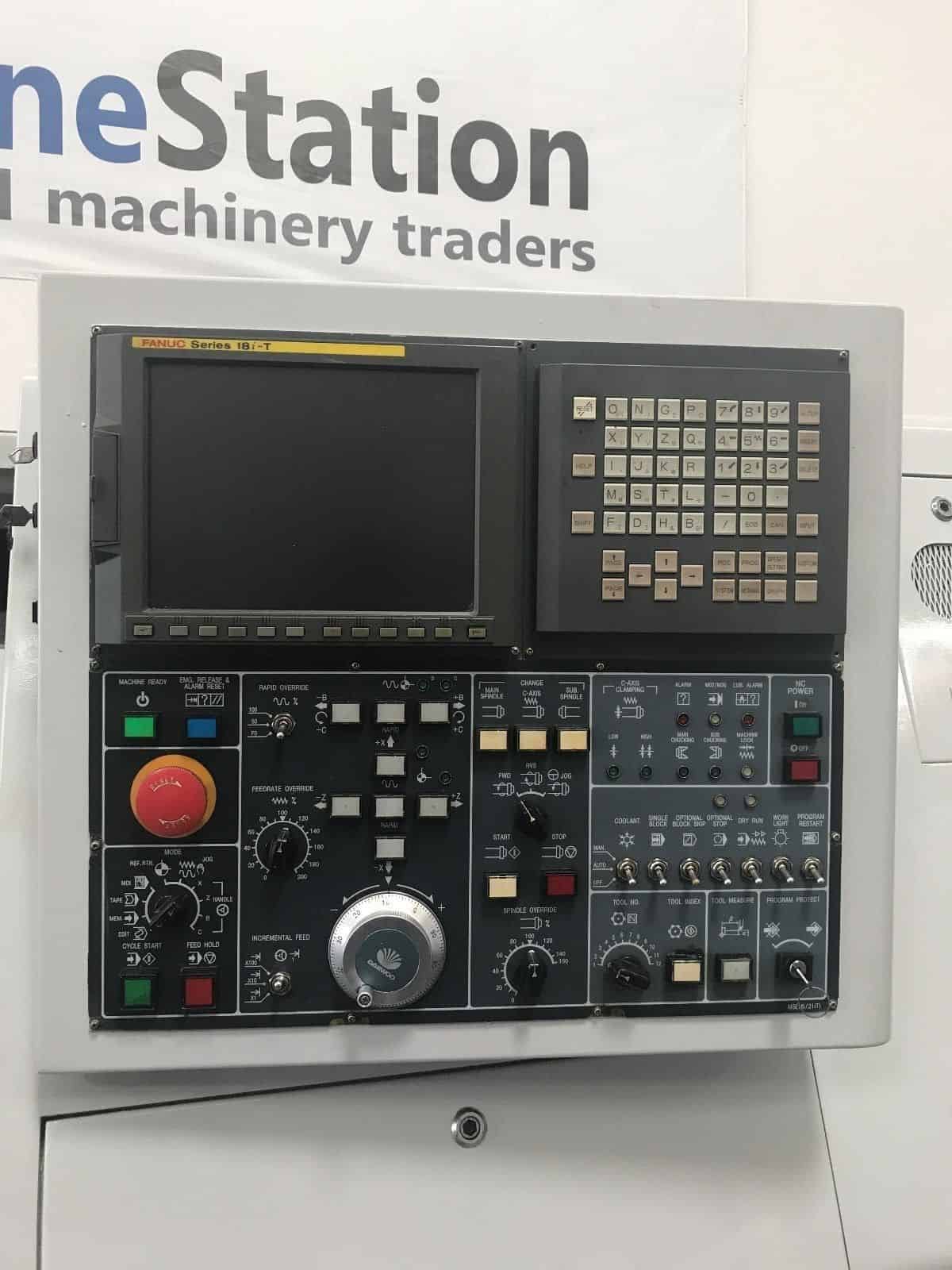

  • Fanuc 18iT CNC Control
  • PCMCIA Card Slot
  • Tool Presetter
  • Parts Catcher
  • Parts Conveyor

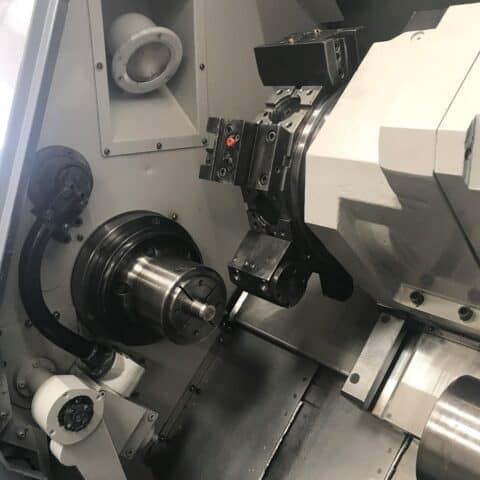

  • ATS Collet Chuck on Main Spindle

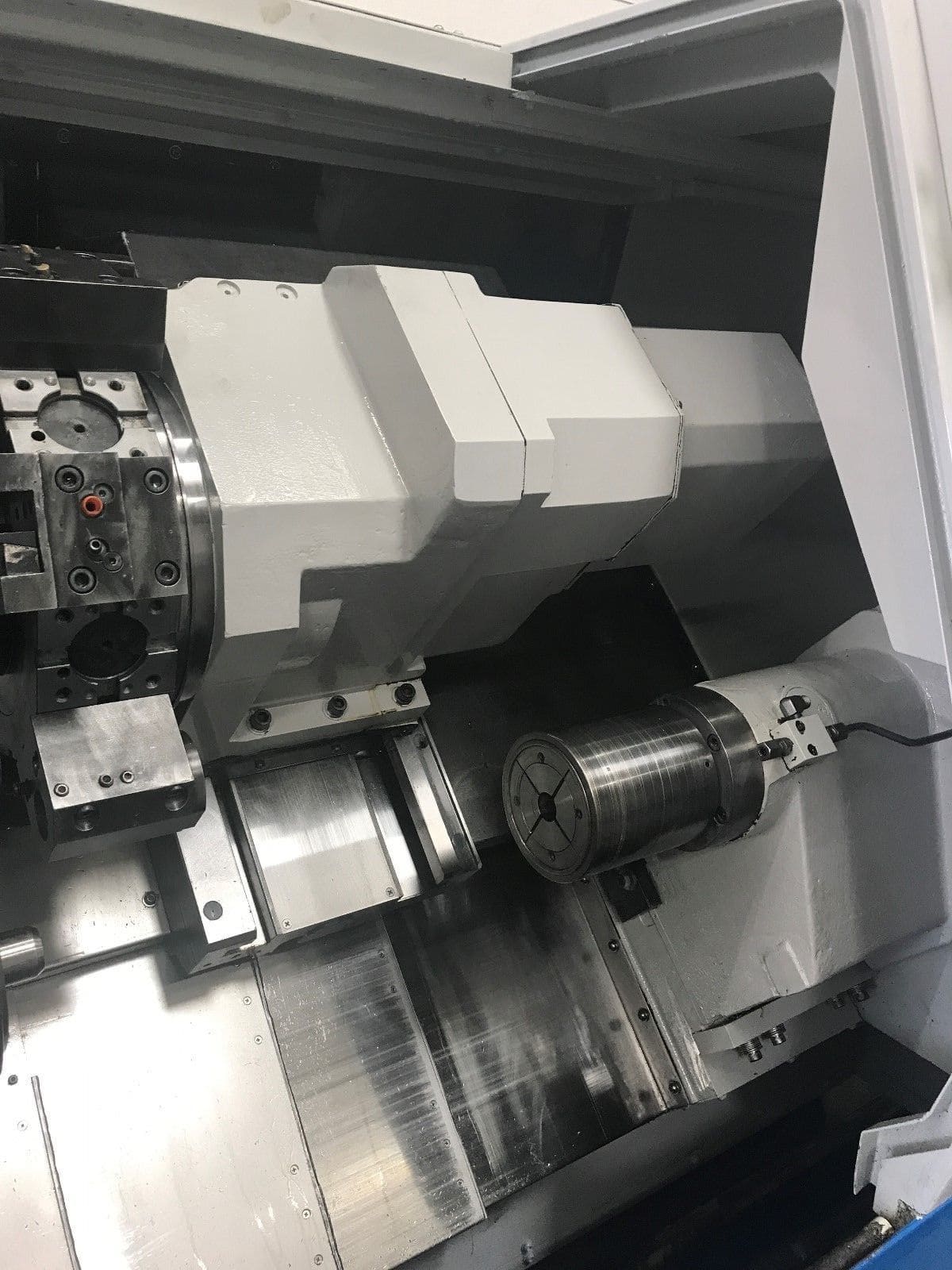

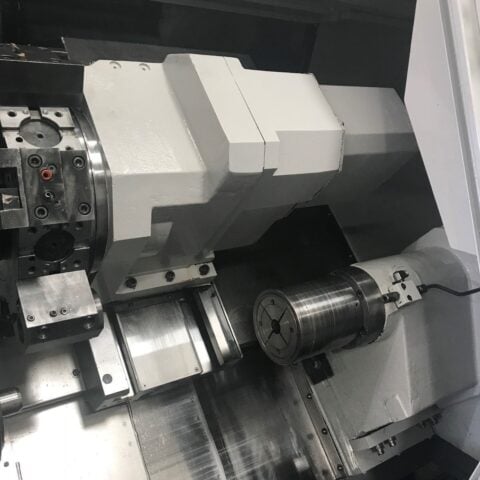

  • ATS 3J Collet Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • Turbo Systems Chip Conveyor

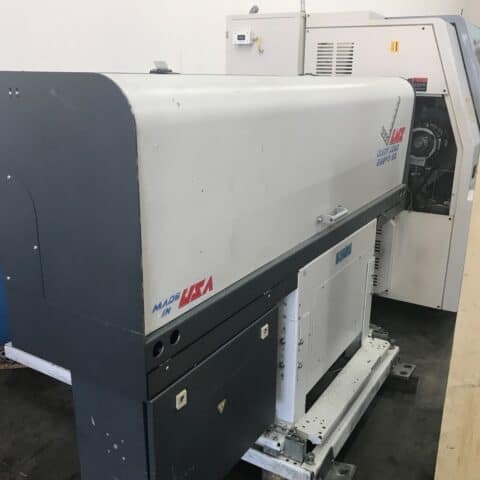

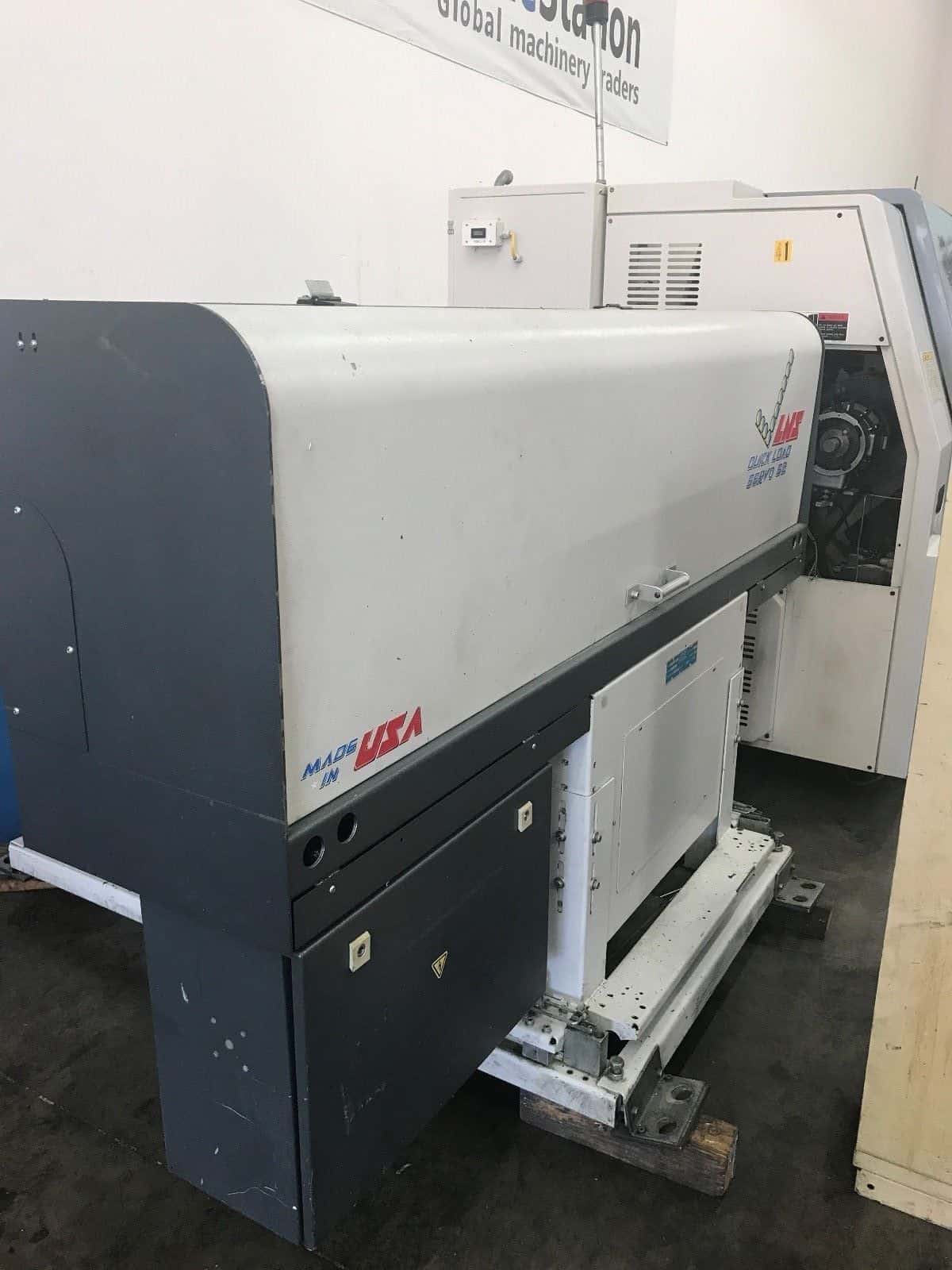

  • Comes with LNS Servo S2 Bar Feeder.
  • Comes with Live Tools & some Static Tool Holders.
  • All Available Collets, Tool Holders and Tooling.
  • DAEWOO PUMA 230MSC Specifications:
  • Max. Turning Diameter: 11.81″
  • Max. Swing over Bed: 21.7″
  • Max. Turning Length: 19.3″
  • Max. Bar Capacity: 3.0″
  • X-Axis Travel: 8.66″
  • Z-Axis Travel: 22.8″
  • Sub Spindle Travels: 18.90″
  • C-Axis: 360 Degree (0.001) on Both Spindle
  • X Rapid Traverse Rate: 740 Inch Per Minute
  • Z Rapid Traverse Rate: 945 Inch Per Minute
  • Spindle Bore: 3.54″
  • Sub Spindle Bore: 1.77″
  • Main Spindle Nose: A2-8
  • Sub Spindle Nose: A2-5
  • Main Spindle Speed: 60-3500 RPM
  • Sub Spindle Speed: 60-6,000 RPM
  • Live Tool Speed: 60-6,000 RPM
  • Main Spindle Power: 20 HP
  • Sub Spindle Power: 7.5 HP
  • Power Source: AC 200/220 V, Three Phase, 50/60 Hz
  • Power Requirement: 40kva
  • Weight : 9500 lbs Approx.
  • Overall Dimensions: 130″ x 67″ x 74″ High

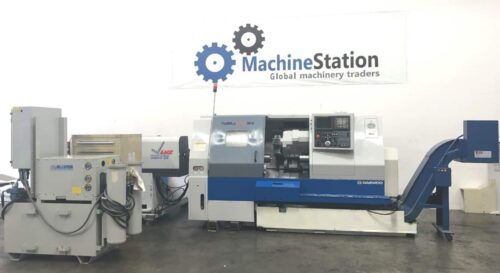

  • Overall Dimensions: 146″ x 67″ x 74″ High with Chip Conveyor

Comes as shown in pictures….
