OUT OF STOCK

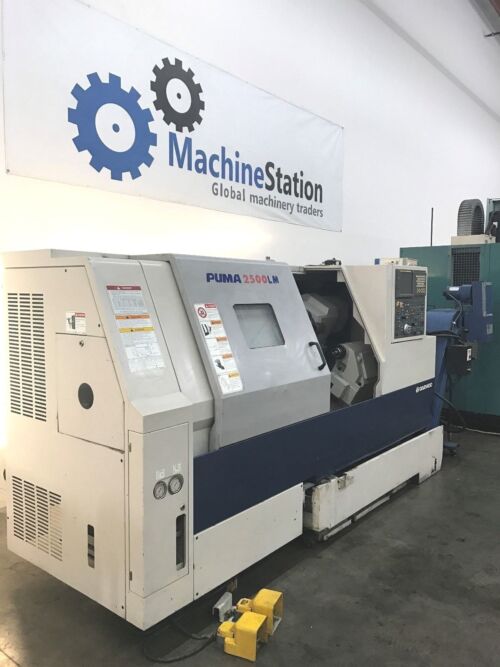

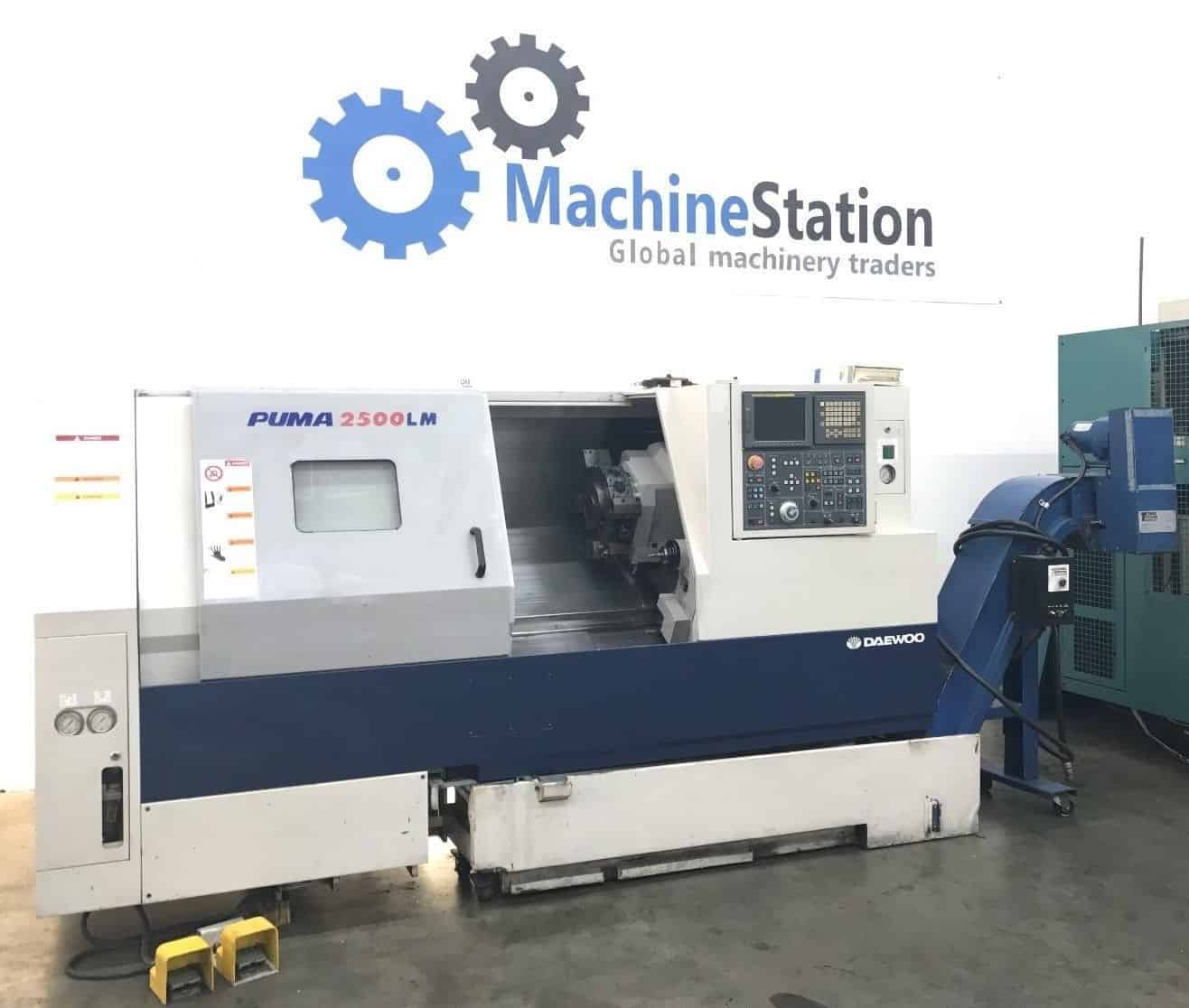

Daewoo Puma 2500LM CNC Turn Mill Center

Payments shown a 60 month term.*

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 10″ Chuck, Full C Axis, Milling. Comes with chip conveyor, live tool holders. check *VIDEO*

Share

Description

DAEWOO PUMA 2500LM CNC TURN MILL CENTER C AXIS 10″ LATHE

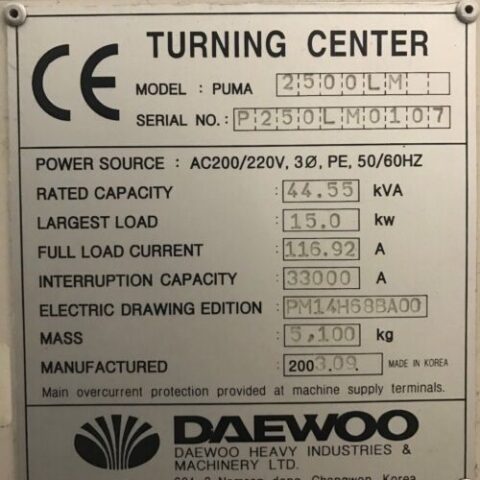

Make Daewoo
Model No. Puma 2500LM
Year Of Manufacture: 2003.09

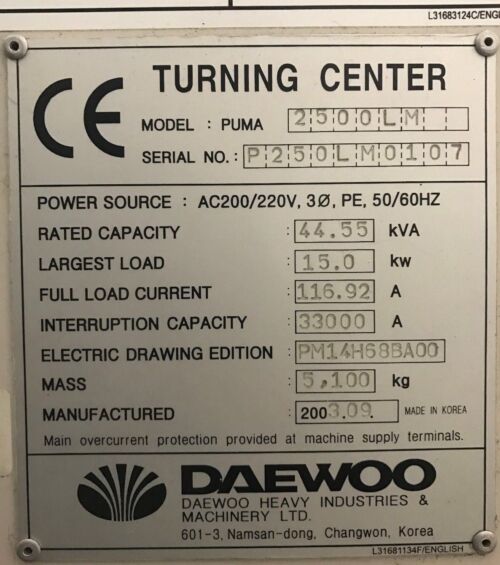

Serial # P250LM0107
Condition Very Good
Country of Origin: Korea

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 10″ Chuck, Full C Axis, Milling. Comes with chip conveyor, live tool holders. check *VIDEO*”

  • DAEWOO PUMA 2500LM Equipped With:

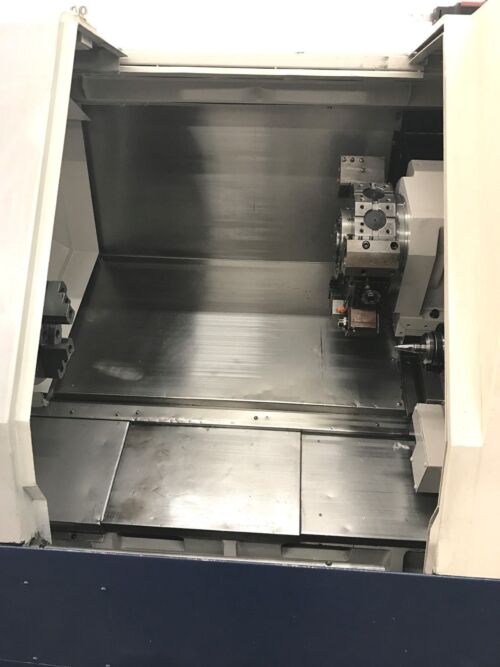

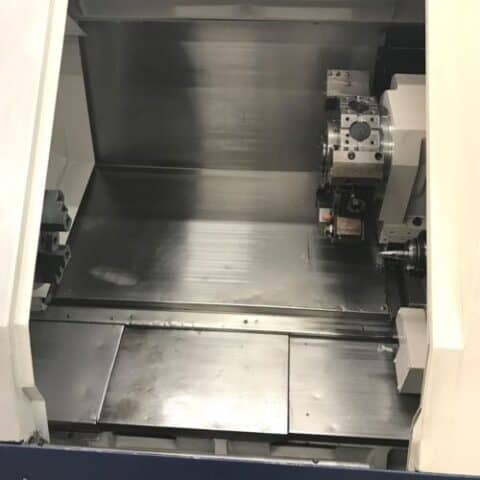

  • 12-Station Turret with Live Tools/ Milling
  • Box Ways Design Long Bed Machine

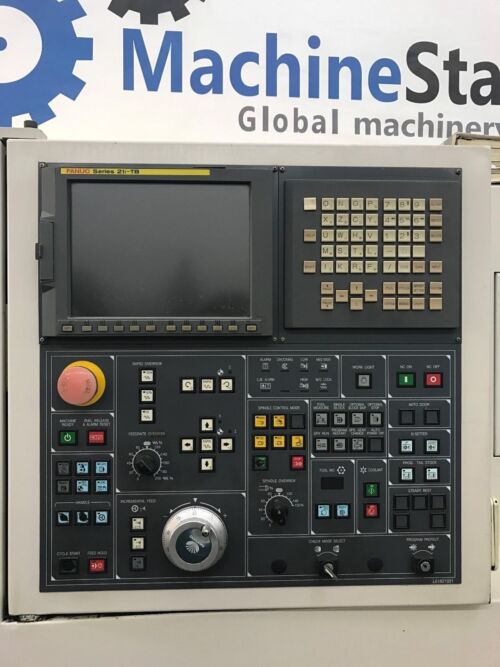

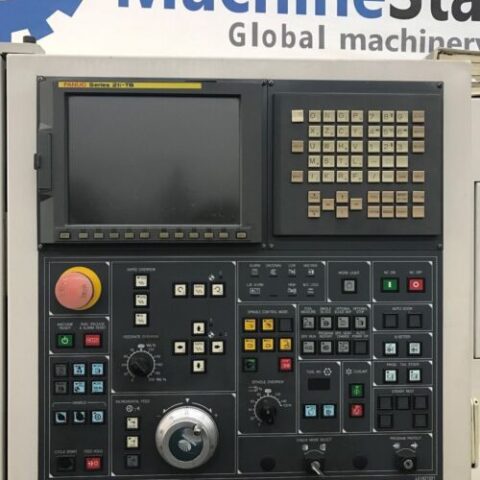

  • Fanuc 21-iTB CNC Control

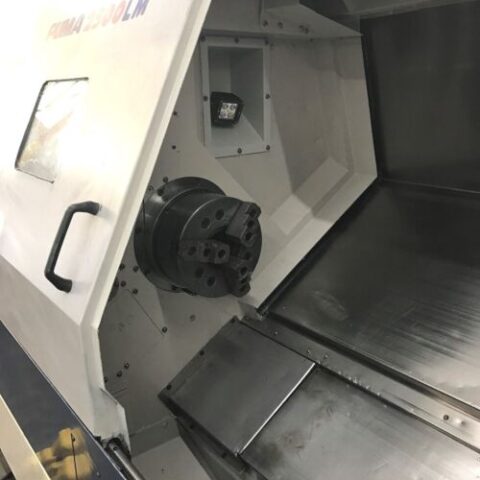

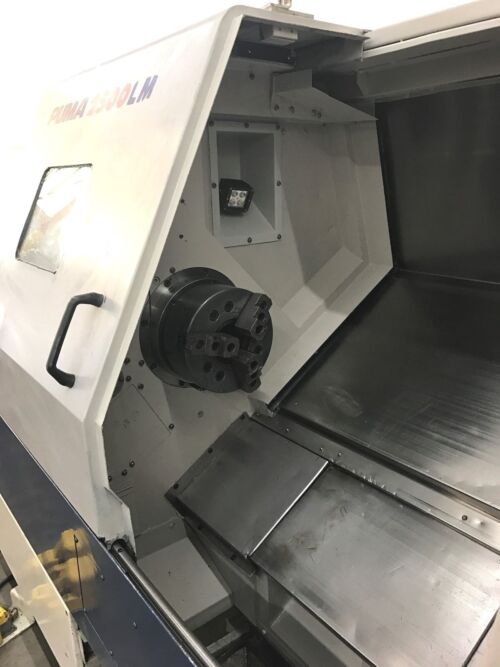

  • 10″ 3-Jaw Kitagawa Hydraulic Chuck
  • 2 Step gear spindle for powerful torque
  • Hydraulic Programmable Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • Coolant Tank
  • Comes with Chip Conveyor, Tool Holders, 2 Live Tools and Parameters Backup.
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 32kva
  • Overall Dimensions: 129″ x 71″ x 76″ High

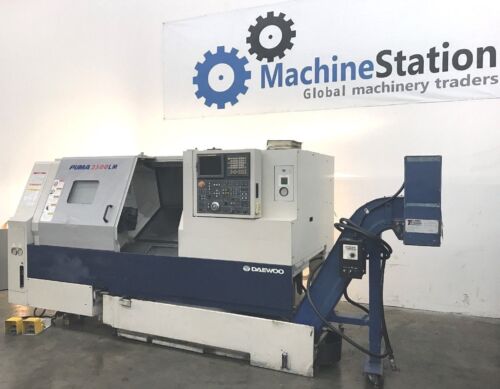

  • Overall Dimensions: 169″ x 71″ x 74″ High with Chip Conveyor
  • Weight : 11500 lbs Approx.
  • DAEWOO PUMA 2500LM Specifications:
  • Max Turning Diameter: 12.99″
  • Max Turning Length: 39.37″
  • Max Bar Capacity: 3.0″
  • Swing Over Carriage: 16.92″
  • Swing Over Bed: 23.62″
  • X Axis Travel: 9.84″
  • Z Axis Travel: 41.33″
  • C Axis: 0.001°
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.54″
  • Spindle Speed: 35 – 3500 RPM
  • Spindle Motor: 35 HP
  • Live Tooling Motor: 7.5HP
  • Live Tool Speed: 50-5,000 RPM
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock Quill Dia.: 3.93″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-4

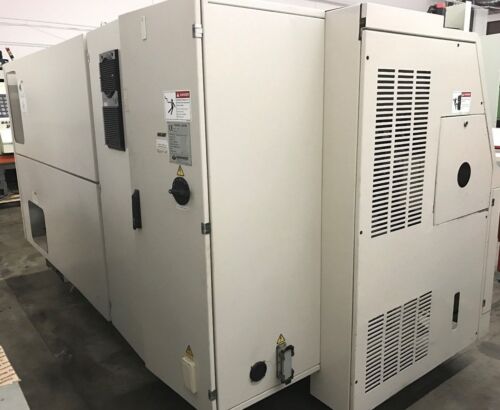

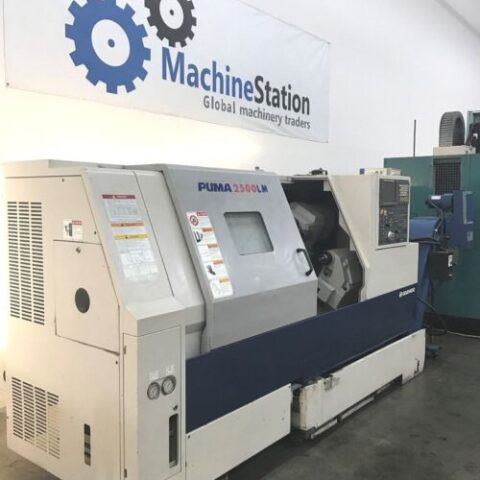

DAEWOO PUMA 2500LM Comes as shown in pictures.
